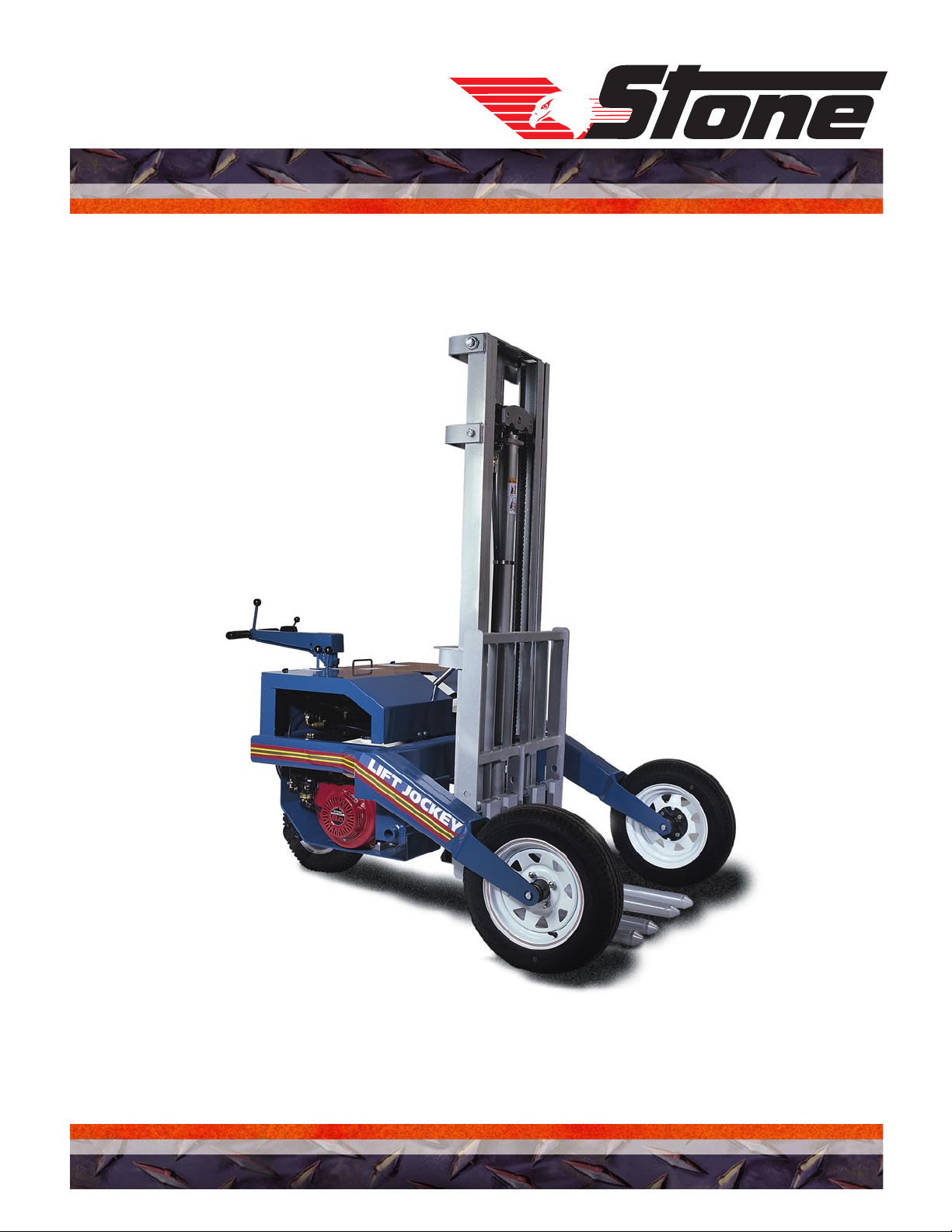

Stone Lift Jockey LJ100 Guide

SERVICE/PARTS MANUAL
MODELS: LJ100
REVISION: B 01/2002 PN 56489
Lift Jockey
A 100% employee-owned American manufacturer

- 3 -
Table of Contents Lift Jockey™
FOREWORD ................................................................................................................................... 4
LIMITED WARRANTY ................................................................................................................. 5
TECHNICAL DATA ....................................................................................................................... 6 - 11
Specifications .............................................................................................................................. 6
Machine Data/Lubrication Specifications .................................................................................. 7
Machine Sound Level ................................................................................................................. 8
Operator Controls........................................................................................................................
Imperial Torque Chart ................................................................................................................. 10
Metric Torque Chart .................................................................................................................... 11
Hardware Identification .............................................................................................................. 12
HEALTH & SAFETY ..................................................................................................................... 13-17
MAINTENANCE ............................................................................................................................. 18-31
Tasks ........................................................................................................................................... 18
Introduction ................................................................................................................................. 1
Know Your Lift ........................................................................................................................... 1
Fluids and Lubrication ................................................................................................................ 20-21
Lubrication Points ....................................................................................................................... 22
Engine ......................................................................................................................................... 23
Cooling System ........................................................................................................................... 24
Hydraulic Oil/Hydraulic Oil Filter ............................................................................................. 25
Hydraulic Breather Cap .............................................................................................................. 26
Tires/Lugnuts and Hardware ....................................................................................................... 26
Hardware Guidelines/Hoses, Fittings, Leakage ......................................................................... 26
Parking and Towing Machine ..................................................................................................... 26
Moving without Power ............................................................................................................... 27
Cleaning and Storage .................................................................................................................. 27
Periodic Maintenance Schedule .................................................................................................. 28-2
Service Record ............................................................................................................................ 30
Troubleshooting .......................................................................................................................... 31
EXPLODED DIAGRAM AND PARTS LIST ............................................................................... 32-65
Frame Assembly ......................................................................................................................... 34-35
Tilt Cylinder & Valve Assembly ................................................................................................. 36-37
Cowl Assembly ........................................................................................................................... 38-3
Front Wheel Assembly ................................................................................................................ 40-41
Hydraulic Tank Assembly ........................................................................................................... 42-43
Engine Assembly ......................................................................................................................... 44-45
Drive Axle & Steering Assembly ................................................................................................ 46-47
Steering Handle Assembly .......................................................................................................... 48-4
Control Linkage Assembly .......................................................................................................... 50-51
Mast Assembly ............................................................................................................................ 52-55
Lift Frame Assembly ................................................................................................................... 56-57
Hydraulic Piping Schematic ....................................................................................................... 58-5
Hydraulic System Schematic ...................................................................................................... 60-61
Electrical Wiring Schematic ....................................................................................................... 62-63
Decal Identification/Location ..................................................................................................... 64-67
CALIFORNIA PROPOSITION 65 WARNING ........................................................................... I C

- 4 -
User Information
These instructions include:
Safety regulations
Operating instructions
Maintenance instructions
These instructions have been prepared for
operation on the construction site and for the
maintenance engineer.
These instructions are intended to simplify
operation of the machine and to avoid
malfunctions through improper operation.
Observing the maintenance instructions will
increase the reliability and service life of the
machine when used on the construction site
and reduce repair costs and downtimes.
Always keep these instructions at the place
of use of the machine.
Only operate the machine as instructed and
follow these instructions.
Observe the safety regulations as well as the
guidelines of the civil engineering trade
association. Observe the safety rules for
operation and the pertinent regulations for
the prevention of accidents.
Stone Construction Equipment, Inc. is not
liable for the function of the machine when
used in an improper manner or for other
than the intended purpose.
Operating errors, improper maintenance
and the use of incorrect operating materials
are not covered by the warranty.
The above information does not extend the
warranty and liability conditions of business
of Stone Construction Equipment, Inc.
Stone Construction Equipment, Inc.
P.O. Box 150, Honeoye, New Yor 14471
Phone: [phone]
Fax: [phone]
Foreword
1. Machine Type: ______________________________
Machine S/N: _______________________________
2. Engine Type: _______________________________
Engine S/N: ________________________________
3. VIN: ______________________________________
4. Purchase Date: ______________________________
. Dealer/Distributor Information:
Name: _____________________________________
Address: ___________________________________
__________________________________________
Phone #: ___________________________________
Fax #: _____________________________________
6. Battery
Manufacturer: ______________________________
Battery Type: _______________________________
Battery S/N: ________________________________
Location of above information:
1. Information on S/N tag.
2. Information on engine tag.
3. Information on S/N tag - if applicable.
4. Date you purchased machine.
. Dealer machine was purchased from.
6. Information on battery and battery warranty
card.

- 5 -
L i m i t e d W a r r a n t y
The Manufacturer warrants that products manufactured shall be free from defects in material and
workmanship that develop under normal use for a period of 90 days for concrete vibrators and electric
pumps, one year for Rhino®, Bulldog®, WolfPac Rollers, trowels, Stompers®, saws, forward plates,
engine powered pumps, Lift Jockey, Mortar Liftand 6 months for all other products from the date
of shipment. The foregoing shall be the exclusive remedy of the buyer and the exclusive liability of the
Manufacturer. Our warranty excludes normal replaceable wear items, i.e. gaskets, wear plates, seals, O-
rings, V-belts, drive chains, clutches, etc. Any equipment, part or product which is furnished by the
Manufacturer but manufactured by another, bears only the warranty given by such other manufacturer.
(TheManufacturer extendsthe warranty periodto “Lifetime”for the drumbearings andseals for the mortar
equipments,and agrees tofurnish,free of charge,thebearings andsealsonly upon receiptofthe defective
parts.The warranty istwo years foreccentric bearings onthe forward platecompactors, mortar andplaster
equipment drums, trowel gearboxes and five years on the Bulldog trench roller eccentric bearings.) A
Warranty Evaluation Form must accompany all defective parts. Warranty is voided by product abuse,
alterations, and use of equipment in applications for which it was not intended, use of non-manufacturer
parts, or failure to follow documented service instructions. The foregoing warranty is exclusive of all other
warranties whether written or oral, expressed or implied. No warranty of merchantability or fitness for a
particular purpose shall apply. The agents, dealer and employees of Manufacturer are not authorized to
makemodification to thiswarranty, oradditionalwarranties bindingonManufacturer. Therefore, additional
statements, whether oral or written, do not constitute warranty and should not be relied upon.
TheManufacturer’ssole responsibility foranybreachofthe foregoing provisionofthiscontract,with respect
toany product orpart notconforming to theWarranty orthe description hereincontained, isat its option(a)
to repair, replace or refund such product or parts upon the prepaid return thereof to location designated
specifically by the Manufacturer. Product returns not shipped prepaid or on an economical transportation
basis will be refused (b) as an alternative to the foregoing modes of settlement - the Manufacturer’s dealer
to repair defective units with reimbursement for expenses, except labor, and be reviewed with the
Manufacturer prior to repair. A Warranty Evaluation Form must accompany all warranty claims.
Except as set forth hereinabove and without limitation of the above, there are no warranties or other
affirmations which extends beyond the description of the products and the fact hereof, or as to operational
efficiency, product reliability or maintainability or compatibility with products furnished by others. In no
event whether as a result of breach of contract or warranty or alleged negligence, shall the Manufacturer
beliable forspecial or consequentialdamages includingbut not limitedto: Loss of profits orrevenues, loss
of use of the product or any associated product, cost of capital, cost of substitute products, facilities or
services or claims of customers.
Noclaim will beallowed for productslost or damagedin transit. Such claimsshould be filedwith the carrier
within fifteen days.
Effective September 2001.
9/01 P/N 51018
Stone Construction Equipment, Inc.
32 East Main Street, P. O. Box 150
Honeoye, NY 14471-0150
Bred Tough, Technology Born To Work.
The Way It Ought To Be.
Phone: [phone]  1-716-229- 141
Fax: [phone]
www.stone-e uip.com  e-mail: [email protected]

- 6 -
TECHNICAL DATA
Stone Lift Jockey™ – Specifications
Specifications
Model LJ100
Base Weight (Kg) 750 (340)
Mast Weight - 7’6" lbs(Kg) 400 lbs (182)
- 8’6" lbs (Kg) 430 lbs (195)
- 9’6" lbs (Kg) 475 lbs (215)
Length (cm) 78" (198)
Width (cm) 53" (134,6)
Mast (Lift Height) (m) 7’ 6" (2,3)
8’ 6" (2,6)
9’ 6" (2,9)
Lowered Height (clearance) (m) 5’ 9" (1,8)
6’ 3" (1,9)
6’ 9" (2,1)
Raised Height (clearance) (m) 10’ 9" (3,3)
11’ 9" (3,6)
12’ 9" (3,9)
Mast Capacity at 12" load
center - 7’6" (Kg) 1,500 lbs (680)
- 8’6" (Kg) 1,500 lbs (680)
- 9’6" (Kg) 1,200 lbs (544)
Mast Tilt Forward 4o
Mast Tilt Rear 6o
Wheelbase (cm) 51 (129,5)
Engine 8 hp Honda
RPM 3400
Speed (km/h) 3 mph (4,8)
Turning Raduis (cm) 58" (147)
Fuel Tank (l) 1.6 gal (6,1)
Hydraulic Capacity (l) 6 gal (22,7)
Options Foam-filled Tires
- Pallet Forks 22, 28 1/4", 36"
- Block Forks 22"

- 7 -
TECHNICAL DATA Machine Data
Engine Type 8 hp 4-Stroke, Overhead Valve, Single
Cylinder
Engine Make Honda
Engine Model GX240
Max Torque @ 2500 RPM 12.3 ft lb (16.8 Nm)
Idle Speed
Operating Speed 1400 RPM min 3400 RPM + 100
Battery 12 volt System Battery BCI Group U1-12 165 cca 5 amp Charge System
Fuel Type Gasoline 86 Octane minimum
Fuel Tank Capacity 1.6 gal (6 l)
Fuel Consumption 1.14 gph
Spark Plug NGK BPR6ES gap .028 -.031” (.7 - .8 mm)
LUBRICATION SPECIFICATIONS
Type Quantity
Engine Crankcase SAE 30 1.16 quart/1.1 liter
Hydraulic System Mobil 424 Hydraulic Oil 6 gal/22.7 liter

- 8 -
TECHNICAL DATA Machine Sound Level
MACHINE SOUND LEVEL TEST
Machine Type: Lift Jockey LJ100
Sound Level Meter Calibration Date: February 15, 2000
Meter Type: Simpson Model 886-2 Type 2
Test Date: October 31, 2001
Test Conditions
Temperature: 50 degrees Fahrenheit / 10 degree Celsius
Ambient Sound: dba fast mode
Soil Condition: Silts and clays
Moisture Limit: Approximately equal to 50%
Engine speed: 3400 rpm / 56 Hz
Test Site; Honeoye, New York USA
Sound Level at Operator Position: 95 dba

- -

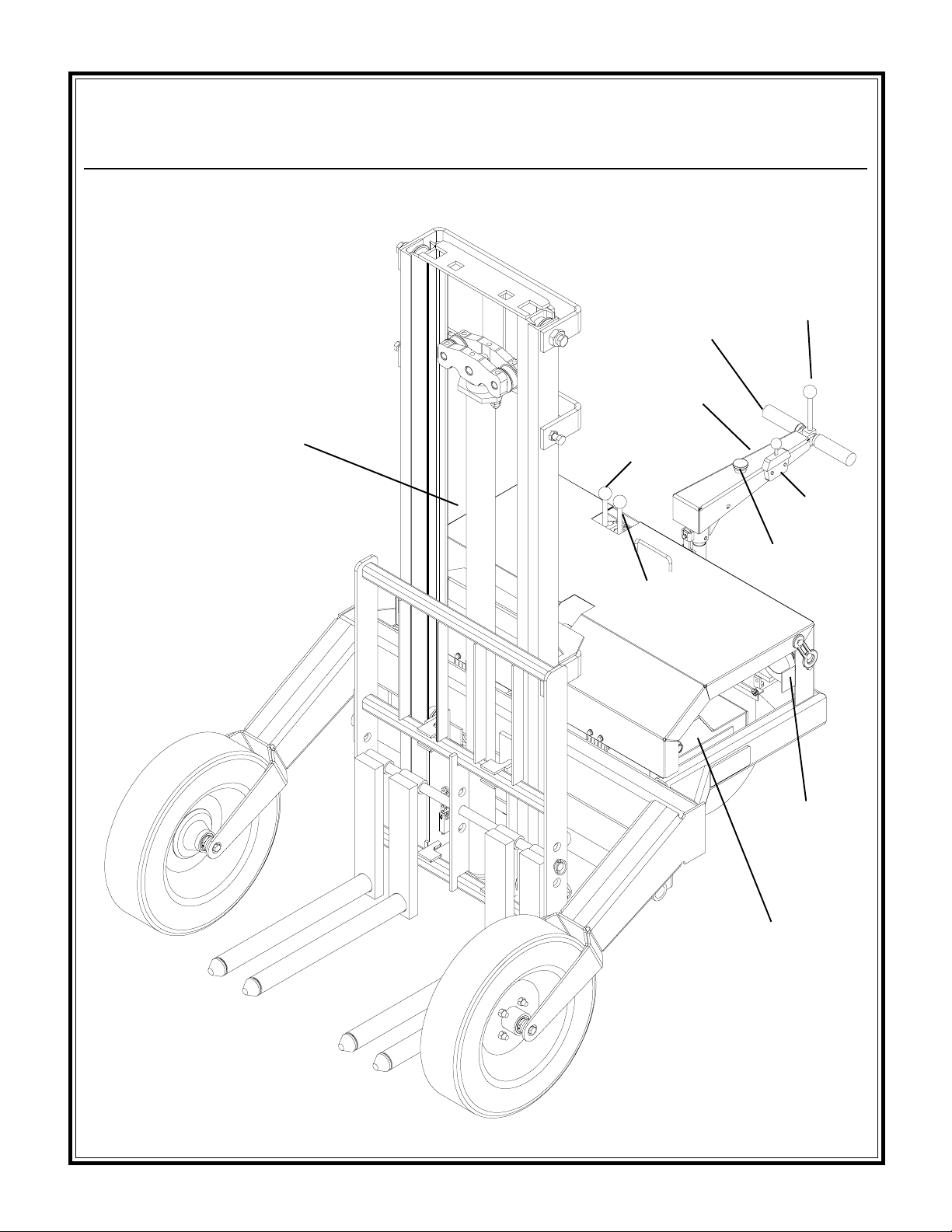

TECHNICAL DATA Operator Controls
Hydraulic Oil Cap
& Sight Gauge
Fwd/Rwd
Tilt Control
Up/Down
Lift Control
Direction Shift
Throttle
ir Cleaner
Fuel Cap
Fuel Valve
Choke
On/Off Switch
(located at engine)
Steering Control
Horn
E-Stop
Horn
Button
One-piece all welded steel frame pro-
vides low center of gravity for maximum
stability.
Familiarization with locations and
operation of controls is necessary before
attempting to operate this vehicle.

- 10 -
TECHNICAL DATA Imperial Torque Chart
SAE GRADE 5
Coarse Thread, Zinc-Plated SAE GRADE 8 Coarse Thread, Zinc-Plated
SIZE TORQUE SIZE TORQUE
ft. lbs. Nm ft. lbs. Nm
1/4 - 20 (.250) 681/4 - 20 (.250) 912
5/16 - 18 (.3125) 13 18 5/16 - 18 (.3125) 18 24
3/8 - 16 (.375) 23 31 3/8 - 16 (.375) 33 45
7/16 - 14 (.4375) 37 50 7/16 - 14 (.4375) 52 70
1/2 - 13 (.500) 57 77 1/2 - 13 (.500) 80 108
9/16 - 12 (.5625) 82 111 9/16 - 12 (.5625) 115 156
5/8 - 11 (.625) 112 152 5/8 - 11 (.625) 159 215
3/4 - 10 (.750) 200 271 3/4 - 10 (.750) 282 382
7/8 - 9 (.875) 322 436.5 7/8 - 9 (.875) 454 615
1 - 8 (1.000) 483 655 1 - 8 (1.000) 682 925
SAE GRADE 5
Fine Thread, Zinc-Plated SAE GRADE 8 Fine Thread, Zinc-Plated
SIZE TORQUE SIZE TORQUE
ft. lbs. Nm ft. lbs. Nm
1/4 - 28 (.250) 7101/4 - 28 (.250) 10 14
5/16 - 24 (.3125) 14 19 5/16 - 24 (.3125) 20 27
3/8 - 24 (.375) 26 35 3/8 - 24 (.375) 37 50
7/16 - 20 (.4375) 41 56 7/16 - 20 (.4375) 58 79
1/2 - 20 (.500) 64 87 1/2 - 20 (.500) 90 122
9/16 - 18 (.5625) 91 123 9/16 - 18 (.5625) 129 175
5/8 - 18 (.625) 128 173 5/8 - 18 (.625) 180 244
3/4 - 16 (.750) 223 302 3/4 - 16 (.750) 315 427
7/8 - 14 (.875) 355 481 7/8 - 9 (.875) 501 679
1 - 12 (1.000) 529 717 1 - 12 (1.000) 746 1011
1 -14 (1.000) 541 733 1 -14 (1.000) 764 1036
t-chrt_i.doc

- 11 -
TECHNICAL DATA Metric Torque Chart
Property Class 8.8
ZINC-PLATED Coarse Thread Fine Thread
SIZE Nm ft. lbs. Nm ft. lbs.
M6 9.9 7 NA NA
M8 24 18 25 18
M10 48 35 49 36
M12 83 61 88 65
M14 132 97 140 103
M16 200 148 210 155
M20 390 288 425 313
M24 675 498 720 531
Property Class 10.9
ZINC-PLATED Coarse Thread Fine Thread
SIZE Nm ft. lbs. Nm ft. lbs.
M6 14 10 NA NA
M8 34 25 35 26
M10 67 49 68 50
M12 117 86 125 92
M14 185 136 192 142
M16 285 210 295 218
M20 550 406 600 443
M24 950 701 1000 738
Property Class 12.9
ZINC-PLATED Coarse Thread Fine Thread
SIZE Nm ft. lbs. Nm ft. lbs.
M6 16.5 12 NA NA
M8 40 30 42 31
M10 81 60 82 60
M12 140 103 150 111
M14 220 162 235 173
M16 340 251 350 258
M20 660 487 720 531
M24 1140 841 1200 885
Conversion Factor: 1 ft. lb. = 1.3558 Nm

- 12 -
TECHNICAL DATA Hardware

- 13 -
HEALTH & SAFETY Safety Precautions
Before using this equipment, study this entire manual to
become familiar with its operation. Do not allow
untrained or unauthorized personnel, especially children,
to operate this equipment. Use only factory authorized
parts for service.
FOLLOW SAFETY INSTRUCTIONS
 Carefully read all safety messages and decals in this manual and
on your machine safety signs. Keep decals in good condition.
Replace missing or damaged decals. Be sure new equipment
components and repair parts include the current safety signs.
Replacement safety signs and decals are available through your
dealer.
 Learn how to operate the machine and how to use controls
properly. Do not let anyone operate without instruction.
 Keep your machine in proper working condition. Unauthorized
modifications to the machine may impair the function and/or
safety and affect machine life.
 If you do not understand any part of this manual and need
assistance, contact your dealer.
 This notation appears before warnings in the text. It means that
the step which follows must be carried out to avoid the possibility
of personal injury or death. These warnings are intended to help
the technician avoid any potential hazards encountered in the
normal service procedures. We strongly recommend that the
reader takes advantage of the information provided to prevent
personal injury or injury to others.
When warning decals are destroyed or missing, contact
the Manufacturer immediately at 1-800-888- 26 for
replacement. For the safety of yourself and others, it is
imperative that the following rules are observed. Failure
to do so may result in serious injury or death.

- 14 -
HEALTH & SAFETY Safety Precautions
HOT SURFACES
 Avoid contact with hot exhaust systems and engines.
 Allow all components in the engine compartment to cool before
performing any service work.
USE COMMON SENSE WHEN HANDLING FUELS
 Transport and handle fuel only when contained in approved safety
container.
 Do not smoke when refueling or during any other fuel handling
operation.
 Do not refuel while the engine is running or while it is still hot.
 If fuel is spilled during refueling, wipe it off from the engine
immediately and discard the rag in a safe place.
 Do not operate the equipment if fuel or oil leaks exist - repair
immediately.
 Never operate this equipment in an explosive atmosphere.
UNDERSTAND SIGNAL WORDS
 A signal word  DANGER, WARNING, or CAUTION  is used
with the safety-alert symbol. DANGER identifies the most
serious hazards.
 DANGER or WARNING safety signs are located near specific
hazards. General precautions are listed on CAUTION safety
signs. CAUTION also calls attention to safety messages in this
manual.

- 15 -
HEALTH & SAFETY Safety Precautions
PREPARE FOR EMERGENCIES
 Be prepared if a fire starts.
 Keep a first aid kit and fire extinguisher handy.
 Keep emergency numbers for doctors, ambulance service, hospital,
and fire department near your telephone.
 Never perform any work on the equipment while it is running.
 Before working on the equipment, stop the engine and disconnect the
spark plug wire(s) to prevent accidental starting. On electric models,
disconnect the electric cord at the equipment.
 Keep cowl closed and latched during the operation, close and latch
cowl immediately after starting.
 Keep hands, clothing and jewelry away from all moving parts.
 Keep all guards in place.
 Never place your hands or any solid object into the drum while the
equipment is in operation.
WEAR PROTECTIVE CLOTHING
 Wear close fitting clothing and safety equipment appropriate to the
job.
 Prolonged exposure to loud noise can cause impairment or loss of
hearing.
 Wear a suitable hearing protective device such as earmuffs or
earplugs to protect against objectionable or uncomfortable loud
noises.
 Operating equipment safely requires the full attention of the
operator. Do not wear radio or music headphones while operating
machine.

- 16 -
HEALTH & SAFETY Safety Precautions
PRACTICE SAFE MAINTENANCE
 Understand service procedure before doing work. Keep area clean and
dry.
 Never lubricate, service or adjust machine while it is moving. Keep
hands, feet, and clothing from power-driven parts. Disengage all power
and operate controls to relieve pressure. Lower equipment to
the ground. Stop the engine. Remove the key. Allow machine to cool.
 Securely support any machine elements that must be raised for service
work.
 Keep all parts in good condition and properly installed. Repair damage
immediately. Replace worn or broken parts. Remove any buildup of
grease, oil, or debris.
 Disconnect battery ground cable (-) before making adjustments on
electrical systems or welding on machine.
 Starting fluid (ether) is highly flammable, do not use or an
explosion or fire may result.
 Never operate unit in a poorly ventilated or enclosed area.
 Avoid prolonged breathing of exhaust gases.
 Engine exhaust fumes can cause sickness or death.
Warning-Eye Protection
 Always wear splash goggles when operating equipment.

- 17 -
HEALTH & SAFETY Safety Precautions
DISPOSE OF WASTE PROPERLY
 Improperly disposing of waste can threaten the environment and
ecology. Potentially harmful waste used with equipment include
such items as oil, fuel, coolant, brake fluid, filters, and batteries.
 Use leakproof containers when draining fluids. Do not use food or
beverage containers that may mislead someone into drinking from
them.
 Do not pour waste onto the ground, down a drain, or into any water
source.
 Air conditioning refrigerants escaping into the air can damage the
Earths atmosphere. Government regulations may require a certified
air conditioning service center to recover and recycle used air
conditioning refrigerants.
 Inquire on the proper way to recycle or dispose of waste from your
local environmental or recycling center.
SAFETY DECALS - FOR THE SAFETY OF YOURSELF AND OTHERS REPLACE ANY
DAMAGED OR MISSING SAFETY DECALS.
55269|H Decal Fuel Shut Off 1
55398|H Decal Warning Hot Surfaces 1
55422|H Decal Hydraulic Fluid Mobil 424 1
55467|H Decal Warning No Riders 1
55468|H Decal Control Lift 1
55469|H Decal Control Tilt 1
55470|H Decal Control Forward / Reverse 1
55471|H Decal Caution Instruction LJ100 1
55472|H Decal Warning Instruction LJ100 1
55473|H Decal Warning Load Low Carry 1
55474|H Decal Warning Hands Clear 1
55479|H Decal Horn E-Stop Throttle 1
55480|H DecalValve Counterbalance 1
55481|H Decal Parking Latch 1

- 18 -
MAINTENANCE
FIMPORTANT
The person attempting any of the
following maintenance tasks must be
authorized to do so and have read
and understood all sections within
this manual.
Tasks

- 1 -
MAINTENANCE
INTRODUCTION
Congratulations on your purchase of the LJ100 Lift
Jockey! Youve made an excellent choice. The Lift
Jockey is specifically designed for lifting and
transporting a wide variety of materials on your job
site. Your new Lift Jockey comes standard with the
following features:
Mast Height - Choice of three (3) interchangeable,
rugged, high lift masts. Lift from heights of 76 to
6. Masts tilt forward and reverse for easy han-
dling and discharging of loads.
Load/Speed Capacity- Lifts and moves up to 1,500
lbs. at speeds up to 3 mph for getting around any site
faster.
Controls- Forward and reverse travel controlled by
rotating handle grips on steering tiller. All controls--
E-stop and horn, throttle, tilt control and lift/lower
are within operators reach. Power controls automati-
cally return to neutral position when released.
Hydrostatic Drive - Clean, quiet with totally
enclosed hydraulic drive circuit. Provides reliability,
lower maintenance and longer life.
Engine Cowl - Allows easy access to all mainte-
nance points for quick service. Provides optimum
airflow for cooler running and longer life on compo-
nents.
Tires- Choice of pneumatic or optional foam-filled
drive and load tires. The optional foam-filled tires
provide added toughness and reliability on a job site.
Forks- Four interchangeable, adjustable fork options
provide efficient handling of all types of loads.
Choose from round block forks or box forks for
several different pallet sizes.
KNOW YOUR LIFT
Read and understand the owners manual before
starting the unit. Make sure you understand the
purpose of every control. When operating the unit,
remember the capacity it can carry and adjust speed
and load for changing conditions.
Pre-Operation Checklist  Upon receipt of your
Lift Jockey, CAREFULLY CHECK FOR ANY
FREIGHT DAMAGE. Any damage should be
immediately reported to the carrier and a claim
registered.
The Lift Jockey is manufactured to the strictest
specifications and inspection procedures. After
inspecting the quality of the workmanship of your
machine, please complete and return the tag on the
machine with the assemblers signature with your
findings to Stone. We value our customers input
and welcome any and all comments on how the
product may serve you better.
The following instructions were compiled to provide
you information on how to obtain long and trouble-
free use of the unit. Read and understand the
owners manual before starting the unit. Make sure
you understand the purpose of every control. When
operating the unit, know the capacity it can carry
and adjust the speed and load for changing condi-
tions.
Intro/Know Your Lift

- 20 -
MAINTENANCE
FLUIDS AND LUBRICATION
Hydraulic Oil--Check the hydraulic fluid level.
Use the sight gage located on the hydraulic tank.
A 1/4-1/2" air bubble will be seen at the top of the
gauge showing the fluid level.
For satisfactory operation, the following fluid
conditions apply:
 Accurate level readings can be checked only
when the fluid is cold.
 If the natural color of the fluid has become
black or milky, it is possible that an overheating
or water contaminant problem exists.
 Do not mix hydraulic fluids. Mobil 424 SUS
255/55CST ISO VG55 is recommended for the
hydraulic system.
CAUTION: After a new unit has run 5 hours, the
oil filter should be changed. This is to rid the
system of any trapped contamination from the wear-
in of the parts, see Maintenance.
Engine Oil--SAE 30 API SH or SJ (oil with
starburst certification mark) is recommended for
general, all temperature use. Check daily for proper
oil level. DO NOT OVERFILL. See Engine
Owners Manual for specifications.
ENGINE IS EQUIPPED WITH LOW
OIL SHUTDOWN. UNIT WILL SHUT
DOWN IF ENGINE OIL IS LOW
Gasoline Fuel--Always use fresh, unleaded gaso-
line (86 octane min.). Fresh gasoline is blended for
the season and reduces gum deposits that could clog
the fuel system. Do not use gasoline left over from
the previous season.
Refer to the Engine Manual for break- in.
DO NOT MIX OIL WITH FUEL. The engine has
a separate oil reservoir in the crankcase. Unleaded
gasoline is recommended for use in the engine since
it leaves less combustion chamber deposits.
FUEL IS OTH TOXIC AND FLAM-
MA LE
DO NOT SMOKE WHILE WORKING
WITH FUEL
DO NOT USE NEAR OPEN FLAME
ALWAYS STOP ENGINE EFORE RE-
FUELING
WARNING
WARNING
Filter
Gauge
Level Sight
Glass
Breather
Hydraulic
Fill Cap
Hydraulic
Tank
Fluids/Lubrication
