STONEFLY DR365V-1604 User manual

Setup Guide
DR365V - Backup & Disaster Recovery
Appliance
www.stonefly.com
www.iscsi.com
DR365V-1604 16-bay / 3U Model

This Page is intentionally left blank.

Copyright © 2006-2019 StoneFly, Inc.
All rights are reserved. No part of this document may be photocopied or reproduced without
the prior written consent of StoneFly.
The information contained in this document is subject to change without notice. StoneFly
shall not be liable for errors contained herein or for consequential damages in connection
with the furnishing, performance, or use of this material.
StoneFly, the StoneFly logo, Storage Concentrator, Integrated Storage Concentrator, ISC,
Modular Storage Concentrator, StoneFly Backup Advantage, StoneFusion, StoneFly
Replicator CDP, ValueSAN, Unified Scale Out, USO, Super Scale Out, SSO, Twin Scale
Out, TSO, Unified Storage & Server, USS, Unified Deduplicated Storage, UDS, Unified
Encrypted Storage, UES, OptiSAN, StoneFly Voyager, DR365, DR365 Fusion, StoneFly
Mirroring, Storage Concentrator Virtual Machine, SCVM, Software-Defined Unified
Storage, SDUS, and StoneFly Cloud Drive are property of StoneFly, Inc.
Other brands and their products are trademarks or registered trademarks of their respective
holders.

StoneFly DR365V-1604 Getting Started Guide
V8.0.3x
©StoneFly Inc. 2019 | All rights reserved
Page 3
Table of Contents
1.1 Introduction................................................................................................................................... 5
1.1.1 Icons...................................................................................................................................... 6
2.1. 2U Rack Installation Instructions.................................................................................................. 8
2.2. 3U Rack Installation Instructions................................................................................................ 13
2.3. Power Up & Initial Access.......................................................................................................... 18
2.4. Configuring IPMI KVM ............................................................................................................ 19
2.5. VMware Management Network Configuration .......................................................................... 24
2.6. Steps to Configure SCVM Management Port (VMware)........................................................... 31
2.7. Hyper-V Management Network Configuration .......................................................................... 35
2.8. Steps to Configure SCVM Management Port (Hyper-V) ........................................................... 39
2.9. Configuring the SCVM............................................................................................................... 43
2.10. Configuring the Veeam Management VM.............................................................................. 50
2.10.1 Assigning a Static IP Address to the Veeam Management VM ......................................... 50
2.10.2 Enabling RDP on the Veeam Management VM................................................................. 54
2.10.3 Accessing Windows Server hosting Veeam ....................................................................... 56

StoneFly DR365V-1604 Getting Started Guide
Introduction
V8.0.3x
©StoneFly Inc. 2019 | All rights reserved
Page 4
Chapter-1: Introduction

StoneFly DR365V-1604 Getting Started Guide
Introduction
V8.0.3x
©StoneFly Inc. 2019 | All rights reserved
Page 5
1.1 Introduction
This document is aimed for system administrators who would like to know how to get started
with StoneFly DR365V Appliance. It describes initial steps for launching the appliance.
The StoneFly DR365V is the ideal purpose-built hyperconverged infrastructure solution for
backup and disaster recovery which also allows you to consolidate all of your server and backup
systems into one easy to manage appliance.
This guide gives an overview of the product, rack mounting instructions and initial installation
procedure. Information for using the features of the StoneFusion software is found in the Storage
Concentrator User Guide.
•StoneFly Resource Library
•The StoneFly SCVM™ Webpage
•Veeam Backup & Replication User Guide for VMware
•Veeam Backup & Replication User Guide for Hyper-V
Each StoneFly DR365V comes preconfigured with VMware vSphere or Microsoft Hyper-V
hypervisor, a StoneFly SCVM™ Virtual Storage Controller, and an Enterprise Backup Engine
running on a second VM. Additional Virtual Machines can be installed on the DR365V as
needed as long as adequate processing cores and system memory are available to support those
VMs. Contact your StoneFly sales representative for details.
DR365V-1604 16-Bay / 3U Model (without bezel)
The DR365V comes in five standard configurations:
1. 12-bay / 2U model features maximum of 12 x 3.5” SAS drives or SSDs
2. 16-bay / 3U model features maximum of 16 x 3.5” SAS drives or SSDs
3. 24-bay / 2U model features maximum of 24 x 2.5” SAS drives or SSDs
4. 24-bay / 4U model features maximum of 24 x 3.5” SAS drives or SSDs
5. 36-bay / 4U model features maximum of 36 x 3.5” SAS drives or SSDs

StoneFly DR365V-1604 Getting Started Guide
Introduction
V8.0.3x
©StoneFly Inc. 2019 | All rights reserved
Page 6
1.1.1 Icons
Icon Type Description
Note Special instructions or information
Warning Risk of system damage or a loss of data

V8.0.3x
©StoneFly Inc. 2019 | All rights reserved
Page 7
StoneFly DR365V-1604 Getting Started Guide
Initial Installation
Chapter-2: Initial Installation

V8.0.3x
©StoneFly Inc. 2019 | All rights reserved
Page 8
StoneFly DR365V-1604 Getting Started Guide
Initial Installation
2.1. 2U Rack Installation Instructions
This section provides information on installing the StoneFly DR365V appliance into a rack or cabinet
with the rails provided. There are a variety of rack/cabinet units on the market, which may mean that the
assembly procedure will differ slightly. You should also refer to the installation instructions that came
with the rack unit you are using.
NOTE: This rail will fit a rack/cabinet between 26" and 33.5" deep.
Identifying the Sections of the Rack Rails
The StoneFly DR365V chassis package includes two rack rail assemblies in the rack mounting kit.
Each assembly consists of three sections: an inner rail that secures directly to the chassis, an outer
rail that secures to the rack, and a middle rail which extends from the outer rail. These assemblies are
specifically designed for the left and right side of the chassis.
Identifying the Outer Rail, Middle Rail and Inner Rail
(Left Rail Assembly Shown)

V8.0.3x
©StoneFly Inc. 2019 | All rights reserved
Page 9
StoneFly DR365V-1604 Getting Started Guide
Initial Installation
Releasing the Inner Rail
Each inner rail has a locking latch. This latch prevents the server from coming completely out
of the rack when the chassis is pulled out for servicing. To mount the rail onto the chassis, first
release the inner rail from the outer rails.
Releasing the Inner Rail from the Outer Rails:
1. Pull the inner rail out of the outer rail until it is fully extended as illustrated below.
2. Press the locking tab down to release the inner rail.
3. Pull the inner rail all the way out.
4. Repeat for the other outer rail.
Extending and Releasing the Inner Rail

V8.0.3x
©StoneFly Inc. 2019 | All rights reserved
Page 10
StoneFly DR365V-1604 Getting Started Guide
Initial Installation
Installing the Inner Rails on the Chassis
Installing the Inner Rails
1. Identify the left and right inner rails. They are labeled.
2. Place the inner rail firmly against the side of the chassis, aligning the hooks on the sideof the
chassis with the holes in the inner rail.
3. Slide the inner rail forward toward the front of the chassis until the quick releasebracket
snaps into place, securing the rail to the chassis.
4. Optionally, you can further secure the inner rail to the chassis with a screw.
5. Repeat for the other inner rail.
Installing the Inner Rails
Inner Rails Installed on the Chassis

V8.0.3x
©StoneFly Inc. 2019 | All rights reserved
Page 11
StoneFly DR365V-1604 Getting Started Guide
Initial Installation
Installing the Outer Rails onto the Rack
Installing the Outer Rails
1. Press upward on the locking tab at the rear end of the middle rail.
2. Push the middle rail back into the outer rail.
3. Hang the hooks on the front of the outer rail onto the square holes on the front of the rack.
If desired, use screws to secure the outer rails to the rack.
4. Pull out the rear of the outer rail, adjusting the length until it just fits within the posts of the
rack.
5. Hang the hooks of the rear section of the outer rail onto the square holes on the rear of the
rack. Take care that the proper holes are used so the rails are level. If desired, use screws to
secure the rear of the outer rail to the rear of the rack.

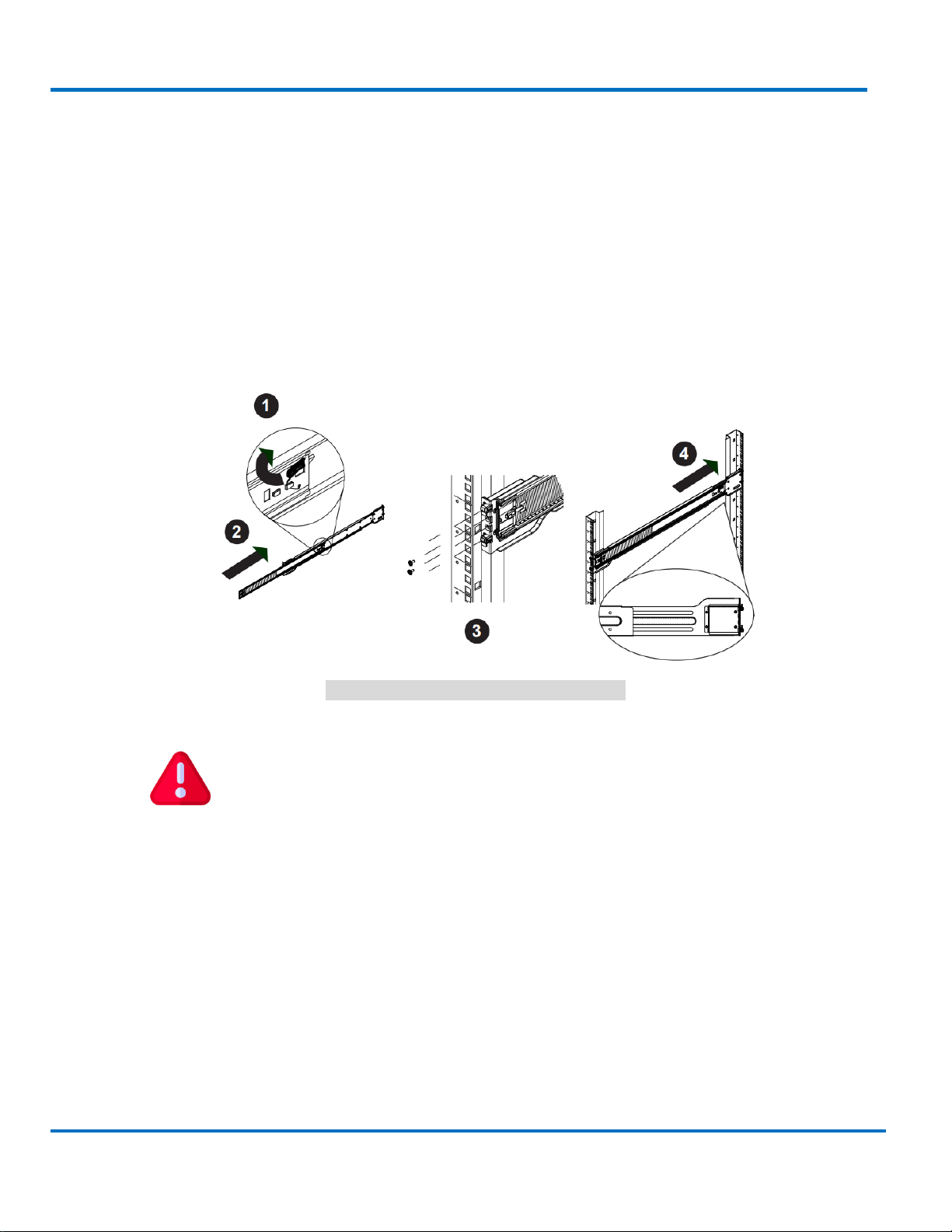

Extending and Mounting the Outer Rails
The rack stabilizing mechanism must be in place, or the rack must be
bolted to the floor before you slide the unit out for servicing.
Failure to stabilize the rack can cause the rack to tip over. Do not use a
two post “telco” type rack.

StoneFly DR365V-1604 Getting Started Guide
Initial Installation
V8.0.3x
©StoneFly Inc. 2019 | All rights reserved
Page 12
Sliding the Chassis onto the Rack Rails
Warning: Mounting the system into the rack requires at least
two people to support the chassis during installation. Please
follow the safety recommendations printed on the rails.
Installing the Chassis into a Rack
1. Extend the outer rails as illustrated above.
2. Align the inner rails of the chassis with the outer rails on the rack.
3. Slide the inner rails into the outer rails, keeping the pressure even on both sides.
When the chassis has been pushed completely into the rack, it should click into the
locked position.
4. Optional screws may be used to hold the front of the chassis to the rack.
Installing the Chassis into a Rack
Note: The figure above is for illustrative purposes only. Always install servers to the
bottom of the rack first.
Caution: Do not pick up the server with the front handles.
They are designed to pull the system from a rack only.

V8.0.3x
©StoneFly Inc. 2019 | All rights reserved
Page 13
StoneFly DR365V-1604 Getting Started Guide
Initial Installation
2.2. 3U Rack Installation Instructions
This section provides information on installing the StoneFly DR365V appliance into a rack or
cabinet with the rails provided. There are a variety of rack/cabinet units on the market, which
may mean that the assembly procedure will differ slightly. You should also refer to the
installation instructions that came with the rack unit you are using.
NOTE: This rail will fit a rack/cabinet between 26.5" and 36.4" deep.
Identifying the Sections of the Rack Rails
The chassis package includes two rail assemblies, one designed and labeled for each side of the
chassis. Each assembly consists of an inner rail that secures directly to the chassis, and an outer
rail that secures to the rack. The outer rail has two sections that can slide and adjust to fit your
rack depth.

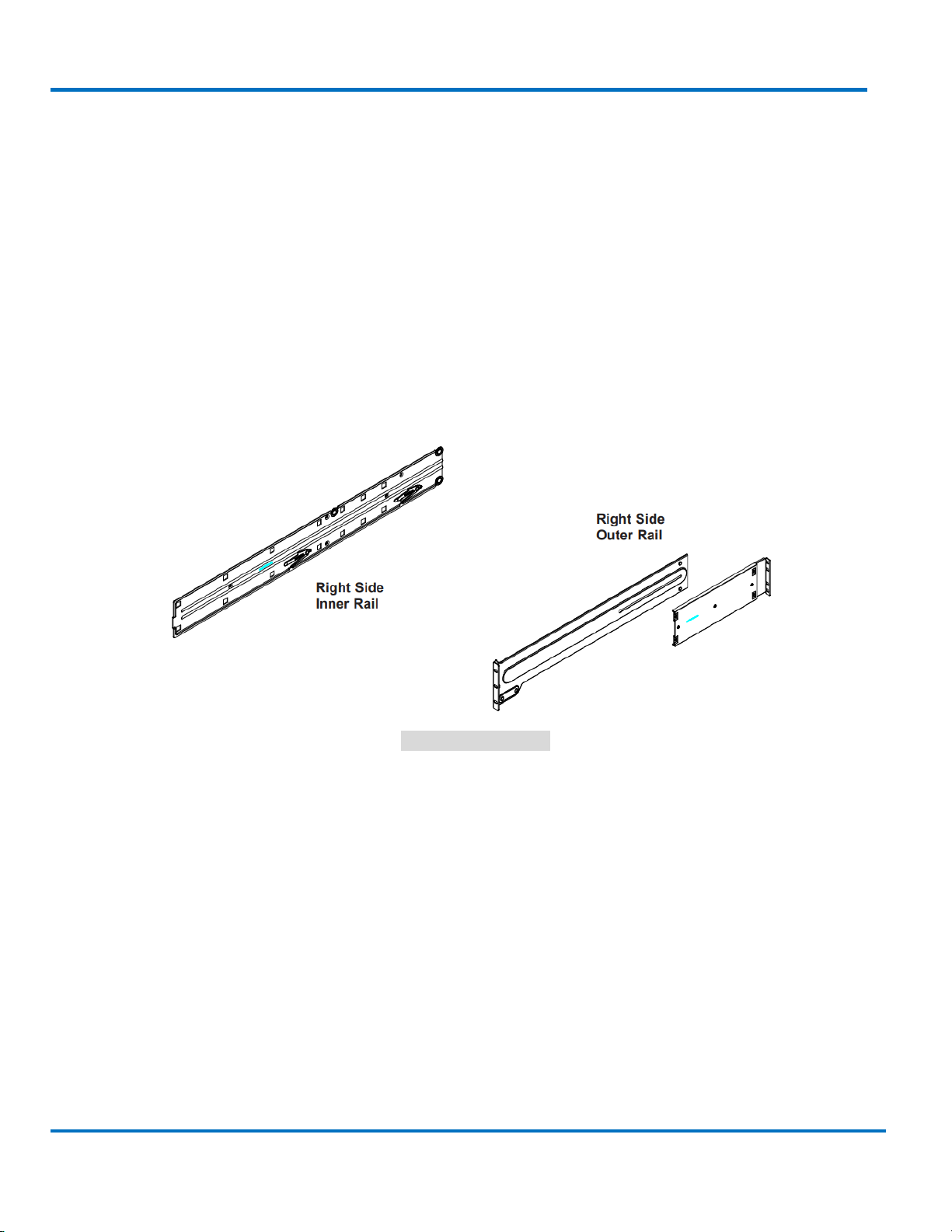

Identifying the Rails

V8.0.3x
©StoneFly Inc. 2019 | All rights reserved
Page 14
StoneFly DR365V-1604 Getting Started Guide
Initial Installation
Releasing the Inner Rail
Each inner rail has a locking latch. This latch prevents the server from coming completely out of the rack
when the chassis is pulled out for servicing.
To mount the rail onto the chassis, first release the inner rail from the outer rails.
Releasing Inner Rail from the Outer Rails
1. Pull the inner rail out of the outer rail until it is fully extended as illustrated below.
2. Press the locking tab down to release the inner rail.
3. Pull the inner rail all the way out.
Extending and Releasing the Inner Rail

V8.0.3x
©StoneFly Inc. 2019 | All rights reserved
Page 15
StoneFly DR365V-1604 Getting Started Guide
Initial Installation
Installing the Inner Rails on the Chassis
Installing the Inner Rails
1. Identify the left and right inner rails. They are labeled.
2. Place the inner rail firmly against the side of the chassis, aligning the hooks on the side of the
chassis with the holes in the inner rail.
3. Slide the inner rail forward toward the front of the chassis until the quick release bracket snaps
into place, securing the rail to the chassis.
4. Optionally, you can further secure the inner rail to the chassis with screws.
Installing the Inner Rails
Inner Rails Installed on the Chassis

V8.0.3x
©StoneFly Inc. 2019 | All rights reserved
Page 16
StoneFly DR365V-1604 Getting Started Guide
Initial Installation
Installing the Outer Rails onto the Rack
Installing the Outer Rails
1. Press upward on the locking tab at the rear end of the middle rail.
2. Push the middle rail back into the outer rail.
3. Hang the hooks on the front of the outer rail onto the square holes on the front of the rack. If
desired, use screws to secure the outer rails to the rack.
4. Pull out the rear of the outer rail, adjusting the length until it just fits within the posts of the rack.
5. Hang the hooks of the rear section of the outer rail onto the square holes on the rear of the rack.
Take care that the proper holes are used so the rails are level. If desired, use screws to secure the
rear of the outer rail to the rear of the rack.
6. Repeat for the outer rail.
Extending and Mounting the Outer Rails
Stability Hazard: The rack stabilizing mechanism must be in place, or
the rack must be bolted to the floor before you slide the unit out for
servicing. Failure to stabilize the rack can cause the rack to tip over.
Do not use a two post “telco” type rack.

V8.0.3x
©StoneFly Inc. 2019 | All rights reserved
Page 17
StoneFly DR365V-1604 Getting Started Guide
Initial Installation
Sliding the Chassis onto the Rack Rails
Installing the Chassis into a Rack
1. Align the inner rails of the chassis with the outer rails on the rack.
2. Slide the inner rails into the outer rails, keeping the pressure even on both sides. When the chassis
has been pushed completely into the rack, it should click into the locked position.
3. Optionally, screws may be used to hold the front of the chassis to the rack.
Installing into a Rack
Note: The figure above is for illustrative purposes only. Always install servers to the bottom of the rack
first.
Warning: Mounting the system into the rack requires at least two people
to support the chassis during installation. Please follow the safety
recommendations printed on the rails.
Caution: Do not pick up the server with the front handles. They are
designed to pull the system from a rack only.

V8.0.3x
©StoneFly Inc. 2019 | All rights reserved
Page 18
StoneFly DR365V-1604 Getting Started Guide
Initial Installation
2.3. Power Up & Initial Access
These are the steps a user needs to follow in order to start using the StoneFly DR365V
Hyperconverged Appliance:
1- Connect both power supply modules to a power outlet using the included power cords.
2- Connect Ethernet cables to the System Management, Network (iSCSI/NAS), and IPMI
ports as shown in the diagram below:
Back Panel Connections of the DR365V
3- If you purchased the appliance with additional network ports, then please connect those
as well.
4- Connect a monitor to the VGA port.
5- Connect a keyboard and a mouse to the USB ports.
6- Power up any Expansion Units, then power up the DR365V appliance.
NOTE:
•Serial port is not used by the DR365V appliance.
•SAS Expansion port is only used when connecting StoneFly Expansion Units to
the DR365V Appliance for additional storage capacity.
•Do not connect an Ethernet cable to the RAID port.
•There are different configurations for network ports. Make sure to follow the
labeling on your system when connecting the Ethernet cables.
IPMI Port
Management Port
Data Port
RAID Management Port
(Do not connect)
VGA Port
SAS Extension
10G Data Ports

V8.0.3x
©StoneFly Inc. 2019 | All rights reserved
Page 19
StoneFly DR365V-1604 Getting Started Guide
Initial Installation
2.4. Configuring IPMI KVM
The Intelligent Platform Management Interface (IPMI) KVM configuration allows for Remote
Management and Power Control of the StoneFly DR365V system. This configuration is
optional to perform, but recommended.
To configure the IPMI module, connect a Keyboard and Monitor to the System. Power on the
system and press the “Del” key to enter the BIOS setup.
On the BIOS screen, navigate to the Advanced tab and select IPMI Configuration. The IPMI
configuration screen will be displayed.
Select LAN Configuration. The network settings will be displayed.
