StoneFly DR365V 36-bay Getting Started Guide
© StoneFly Inc. 2021 | All rights reserved P a g e | 3
Table of Contents
Chapter 1: Introduction………………………………………………………………………………….4
1.1 Introduction .............................................................................................................................5
1.1.1 Icons ................................................................................................................................6
Chapter 2: Initial Installation…………………………………………………………………………….8
2.1. Rack Installation Instructions ...................................................................................................8
2.2. Power Up & Initial Access .....................................................................................................13
JBOD Connections ........................................................................................................................14
Power-On Procedure......................................................................................................................14
Power-Off Procedure.....................................................................................................................15
2.3. Configuring IPMI KVM.........................................................................................................16
Accessing the IPMI Interface .........................................................................................................20
2.4. VMware Management Network Configuration.......................................................................22
2.5. Steps to Configure SCVM Management Port (VMware).........................................................29
2.6. Hyper-V Management Network Configuration.......................................................................33
2.7. Steps to Configure SCVM Management Port (Hyper-V).........................................................37
2.8. Configuring the SCVM ..........................................................................................................41
2.9. Configuring the Veeam Management VM ..............................................................................48
2.9.1 Assigning a Static IP Address to the Veeam Management VM........................................48
2.9.2 Enabling RDP on the Veeam Management VM ..............................................................52
2.9.3 Accessing Windows Server hosting Veeam ....................................................................54
Troubleshooting…………………………………………………………………………………………57

StoneFly DR365V Setup Guide Introduction
© StoneFly Inc. 2021 | All rights reserved P a g e | 4
Chapter-1: Introduction

StoneFly DR365V Setup Guide Introduction
© StoneFly Inc. 2021 | All rights reserved P a g e | 5
1.1 Introduction
This document is aimed for system administrators who would like to know how to get started
with StoneFly DR365V Appliance. It describes initial steps for launching the appliance.
The StoneFly DR365V is the ideal purpose-built hyperconverged infrastructure solution for
backup and disaster recovery which also allows you to consolidate all of your server and backup
systems into one easy to manage appliance.
This guide gives an overview of the product, rack mounting instructions and initial installation
procedure. Information for using the features of the StoneFusion software is found in the Storage
Concentrator User Guide.
StoneFly Resource Library:
https://stonefly.com/resources
The StoneFly SCVM™ Webpage:
https://stonefly.com/hyper-converged/scvm-virtual-storage-appliance
Veeam Backup & Replication User Guide for VMware:
https://helpcenter.veeam.com/docs/backup/vsphere/overview.html?ver=95u4
Each StoneFly DR365V comes preconfigured with VMware vSphere, a StoneFly SCVM™
Virtual Storage Controller, and an Enterprise Backup Engine running on a second VM.
Additional Virtual Machines can be installed on the DR365V as needed as long as adequate
processing cores and system memory are available to support those VMs. Contact your StoneFly
sales representative for details.
DR365V 36-Bay / 4U Model (without front bezel)

StoneFly DR365V Setup Guide Introduction
© StoneFly Inc. 2021 | All rights reserved P a g e | 6
For more information about StoneFly single-node, dual node shared nothing, scale out,
disaggregated High Availability (HA) cluster appliances & totally disaggregated appliances;
please contact StoneFly technical support.
1.1.1 Icons
Icon
Type
Description
Note
Special instructions or information
Warning
Risk of system damage or a loss of data

StoneFly DR365V Setup Guide Initial Installation
© StoneFly Inc. 2021 | All rights reserved P a g e | 7
Chapter-2: Initial Installation

StoneFly DR365V Setup Guide Initial Installation
© StoneFly Inc. 2021 | All rights reserved P a g e | 8
2.1. Rack Installation Instructions
This section provides information on installing the StoneFly DR365V appliance into a rack or cabinet
with the rails provided. There are a variety of rack/cabinet units on the market, which may mean that the
assembly procedure will differ slightly. You should also refer to the installation instructions that came
with the rack unit you are using.
NOTE: This rail will fit a rack/cabinet between 26.5" and 36.4" deep.
Identifying the Sections of the Rack Rails
The DR365V appliance package includes one pair of rack rail assemblies in the rack mounting kit. Each
assembly consists of an inner rail that secures the appliance with the chassis and an outer rail that is
attached directly to the rack. The inner rails are etched with “L” (left side) and “R” (right side) to make
them easily distinguishable.
Identifying the Rack Rails

StoneFly DR365V Setup Guide Initial Installation
© StoneFly Inc. 2021 | All rights reserved P a g e | 9
Locking Tabs
Each inner rail has a locking tab. This tab locks the chassis into place when installed and pushed fully into the
rack. These tabs also lock the chassis in place when fully extended from the rack. This prevents the server from
coming completely out of the rack when the chassis is pulled out for servicing.
Releasing the Inner Rail
Each inner rail has a locking latch. This latch prevents the server from coming completely out
of the rack when the chassis is pulled out for servicing. To mount the rail onto the chassis, first
release the inner rail from the outer rails.
Releasing the Inner Rail from the Outer Rails:
1. Pull the inner rail out of the outer rail until it is fully extended as illustratedbelow.
2. Press the locking tab down to release the inner rail.
3. Pull the inner rail all the way out.
4. Repeat for the other outer rail.
Extending and Releasing the Inner Rail

StoneFly DR365V Setup Guide Initial Installation
© StoneFly Inc. 2021 | All rights reserved P a g e | 10
Installing the Inner Rails on the Chassis
Installing the Inner Rails
1. Identify the left and right inner rails. They are labeled.
2. Place the inner rail firmly against the side of the chassis, aligning the hooks on the sideof the
chassis with the holes in the inner rail.
3. Slide the inner rail forward toward the front of the chassis until the quick releasebracket
snaps into place, securing the rail to the chassis.
4. Optionally, you can further secure the inner rail to the chassis with a screw.
5. Repeat for the other inner rail.
Installing the Inner Rails
Inner Rails Installed on the Chassis

StoneFly DR365V Setup Guide Initial Installation
© StoneFly Inc. 2021 | All rights reserved P a g e | 11
Installing the Outer Rails onto the Rack
Installing the Outer Rails
1. Press upward on the locking tab at the rear end of the middle rail.
2. Push the middle rail back into the outer rail.
3. Hang the hooks on the front of the outer rail onto the square holes on the front of the rack.
If desired, use screws to secure the outer rails to the rack.
4. Pull out the rear of the outer rail, adjusting the length until it just fits within the posts of the
rack.
5. Hang the hooks of the rear section of the outer rail onto the square holes on the rear of the
rack. Take care that the proper holes are used so the rails are level. If desired, use screws to
secure the rear of the outer rail to the rear of the rack.
Extending and Mounting the OuterRails
The rack stabilizing mechanism must be in place, or the rack must be
bolted to the floor before you slide the unit out for servicing.
Failure to stabilize the rack can cause the rack to tip over. Do not use a
two post “telco” type rack.

StoneFly DR365V Setup Guide Initial Installation
© StoneFly Inc. 2021 | All rights reserved P a g e | 12
Sliding the Chassis onto the Rack Rails
Warning: Mounting the system into the rack requires at least
two people to support the chassis during installation. Please
follow the safety recommendations printed on the rails.
Installing the Chassis into a Rack
1. Extend the outer rails as illustrated above.
2. Align the inner rails of the chassis with the outer rails on the rack.
3. Slide the inner rails into the outer rails, keeping the pressure even on both sides.
When the chassis has been pushed completely into the rack, it should click into the
locked position.
4. Optional screws may be used to hold the front of the chassis to the rack.
Installing the Chassis into a Rack
Note: The figure above is for illustrative purposes only. Always install servers to the
bottom of the rack first.
Caution: Do not pick up the server with the front handles.
They are designed to pull the system from a rack only.

StoneFly DR365V Setup Guide Initial Installation
© StoneFly Inc. 2021 | All rights reserved P a g e | 13
2.2. Power Up & Initial Access
These are the steps a user needs to follow in order to start using the StoneFly DR365V
Hyperconverged Appliance:
1- Connect both power supply modules to a power outlet using the included power cords.
2- Connect Ethernet cables to the System Management, Network (iSCSI/NAS), and IPMI
ports as shown in the diagram below:
Back Panel Connections of the DR365V 36-bay
3- If you purchased the appliance with additional network ports, then please connect those
as well.
4- Connect a monitor to the VGA port.
5- Connect a keyboard and a mouse to the USB ports.
6- Power up any Expansion Units, then power up the DR365V appliance.
NOTE:
Serial port is not used by the DR365V appliance.
SAS Expansion port is only used when connecting StoneFly Expansion Units to
the DR365V Appliance for additional storage capacity.
Do not connect an Ethernet cable to the RAID port.
There are different configurations for network ports. Make sure to follow the
labeling on your system when connecting the Ethernet cables.
USB Ports
Data Ports
IPMI
RAID Management Port
(Do NOT connect)
Power
Supply
VGA Ports
Management Ports
SAS Extension

StoneFly DR365V Setup Guide Initial Installation
© StoneFly Inc. 2021 | All rights reserved P a g e | 14
JBOD Connections
Back Panel Connections of the 36-bay JBOD
Connect the JBOD to the DR365V appliance using SAS Extension ports and then connect power
supplies.
Note: The JBOD has to be turned-on BEFORE the DR365V appliance.
Power-On Procedure
Be sure to adhere to the following instructions when turning on the DR365V:
Verify that all the SAS, network, and power cables are properly connected.
Power-on the JBOD(s).
Wait for the drives on the JBOD(s) to finish initialization –this may take 10 to 20
minutes depending on the number of drives.
Power-on the DR365V appliance.
SAS Extension
IPMI
Power Supply

StoneFly DR365V Setup Guide Initial Installation
© StoneFly Inc. 2021 | All rights reserved P a g e | 15
Power-Off Procedure
Note: Before turning-off the appliance, make sure that all tasks are completed.
In order to shutdown the DR365V appliance, login to SCVM and then go to Admin > General.
Click Shutdown.
Once the DR365V appliance is shutdown, you can turn off the JBOD(s).
Note: Be sure to turn off the DR365V first, and then the JBOD(s).

StoneFly DR365V Setup Guide Initial Installation
© StoneFly Inc. 2021 | All rights reserved P a g e | 16
2.3. Configuring IPMI KVM
The Intelligent Platform Management Interface (IPMI) KVM configuration allows for Remote
Management and Power Control of the StoneFly DR365V system. This configuration is
optional to perform, but recommended.
To configure the IPMI module, connect a keyboard and monitor to the system. Power on the
system and press the Del key to enter the BIOS setup.
Navigate to IPMI tab and go to BMC Network Configurations:

StoneFly DR365V Setup Guide Initial Installation
© StoneFly Inc. 2021 | All rights reserved P a g e | 17

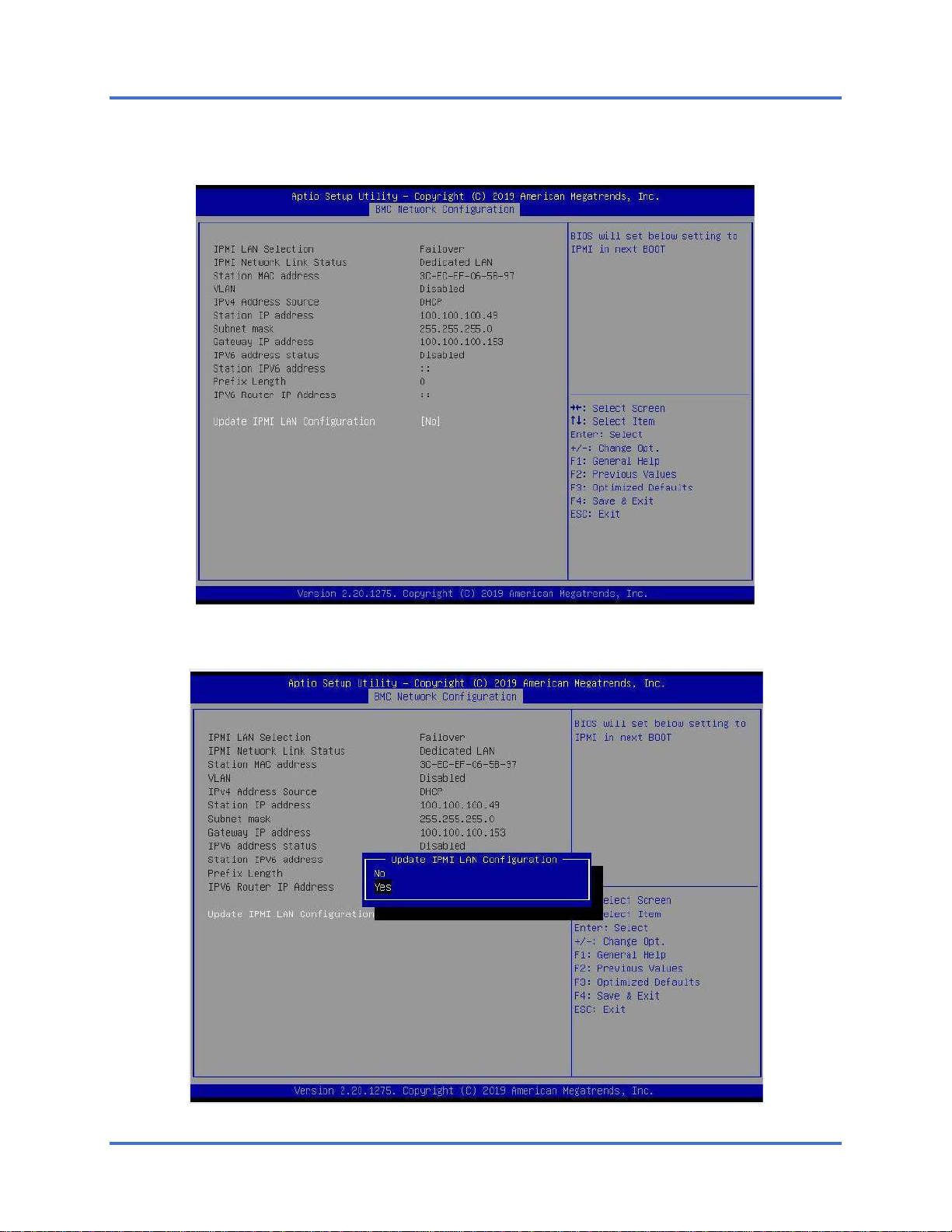

In the BMC Network Configuration tab, select Update IPMI LAN Configuration and press
Enter:
When prompted, select Yes and press Enter.

StoneFly DR365V Setup Guide Initial Installation
© StoneFly Inc. 2021 | All rights reserved P a g e | 18
From the additional list of options, select Configuration Address Source and press Enter:
From the prompt, select Static and press Enter:

StoneFly DR365V Setup Guide Initial Installation
© StoneFly Inc. 2021 | All rights reserved P a g e | 19

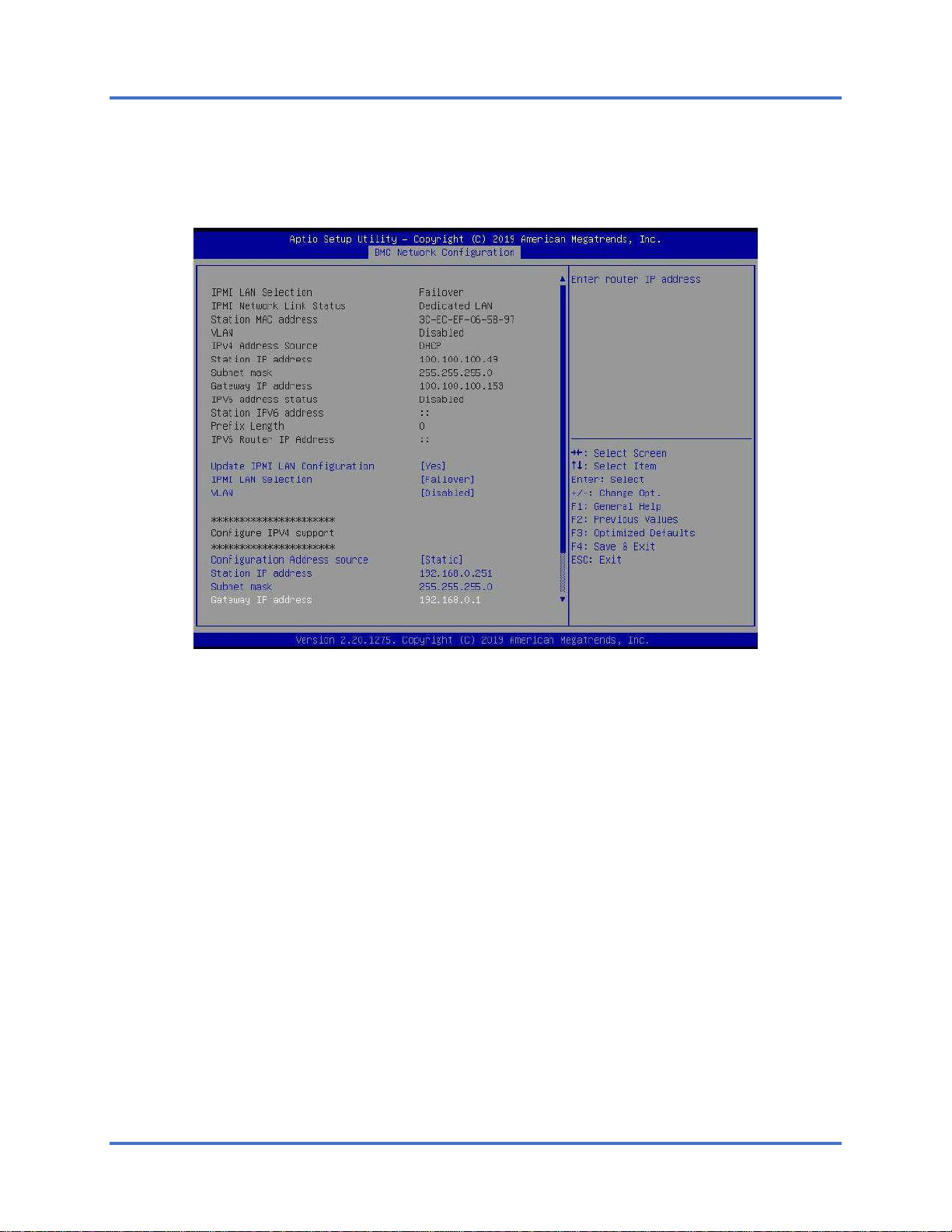

Enter the Static IP Address, Subnet Mask and Gateway IP Address.
When entering addresses, please note:
1. IP Address: Must be on the same subnet as DR365V’s Management port
2. IP Subnet Mask: Same as DR365V’s Management port
3. Default Gateway: Same as DR365V’s Management port
Press the “ESC” key to exit. Navigate to the Exit tab and select Save Changes and Exit.
Note: The system will require power to be removed before IPMI IP Address will take effect.
