Stoves

SEH600iR UK Part No 082755505 Date 27/11/2014

Users Guide & Installation

Handbook

CONTENTS & INTRODUCTION

CONTENTS

• SAFETY

• USING THE PRODUCT

• CLEANING

• INSTALLATION INSTRUCTIONS

• TECHNICAL DATA

• CUSTOMER CARE

INTRODUCTION

Thank you for buying this British-

built appliance from us.

This guide book is designed to help you

through each step of owning your new

appliance, from installation to use. Please

read it carefully before you start using

your product, as we have endeavored to

answer as many questions as possible,

and provide you with as much support

as we can.

If,however,youshouldndsomething

missing, or not covered, please contact

our Customer Care team. Their number is

located on the back page of this book.

For customers outside the UK and North-

ern Ireland, please contact your local

supplier.

When you dial this number you will hear

a recorded message and be given a num-

ber of options. This indicates that your

call has been accepted and is being held

in a queue. Calls are answered in strict

rotation as our Customer care representa-

tives become available.

Alternatively, general information, spares

and service information is available from

our website. The address is located on

the back page of this book.

WARRANTY

Your new appliance comes with our

12-month guarantee, protecting you

against electrical and mechanical break-

down. To register your appliance please

call 0844 481 0182, complete the regis-

tration form included or register online at

the web address located on the back page

of this book.

For full terms & conditions of the manu-

facturer’s guarantee, refer to the website

on the back of this book.

European Directives

As a producer and a supplier of cooking

appliances we are committed to the pro-

tection of the environment and are in the

compliance with the WEEE directive. All

our electric products are labelled accord-

ingly with the crossed out wheeled bin

symbol. This indicates, for disposal pur-

poses at end of life, that these products

must be taken to a recognised collection

points, such as local authority sites/local

recycling centres

This appliance Complies with European

Community Directives (CE) for household

and similar electrical appliances and Gas

appliances where applicable.

This appliance conforms to European Di-

rective 2009/125/EC regarding Eco design

requirements for energy-related products

Our policy is one of constant development

and improvement, therefore we cannot

guarantee the strict accuracy of all of our

illustrationsandspecications-changes

may have been made subsequent to

publishing.

WARRANTY EXCLUSIONS

Damage or calls resulting from transporta-

tion, improper use or the replacement of

removable parts.

Costs incurred for calls to put right an ap-

pliance which is improperly installed.

Appliances found to be in use within a

commercial environment, plus those which

are subject to rental agreements.

Before using the hob

Make sure that you have removed all

packaging,wrappings,stickersandlms

from the hob surface.

It is recommended that you clean and

wash the hob surface before using for the

rsttime.

Apply a thin coat of ceramic hob cleaner

to the hob to help maintain and protect it.

See the customer care section for details

of how to obtain all the available cleaning

products.

CONTENTS & INTRODUCTION

SAFETY

5.162

BEFORE USING THE PRODUCT

Make sure that you have removed all

packaging and wrapping. Some of the

items inside this appliance may have

additional wrapping.

GENERAL

WARNING! - The

appliance and its

accessible parts become

hot during use. Care

should be taken to

avoid touching heating

elements. Children less

than 8 years of age shall

be kept away unless

continously supervised.

This appliance can

be used by children

aged from 8 years and

above and persons with

reduced physical sensory

or mental capabilities or

lack of experience and

knowledge if they have

been given supervision

or instruction concerning

the use of the appliance

in a safe way and

understand the hazards

involved. Children

shall not play with the

appliance. Cleaning and

user maintenance shall

not be made by children

without supervision.

WARNING! -

Unattended cooking on

a hob with fat or oil can

be dangerous and may

resultinre.

NEVER try to extinguish

arewithwater,but

switch off the appliance

andthencovertheame

with a lid or damp cloth.

WARNING! - Danger of

re:Donotstoreitems

on the cooking surfaces.

Never leave any cook

zone on without a pan

covering it. This causes a

rehazard.

WARNING! - Servicing

should be carried out

only by authorised

personnel.

WARNING! - The

appliance must never be

disconnected from the

mains supply

SAFETY

5.162

during use, as this will

seriously affect the

safety and performance,

particularly in relation

to surface temperatures

becoming hot and gas

operated parts not

workingefciently.The

coolingfan(iftted)is

designed to run on after

the control knob has

been switched off.

WARNING! -

Do not spray aerosols

in the vicinity of this

appliance while it is in

operation.

WARNING! - Do not

storeoruseammable

liquids or items in the

vicinity of this appliance.

WARNING! -

Do not modify this

appliance.

WARNING! - Do not

operate the appliance

without the glass panel

correctlytted.

WARNING! - There is

a risk of electric shock,

so always make sure

you have turned off

and unplugged your

appliance before

starting. Always allow

the product to cool down

before you change a

bulb.

WARNING! - Do not

modify the outer panels

of this appliance in any

way.

WARNING! - This

appliance must be

earthed.

WARNING! - The top

element gets extremely

hot when in use, so take

care to avoid touching it.

GAS WARNING! -

Ifyousmellgas:

Do not try to light any

appliance.

Do not touch any

SAFETY

5.162

electrical switch.

Contact your local gas

supplier immediately.

ELECTRIC INDUCTION HOB

WARNING:-

Unattended cooking on

a hob can be dangerous

andmayresultinre.

NEVER try to extinguish

arewithwater,but

switch off the appliance

andthencoverame

e.g. with a lid or a damp

cloth.

Dangerofre:donot

store items on the

cooking surface.

If the surface is cracked,

broken or shattered,

switch off the appliance

to avoid the possibility of

electric shock and call for

a service engineer’s visit.

Metallic objects such as

knives, forks, spoons and

lids should not be placed

on the hob surface since

they can get hot.

Ensure you switch off

the appropriate cook

zone individually or (by

the central on/off key if

touch control) when you

havenishedcooking,

do not rely upon the

automatic pan detection

system as your means

of switching “off” the

appliance.

This induction hob

complies with the

applicable EMC and EMF

standards. Therefore it

should not interfere with

other electronic units.

Personsttedwitha

pacemaker or any other

electrical implant should

clarify with their doctor

or the producer of the

implant, whether there

implant is adequate and

SAFETY

5.162

fail-safe.

The pacemaker

must be designed

in compliance with

the appropriate

regulations.

Caution: This appliance

is for cooking purposes

only. It must not be used

for other purposes, for

example room heating.

Caution: The use of a

gas cooking appliance

results in the production

of heat, moisture and

products of combustion

in the room in which it is

installed. Ensure that the

kitchen is well ventilated

especially when the

appliance is in use.

Keep natural ventilation

holes open or install a

mechanical ventilation

device (mechanical

extractor hood).

Prolonged intensive use

of the appliance may call

for additional ventilation,

for example opening

of a window, or more

effective ventilation,

for example increasing

the level of mechanical

ventilation where

present.

Induction Hob

Parts of the appliance

may become hot while

in use. Always make

sure that children

are supervised when

they are near to the

appliance.

Always position pans

over the centre of the

cook zone, and turn

the handles to a safe

position so they cannot

be accidentally knocked

or grabbed.

Do not leave pans on

SAFETY

5.162

the hob when you’re not

around - take them off

the cook zone if you

have to leave the kitchen

even if you think it will

only be for a moment,

while you answer the

door or phone.

If you use a griddle plate

ensure it is completely

cool before attempting

to lift it from the hob as

residual heat may cause

burns, Always use oven

gloves to protect your

hands.

The appliance has a

glass hob top, make

sure you do not drag

pans across the ceramic

surface as this will

lead to scratches and

damage.

Do not use the hob

surface as a chopping

board or food

preparation area as this

may lead to it becoming

damaged.

The glass ceramic can

get hot whilst cooking;

even though the cook

zone itself does not

generate heat. The heat

generated is conducted

back from the hot pans.

Keep electrical leads

from trailing over or

going near the hob.

The appliance must

never be disconnected

from the mains supply

during use as this will

seriously affect the

safety and performance,

particularly in relation

to surface temperatures

becoming hot and

component parts not

workingefciently.The

coolingfan(iftted)is

designed to run on after

the control has been

switched off.

SAFETY

5.162

This hob is not intended to be

opertated by means of a external

timer or seperate remote control

system.

Fire Safety Advice

Mostkitchenresoccurwhenpeopleare

distracted or leave things unattended, so

remember:

If you’re called away from the cooker - by

the phone or someone at the door, either

take pans off the heat, or switch off your

hob.

Don’t let yourself be distracted while

cooking.

Ifyoudohaveareinthekitchen,don’t

take any risks - get everyone out of your

home and call the Fire Brigade.

Unattended cooking on a hob with fat or

oil can be dangerous and may result in a

re.NEVERtrytoextinguisharewith

water, but switch off the appliance and

thencoveramee.g.withalidorare

blanket.

WARNING - If a pan catches re:

• Do not move it - it is likely to be

extremely hot

• Turn off the heat if it’s safe to do so

- but never lean over a pan to reach

the controls.

• Ifyouhaveareblanket,putitover

the pan.

• Ifyouhaveputthereout,leavethe

pan to cool completely.

Deep-fat frying presents more

dangers in your kitchen.

• Neverllachippan(orotherdeep-

fat fryer) more than one-third full of

oil

• Donotuseareextinguisher

on a pan of oil - the force of the

extinguishercanspreadthereand

createareball.

If you have an electrical re in the

kitchen:

• Pull the plug out, or switch off the

power at the fuse box - this may be

enoughtostopthereimmediately

• Smothertherewithareblanket,

or use a dry powder or carbon dioxide

extinguisher

• Never use water on an electrical or

cookingoilre.

DISPOSAL

Packaging Material

The packaging materials used with this

appliance can be recycled.

Please dispose of the packaging materials

in the appropriate container at your local

waste disposal facilities.

Old Appliances

The Symbol on the product or on

its packaging indicates that this product

may not be treated as household waste.

Instead it should be taken to the appli-

cable collection point for the recycling of

electrical and electronic equipment.

You will by ensuring the appliance is cor-

rectly disposed of help prevent potential

negative consequences for the environ-

ment and human health.

For additional details regarding the recy-

cling of this product please contact your

localgovernmentofce,yourhousehold

waste disposal service or the retailer

where you purchased the product.

USING THE HOB - INDUCTION

USING THE HOTPLATE

• Commercial simmering aids should

not be used as they create excessive

temperatures that can damage the

surface and may cause a hazard.

• Do not place aluminium foil or plastic

utensils on the ceramic glass, as they

may melt and damage the surface.

• Do not use the ceramic glass hotplate

surface for storage.

• When cooking with fat or oil, never

leave unattended.

• Turn pan handles to a safe position,

so they are out of reach of children,

not overhanging the appliance, and

cannot be caught accidentally.

• Position pans over the centre of the

hotplate elements.

• Do not use the hob as a chopping

board or a storage area, as this

increases the likelihood of it be-

ing damaged - e.g.; plastic utensils

placed on a warm hob may melt onto

it, and damage the ceramic glass

surface.

• Be careful when cooking foods in

salted water, or foods containing

large amounts of sugar, syrup or jam

- if they are spilled onto hot areas of

the hob they may damage it.

• Lift pans onto and off the surface,

rather than sliding them across the

surface, to avoid marks and scratch-

es.

• If you use a wet paper towel to

remove spills from a warm heating

area of the hob, be careful to avoid

steam burns.

• Do not use abrasive powder cleaners,

metal wire wool pads, impregnated

plastic pads, detergents, bleaches,

bath stain removers, or chemical

oven cleaners; all these types of

products will damage the ceramic

glass.

• pans should not be allowed to come

into contact with coloured trims dur-

ing use as this may cause discoloura-

tion of the surface

USING THE HOB - INDUCTION

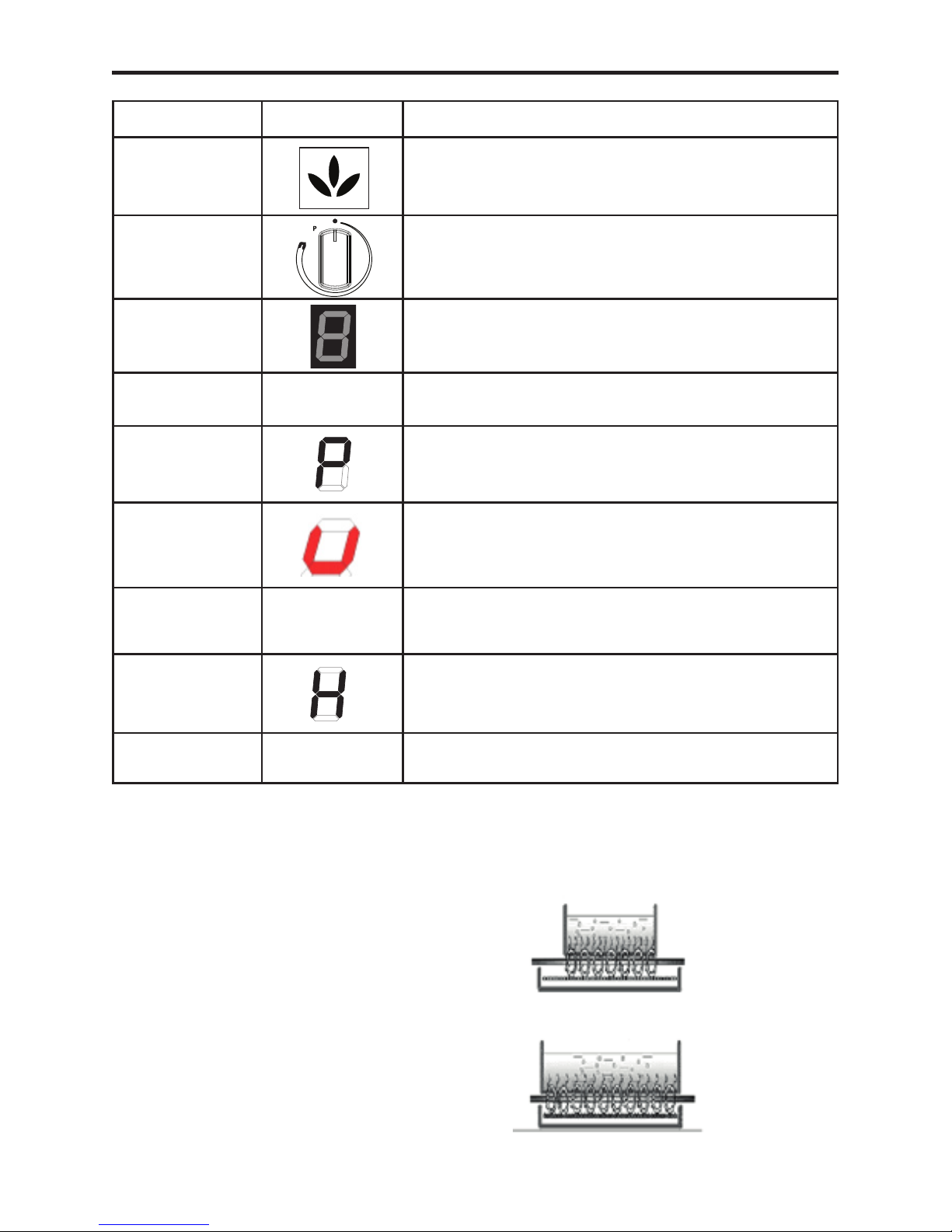

Feature Symbol Description

Eco power InductionPoweristhemostenergyefcientmeansof

cooking food, providing fast heat up and boiling times

Rotary controls Simpleknobcontrolwithallthebenetsofinduction

technology

Digital display Secret till “lit” hob display

No. of power

levels 10 Precise and repeatable control settings

Power Boost Temporarily boost the power to a cook zone by a mas-

sive 25%

Pan Detection

Lets you know if the correct pans are being used and

helps to save energy. When a pan is lifted off the zone,

the power is automatically cut.

Overheat Pan

Detection Yes

Helps prevent cookware from overheating providing an

additional level of safety not available on other types of

hobs

Residual Heat

Indictators

Warns you against hot surfaces but also indicates that

the residual heat can be used as a temporary warm zone

Holiday Shutdown Yes Rest assured this hob will eventually turn its self off if

left

About the induction hob

The induction hob provides the most en-

ergyefcienthobtechnologyavailable.

The induction system provides superior

heat up and cool down times for pans -

you get fast, precise, repeatable power

control.

As induction only heats up the pan, there

is no lost heat from the cooking process,

which in turn, limits the heat generated in

the kitchen.

Auto Power Tuning

Induction hobs have a unique power

tuning systems that automatically tunes

the power to the size of the pan base.

ensures energy isn’t wasted.

Small Pan

Large Pan

USING THE HOB - INDUCTION

BASIC HOB FUNCTION

Initial Power up (switching on the

electrical supply to the hob)

After connecting the hob to the mains

electrical supply, all segments of the

displays are illuminated (lit) and a beep

sounds.

The hob then initialises after which, all

displays are deactivated (LEDs go out)

and a beep sounds.

If there is an initialisation problem or if a

control knob is not set to the off position

all displays remain lit, until the initiali-

sation problem is solved or the control

knobs are turned to the off position.

To turn the hob ‘ON’ / ‘OFF’

To turn the hob ‘ON’, turn the control

knob for the required cook zone clockwise

to set the cook zone to the desired power

setting (1 to 9). The power display will

automatically light up and will “beep”.

To turn the hob ‘OFF’ turn the control

knob anti-clockwise to the ‘OFF’ position.

When a cook zone is switched off, a beep

sounds and the corresponding display

shows the power level “0”. 10 seconds

after switching off, a beep sounds and the

corresponding display is switched off (As

Shown below)

Control Knob Safety Feature “o”

If at any time you see the “o” symbol,

it means that a control knob has been

left on and needs to be turned to the off

position (reset) before the hob can be

used. This is to ensure that power isn’t

accidentally switched on to a cook zone

(i.e. turn the control knob off and back on

to continue using).

Power Boost

Temporarily boost the power to a cook

zone by approx 25%. All zones can be

boosted for a period of up to 10 minutes.

When booster is selected, a beep sounds

and the corresponding display shows a

“P” symbol.

The booster function only works for a

limited period. After 10 minutes of boost

power level, the cook zone is automati-

cally deactivated, a beep sounds and the

corresponding display shows a “o”

symbol.

The corresponding control knob has to

be turned back to the off position (reset)

before a new cook zone power level can

be set. (i.e. turn the control knob off and

back on to continue using).

Griddle Zone

Large pans and griddle plates can be

placed across the two left hand zones.

! Dry or empty Griddles and Frying

pans can heat up very quickly on power

settings greater than 5, this can, if not

closely monitored lead to the induction

showing a overheat warning “Shown by a

ashingC”Theinductionunitwillauto-

matically reduce the power used until the

hobhassufcientlycooleddown.Once

cooled down to an acceptable level the

power will automatically be restored and

theashing“C”willstop.Youcancarry

on cooking using the residual heat why

thehobiscoolingdown“ashingC”.

Pan Detection

The above “U” symbol appears when a

zone has been activated but no pan has

been placed on the cook zone.

If the “U” symbol does not disappear

when a pan is placed on the zone it

indicates that the pan is not suitable for

induction cooking.

Note This means the hob only uses

power when a suitable pan is placed on

the zone, this reduces the energy used

during the cooking process, i.e. when

you take your pan off the zone the hob

automatically reduces the power, and only

switches back on when you replace the

pan.

Pans and cookware for induction

hobs.

Pans and Cookware for induction cooking

zones must be made of ferrous mate-

rial such as cast iron and have magnetic

properties. The base must also be of the

correct diameter.

Itisimportantthatgoodquality,atbot-

tomed pans are used.

If a pan creates a large air gap over the

middle of the cooking zone, the accuracy

of the built in temperature sensor can be

effected.

Always ensure that pan bases are dry

before using them on the hob.

To check on the suitability of a pan, place

a magnet onto the base of the pan. If the

magnet does not stick to the pan, it is not

suitable for use on the induction hob.

Beware:- Not all induction pans are of

the same quality due to their construc-

tion. Pans that use enamelled/laminated/

encapsulatedbasescanbedifcultto

detect, especially small pans (e.g. milk

pans)

This problem is not with the induction hob

but with the pan type. They can have

bases which are magnetic but are

not thick enough! If you experience

problems with small pans we recommend

that you to try a larger pan or a pan of a

different construction. Solid cast iron pans

give the best performance.

Pans unsuitable for Induction:

Pans made of copper, stainless steel, alu-

minium, oven proof glass, wood, ceramic

and terra-cotta.

Overheat Pan Protection

The hob is equipped with additional safety

systems that help to prevent cookware

from overheating, providing an additional

level of safety not available on conven-

tional hobs such as gas and ceramic hobs.

USING THE HOB - INDUCTION

Induction Cook

Zone

Smallest Recom-

mended Diam-

eter (mm)

LHF 150

LHR 120

RHR 150

RHF 120

Thishelpstoreducetheriskofre

through misuse of the hob.

If there is an overheat situation, the hob

will display the appropriate code detailed

in the “hob status codes table” (next

page).

Approx Glass

Temperature oCHob Action

190 Automatic Power

Reduction

220 Power Automati-

cally Shuts down

Note:-

The safety temperature control of the

pansisonlypossiblewithqualityatbot-

tomed pans suitable for induction cook-

ing; Poor quality pans can create air gaps

between the glass and the pan, which

affects the accuracy of the temperature

control.

Residual Heat Indicators “H”

If the glass surface is above 65oC when

the cook zone is switched off, a “H” will

be displayed in the cook zone display until

the glass surface drops below approxi-

mately 55oC.

This feature not only warns you against

hot surfaces but also indicates that there

is residual heat which can be used as a

temporary warm zone.

Note:

The cook zone itself does not heat up, but

the ceramic glass does get hot because

of the hot pan conducting heat back onto

the hob glass.

Auto Stand by

The Hob will automatically switch off

if left (with pan) on for an extended

period of time, see maximum run-

ning times below.

Power Level

Maximum

Operation Time

hours

1 10

2 5

3 5

4 4

5 3

6 2

7 2

8 2

9 1

“P” (Power Boost) Max 10 mins

TROUBLESHOOTING

The hob produces a smell the rst

few times it is used.

Heat a pan full of water on each zone for

half an hour.

Pans make a noise during cooking

This is caused by vibration due to the pas-

sage of energy from the hob to the pan.

On a high setting this is quite normal for

certain types of saucepan. It will not dam-

age the hob.

The hob makes a slight clicking

sound

This is caused by the distribution of power

between two heating zones on the same

side of the hob.

The fan keeps working for a few

minutes after the hob has been

turned off

To cool down the electronics.

The hob won’t work, the indicators

don’t come on

The electricity supply is not reaching the

appliance (faulty supply or connection);

Check the fuses and the cut-out switch.

USING THE HOB - INDUCTION

Hob Status Codes Fault Description Action

"r" Max Power Setting reached (Only on 13 Amp

versions) Reduce the power settings on other zones

"U" Indictes no pan or suitable pan on the cook

zone

Ensure the correct pan size is selected and that the pan is suitable for

induction use

"o" Indicates control knob has been left in th on

position. Turn the control knob tothe off position to reset

"H" Residual Heater "H" will switch off when the glass surface drops below 55oC

"c" Induction generator over temperature Check the installation and free air flow to the hob are as per the installatio

instructions, Normal operation will resume when the appliance is cooled

"C"

Induction heater over temperature the product

will automaticlaly reset, indicates a overheated

pan.

Allow hob to cool and normal operation will resume

(8888) In all the

displays

Control knobs not turned on when electrical

supply is switched on at the cooker socket Turns the controls Off before switching the power on to the appliance.

Refer to Troubleshooting chart. Also try

switching power off/on to the appliance

to reset the electronics, if the problems

persist call, the customer service hotline

for further assistance.

Appliance Errors &

Alarms Fault Description

F / - Knob control fault Turn the controls to the off postion and turn the power off and back on to

reset the system

F / L Knob control limits fault Turn the controls to the off postion and turn the power off and back on to

reset the system

F / E User interface temperature sensor (NTC)error Allow the hob to cool. Turn the controls to the off postion and turn the

power off and back on to reset the system

F / t User interface temperature sensor (NTC)error Allow the hob to cool. Turn the controls to the off postion and turn the

power off and back on to reset the system

F / c User interface overtemperature Remove hot pans from the display areas and allow the hob to cool

F / H EEPROM error Allow the hob to cool. Turn the controls to the off postion and turn the

power off and back on to reset the system

F / J Knob control fault Allow the hob to cool. Turn the controls to the off postion and turn the

power off and back on to reset the system

F / 0 User interface microcontroller fault Allow the hob to cool. Turn the controls to the off postion and turn the

power off and back on to reset the system

USING THE HOB - INDUCTION

Heater Errors &

Alarms Fault Description Turn the controls to the off postion and turn the power off and back on to

reset the system

F / 5 Communication error Turn the controls to the off postion and turn the power off and back on to

reset the system

F / 1 Induction heater temperature sensor (NTC)

error
