STOVES 600GR Operating instructions

660000GGRR
600mm Rotostar
Gas Oven & Grill
Natural Gas
User & Installation Instructions

IMPORTANT NOTICE
Please note the cooling fan fitted to this appliance is an integral part of its safety
and functionality.
When the appliance is installed care must be taken that the cooling fans perfor-
mance is not impeded by any objects coming into contact with it. (Installation
pipes leads etc)
Care must also be taken that there is sufficient air flow at the rear of the appliance
for the cooling fan to run at its optimum efficiency. (Particularly Built In appliances)
See clearance dimensions in the installation section of the booklet.
During use the Appliance must never be disconnected from the Mains supply as
this will seriously affect the safety and performance of the appliance particularly
in relation to surface temperatures becoming hot and gas operated parts not work-
ing efficiently.
The cooling fan is designed to run on after the control knob has been switched off
to keep the front of the appliance and the controls cool until the appliance has nat-
urally cooled itself.

Thank you for choosing this British built appliance from Stoves.
We hope you enjoy many years of trouble free cooking with this oven. Should
you need to contact us however please call the number below and our Customer
Care Centre staff will be pleased to help in any way they can.
0 71 22 22 502
When you dial this number you will hear a recorded message and be given a
number of options. This indicates that your call has been accepted and is being
held in a queue. Calls are answered in strict rotation as our Customer Care
Representatives become available.
Opening Hours for Customer Care Centre
Monday to Friday 8am - 8pm
Saturday 8.30am - 6pm
Sunday 10am - 4pm
When calling please have to hand you appliances model an serial numbers.
These numbers help us to quickly identify your product and enable out Customer
Care team to provide you with the most up to date advice and support.
Alternatively spares and service call outs can be requested via our website:
www.stoves.co.uk
Outside the UK and Northern Ireland refer to your local supplier.
Stoves Customer Care

CONTENTS
1
User’s Section . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Introduction . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Be Safe - Not Sorry. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Using the Grill . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Using the Oven . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Programmer / Clock . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Cleaning . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Micro-computer Operation. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Installation Instructions . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Fault Finding. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Technical Data . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Stoves Customer Care . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Please keep this handbook for future servicing, or for anyone else
ho may use the appliance.
If you smell gas:
Do not try to light any appliance. Do not touch any electrical switch.
Call the Gas Emergency Helpline at TRANSCO on: 0 00 111999

Thank you for choosing a
British built appliance by Stoves
We hope the following information
will help you to familiarise yourself
with the features of the appliance and
to use it successfully and safely.
Our policy is one of constant
development and improvement. Strict
accuracy of illustrations and specifications
is not guaranteed. Modification to
design and materials may be
necessary subsequent to publication.
This appliance must be installed in
accordance with the regulations in
force and only in a well ventilated
space. Read the instructions before
using or installing this appliance.
Your first year guarantee
To fulfil the conditions of your guarantee
this appliance must be correctly
installed and operated in accordance
with these instructions and only be
used for normal domestic purposes.
Please note that the guarantee and
Service availability only apply to the
UK and Republic of Ireland.
The appliance is designed to fit into a
standard 600mm wide housing unit
with a minimum internal height of
580mm and clear depth of 550mm.
Before using the oven or grill for
the first time remove any protective
polythene film and wash the oven
shelves and shelf runners in hot soapy
water to remove their protective covering
of oil. Even so when you first switch
on the oven or grill you may notice a
smell or some smoke.
Glass door panels
To meet the relevant Standards of
Domestic cooking appliances all the
glass panels on this appliance are
toughened to meet the fragmentation
requirements of BS3193. This ensures
that in the unlikely event that a panel
breaks it does so into small fragments
to minimise the risk of injury.
Please take care when handling using
or cleaning all glass panels as any
damage to the surfaces or edges may
result in the glass breaking without
warning or apparent cause at a later
date. Should any glass panel be
damaged we strongly recommend
that it is replaced immediately.
3
INTRODUCTION

Cooling fan
When you switch on the oven or grill
you will hear the cooling fan come on.
This fan provides air for the burners
and keeps the exterior of the
appliance cool during cooking and
the appliance will not operate unless
the fan is operating.
The fan will continue to operate to cool
the appliance for a few minutes after
the last control has been switched off.
If the fan malfunctions the appliance
will require servicing. Switch off the
electricity supply to the appliance.
Warning: Do not use the oven if the
fan is not working.
When hot and cold air meet
condensation forms. The outer door is
air cooled and the inner door gets hot
so some condensation might form; this
is normal and will disappear within
10 - 15 minutes.
During operation a metallic click may
be heard occasionally. This is caused
by the gas valve operating and is
quite normal.
Note: operating the control knobs
You may find that the control
knobs on your new appliance
operate or perform differently to
those you are used to.
The controls are part of the unique
electronic operating system of the appli-
ance and are designed to be
extremely responsive and easy to
turn.
Gas & Electrical connection
Please refer to installation instructions
for the Gas & Electrical Safety Regulations
and the Ventilation Requirements.
In your own interest and that of safety
it is the law that all gas appliances be
installed by competent persons who will
ensure that the installation is in accor-
dance with “The Gas Safety (Installation
& Use) Regulations” & the “The Gas
Safety (Installation & Use) (Amendment)
Regulations”. Failure to comply with these
Regulations is a criminal offence.
Corgi registered installers undertake to
work to satisfactory standards.
Disconnection of gas and electric
appliances should always be carried
out by competent persons.
Warning: This appliance must be
earthed.
In the event of a power cut
1. Switch off the electricity to the
appliance at the socket.
2. When the power returns see the
‘Programmer / Clock’ section to
‘Set the time of day’.
The Gas Consumer Council (GCC) is
an independent organisation which
protects the interests of gas users. If
you need advice you will find the
telephone number is your local
telephone directory under Gas.
4
INTRODUCTION

To replace an oven light bulb
Switch off the electricity supply to the
appliance at the socket to avoid the
risk of electric shock.
Wait until the oven is cool then
remove the oven shelves.
The lens cover on the light can be
removed by grasping the lens cover
and pulling away from the side of the
oven. Unscrew the bulb.
Please note that the oven light bulbs
are not covered by guarantee.
Replacement bulbs can be bought
from any hardware store.
Ventilation
The use of a gas cooking appliance
results in the production of heat and
moisture in the room in which it is
installed. Ensure that the kitchen is well
ventilated; keep natural ventilation holes
open or install a mechanical ventilation
device (mechanical extractor hood).
Prolonged intensive use of the
appliance may call for additional
ventilation for example opening of a
window or more effective ventilation
for example increasing the level of
mechanical ventilation where present.
This appliance is not connected to a
products evacuation device. It shall be
installed and connected in accordance
with current installation regulations.
Particular attention shall be given to
the relevant requirements regarding
ventilation.
Environmental Protection
We are committed to protecting the
environment and operate an
Environmental Management System
which complies with current policy.
Disposal of packaging
• All our packaging materials are
recyclable and environmentally
friendly.
• Please help us to protect our
environment by disposing of all
packaging in an environmentally
friendly manner.
• Please contact your local authority
for the nearest recycling centre.
Caution: Packaging materials can
pose a risk of suffocation - keep away
from children.
Ready light
The green ready light is located in the
control knob window below the oven
/ grill indicator dial.
The ready light will come on with a
steady green light to indicate when the
oven / grill has reached a suitable
temperature. For best results pre-heat
the oven for 15 minutes.
If the green ready light is flashing or
if the red indicator dial is flashing
refer to “Micro-computer Operation”
section.
5
INTRODUCTION

When you are cooking, keep
children away from the vicinity
of the appliance.
This product is designed as a domestic
cooking appliance for the preparation
and cooking of domestic food
products and should not be used for
any other purpose.
• Remove all packaging protective
films and oils from the appliance
before using for the first time.
• Make sure you read and
understand the instructions before
using the appliance.
• Keep electrical leads short so they
do not drape over the appliance
or the edge of the worktop.
• Keep all flammable materials (such
as curtains furnishings & clothing)
away from the appliance.
• Parts of the appliance may be hot
during or immediately after use.
Allow sufficient time for the appliance
to cool after switching off.
• Switch off the electricity supply
before cleaning the appliance.
• Never use the appliance for
heating a room.
• When opening the appliance
door take care to avoid skin
contact with any steam which may
escape from the cooking.
• Do not place items on the oven
door when it is open.
• Do not use the oven with the door
inner glass panel removed.
• Do not use foil on oven shelves or
allow it to block the oven flue as
this creates a fire hazard and
prevents heat circulation.
• Using aluminium foil to cover the
grill pan or putting items wrapped
in foil under the grill creates a fire
hazard.
• Use oven gloves when removing
hot food / dishes from the oven or
grill. The oven / grill and utensils
will be very hot when in use.
• When cooking heavy items - eg;
turkeys - do not pull the oven shelf
out with the item still on the shelf.
• Switch off the electricity supply
before replacing an oven light
bulb to avoid the risk of electric
shock.
All installation servicing and
maintenance work should be carried
out by a competent person who will
comply with current Regulations
Standards and Requirements.
When you have finished
cooking check that all controls
are in the off position.
As with all gas appliances it is
recommended that your appliance is
serviced regularly.
6
BE SAFE - NOT SORRY

Caution: Accessible parts may
be hot when grill is used.
Young children should be kept
away.
Grill ignition
The door must be open when the grill
is used either fully open or using
the door stop position - open the door
approximately 170mm and it will
hold open.
Turn the control knob clockwise to the
grill setting.
There is a short delay before ignition
as the cooling fan starts.
Should ignition not take place within 25
seconds the gas and spark generator
will be turned off automatically. To
light the grill turn the control knob off
then back to the grill position.
If the door is closed the grill burner will
go out. The grill will re-light when the
door is opened again.
To switch off return the control knob to
the “off” position.
Preheating
Always preheat the grill for about 3
minutes for best cooked results. The
green indicator will illuminate to
indicate that the grill is ready.
Aluminium foil
Never cover the grill pan or trivet
with aluminium foil or allow fat to
build up in the grill pan as this creates
a fire hazard.
Using the grill
Push the grill pan towards the back
and centre of the shelf to position it
under the grill. Variation in grilling
performance can be achieved by
selecting a higher or lower shelf posi-
tion.
Always use the top position for fast
cooking toasting and grilling foods
such as bacon sausage or steaks.
For thicker foods such as chops or
chicken joint pieces use a middle to
low shelf position.
The grill trivet inside the grill pan can
also be inverted to give a high or low
position or it may be removed.
When you have finished
grilling, check that the control
knob is in the off position.
7
USING THE GRILL

8
Detachable grill pan handle
Place the handle over the edge of the
grill pan at the narrow side edges.
Slide the handle to the centre and
locate between the handle position
indicators.
The handle should be removed from
the pan during grilling to prevent
overheating.
The handle is designed for removing /
inserting the grill pan under the grill
when grilling.
If cleaning the grill pan when it is hot
use oven gloves to move it. Do not use
the handle to pour hot fats from the
grill pan.
Food for grilling should be positioned
centrally on the trivet.
Notes
• Position the oven shelf on the
desired shelf position.
• Position the grill pan centrally on
the oven shelf.
• If you choose to grill with the door
in the stop position you can
remove the grill pan handle by
sliding it to the recess.
• The grill cannot be used when the
programmer is set for automatic
cooking. If ‘auto’ is showing on
the programmer display you can
cancel the ‘auto’ by pressing the
cook time and ready time buttons
simultaneously.
USING THE GRILL
handle
grill pan
grid
handle position
indicators

Caution: When you are cooking
keep children away from the
vicinity of the oven.
Manual operation
The oven cannot be used manually
when the programmer is set for
automatic cooking. If auto is showing
on the programmer display press the
cook time and ready time buttons
simultaneously to cancel the automatic
setting and return to manual operation.
The door must be closed for the oven
burner to ignite. The oven burner will
go out when the door is opened but
will re-light when the door is closed
again this has no detrimental effect on
the food being cooked.
Turn the control knob anticlockwise to
the required gas mark setting.
There is a short delay before ignition
whilst the cooling fan starts and runs
up to speed. The ignition unit will
spark for approximately four seconds
to light the burner; if ignition does not
occur the computer will close the gas
valve for 12 seconds to allow any
unburnt gas to disperse before
attempting ignition again. This
sequence will occur automatically a
further 4 times only. The green lamp
will flash if ignition does not occur
within 4 attempts. The computer may
be reset if ignition has not occurred
by turning the control off then on
again to the required setting.
Note: The Rotostar burner will cycle on
and off during cooking maintaining
an even temperature giving greater
fuel efficiency.
Warning: do not use the oven if the
fan is not working.
Note:
As part of the cooking process hot air
is expelled through a vent at the top of
the oven. When opening the oven
door care should be taken to avoid
any possible contact with potentially hot
air since this may cause discomfort to
people with sensitive skin. We recommend
that you hold the underneath of the
oven door handle.
Automatic operation
See ‘Programmer / Clock’ section.
We recommend that 15 minutes is
added to the cooking time when using
the automatic cooking facility to allow
for preheating.
9
USING THE OVEN

Oven furniture
Baking tray and roasting tins
For best cooked results and even
browning the maximum size baking
trays and roasting tins that should be
used are as follows;
Baking tray - 350mm x 280mm.
This size of baking tray will hold up to
16 small cakes.
Roasting tin - 370mm x 320mm
We recommend that you use good
quality cookware. Poor quality trays
and tins may warp when heated
leading to uneven baking results.
Oven shelves
The oven shelf must be positioned at
the rear of the oven with the upstand
facing upwards.
Oven lights
Oven lights will come on when the
oven is in use.
10
USING THE OVEN

Programmer / Clock
11
The Programmer Buttons
minute minder
cook time
ready time
minus
plus

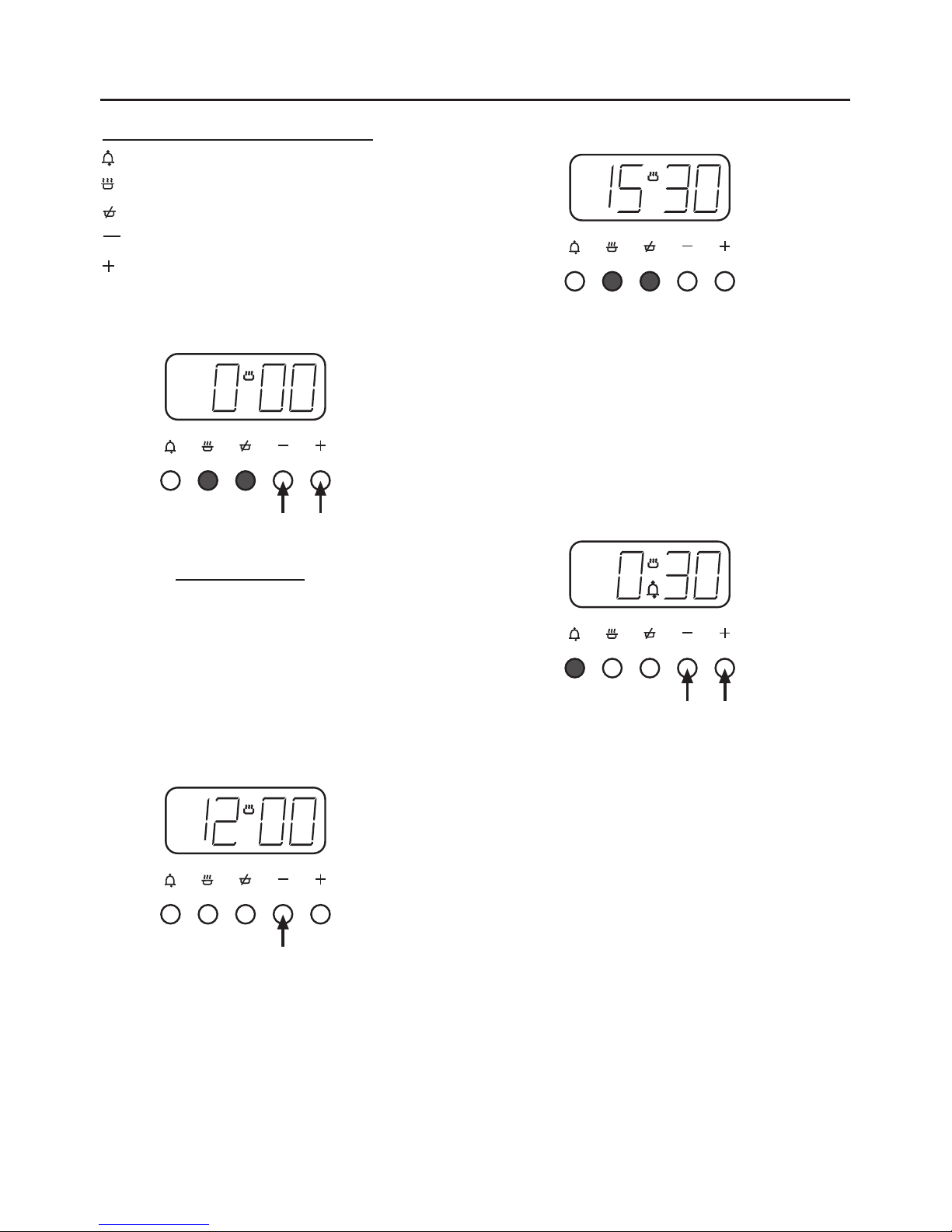

To set the “Time of Day”
Press the cook time and ready time
buttons simultaneously and keep the
buttons depressed. Use the plus and
minus buttons to set the time of day
eg; 12.00.
A (Auto) symbol goes out cookpot
symbol comes on.
To select an alarm tone
Press the minus button to listen to the
first tone.
Release the minus button and press it
again to listen to the second tone etc.
Releasing the minus button after the
tone has sounded will automatically
select that tone.
Manual operation
To set the programmer to manual
operation at any time (cancelling any
automatic setting) press the cook time and
ready time buttons simultaneously. The
programmer must be set to manual before
the appliance can be used manually.
Setting the minute minder
Press the minute minder button then
use the plus and minus buttons to set
the required time.
The minute minder (bell) symbol will
appear on the display.
You can cancel the minute minder at
any time by pressing the minute
minder button and the minus button
until the display returns to 0.00.
After setting the display will revert to
show the time of day but you can press
the minute minder button and the
display will show the minutes remaining.
The tone will sound at the end of the
time set - to cancel the tone press the
minute minder button.

Programmer / Clock
12
1. A (Auto) symbol appears.
2.
3. A (Auto) symbol will flash.
4. A (Auto) symbol goes out.
Semi-automatic cooking (example)
You have started cooking a meal or
dish in the oven and want to set the
time for the oven to switch off.
Press the cook time button then use the
plus and minus buttons to set the
display to show the length of cooking
time required eg; 2 hours as shown (1).
After setting the display will revert to
show the time of day but you can
press the cook time button and the
display will show how much cooking
time still remains on the clock.
Press the ready time button and the
display will show the actual time the
oven is going to switch off eg; 18.00
as shown (2).
At the end of the cooking time the
alarm will sound and the oven will
automatically switch off.
To switch off the alarm press the
minute minder button (3).
When the oven has switched off
return the oven control knob to
the “off” position and press the
cook time and ready time buttons to
return to manual operation (4).
If you wish to cancel the automatic
setting or to cancel any remaining
cooking time left on the clock before
the alarm sounds press the cook time
and ready time buttons simultaneously.
(4).
A
U
T
O
A
U
T
O
A
U
T
O

Programmer / Clock
13
5. A (Auto) symbol appears.
6. The cookpot symbol will
disappear from display.
7. The cookpot symbol will appear
on display.
.
Fully automatic cooking (example)
For use when a delayed start time is
required.
You want to set the length of cooking
time and the time for the oven to switch
off. The programmer will automatically
calculate the cooking start time.
Turn the oven control to the
required temperature.
(Oven will begin normal cooking
mode.)
Press the cook time button then use the
plus and minus buttons to set the
display to show the length of cooking
time required eg; 2 hours as shown (5).
Press the ready time button and the
present ready time will be displayed.
Using the plus and minus buttons you
can set the display to show the actual
time you want the oven to switch off
eg; 18.00 hours (6.00 pm) (6).
The display will revert to show time of day.
The oven will automatically switch on
at the calculated start time of 16.00
hours (4.00 pm) (7).
A single press of the cook time button
shows the cooking time remaining
before the oven automatically switches
off ( ).
A
U
T
O
A
U
T
O
A
U
T
O
A
U
T
O

Programmer / Clock
14
9. A (Auto) symbol will flash.
10.
11. A (Auto) symbol goes out.
The oven will automatically switch off
at 18.00 hours (6.00 pm) and the
alarm will sound (9).
To switch off the alarm press the
minute minder button (10).
When the oven has switched off
return the oven control knob to the
“off” position and press the cook time
and ready time buttons simultaneously
(11).
If you wish to cancel the automatic
setting before cooking has started
and return to manual operation press
the cook time and ready time buttons
simultaneously (11).
To cancel any remaining cooking time
left on the clock before the alarm
sounds press the cook time and ready
time buttons simultaneously (11).
A
U
T
O
A
U
T
O

Automatic cooking
These notes below are to help you with
using the automatic cooking facility.
Please make sure that you read them
carefully before you start using the
automatic functions.
Do
• Familiarise yourself with the use of
the programmer.
• Select foods which are as fresh as
possible and as cold as possible -
ie; preferably straight from the
refrigerator.
• Choose foods which are suitable
for cooking from a cold start as
some dishes will be affected by
being left uncooked at room tem-
perature perhaps for several
hours especially when the weath-
er is hot.
• Make sure that meat poultry and
uncooked food are thoroughly
thawed before placing them in the
oven.
• Cover dishes with lids or foil as
they may be left standing in the
oven for some time before cook-
ing.
Do not
• Never place warm food in the
oven for delayed cooking - eg;
stews prepared by frying meat first
must be thoroughly cooled before
placing in the oven.
• Do not cook dishes containing left
over cooked meat or poultry or
pastry dishes with wet fillings
as they are not suitable for auto-
matic cooking.
• Do not put food items intended for
delayed cooking into a warm oven
- allow the oven to cool before set-
ting for delayed cooking.
• Do not over-fill dishes containing
liquids as they might boil over.
• Never leave food in the oven to
cool slowly after cooking serve
immediately or refrigerate.
Automatic cooking - hints
15

Caution: Any cleaning agent
used incorrectly may damage
the appliance.
Always let the oven cool before
cleaning.
Some cooking operations generate a
considerable amount of grease. This
combined with spillage can become a
hazard if allowed to accumulate on
the appliance through lack of cleaning.
In extreme cases this may amount to
misuse of the appliance and could
invalidate your guarantee.
It is recommended that the appliance
is cleaned after open roasting.
Do not use caustic corrosive or
abrasive cleaning products products
containing bleach coarse wire wool
or any hard implements as they will
damage the surfaces.
All parts of the appliance can be
safely cleaned with a cloth wrung out
in hot soapy water.
Chrome plated parts
OVEN SHELVES & OVEN SHELF RUNNERS
GRILL PAN TRIVET
Do not use abrasives or polishes. Use a
moist soap pad. These items may also
be cleaned in a dishwasher.
Note: Oven shelf runners can be
removed for cleaning. Grasp the
runners and slide out of the hanging
holes as shown.
Painted, plastic & metal finish parts
DOOR HANDLE CONTROL KNOBS
Only use a clean cloth wrung out in
hot soapy water.
Enamel surfaces
OVEN CAVITY ROASTING TIN & GRILL PAN
We recommend that the appliance is
cleaned after open roasting and also
after roasting at temperatures higher
than gas mark 5. Use of a trivet in a
roasting tin when roasting will help
reduce fat splashing.
Caution: Most types of cleaning
agent will damage these surfaces.
Only use a few drops of washing up
liquid in hot water. Wipe the surfaces
with a clean cloth wrung out in hot soapy
water - if larger splashes of fat do not
readily disappear scrub the area with
a nylon brush or nylon pan scourer
and hot soapy water. Rinse well and
heat the oven to dry the surfaces.
16
Pull out to clean
CLEANING

Glass parts
FACIA PANEL & DOOR PANELS
Use a mild cream cleaner. Rinse thor-
oughly and dry with a soft cloth. Do
not use abrasive cleaners or polishes.
To remove the glass panel for cleaning
open the door to the door stop position
(about 30˚ open) hold the top and
bottom edges of the panel and slide
out. Note that if the door is opened
fully when removing the inner door
glass panel the door may spring shut.
Important: if the inner door glass
panel is removed for cleaning it must
be replaced the right way up as
shown and pushed fully in to the
stop position.
17
CLEANING
30˚
Door stop position
Approx.
slide in
this way up

Stainless Steel surfaces (stainless
steel finish models only)
FACIA PANEL HANDLES DOOR PANELS
Only use a clean cloth wrung out in hot
soapy water and dry with a soft cloth.
Stubborn marks can be removed using
stainless steel cleaner. We recom-
mend that you clean the whole of the
stainless steel area to maintain a uni-
form finish. Supplies can be purchased
from the Customer Care Centre.
Do not use undiluted bleach or any
products containing chlorides as they
can permanently damage the steel.
Extra care should be taken when cooking
food in salted water. Some foods are
corrosive - eg; vinegar fruit juices and
especially salt - they can mark or
damage stainless steel if they are left
on the surface. Turn off and wipe any
spillage immediately taking care to
avoid skin contact with any hot surface
or spillage.
Sharp objects can mark the surface of
stainless steel but marks will become
less noticeable with time.
To maintain the finish of the stainless
steel or to remove any greasy marks
wipe the stainless steel surface spar-
ingly with a minimum amount of baby
oil and kitchen paper.
Do not use cooking oils as these may
contain salt which can damage the
stainless steel surface.
18
CLEANING
