STOVES 900GTF User manual

STOVES 900GTF
Double Oven & Grill
For Natural Gas Models
& LP Gas Models
Handbook Number 08 18291 01 © 1995, 1996
STOVES 900GTF / 900GTF LP DO & GRILL HANDBOOK No: 08 18291 01
Incase of difficulty please call STOVES Customer Support Helpline on
0151 432 7838
When you dial this number you will hear a ringing tone. This indicates
that your call has been accepted and is being held in a queue.
Calls are answered in strict rotation as our Customer Support
Representatives become available.
Please be ready to supply details of your appliance. We will need to
know the name of the cooker, its colour, serial number and model num-
ber; you will find these details on the data badge, which is attached to
the lower front frame, and is visible when you open the oven door.
The Gas consumer Council (GCC) is an independent organisation which
protects the interest of gas users. If you need advice, you will find the tele-
phone number in your local telephone directory under Gas.
18291 01 04/11/2002 12:19 Page 1

THANK YOU FOR CHOOSING A BRITISH BUILT APPLIANCE BY STOVES
We hope that the following information will help you to quickly
familiarise yourself with the features of the following appliance, and
use it successfully and safely.
It is the law that all gas appliances be installed and serviced
by competent persons. CORGI registered gas installers
undertake to work to satisfactory standards.
Our policy is one of constant development and improvement. Strict accuracy of
illustrations and specifications is not guaranteed. Modification to design and
materials may be necessary subsequent to publication.
18291 01 04/11/2002 12:19 Page 2

User’s Section . . . . . . . . . . . . . . . . . . . . . . . . 2 - 14
Introduction . . . . . . . . . . . . . . . . . . . . . . . . . . . 2
Maxigrill . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4
Top Oven . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5
Analogue Clock . . . . . . . . . . . . . . . . . . . . . . . . 6
Digital Programmer / Clock . . . . . . . . . . . . . . . . 8
Main Fan Oven . . . . . . . . . . . . . . . . . . . . . . . . 12
Cleaning . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 13
Installation Instructions . . . . . . . . . . . . . . . . . 15 - 20
Servicing Instructions . . . . . . . . . . . . . . . . . . 21- 39
Technical Data . . . . . . . . . . . . . . . . . . . . . . . 40 - 41
CONTENTS
This appliance must be installed in accordance with the regulations in force,
and only in a well ventilated space. Read the instructions before using or
installing this appliance.
PLEASE KEEP THIS HANDBOOK FOR FUTURE SERVICING, OR FOR
ANYONE ELSE WHO MAY USE THE APPLIANCE.
1
18291 01 04/11/2002 12:19 Page 3

The 900GTF is designed to fit into a
standard 600 mm wide housing unit
with a minimum internal height of 880
mm.
The USER’S SECTION in this handbook
covers the operation of the ovens and
grill, but to help you make the most of
your 900GTF, with its main fan oven
and conventional top oven, our Home
Economist has produced the accompa-
nying ‘COOKING GUIDE’ which
gives more details of its features and
benefits.
▲ Your 1st Year Guarantee
To fulfil the conditions of your guaran-
tee, this appliance must be correctly
installed and operated, in accordance
with these instructions, and only be
used for normal domestic purposes.
▲ Gas & Electric Connections
Please refer to the ‘Installation
Instructions’ for the Gas and Electrical
Safety Regulations, and the Ventilation
Requirements.
For your safety, make sure that
installation is carried out by a compe-
tent person, who will comply with cur-
rent Regulations, Standards and
Requirements. CORGI registered gas
installers are approved to work to safe
and satisfactory standards.

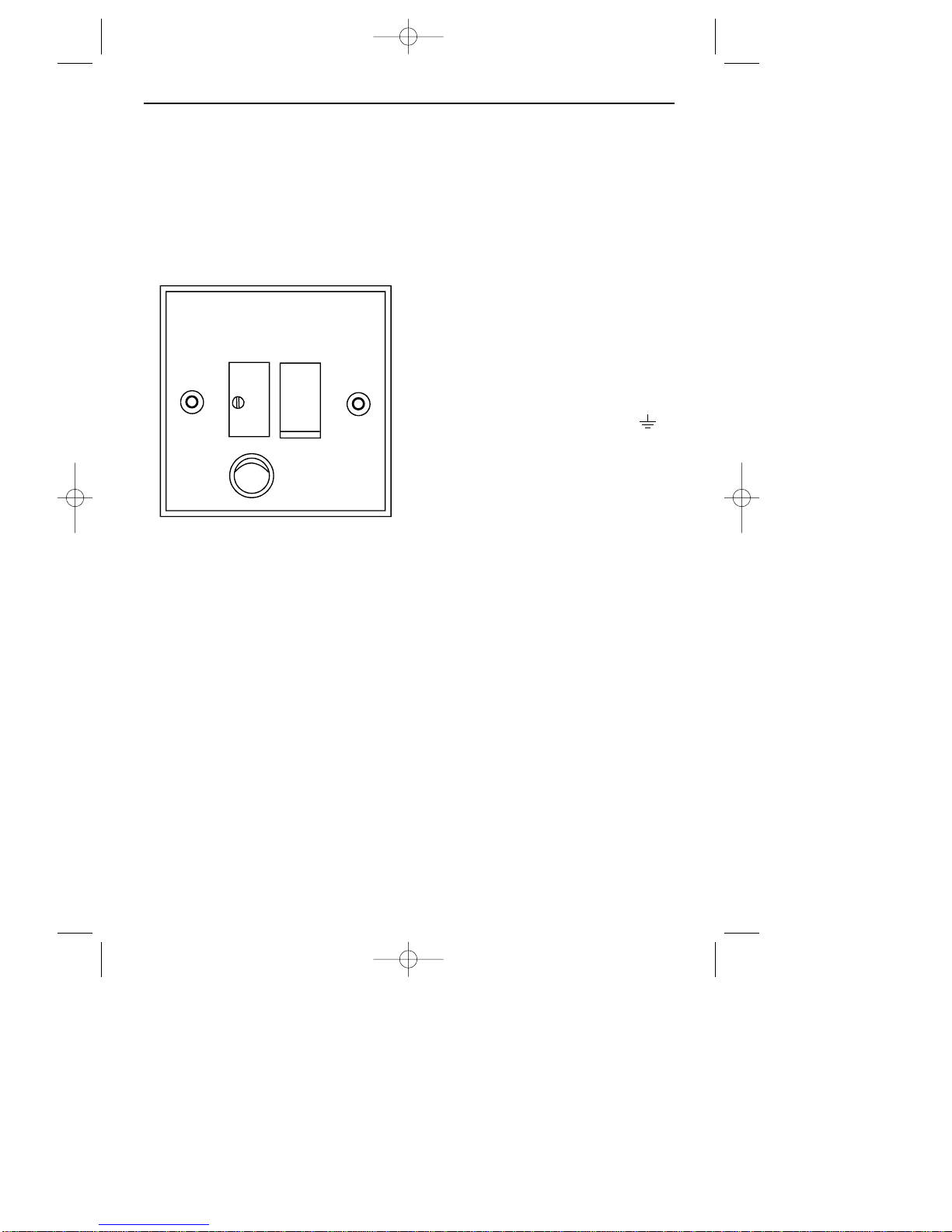

Warning: This appliance must
be earthed.
▲ In the event of a power cut
1.Switch off the electricity supply to
the appliance.
2.When the power returns, see the
‘Programmer / Clock’ section to
‘Set the time of day’.
▲ Before using the appliance,
remove any protective polythene film
and wash the oven shelves and furni-
ture in hot soapy water, to remove
their protective covering of oil. Even
so, when you first switch on the oven
or grill, you may notice a smell and
some smoke.
❑ When hot and cold air meet,
condensation forms. The outer door is
cooler than the inner door, so some
condensation might form, this is
normal, and will disappear within 10-
15 minutes.
INTRODUCTION
2
18291 01 04/11/2002 12:19 Page 4

Ventilation
The use of a gas cooking appliance
results in the production of heat and
moisture in the room in which it is
installed. Ensure that the kitchen is
well ventilated; keep natural
ventilation holes open or install a
mechanical ventilation device
(mechanical extractor hood).
Prolonged intensive use of the
appliance may call for additional
ventilation, for example opening of a
window, or more effective ventilation,
for example increasing the level of
mechanical ventilation where present.
▲ Cooling fan
When you switch on the
oven or grill you will hear
the cooling fan start. This
fan keeps the exterior of
the appliance cool during cooking,
and depending upon use, may contin-
ue to run for up to 15 minutes after the
control has been switched off. If a
safety related fault occurs, the fan will
continue to run until the appliance
electrical supply is turned off.
❑ Should any fault develop in the
cooling fan, the appliance will need to
be serviced.
INTRODUCTION
3
18291 01 04/11/2002 12:19 Page 5

Be Safe
The door must be OPEN when the grill
is used. If the door is closed the grill
burner will go out. The grill will re-
light when the door is opened again.
CAUTION:ACCESSIBLE PARTS MAY BE HOT
WHEN THE GRILL IS USED, YOUNG CHILDREN
SHOULD BE KEPT AWAY.
✘NEVER cover the grill pan or grid
with cooking foil or allow fat to
build up in the grill pan, as this cre-
ates a fire hazard.
✘DO NOT use the grill if the grill glass
is cracked.

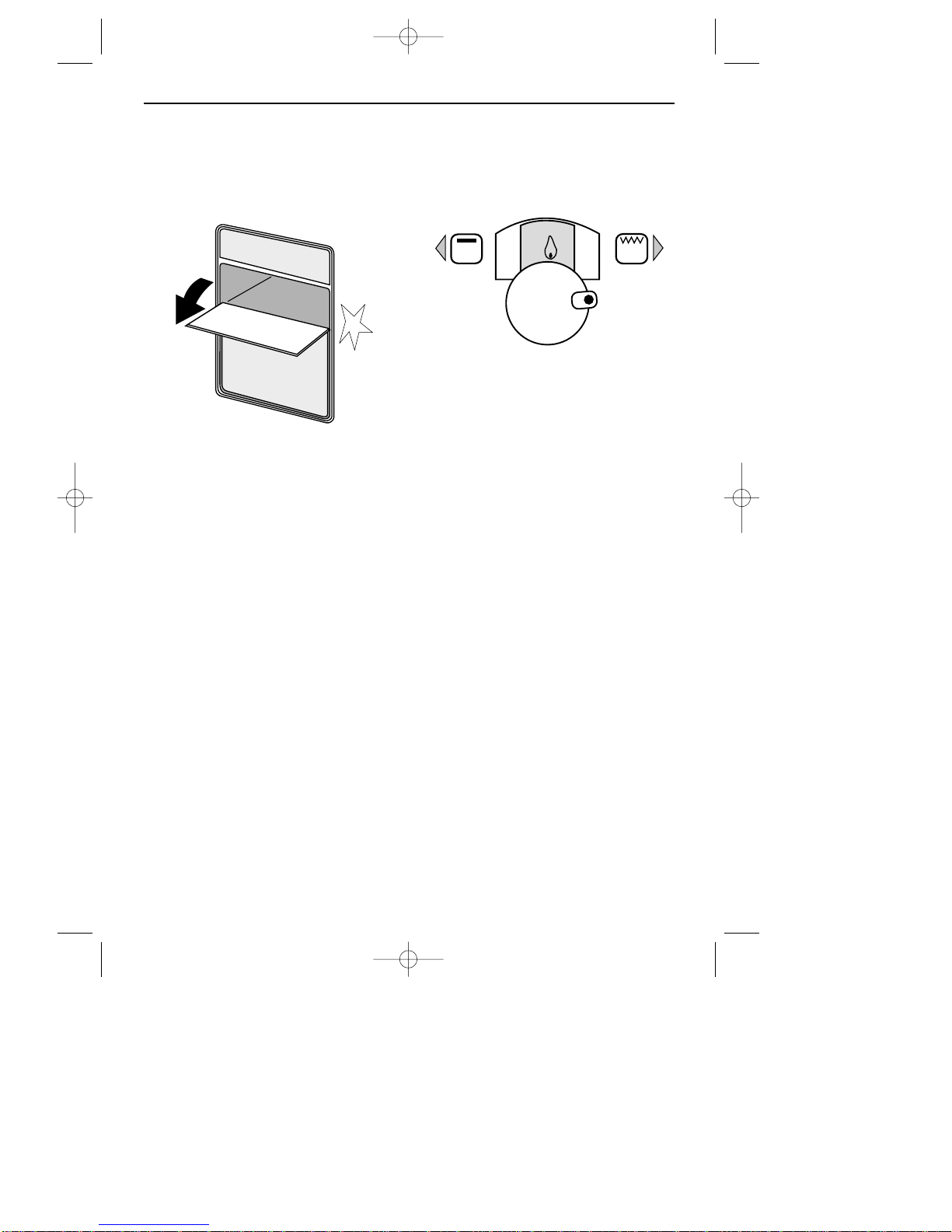

To turn on the grill
OPEN the grill door, push in and turn
the grill control knob clockwise to the
grill setting.
There is a short delay before ignition
(up to 10 seconds) and the automatic
ignition will continue to spark for a
short time after the burner has lit until
the flame is established.
Note

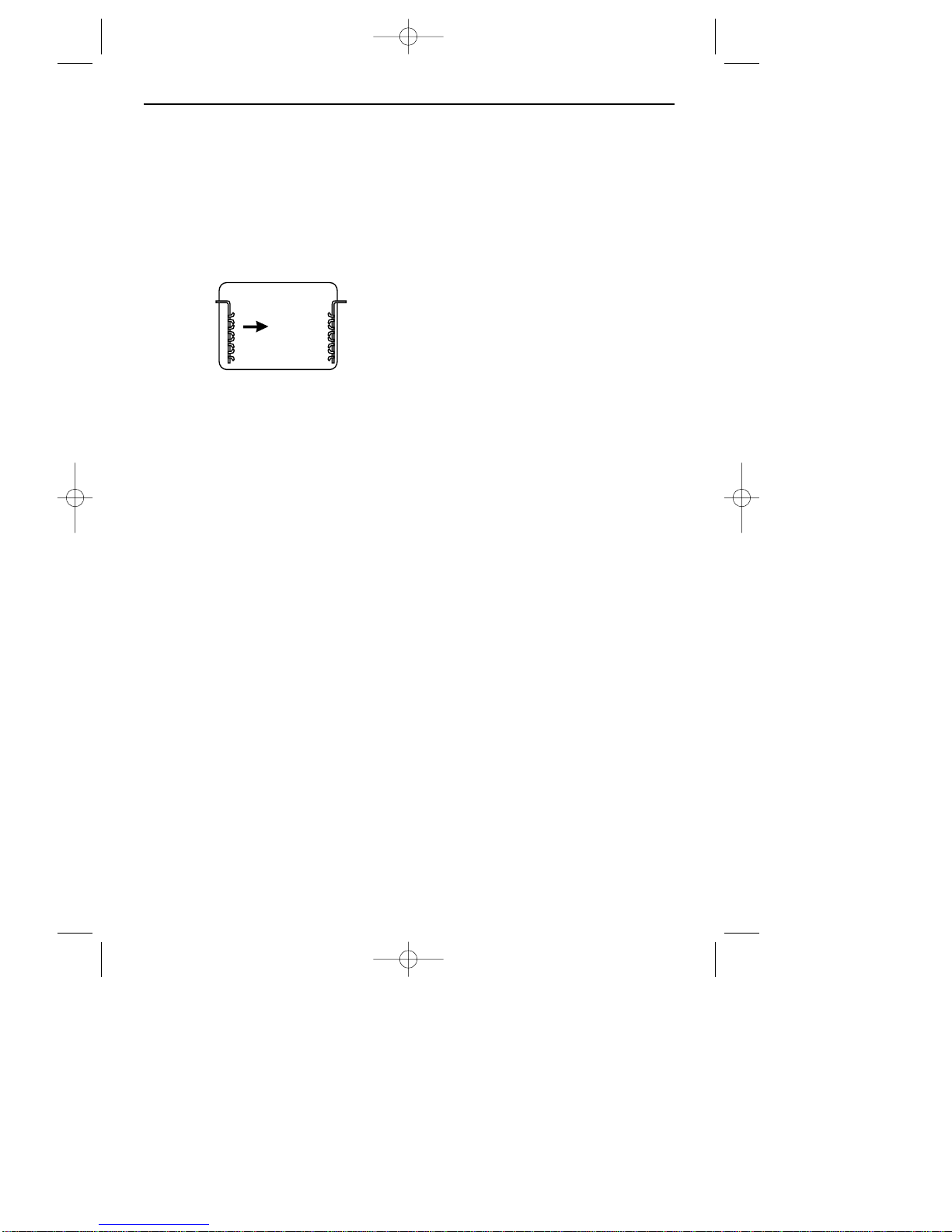

The 2 kinks in the oven shelf wires are
there to position the grill pan under the
centre of the grill.
Detachable handle(s)
Place the handle (shield uppermost)
over the edge of the grill pan at the
recess, and slide along to position
CENTRALLY between the two locators. If
you prefer to use two handles, another
handle can be bought from your
supplier. When using two handles,
position between the outer locators.
MAXI GRILL
4
18291 01 04/11/2002 12:19 Page 6

❏The top oven is NOT controlled by
the programmer, and can therefore
be used even when the main oven is
programmed for automatic cooking.
❏The top oven can be used generally,
in the same way as the main oven,
to cook the full range of dishes, but
it is a SECONDARY oven and there are
some differences. Please refer to
the accompanying ‘COOKING GUIDE’
for cooking in the top oven.
The top oven shelf, with its deflec-
tor, helps to ensure even baking in the
to oven. It is a different size to the
main oven, and is not intended for
use in the main fanned oven.
Oven light
Press the light button on the facia
panel.
To replace an oven light bulb
Please refer to the ‘main oven’ section.
❏If it is found, over a period of time,
that the oven becomes hotter when
used at a particular temperature,
then the thermostat may need to be
replaced.
To turn on the top oven
Push in and turn the control knob anti-
clockwise to fully on (Gas Mark 9).
There is a short delay before ignition
(up to 10 seconds) and the automatic
ignition will continue to spark for a
short time after the burner has lit until
the flame is established.
Adjust to the required setting.
❏The top oven burner may not come
on to the full rate unless the oven
door is closed.
❏In the event of the burner flames
being accidentally extinguished,
turn off the burner control and do
not attempt to re-ignite the oven for
at least one minute.
TOP OVEN (CONVENTIONAL)
5
18291 01 04/11/2002 12:19 Page 7

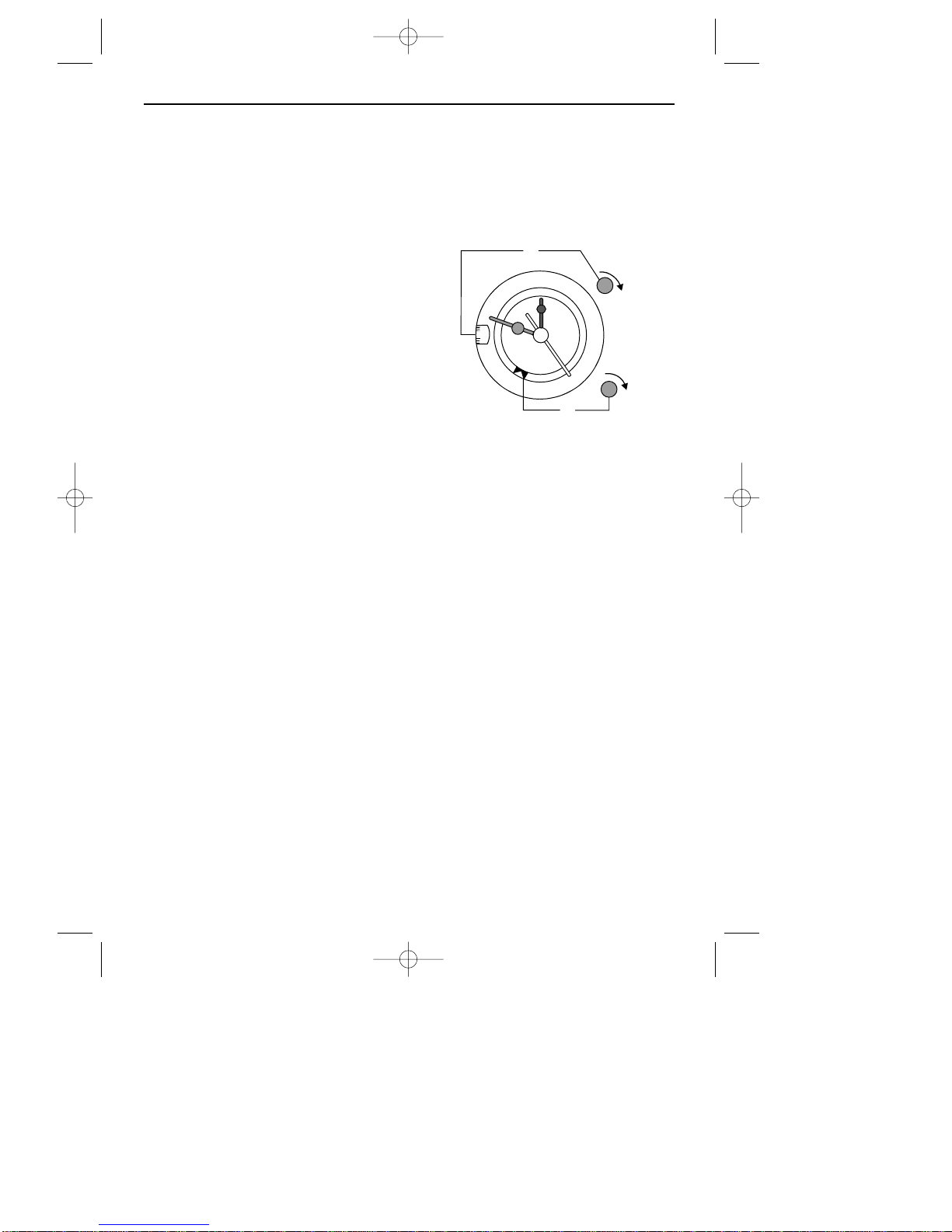

TO SET THE TIME OF DAY
Pull out the START TIME knob and keep
it pulled out as you turn the hands of
the clock to the correct time.
MANUAL OPERATION
To turn on the oven
1.Turn the START TIME knob clockwise
until the INDICATOR is facing
twelve o’clock on the OUTER
CLOCK DIAL as shown.
2.Turn the COOK TIME knob clock-
wise, until 1 appears in the window.
To turn off the oven
Turn the cook time knob anticlockwise,
until 0appears in the window.
11
10
7
8
INNER TIMER
DIAL
WINDOW
INDICATOR COOK
TIME
START
TIME
9
6
5
4
3
2
1
XII
I
II
III
IV
V
VI
VII
VIII
X
XI
11
10
7
8
9
6
5
4
3
2
1
1
XII
I
II
III
IV
V
VI
VII
VIII
X
XI
ANALOGUE PROGRAMMER / CLOCK
6
18291 01 04/11/2002 12:19 Page 8

SEMI AUTOMATIC OPERATION
To set the cooking start time only
1.Turn the start time knob until the
INDICATOR faces the required time
for cooking to start on the inner
timer dial, eg; 5 o’clock as shown
opposite.
Turn the oven control knob to the
required setting.
Please note that the start time setting is
only accurate to within a few minutes.
To set the cooking stop time only
COOKING IS ALREADY STARTED, AND WILL
STOP AUTOMATICALLY.
2.Turn the cook time knob clockwise,
until the length of cooking time you
require is showing in the window,
as shown opposite (eg; 120
minutes).
At the end of the cooking time, the
oven will automatically turn off and the
bell will ring for a few minutes before
it turns off.
To turn off the bell before it has
finished ringing, simply turn off the
oven manually by turning the cook
time knob clockwise until 0appears in
the window.
AUTOMATIC OPERATION
Cooking starts automatically at the
selected time, and stops automatically
at the end of cooking time.
1.Turn the start time knob until the indi-
cator faces the required time for
cooking to start on the inner timer
dial, eg; 5 o’clock as shown above.
2.Turn the cook time knob clockwise,
until the length of cooking time you
require is showing in the window
(eg; 120 minutes).
Turn the oven control knob to the
required setting.
At the end of automatic cooking
time the oven will automatically turn
off and the bell will ring for a few min-
utes before it turns off.
To turn off the bell before it has fin-
ished ringing, simply turn off the oven
manually by turning the cook time
knob clockwise until 0appears in the
window.
11
10
7
8
9
6
5
4
3
2
1
120
XII
I
II
III
IV
V
VI
VII
VIII
X
XI
2
1
ANALOGUE PROGRAMMER / CLOCK
7
18291 01 04/11/2002 12:19 Page 9

A

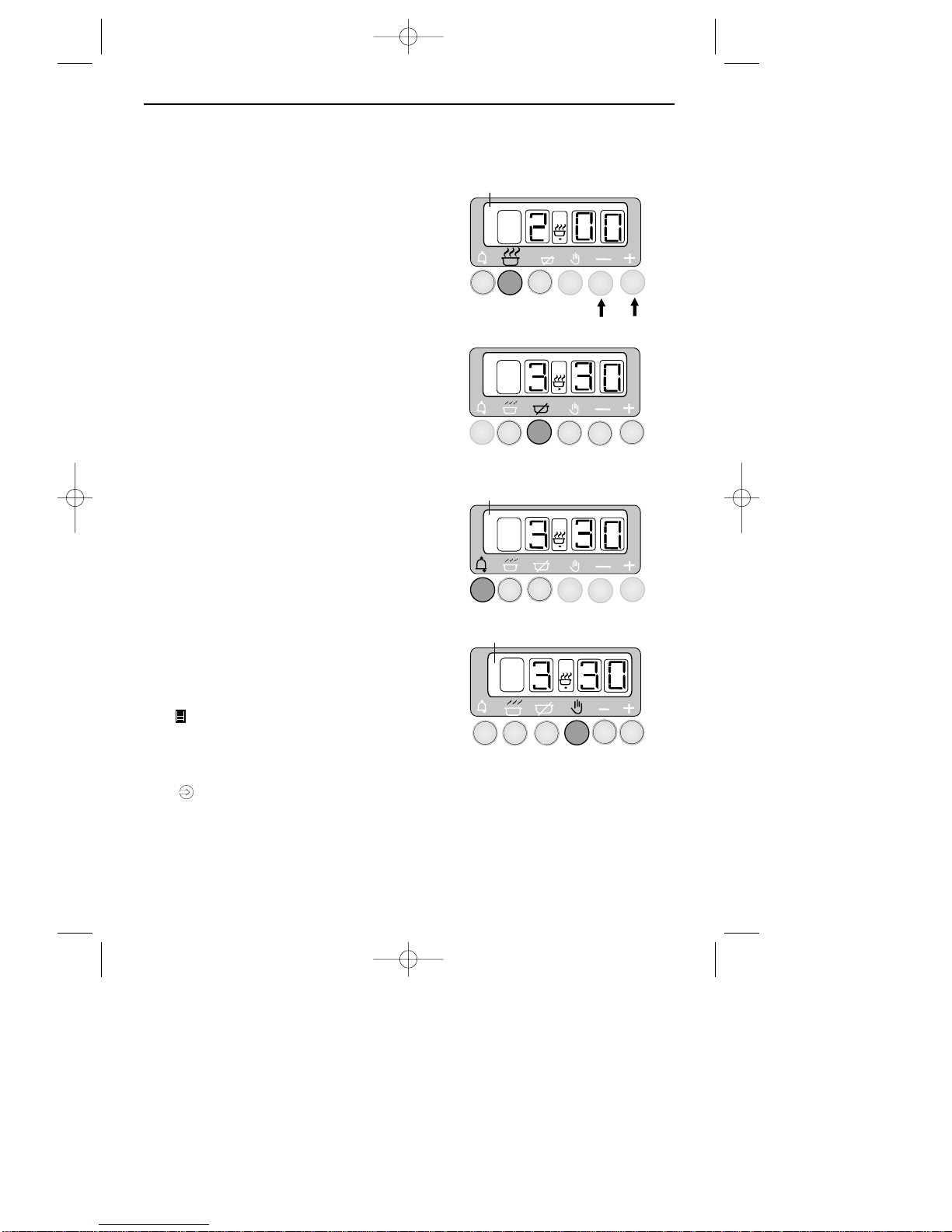

SEMI-AUTOMATIC COOKING
(EXAMPLE)
AUTO symbol
appears.
A
A
Press the 'COOK TIME' button, then use the
plus and minus buttons to set the display to
show the length of cooking time required.
e.g. 2 hours as shown.
The display will revert to show the time of
day, but you can press the cook time button
and the display will show how much cooking
time still remains on the clock.
Press the 'READY TIME' button, and the
display will show the actual time the oven
is going to switch off e.g. 3.30 as shown.
To switch off the alarm, press the
'MINUTE MINDER' button.
A(AUTO) Symbol
goes out
To cancel the automatic setting and return
the oven to manual operation, press the
manual button.
COOK
TIME
READY
TIME
MINUTE
MINDER
RETURN THE OVEN CONTROL KNOB
TO THE OFF POSITION.
A(AUTO) Symbol
will flash
To cancel any remaining cooking time
left on the clock before the alarm sounds,
press the manual button.
You have started cooking a meal or dish in
the oven, and want to set the time for the
oven to switch off.
MANUAL
MANUAL OPERATION
DIGITAL PROGRAMMER / CLOCK
8
18291 01 04/11/2002 12:19 Page 10

A
SEMI-AUTOMATIC COOKING
(EXAMPLE)
AUTO symbol
appears.
A
A
Press the 'COOK TIME' button, then use the
plus and minus buttons to set the display to
show the length of cooking time required.
e.g. 2 hours as shown.
The display will revert to show the time of
day, but you can press the cook time button
and the display will show how much cooking
time still remains on the clock.
Press the 'READY TIME' button, and the
display will show the actual time the oven
is going to switch off e.g. 3.30 as shown.
To switch off the alarm, press the
'MINUTE MINDER' button.
A(AUTO) Symbol
goes out
To cancel the automatic setting and return
the oven to manual operation, press the
manual button.
COOK
TIME
READY
TIME
MINUTE
MINDER
RETURN THE OVEN CONTROL KNOB
TO THE OFF POSITION.
A(AUTO) Symbol
will flash
To cancel any remaining cooking time
left on the clock before the alarm sounds,
press the manual button.
You have started cooking a meal or dish in
the oven, and want to set the time for the
oven to switch off.
MANUAL
MANUAL OPERATION
DIGITAL PROGRAMMER / CLOCK
9
18291 01 04/11/2002 12:19 Page 11

DIGITAL PROGRAMMER / CLOCK
COOK
TIME
COOK
TIME
FULLY AUTOMATIC COOKING
(EXAMPLE)
You want to set the time for the oven to switch
on, and then after the meal or dish is cooked,
to switch off.
A
A
AUTO symbol
appears.
Press the 'COOK TIME' button, then use the
plus and minus buttons to set the display to
show the length of cooking time required
e.g. 2 hours as shown.
Press the 'READY TIME' button and the
present ready time will be displayed,
but using the plus and minus buttons
you can set the display to show the
ACTUAL TIME you want the oven to
switch off e.g.18.00 hours
A
READY
TIME
The cookpot symbol will
disappear from the display.
The cookpot symbol will appear
on the display.
A
AFTER SETTING THE PROGRAMMER, TURN
THE OVEN CONTROL TO THE REQUIRED
TEMPERATURE
The oven will automatically switch on
at the calculated start time of 16.00
hours (4.00 pm).
A single press of the 'COOK TIME' button
shows the cooking time remaining before
the oven automatically switches off.
10
18291 01 04/11/2002 12:19 Page 12

A
A(AUTO) Symbol
will flash
The oven will automatically switch off at
18.00 hours (6.00pm) and the alarm will
sound.
A
To switch off the alarm, press the minute
minder button.
MINUTE
MINDER
A(AUTO) symbol
goes out
To cancel the automatic setting and return
the oven to manual operation, press the
manual button.
RETURN THE OVEN CONTROL KNOB TO
THE OFF POSITION.
To cancel any remaining cooking time left
on the clock before the alarm sounds, press
the manual button.
DIGITAL PROGRAMMER / CLOCK
11
18291 01 04/11/2002 12:19 Page 13

WHEN YOU ARE COOKING, KEEP
CHILDREN AWAY FROM THE VICINITY OF
THE OVEN.
The oven cannot be used manually
when the programmer is set for
‘Automatic Operation’.
If A(Auto) is showing on the
programmer display, press the manual
button .
To turn on the main oven
The oven door must be CLOSED for the
oven burner to ignite. The oven
burner will go out when the door is
opened but will re-light when the door
is closed again, this has no detrimen-
tal effect on the food being cooked.
Push in and turn the oven control knob
anticlockwise to Gas Mark 9.
Adjust to the required setting.
There is a short delay before ignition
(up to 10 seconds) and the automatic
ignition will continue to spark for a
short time after the burner has lit until
the flame is established. It can take up
to 60 seconds for the oven burner to
come on to full rate.
In the event of the burner flames being
accidentally extinguished, turn off the
burner control and do not attempt to
re-ignite the oven for at least one
minute.
Automatic operation
See ‘Programmer / Clock’ section.
Oven light
Press the light button on the facia
panel.
To replace an oven light bulb
Switch off the electricity supply to the
appliance at the socket, and wait until
the oven is cool before removing the
oven shelves. The lens cover on the
light can be removed by grasping the
lens cover and pulling away from the
side of the oven.
■ Please note that the oven light bulbs
are not covered by guarantee.
■ If it is found over a period of time
that the oven become hotter when
used at a particular temperature, then
the thermostat may need to be
replaced.
MAIN FAN OVEN
12
18291 01 04/11/2002 12:19 Page 14

✘ DO NOT USE caustic pastes, abrasive
cleaning powders, coarse wire wool
or any hard implements, as they will
damage the surfaces.
✔ All parts of the oven can be safely
cleaned with a clean cloth wrung out
in hot soapy water. Switch off the
electricity supply to the appliance, and
let the oven cool before cleaning.
When removing stubborn deposits, we
recommend the following;
Vitreous enamel parts
GRILL PAN
GRILL COMPARTMENT
OVEN FLOOR
✔ Use a mild cream cleaner.
Stay clean surfaces
MAIN OVEN COMPARTMENT
Note: If you do a lot of open roasting,
you may feel the surfaces need an
occasional wipe.
MOST TYPES OF CLEANING AGENT WILL
DAMAGE THESE SURFACES.
✔ Only use a few drops of washing up
liquid in hot water. Wipe the surfaces
with a clean cloth wrung out in hot
soapy water, or when large splashes
of fat do not readily disappear, scrub
the area with a nylon brush or nylon
pan scourer, rinse well and heat the
oven to dry the linings.
Glass parts
FACIA PANEL
OUTER & INNER DOOR GLASS PANELS
Use a mild cream cleaner, rinse
thoroughly and dry with a soft cloth.
Important: the inner door glass panel
can be removed for cleaning but it
must be replaced the right way up as
shown (so the reflective side faces
inwards), and pushed fully in to the
stop position. To remove the glass
panel, open the door wide, hold the
top and bottom edges and slide out.
Anthracite models only
FACIA PANEL / OUTER DOOR GLASS
✔Only use a clean cloth wrung out in
hot soapy water, and dry with a soft
cloth.
Painted parts
OVEN DOOR FRAME & HANDLE
OUTER FRAME TRIM
✔ Only use a clean cloth wrung out in
hot soapy water.
CLEANING
SLIDE
IN SLIDE
IN
THIS SIDE UP
13
18291 01 04/11/2002 12:19 Page 15

Chrome plated parts
OVEN SHELVES
OVEN SHELF RUNNERS
✔ Use a moist soap pad, eg; Brillo
Note: Oven shelf runners can be
removed for cleaning. Grasp the run-
ners and slide out of the hanging holes
as shown.
Ceramic grill glass
After using the oven or grill, wait until
the grill glass is cool before giving it a
quick wipe over. Most splashes on the
grill glass will burn off as the grill is
used, but if necessary, it can be
cleaned using a ceramic hob cleaner ,
eg; Hob Brite, or a moist soap pad.
When cleaning, do not exert excessive
pressure on the grill glass.
✔ For removing stubborn deposits, we
recommend the use of a ceramic hob
scraper.
Lacquered brass parts
HANDLE TRIMS (HERITAGE)
✔ Only use a clean cloth wrung out in
hot soapy water.
Stainless steel
STAINLESS STEEL MODELS
✘ Do not use undiluted bleach or any
products containing chlorides, as they
can permanently damage the steel.
✔Only use a clean cloth wrung out in
hot soapy water, and dry with a soft
cloth.
Some foods are corrosive, eg; vine-
gar, fruit juices and salt, and they can
mark or damage stainless steel if they
are left on the surface for any length of
time.
Sharp objects can mark the surface of
stainless steel, but will become less
noticeable with time.
Oven shelf deflector
This can be removed for cleaning -
grasp the deflector with both hands
and press towards the oven shelf.
✔ Use a mild cream cleaner, rinse
thoroughly and dry with a soft cloth.
CLEANING
14
18291 01 04/11/2002 12:19 Page 16

Before you start, check that your appliance is suitable for the gas supply in your
house, ie; Natural Gas or LP Gas. The gas category is clearly marked on the
data badge.
Regulations & Standards . . . . . . . . . . . . . . . . . . . . . . . . . . . . 16
Ventilation Requirements . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 16
Installing the appliance . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 17
Connect to the electricity supply . . . . . . . . . . . . . . . . . . . . . . . 18
Connect to the gas supply . . . . . . . . . . . . . . . . . . . . . . . . . . . 19
Secure appliance to housing unit . . . . . . . . . . . . . . . . . . . . . . . 19
Commissioning . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 20
INSTALLATION INSTRUCTIONS
15
18291 01 04/11/2002 12:19 Page 17

The 900GTF appliance is
designed for use on Natural Gas,
and must not be supplied with
any other gas.
The 900GTF LP appliance is
designed for use on Propane or
Butane, and must not be used on
any other gas.
WARNING;THIS APPLIANCE MUST BE EARTHED.
IN THE UK THE REGULATIONS AND
STANDARDS ARE AS FOLLOWS:
1.Gas Safety Regulations 1984
(Installation and Use) as amended
1990.
2.Building Regulations - Issued by the
Department of the Environment.
3.Building Standards (Scotland)
(Consolidated) - Issued by the
Scottish Development Department.
4.The current I.E.E. Wiring
Regulations.
5.Electricity at Work Regulations
1989.
6.B.S. 6172 Installation & Servicing
Instructions for this appliance.
Ventilation Requirements
■The room containing the appliance
should have an air supply in accor-
dance with B.S. 5440: Part 2: 1989:
■All rooms require an openable win-
dow, or equivalent, and some rooms
will require a permanent vent as well.
■For room volumes up to 5 m3an air
vent of 100 cm2is required.
■If the room has a door that opens
directly to the outside, or the room
exceeds 10 m3NO AIR VENT is
required.
■For room volumes between 5 m3and
10 m3an air vent of 50 cm2is
required.
■If there are other fuel burning appli-
ances in the same room, B.S. 5440:
Part 2: 1989 should be consulted to
determine the air vent requirements.
■This appliance must not be installed in
a bed sitting room of less than 20 m3
or in a bathroom or sower room.
Windows and permanent vents should
therefore not be blocked or removed
without first consulting a CORGI gas
installer.
LP Gas only
Do not install this appliance in a room
below ground level. This does not pre-
clude installation into rooms which are
basements with respect to one side of
the building, but open to ground level on
the opposite side.
FAILURE TO INSTALL APPLIANCES
CORRECTLY IS DANGEROUS AND COULD
LEAD TO PROSECUTION.
INSTALLATION INSTRUCTIONS
In your own interest and that of
safety, it is the law that all gas
appliance be installed and serviced
by competent persons. CORGI
registered installers undertake to
work to satisfactory standards.
16
18291 01 04/11/2002 12:19 Page 18

Do not lift the appliance by the
door handle
■ Remove the fixing screws from the
polythene bag on the top of the
appliance, but leave the appliance
in the base tray packaging until you
are ready to install it.
■ NOTE: When removing the appli-
ance from the base tray packaging
care should be taken to ensure the
outer frame trim is not damaged.
❏When installed in a typical 600 mm
deep built in housing unit, the false
back should be removed from the
housing unit, to provide the neces-
sary depth for installation.
❏When the false back is removed, it
is normally the case that the support
shelf for the appliance leaves a gap
between the back edge of the sup-
port shelf and the rear wall of
approximately 80 mm.
❏If no gap occurs between the back
edge of the shelf and the wall
behind the unit, we recommend that
a gap of at least 30 mm is made by
shortening the support shelf.
❏If a top shelf is fitted, it must have a
gap at the rear of at least 50 mm,
but ensure items will not be dropped
behind the oven.
IMPORTANT:DO NOT MODIFY THE OUTER
PANELS OF THIS APPLIANCE IN ANY WAY.
INSTALLATION INSTRUCTIONS
min
560 mm
550 mm
min min
880
mm
869
mm
892
mm
min
888
mm
min
7 mm
547 mm
595 mm
550 mm
17 mm
6 mm
30 - 80
mm
BACK EDGE OF
SUPPORT SHELF
FRONT OF
OVEN REAR
WALL
50
mm
17
18291 01 04/11/2002 12:19 Page 19

Connect to the electricity supply
This appliance must be connected by a
competent person, using fixed wiring
via a DOUBLE POLE SWITCHED FUSED SPUR
OUTLET.
We recommend that the appliance is
connected by a qualified electrician,
who is a member of the N.I.C.E.I.C.
and who will comply with the I.E.E.
and local regulations.
WARNING:
THIS APPLIANCE MUST BE EARTHED.
■The wires in the mains lead are
coloured in accordance with the fol-
lowing code:
◆ Green and Yellow = Earth
◆ Blue = Neutral
◆ Brown = Live
As the colours of the wires in the mains
lead for the appliance, may not corre-
spond with the coloured markings
identifying the terminals in your spur
box, proceed as follows:
1.The wire which is coloured green
and yellow must be connected to
the terminal marked E(Earth) or
coloured Green.
2.The wire which is coloured blue
must be connected to the terminal
marked N(Neutral, or coloured
Black.
3.The wire which is coloured brown
must be connected to the terminal
marked L(Live), or coloured Red.
INSTALLATION INSTRUCTIONS
FUSE ON
USE A
3 AMP FUSE
DOUBLE POLE SWITCHED
FUSED SPUR OUTLET
18
18291 01 04/11/2002 12:19 Page 20
