STOVES Q900EM Operating instructions

Q900EM
Multi-function Electric Double Oven & Grill
User & Installation Instructions
23897 01 - Q900EM 20/09/2002 09:12 Page 1

23897 01 - Q900EM 20/09/2002 09:12 Page 2

User’s Section . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2 - 18
Introduction . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2
Functions. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4
Be Safe - Not Sorry. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5
Using the Grill - Top Oven . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 6
Using the Top Oven . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 7
Using the Main Oven . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 8
Grilling in the main oven . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 9
Oven cooking . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 10
Conventional Oven. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 11
Top Heat Only. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 11
Base Heat Only . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 11
Fan Oven . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 11
Fan & Base Heat Only . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 11
Intensive Bake . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 11
Defrosting and cooling . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 12
Slow cooking. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 12
Programmer / Clock . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 13
Cleaning . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 17
Installation Instructions . . . . . . . . . . . . . . . . . . . . . . . . . . . 19 - 22
Technical Data . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 23
Stoves Customer Support. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 24
1
CONTENTS
23897 01 - Q900EM 20/09/2002 09:12 Page 3

Thank you for choosing a
British built appliance by Stoves
We hope the following information
will help you to quickly familiarise
yourself with the features of the
appliance, and to use it successfully
and safely.
Our policy is one of constant
development and improvement. Strict
accuracy of illustrations and specifications
is not guaranteed. Modification to
design and materials may be necessary
subsequent to publication.
Please read the instructions in this
handbook before using or installing
this appliance.
The Q900EM is designed to fit into
a standard 600 mm wide housing
unit with a minimum internal height of
880 mm.
The User’s Section in this handbook
covers the operation of the ovens
and grill, but to help you make the
most of your Q900EM, with its main
fan oven and conventional top oven,
we have produced the accompanying
‘Cooking Guide’ which gives more
details of its features and benefits.
Your 1st year guarantee
To fulfil the conditions of your guarantee,
this appliance must be correctly
installed and operated, in accordance
with these instructions, and only be
used for normal domestic purposes.
Please note that the guarantee, and
Service availability, only apply to the
UK and Republic of Ireland.
Before using the appliance for
the first time, remove any protective
polythene film and wash the oven
shelves and furniture in hot soapy
water to remove their protective
covering of oil. Even so, when you
first turn on the oven or grill you may
notice a smell and some smoke.
Glass panels
To meet the relevant Standards of
Domestic cooking appliances, all the
glass panels on this appliance are
toughened to meet the fragmentation
requirements of BS3193. This ensures
that, in the unlikely event that a panel
breaks, it does so into small fragments
to minimise the risk of injury.
Please take care when handling, using
or cleaning all glass panels as any
damage to the surfaces or edges may
result in the glass breaking without
warning or apparent cause at a later
date. Should any glass panel be
damaged, we strongly recommend
that it is replaced immediately.
2
INTRODUCTION
23897 01 - Q900EM 20/09/2002 09:12 Page 4

Cooling fan
When the appliance is switched on,
you will hear the cooling fan come on,
this keeps the exterior of the appliance
cool during cooking, and will continue
to operate to cool the appliance for
about 10 minutes after the last control
has been switched off.
To change a light bulb
Switch off the electricity supply to the
appliance at the socket, to avoid the
risk electric shock.
Wait until the oven is cool, then
remove the oven shelves.
The lens cover on the light can be
removed by pulling away from the
oven side. Unscrew the bulb.
Please note that oven light bulbs are
not covered by guarantee.
Electrical connection
Please refer to the ‘Installation
Instructions’.
For your safety, employ a competent
electrician.
Warning: This appliance must be
earthed.
In the event of a power cut
1. Switch off the electricity supply to
the appliance at the fused spur.
2. When the power returns, see the
‘Programmer / Clock’ section to
‘Set the time of day’.
3
INTRODUCTION
23897 01 - Q900EM 20/09/2002 09:12 Page 5

Symbol Function / Feature Top Main
Oven Oven
1. Conventional Grill page 6 page 9
Economy Grill page 6 -
2. Fanned Grill - page 10
3. Defrosting and cooling - page 12
4. Conventional Oven page 7 page 12
5. Top Heat Only page 7 page 12
6. Base Heat Only page 7 page 12
7. Fanned Oven - page 12
8. Fan and Base Heat Only - page 12
9. Intensive Bake - page 12
Oven Light ✓✓
Oven Temperature ✓✓
Oven Selector - ✓
4
FUNCTIONS
23897 01 - Q900EM 20/09/2002 09:12 Page 6

When you are cooking, keep
children away from the vicinity
of the appliance.
This product is designed as a domestic
cooking appliance for the preparation
and cooking of domestic food
products, and should not be used for
any other purpose.
• Remove all packaging, protective
films and oils from the appliance
before using for the first time.
• Make sure you read and
understand the instructions before
using the appliance.
• Keep electrical leads short so they
do not drape over the appliance
or the edge of the worktop.
• Keep all flammable materials (such
as curtains, furnishings & clothing)
away from the appliance.
• Parts of the appliance may be hot
during or immediately after use.
Care should be taken to avoid
touching the heating elements
inside the oven. Allow sufficient
time for the appliance to cool after
switching off.
• Never use the appliance for
heating a room.
• Do not drape tea towels over the flue
vents as this creates a fire hazard.
• When opening the appliance
door, take care to avoid skin
contact with any steam which may
escape from the cooking.
• Do not use the oven with the door
inner glass panel removed.
•Drop-down doors: Do not place
items on the door when open.
• Do not use aluminium foil to cover
the grill pan, or put items wrapped
in foil under the grill, as this
creates a fire hazard. The high
reflectivity can also damage the
element.
• Use oven gloves when removing
hot food utensils from the oven or
grill. The oven / grill and utensils
will be very hot when in use.
• Do not use foil on oven shelves or
allow it to block the oven flue, as
this creates a fire hazard.
• When cooking heavy items - eg;
turkeys - do not pull the oven shelf
out with the item still on the shelf.
• Switch off the electricity supply
before replacing the oven light
bulb, to avoid the risk electric shock.
Warning: This appliance must be
earthed.
All installation, servicing and
maintenance work should be carried
out by a competent person who will
comply with current Regulations,
Standards and Requirements.
When you have finished
cooking check that all controls
are in the off position.
5
BE SAFE - NOT SORRY
23897 01 - Q900EM 20/09/2002 09:12 Page 7

Caution: Accessible parts may
be hot when the grill is used,
young children should be kept
away.
The top oven grill is a fully variable
dual ceramic maxigrill.
The grill will not operate if the top
oven is switched on or set for
automatic cooking.
If A(Auto) is showing on the programmer
display, return the grill to manual
operation by pressing the cook time
and ready time button simultaneously.
Any programme which has been set is
cancelled.
To switch on the grill
Make sure that the programmer is set
to manual.
Open the grill door.
Turn the grill control knob either clock-
wise to use the full grill settings, which
are coloured red, or anticlockwise to
the economy grill settings, which are
coloured white.
The economy grill settings only use the
inner element of the grill.
To switch off, return the control knob to
the “off” position.
Important: the door must be kept
open when the grill is used, as the grill
will not operate with the door closed.
To switch on the grill lights
Turn the top oven control knob clock-
wise until the light symbol is showing
in the window.
Please note that you cannot turn on the
lights when the programmer is set for
automatic operation.

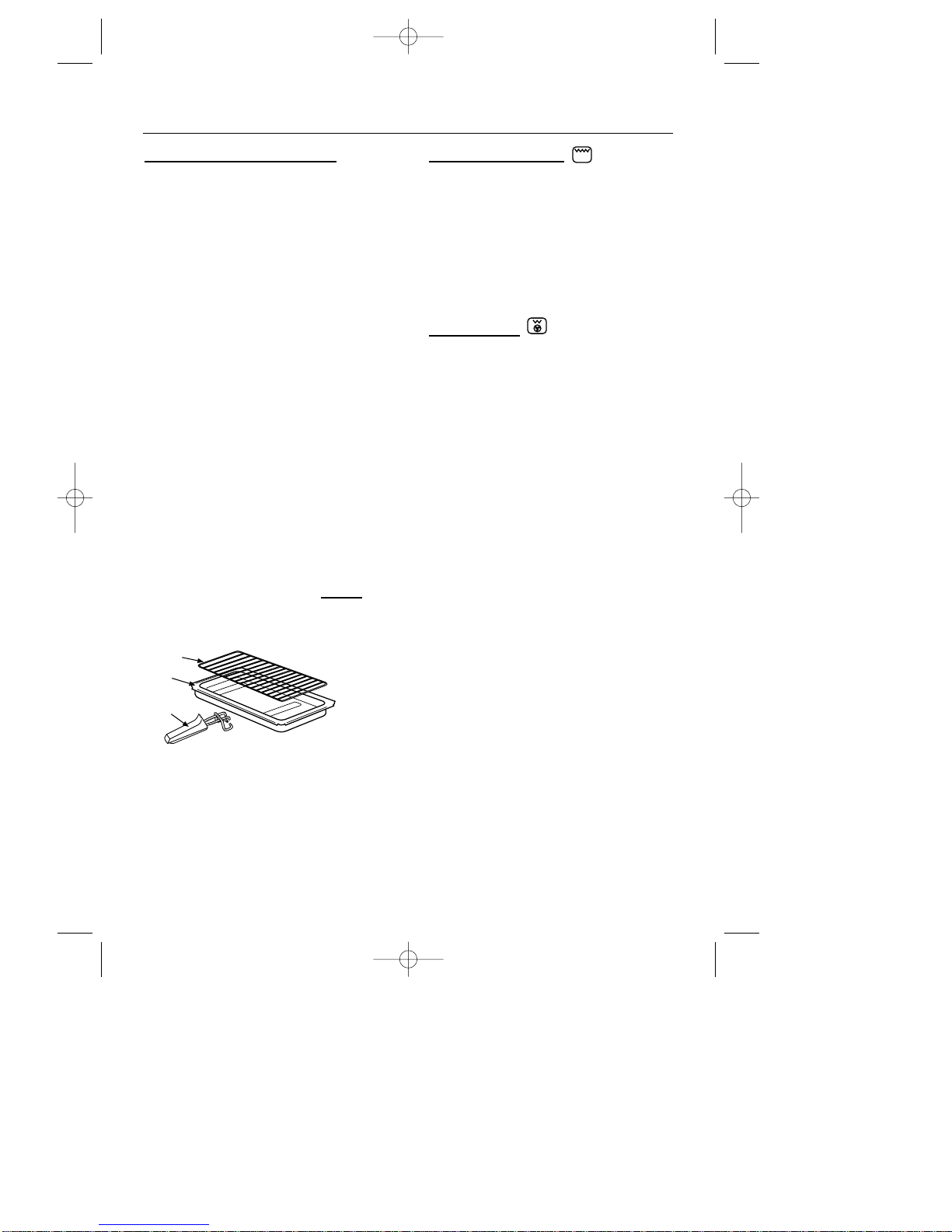

Detachable grill pan handle
Place the handle over the edge of
the grill pan. The handle should be
removed from the pan during grilling,
to prevent overheating.
The handle is designed for removing /
inserting the grill pan under the grill
when grilling.
If cleaning the grill pan when it is hot,
use oven gloves to move it. Do not use
the handle to pour hot fats from the
grill pan.
Caution: Do not use the grill if the
ceramic grill glass is cracked, as
electrical parts are directly beneath.
Turn off the electricity supply to the
oven at the socket.
6

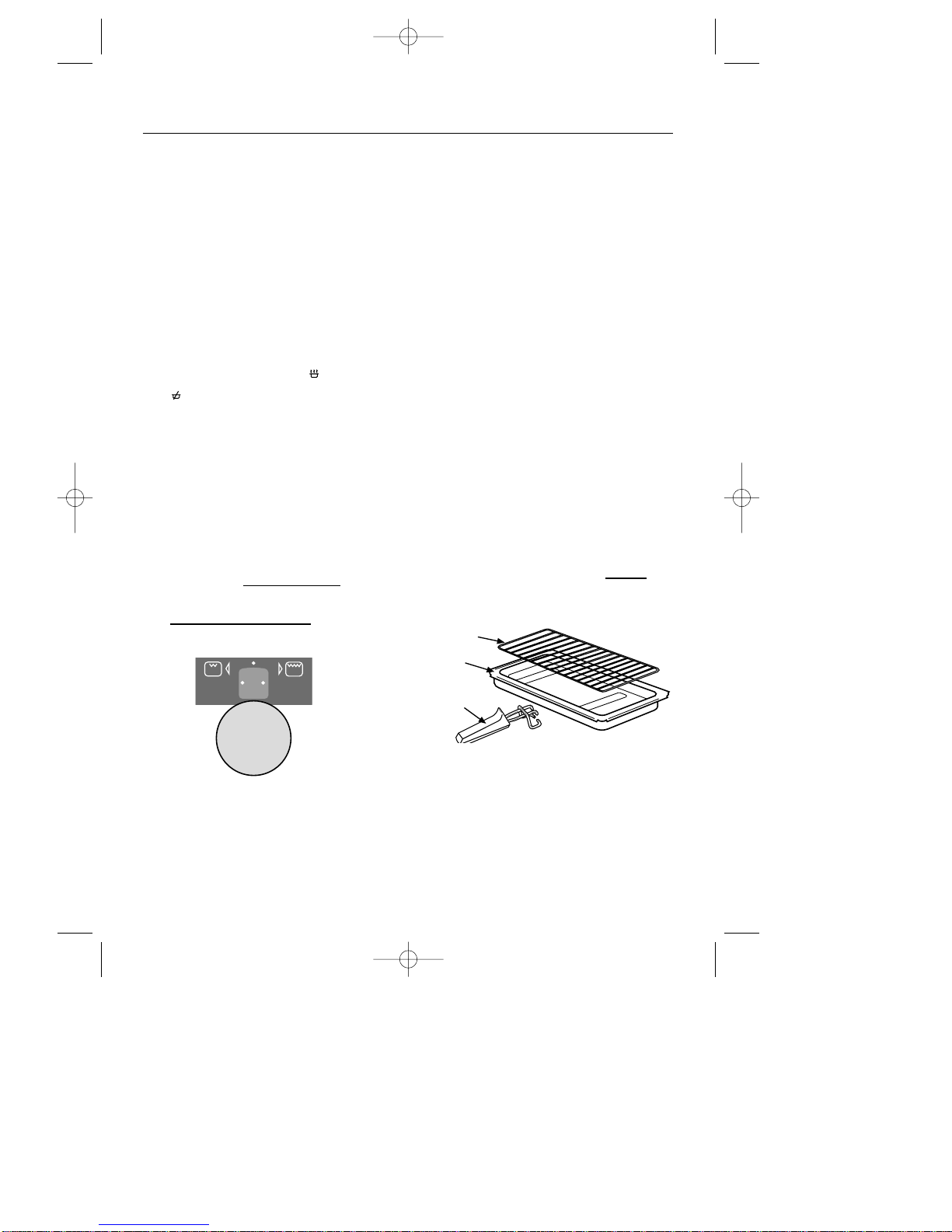

2
grill pan
handle
grill pan
trivet
USING THE GRILL - TOP OVEN
23897 01 - Q900EM 20/09/2002 09:12 Page 8

7
Caution: Accessible parts may
be hot when the top oven is
used, young children should be
kept away.
The top oven is a conventional oven.
Manual operation
The programmer must be set to manual
before the oven can be used. If A
(Auto) is showing on the programmer
display, return the oven to manual
operation by pressing the cook time
and ready time buttons simultane-
ously. Any programme which has
been set is cancelled.
To switch on the top oven
Turn the top oven control knob to the
desired temperature setting.
The red thermostat indicator will come
on until the selected temperature is
reached and then go off; it will turn on
and off periodically as the thermostat
operates to maintain the selected
temperature.
To switch off, return the control to the
“off” position.
Automatic operation
See ‘Programmer / Clock’ section.
Important: Never put items directly
on the base of the oven or cover the
oven base with foil, as this may cause
the element to overheat.
Caution: The ceramic grill glass gets
extremely hot when the top oven / grill
is in use, so take extra care to avoid
touching it.
Top heat and base heat
The top oven offers the advantage that
it can be used with either bottom heat
only or top heat only. These are fixed
heat settings.
Top heat only
Turn the top oven control knob past the
oven temperature markings, until the
top heat symbol is in the window as
shown below.
This setting can be used to brown
the top of dishes such as cauliflower
cheese or baked alaska etc.
Base heat only
Turn the top oven control knob past the
oven temperature markings, until the
base heat symbol is in the window as
shown below.
This setting can be used to finish
cooking pastry bases, pies, pizzas etc.
USING THE TOP OVEN
23897 01 - Q900EM 20/09/2002 09:12 Page 9

Caution: Accessible parts may
be hot when the top oven is
used, young children should be
kept away.
The main oven is a multi-function oven,
and may be used as a conventional
oven or a fanned oven. It may also be
used as a grill, or with one of the other
oven functions.
Manual operation
The programmer must be set to manual
operation before the main oven or grill
functions can be used. If A(Auto) is
on the programmer display, return the
oven to manual operation by pressing
the cook time and ready time
buttons simultaneously. Any programme
which has been set is cancelled.
To turn on the main oven
Step 1 - Select the function
Turn the selector control knob in either
direction, until the function you require
appears in the window.
Step 2 - Set the main oven control
If you have selected an oven cooking
function, then simply turn the main
oven control knob clockwise to the
required temperature - this brings on
the neon indicator light, which will
stay on until the oven reaches the
required temperature.
If you have selected Defrost, turn the
main oven control clockwise until the
light symbol appears in the window.
If you have selected the grill or fanned
grill function, then turn the main oven
control knob clockwise until the grill
symbol appears in the window.
To switch off the main oven, return the
control knob to the ‘off’ position.
Automatic operation
See ‘Programmer / Clock’ section.
8
USING THE MAIN OVEN
23897 01 - Q900EM 20/09/2002 09:12 Page 10
