R21 Powered Raceway Installation Guide
©2011 Philips Group. All rights reserved.
Strand Lighting - Dallas
10911 Petal Street
Dallas, TX 75238
Tel: [phone]
Fax: [phone]
Strand Lighting - New York
267 5th Ave, 4th Floor
New York, NY 10016
Tel: [phone]
Fax: [phone]
Strand Lighting - Asia Limited
Room 6-10, 20/F Delta House 3 On Yiu Street
Shatin, N.T. Hong Kong
Tel: + 852 2757 3033
Fax: + 852 2757 1767
Strand Selecon - Auckland
19-21 Kawana Street
Northcote, Auckland 0627
New Zealand
Tel: [phone]
Fax: [phone]
Strand Lighting - Europe
Marssteden 152
Enschede 7547 TD
The Netherlands
Tel: [phone]
Fax: [phone]
Website:
www.strandlighting.com

1
R21 Powered Raceway Installation Guide
IMPORTANT SAFEGUARDS
When using electrical equipment, basic safety precautions should always be followed including the following:
a. READ AND FOLLOW ALL SAFETY INSTRUCTIONS.
b. Do not use outdoors.
c. Do not mount near gas or electric heaters.
d. Equipment should be mounted in locations and at heights where it will not readily be subjected to
tampering by unauthorized personnel.
e. The use of accessory equipment not recommended by the manufacturer may cause an unsafe
condition.
f. Do not use this equipment for other than intended use.
g. Refer service to qualified personnel.
SAVE THESE INSTRUCTIONS.
WARNING: You must have access to a main circuit breaker or other power disconnect device
before installing any wiring. Be sure that power is disconnected by removing fuses or turning the
main circuit breaker off before installation. Installing the device with power on may expose you to
dangerous voltage and damage the device. A qualified electrician must perform this installation.
WARNING: Refer to National Electrical Code® and local codes for cable specifications. Failure to
use proper cable can result in damage to equipment or danger to persons.
WARNING: This equipment is intended for installation in accordance with the National Electric
Code® and local regulations. It is also intended for permanent installation in indoor applications
only. Before any electrical work is performed, disconnect power at the circuit breaker or remove the
fuse to avoid shock or damage to the control. It is recommended that a qualified electrician perform
this installation.
CAUTION: Wire openings MUST have fittings or lining to protect wires/cables from damage. Use
90° C copper wire only! Aluminum wire may not be used.

Installation Guide R21 Powered Raceway
2Table of Contents
TABLE OF CONTENTS
Strand Lighting Offices........................................................................................................Inside Front Cover
Important Safeguards
Table of Contents
Preface
About This Guide ................................................................................................................................................... 3
Additional Resources.............................................................................................................................................. 3
Other Manuals................................................................................................................................................. 3
Additional Resources for DMX512................................................................................................................. 3
Overview
Installation and Checkout Sequence....................................................................................................................... 4
Components
R21 Powered Raceway........................................................................................................................................... 5
Raceway Control Modules ..................................................................................................................................... 6
Dimmer Modules.................................................................................................................................................... 7
Mechanical Considerations
Tools and Supplies.................................................................................................................................................. 8
Installation Location............................................................................................................................................... 8
Wire Routing........................................................................................................................................................... 9
Wiring Requirements.............................................................................................................................................. 9
Installation Procedure
Connecting Sections ............................................................................................................................................. 10
Mounting the Unit ................................................................................................................................................ 10
Single-Pipe Methods ..................................................................................................................................... 10

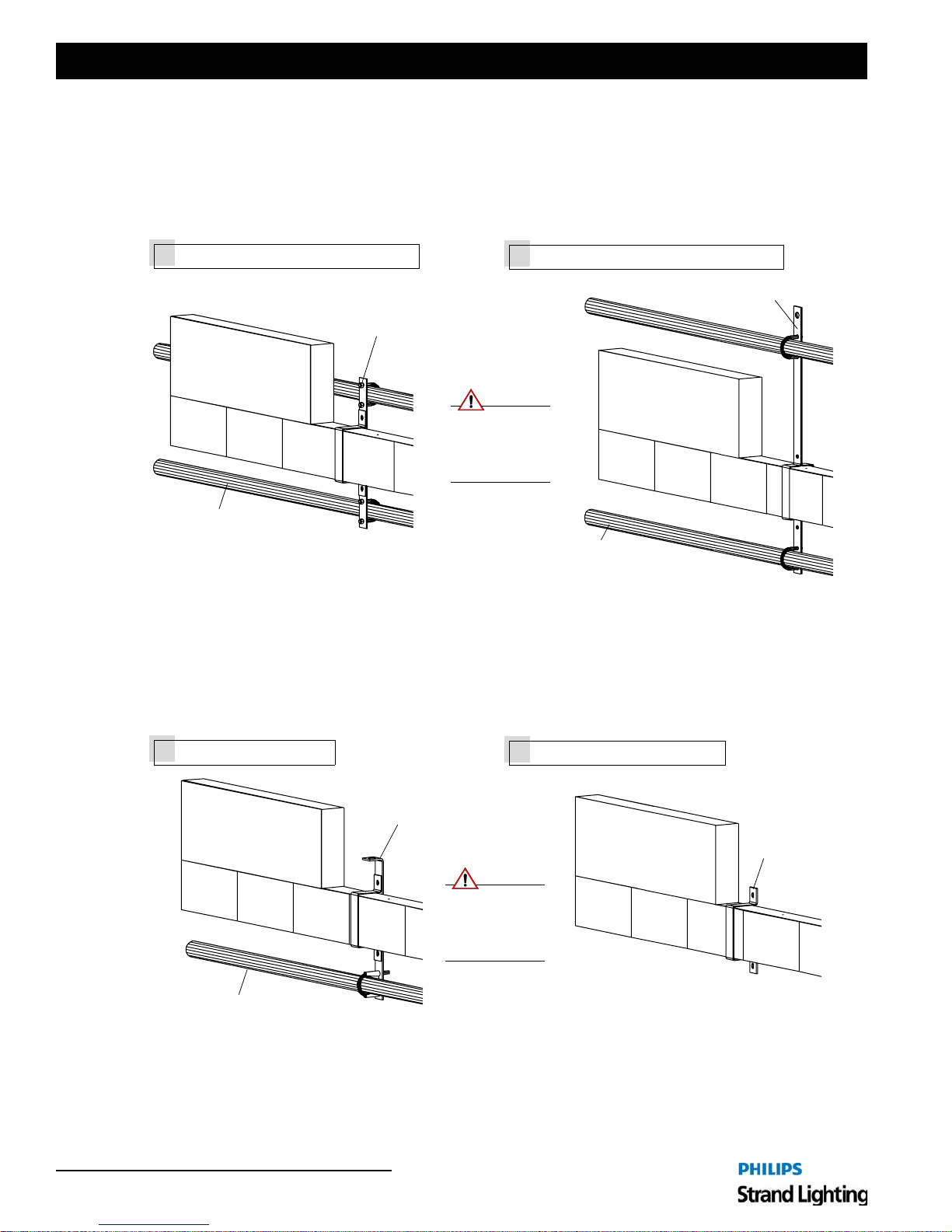

Double-Pipe Methods.................................................................................................................................... 11
Threaded Rod and Wall Mount Methods...................................................................................................... 11
Connecting Power Wiring .................................................................................................................................... 12
Overview ....................................................................................................................................................... 12
Line Power..................................................................................................................................................... 13
Connecting Control Wiring .................................................................................................................................. 14
Overview ....................................................................................................................................................... 14
DMX512........................................................................................................................................................ 15
Vision.net Networks (SVN/485)................................................................................................................... 16
Termination of Shielded Cable...................................................................................................................... 16
Termination of Ethernet Cable...................................................................................................................... 17
Master/Slave Wiring (DIM96)...................................................................................................................... 18
Panic Input..................................................................................................................................................... 18
Installing Cable Tray (if applicable)..................................................................................................................... 19
Complete and Test ................................................................................................................................................ 19
Maintenance Procedures
Replacing a Dimmer Module................................................................................................................................ 20
Appendix A.
R21 Powered Raceway Dimmer DIP Switch Settings......................................................................................... 21

3
R21 Powered Raceway Installation Guide

Installation Guide R21 Powered Raceway
4Preface
PREFACE
1. About This Guide
The document provides installation instructions for all configurations of the R21 Powered Raceway.
Please read all instructions before installing or using this product. Retain this guide for future reference.
2. Additional Resources
Other Manuals
For additional operation, maintenance, and setup information, please see the following Strand manuals:
• R21 Powered Raceway Operation and Maintenance Guide
• Dimmer.net Software Manual
Dimmer.net software and manuals may be downloaded at www.strandlighting.com.
Additional Resources for DMX512
For more information on installing DMX512 control systems, the following publication is available for purchase
from the United States Institute for Theatre Technology (USITT), "Recommended Practice for DMX512: A Guide for
Users and Installers, 2nd edition" (ISBN: 9780955703522). USITT Contact Information:
USITT
315 South Crouse Avenue, Suite 200
Syracuse, NY 13210-1844 USA
1-800-938-7488 or 1-315-463-6463
www.usitt.org

Installation and Checkout Sequence 5
R21 Powered Raceway Installation Guide
OVERVIEW
1. Installation and Checkout Sequence
The R21 Powered Raceway is shipped from the factory in a ready-to-install configuration. The following steps will
be required to successfully install the unit(s) at your location:
1) Unpack and Inspect
Remove all components from shipping container(s) and inspect for damage. Compare the equipment you
received to the packing list. If these do not match, contact Strand Lighting Customer Service at: 1-800-
4STRAND (U.S.) or 1-214-647-7880 (international).
2) Review ALL Instructions
Read this entire installation guide before you start the installation.
3) Gather Tools
Obtain all tools and supplies listed in "Tools and Supplies" on page 9.
4) Choose Appropriate Installation Location
Ensure installation location meets the requirements listed in "Installation Location" on page 9.
5) Plan Wire Routing
Decide where line and control wiring will enter the unit.
6) Install Unit
Following the instructions provided in "Installation Procedure" on page 11, mount and wire the unit.
7) Checkout
Perform the steps listed in "Complete and Test" on page 20 to ensure that the unit has been properly installed.
8) Call For Approval
Do not energize the R21 Powered Raceway until the wiring has been approved by an authorized technician. Call
Strand Lighting to schedule an Engineering Checkout.

Installation Guide R21 Powered Raceway
6Components
COMPONENTS
1. R21 Powered Raceway
The R21 Powered Raceway - up to 96 feet long - contains one Raceway Control Module (RCM), up to forty-eight
20A Dual Dimmer Modules, and at least one Power Terminal Box (PTB). The number of Power Terminal Boxes is
determined by the location and the number of necessary power feeds.
Figure 1: R21 Powered Raceway Component Overview
Raceway Control Module (RCM)
Located on Raceway or Rack Mount
Power Feed Multi-conductor Cable
with Strain Relief (optional)
Hanger Bracket
- six types available
Pigtail Receptacle - Standard Length 18"
(choice of stagepin, twistlock, or Edison
connectors)
Dual Dimmer Module
(2400 Watt total)
Focus Button /
LED Indicator
Flush Receptacle (choice of stage pin,
twistlock, or Edison connectors)
1-1/2" Schedule 40 Pipe
(provided by others)
Control Cable
Tray (optional)
Power Terminal Box (PTB)
DMX512 In/Thru Connectors,
RJ45 Ethernet Connector &
Serial Connector (diagnostic)
SIDE VIEW
FRONT VIEW
Power Terminal Box Interior View (Typical)
Ground Terminal
Input
Output Power Wiring
(pre-wired at factory)
Input Power Terminals
Power
Feed
EXAMPLE CONFIGURATION
Raceway Components May Vary
A
C
A
BSee next pages
for detail illustrations
B
C
Note: All components are pre-wired
at the factory except terminal box
line input connections.

Raceway Control Modules 7
R21 Powered Raceway Installation Guide
2. Raceway Control Modules
The Raceway Control Module (RCM) is used to configure the R21 Powered Raceway. The RCM comes in two
configurations, a 19-inch "rack mount" configuration for remote applications or a "head end" configuration for local
applications.
Figure 2: Head End RCM Component Detail
Figure 3: Rack Mount RCM Components
A
SIDE VIEWFRONT VIEW
Menu
Status
Menu Navigation
Escape
Button
Display
LEDs
and Enter Buttons
Serial Port
Ethernet
DMX512 In
Port
B
DMX512-Over-Ethernet Output
(Ethernet Enabled Units)
DMX512 Thru
(DMX Only Units)
- or -
FRONT VIEW
REAR VIEW
Menu
Status
Menu Navigation
Escape
Button
Display
LEDs
and Enter Buttons
Ethernet
Vision.net Port
A/C Input
DMX512
Termination
Port
DMX512
Ground
DMX512-Over-Ethernet
Output (Ethernet-Enabled Units)
DMX512 In & Thru
(DMX Only Units)
Data Ports
Panic
Input
Data Port
Enable Switches

Installation Guide R21 Powered Raceway
8Components
3. Dimmer Modules
R21 Powered Raceway Dimmer Modules contain one 20A dual dimmer with 20A (2400W) power shared between
the two dimmers. Each dual dimmer module includes two Focus/LED Indicator buttons, which function as both focus
adjustment controls and status indicators.
Figure 4: Dimmer Module Detail
C
Focus Button /
LED Indicator

Tools and Supplies 9
R21 Powered Raceway Installation Guide
MECHANICAL CONSIDERATIONS
1. Tools and Supplies
The following tools and supplies will be required:
• Phillips and slotted screwdrivers
• Adjustable open-ended wrench
• Ratchet and assorted socket set
• Wire cutter and stripper
• Cable/box connectors and fittings
• Digital voltmeter / RMS
• Hammer (for terminal box knock-out holes)
Note: This is a basic list. Depending on your specific installation, additional tools may be required.
2. Installation Location
The location planned for installation MUST meet the following requirements:
•Weight Load Capacity - The R21 Powered Raceway should be installed using mounting brackets with sufficient
load capacity to support it. Choose one of six approved mounting configurations. Refer to "Mounting the Unit" on
page 11.
•Ventilation Allowance - The room must have sufficient space to allow air to circulate and cool. The R21 Powered
Raceway must have a minimum of 12 inches of clear space above it to allow for proper convection cooling.
•Indoor Use Only - The R21 Powered Raceway is rated for indoor use only.
•Dry Locations Only - The R21 Powered Raceway can only be installed in an "office clean" area that is never
exposed to moisture of any kind. Strand Lighting is not responsible for damage to equipment caused by paint, dust,
solvents or cleaning supplies.
CAUTION: Refer to National Electrical Code® and local codes to determine whether additional requirements must
be met.

Installation Guide R21 Powered Raceway
10 Mechanical Considerations
3. Wire Routing
Before deciding a final mounting position, consider all wire routing as follows:
• Line power wiring may enter the unit through the top or side of the Power Terminal Box. Refer to "R21 Powered
Raceway" on page 6.
Note: The RCM does not contain any field serviceable components.
WARNING! You must have access to a main circuit breaker or other power disconnect devices in order to install any
wiring. Failure to disconnect power before installing or servicing the unit may result in injury.
4. Wiring Requirements
• For control wire-type requirements, refer to your job drawings as prepared by Strand Lighting.
• For power wire-type requirements, refer to Strand Lighting drawings, contract drawings, and applicable codes.

Connecting Sections 11
R21 Powered Raceway Installation Guide
INSTALLATION PROCEDURE
1. Connecting Sections
Before mounting the R21 Powered Raceway, it will be necessary to connect all modular sections. Sections are
connected using three metal connector plates and screws (provided). Refer to Figure 5 below.
Figure 5: Connecting Modular Sections
2. Mounting the Unit
The R21 Powered Raceway can be mounted in one of six configurations depending on your specific requirements.
Regardless of type, brackets cannot be spaced more than 5 feet apart per National Electrical Code®.
Single-Pipe Methods
The 71444 Single-Pipe Overhung Hanger Bracket is used to attach an R21 Powered Raceway to a single 1-1/2"
schedule 40 pipe with no additional overhead support.
The 71440 Single-Pipe Rigged Hanger Bracket is used to suspend a single 1-1/2" schedule 40 pipe and an R21
Powered Raceway from a rigging system or a ceiling.
Figure 6: Single-Pipe Methods
10-32 Screw (eight per plate)
Connector Plates
R21 Powered Raceway Section
R21 Powered Raceway Section
Note: Some components and
wiring not shown for clarity.
1-1/2" Schedule 40
Single-Pipe Overhung
Pipe (not provided)
Hanger Bracket (71444)
CAUTION:
Brackets must be
spaced every five
feet or less per
NEC® requirements.
Single-Pipe Overhung Hanger Bracket
1Single-Pipe Rigged Hanger Bracket
2Single-Pipe Rigged
Hanger Bracket (71440)
1-1/2" Schedule 40
Pipe (not provided)

Installation Guide R21 Powered Raceway
12 Installation Procedure
Double-Pipe Methods
The 71443 Double-Pipe Offset Hanger Bracket is used to attach an R21 Powered Raceway to two 1-1/2" schedule 40
pipes with no additional overhead support. Components are supported in an offset position in front of the two battens.
The 71441 Double-Pipe Rigged Hanger Bracket is used to suspend two 1-1/2" schedule 40 pipes and an R21 Powered
Raceway from a rigging system. Components are supported midway between the two battens.
Figure 7: Double-Pipe Methods
Threaded Rod and Wall Mount Methods
The 71445 Threaded Rod Bracket is used to suspend one 1-1/2" schedule 40 pipe and an R21 Powered Raceway from
a rigging system using threaded rod support.
The 71442 Wall Mount Hanger Bracket is used to permanently mount an R21 Powered Raceway to a wall.
Figure 8: Threaded Rod and Wall Mount Methods
1-1/2" Schedule 40
Double-Pipe Offset
Pipe (not provided)
Hanger Bracket (71443)
CAUTION:
Brackets must be
spaced every five
feet or less per
NEC® requirements.
Double-Pipe Offset Hanger Bracket
3Double-Pipe Rigged Hanger Bracket
4Double-Pipe Rigged
Hanger Bracket (71441)
1-1/2" Schedule 40
Pipe (not provided)
1-1/2" Schedule 40
Pipe (not provided)
CAUTION:
Brackets must be
spaced every five
feet or less per
NEC® requirements.
Threaded Rod Bracket
5Wall Mount Hanger Bracket
6
Wall Mount
Hanger Bracket
Threaded Rod Bracket
(71445)
(71442)

Connecting Power Wiring 13
R21 Powered Raceway Installation Guide
3. Connecting Power Wiring
Overview
The R21 Powered Raceway is designed to be wired from the top or side of the Power Terminal Box (see
Figure 10 on next page). Eight knock-out holes are provided (four on top, two on each side) for this purpose. We
recommend connecting the Line Power wiring and Grounds (if applicable) first, and the Load Neutral and Load Hot
wires last. Refer to Figure 9 below for wiring key.
Figure 9: Terminal Box Wiring Key
3-Phase, 4 Wire Blocks
120/208 VAC
20 Amp Circuits
(Sixth module not used in this
example - terminals always
provided in 3-Phase, 4 Wire
blocks.)
Single-Phase, 2 Wire Blocks
120 VAC
20 Amp Aux Circuit
(if applicable)
Label on Terminal Strip -
#’s correspond to module ID
Circuit schedule
from project
drawings
Dimmer Numbers
Neutral
for
4, 5, 6
Neutral
for
1, 2, 3
208 VAC
20 Amp
Aux Circuit
(if applicable)
Aux Ckt Numbers from Panelboard
(this shows 1: 1-Pole and 1: 2-Pole)

Installation Guide R21 Powered Raceway
14 Installation Procedure
Line Power
WARNING! You must have access to a main circuit breaker or other power disconnect devices in order to install any
wiring. Failure to disconnect power before installing or servicing the unit may result in injury.
WARNING! Refer to National Electrical Code® and local codes for cable specifications. Failure to use proper cable
can result in damage to equipment or danger to persons.
CAUTION: Wire openings MUST have fittings or lining to protect wires/cables from damage.
CAUTION: Use 90° C copper wire only!
To connect Line Power:
Step 1. Turn off all power at main breaker or
disconnect device.
Step 2. Route line power wiring from power source to
top or side of terminal box (Figure 10).
Step 3. Remove terminal box cover.
Step 4. Punch holes as required and install conduit
fittings or lining materials into opening.
Step 5. Feed line power cables through prepared
openings.
Step 6. At end of each cable, strip insulation as
appropriate.
Step 7. Dress all wires to back of box.
Figure 10: Removing Terminal Box Cover
Step 8. At appropriate lugs, terminate Phase, Neutral and Ground wires. Line connections are color coded as
follows:
CAUTION: Failure to use proper torque setting will cause premature equipment failure.
Step 9. Tighten lug set screws to proper torque settings as provided by label inside terminal box.
Wire Color
Phase A Black
Phase B Red
Phase C Blue
Screw
Terminal Box
Terminal Box Cover Input Hole

Connecting Control Wiring 15
R21 Powered Raceway Installation Guide
4. Connecting Control Wiring
Overview
For details regarding the specific low-voltage control cable wiring for your project, refer to your project drawings as
prepared by Strand Lighting. The low-voltage control cable will connect to the R21 Raceway Control Module
(RCM). The RCM comes in two configurations, a 19-inch "rack mount" configuration for remote applications or a
"head end" configuration for local applications. These generic details are for reference only, consult your project
drawings for final connection details.
Figure 11: Example Control Connections
Multiple R21 Powered Raceways - Rack Model
Ethernet In
DMX512 In Termination
Single R21 Powered Raceway - Head End Model
DMX512 In
Ethernet In
Termination
DMX512 In
Ethernet In Ethernet In Ethernet In
DMX512 Thru
Termination
DMX512 Thru
Multiple R21 Powered Raceways - Head End Model
Single R21 Powered Raceway - Rack Model
Ethernet In
Termination
DMX512 In
DMX512 Thru DMX512 Thru
Ethernet In
Ethernet In

Installation Guide R21 Powered Raceway
16 Installation Procedure
DMX512
Contractor is Responsible for All Terminations
1) Only approved EIA-485 cable types may be used.
Approved types are:
Belden #9829 and TMB Proplex #PC224T
An acceptable plenum rated cable is: Belden
#89729.
2) Category 5e cable may be used for DMX512.
Approved types are: Belden #1583A and Belden
#1585A (Plenum).
3) Cable MUST be terminated exactly as shown here.
4) DMX512 cable runs MUST be routed in a "Daisy-
Chain" configuration as shown in your drawing
set, if provided. DO NOT convert these cables to
home runs.
5) DMX512 cable runs should all be in metal conduit.
Runs in exposed areas must be in metal conduit.
Maximum cable run should not exceed 1000 feet.
Additional Resources for DMX512
For more information on installing DMX512 control systems, the following publication is available for purchase
from the United States Institute for Theatre Technology (USITT):
• Recommended Practice for DMX512: A Guide for Users and Installers, 2nd edition (ISBN: 9780955703522)
USITT contact information:
USITT
6443 Ridings Road
Syracuse, NY 13206-1111 USA
1-800-93USITT
www.usitt.org
DMX512
Terminal XLR Pin Name WE Color Code (e.g., Belden #8132) IECA Color Code Belden Standard Color Code CAT5e Color Code
GND 1 Drain Wire (Shield) Drain (Shield) Drain (Shield) Brown (8)
White/Brown (7)
DMX - 2 White w/ Blue Black Black
(of Red pair) Orange (2)
DMX + 3 Blue w/ White White Red White/Orange (1)
AUX - 4 White w/ Orange Red Black
(of White pair) Green (6)
AUX + 5 Orange w/ White Green White Green/White (3)
BELDEN #9829
or EQUAL
(NOT BY STRAND)
Female Male

Connecting Control Wiring 17
R21 Powered Raceway Installation Guide
Vision.net Networks (SVN/485)
Contractor is Responsible for All Terminations
1) Only approved cable types may be used. Approved types are: Belden #1583A and Belden #1585A
2) Cable MUST be terminated exactly as shown here. Total length of cable in Vision.net Network Wiring must
NOT exceed 1000 feet.
3) Cable runs should be routed in a "Daisy-Chain" configuration as shown in your drawing set, if provided.
DO NOT convert these cables to home runs.
4) Maximum station quantity subject to power supply and system requirements. Please consult factory for
specific information.
Termination of Shielded Cable
To terminate shielded cable:
Step 1. Strip off specified
length of outer jacket.
Step 2. Cut shield (foil or
braid) flush to outer
jacket. DO NOT cut
drain wire.
Step 3. Fit specified length of
1/16" heat shrink
tubing over the drain
wire.
Step 4. For solder connections, fit a 1/2" length of 1/16" heat shrink tubing over each conductor.
Step 5. Fit a 1" length of 3/8" heat shrink tubing over the entire cable. Position it so that 3/4" of its length is over the
cable jacketing, and 1/4" of its length is over the loose conductors.
Step 6. Strip 1/8" inch of the insulation from each of the conductors.
Step 7. Terminate the conductors on the terminal block, or solder the terminals as specified.
Step 8. For solder connections, shrink the individual 1/2" lengths of heat shrink tubing over the solder terminals.
Step 9. Shrink the remaining heat shrink tubing.
Step 10. Apply the appropriate ID label to the cable at the end of the outer heat shrink tubing.
Pin Number Signal Name CAT5e Wire Color
1 Data + White w/ Orange
2 Data - Orange
3SHIELD Shield
4 +24 VDC White w/ Green
5 Signal GND Green
6 +24 VDC White w/ Blue
7 Signal GND Blue
8 +24 VDC White w/ Brown
9 Signal GND Brown
Dimension Name Minimum Maximumfor
Terminal Maximum for LXR (In-Line)
A Remove Cable Jacket 1" (25.4mm) 2-1/4" (60mm) 1-1/4" (31.8mm)
B Drain Wire Heatshrink Dim 'A' - 1/8" (3.2mm) - -

Installation Guide R21 Powered Raceway
18 Installation Procedure
Termination of Ethernet Cable
To terminate Ethernet cable:
Step 1. Strip off outer jacket - approximately 1-1/2" (37.6mm)
Step 2. Fit a piece of 1-1/8" (28.6mm) long heat shrink tubing over the cable extending out 1/4" (8.25mm) from
outer jacket.
Step 3. Terminate approximately 1/2" (12.2mm) from end of conductors on Type 110 punch down block or
connector per schedule (T568B)
• Maximum untwist of conductors to terminations is 1/2" (12.2mm)
• Trim excess leads.
Step 4. Shrink tubing and add appropriate ID label to the cable at the end of the heat shrink tubing.
System topology and labeling should follow TIA/EIA-568B and TIA/EIA-606 as applicable.
Per TIA/EIA-568B, Maximum length of any horizontal cable run (i.e. between Ethernet RJ-45 receptacle (work area)
and Patch Panel) is 90 meters; Maximum length of any CATEGORY 5e cables at the Ethernet RJ-45 receptacle (work
area) is 3 meters.
Ethernet equipment (e.g. Patch Panels, Hubs or Switches) should be maintained in an environment of 18°-24° C (64°
- 75° F) and 30% - 55% relative humidity per TIA/EIA-569-A.
Maximum length of any segment (cable run - including device cables - between Hub or Switch and Node) is 90
meters. Maximum network diameter (distance between any two Nodes) is 180 meters.
Function Pair # Pin Out (T568B) Wire Color
(T1)
(R1) 15 4White w/ Blue Blue
Tx + (T2)
Tx - (R2) 21 2White w/ Orange Orange
Rx + (T3)
Rx - (R3) 33 6White w/ Green Green
(T4)
(R4) 47 8White w/ Brown Brown
Cable Type (10/100 Base-T Ethernet) Description
Belden #1583A
Nominal O.D. 0.214” (5.54 mm) CATEGORY 5e: Non-plenum rated 4-Unshielded Twisted Pairs (UTP) #24 AWG
Belden #1585A
Nominal O.D. 0.206” (5.23 mm) CATEGORY 5e: Plenum rated 4-Unshielded Twisted Pairs (UTP) #24 AWG
