Streetwize SWINV2000 Specification sheet

Information for use
SWINV2000
4000WPEAK
2000W Inverter
Modified Sine Wave

Health & Safety Guidelines
IMPORTANT: This inverter is only suitable for use with 12V batteries only.
This appliance is primarily designed for operating Class 2 appliances.
Warning! Electric Hazard. Keep away from children
1. This inverter is not a toy, and it should never be used by children.
2. This inverter generates the same voltage as a UK 3-pin plug socket.
Please operate it as if you are using any other AC mains socket.
3. Never insert any kind of foreign object into the inverter’s plug sockets,
fan or vent openings.
4. Do operate or expose the inverter to water, rain, snow or spray
5. Never connect the inverter to an AC power source. This inverter is only
designed to accept a DC power supply.
Warning! Heated Surface
6. The inverter’s outer casing may become hot after prolonged use or
overloading. During operation, ensure there is atleast a 5cm (2 inches)
gap between the inverter and any other walls.
7. Please keep any flammable materials away from the inverter during operation.
Warning! Explosion Hazard
8. Never use the inverter in the presence of flammable substances
Caution!
9. Do not connect a live AC power source to the inverter’s AC output
sockets. This will damage the inverter, even if the inverter is switched off.
10. Do not expose the inverter to temperatures over 40°C.
Caution! Do not use the inverter with the following equipment:
11. Class 1 appliances. See Class 1/Class 2 section.
Recommended battery Running time at rated continuous rated power
12V/200Ah 1 hour

Intention For Use
Thank you for purchasing this 2000W modified sine wave inverter from Streetwize. This
inverter safely converts your vehicle’s 12V DC battery into a 240V AC power supply for
using standard UK electrical appliances that require up to 2000W.
It is intended for people who require access to an AC power supply in areas where
there is restricted access to power. They’re suitable for caravan/campervan users as
well as tradespeople.
This modified sine wave inverter is not suitable for use with appliances with AC
motors (i.e. microwaves, refrigerator), medical equipment, laser printers and
flourescent lights.
In addition, this inverter is primarily designed for operating a wide range of Class
2 appliances. Class 2 appliances are double insulated and do not require earth
connections. Most computers, laptops, photocopiers, cordless power tools, and plastic-
cased appliances are identified as Class 2 appliances.
Class 1 appliances, on the other hand, are protected by basic insulation and earthing
provision and most typically come in a metal casing. This product is not suitable for
operating Class 1 appliances. Typical Class 1 appliances include toasters, kettles,
washing machines and irons.
IMPORTANT: This inverter is primarily designed for powering appliances up to its
stated continuous output. The stated peak output is only available for a limited time.
Class 1 / Class 2
As mentioned in the Intention For Use section, this product is primarily designed
for operating Class 2 appliances, which don’t require earthing provisions.
Class 1 Class 2
Symbol
Earth Wiring Present Yes No
Insulation Basic Insulation Double Insulation
Appliance casing Metal Plastic
Appliance examples
Toasters, kettles,
washing machines
and irons
Hedge trimmers,
lawn mowers and
drill

Product Elements
Pure Sine Wave & Modified Sine Wave Inverters
Operating Instructions
1. Modified sine wave inverter
2. Battery clamp connection cables
There are two types of inverters: Pure Sine Wave & Modified Sine Wave.
The figure below shows a graphical comparison of modified sine wave inverters and pure
sine wave inverters.
Modified sine wave inverters provide a cost-effective option of powering 230V AC
appliances from a 12V battery. However, a pure sine wave inverters provide even flow of
electric output where a modified sine wave inverter is staggered.
The figure below shows a graphical comparison of modified sine wave inverters and pure
sine wave inverters.
Modified Sine Wave
Sine Wave
Optimum Working Conditions
For safe & optimum performance, please install the inverter in a location that is:
• Dry - The inverter should not be near any liquid or moisture.
• Cool - Keep it away from any high heat source.
• Well-ventilated - Allow for atleast 5cm of space on all sides.
• Clean - To prevent any dust or unwanted elements from getting inside the inverter.
• Away from flammable substances - To prevent fire or explosion.

12V Socket
To use the inverter via your vehicle’s 12V socket, simply connect the O-rings of the 12V
connection cable to the inverter’s terminals, with the black cable going to the negative
terminal and the red cable going to the positive terminal. Plug the 12V plug into the 12V
socket, then switch on your vehicle.
WARNING: Only use the 12V plug for powering appliances that require less than 150W.
Do NOT power an appliance that requires more than 150W as this will risk damaging
your vehicle’s fuse.
Direct Battery Connection
Before connecting this inverter, please ensure your vehicle is fully switched off.
Then, connect the black (negative) battery clamp connection cable to the negative terminal
of the inverter via the O-ring first, and then connect the clamp to the negative battery ter-
minal of your 12V battery. Then, connect the red (positive) battery clamp connection cable
to the positive terminal of the inverter via the O-ring and then connect the clamp to the
positive battery terminal of your 12V battery.
IMPORTANT: When starting your vehicle’s engine, please disconnect the inverter first
before starting the engine.
Operating Appliances
Operating an Appliance Through The 3-Pin Plug
Once the inverter is connected to your battery, just plug in your appliance via the 3 pin
socket, and then turn ON the power switch.
Operating an Appliance Via The USB
Once the inverter is connected to your battery, just plug in the device via the USB socket,
and then turn ON the power switch.
Peak Output
This inverter provides a continuous output of 2000W as well as a peak output of 4000W.
Meaning, when you try to power appliances that total more than 2000W, the inverter has
the capability to automatically adjust the wattage up to 4000W.
IMPORTANT: When operating appliances that require more than the specified continu-
ous power wattage, the inverter will operate for a very limited amount of time and it will
automatically shut-down.
For long lasting performance, we recommend that you use this inverter for appliances
requiring less than specified continuous power wattage.

After Use
After you have finished using the inverter (or when the inverter is not in use), turn off the unit and
make sure your vehicle’s fully switched off.
Then, turn the unit off and then disconnect the inverter from the 12V power supply. When discon-
necting from the battery, disconnect the negative cable first, followed by the positive cable.
Best Practices for Protecting Your 12V Battery
• To prevent your vehicle’s 12V battery from being depleted. We recommend running the engine for 10 to
20 minute to recharge the battery after using the inverter for 2 to 3 hours. Important: Before starting your
vehicle’s engine, please disconnect the inverter from your battery/power supply.
• When connecting the inverter to your battery’s terminals, it is important that you connect it via the correct
polarity (i.e. Connect + from inverter to + of battery terminal and connect – from inverter to – of battery
terminal) to prevent reverse polarity.
• When you are using the inverter and you hear a beeping sound coming from the inverter, this means your 12V
battery is low. To recharge, disconnect the inverter from your battery and turn on the engine for 2 to 3 hours.
• When charging your 12V battery using a battery charger, please disconnect the inverter.
Measuring The AC Voltage
Safety Features
The output waveform of the AC output is a MODIFIED SINE WAVE. To measure the AC
output voltage, you must have a TRUE RMS VOLTMETER.
Feature Explanation
Anodized Aluminium Casing Prevents corrosion & wear. The case effectively
protects the inverter’s interior elements.
Low Battery Alarm Sounds when your 12V battery is low. To
resolve, disconnect the inverter from battery/
power supply and recharge the battery.
Built-in Cooling Fan The built-in cooling helps to prevent overheating
during use.
Overheat Protection After prolonged use (more than 2 to 3 hours),
the inverter will generate heat. This is not a
malfunction of the built-in cooling fan. However,
if the inverter does overheat, after prolonged
use, the unit will automatically shut off for it to
cool down.
Overload/Short Circuit Protection The inverter automatically turns itself off if the
connected load is too high or if it too low
Thermal Protection The inverter’s thermal protection feature pre-
vents it from operating when its temperature
exceeds 60+/-5 °C

How to Replace the Fuse
If the unit stops working, and you see a red LED light and/or you hear an audible beeping.
Then you will need to check to see if any of the fuses are working, and replace any blown
fuses if necessary.
PLEASE NOTE: In total, there are 8 x 30 Amp fuses.
To check & replace the fuse, please follow the instructions below:
1. Loosen and remove the screws on the base of the unit, remove the base plate to
reveal the inside of the inverter.

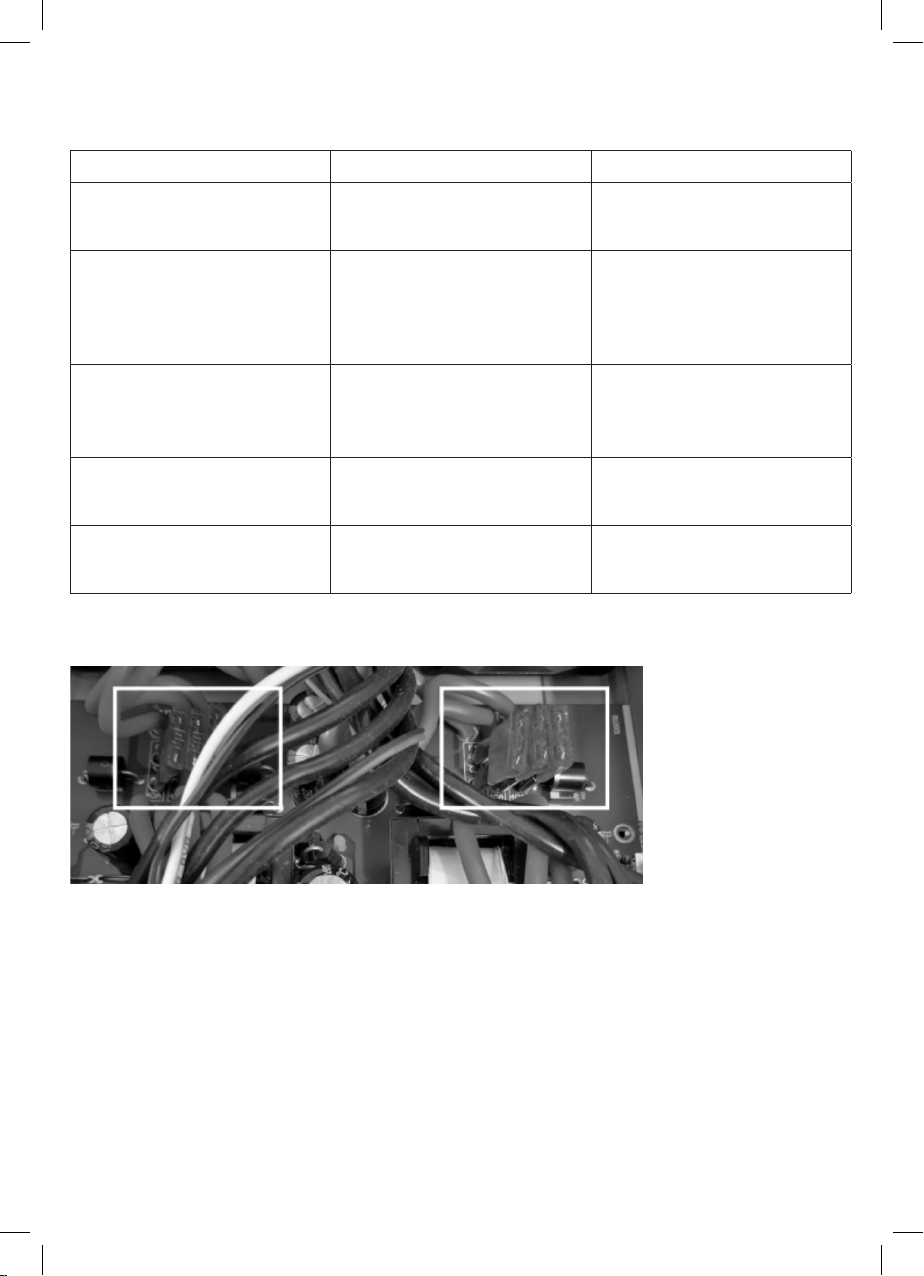

2. Locate the fuses as shown in the figure below. Use a suitable pair of tweezers to take
the fuse out so you can check/replace as necessary. Please note, you can check the
fuse size when you take out the fuse.
Fig. 1
Troubleshooting
What To Do When The Inverter Is Not Working
Troubleshoot/Problem Possible Cause Suggested Solution
No AC out - the green LED light
is not coming on
DC input is below 10V Recharge or replace the
battery
No AC output - the inverter is
cold
Poor connection with the
battery
Switch off vehicle & discon-
nect inverter from battery.
Then reconnect the inverter to
the battery, check to see if the
connection is correct.
Inverter shuts down after using
the unit for a long time
Overheat Switch off vehicle & discon-
nect inverter from battery.
Allow the unit to cool down for
15 mins before reconnecting.
Inverter shuts down after oper-
ating for a short time
Overload The appliance wattage require
may be too high
Red LED light &/or audible
beeping
Fuse could have been blown Check and replace the fuse.
See Replacing the Fuse.

Technical Support
If you require any technical support for your product within the warranty period, please contact
us on [email protected] and provide the product name and supplier code
(see Technical Specifications) along with the technical query and proof of purchase.
Technical Specifications
Product Name
Max Contiuous Power
Peak Power
Input Voltage
Output Voltage
Output Waveform
USB output
No load current
Battery low shutdown
Battery low alarm
Thermal shutdown
Fuse
Product dimensions
Streetwize 2000W Modified Sine Wave Inverter
2000W
4000W
230V AC
12V (10 to 15V) DC
Modified Sine Wave
5V DC 1000mA
<0.3A
10+/-0.5V DC
11+/-0.5V DC
60+/-5°C
30A x 8
41 x 19.2 x 10CM
