2012/12 Rev C.0 100259 Rev C Page 1 of 2
Care•Free Companion® Pump CF300
FUNCTIONAL CHECK INSTRUCTIONS
Read and understand all instructions and the following safety precautions before beginning any work.
SAFETY PRECAUTIONS
DANGER
• Electrical shock hazard. Do not remove cover; there are no serviceable parts inside.
• Explosive hazard. Do not use in the presence of flammable anesthetics.
TOOLS REQUIRED
Product Tool Description
CF300 Tester P/N 12157
Voltage: 120V Functional Check Instructions P/N 100259
Frequency: 60Hz Manometer 0-50 mm Hg or greater (standard mercury, or digital)
Tubing 3/16” ID
GENERAL DESCRIPTION
The Functional Check Instructions provide a quantitativemeansofdeterminingwhetheraCare•FreeCompanion
Pump can properly inflate its cushion. An alternate, qualitative means to check pump and cushion performance is to
follow the HAND CHECK described in the Care•Free Companion Pump Instructions for Use.
The Functional Check Instructions require the use of a Tester tool that simulates the cushion that is normally used with
these pumps. If the pump does not meet the outlined requirement, it should be replaced. Repair is not available for
these pumps.
PHYSICAL INSPECTION
1. Unplug the power cord.
2. Check tubing and cap for visible signs of damage (kinks, cuts, and cracks).
WARNING
• Disinfect before use with each patient, utilizing standard hospital protocol and disinfectants. Failure to disinfect may
cause cross-contamination and infection.
• Do not autoclave. Autoclaving will damage the pump.
CAUTION
• The Functional Check is an optional test, however should you choose to perform the test it must be performed only
by qualified technical personnel familiar with good practice for medical device repair.
• Verify proper operation of the pump. Operation of the pump at less than specified flows and pressures may result
in poor or reduced patient therapy.
Warning - Consult
accompanying documentation Manufacturer
Caution Model
Shock Hazard Do not use with Flammable Anesthetics

100259 REV C www.stryker.com
Care•Free Companion® Pump CF300
FUNCTIONAL CHECK INSTRUCTIONS
Page 2 of 2
3. Check that all 4 feet are firmly attached to the pump.
4. Check power cord and plug for damage.
5. Tip the pump in several directions and listen for any indication of loose parts. Check housings for damage.
If there is any indication of loose parts or a damaged housing, discontinue use and contact your local dealer or
Stryker’s Customer Service.
PRESSURE CHECK
1. Plug in the pump and turn it on. Allow the pump to operate for at least 60 minutes before proceeding.
2. Screw the pump’s inflator cap onto the tester. Attach 3/16” ID tubing from the manometer to the fitting on the
tester (See Figure 1).
3. Plug the orifice on the end of the tester with a finger.
Repeat a minimum of three (3) times. With the orifice plugged, the pressure reading on the manometer should
be 18-32 mm Hg.
4. With the finger removed from the orifice, the pressure reading on the manometer should be at least 13 mm Hg.
If any of the pressure readings are out of specification, discontinue use and contact your local dealer or Stryker’s
Customer Service.
CURRENT LEAKAGE
TheCare•FreeCompanionPumphasdoubleinsulatedconstruction.Itisnotnecessarytomeasurecurrent
leakage. However, if you choose to do so, refer to UL2601-1 “Medical Electrical Equipment, Part 1: General
Requirements for Safety”, Sub-clause 19.4g.
GROUND RESISTANCE
Double insulated appliances are permitted to have two conductor cords (refer to NFPA 99 “Standard for Health
CareFacilities,”paragraph9-2.1.2.2).MeasuringgroundresistanceisnotapplicabletotheCare•FreeCompanion
Pump.
CLEANING
After completing the Functional Check, clean the pump housing with a mild detergent and damp cloth. Wipe dry
with a clean cloth before operating. Do not submerge in water. Do not autoclave.
CONTACT INFORMATION
Contact Stryker Customer Service or Technical Support at: [phone] or [phone].
Manufactured For
Stryker Medical
3800 E. Centre Ave.
Portage, Michigan 49002
USA
Care•Free Companion Pump
3/16” ID Flexible T ubing
Manometer
Tester Oric e
Initiator Cap

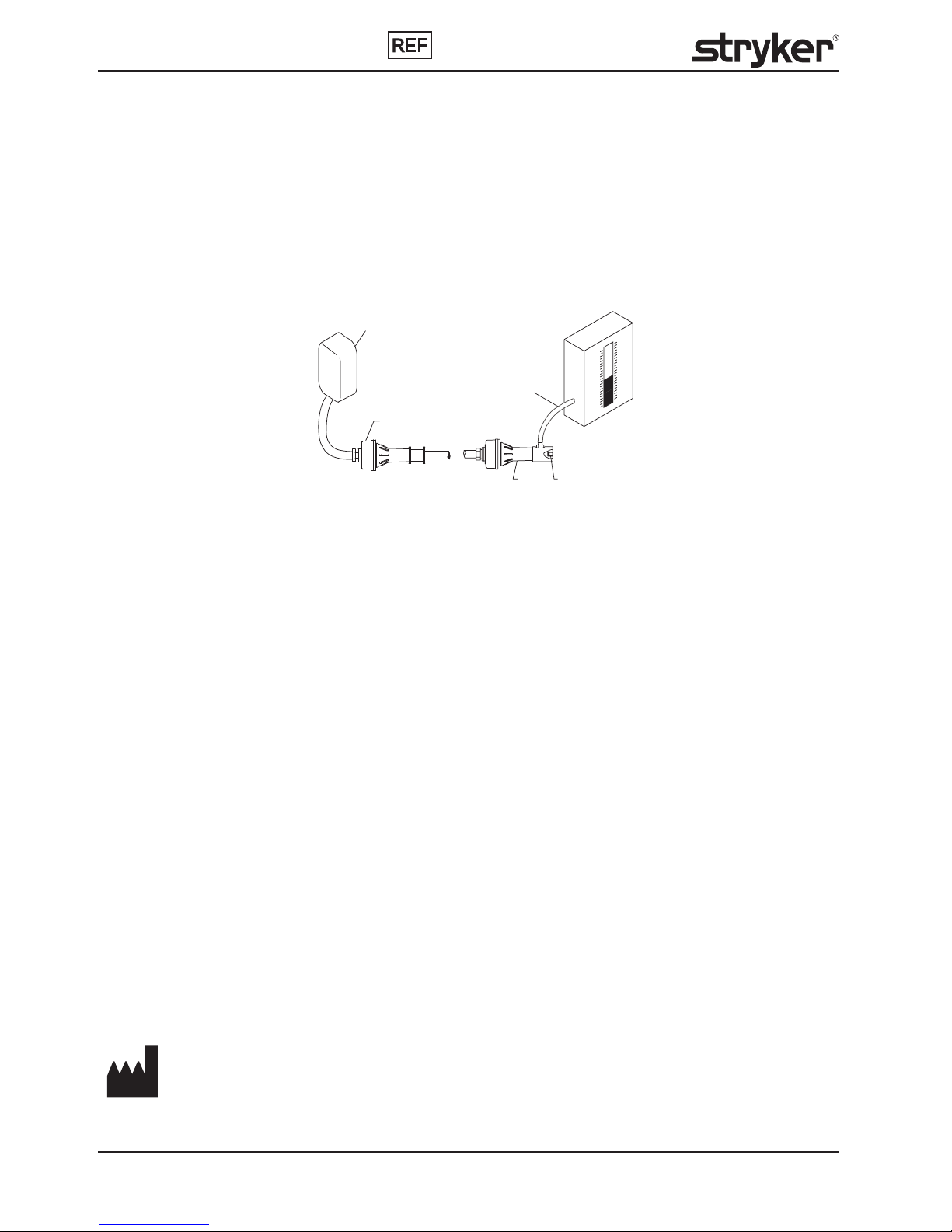

Figure 1—Pressure Test Set-up
