Stryker CrossFlow User manual

Doctor 1
Dynamic Medium
XF2
STOP
CrossFlow quick start guide

1
2
3
4
5
6
7
8
9
10
TABLE OF CONTENTS
Table of contents
CrossFlow quick start guide
Pump interface reference
Pump start up
Setting navigation
Pressure, suction and flow settings
Wash function
Cannula settings
Shaver and RF console integration
Footswitch and hand control settings
Temperature monitoring settings
Save surgeon profile settings

INTERFACE MAP
Pump interface reference
CrossFlow interface map
Refer to the instructions for use for important safety and user advice. Do not operate the device without rst reading and understanding the Instructions for Use.
The IFU part number is: P17330 The CrossFlow Pump catalog number is: 0450-000-000
User interface reference
1. Joint settings
2. Set pressure (mmHg)
3. Actual pressure
4. Adjust set pressure up/down
5. End case
6. Flow limit pop-up menu
7. Start/stop
8. Resection console connection icon
9. Wash (use for better visibility)
10. Settings menu
11. Temperature indicator (during RF use)
12. Adjust suction up/down
13. Surgeon prole
14. Suction indicators
15. Scope/cannula combination in use
NOTE: Identies which scope/cannula
combo is selected for the procedure
1
1

Pump start up
How to start up the pump and navigate to the Run Screen
Refer to the instructions for use for important safety and user advice. Do not operate the device without rst reading and understanding the Instructions for Use.
Step 1: Turn on pump Step 2: Insert cassettes
= Power on the pump
The CrossFlow start up screen will appear and a progess bar
will indicate that the pump is starting up.
2
START UP
2
Doctor 1
Dynamic Medium
XF2
STOP
Doctor 1
Dynamic Medium
XF2
STOP
Doctor 1
Dynamic Medium
XF2
STOP
Wait for “insert cassette” screen to appear, then align the colored side of the cassette
facing out toward its matching colored button. Green checkmarks will indicate that
the cassette(s) have been properly inserted. Once the Inow Cassette is inserted, the
pump will advance to the User Prole Selection Screen.
= Inow cassette (blue) = Outow cassette (red)

Press the icon that identies the operative joint:
= Return to previous screen
The IFU part number is: P17330. The CrossFlow Pump catalog number is: 0450000000
START UP
Step 3: Select user prole Step 4: Select joint Step 5: Start pump
Select the name of the surgeon performing the
case. If no prole is uploaded for that surgeon,
press “Dynamic Mode”.
= Advance to next screen
Once tubing is set up and saline is spiked:
=Prime pump
= Return to joint selection
screen and start new case
3
Shoulder Knee Hip Small joint

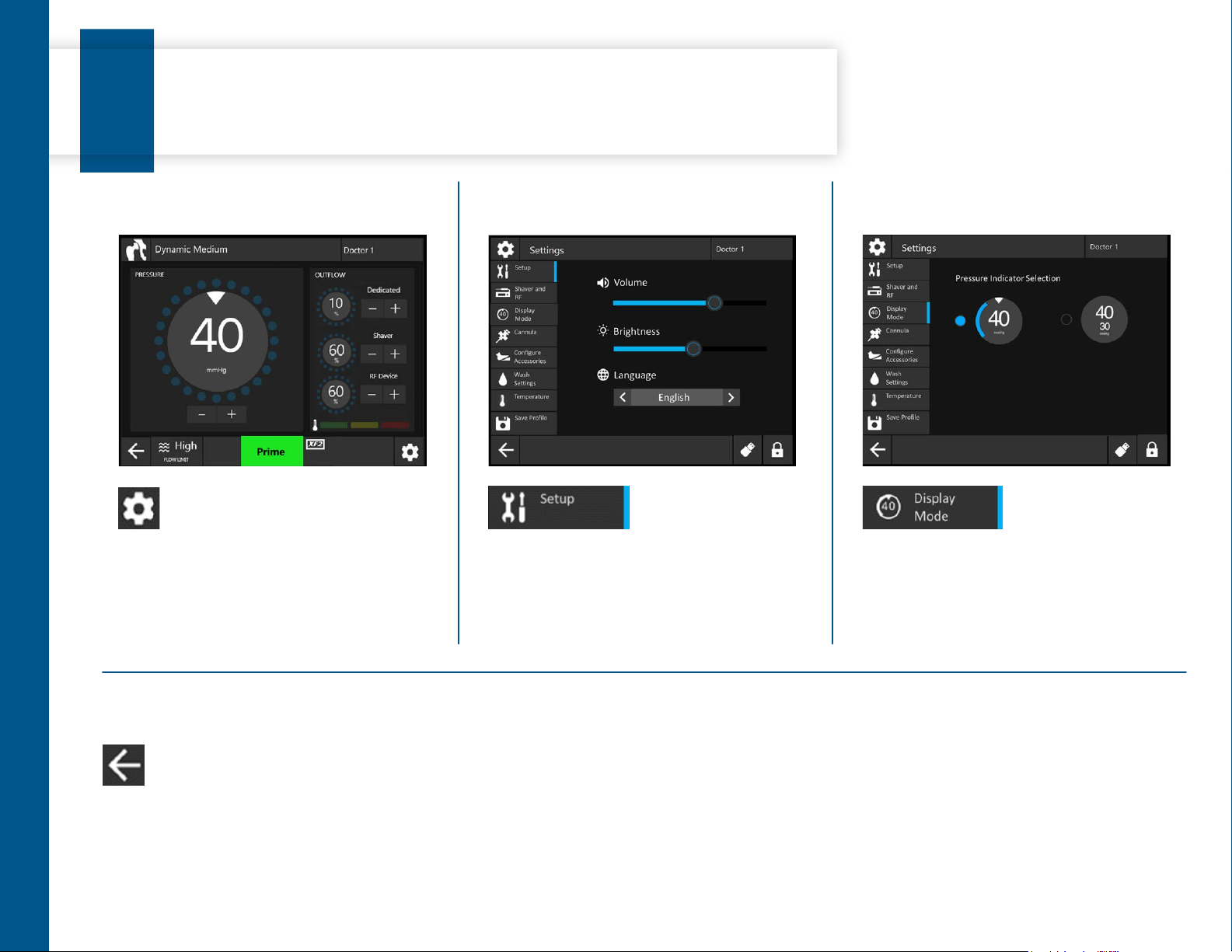

GENERAL SETTINGS
Settings navigation
How to access and adjust general settings for the CrossFlow pump.
Step 1: Access settings menu Step 2: Adjust general settings Step 3: Change pressure display
Step 4: Return to run screen
= Pump customization menu = Setup sub-menu = Actual pressure display
settings screen
Change how pressure displays on the run screen
by pressing the desired icon.
Note: This new pressure display will now appear
on the run screen of the pump.
= Exit menu
General settings are now customized.
3
Refer to the instructions for use for important safety and user advice. Do not operate the device without rst reading and understanding the Instructions for Use.
4

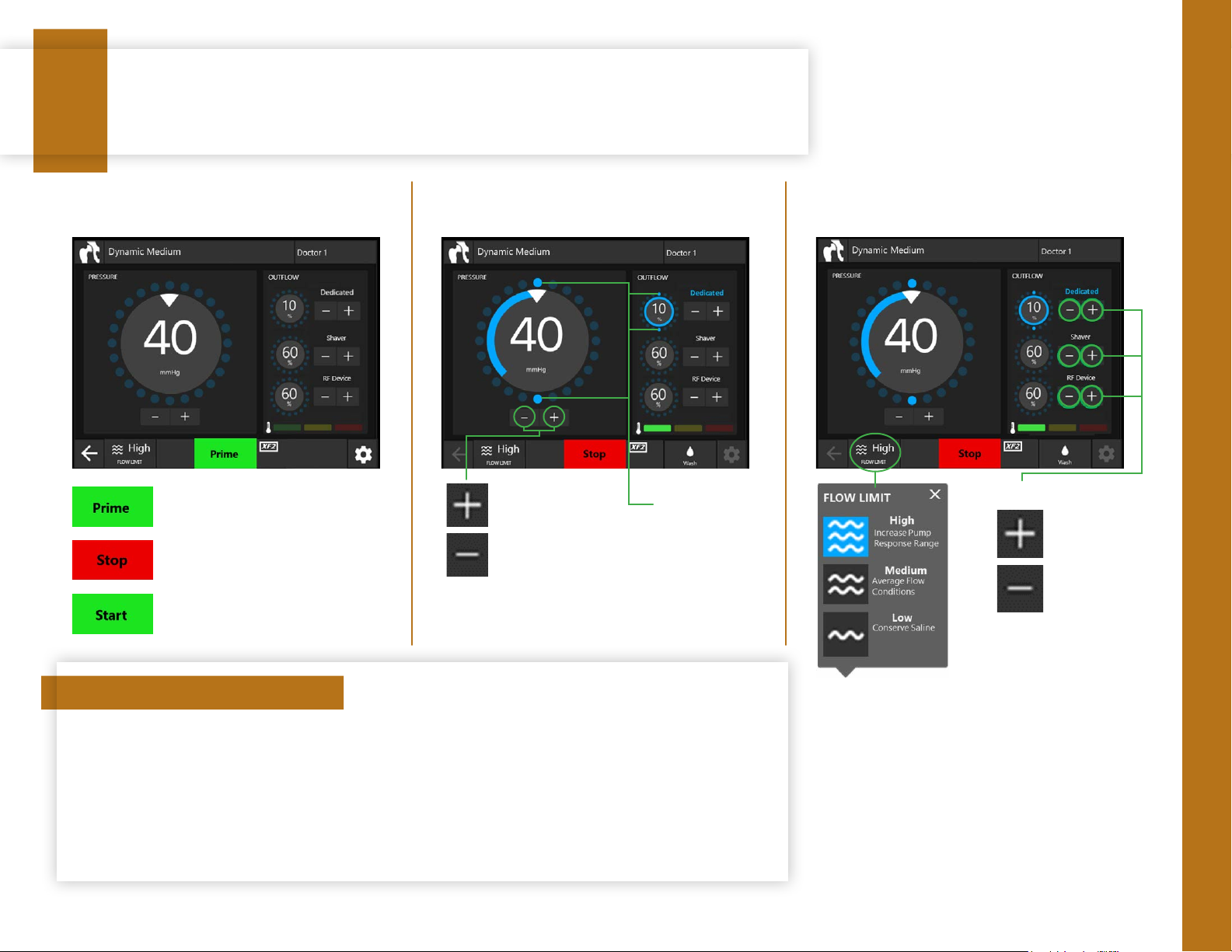

PRESSURE, SUCTION AND FLOW
Pressure, suction and flow settings
How to access and adjust set pressure, suction and flow settings.
Step 1: Start the pump Step 2: Adjust pressure Step 3: Adjust suction and ow
= Prime pump
= Stop pump
= Start pump
= Set pressure up
= Set pressure down
Note: Actual pressure indicates the pressure in
the joint.
4
= Suction rate
up
= Suction rate
down
Note: Each dial sets
and displays suction
for the listed line
Rotating dots
indicate the
console is
pumping uid
Flow
Flow limit pop-up menu
accessed to set inow
limit
Suction
Set pressure
Set pressure is the pump’s target
pressure in the joint.
NOTE: On the CrossFlow console,
pressure is adjusted in increments
of 5mmHg
Suction (Inflow/outflow mode)
Suction refers to the ow rate
the outow pump will achieve
through the outow cannula,
shaver, and RF tube.
NOTE: Suction will adjust
in increments of 10%
Flow limit
Flow is the maximum ow
rate the inow pump will reach
while attempting to achieve the
set pressure.
Settings in detail
The IFU part number is: P17330. The CrossFlow Pump catalog number is: 0450000000 5

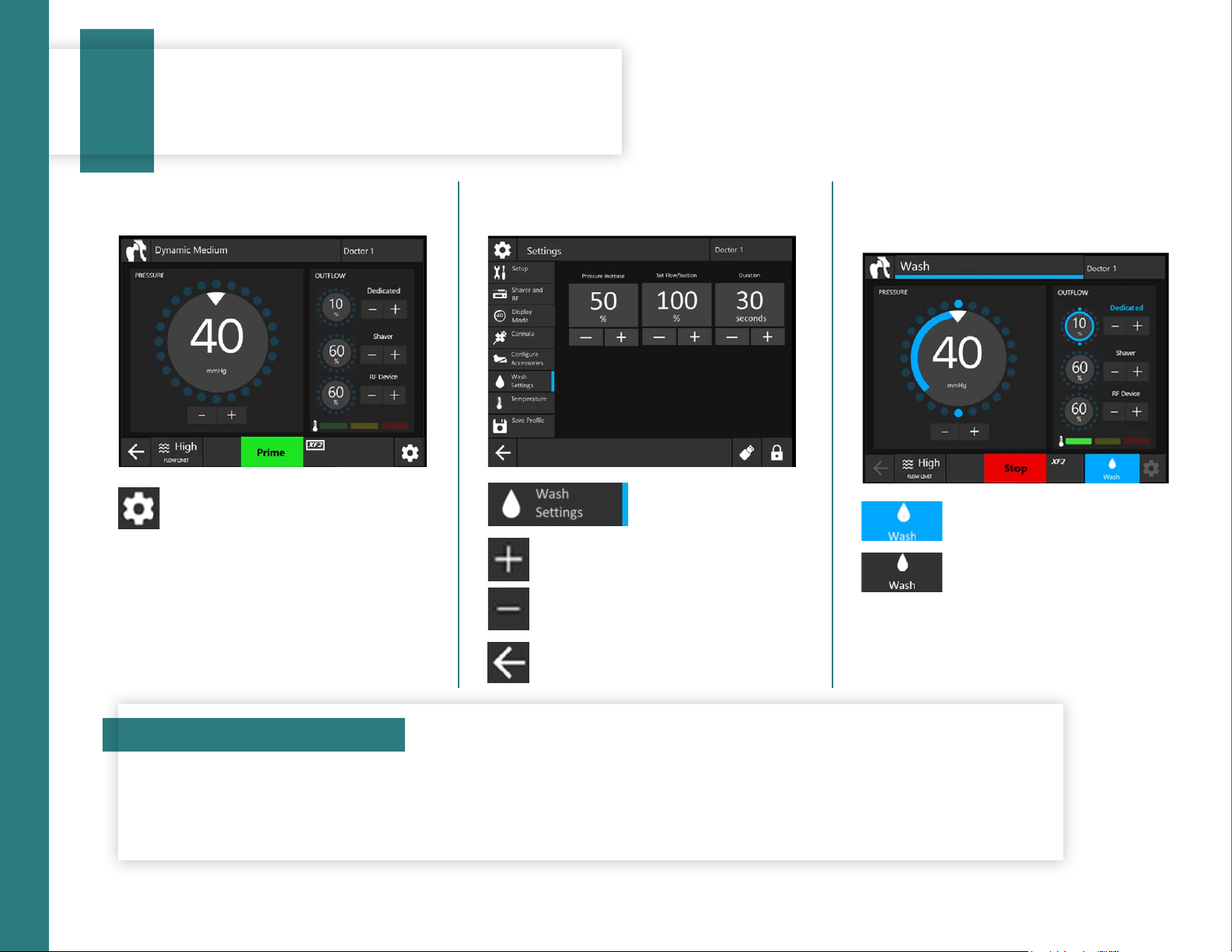

WASH FUNCTION
Wash function
How to access and adjust the wash function.
Step 1: Access settings menu Step 2: Adjust wash settings Step 3: Start pump to perform
wash
= Wash function active
= Wash function inactive
= Wash settings sub-menu
= Increase pressure/ow/duration settings
= Decrease pressure/ow/duration settings
= Exit settings menu
5
Wash function
The wash function allows for a customized, quick increase in pressure and ow to
clear debris, control bleeding and improve visualization in the joint. Can customize
to last for a duration up to 120 seconds.
Understanding wash
EXAMPLE: 50% Pressure increase of 50 mmHg
set pressure would become 75mmHg during
wash cycle.
Refer to the instructions for use for important safety and user advice. Do not operate the device without rst reading and understanding the Instructions for Use.
6
= Pump customization menu

CANNULA
Cannula settings
How to set cannula and scope combination or Dynamic Mode settings.
Step 1: Access settings menu Step 2: Choose a desired option
Hardware-specific alternative tab
As an alternative to Dynamic Mode cannula
settings, the specic scope/cannula combination
can be selected in the hardware-specic tab.
Select a cannula setting
= Cannula settings menu
Dynamic Mode
6
Dynamic mode setting Cannula diameter (mm) – scope diameter (mm) = x
Dynamic Low x ≤ 1mm
Dynamic Medium 1 mm < x ≤ 2mm
Dynamic High x > 2mm
The IFU part number is: P17330. The CrossFlow Pump catalog number is: 0450000000 7
= Access settings menu
Note: The selected Cannula setting is displayed
on the top banner of the Run Screen.
Dynamic Mode options provide optimized ow for a range of scope cannula combinations.
Hardware-specic provides customized ow for the scope cannula combination you are using.
While operating in “Dynamic Mode”, select one of the following options:

SHAVER AND RF SETTINGS
Shaver and RF console integration
How to access and adjust approved resection console integration settings.
Step 1: Access settings menu
Step 2: Access shaver and RF
sub-menu
Step 3: Customize shaver Step 4: Customize RF
= Shaver console settings
= When using CrossFire
consoles
= When using CORE
consoles
= When using an approved
shaver console
= When no shaver console is
connected
= Suction up
= Suction down
NOTE: While in “Other”, suction must be checked
if using RF devices with suction. Uncheck if using
RF without suction.
= RF console settings
Press
= When using CrossFire consoles
= When using an approved RF
console
= When no RF console is
connected
7
Refer to the instructions for use for important safety and user advice. Do not operate the device without rst reading and understanding the Instructions for Use.
8
= Pump customization menu
= Shaver and RF
sub-menu
Step 5: Return to run screen
= Exit menu Integration of shaver
and/or RF devices are
now customized
NOTE: Adjust Activation Threshold to optimize
pump response to other RF or Shaver consoles.

= Footswitch/hand control
settings
Press
= When using CrossFlow
footswitch
= When using CrossFire 2
footswitch
= When using iSwitch
wireless footswitch
= When using CrossFire 2
hand control
Select button(s) on the footswitch or hand control
diagram (the selected button will outline in green).
= Scroll features menu
Highlighted feature will assign to the selected
button(s).

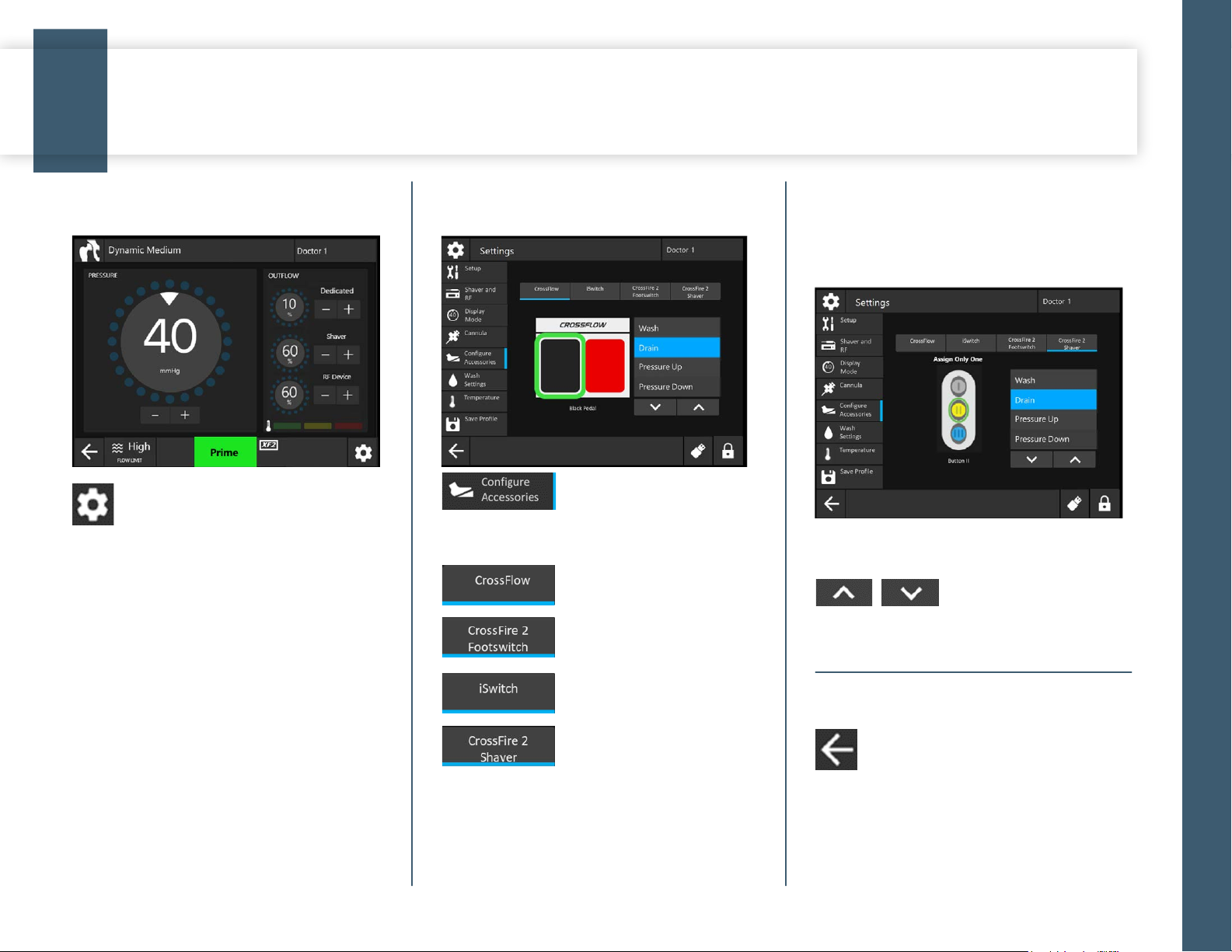

FOOTSWITCH AND HAND CONTROL
Footswitch and hand control settings
How to customize and program settings on compatible footswitches and the CrossFire 2 Hand Control.
Step 1: Access settings menu Step 2: Customize footswitch Step 3: Assigning button(s)
functionality to
the Footswitch and
Hand Control:
8
The IFU part number is: P17330. The CrossFlow Pump catalog number is: 0450000000 9
= Access settings menu
Step 4: Return to run screen
= Exit menu
The hand control and footswitch are now customized.
NOTE: CrossFire 2 Hand Control and CrossFire 2
Footswitch can have only one button programmed
with CrossFlow function.

TEMPERATURE MONITORING SETTINGS
Temperature monitoring settings
How to select temperature monitoring and mitigation settings for use with SERFAS probes.
Step 1: Access settings menu Step 2: Customize temperature
monitoring
Step 3: Return to run screen
Return to run screen
= Exit menu
NOTE: Temperature monitoring is only available
with CrossFire 2 using SERFAS suction RF probes.
The temperature settings are now customized.
= Temperature monitoring
sub-menu
Press:
= For temperature
monitoring, display and
mitigation actions
= For temperature
monitoring and display
with no mitigation
actions
= For no temperature
monitoring, display or
mitigation actions
9
Refer to the instructions for use for important safety and user advice. Do not operate the device without rst reading and understanding the Instructions for Use.
10
Monitoring & Mitigation
Monitoring Only
Off
Temperature indication is displayed
= Pump customization menu

= Pump customization menu Return to run screen
= Exit menu
The updated settings are now saved to the Custom
Surgeon Prole

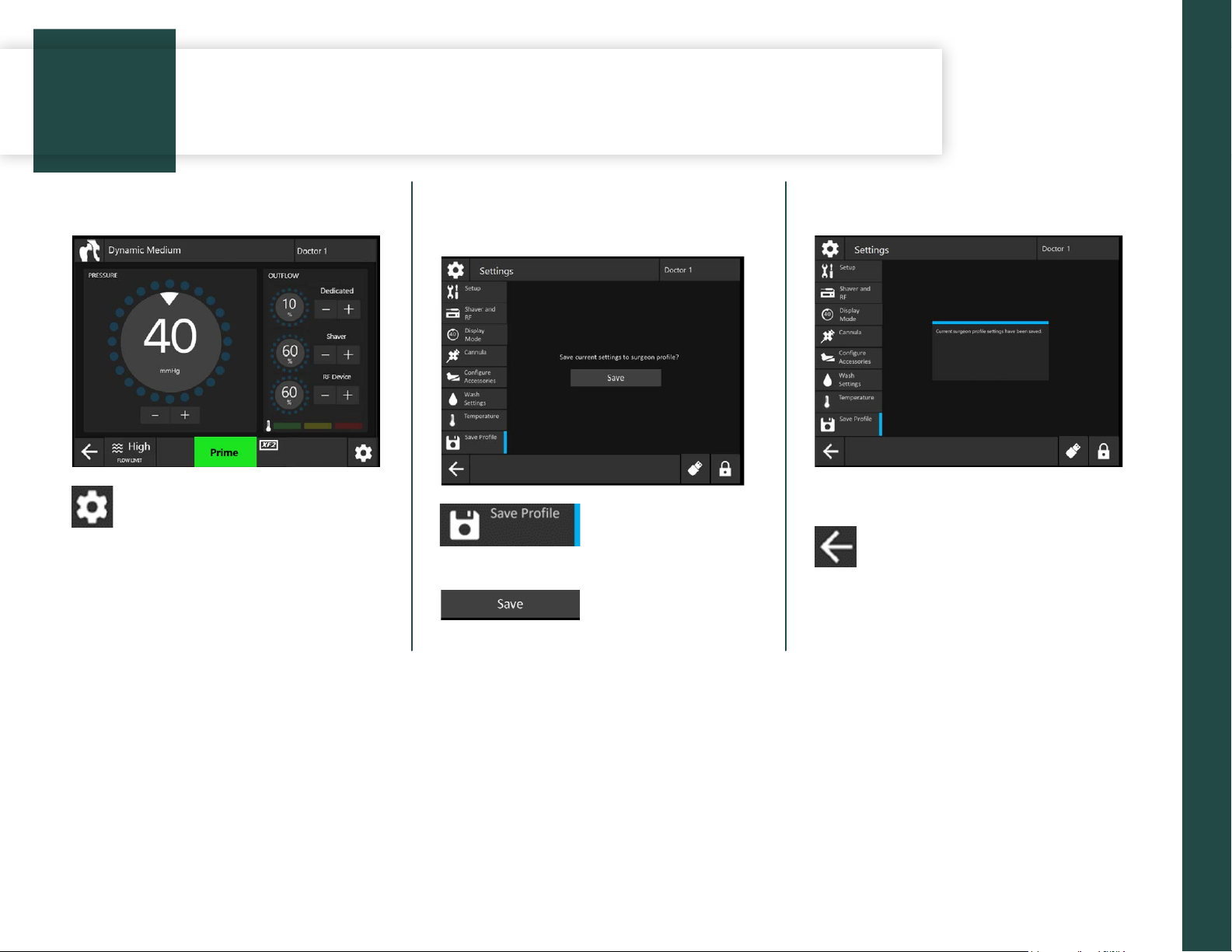

SURGEON PROFILES
Save surgeon profile settings
How to save the current CrossFlow settings to the custom surgeon profile.
Step 1: Access settings menu Step 2: Save settings to
surgeon prole
Step 3: Return to run screen
10
The IFU part number is: P17330. The CrossFlow Pump catalog number is: 0450000000 11
= Save prole sub-menu
Press:
= Save current settings to
custom surgeon prole
NOTE: The settings of the default dynamic prole
cannot be saved over.
