Stuart Turner CH4-30 Guide

Installation, Operation & Maintenance
Instructions
Please leave this instruction booklet with the owner as it contains important
guarantee, maintenance and safety information
Read this manual carefully before commencing installation.
This manual covers the following products suitable for 220/1/60 supply.
CE compliant product
Multistage CH 4–30
Pt. No. 46643
Multistage CH 4–50
Pt. No. 46645
Multistage CH 4–40
Pt. No. 46644
Multistage CH 4–60
Pt. No. 46646
1
60 Hz
STUART

- 2 –
Cont ...
Arabic Installation Operation & Maintenance Instructions ................... 25
English (GB) Installation Operation & Maintenance Instructions .............. 2
PRODUCT DESCRIPTION
Electric motor driven centrifugal pump.
APPLICATION
These self priming centrifugal pumps are designed to pump clean fresh water and can
be used for pressure boosting, fluid transfer and distribution.
Inlet pressures to the pump and ambient temperatures must not exceed the values
given in the technical specifications.
STORAGE
If this product is not to be installed immediately on receipt, ensure that it is stored in a
dry, frost and vibration free location in its original packaging.
CONTENTS Page
Checklist ...........................................................5
Important Facts – read before commencing installation ......................6
Location ............................................................7
Electrical Installation ..................................................8
Plumbing ...........................................................10
Technical Specification ................................................11
Trouble Shooting .....................................................12
Guarantee ..........................................................13

- 3 –
Cont ...
WARNINGS:
zThis pump set must not be used for any other
application without the written consent of Stuart
Turner Limited.
zDo not connect this pump to the mains water supply.
zThis appliance can be used by children aged from
8 years and above and persons with reduced
physical, sensory or mental capabilities or lack of
experience and knowledge if they have been given
supervision or instruction concerning use of the
appliance in a safe way and understand the hazards
involved.
zChildren shall not play with the appliance.
zCleaning and user maintenance shall not be made by
children without supervision.
zMaximum head (closed valve) CH 4–30 – 27 metres,
CH 4–40 – 42 metres, CH 4–50 – 56 metres,
CH 4–60 – 74 metres.
zThe motor casing can become very hot under normal
operating conditions. Care must be taken to ensure it
cannot be touched during operation.
zThe electrical installation must be carried out
in accordance with the current national electrical
regulations.
zThe electrical installation must be installed by a
qualified person.
zIn the interests of electrical safety a 30 mA residual
current device (R.C.D. not supplied) should be
installed in the supply circuit. This may be part of a
consumer unit or a separate unit.
zBefore starting work on the electrical supply ensure
power supply is isolated.

- 4 –
Cont ...
zDo not allow the supply cord to contact hot
surfaces, including the motor shell, pump body or
pipework. The cord should be safely routed and
secured by cable clips.
zThis appliance must be earthed via the supply cord,
which must be correctly connected to the earth
point located in the terminal box.
zThe supply cord and internal wiring within the
terminal box are routed and secured to ensure
compliance with the electrical standard
IEC 60335–1. It is essential that prior to any
disturbance of this internal wiring, all cable routing
and securing details are carefully noted to ensure
re-assembly to the same factory pattern is always
maintained.
zIf the supply cord is to be changed or is damaged, it
must be replaced with a special cord assembly
available from Stuart Turner or one of their approved
repairers.
Please read installation details carefully as they are intended to ensure this product
provides long, trouble free service. Failure to install the unit in accordance with the
installation instructions will lead to invalidation of the warranty.

- 5 –
Cont ...
CHECKLIST
Your product may vary slightly from the picture above.
Fig. 1
IMPORTANT: With the pump
removed from its packaging
check for any damage prior to
installation. If any damage is
found contact Stuart Turner Ltd
within 24 hours of receipt.
Outlet port
Inlet port

- 6 –
Cont ...
1 IMPORTANT FACTS: READ BEFORE COMMENCING PUMP INSTALLATION
A Water storage capacity.
1.11 The water storage capacity must be sufficient to meet the flow rates required
by the pumped equipment and any other water using fittings and appliances,
which may be operated simultaneously. DO NOT RUN PUMP DRY.
1.12 Ensure the pump is primed as described in the priming section before
starting, damage to the shaft seal will result otherwise. See Section 4 –
Plumbing.
B Water temperature
The water entering the pump must be controlled as follows:
1.13 The maximum allowable water temperature is 65 oC.
1.14 The minimum allowable water temperature is 4 oC.
1.15 Ambient temperature: The pump must be sited in a location where the
maximum ambient temperature does not exceed 50 oC (55 oC CH 4–50 only).
1.16 DO NOT fit a pump if the hot water is heated via a method whereby the water
temperature cannot be controlled, such as solar or solid fuel you must consult
the TechAssist team on [phone].
C Pipework – general
1.17 Pipework design: Care should be taken in the design of pipework runs to
minimize the risk of air locks e.g. use drawn bends rather than 90obends.
1.18 DO NOT allow contact with oil or cellulose based paints, paint thinners
or strippers, acid based descalents or aggressive cleaning agents.
D Plumbing installation regulations
1.19 The plumbing installation must be installed by a qualified person and in
accordance with local regulations.
E Electrical/installation regulations
1.20 Check the mains voltage and frequency corresponds to the values on the
pump rating plate.

- 7 –
Cont ...
2 LOCATION  GENERAL
2.11 Access: For emergencies and maintenance the pump must be
easily accessible.
2.12 Protection: The pump must be located in a dry position, frost free
and protected from freezing.
2.13 Ventilation: Ensure an adequate air flow to cool the pump.
Separate the pump from other appliances that generate heat. An
80 mm (3 “) air gap must be maintained around the pump.
2.14 Safety: The motor casing can become very hot under normal
operating conditions. Care must be taken to ensure it cannot be
touched during operation.
2.15 Water retention: Site the pump in a location where in the unlikely
event of a water leak, any spillage is contained or routed to avoid
electrics or areas sensitive to water damage.

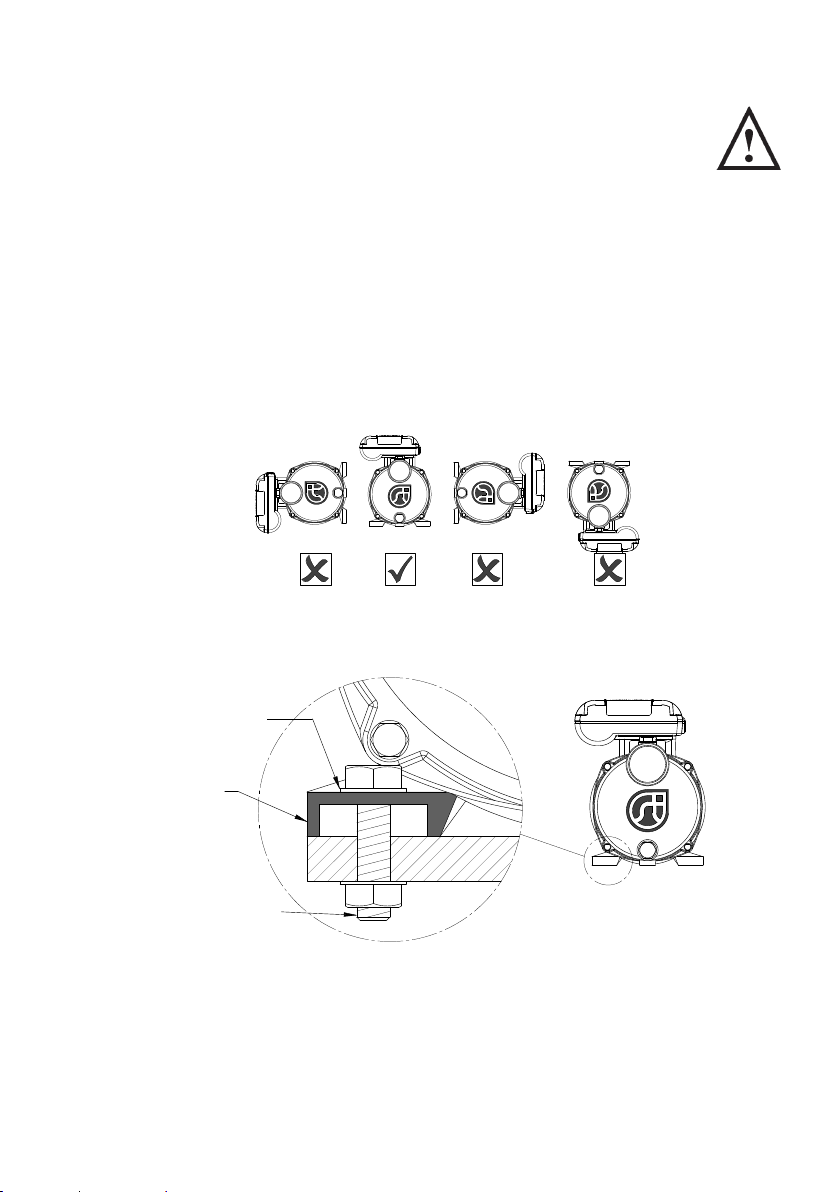

2.16 Pump position: The pump must be positioned on its mounting feet and as
close to the water source as possible.
2.17 Mounting foot securing: This pump is fitted with cast feet. If there is a
requirement to secure the pump via the feet, the following points should be
noted.
The pump should be mounted on a horizontal surface only, with the outlet
facing vertically upwards.
The mounting bolts used to secure the pump must be fitted with a plain
washer to distribute clamping load evenly across load bearing face of foot
(not supplied).
Fig. 2
PLAIN
WASHER
MOUNTING
FOOT
BOLT
Fig. 3

- 8 –
3 ELECTRICAL INSTALLATION  EARTHING
3.11 Regulations: The electrical installation must be carried out in
accordance with the current local regulations by a qualified person.
3.12 Safety: In the interests of electrical safety a 30 mA residual current
device (R.C.D. not supplied) should be installed in the supply circuit.
This may be part of a consumer unit or a separate unit.
3.13 Before starting work on the electrical supply ensure power supply is
isolated.
3.14 DO NOT allow the supply cord to contact hot surfaces, including the
motor shell, pump body or pipework. The cord should be safely
routed and secured by cable clips.
3.15 Earthing: This appliance must be earthed via the supply cord, which must be
correctly connected to the earth point located in the terminal box.
3.16 Connections: The pump must be permanently connected to the fixed wiring
of the mains supply using the factory fitted supply cord, via a dedicated
double pole switched fused spur off the ring main.
3.17 Wiring of connection unit:
WARNING: This appliance must be earthed.
The wires in the mains lead (supply cord) are coloured in accordance with the
following code:
Green and Yellow: Earth
Blue: Neutral
Brown: Live
As the colours of the wires in the mains lead of this appliance may not
correspond with the coloured markings identifying the terminals in your
connection unit proceed as follows:
zThe wire which is coloured green and yellow must be connected to the
terminal in the connection unit which is marked with the letter E or by the
earth symbol: or coloured green or green and yellow.
zThe wire which is coloured blue must be connected to the terminal which
is marked with the letter N or coloured black.
zThe wire which is coloured brown must be connected to the terminal
which is marked with the letter L or coloured red.

- 9 –
Cont ...
3.18 Wiring diagram:
Fig. 5
2
1
3.19 Fuse: CH 4–30, 40, 50 use a 13 Amp fuse, CH 4–60 should use a 16 Amp fuse.
3.20 Supply cord replacement:
The internal wiring within the terminal box is routed and secured
to ensure compliance with the electrical standard IEC 60335–1. It
is essential that prior to any disturbance of this internal wiring, all
cable routing and securing details are carefully noted to ensure re-
assembly to the same factory pattern is always maintained.
3.21 If the supply cord is to be changed or damaged, it must be replaced by a
special cord available from Stuart Turner or one of its approved repairers.
3.22 Cable Gland Fitting Instructions:
To enable correct assembly of the cable gland the
‘O’-ring (Fig. 5 item 1) must be placed over the cable
before the clamping insert (Fig. 5 item 2) can be
tightened.
Note: Cable diameter range:- 9.2 mm to 11.9 mm.
3.23 Supply Cord Extension:
The pumps are fitted with a supply cord to the
following specification:-
All models ..............HO7RN-F3 G 1.5 mm – 10 Amp rated cable.
If the supply cord is to be extended, a cord of the same specification should
be used. Any connections or junction boxes used should be specifically
suited for the application and installed in accordance with the manufacturers
instructions.
220 VAC/1PH/60Hz SUPPLY
L N E
BROWN
BLUE
GREEN/YELLOW
RED
BLACK
CAPACITOR
MOTOR
RED
YELLOW
Fig. 4

- 10 –
We recommend the use of a footvalve and strainer when a suction lift is
required, to reduce priming time.
4.14 System flushing: The pipework system should be flushed out
prior to the pump being connected to ensure any contaminants/
chemical residues and foreign bodies are removed from elsewhere
in the system.
4.15 Priming:
Never operate pump with inlet and/or outlet isolating valves in the
closed position. Damage will occur!
The pump must be primed (filled with water) before starting.
4.16 Turn on the isolating valves.
(a) Loosen vent plug and allow an even flow of water this may take a
few seconds.
(b) Re-seal vent plug, nipping tight.
The pump is now ready to start.
4 PLUMBING
4.11 Pipework: For optimum performance pipework use 28 mm dia., 22 mm can be
used but will result in reduced pump performance.
4.12 Isolating valves: Separate isolating valves (non restrictive) must be fitted to
allow easy pump service.
4.13 This pump has a self priming ability once filled with water. It can therefore be
used to draw water from a storage tank either above or below the pump
position.
(c) Should the pump not build up pressure after running for 2–3 minutes
switch off and repeat priming process.
4.17 Maintenance:
This product is maintenance free for its life, however it is a mechanical
product and will eventually show signs of wear. Spare parts are available, for
more information phone the Stuart Turner TechAssist team on
[phone].
Fig. 7
Vent
Plug
Drain
Plug
Outlet
Inlet
Max. flooded
suction head
10 m
Fig. 6
Max. suction
lift 5 m
Min. immersion
depth 0.5 m Suction pipe run, no
greater than 10 m
Min. flooded
suction 0.5 m
Or
