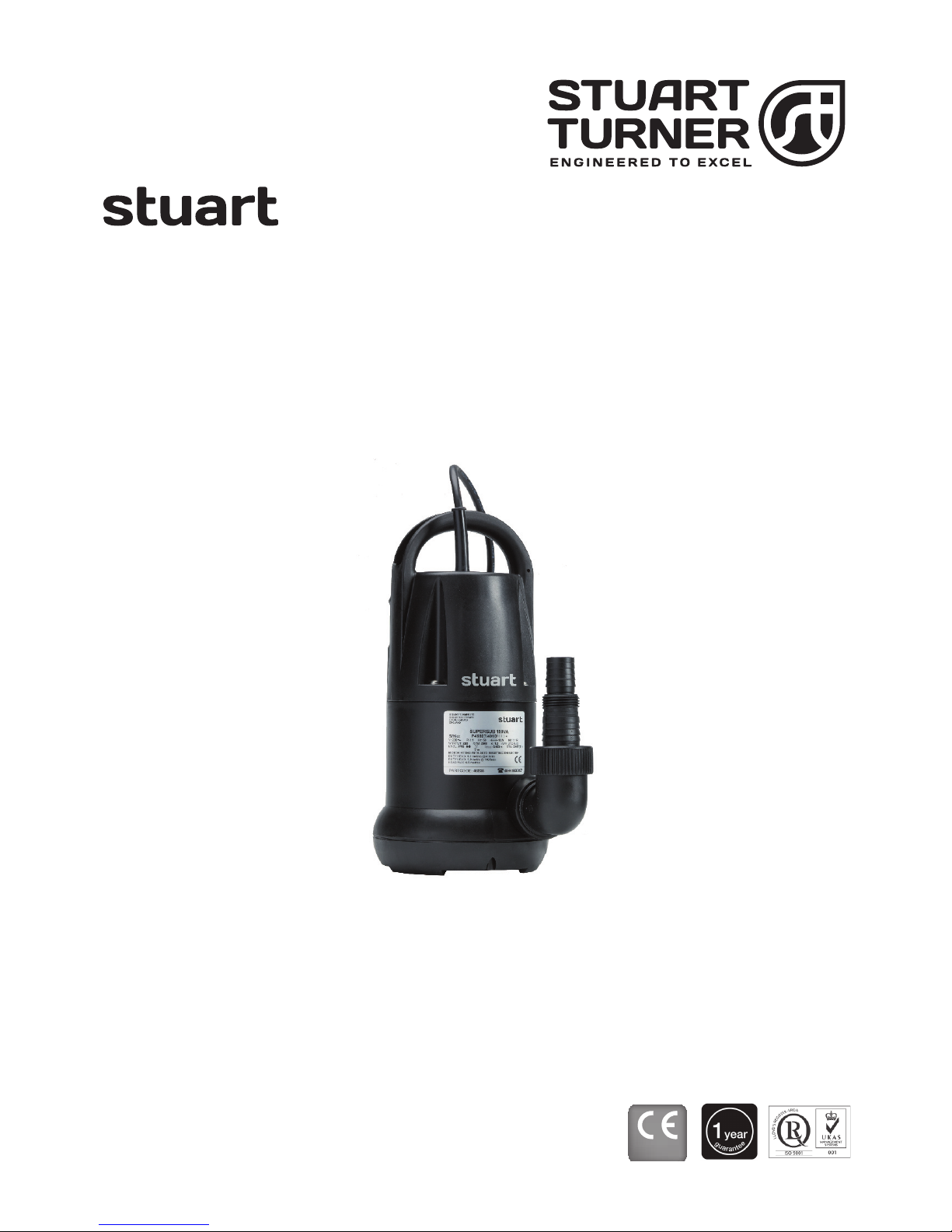

Stuart Turner Supersub 150VA Guide

Installation, Operation & Maintenance
Instructions
Please leave this instruction booklet with the home owner as it contains
important guarantee, maintenance and safety information
Read this manual carefully before commencing installation.
This manual covers the following products:
Supersub 150VA
Pt. No. 46538
Supersub 250VA
Pt. No. 46539
CE compliant product

- 2 -
Cont ...
PRODUCT DESCRIPTION
Electric motor driven submersible pump with float switch control.
APPLICATION
The submersible pump range is designed for re-circulation, drainage and transfer of fresh
water in outdoor or indoor applications.
The pumps incorporate an integral float switch, which provides automatic pump control in
the form of a low level cut out to prevent the risk of dry running.
The pumps are suitable for dirty water applications and are capable of handling semi-
solids in suspension of up to *5 mm in diameter.
*Note: Applicable only when pump is suspended above bottom of sump. When pump is
located on the bottom of sump the inlet grille will restrict solid ingress diameters to 3 mm.
The pumps must not be used with salt water,
sewage, flammable, corrosive or explosive liquids
(eg. petroleum oil, petrol, thinners) grease, oils or
foodstuffs.
This appliance can be used by children aged from
8 years and above and persons with reduced
physical, sensory or mental capabilities or lack
of experience and knowledge if they have been
given supervision or instruction concerning use of
the appliance in a safe way and understand the
hazards involved. Children shall not play with the
appliance. Cleaning and user maintenance shall
not be made by children without supervision.
Children should be supervised to ensure that they
do not play with the appliance.
Please read installation details carefully as they are intended to ensure this
product provides long, trouble free service. Failure to install the unit in
accordance with the installation instructions will lead to invalidation of the
warranty.
STORAGE
If this product is not to be installed immediately on receipt, ensure that it is stored in a dry,
frost and vibration free location in its original packaging.

- 3 -
Cont ...
CONTENTS Page
Checklist . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4
Important Facts - read before commencing installation . . . . . . . . . . . . . . . . . . . 5
Location . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 6
Pump Connections . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 8
Electrical Installation . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 9
Commissioning . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 10
Maintenance . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 11
Technical Specification . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 13
Trouble Shooting . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 14
Guarantee . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 15

- 4 -
Cont ...
Your product may vary slightly from the picture above.
CHECKLIST
Item Description Qty Item Description Qty
Pump 1 Connector 1
Elbow 1
AC
B
Fig. 1
IMPORTANT: With the pump removed
from its packaging check for any
damage prior to installation. If any
damage is found contact Stuart
Turner Ltd within 24 hours of receipt.
A
B
G 1½ F - 25/32 mm
(bore hose) or G 1 M
G 1½ M x G 1½ M
x 90o
C

- 5 -
Cont ...
1 IMPORTANT FACTS: READ BEFORE COMMENCING PUMP INSTALLATION
A. Water temperature
The water entering the pump must be controlled as follows:
1.11 The maximum allowable water temperature is 35 oC.
1.12 The minimum allowable water temperature is 4 oC.
B. Pipework - General
1.13 All models are supplied with a 90oelbow and stepped hose connector (see pump
connection section for details) which can be screwed directly into the pump
discharge connection.
1.14 The hose connector is suitable for a range of flexible hose sizes and can be cut
to suit the selected size. For best flow use the largest bore pipe possible
minimising 90° bends. Small pipe sizes will reduce the pump performance.
C. Electrical Installation Regulations
1.15 The electrical installation must be carried out in accordance with the current
national electrical regulations.
1.16 The electrical installation must be installed by a qualified person.

- 6 -
Cont ...
2 LOCATION - GENERAL
2.11 Access: For emergencies and maintenance the pump must be
easily accessible.
2.12 Do not run against a closed valve for periods longer than 5 minutes.
The water in and around the pump must not be allowed to freeze.
This will result in pump damage.
2.13 Do not under any circumstances use the supply cord fitted, as a
means to carry or lower the pump into position on installation. Attach
a rope sling to handle.

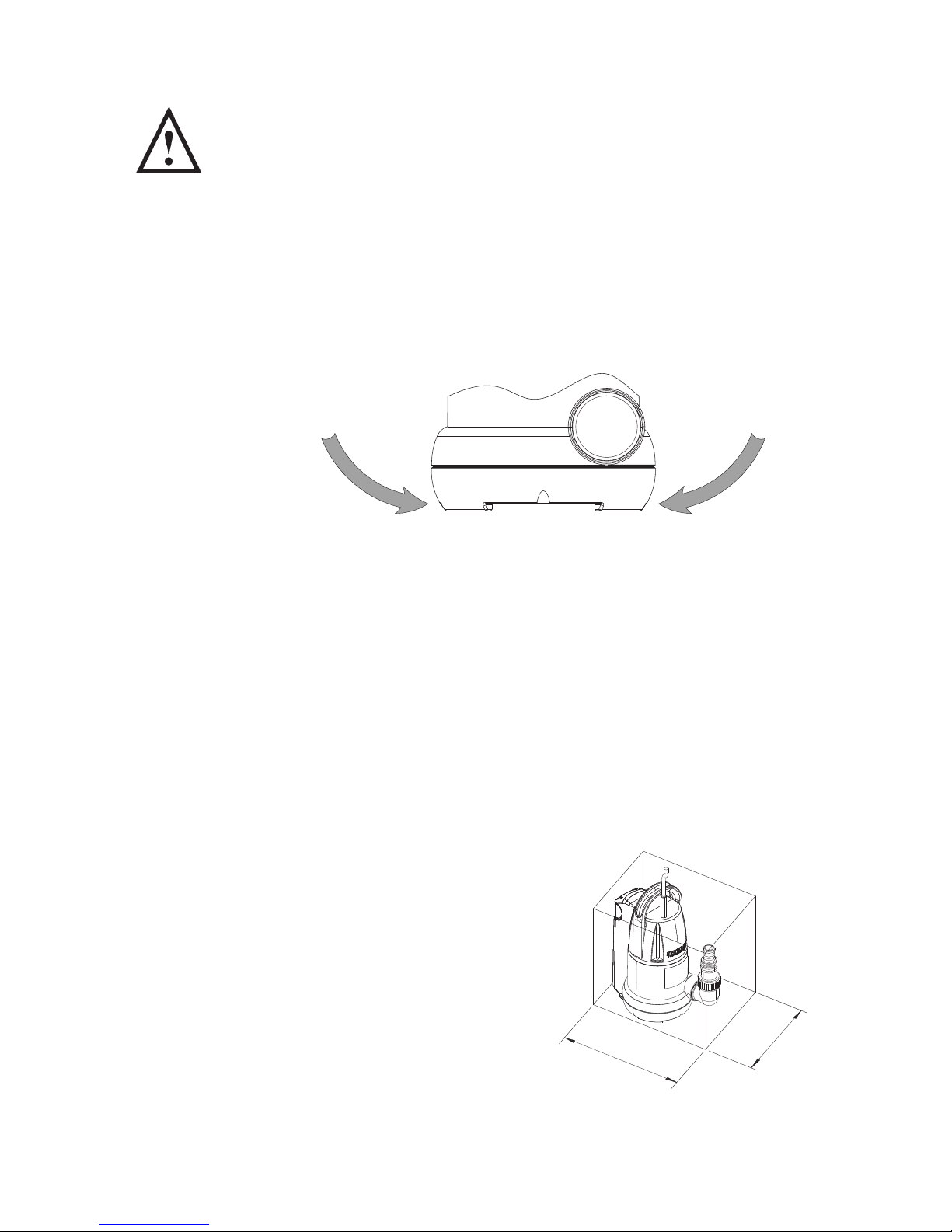

2.14 Pump position: When siting the pump ensure its base is raised
slightly from the bottom of the sump reducing the possibility of
blocking the filter with debris or drawing in small stones (see Fig. 2).
2.15 The pump must be installed in the vertical position and must be fully submerged
at all times when operating continuously to avoid overheating of the motor.
However, when the automatic float switch option is selected, the pump may be
operated partially submerged for short periods (see float switch operation
section for further details).
2.16 When siting the pumps in a location where organic or general debris is likely,
ensure the pump is placed on its base on a flat horizontal surface (eg. on a
paving slab) to enable full functionality of the inlet filter grille and to prevent the
force of the pump from drawing in small stones. This will result in pump
damage.
2.17 Float Switch: The pumps incorporate an integral automatic float switch which
has two modes of operation, auto and manual.
The float switch consists of a float which moves up and down on a vertical axis
within a housing.
2.18 Sump Size: The minimum possible sump
size is 270 mm x 170 mm.
270
170
Fig. 3
Fig. 2
Inlet / filter area Inlet / filter area

- 7 -
Cont ...
2.19 Float Switch Operation: The float switch operation mode is changed by
moving the selection lever (1) either up for the Manual position or down for the
Auto position.
2.20 Automatic Operation (Switch Position ‘Down’): The integrated float starts
and stops the pump automatically when the selection indicator is set to
automatic. It also provides a low level cut out to prevent dry running.
2.21 Manual Operation (Switch Position ‘Up’): To start the pump, lift the selector
lever (1) to the up position. This will cause the pump to run continuously. In this
condition the pump will empty the sump down to a level of 3-6 mm.
The pump must then be stopped to avoid dry running and pump damage.
2.22 Water Levels:
Automatic Operation
Model Dim. A Dim. B
All 75 150
Model Dim. C
All 3-6 mm (see note)
Manual Operation
Note: Pump must be stopped at
this level to prevent damage.
Fig. 4
1
Up for Manual
Down for
Automatic
C
A
B
START LEVEL
STOP LEVEL
Fig. 5
Auto
Mode
Manual
Mode

- 8 -
Cont ...
3 CONNECTIONS
3.11 Supersub pumps are supplied with an elbow and stepped hose connector which
can be screwed to the pump outlet port.
Pump Type Pump
Outlet Elbow Hose Connector
Thread Hose Bore (mm)
Supersub G1½ F G1½ M x G1½ M x 90oG1½ / G1 F 25 / 32 / G 1 M
Fig. 6
Pump Outlet
Port Stepped Hose
Connector
90oElbow

- 9 -
Cont ...
4 ELECTRICAL INSTALLATION
4.11 Regulations: The electrical installation must be carried out in
accordance with the current national electrical regulations and
installed by a qualified person.
4.12 Safety: In the interests of electrical safety a 30 mA residual current
device (R.C.D. not supplied) should be installed in the supply circuit.
This may be part of a consumer unit or a separate unit.
4.13 Before starting work on the electrical supply ensure power supply is
isolated.
4.14 Isolate all appliances in the water from the electrical supply before
putting your hands in the water.
4.15 The power supply cord of this pump cannot be replaced. If the cord is
damaged, the pump should be disposed of (see Section 8.11).
4.16 If the pump is used to empty a swimming pool, the pump must not be
used when people are in the water.
4.17 All motors are thermally protected by an integral auto-resetting thermotrip and
are rated for continuous use.
4.18 Earthing: This appliance must be earthed via the supply cord.
4.19 Connections: The motor is provided with a factory fitted supply cord and plug.
This must be connected to the mains supply via a 13 Amp double pole switched,
socket outlet in compliance with BS 1363-2.
The socket outlet should be mounted in an easily accessible position and should
be labelled if confusion is possible, to allow easy identification of the pump
isolating switch.
4.20 Wiring Of Connection Unit:
The moulded plug fitted to this appliance is not waterproof - keep dry.
If the plug supplied is not suitable for your socket outlet, it should be cut off and
destroyed.
A plug with bared flexible cords is hazardous if engaged in a live socket
outlet.
The end of the flexible cord should be suitably prepared and correct plug fitted
as follows:
The wires in the mains lead (supply cord) are coloured in accordance with the
following code:
Green and Yellow: Earth Blue: Neutral Brown: Live
As the colours of the wires in the mains lead of this appliance may not
correspond with the coloured markings identifying the terminals in your
connection unit proceed as follows:
The wire which is coloured green and yellow must be connected to the terminal
in the connection unit which is marked with the letter E or by the earth
symbol:
or coloured green or green and yellow.
The wire which is coloured blue must be connected to the terminal which is
marked with the letter ‘N’ or coloured black or blue.
The wire which is coloured brown must be connected to the terminal which is
marked with the letter ‘L’ or coloured brown or red.

- 10 -
Cont ...
4.21 Fuses: The following fuse size should be used with the appropriate pump.
Pump Type Cord Type Cord Length (m)
All Models HO5RN-F3 G 0.75 mm² 10
5 COMMISSIONING
5.11 The pump chamber must be full of water at all times. Damage will result if pump
runs dry.
5.12 The pump must be fully submerged before starting. Take care when submerging
the pump to ensure all air is purged from the casing. This is done by slowly
submerging the pump and gently agitating whilst doing so. This will enable any
trapped air pockets to be released.
5.13 Turn on the electrical supply and water movement should be immediately evident
from pump outlet. If it is not, repeat step 5.12.
5.14 For Further Technical Support: Phone the Stuart Turner PumpAssist team on
[phone]. Our staff are trained to help and advise you over the
phone.
Note: When pumps are installed in another manufacturers original equipment,
please contact the manufacturer for advice.
If an extension cord is necessary a cord of the proper type and rating must be
used.
In general for 230 volt pumps on distances up to 40 metres (inclusive of original
cord length) the same specification cord as fitted to the pump can be used.
For distances above 40 metres a larger cord size may be required due to voltage
drop and advice must be obtained based upon installation details.
Any connectors or junction boxes must be specifically suited for outdoor use
and installed in accordance with manufacturers instructions.
Any cable routed underground must be protected to local standards.
Model Fuse Size (AMPS)
All Models 13
4.22 Supply Cord Extension: The pumps are fitted with a supply cord suitable for
outdoor and underwater use. The cord specification is as follows:-

- 11 -
Cont ...
6 MAINTENANCE
6.11 The water in and around the pump must not be allowed to freeze. This will result
in pump damage.
6.12 Provision should be made for easy access to the pump to allow for regular
maintenance.
6.13 The integral inlet filter grille should be checked periodically and cleaned if
required. It is important the filters are clean and free from debris which in turn
ensures the pump will always run at maximum efficiency. A blocked filter can
cause damage to the pump
6.14 The pump must be cleaned as follows:-
6.15 Pump Cleaning:
1) Disconnect electrical supply before working on pump.
2) Release system pressure from pipework and remove pump from water (do
not use cable to lift pump).

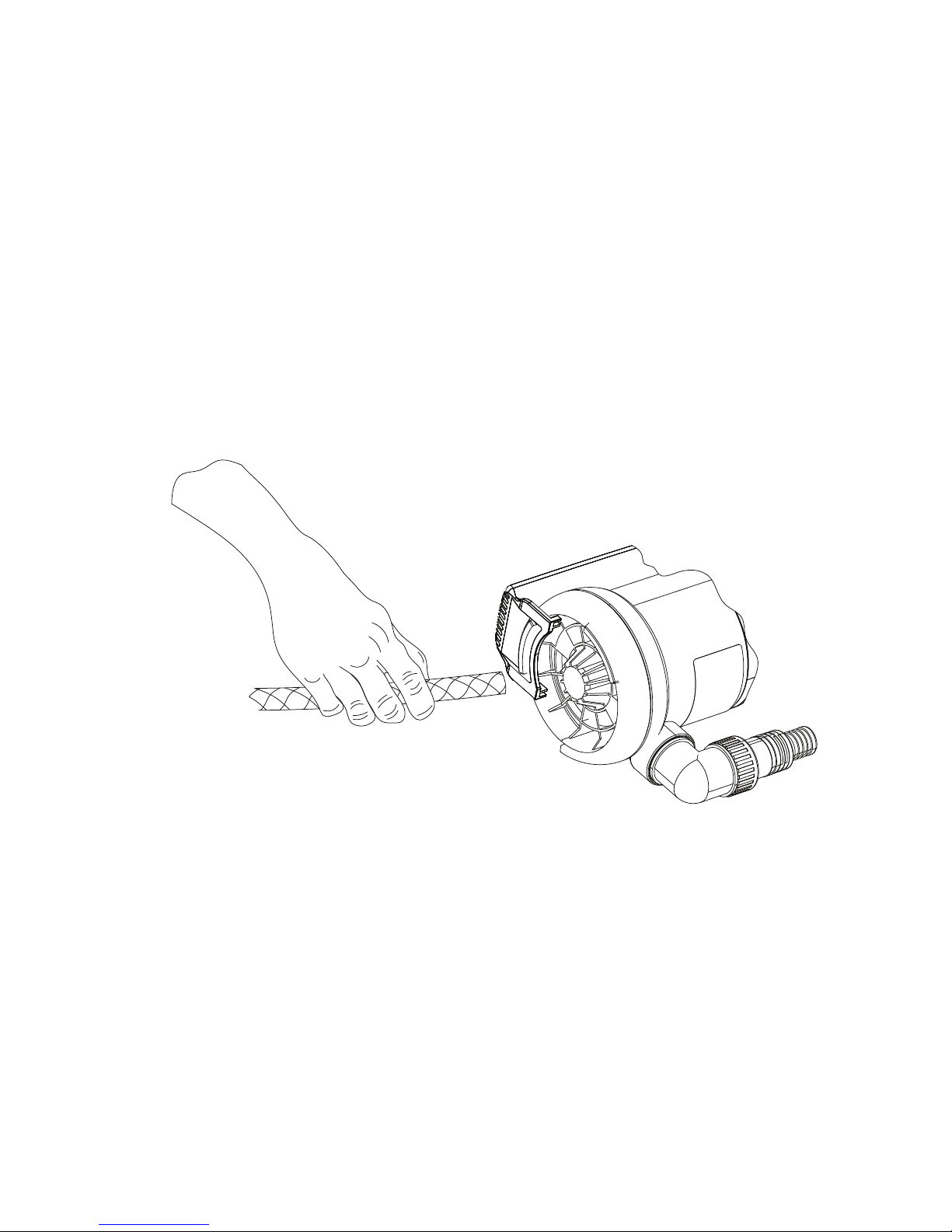

3) Clean integral inlet filter grille using water pressure from a hose pipe.
4) Refer to commissioning section for instructions on re-starting pump.
Fig. 7

- 12 -
Cont ...
6.16 Float Switch Cleaning:
The float switch assembly can be cleaned as follows:-
1) Move the selector (1) to the ‘Automatic’ (down) position Fig. 8.
2) Remove the two screws (2) located in recesses at the top of the float
housing (3) Fig. 8.
3) Gently pull the float housing (3) away and down from the pump body - DO
NOT INVERT float housing (3) Fig. 9.
4) Note the position of the two floats (4) within the float housing (3) Fig. 10.
5) Remove and clean the floats (4) Fig. 11.
6) Clean the inside of the float housing (3) and the float ratchet stops (5) ensure
these stops are clear of all debris and free to move Fig. 11 & 12.
7) Clean around switch protrusion (6) Fig. 13.
8) Reassembly is the reverse of the above procedure.
9) Refer to commissioning section to re-start the pump.
Fig. 9Fig. 8
Fig. 10 Fig. 11
Fig. 12
Fig. 13
3
3
4
1
2
3
5
6

- 13 -
Cont ...
7 TECHNICAL SPECIFICATION
Stuart Turner reserve the right to amend the specification in line with its policy of
continuous development of its products.
7.11 Noise: The equivalent continuous A-weighted sound pressure level at a distance
of 1 metre from the pumpset does not exceed 70 dB(A).
Pump Model Supersub 150VA
46538
Supersub 250VA
46539
General Guarantee 1 year
Features Pump type Submersible
Seal Double lip
Automatic and manual mode 
Automatic float switch 
Performance Maximum head (closed valve) 6.5 metres 8.5 metres
Maximum immersion depth 7 metres
Minimum immersion depth Fully submerged
Performance @ 50 l/min 5.0 metres 7.5 metres
Performance @ 100 l/min 3.5 metres 6.5 metres
Maximum flow 150 l/min 250 l/min
Min / Max water temperature Min 4 oC / Max 35 oC
Connections Pump connections G 1½ female
Hose Connector G 1½ male x G 1½ female x 25 or 32 mm bore hose
Motor Type Induction, auto-reset thermal trip
Duty rating Continuous
Electrical Power supply / phase / frequency 230 V a.c. / 1 / 50 Hz
Current (full load) 1.2 Amps 2.2 Amps
Power consumption 275 Watts 508 Watts
Fuse rating 13 Amps
Power cable (pre-wired) 10 metres
Physical Enclosure protection IPX8
Length 260 mm
Width 158 mm
Height (excluding hoses) 320 mm
Weight (including fittings) 4.2 Kg 5.0 Kg
Optional Lay flat hose 32 mm x 5 m Pt No 19965
accessories Lay flat hose 32 mm x 10 m Pt No 19966

- 14 -
Cont ...
8 TROUBLE SHOOTING GUIDE
8.11 Environment Protection: Your appliance contains valuable materials which can
be recovered or recycled.
At the end of the products’ useful life, please leave it at an appropriate local civic
waste collection point.
Symptoms Probable Cause Recommended Action
Pump stops running. Thermal overload
protection has tripped.
Disconnect the power supply to the pump.
Check to ensure the pump is connected to the
correct voltage supply.
Check to ensure the impeller is not jammed and can
rotate freely.
Check to ensure water to be pumped does not
exceed recommended temperature, ensure pump
has not run dry and is fully submerged if running
continuously.
Check probable causes and remedy, allow to cool
reinstall and connect cable.
Pump will not start. Power not connected to
the electricity supply.
Check the cable is connected correctly and power
supply is switched on.
Check fuse.
Impeller Jammed. Clean away debris from the impeller.
Float switch not working. Ensure float can move freely.
Water level under minimum
requirements.
Increase the depth of the sump.
Pump runs but no water is
supplied.
Low water level. Ensure the pump is fully submerged in the water.
or
Impeller jammed. Free obstruction
Ensure that the pump is not able to suck air in (low
water level).
Poor performance. Discharge pipe clogged. Remove pipe and ensure the discharge is clear of
any debris.
Suction filter blocked. Check inlet pre-filters, (if fitted), and integral inlet
grille are free from blockage.
Required head is too
high for the pump
characteristics.
Refer to limits of application section.
Pump will not stop. Pump is not disabled by
the float.
Ensure float can move freely.

- 15 -
9 THE GUARANTEE - 1 YEAR
Congratulations on purchasing a Stuart Turner pump.
We are confident this pump will provide many years of trouble free service as all our
products are manufactured to the very highest standard.
All Stuart Pumps are guaranteed to be free from defects in materials or workmanship
for 1 year from the date of purchase.
Within the guarantee period we will repair, free of charge, any defects in the pump
resulting from faults in material or workmanship, repairing or exchanging the whole
unit as we may reasonably decide.
Not covered by this guarantee: Damage arising from incorrect installation, improper
use, unauthorised repair, normal wear and tear and defects which have a negligible
effect on the value or operation of the pump.
Reasonable evidence must be supplied that the product has been purchased within
the guarantee term prior to the date of claim (such as proof of purchase or the pump
serial number).
This guarantee is in addition to your statutory rights as a consumer. If you are in any
doubt as to these rights, please contact your local Trading Standards Department.
In the event of a claim please telephone ‘PumpAssist’ or return the pump and flexible
hoses with the accessories removed e.g pipes etc. If you have any doubt about
removing a pump, please consult a professional.
[phone]
Proof of purchase should accompany the returned unit to avoid delay in investigation
and dealing with your claim.
You should obtain appropriate insurance cover for any loss or damage which is not
covered by Stuart Turner Ltd in this provision.
Please record here for your records.
TYPE NO. SERIAL NO. DATE PURCHASED
Installers – Register with Stuart Turner and move up to Approved Installer status
We receive thousands of enquiries every month from people seeking a Stuart Turner installer and by registering your details with
us, we can offer consumers the opportunity to quickly locate an installer in their area.
Registration is free - simply click on the ‘register as an installer’ link on our homepage at www.stuart-
turner.co.uk and complete a short form which will enable visitors to find your contact details on our web
site ‘installer finder’. Alternatively use your smartphone to scan this QR code and go straight to the form.
We’ll do the rest!
In addition we will ensure you receive advance notice on all new product launches and access to any special
offers or promotions.
Following initial registration, Stuart Turner offers a professional training programme, enabling you to achieve Approved Installer
status and opening the door to a range of additional benefits.
Contact [e-mail] for further details.

DECLARATION OF CONFORMITY
2006/95/EC
BS EN 60335-1, BS EN 60335-2-41, EN 50366
2004/108/EC
BS EN 55014-1, BS EN 55014-2, BS EN 55022, BS EN 61000-3-2, BS EN 61000-3-3,
BS EN 61000-4-2, BS EN 61000-4-3, BS EN 61000-4-4, BS EN 61000-4-5, BS EN 61000-4-6,
BS EN 61000-4-11
2011/65/EU
IT IS HEREBY CERTIFIED THAT THE STUART ELECTRIC MOTOR DRIVEN PUMP COMPLIES
WITH THE ESSENTIAL REQUIREMENTS OF THE ABOVE E.E.C. DIRECTIVES.
RESPONSIBLE PERSON
AND MANUFACTURER STUART TURNER LIMITED
HENLEY-ON-THAMES, OXFORDSHIRE
RG9 2AD ENGLAND.
Signed. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . Business Development Director
Stuart Turner are an approved company to BS EN ISO 9001:2008
Stuart Turner Ltd, Henley-on-Thames, Oxfordshire RG9 2AD ENGLAND
Tel: [phone], Fax: [phone]
[email protected] www.stuart-turner.co.uk
Issue No. 3015/2-03 Pt. No. 19366
