Stuart Turner aquaboost ABP F120-30-1H-1 Guide

Installation, Operation & Maintenance
Instructions
Please leave this instruction booklet with the home owner as it contains
important guarantee, maintenance and safety information
Read this manual carefully before commencing installation.
This manual covers the following products:
CE compliant product
ABP F120-30-1H-1
Pt. No. 46601
ABP F120-40-1H-1
Pt. No. 46602
FOR POSITIVE OR NEGATIVE HEAD APPLICATIONS
50 Hz
ABP F120-50-1H-1
Pt. No. 44622
ABP F120-60-1H-1
Pt. No. 44624

- 2 -
PRODUCT DESCRIPTION
Electric motor driven centrifugal pump complete with an automatic control system,
consisting of flow switch, pressure switch, pressure vessel and electronic control.
APPLICATION
The Aquaboost Pressure Set range is designed for pressure boosting applications in
vented, stored, cold clean water systems, where under gravity, no flow is available and
can be used in systems where a negative head exists.
Inlet pressures to the pump and ambient temperatures must not exceed the
values given in the technical specifications.
zThis pump set must not be used for any other application without
the written consent of Stuart Turner Limited.
zThis pump MUST NOT be connected directly to the mains water
supply.
zThis appliance can be used by children aged from 8 years and
above and persons with reduced physical, sensory or mental
capabilities or lack of experience and knowledge if they have been
given supervision or instruction concerning use of the appliance
in a safe way and understand the hazards involved. Children shall
not play with the appliance. Cleaning and user maintenance shall
not be made by children without supervision.
zChildren should be supervised to ensure that they do not play with
the appliance.
zThis product should not be used for the supply of water to more
than one dwelling (house, apartment, flat).
Please read installation details carefully as they are intended to ensure this
product provides long, trouble free service. Failure to install the unit in
accordance with the installation instructions will lead to invalidation of the
warranty.
STORAGE
If this product is not to be installed immediately on receipt, ensure that it is stored in a dry,
frost and vibration free location in its original packaging.
CONTENTS Page
Checklist ........................................................3
Important Facts - read before commencing installation ...................4
Location ........................................................5
Pump Connections ................................................7
Electrical Installation ...............................................8
Commissioning ...................................................11
Maintenance .....................................................12
Technical Specication .............................................14
Trouble Shooting .................................................15
Guarantee .......................................................18

- 3 -
Cont ...
CHECKLIST
Note: Item E supplied loose - this will require fitting to the pump outlet. Tighten to torque
4/5 Nm.
Your product may vary slightly from the picture above.
Item Description Qty Item Description Qty
Pump 1 Pressure vessel 1
Hose & sealing washer 2 Mounting feet & fittings 4
Inline strainer 1
A
E
D
B
C

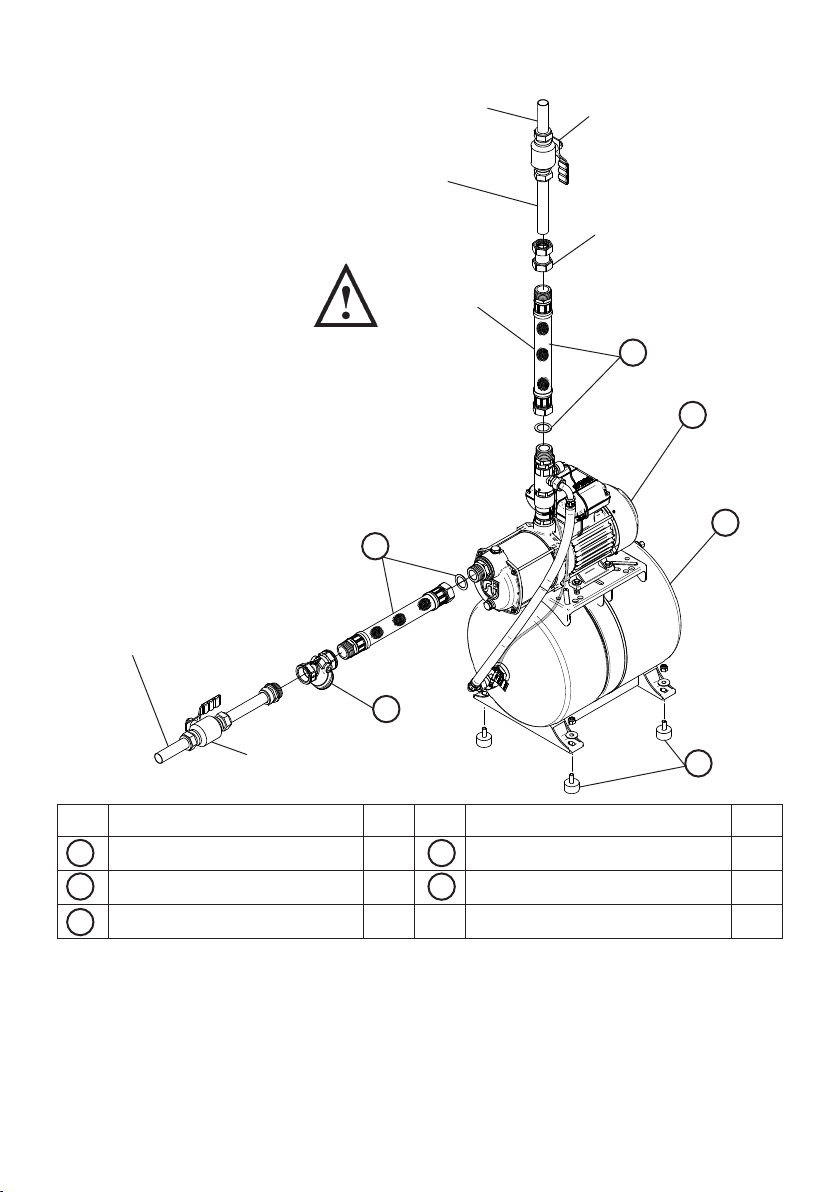

Fig. 1
28 mm copper
inlet pipework
(suction).
28 mm isolating valve
(non restrictive) and
fittings (not supplied)
must be fitted to allow
easy pump service.
28 mm copper outlet pipework (discharge).
Short 28 mm copper pipe
tails to connect between
isolating valve and flexible
pipes.
28 mm isolating valve
(non restrictive) and
fittings (not supplied)
to allow easy pump
service.
28 mm - G 1 connector
(not supplied) must
be fitted
28 mm flexible
pipes. These
hoses are fitted
with G 1 female
connector suitable
for connection to a G 1 (1 “ BSP)
adaptor or fitting.
A
D
C
B
IMPORTANT: With the pump
removed from its packaging
check for any damage prior to
installation. If any damage is
found contact Stuart Turner Ltd
within 24 hours of receipt.
B
E

- 4 -
Cont ...
1 IMPORTANT FACTS: READ BEFORE COMMENCING PUMP INSTALLATION
A. Water storage capacity.
1.11 The cold water storage capacity must be sufficient to meet the flow rates
required by the pumped equipment and any other water using fittings and
appliances, which may be operated simultaneously.
1.12 Ensure the pump is primed as described in the priming section before starting,
damage to the shaft seal will result otherwise. See Section 5 - Commissioning.
B. Water temperature
This unit is designed to pump cold water only which should not exceed the following
values:
1.13 The maximum allowable water temperature is 35 oC.
1.14 The minimum allowable water temperature is 4 oC.
C. Pipework - General
1.15 Secure pipework: Ensure pipework to and from pump is independently
supported & clipped to prevent forces being transferred to inlet and outlet
branches of pump.
1.16 Flux: Solder joints must be completed and flux residues removed prior to pump
installation (flux damage will void any warranty).
1.17 Pipework design: Care should be taken in the design of pipework runs to
minimize the risk of air locks e.g. use drawn bends rather than 90obends.
1.18 DO NOT introduce solder flux to flexible hoses, pumps or pump parts
manufactured from plastic.
1.19 DO NOT allow contact with oil or cellulose based paints, paint thinners or
strippers, acid based descalents or aggressive cleaning agents.
1.20 DO NOT install a non-return valve, or devices which contain non-return
valves, in the suction (inlet) pipework to the pump. The pump must be
free to vent to the supply tank at all times.
1.21 DO NOT bend the flexible hoses beyond 30o. They must be installed as
straight as possible.
1.22 DO NOT connect this pump to the mains water supply.
D. Plumbing Installation Regulations
1.23 The plumbing installation must comply with the current water and building
regulations.
1.24 The plumbing installation must be installed by a qualified person.
1.25 The electrical installation must be carried out in accordance with the current
national electrical regulations.
1.26 The electrical installation must be installed by a qualified person.
E. Pressure vessel
1.27 Pressure vessel is charged at the factory see Section 6 - Maintenance for
details.

- 5 -
Cont ...
2 LOCATION - GENERAL
2.11 Access: For emergencies and maintenance the pump must be
easily accessible.
2.12 Protection: The pump must be located in a dry position, frost free
and protected from freezing, particularly when installed in a loft (not
recommended).
2.13 Ventilation: Ensure an adequate air flow to cool the pump. Separate
the pump from other appliances that generate heat. An 80 mm (3 “)
air gap must be maintained around the pump.
2.14 Safety: The motor casing can become very hot under normal
operating conditions. Care must be taken to ensure it cannot be
touched during operation.
2.15 Water retention: Site the pump in a location where in the unlikely
event of a water leak, any spillage is contained or routed to avoid
electrics or areas sensitive to water damage.
2.16 Static inlet pressure: Before deciding where to locate the unit check to ensure
the static inlet head between pump and the bottom of the cold tank (Fig. 2) is at
least 1 metre and does not exceed the max inlet head of 10 metres.
2.17 Pump position: The pump must be positioned on its mounting feet and as
close to the water source as possible.
2.18 Ambient temperature: The pump must be sited in a location where the
maximum ambient temperature does not exceed 40 oC.
2.19 Pipework: For optimum performance pipework use 28 mm dia., 22 mm can be
used but will result in reduced pump performance. Note: Inlet pipework must
always be greater than or equal to the outlet pipework diameter.
Pipework should only reduce to 15 mm when entering terminal fitting.
2.20 Static outlet pressure: The static outlet head (Fig. 2) must also be within the
maximum requirement of 13 metres.
2.21 Noise: Care must be taken when mounting the pump that any noise is not
amplified through loose panels or pipework. Do not screw down the pump.
2.22 Direction of flow: Ensure the water flow is in the direction of the arrow marked
on the flow switch reed clamp (vertically upwards).
2.23 Flexible hoses: Only use the Stuart Turner hose set supplied with the pump.
2.24 Isolating valves: Separate system isolating valves (non restrictive) must be
fitted to allow easy pump service.
2.25 Preferred pump location: The preferred pump location is at floor level next to
the water source or a level that is below the secondary tapping that feeds
the pump. Ensure the pump is mounted in a position that allows easy access to
the terminal box if required. The pump location is also dependent on limitations
of the static inlet and outlet heads of the installation.

- 6 -
Cont ...
2 LOCATION
2.25 The cold water supply: Must be a DEDICATED AIR FREE supply via a tank
connector.
Do not connect to the mains.
Fig. 2
Cold
water
Hot water
Unvented hot
water cylinder
Static inlet pressure Min. 1 m Max. 10 m
Static outlet pressure Max. 13 m

- 7 -
Cont ...
3 PUMP CONNECTIONS
3.11 Hose to pump: These pumps have G 1 threaded connections to accept the
hoses supplied. The hose end is made water tight with a sealing washer on
assembly, nip tight to 4/5 Nm for water tight seal (Do not overtighten).
3.12 Hose to pipework: Hoses terminating in G 1 threaded connections are
supplied and when securing the male end to a suitable pipe fitting, seal with
PTFE tape or other suitable sealant.

- 8 -
4 ELECTRICAL INSTALLATION / EARTHING
4.11 Regulations: The electrical installation must be carried out in
accordance with the current national electrical regulations and
installed by a qualified person.
4.12 Safety: In the interests of electrical safety a 30 mA residual current
device (R.C.D. not supplied) should be installed in the supply circuit.
This may be part of a consumer unit or a separate unit.
4.13 Before starting work on the electrical supply ensure power supply is
isolated.
4.14 DO NOT allow the supply cord to contact hot surfaces, including the
motor shell, pump body or pipework. The cord should be safely routed
and secured by cable clips.
4.15 Supplementary Bonding: The pressure set is factory fitted with a
supplementary earthing wire to ensure continuity throughout the assembly
(Fig. 3). It must be ensured throughout the product life that this electrical
connection remains in place.
4.17 Earthing: This appliance must be earthed via the supply cord, which must be
correctly connected to the earth point located in the terminal box.
4.18 Pipework: Copper or metallic pipework must have supplementary earth
bonding where the continuity has been broken by flexible hoses or plastic
components.
4.16 Adjacent pipes: Adjacent suction and delivery pipes should be fitted with
earthing clamps in accordance with current regulations (Fig. 4).

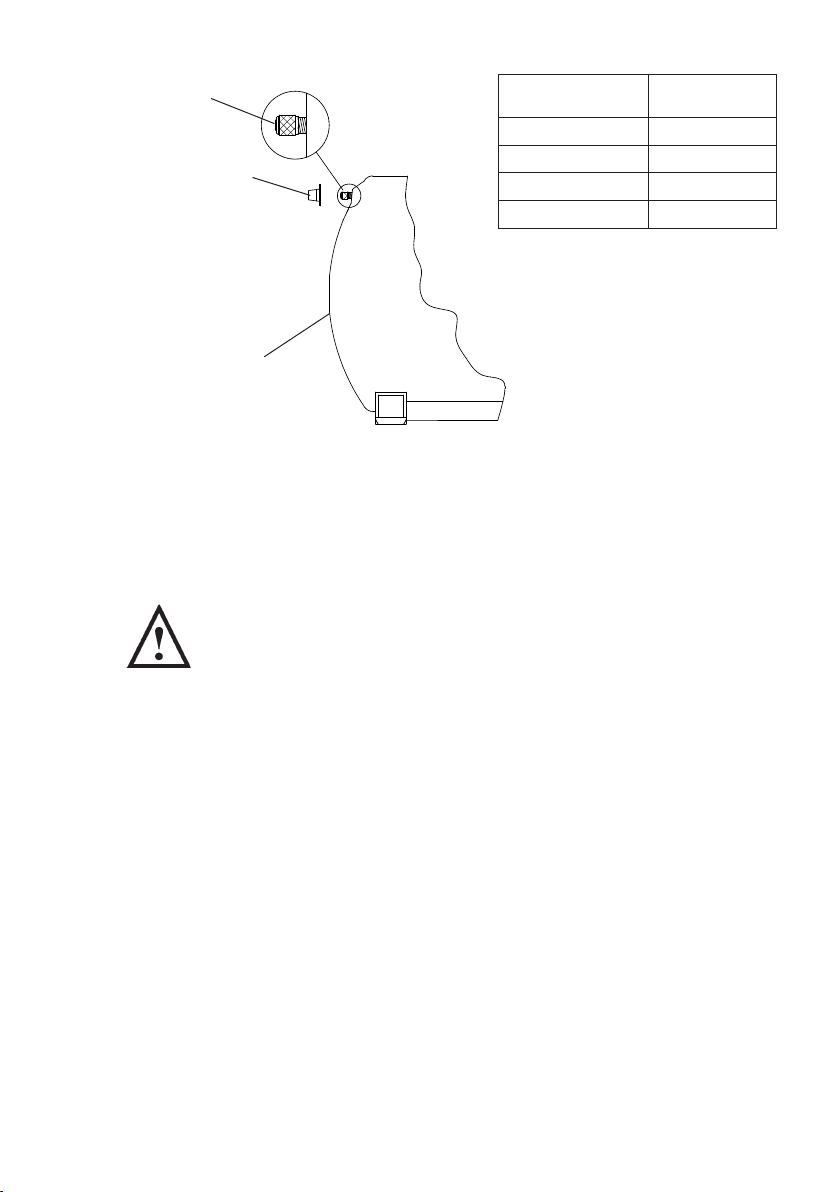

Diagram of
earth continuity
connections
Fig. 4
Fig. 3
Warning Tag

- 9 -
Cont ...
4.19 Additional earthing: Certain installations may require additional earthing
arrangements such as equipotential bonding. Reference should be made to the
relevant regulations concerning this subject to ensure compliance.
4.20 Connections: The pump must be permanently connected to the fixed wiring of
the mains supply using the factory fitted supply cord, via a double pole
switched fused spur off the ring main and NOT connected to the boiler or the
immersion heater circuits.
4.21 Wiring of connection unit:
WARNING: This appliance must be earthed.
The wires in the mains lead are coloured in accordance with the following code:
Green and Yellow: Earth Blue: Neutral Brown: Live
As the colours of the wires in the mains lead of this appliance may not
correspond with the coloured markings identifying the terminals in your
connection unit proceed as follows:
The wire which is coloured green and yellow must be connected to the terminal
in the connection unit which is marked with the letter E or by the earth
symbol: or coloured green or green and yellow.
The wire which is coloured blue must be connected to the terminal which is
marked with the letter N or coloured black.
The wire which is coloured brown must be connected to the terminal which is
marked with the letter L or coloured red.
4.22 Wiring Diagram:
Model Fuse Size (AMPS)
All Models 13
4.23 Fuses: The following fuse size should be used with the appropriate pump:
GREEN / YELLOW
BLUE
BROWN L
M
N
NLE
N230 VAC/1PH/50Hz
SUPPLY
RED
CAPACITOR
MOTOR
GREEN / YELLOW (LINK WIRE)
RED
YELLOW
RED
BLACK
BLACK
FLOWSWITCH
REED (S3)
S3 S3
S1 S1
PRESSURE
SWITCH (S1)
Fig. 5

- 10 -
Cont ...
4.24 Supply Cord Replacement:
The supply cord and internal wiring within the terminal
box are routed and secured to ensure compliance with the
electrical standard EN 60335-1. It is essential that prior to
any disturbance of this internal wiring, all cable routing and
securing details are carefully noted to ensure re-assembly to
the same factory pattern is always maintained.
If the supply cord is to be changed or is damaged, it must be replaced with a
special cord assembly available from Stuart Turner or one of their approved
repairers.
On disassembly note the cord retention and routing system. Re-assemble to the
same pattern.
For information on cable connection consult the wiring diagram and cable gland
fitting instructions.
4.25 Cable Gland Fitting Instructions:
To enable correct assembly of the cable gland the ‘O’-ring (Fig. 6 item 1) must
be placed over the cable before the clamping insert (Fig. 6 item 2) can be
tightened.
Note: Cable diameter range:- 9.2 mm to 11.9 mm.
4.26 Supply Cord Extension:
The pumps are fitted with a supply cord to the following specification:-
All models .................HO7RN-F3 G 1.5 mm² - 16 Amp rated cable.
If the supply cord is to be extended, a cord of the same specification should be
used. Any connections or junction boxes used should be specifically suited for
the application and installed in accordance with the manufacturers instructions.
Fig. 6
2
1

- 11 -
5.14 Starting:
a) Ensure all outlets are closed, turn power supply ‘on’ - pump will start,
pressurise the system then stop.
b) Open and close all outlets in turn associated with the pump, (including w/c
systems) allowing water to flow from each outlet until all air is purged. As
each outlet is opened and closed, the pump will start and stop respectively.
Note: After closing the outlet there will be a small time delay before the
pump stops, which is normal.
c) Any tap or control valve within the system when opened and closed will now
turn the pump on/off. Providing this is the case the system is now operating
correctly.
d) Carefully check pump and pipework for leaks whilst pump running and
stationary before leaving the installation unattended.
5.15 For Further Technical Support: Phone the Stuart Turner PumpAssist team
on [phone]. Our staff are trained to help and advise you over the
phone.
5 COMMISSIONING / SYSTEM FLUSHING/ PRIMING / STARTING
5.11 System Flushing
The pipework system should be flushed out prior to the pump
being connected to ensure any contaminants/chemical residues
and foreign bodies are removed from elsewhere in the system.
5.12 Water Supply: Always ensure that water storage capacity is adequate to meet
the demand. Ensure the pump chamber is full of water before starting the
pump. Failure to do this could result in seal damage. To ensure dry running
does not occur the pump must be primed as described in priming section below.
Do not run pump dry.
5.13 Priming:
Never operate pump with inlet and/or outlet isolating valves in
the closed position. Damage will occur!
The pump must be primed (filled with water) before starting.
Turn on the service valves and vent/prime pump head.
(a) Loosen priming plug and allow an even flow of water this may take a
few seconds.
(b) Re-seal priming plug, nipping tight. The pump is now ready to start.
Fig. 7
Priming/
vent Plug
Drain
Plug

- 12 -
Cont ...
6 MAINTENANCE
6.11 Turn off water supplies to the pump and release pressure by
opening water outlets before attempting maintenance.
6.12 Inlet strainer: Incorporated in the strainer is a removable gauze filter which
may require periodic cleaning. The frequency of this operation is dependent
upon installation conditions.

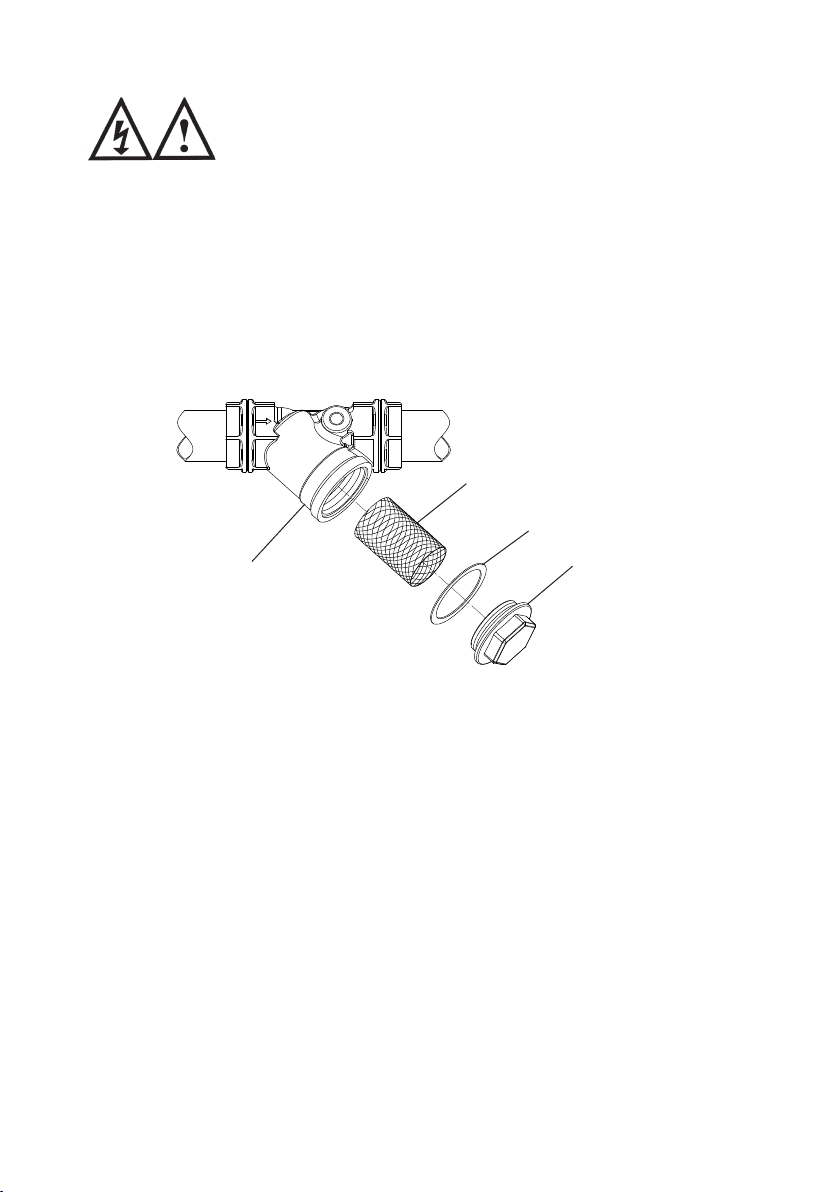

The strainer is located in the inlet pipework to the pump (Fig. 8). The gauze filter
is removed as follows:-
a) Isolate pump electrically.
b) Release all system pressure.
c) Isolate water supply.
d) Remove screwed hexagonal plug from strainer body taking care to collect or
absorb any residual water (Fig. 8).
e) Remove and clean stainless steel gauze filter.
f) Reassemble gauze and secure plug tightly.
g) Turn on water supplies, connect power supply and test.
6.13 Pressure vessel: The pressure vessel should be checked once every 6 months
to have its air charge checked or replenished, this should be carried out as
follows:-
a) Isolate pump electrically.
b) Isolate the water supply by closing the appropriate isolating valves.
c) Release system water pressure by opening an outlet on the system.
d) Disconnect hose fitted to pressure vessel.
e) Check air charge at Schrader valve (Fig. 9) using a tyre pressure gauge.
f) Replenish air charge by injecting air into the vessel via the Schrader valve
using a car or bicycle pump (Fig. 9).
g) Re-connect hose to pressure vessel to achieve a water tight connection.
Ensure rubber washer seal is in place.
h) Close all system outlets, open inlet and outlet isolating valves.
i) After maintenance is completed refer to Section 5 - Commissioning for
instructions on re-starting pump.
Strainer
Gauze
Gasket
Hex plug
Fig. 8

- 13 -
Cont ...
6.14 Water scale: As water is heated scale deposits are released in areas of hard
water, scale can cause the mechanical seal to stick if left without use for long
periods. The pump must be run for at least 5 minutes every four weeks to
“exercise” all working parts. Run on cool water. See Section 7 - Technical
Specification for note on water temperature. This particularly applies to guest
bathrooms used infrequently.
6.15 Cleaners, Disinfectants and Descalents:
Acid based descalents and aggressive cleaning agents must not
come into contact with the pump. The pump must be removed from
the system prior to the use of these products. The system should be
flushed to remove all chemicals before the pump is re-connected.
If in any doubt as to the suitability of the chemical solutions, please
contact our PumpAssist helpline on [phone].
Fig. 9
Schrader valve
(under cap)
Cap
Pressure vessel
Model Air Charge
bar (psi)
ABP F120-30-1H-1 1.3 (19)
ABP F120-40-1H-1 1.8 (26.1)
ABP F120-50-1H-1 2.8 (40.6)
ABP F120-60-1H-1 2.8 (40.6)

- 14 -
7 TECHNICAL SPECIFICATION
Stuart Turner reserve the right to amend the specification without notice.
*Note: Indicates maximum casing pressure
Pump Model
ABP F120-30
50 Hz
46601
ABP F120-40
50 Hz
46602
ABP F120-50
50 Hz
44622
ABP F120-60
50 Hz
44624
General Guarantee 2 years
WRAS approval Approved materials
Features Pump type Centrifugal
Mechanical seal EPDM / Carbon / Ceramic
Anti-vibration feet ü ü ü ü
Inlet strainer(s) ü ü ü ü
Flexible hoses 2 2 2 2
Run on Timer 3 sec 3 sec 3 sec 3 sec
Dry run protection ü ü ü ü
Diaphragm Tank Size 24 litres
Diaphragm Tank Water Capacity 12 litres
Materials Pump body Brass & stainless steel
Impeller Stainless steel
Performance Maximum head (closed valve) 2.6 bar 3.6 bar 4.9 bar 6.2 bar
Performance @ 45 l/min 2.2 bar 3.3 bar 4.6 bar 5.8 bar
Performance @ 90 l/min 1.3 bar 2.2 bar 3.2 bar 4.3 bar
Maximum flow 127 l/min 141 l/min 150 l/min 153 l/min
Minimum static inlet pressure 1 metre
Maximum static inlet pressure 10 metres
Maximum static outlet pressure 13 metres
Maximum working pressure* 600 kPa (6 bar) 900 kPa (9 bar)
Maximum ambient air temperature 40 oC
Min / Max water temperature Min 4 oC / Max 35 oC
Flow switch sensitivity (approx) 1.0 l/min
Pressure vessel air pre-charge 1.3 bar (19 psi) 1.8 bar (26.1 psi) 2.8 bar (40.6 psi)
Cut in flow 1 l/min
Cut in pressure 140 kPa (1.4 bar) 190 kPa (1.9 bar) 290 kPa (2.9 bar)
Connections Pump connections G 1 male
Flexible hoses Connections G 1 male x G 1 female x 300 mm long
Motor Type Induction type, thermally protected
Duty rating Continuous (S1)
Electrical Power supply / phase / frequency 230 V a.c. / 1 / 50 Hz
Current (full load) 3.5 Amps 5.1 Amps 7.3 Amps 8.7 Amps
Power consumption 775 Watts 1136 Watts 1655 Watts 1974 Watts
Fuse rating 13 Amps
Power lead (pre-wired) 1.5 metres
Physical Enclosure protection IPX5
Length 521 mm
Width 280 mm
Height (excluding hoses) 647 mm 667 mm
Weight (including fittings) 17.3 Kg 18.5 Kg 23.4 Kg 25.9 Kg

- 15 -
Cont ...
7.11 Noise: The equivalent continuous A-weighted sound pressure level at a
distance of 1 metre from the pump does not exceed 70 dB(A).
8 TROUBLE SHOOTING GUIDE
Symptoms Probable Cause Recommended Action
Pump will not start. Electrical supply. Check power supply.
Check fuse (see fuse section).
Check circuit breaker is set.
Check wiring connections.
Pump Jammed. If motor ‘Buzzes’ switch off power and contact Stuart Turner.
Damaged pressure switch. Turn off power.
Release system water pressure.
Turn on power, pump should start. If NOT contact Stuart
Turner.
Recommended static inlet/
outlet heads exceeded.
Re-position pump (see pump location section).
Internal motor thermotrip
activated.
Wait for thermotrip to auto-reset and check that duty
point and run time is within specification (see technical
specification).
Reduced/intermittent flow. Incorrect or no anti-aeration
flange fitted
Check that the installation complies with installation
instructions.
Incorrect pipe sizes. Check for correct pipe sizing, see Page 5 - Section 2.19.
Blocked inlet filters. Clean inlet filters (see maintenance section).
Blocked shower head spray
plate
Clean in accordance with manufacturers instructions.
Pump runs on with outlets
closed.
Leak in system. Check tap washers, w/c valve washers, pipe joints.
Damaged reed switch, P.C.B or
pressure switch.
If pump continues to run, this indicates a closed circuit in
either the flow switch reed, pressure switch or P.C.B. in the
terminal box. Contact Stuart Turner.
Jammed flow switch. Remove outlet hoses and check that flow switch sits in
lowest position. Check float for free movement.
or
Pump cycles (hunts) on/off
frequently.
Low pressure in pressure
vessel.
Check pressure in pressure vessel (see maintenance section).
Debris under non-return valve
sealing face.
Run at full flow to try and flush away debris or remove, clean
or replace non-return valve.
Flexible hose leaks Not fitted correctly. Check that the hose is pushed firmly onto the pump inlet/
outlet connections and pipework.
Damaged ‘O’-rings. Check copper pipe ends are cleanly cut and deburred.

- 16 -
Cont ...
8.11 Dry Run Protection:
This pump is fitted with a safety control circuit, which will detect the following
fault condition:
zDry running caused by water starvation to the pump.
Should the pump run out of water it will stop as part of a “protective logic
sequence”, detailed below.
The fault should be rectified before re-starting the pump. Check that there is
sufficient water supply to the pump and also ensure that all terminal fitting
outlets are closed.
8.12 Protective Logic Sequence:
If water starvation occurs and the power supply to the pump remains
uninterrupted, the pump controller will perform the following protective
sequence.
1. If the pump detects water starvation, it will stop operation after a 1 minute
period.
2. The pump will remain in the off condition for a period of 5 minutes.
3. The pump will then re-start and if the water starvation condition remains
present, the pump will then stop operation after a 1 minute period.
4. The pump will remain in the off condition for a period of 5 minutes.
5. The pump will then re-start and if the water starvation condition remains
present, the pump will then stop operation after a 1 minute period.
6. The pump will remain in the off condition for a period of 5 minutes.
7. The pump will then re-start and if the water starvation condition remains
present, the pump will then stop operation after a 1 minute period.
8. After three consecutive resets are performed the pump will remain in the off
condition indefinitely.
9. To restart the pump, the power supply should be first isolated for a period of
at least 10 seconds before switching on again.
If the pump fails to operate normally after three attempts, then please consult
the PumpAssist team on [phone].
8.13 Fault Finding
The PCB is also fitted with a “power on” indicator light. This will remain
illuminated when mains power is supplied to the board.
The indicator light is located on the PCB within the terminal box.
zThis operation should only be carried out by a qualified
person
To view the light the following procedure must be followed:-
zIsolate the mains electrical power supply from the pump.
zRemove the four screws retaining the terminal box lid (Fig. 10).
zLift the terminal box lid off.
zIMPORTANT – Ensure there is no contact with any of the internal parts of
the terminal box.

- 17 -
Cont ...
zBriefly reconnect the mains power supply to the pump – the ‘power on’ light
should illuminate if the pump has been correctly wired.
zIsolate the mains electrical power supply from the pump.
zRe fit the terminal box lid ensuring no cables are trapped.
zRe fit the four terminal box lid retaining screws, tighten to 0.8 Nm.
8.14 Environment Protection: Your appliance contains valuable materials which
can be recovered or recycled.
At the end of the products’ useful life, please leave it at an appropriate local civic
waste collection point.
F
I
G
2
4
‘Power
on’ light
Terminal box lid
Retaining screws x 4

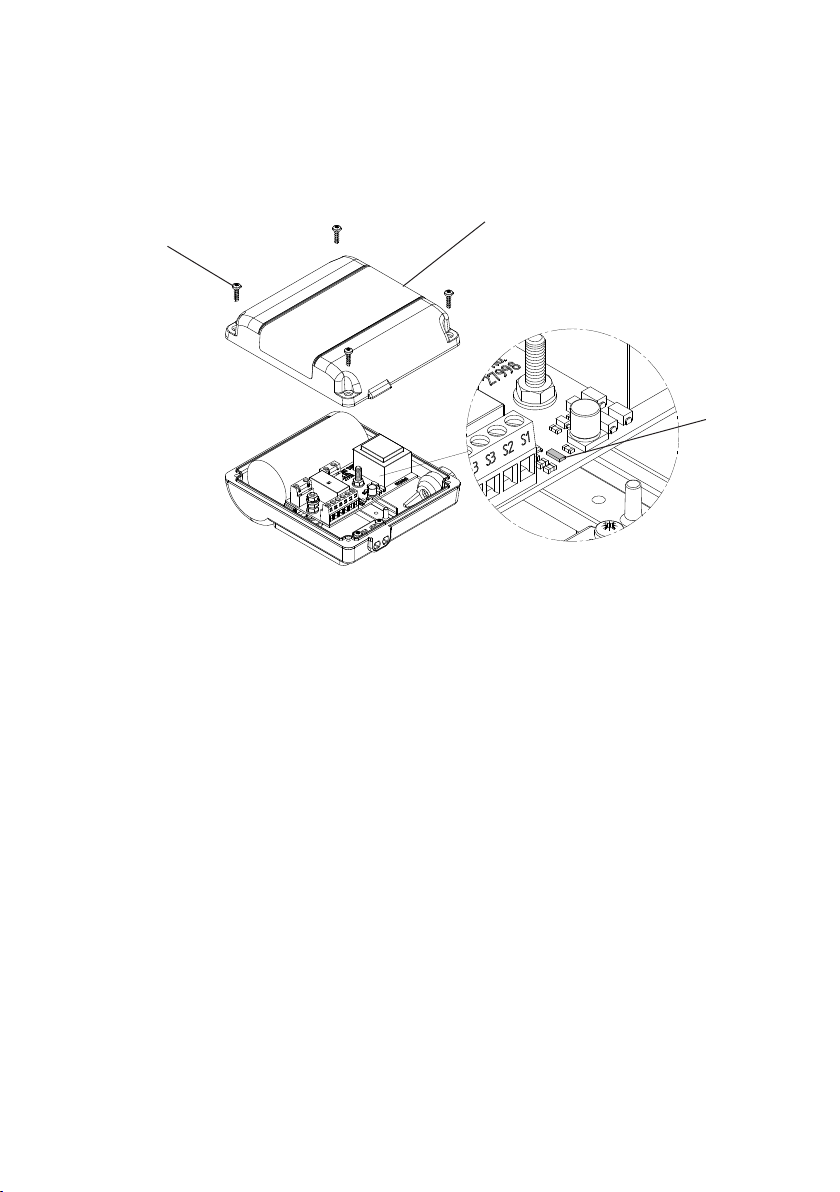

Fig. 10 Wiring removed for clarity

- 18 -
Cont ...
9 YOUR 2 YEAR GUARANTEE
Congratulations on purchasing a Stuart Turner pump.
We are confident this pump will provide many years of trouble free service as all our
products are manufactured to the very highest standard.
All Aquaboost Pressure Set pumps are guaranteed to be free from defects in materials
or workmanship for 2 years from the date of purchase.
Within the guarantee period we will repair, free of charge, any defects in the pump
resulting from faults in material or workmanship, repairing or exchanging the whole
unit as we may reasonably decide.
Not covered by this guarantee: Damage arising from incorrect installation, improper
use, unauthorised repair, normal wear and tear and defects which have a negligible
effect on the value or operation of the pump.
Reasonable evidence must be supplied that the product has been purchased within
the guarantee term prior to the date of claim (such as proof of purchase or the pump
serial number).
This guarantee is in addition to your statutory rights as a consumer. If you are in any
doubt as to these rights, please contact your local Trading Standards Department.
In the event of a claim please telephone ‘PumpAssist’ or return the pump with the
accessories removed e.g pipes etc. If you have any doubt about removing a pump,
please consult a professional.
[phone]
Proof of purchase should accompany the returned unit to avoid delay in investigation
and dealing with your claim.
You should obtain appropriate insurance cover for any loss or damage which is not
covered by Stuart Turner Ltd in this provision.
Please record here for your records.
TYPE NO. SERIAL NO. DATE PURCHASED

- 19 -
Installers – Register with Stuart Turner and move up to Approved
Installer status
We receive thousands of enquiries every month from people seeking a Stuart
Turner installer and by registering your details with us, we can offer consumers the
opportunity to quickly locate an installer in their area.
Registration is free - simply click on the ‘register as an installer’ link
on our homepage at www.stuart-turner.co.uk and complete a short
form which will enable visitors to find your contact details on our web
site ‘installer finder’. Alternatively use your smartphone to scan this QR
code and go straight to the form.
We’ll do the rest!
In addition we will ensure you receive advance notice on all new product launches
and access to any special offers or promotions.
Following initial registration, Stuart Turner offers a professional training programme,
enabling you to achieve Approved Installer status and opening the door to a range of
additional benefits.
Contact [e-mail] for further details.

Stuart Turner Ltd, Henley-on-Thames, Oxfordshire RG9 2AD ENGLAND
Tel: [phone], Fax: [phone]
[email protected] www.stuart-turner.co.uk
DECLARATION OF CONFORMITY
2006/42/EC
BS EN ISO 12100-1, BS EN ISO 12100-2, BS EN 809
2014/35/EU
BS EN 60335-1, BS EN 60335-2-41
2014/30/EU
BS EN 55014-1, BS EN 55014-2, BS EN 55022, BS EN 61000-3-2, BS EN 61000-3-3,
BS EN 61000-4-2, BS EN 61000-4-3, BS EN 61000-4-4, BS EN 61000-4-5, BS EN 61000-4-6,
BS EN 61000-4-11
1999/519/EC
BS EN 62233
2011/65/EU
IT IS HEREBY CERTIFIED THAT THE STUART ELECTRIC MOTOR DRIVEN PUMP AS SERIAL
NUMBER BELOW, COMPLIES WITH THE ESSENTIAL REQUIREMENTS OF THE ABOVE E.E.C.
DIRECTIVES.
RESPONSIBLE PERSON
AND MANUFACTURER STUART TURNER LIMITED
HENLEY-ON-THAMES, OXFORDSHIRE
RG9 2AD ENGLAND.
Signed................................................ Technical Director
Stuart Turner are an approved company to BS EN ISO 9001:2008
Issue No. 0718/1-02 Pt. No. 20584
