WilTec 50199-50220 User manual

© by WilTec Wildanger Technik GmbH Seite 10
http://www.WilTec.de Version 3. 2017
http://www.aoyue.eu
http://www.teichtip.de

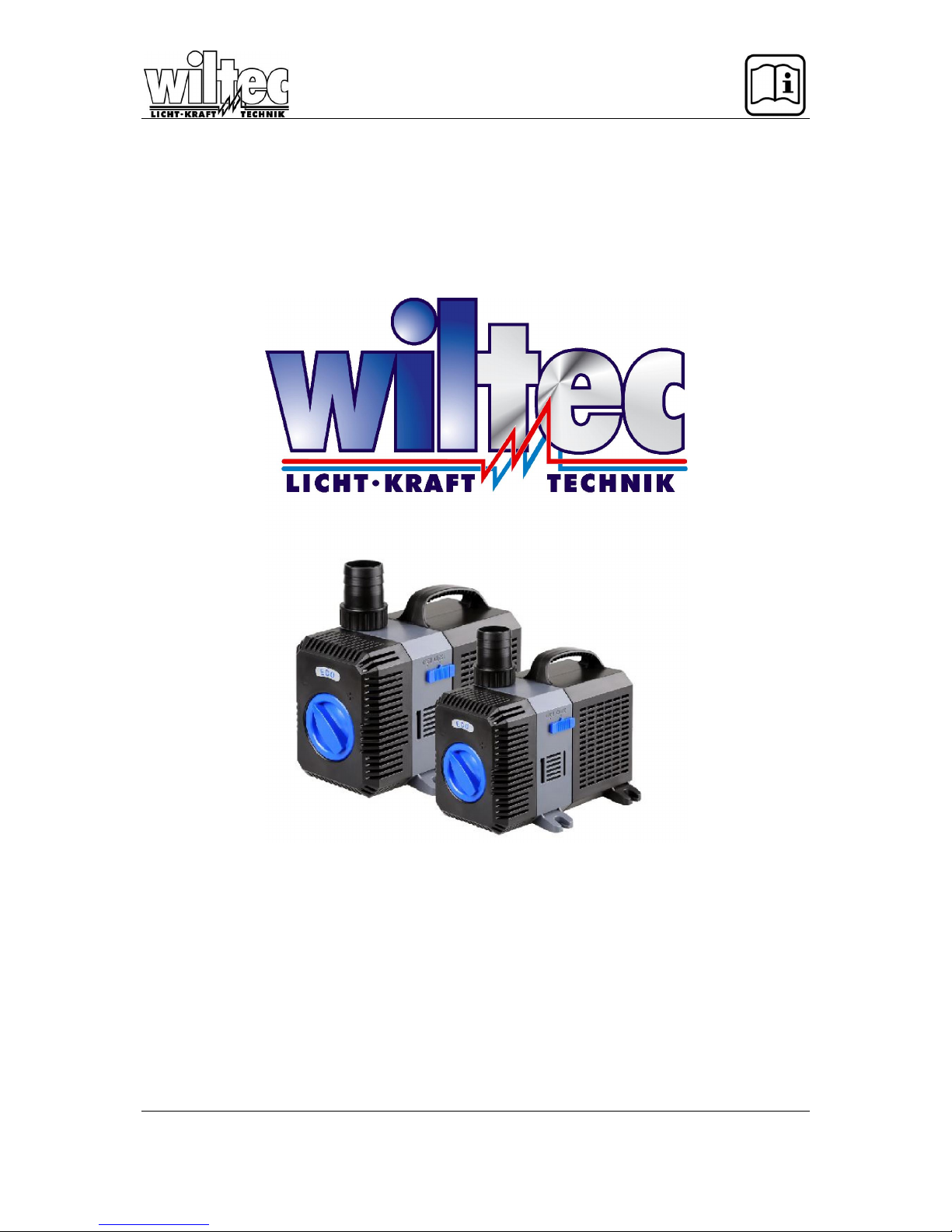

Operation Manual
Pond Pump
ARTICEL 50199-50220
Read and follow the operating instructions and safety information before using for the first time.
Technical changes reserved!
Due to further developments, illustrations, functioning steps and technical data can differ insignificant-
ly.
Updating the documentation
If you have suggestions for improvement or have found any irregularities please contact us.

© by WilTec Wildanger Technik GmbH Seite 11
http://www.WilTec.de Version 3. 2017
http://www.aoyue.eu
http://www.teichtip.de
The information contained in this document is subject to change without prior notice. No part of this
document can be copied or duplicated in another form without the prior written consent of Wiltec Wil-
danger Technik GmbH. The Wiltec Wildanger Technik GmbH assumes no liability for any errors in this
user manual or the connection diagram.
Although Wiltec Wildanger Technik GmbH has made every effort to make sure that this user manual is
complete, accurate and updated, errors cannot always be avoided. In the event of problems with this
user manual please complete and send this form back to us.
FAX-notification (+++49 2403 55592-15),
from: ________________________________________
Name: ________________
Firm:_____________________
Tel/Fax:__________________
I would like to report the following mistakes:
___________________________________________________________________
Customer Service Wiltec Wildanger Technik GmbH
e-mail: [e-mail]
Tel:++ [phone]
Introduction
Thank you for purchasing this quality product. To minimize the risk of injury by means of fire or
electric shock we urge that our clients take some basic safety precautions when using this
device. Please read the operation instructions carefully and make sure you have understood its
content.
Always use a grounded power connection with the appropriate mains voltage. You can find the corre-
sponding mains voltage on the type plate. If you have any doubts about the connection being ground-
ed, have it checked by a qualified professional. Never use a faulty electric cable.
Do not inspect the electrical part of the pressure pond filter in a wet or damp environment or when you
are wet yourself and protect it from direct sunlight. Install this device in a safe location so that nobody
can step on the cable, fall over or damage it. Disconnect the power plug before cleaning it and use
only a damp cloth for cleaning. Avoid using cleaning agents and make sure that no liquid enters the
electrical part of the pump.
The electric part of the device contains no parts that can be inspected or serviced by the user. Leave
the maintenance, adjustment and repair to qualified technical personnel. In case of unauthorised inter-
vention the 2-year warranty is no longer valid! Keep these operation instructions safe.

© by WilTec Wildanger Technik GmbH Seite 12
http://www.WilTec.de Version 3. 2017
http://www.aoyue.eu
http://www.teichtip.de
Safety guideline
BEWARE:
The use of this device is allowed on standing bodies of water, garden ponds’ water or swimming
ponds and their surrounding areas only with fault current protection-switch with a triggering nominal
current up to 30mA (according to VDE 0100 Article 702 and 738).
The device is not suitable for use in swimming pools, paddling pools and other bodies of water in
which during operation people linger. The operation of the device during the stay of people in the dan-
ger zone is not allowed. Ask your electrician.
The device is not intended for use by persons (including children) with impaired or limited physical,
sensory and mental abilities or lack of experience and/or real knowledge, unless they are supervised
by a person responsible for their safety or you follow the instructions made by this person how to use
the device correctly.
Children should be supervised to make sure that they do not play with the device.
ATTENTION:
•Run a visual inspection of the device before every use. Do not use the device if the safety ap-
pliances are damaged or worn out. Never override safety regulations.
•Use the device exclusively according to the intended purpose stated in the instructions for
use.
•You are responsible for the safety of the working environment.
•If the cable or the plug is damaged due to external influences the cable must not be repaired!
It has to be replaced with a new one. This work can be carried out only by an electrician.
•The voltage indicated on the type plate of the device of 230 Volt alternating voltage has to cor-
respond to the existent mains voltage.
•Never lift, carry or fixate the device by using the power cable.
•Make sure that the electrical plug connection is placed in a flood-proof area and is protected
from moisture.
•Before working on the pond pump disconnect the appliance by taking the plug out of the sock-
et.
•Avoid exposing the appliance to a direct water jet or rain.
•The user is responsible for the compliance with location specific safety and installing regula-
tions. (Ask an electrician).
•Consequential damage arising from flooded rooms caused by dysfunctions of the appliance
must be avoided by means of the appropriate measures. (installing an alarm system, reserve
pump).
•In case of malfunction the repair work can be carried out only by a qualified electricial or the
WilTec-service.
•The appliance must not run dry or with a completely closed intake port. The manufacturer’s
guarantee is no longer valid if the damage is caused by dry running.
•The appliance must not be used for swimming pools.
•The device cannot be employed for potable water circuits.

© by WilTec Wildanger Technik GmbH Seite 13
http://www.WilTec.de Version 3. 2017
http://www.aoyue.eu
http://www.teichtip.de
WARNING:
Read carefully all the safety guidelines and the instructions.
Non-compliance with the safety rules and regulations can lead to an electric shock, fire and/or serious
injury. Keep the instructions and the safety guidelines in a safe place in case you need them in the
future.
Stability
The max. temperature of the conveyed liquid should not exceed +35°C in permanent operation.
The conveyance of aggressive fluids (acids, bases, etc.) as well as of abrasive substances (for exam-
ple sand) must be avoided.
Electrical connection
•The electrical connection takes place via an electric safety socket 230 V ~ 50 Hz. Fuse protection
at least 10 Amperes.
•The engine is protected against overloading or blocking by means of a built-in motor protection. In
case of overheating the pump is turned off automatically due to the overheat protection and after
the cooling the pump is automatically started.
Power connection
The pond pump is equipped with a safety plug. The device is designed for connection to an isolated
ground receptacle with 230 V~50 Hz. Make sure that the socket outlet is sufficiently fused (at least 6A)
and safe. Insert the plug in the socket outlet and the pond pump is ready for use.
Note:
Installation
Please position the pump under water and make sure that no water gets into the socket.
Bild 1)
The pump is to be installed as follows: in a fixed position with fixed or flexible hose.
Utilisation as submersed pump (see picture 1)
Immerse the pump into the pond water, so that it is filled with water.
To avoid the premature clogging of the filter, position the pump above the pond sludge.
Install the supplied filter sponge to keep the pump inlet free.
The pump is started by plugging in the mains plug.

© by WilTec Wildanger Technik GmbH Seite 14
http://www.WilTec.de Version 3. 2017
http://www.aoyue.eu
http://www.teichtip.de
Commissioning
After reading the installation instructions carefully, you can start the new pump if you note the following
aspects:
•Check if the pressure pipes have been installed properly.
•Make sure that the electrical connection is 230V~50Hz.
•Check if the socket is in proper working order.
•Make sure that moisture or water never reaches the mains connection.
•Avoid that the pump operates dry.
•Don’t use the pump without filter basket, this protects the pump from large debris that can lead to
blockage of the pump.
Hints for maintenance!
The pond motor pump is a maintenance-free and a practice-proven quality product that was subjected
to rigorous final inspections. For a long working life and continuous operation we recommend regular
checking and proper care.
Maintenance and Cleaning
Overload protection:
The pump has an integrated overheat protection. After the pump is stopped it has to cool down for a
while due to the overheat control device, before it runs again. In case it does not run again by itself,
the following checks shall be conducted:
Could the pump cool down sufficiently due to the overheat protection after being stopped?
Is the water supply sufficient? > Improve the water supply!
Is the filter clogged? > If necessary rinse the filter!
Is there dirt in the pump housing? > Perform cleaning!
Is the hose or the pipe clogged? > Clear the hose/pipe!
Is the hose broken, too long? > Check, replace, shorten!
Construction of the Pumpe:
1 Adjuster* 4 Rotor subassembly 7 Motor Body 10 Outlet Nut
2 Filter Basket 5 O-Ring 8 Seal 11 1 ¼“ Outlet
3 Pump Housing 6 Bearing 9 Outlet
*depending on the modell. Adjustable are the models 50199-50216, the models 50217-50220 can not be con-
trolled.

© by WilTec Wildanger Technik GmbH Seite 15
http://www.WilTec.de Version 3. 2017
http://www.aoyue.eu
http://www.teichtip.de
Cleaining
1: Adjust the flow rate
2: Turn the filter case in the direction indicated by the arrow, then take it out
3: Press the blue button to open the filter housing
4: Keep the blue switch, and rotate the flap on the motor housing in direction of arrow
5: Pull the impeller and the pump shaft out of the housing to clean it off.
6: Make sure that the O-ring is properly mounted again sure before you reinstall the pump back to-
gether.
wintering
1 Take the pump out of the water and disconnect it from the power supply
2 Clean the pump, as described in the instructions
3 Check the pump for damage, such as cracks in the housing
4 Please store the pump under frost-free condition when possible, in a container with water
Model Artikel Input Voltage Power Delivery Head Max. Delivery rate
CTP-2800 50199 230VAC ~50Hz 10 W 2.0 m 3000 l/h
CTP-3800 50201 230VAC ~50Hz 20 W 2.8 m 3600 l/h
CTP-4800 50203 230VAC ~50Hz 30 W 4.0 m 4500 l/h
CTP-5800 50209 230VAC ~50Hz 40 W 4.8 m 5200 l/h
CTP-5000 50211 230VAC ~50Hz 30 W 3.3 m 5000 l/h
CTP-6000 50213 230VAC ~50Hz 40 W 4.2 m 6000 l/h
CTP-7000 50215 230VAC ~50Hz 50 W 4.6 m 7000 l/h
CTP-8000 50216 230VAC ~50Hz 70 W 5.6 m 8000 l/h
CTP-10000 50217 230VAC ~50Hz 80 W 6.0 m 10000 l/h
CTP-12000 50218 230VAC ~50Hz 100 W 6.5 m 12000 l/h
CTP-14000 50219 230VAC ~50Hz 120 W 7.0 m 14000 l/h
CTP-16000 20220 230VAC ~50Hz 140 W 7.5 m 16000 l/h

© by WilTec Wildanger Technik GmbH Seite 16
http://www.WilTec.de Version 3. 2017
http://www.aoyue.eu
http://www.teichtip.de
Disposal regulations
EU guidelines regarding the disposal of scrap electric appliances (WEEE, 2002/96/EC) were imple-
mented in the law related to electrical and electronic equipment and appliances.
All Wiltec electric devices that fall under the WEEE regulations are labelled with the crossed-out
wheeled waste bin logo. This logo indicates that this electric equipment must not be disposed with the
domestic waste.
The company Wiltec Technik GmbH has been registrated in the German registry EAR under the
WEEE-registration number DE45283704.
Disposal of used electrical and electronic appliances
(intended for use in the countries of the European
Union and other European countries with a separate
collection system for these appliances).
The logo on the article or on its packaging points out
that this article must not be treated as normal house-
hold waste but must be disposed to a recycling collec-
tion point for electronic and electrical waste equip-
ment. By contributing to the correct disposal of this
article you protect the environment and the health of
your fellow men. Environment and health are threat-
ened by inappropriate disposal.
Materials’ recycling helps reduce the consumption of raw materials.
Additional information on recycling this article can be provided by your local community, municipal
waste disposal facilities or the store where you purchased the article.
Address:
WilTec Wildanger Technik GmbH
Königsbenden 12 / 28
D-52249 Eschweiler
Important notice:
The reprint or reproduction, even of excerpts, and any commercial use, even in part of this instructions
manual require the written permission of Wiltec Wildanger Technik GmbH.
