SUB-ZERO DESIGN GUIDE

Contents
Built-In Refrigeration .......................... 3
PRO 48 Refrigeration ......................... 44
Integrated Refrigeration ...................... 50
Wine Storage ............................... 64
Undercounter Refrigeration .................... 84
Sub-Zero Warranties ......................... 92
IMPORTANT NOTE: Throughout this guide, dimensions may
vary by ± 1/8"(3).
Features and specifications are subject to change at any
time without notice. Visit subzero.com/specs for the most
up-to-date information.
Throughout this guide, dimensions in parentheses are millime-
ters unless otherwise specified.
MODEL BI-48S

Built-In Refrigeration 3
subzero.com/specs
Built-In Refrigeration. For the built-in line, Sub-Zero designers and engineers took a fresh look at everything, inside
and out. Exterior refinements include redesigned grilles and lower-profile hinges. Inside, new technology in food preserva-
tion makes the built-in line nothing short of revolutionary.
36"
(914)
36"
(914)
36"
(914)
84"
(2134)
BI-36R
36"
(914)
36"
(914)
84"
(2134)
30"
(762)
30"
(762)
84"
(2134)
BI-36RG BI-36F BI-30UGBI-30U BI-36U BI-36UG
BI-36S BI-42S
BI-42SID
BI-42SD BI-48S
BI-48SID
BI-48SD
BUILT-IN MODELS
KEY FEATURES
•Four distinct design approaches: framed, overlay,
flush inset and stainless steel.
•Handle options coordinate with handles of Wolf
cooking products.
•Dual refrigeration; two compressors preserve food’s
goodness in two sealed compartments.
•Energy efficient; many models are ENERGY STAR®
qualified.
•Advanced water filtration and air purification systems.
•NEW! French door model requires less space for door
clearance to accommodate virtually any-size kitchen.
•NEW! Internal dispenser models provide ice and chilled
water inside the refrigerator.
•Crisper and deli drawers form a lower-temperature
zone for produce and meats.
•Flip-up grille provides easy access for quick routine
maintenance.
•All models are Star-K certified.
36"
(914) 48"
(1219)
48"
(1219)
42"
(1067)
42"
(1067)
36"
(914)
BI-36UFD

Built-In Refrigeration 4
Built-In Design Options. A design classic is now even better. Four distinct design approaches provide limitless
flexibility for creating a beautiful kitchen. Lower-profile hinges enable the built-in units to blend more seamlessly with
surrounding cabinetry.

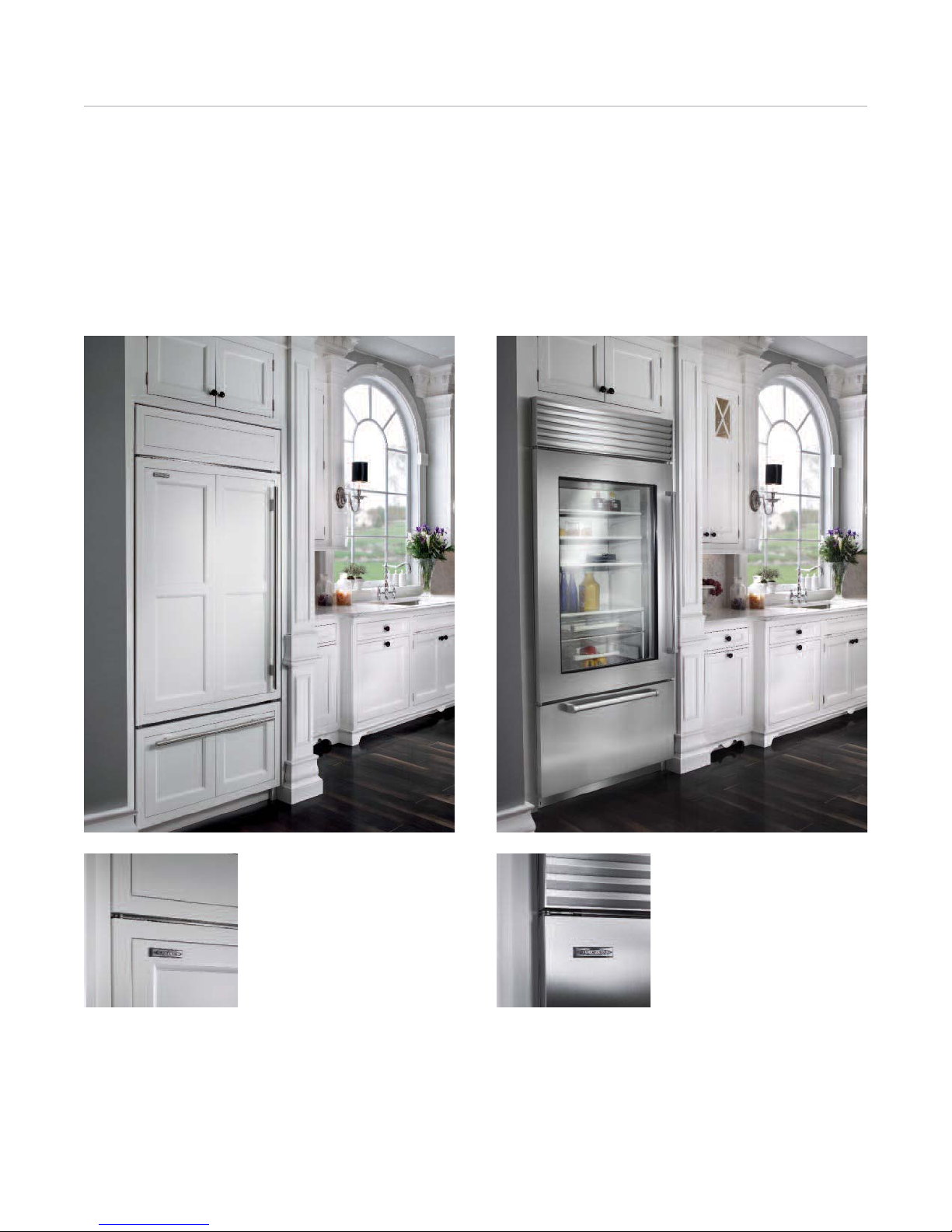

Framed. Custom cabinetry
panels slide into the door to
blend into the kitchen design.
Shown with full-length handle
and louvered grille option for
the traditional Sub-Zero look.
Overlay. Custom cabinet
overlay panels can be
combined with unique
hardware for design flexibility.
Shown with pro handle option
to complement Wolf ranges.

Built-In Refrigeration 5
subzero.com/specs
Flush Inset. This design
option allows for a flush door
and grille. Stainless steel panels
are available as sales acces-
sories. Shown with tubular
handle option to mirror Wolf
built-in ovens.
Stainless Steel. For a
professional look, this design
requires no customization. To
complement the look of Wolf
ranges, choose the pro handle
option shown here.

Built-In Refrigeration 6
36" (914)
84"
(2134)
24" (610)
4" (102)
733/4"
(1873)
237/8"
(606)
371/4"
(946)
17"
(432)
237/8"(606)
23/8"(60)
HEIGHT DIMENSIONS ± 1/2"(13)

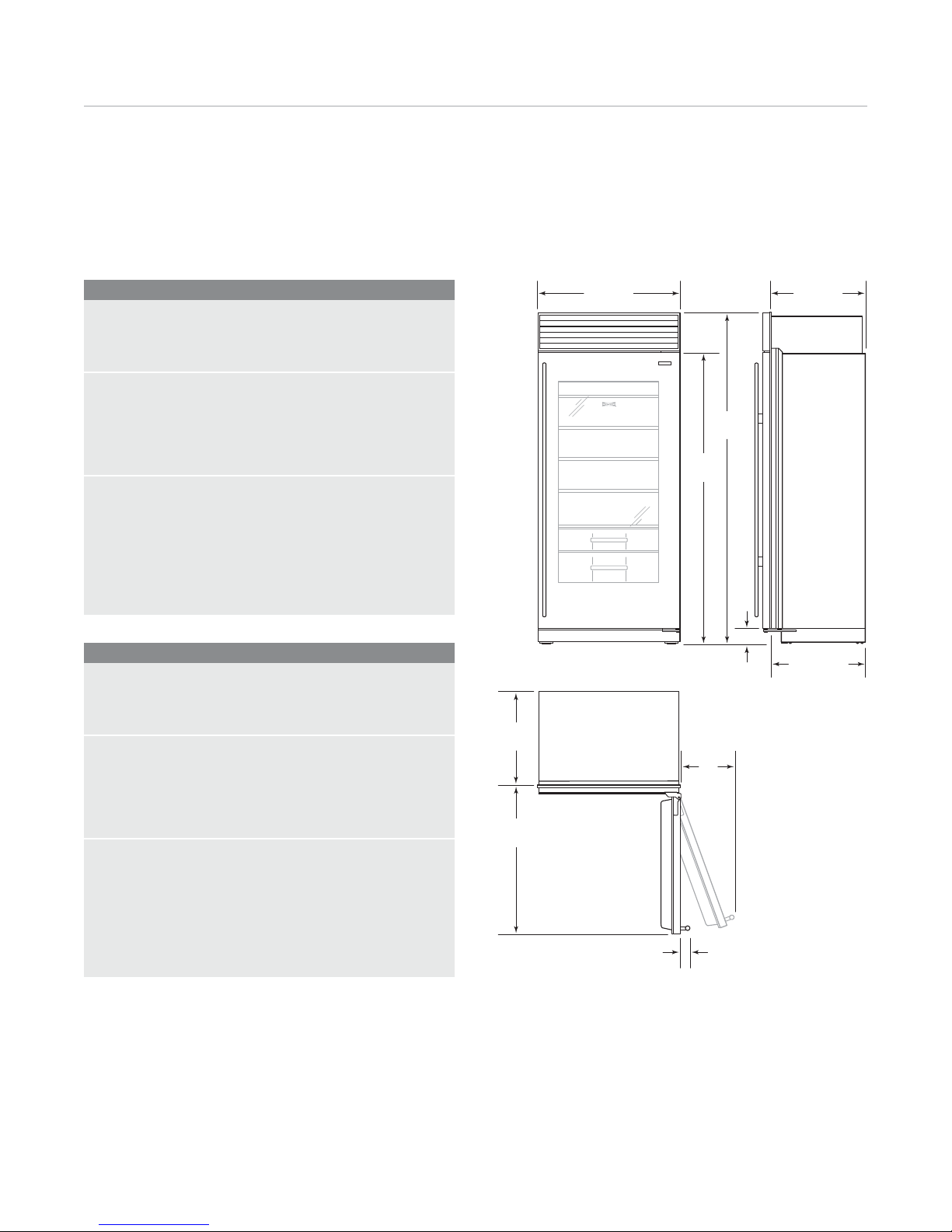

MODELS BI-36R, BI-36RG AND BI-36F
Shipping weights and overall dimensions are based on
stainless steel models. For flush inset applications, add
1/2"(13) to door clearance dimensions.
All Refrigerator / All Freezer Models
OVERALL DIMENSIONS
Built-In Models
SPECIFICATIONS
Shipping Weight lbs (kg)
ALL REFRIGERATOR / ALL FREEZER MODELS
BI-36R 420 (191)
BI-36RG 430 (195)
BI-36F 406 (184)
OVER-AND-UNDER MODELS
BI-30U 462 (210)
BI-30UG 476 (216)
BI-36U 515 (234)
BI-36UG 529 (240)
BI-36UFD 529 (240)
SIDE-BY-SIDE MODELS
BI-36S 538 (244)
BI-42S 582 (264)
BI-42SID 608 (276)
BI-42SD 608 (276)
BI-48S 630 (286)
BI-48SID 656 (298)
BI-48SD 656 (298)
Interior Capacity R cu ft (L) Fcuft(L)
ALL REFRIGERATOR / ALL FREEZER MODELS
BI-36R 23.5 (665)
BI-36RG 23.4 (663)
BI-36F 22.7 (643)
OVER-AND-UNDER MODELS
BI-30U 13.2 (374) 4.2 (119)
BI-30UG 13.1 (371) 4.2 (119)
BI-36U 16.4 (464) 5.3 (150)
BI-36UG 16.3 (462) 5.3 (150)
BI-36UFD 15.7 (445) 5.3 (150)
SIDE-BY-SIDE MODELS
BI-36S 12.4 (351) 8.2 (232)
BI-42S 16.3 (462) 8.0 (227)
BI-42SID 15.8 (447) 7.9 (224)
BI-42SD 16.0 (453) 7.9 (224)
BI-48S 19.1 (541) 9.8 (278)
BI-48SID 18.6 (527) 9.6 (272)
BI-48SD 18.8 (532) 9.6 (272)

Built-In Refrigeration 7
subzero.com/specs
30" (762)
84"
(2134)
24" (610)
4" (102)
503/4"
(1289)
23"
(584)
237/8"
(606)
235/8"
(600) 311/4"
(796)
141/2"
(368)
237/8"(606)
23/8"(60)
HEIGHT DIMENSIONS ± 1/2"(13)

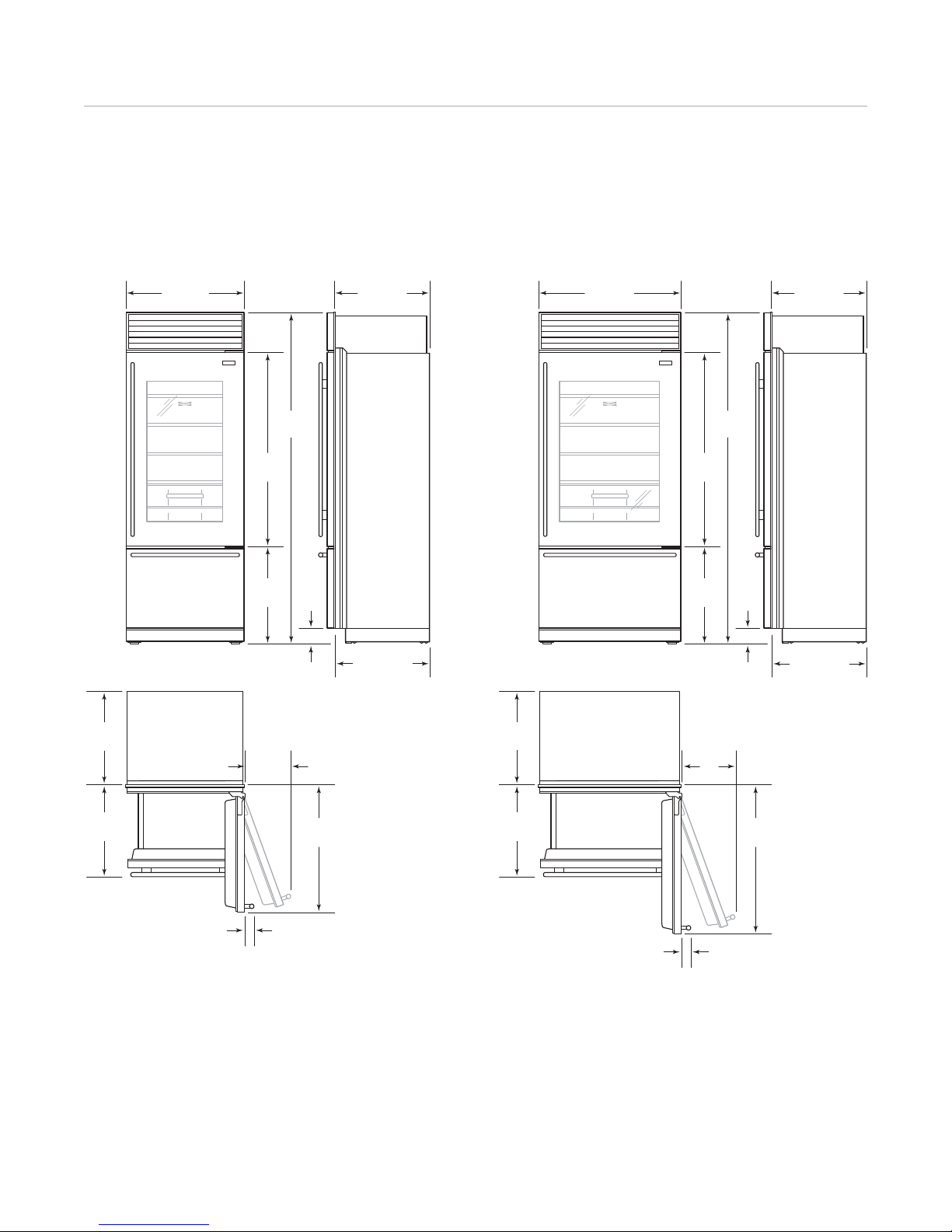

MODELS BI-30U AND BI-30UG
36" (914)
84"
(2134)
24" (610)
4" (102)
503/4"
(1289)
23"
(584)
237/8"
(606)
235/8"
(600) 371/4"
(946)
17"
(432)
237/8"(606)
23/8"(60)
HEIGHT DIMENSIONS ± 1/2"(13)
MODELS BI-36U AND BI-36UG
Over-and-Under Models
OVERALL DIMENSIONS

Built-In Refrigeration 8
Overall dimensions are based on stainless steel models.
For flush inset applications, add 1/2"(13) to door clearance
dimensions.
Over-and-Under Models
OVERALL DIMENSIONS
36" (914)
84"
(2134)
24" (610)
4" (102)
733/4"
(1873)
237/8"
(606)
221/4"
(565)
81/2"
(216)
101/4"
(260)
237/8"(606)
23/8"(60)
HEIGHT DIMENSIONS ± 1/2"(13)
MODEL BI-36S
36" (914)
84"
(2134)
24" (610)
4" (102)
503/4"
(1289)
23"
(584)
237/8"
(606)
235/8"
(600)
191/2"
(495)
73/4"
(197)
237/8"(606)
HEIGHT DIMENSIONS ± 1/2"(13)
23/8"(60)

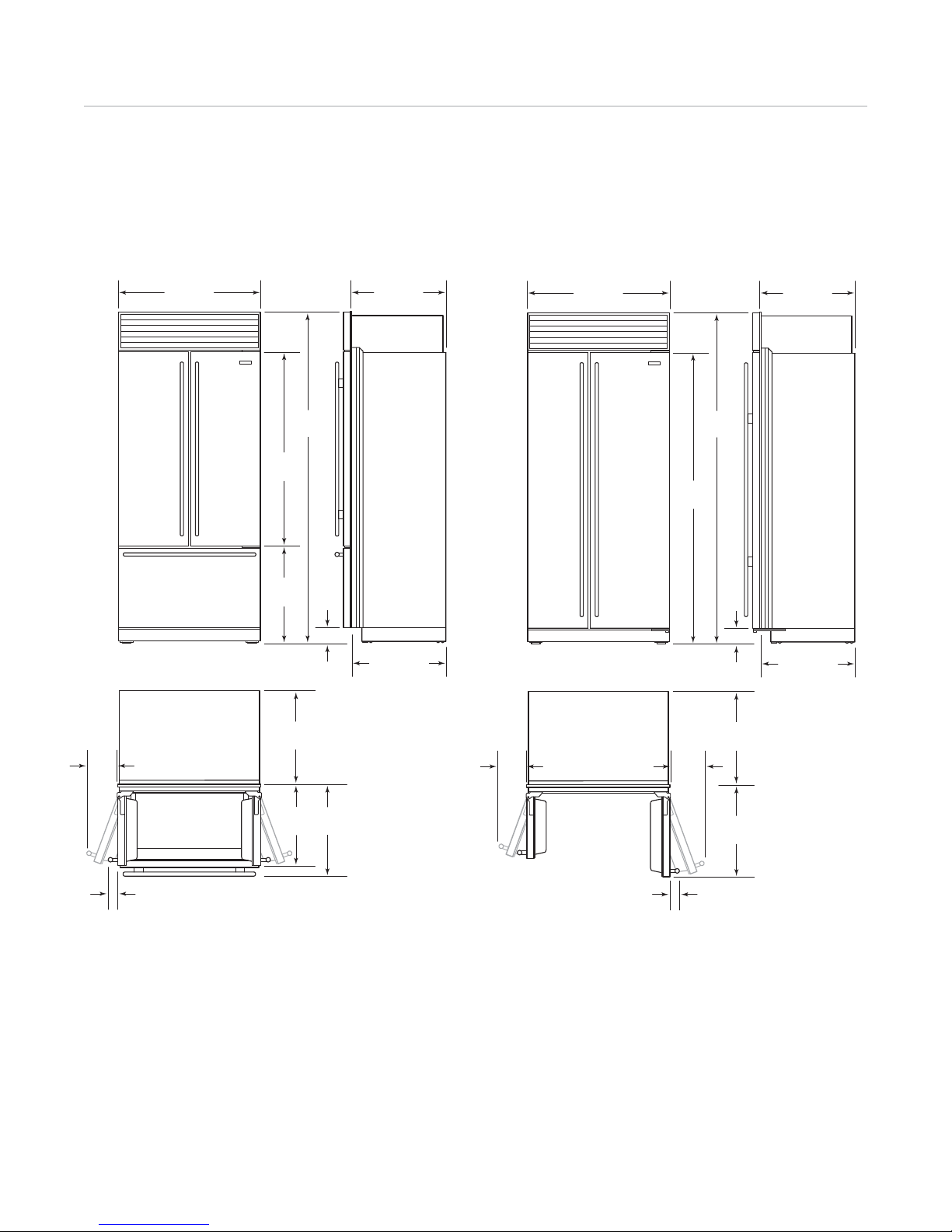

MODEL BI-36UFD

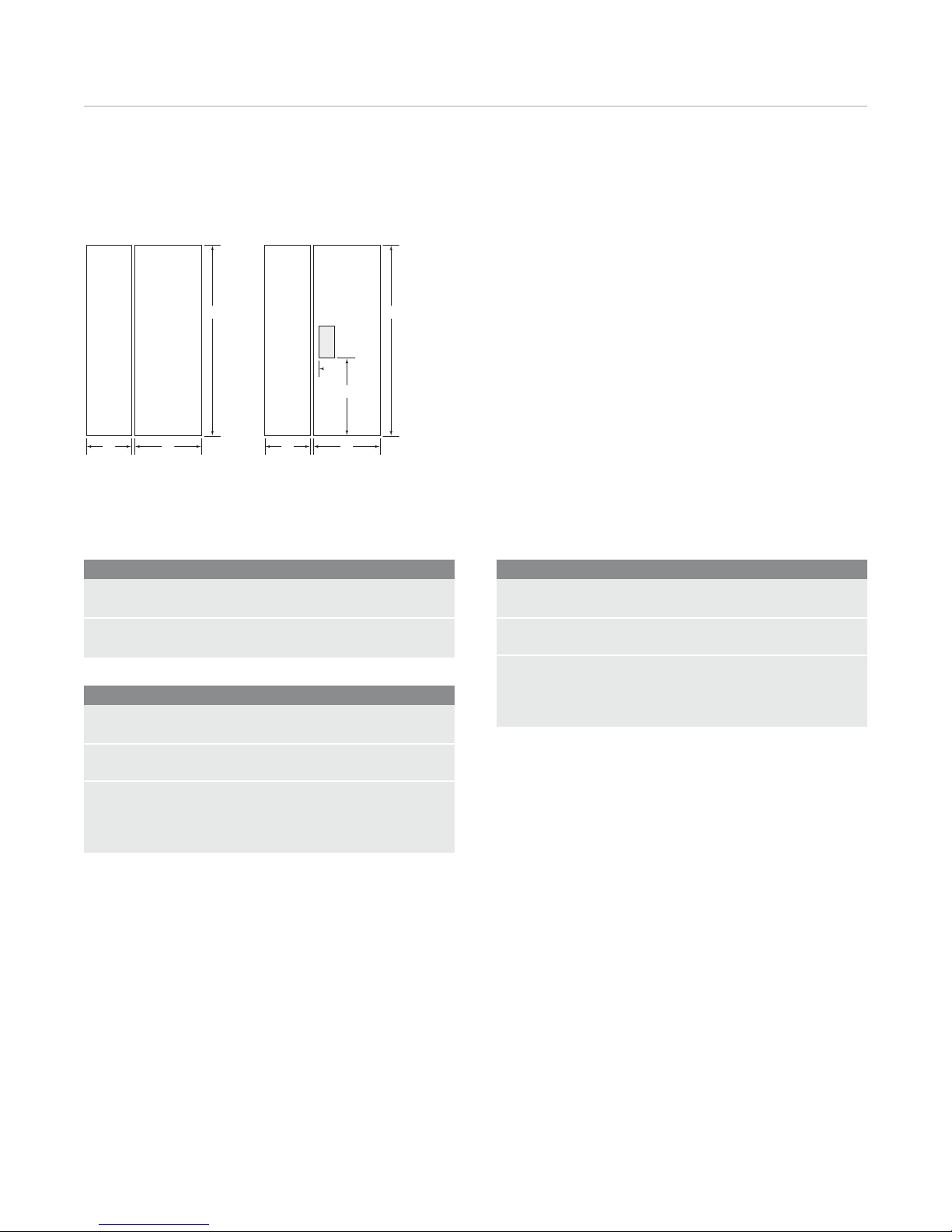

Side-by-Side Models
OVERALL DIMENSIONS

Built-In Refrigeration 9
subzero.com/specs
48" (1219)
84"
(2134)
24" (610)
4" (102)
733/4"
(1873)
237/8"(606)
237/8"
(606)
30"
(762)
14"
(356)
93/4"
(248)
23/8"(60)
HEIGHT DIMENSIONS ± 1/2"(13)
MODELS BI-48S, BI-48SID AND BI-48SD
42" (1067)
84"
(2134)
24" (610)
4" (102)
733/4"
(1873)
237/8"(606)
237/8"
(606)
261/4"
(668)
121/2"
(318)
83/4"
(222)
23/8"(60)
HEIGHT DIMENSIONS ± 1/2"(13)
MODELS BI-42S, BI-42SID AND BI-42SD
Side-by-Side Models
OVERALL DIMENSIONS

Built-In Refrigeration 10
Opening Width A
BI-36R, BI-36RG and BI-36F 351/2"(902)
BI-30U and BI-30UG 291/2"(746)
BI-36U, BI-36UG and BI-36UFD 351/2"(902)
BI-36S 351/2"(902)
BI-42S, BI-42SID and BI-42SD 411/2"(1054)
BI-48S, BI-48SID and BI-48SD 471/2"(1206)
24" (610)
OPENING
DEPTH
FRONT VIEWSIDE VIEW
TOP VIEW
A
OPENING WIDTH
24" (610)
OPENING DEPTH
833/4"
(2127)
OPENING
HEIGHT
Built-In Models
STANDARD INSTALLATION IMPORTANT NOTE: If an 83" (2108) grille height is specified,
the opening height must be decreased by 7/8"(22).Ifan88"
(2235) grille height is specified, the opening height increases
by 4" (102).
If two units are installed side by side, refer to pages 30–31 for
dual standard installations.

Built-In Refrigeration 11
subzero.com/specs
Electrical Requirements
Power Supply 115 V AC, 60 Hz
Circuit Breaker 15 amp
Receptacle 3-prong grounding-type
3" (76)
18" (457)
FRONT VIEW
FLOOR
6"
(152)
Location of water supply—
rear.
Location of water supply—
bottom.
TOP VIEW
BACK WALL
1
/ 2 "
(13)
18" (457)
6"
(152)
FRONT VIEW
751/2"
(1918)
FROM
FLOOR
7"
(178) E
6"
(152)
Location of electrical supply.
Planning Information
ELECTRICAL REQUIREMENTS
For all built-in models, the electrical supply should be
located within the shaded area shown in the illustration.
Follow the National Electrical Code and local codes and
ordinances when installing the receptacle. A separate
circuit servicing only this appliance is required. A ground
fault circuit interrupter (GFCI) is not recommended and
may cause interruption of operation.
PLUMBING REQUIREMENTS
All built-in models with an automatic ice maker feature a
water filtration system. The water supply line should be
located within the shaded area shown in the illustrations.
The water supply line should be connected to the house
supply with an easily accessible shut-off valve between
the supply and the unit. Do not use self-piercing valves.
A saddle valve kit is available through your authorized
Sub-Zero dealer. The water line must not interfere with
installation of the anti-tip brackets.
IMPORTANT NOTE: A reverse osmosis system can be
used provided there is constant water pressure of 35 psi
(2.4 bar) to 120 psi (8.3 bar) supplied to the unit at all times.
In this application, the water filtration system must be set
to bypass mode. This is achieved by removing the water
filter cartridge. Refer to the built-in installation guide
packed with the unit for detailed instructions. A copper
line is not recommended for this application.
Plumbing Requirements
Water Supply Line 1/4" OD copper, braided stainless steel
or PEX tubing
Water Pressure 35–120 psi (2.4–8.3 bar)
Excess Water Line for Connection 36" (914)

Built-In Refrigeration 12
Framed Application
IMPORTANT NOTE: The framed application is not a
separate model. This is an overlay unit in a framed appli-
cation.
The framed panel design option is available for all built-in
overlay models. You must specify panels, full-length
handles and a framed grille insert to achieve the traditional
framed look. For exact door panel dimensions refer to
framed panel specifications on the following pages. Also
refer to the full-scale templates at the end of this section
for additional panel and handle considerations.
Optional extended full-length handles that provide addi-
tional finger clearance for raised panels are available
through your authorized Sub-Zero dealer.

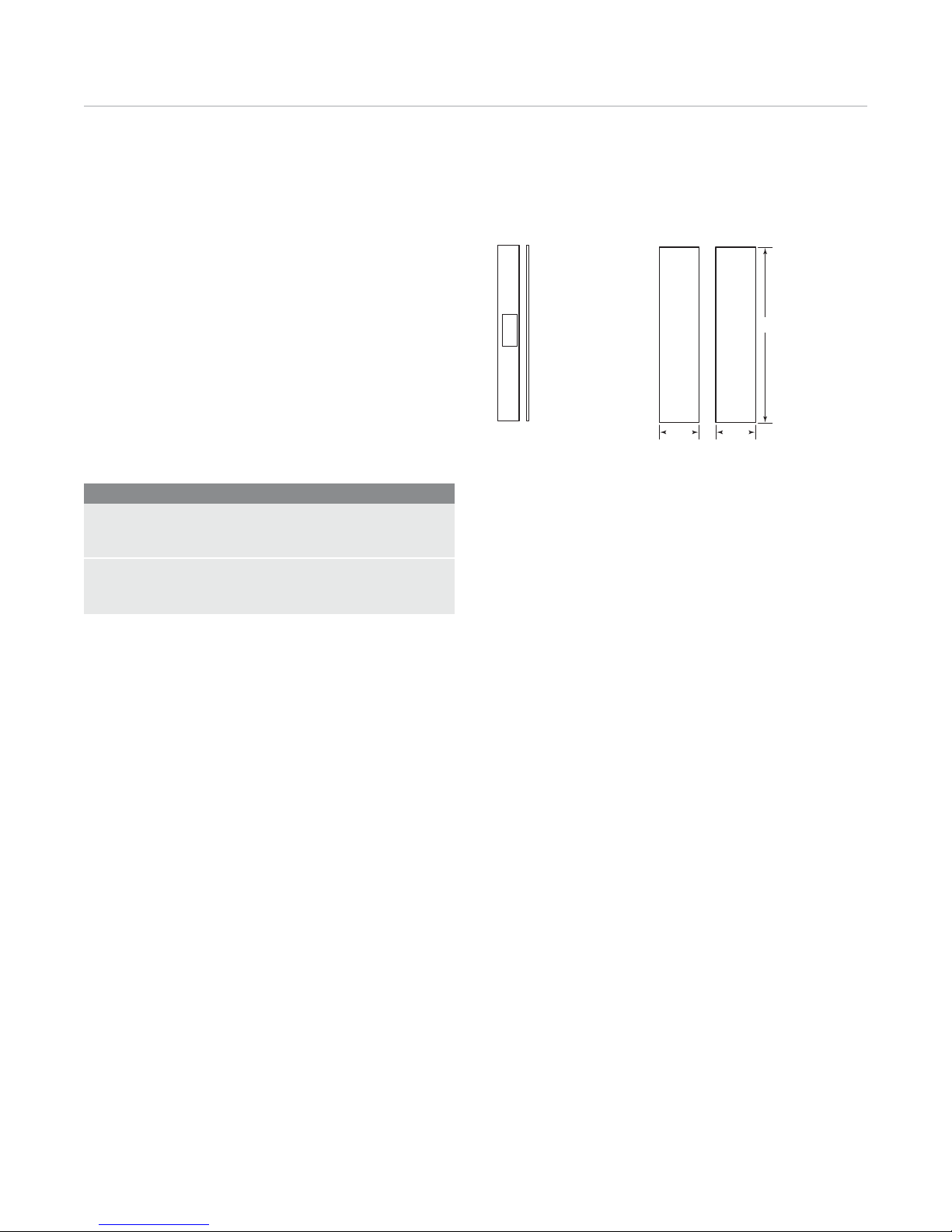

Framed Panel Requirements
MAX WEIGHT PER PANEL
BI-36R, BI-36RG and BI-36F 75 lbs (34 kg)
All Other Framed Panels 50 lbs (23 kg)
MIN PANEL THICKNESS
All Framed Panels 1/4"(6)

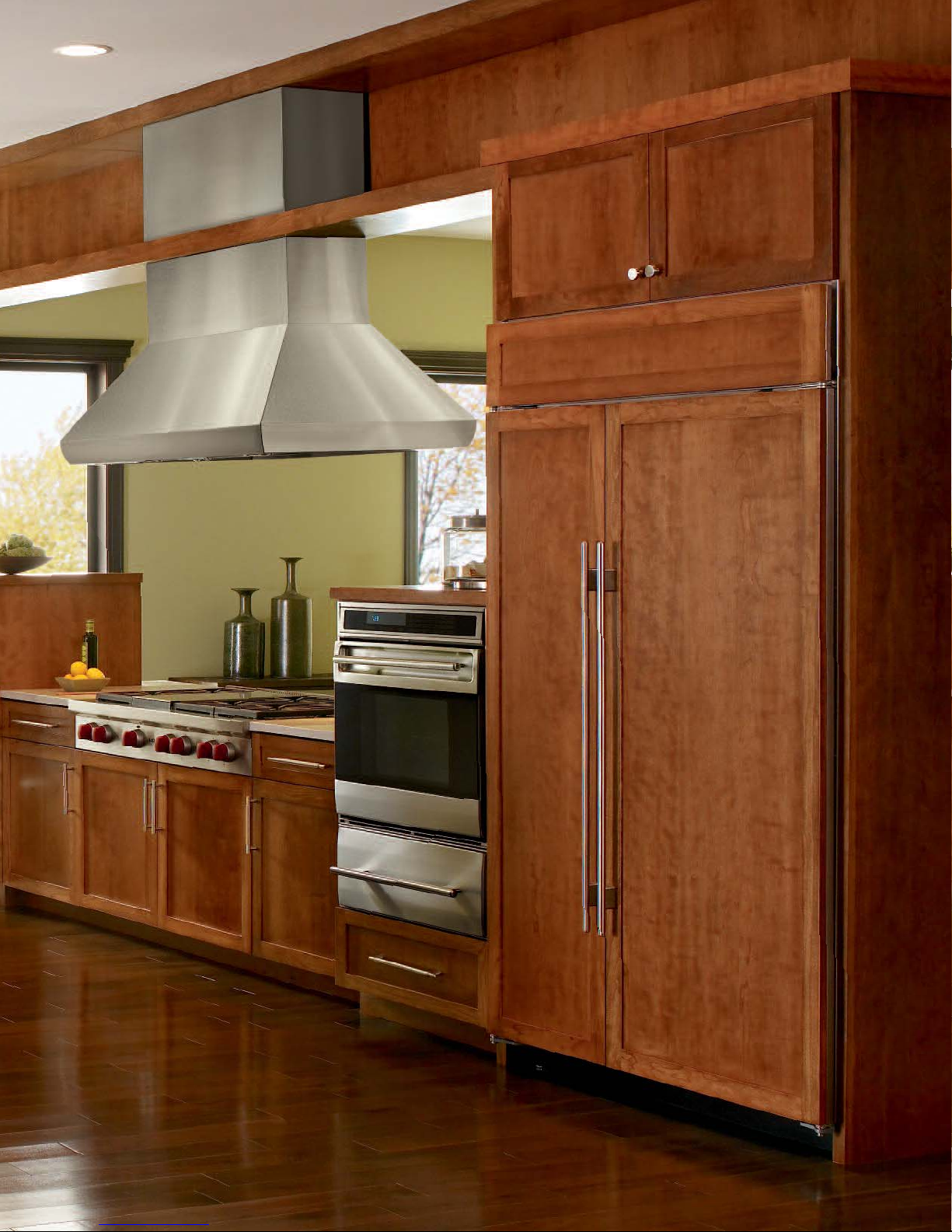

Custom cabinetry panels slide into the door to blend into the
kitchen design. Shown with full-length handle and louvered
grille option for the traditional Sub-Zero look.

Built-In Refrigeration 13
subzero.com/specs
Framed Panels

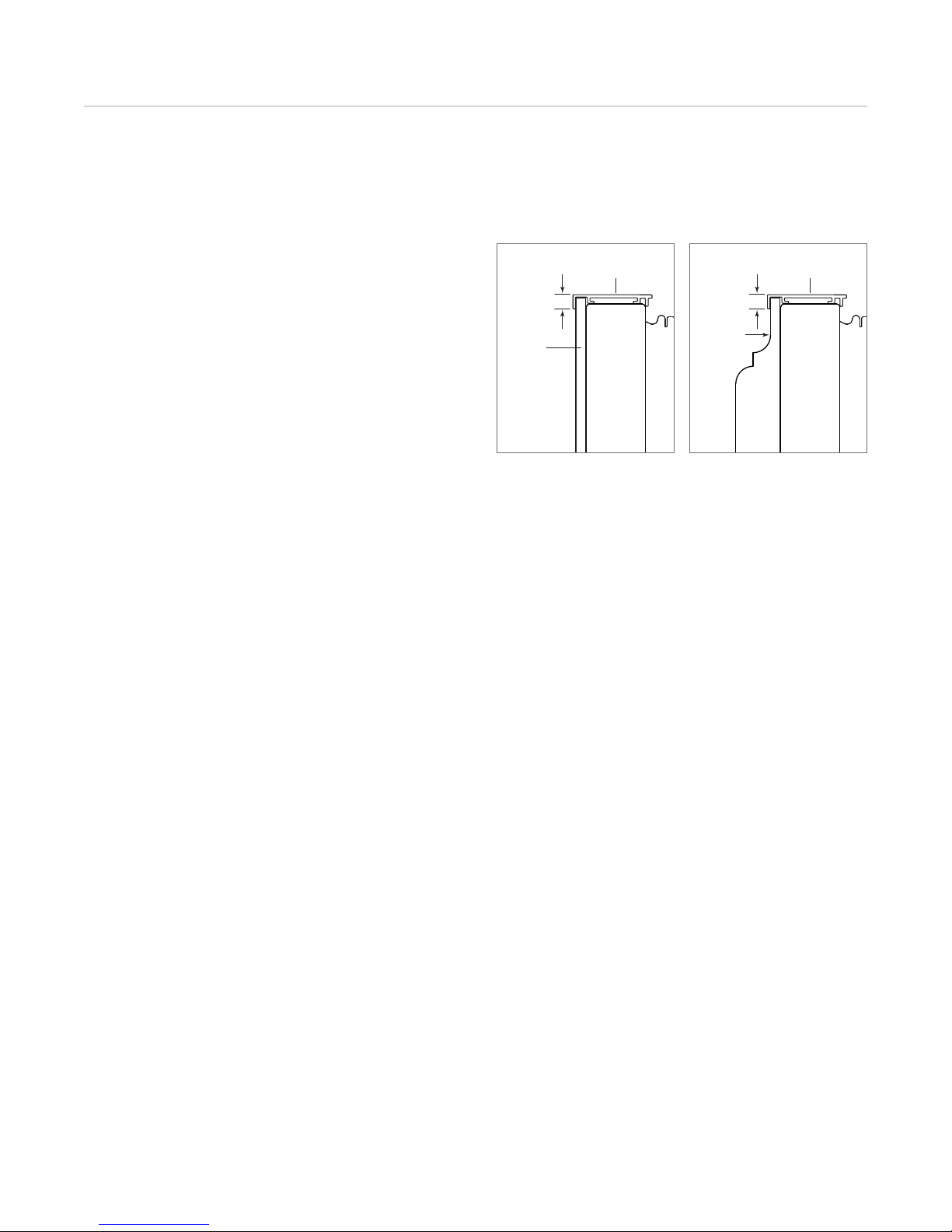

If the thickness of the custom panels is less than 1/4"(6),
they must be backed up with a sheet of shim material to
build the total thickness to 1/4"(6). If the panel is thicker
than 1/4"(6), a routed edge must be provided around the
panel to ensure a proper fit. Refer to the illustrations.
IMPORTANT NOTE: For framed design applications,
routing, recessing or optional extended handles may be
required on raised panels for finger clearance under the
handle. Refer to the full-scale templates at the end of this
section.

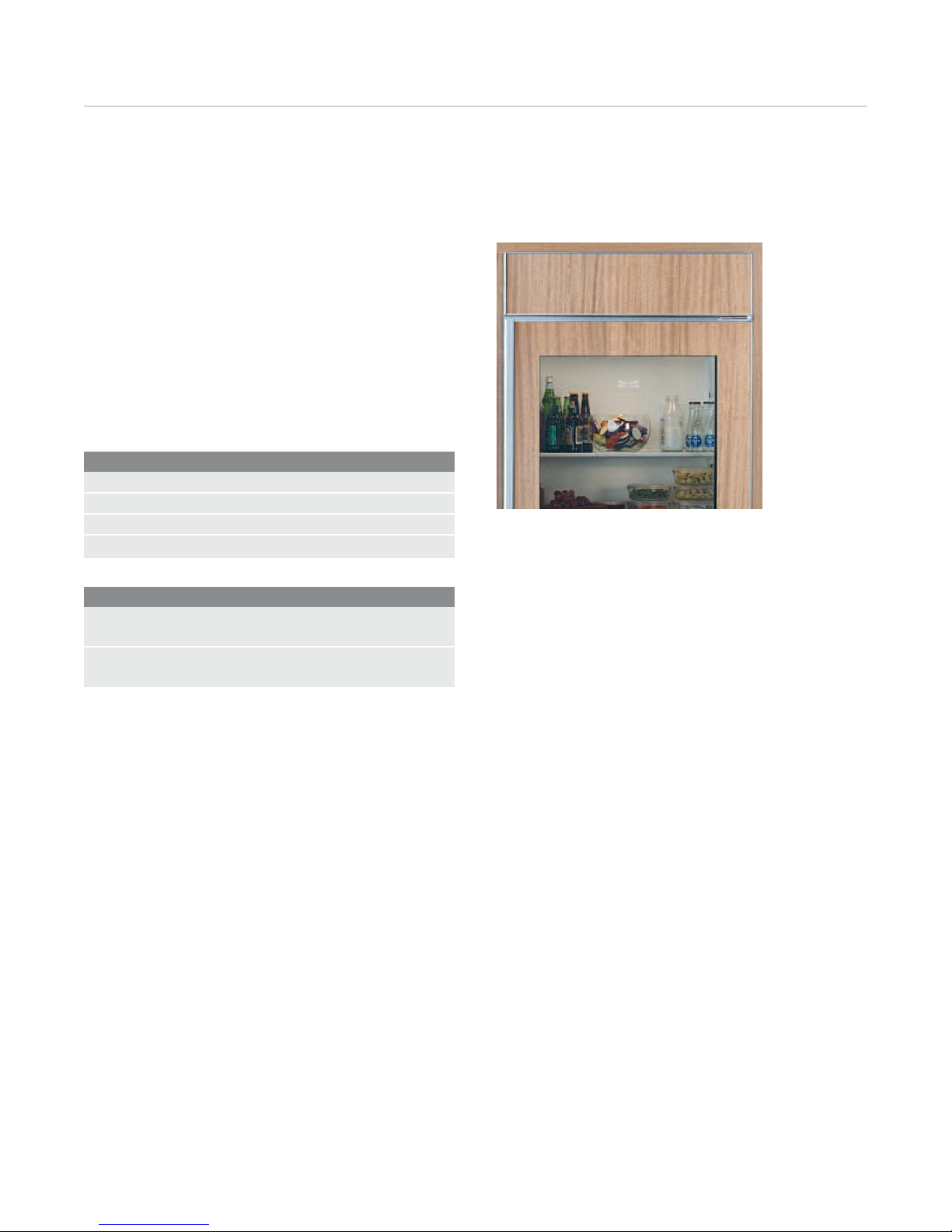

IMPORTANT NOTE: Do not cover a glass door with a solid
panel. Also, the edges of the window cut-out will need to
be finished, as they will be exposed.
IMPORTANT NOTE: When installing two units in a side-by-
side application, refer to pages 30–31 for dual standard
installations. Be aware that rough opening dimensions are
different for this application.
1/4"(6)
PA N E L
TRIM
REVEAL
1/4"(6) min
DOOR
MAIN FRAME
Panels 1/4"(6) thick or less. Panels thicker than 1/4"(6).
TRIM
REVEAL
1/4"(6) min
ROUT TO
1/4"(6) DOOR
MAIN FRAME

Built-In Refrigeration 14
Models BI-30U and BI-30UG
REFRIGERATOR W H
Door Panel 293/4"(756) 4915/16"(1268)
FREEZER W H
Drawer Panel 293/4"(756) 1811/16"(475)
BI-30UG W H
Window Cut-Out 191/2"(495) 3911/16"(1008)
A
Cut-Out Location 53/16"(132)
Models BI-36U and BI-36UG
REFRIGERATOR W H
Door Panel 353/4"(908) 4915/16"(1268)
FREEZER W H
Drawer Panel 353/4"(908) 1811/16"(475)
BI-36UG W H
Window Cut-Out 251/2"(648) 3911/16"(1008)
A
Cut-Out Location 53/16"(132)
Models BI-36R, BI-36RG and BI-36F
REFRIGERATOR/FREEZER W H
Door Panel 353/4"(908) 699/16"(1767)
BI-36RG W H
Window Cut-Out 251/2"(648) 541/16"(1373)
AB
Cut-Out Location 53/16"(132) 105/16"(262)
Framed Panels
BI-36R / BI-36F BI-36RG BI-30U / BI-36U BI-30UG / BI-36UG
H
W
H
H
W
Model BI-36UFD
REFRIGERATOR (2 PANELS) W H
Door Panels 175/8"(448) 4915/16"(1268)
FREEZER W H
Drawer Panel 353/4"(908) 1811/16"(475)
H
W
AA
A
B
H
H
W
AA
A
A
H
H
W
W W
BI-36UFD

Built-In Refrigeration 15
subzero.com/specs
For models BI-42SD and BI-48SD, panel thickness in the
dispenser area can range from 1/4"(6) to a maximum of
11/8"(29). If the panel is thicker, you must rout out a minimum
1/4"(6) flat landing area to accommodate the glasswell bezel.
Model BI-36S
REFRIGERATOR W H
Door Panel 1913/16"(503) 699/16"(1767)
FREEZER W H
Door Panel 157/16"(392) 699/16"(1767)
Models BI-42S, BI-42SID and BI-42SD
REFRIGERATOR W H
Door Panel 2413/16"(630) 699/16"(1767)
FREEZER W H
Door Panel 167/16"(418) 699/16"(1767)
BI-42SD W H
Dispenser Cut-Out 57/8"(149) 127/16"(316)
AB
Cut-Out Location 17/8"(48) 283/4"(730)
Models BI-48S, BI-48SID and BI-48SD
REFRIGERATOR W H
Door Panel 281/2"(724) 699/16"(1767)
FREEZER W H
Door Panel 183/4"(476) 699/16"(1767)
BI-48SD W H
Dispenser Cut-Out 57/8"(149) 127/16"(316)
AB
Cut-Out Location 17/8"(48) 283/4"(730)
Framed Panels
BI-36S / BI-42S / BI-42SID
BI-48S / BI-48SID
BI-42SD / BI-48SD
H
WW
H
WW
B
A

Built-In Refrigeration 16
Optional grille panel.
Framed Application
OPTIONAL GRILLE PANEL
A panel grille, providing an 84" (2134) finished height, is
standard on overlay models. Optional panel grilles are
available for 83" (2108) and 88" (2235) finished heights.
Grille panel dimensions listed are for a standard 84" (2134)
finished height. For an 83" (2108) finished height, subtract
1" (25) from grille panel height dimensions. For an 88"
(2235) finished height, add 4" (102) to height dimensions.
Optional Grille Panel W H
30" (762) Models 293/4"(756) 815/16"(227)
36" (914) Models 353/4"(908) 815/16"(227)
42" (1067) Models 413/4"(1060) 815/16"(227)
48" (1219) Models 473/4"(1213) 815/16"(227)
Grille Panel Requirements
MAX WEIGHT
Grille Panel 13 lbs (6 kg)
MIN PANEL THICKNESS
Grille Panel 1/4"(6)

Built-In Refrigeration 17
subzero.com/specs
Framed Application
PARTIAL FRAMED OPTION
If you choose not to use custom panels above and below
the glasswell for dispenser model BI-42SD or BI-48SD,
a stainless steel insert panel is available as a sales acces-
sory. This accessory kit includes partial framed molding
and stainless steel panel to provide a spill-resistant finish
above and below the glasswell on the refrigerator door
only. The partial framed accessory kit is available through
your authorized Sub-Zero dealer. Refer to panel dimen-
sions for the partial framed option below.
Optional Partial Framed Panels
BI-42SD W H
Refrigerator Panel 151/16"(383) 699/16"(1767)
Freezer Panel 167/16"(418) 699/16"(1767)
BI-48SD W H
Refrigerator Panel 183/4"(476) 699/16"(1767)
Freezer Panel 183/4"(476) 699/16"(1767)
WW
H
BI-42SD / BI-48SD
Partial framed option.
Partial framed kit.

Built-In Refrigeration 18
Overlay Panels
If you and your client have ordered an overlay model, you
will be adding panels and handles to give the unit a more
custom look. The overlay panel design option is available
for all built-in overlay models. For exact door panel dimen-
sions, refer to overlay panel specifications on the following
pages.
IMPORTANT NOTE: Overlay models can be used in an
overlay or a flush inset application. Be aware that the
application specified will affect panel sizes, rough opening
dimensions and installation.
The overlay design allows decorative panels to cover the
door trim for a more seamless appearance that blends
with the design of the room. The most common way to
achieve this look is to work with three panels—the decora-
tive overlay panel, which is typically 3/4"(19), a .10" (3)
spacer panel and a 1/4"(6) backer panel. Depending on
your cabinet manufacturer, this could also be one panel
routed for different dimensions.
Regardless of the physical construction of the panels
(three-panel assembly or routed panel), you will need to
follow the overlay panel specifications on the following
pages for exact sizing and panel placement to ensure a
proper fit.
Custom cabinet overlay panels can be combined with unique
hardware for design flexibility. Shown with pro handle option
to complement Wolf ranges and rangetops.
Overlay Panel Requirements
MAX WEIGHT PER PANEL
BI-36R, BI-36RG and BI-36F 75 lbs (34 kg)
All Other Overlay Models 50 lbs (23 kg)
Grille Panel 13 lbs (6 kg)
MIN PANEL THICKNESS
All Overlay Panels 5/8"(16)

Built-In Refrigeration 19
subzero.com/specs
Overlay Panels

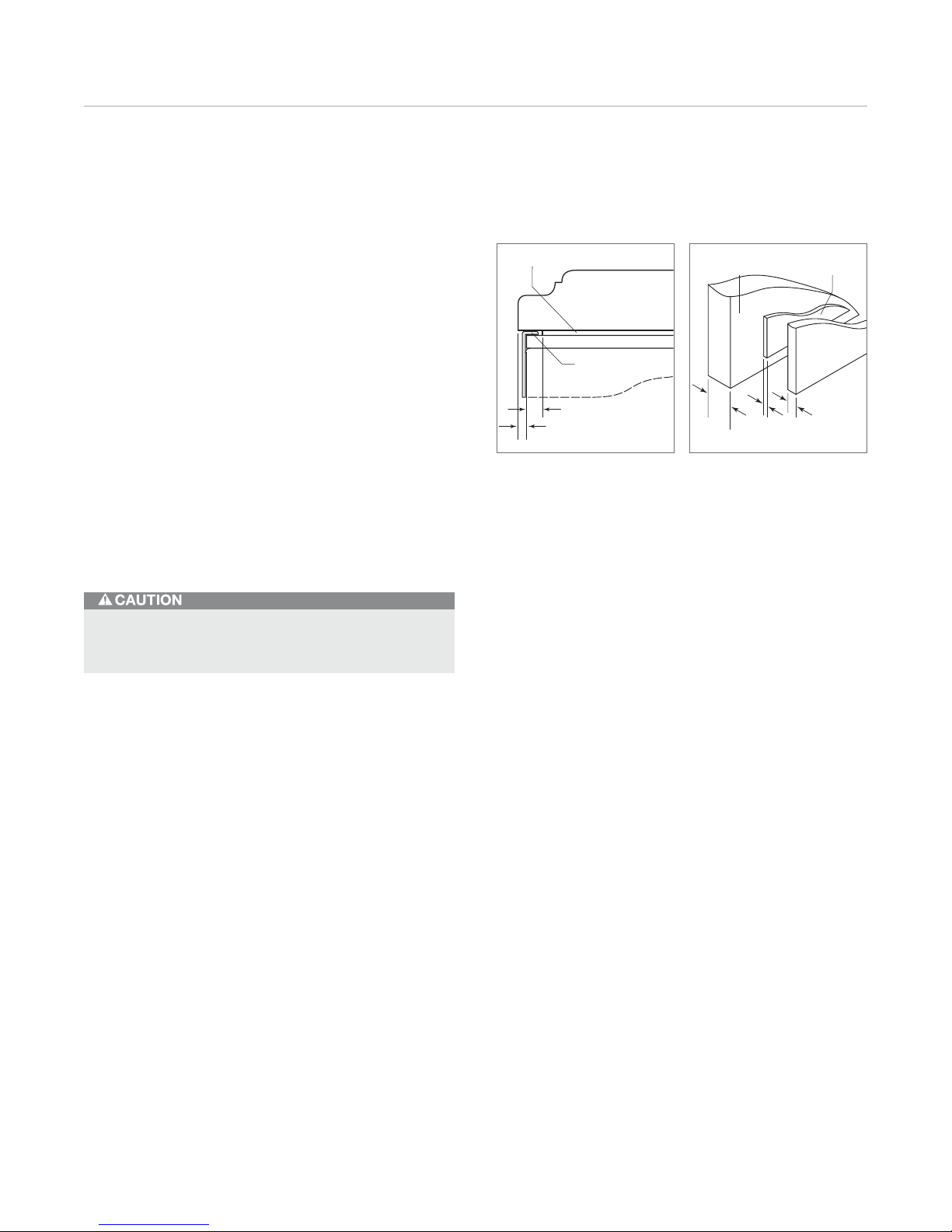

The illustrations provide a cross section view of the three-
panel assembly, showing placement of the trim and a rear
view of the three-panel assembly with critical dimensions,
standard for all built-in models.
Overlay grille panels for the panel grille match the design
of the overlay door panels. Dimensions for the grille panel
are listed in the overlay panel specifications on the follow-
ing pages.
IMPORTANT NOTE: On glass door models, the edges of
the overlay, spacer and backer panels of the window
cut-out will need to be finished, as they will be exposed.
IMPORTANT NOTE: When installing two units in a side-by-
side application, refer to pages 30–31 for dual standard
installations. Be aware that rough opening dimensions are
different for this application.
1/8"
(3)
OVERLAY PANEL
SPACER PANEL
BACKER PANEL
TRIM
5/16"(8) min
Panel assembly cross section. Panel assembly rear view.
1/4"(6)
.10" (3)
OVERLAY
PANEL
SPACER
PANEL
BACKER
PANEL
3/4"
(19)
typical
Do not exceed overlay panel dimensions, as this could
cause damage to panels and the Sub-Zero unit.

Built-In Refrigeration 20
Overlay Panels
BI-36R / BI-36F BI-36RG BI-30U / BI-36U BI-30UG / BI-36UG
H
H
W
H
H
H
W
Models BI-30U and BI-30UG
REFRIGERATOR W H
Overlay Panel 30" (762) 501/8"(1273)
Spacer Panel 291/8"(740) 495/16"(1253)
Backer Panel 293/4"(756) 4915/16"(1268)
FREEZER W H
Overlay Panel 30" (762) 19" (483)
Spacer Panel 291/8"(740) 181/16"(459)
Backer Panel 293/4"(756) 1811/16"(475)
GRILLE W H
Overlay Panel 30" (762) 91/4"(235)*
Spacer Panel 291/8"(740) 85/16"(211)
Backer Panel 293/4"(756) 815/16"(227)
BI-30UG W H
Window Cut-Out 191/2"(495) 395/8"(1006)
A
Cut-Out Location 51/4"(133)
Models BI-36R, BI-36RG and BI-36F
REFRIGERATOR / FREEZER W H
Overlay Panel 36" (914) 693/4"(1772)
Spacer Panel 351/8"(892) 6815/16"(1751)
Backer Panel 353/4"(908) 699/16"(1767)
GRILLE W H
Overlay Panel 36" (914) 91/4"(235)*
Spacer Panel 351/8"(892) 85/16"(211)
Backer Panel 353/4"(908) 815/16"(227)
BI-36RG W H
Window Cut-Out 251/2"(648) 541/8"(1375)
AB
Cut-Out Location 51/4"(133) 103/8"(264)
Models BI-36U and BI-36UG
REFRIGERATOR W H
Overlay Panel 36" (914) 501/8"(1273)
Spacer Panel 351/8"(892) 495/16"(1253)
Backer Panel 353/4"(908) 4915/16"(1268)
FREEZER W H
Overlay Panel 36" (914) 19" (483)
Spacer Panel 351/8"(892) 181/16"(459)
Backer Panel 353/4"(908) 1811/16"(475)
GRILLE W H
Overlay Panel 36" (914) 91/4"(235)*
Spacer Panel 351/8"(892) 85/16"(211)
Backer Panel 353/4"(908) 815/16"(227)
BI-36UG W H
Window Cut-Out 251/2"(648) 395/8"(1006)
A
Cut-Out Location 51/4"(133)
H
H
W
AA
A
B
H
H
H
W
AA
A
A
H
H
H
W
W W
BI-36UFD
Model BI-36UFD
REFRIGERATOR (2 PANELS) W H
Overlay Panels 177/8"(454) 501/8"(1273)
Spacer Panels 17" (432) 495/16"(1253)
Backer Panels 175/8"(448) 4915/16"(1268)
FREEZER W H
Overlay Panel 36" (914) 19" (483)
Spacer Panel 351/8"(892) 181/16"(459)
Backer Panel 353/4"(908) 1811/16"(475)
GRILLE W H
Overlay Panel 36" (914) 91/4"(235)*
Spacer Panel 351/8"(892) 85/16"(211)
Backer Panel 353/4"(908) 815/16"(227)
