SUBITO ARGON 18 User manual

VALID FOR MY2021 VERSION-1-28-4-2020

VALID FOR MY2021 VERSION-1-28-4-2020

3
Table of contents
Tools Needed & First Aid Kit 4
Frameset Inspection 5
Troubleshooting / Tips / Specifications 6
Frameset SKUs and Descriptions 7-9
MAHLE ebikemotion SKUs and Descriptions — North America 9-10
MAHLE ebikemotion SKUs and Descriptions —EU 12-13
Seat Post Collar Assembly 14

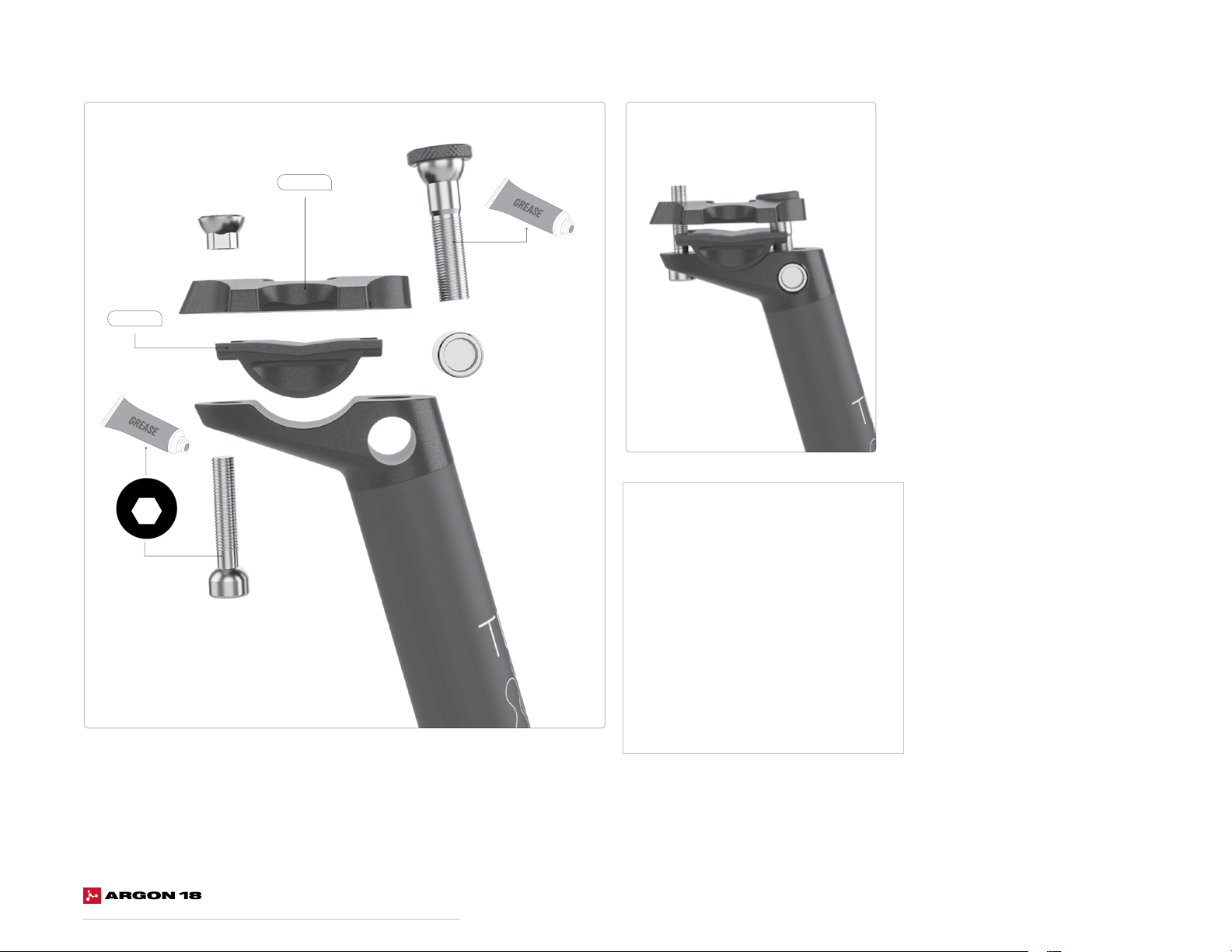

Seat Post Assembly 15
Rear Derailleur Hanger Adjustment 16
Front Derailleur Hanger Assembly 17
MAHLE eBikemotion Components Assembly 18-23
Cable and Housing Routing —Mechanical Shifting 24-28
Cable and Housing Routing —Mech. 1X Shifting 29-32
Cable and Housing Routing —Elec. Wire Routing 33-36
Cable and Housing Routing —Elec. Wireless Routing 37-40
Headset Installation 41
Rear Wheel Installation 42-45
Chain Catcher 46
Rear Rack and Fender Installation 47
Front Fender Installation 48
Range Extender and Water Bottle Position 49
Seat Post Minimum and Maximum Insertion 50
Additionnal Documentation 51
To maintain the validity of the warranty,
the bicycle must be fully assembled by
an authorized Argon 18 dealer. High-end
components, particularly carbon parts,
require extra care during assembly.
These components must be installed using
a torque wrench to ensure each bolt is at
the specified torque setting
to prevent damage.
Amp up your next adventure
My Subito
Date of Purchase:
Retailer:
Size:
Serial Number:
Hub Serial Number:

4SUBITO 314A / 314B: ASSEMBLY GUIDE

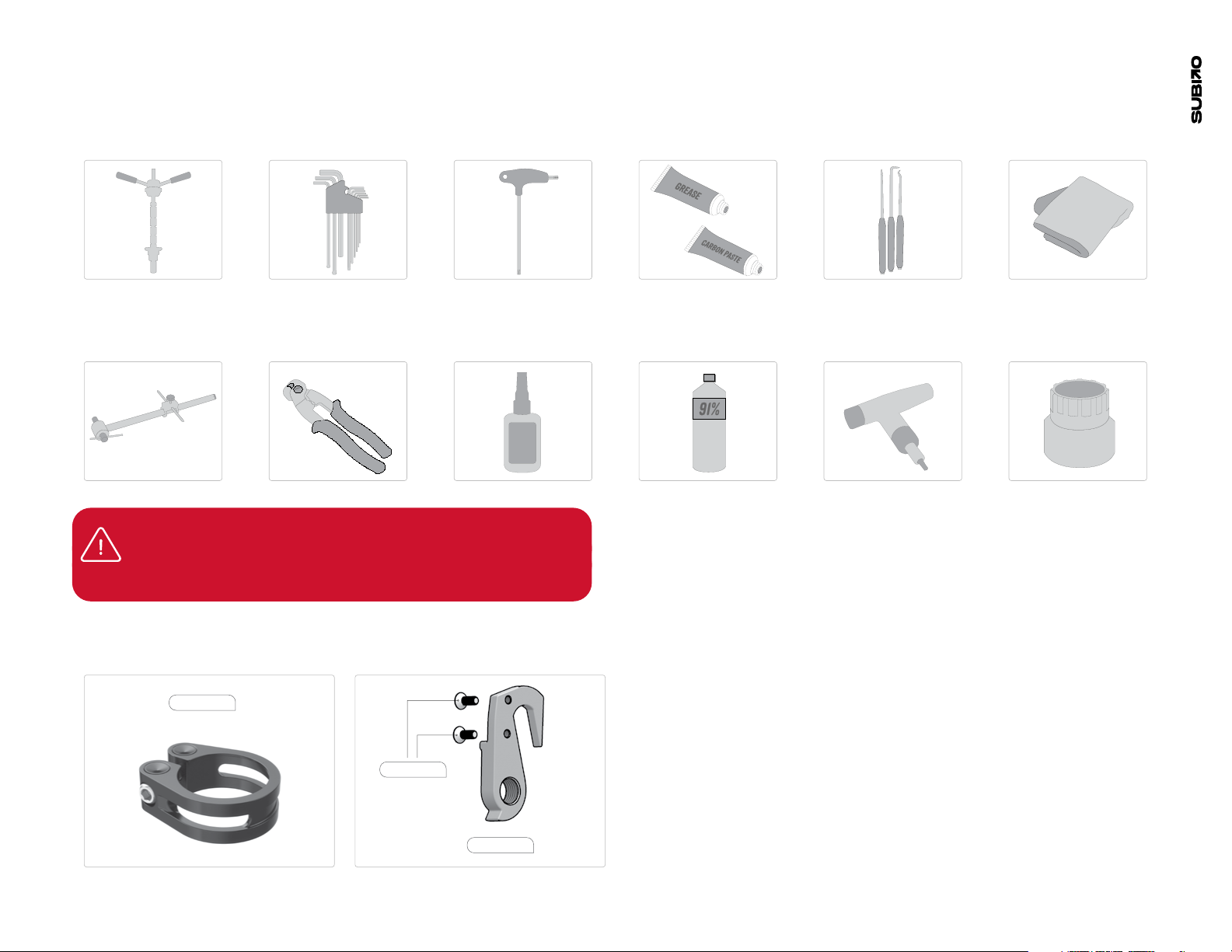

1. Tools Needed & First Aid Kit
1. Bearing Cup Press
1. Seat Post Clamp 2. Spare Rear Derailleur Hanger
2. Allen Key Set 3. Torx T25 Key 4. Carbon Paste
& Grease
5. Utility Picks 6. Clean Rag
IMPORTANT:
First Aid Kit: Essential parts to always have on hand
IN CASE OF EMERGENCY…THIS MIGHT SAVE YOUR RIDE!
7. Derailler Hanger
Alignement Gauge
8. Cables and
Housing Cutter
9. Thread Locker
Medium strength
10. Isopropyl Alcohol 11. Torque Wrench 12. Cassette Lockring
80801
81253
81235

5
2. Frameset Inspection
Before assembling your new Subito, please verify that you have all the following:
1. Frameset parts checklist (see p.7-9)
2. MAHLE ebikemotion® parts checklist (see p.10-13)
3. Inspect the frame for cosmetic defects (scratches, bumps, cracks,
paint defects, etc.)
4. For reference, record serial number on p.3
5. All the necessary bolts (refer to frameset parts, p.7-9)
6. For optimal shifting performance, use a derailleur alignment gauge to make sure
that the derailleur hanger is straight
No. A18 SKU# Function Description Screw Type Torque THREAD CONDITION Qty
1 80806* Chain Catcher Screw M5 x 25mm Screw Socket Head 3Nm Nylock 1
2 80248 FD Hanger Screw M5 x 16mm Screw Flat Head 3Nm Grease 2
3 80249 Water Bottle Screw M5 x 14mm Screw Button Head 3Nm Grease 4
4 81250 Battery Screw M5 x 10mm Screw Button Head 5Nm Dry 3
5 81251 BB Cover Screw M4 x 10mm Screw Button Head 2Nm Dry 2
6 81087 Headset Cap Screw M4 x 12mm Screw Flat Head 0.5-1.0Nm Dry 1
7 81252 Charger Connector Screw M3 x 10mm Screw Flat Head Hand Tight Dry 2
8 81252 Side Guide Screw M3 x 10mm Screw Flat Head Hand Tight Dry 1
9 81252 Cable Clip Screw M3 x 10mm Screw Flat Head Hand Tight Dry 1
10 81253 RD Hanger Screw M3 x 8mm Screw Flat Head 2Nm Dry 2
11 81254 PAS Sensor Screw M4 x 5mm Screw Set Screw Hand Tight Dry 1
12 81255 Rear Disc Screw M5 x 8mm Torx Screw Button Head 4Nm Thread-Locker 6
13 80801* Seat Post Collar Screw M5 x 22mm Screw Socket Head 4Nm Grease 1
14 SP.KRYCS.273B* Seat Post Rear Screw M6 x 28mm Screw - 9.5Nm Grease 1
15 81052 Front Thru Axle M12 x 1.5 Axle - 12Nm Grease 1
16 81228 Motor Lock Nut M12 x 1.5 Nut Rear Wheel Nut 35Nm Grease 2
17 81227 Magnet Lock Nut - Casette Lockring 40Nm Grease 1
* Included
IMPORTANT:
Some of the following parts are already assembled on the frame.
When assembling the bike, you will need to adjust these parts according
to their torque specifications and fastener conditions when necessary.

6SUBITO 314A / 314B: ASSEMBLY GUIDE
IMPORTANT:
No more than 30mm of spacers can be placed between the stem and the top
cap of the 3D system. The use of more than 5mm of spacers on top of the stem
could affect the eciency of the compressor. These practices will automatically
void any warranty claim against the manufacturer.
IMPORTANT:
The Ebikemotion system is shipped to retailers in Demo mode. When the bike is
sold, it must be taken out of Demo mode. Please see related documentation on
our B2B portal. Demo mode will allow for a maximum of 50km of riding, after
which the motor will stop working.
3. Troubleshooting / Tips / Specifications
Brakes
Use only flat mount disc brakes. The frame is compatible with
160/180mm disc rotors. The rear caliper installation does not require an adapter
for 160mm discs. Refer to 140mm disc rotor brake manufacturer's instructions.
Rear mount thickness: 30mm.
The fork is compatible with 140/160mm disc rotors. An adapter might be required
for front caliper installation. Consult brake manufacturer's instructions.
Tire Clearance
700c The largest tires that can be installed must be no wider than 40mm
for the front and rear wheels. If fenders are installed, the tires must
be no wider than 35mm.
650c The largest tires that can be installed must be no wider than 45mm
for the front and rear wheels. If fenders are installed, the tires must
be no wider than 40mm.
Seat Post
Ø 27.2mm
The saddle clamp is compatible with saddle rail up to 9 x 7mm.
Seat Post Collar
Ø 31.8mm
Bottom Bracket
BB86 (Press-fit)
Headset
Argon18 exclusive, FSA No 30 + 3D Press-fit
(Bearing 1 1/8”, 36° x 45° top and 1 1/2”, 36° x 45° Bottom
+ FSA TH-881-1 Compressor included)

7

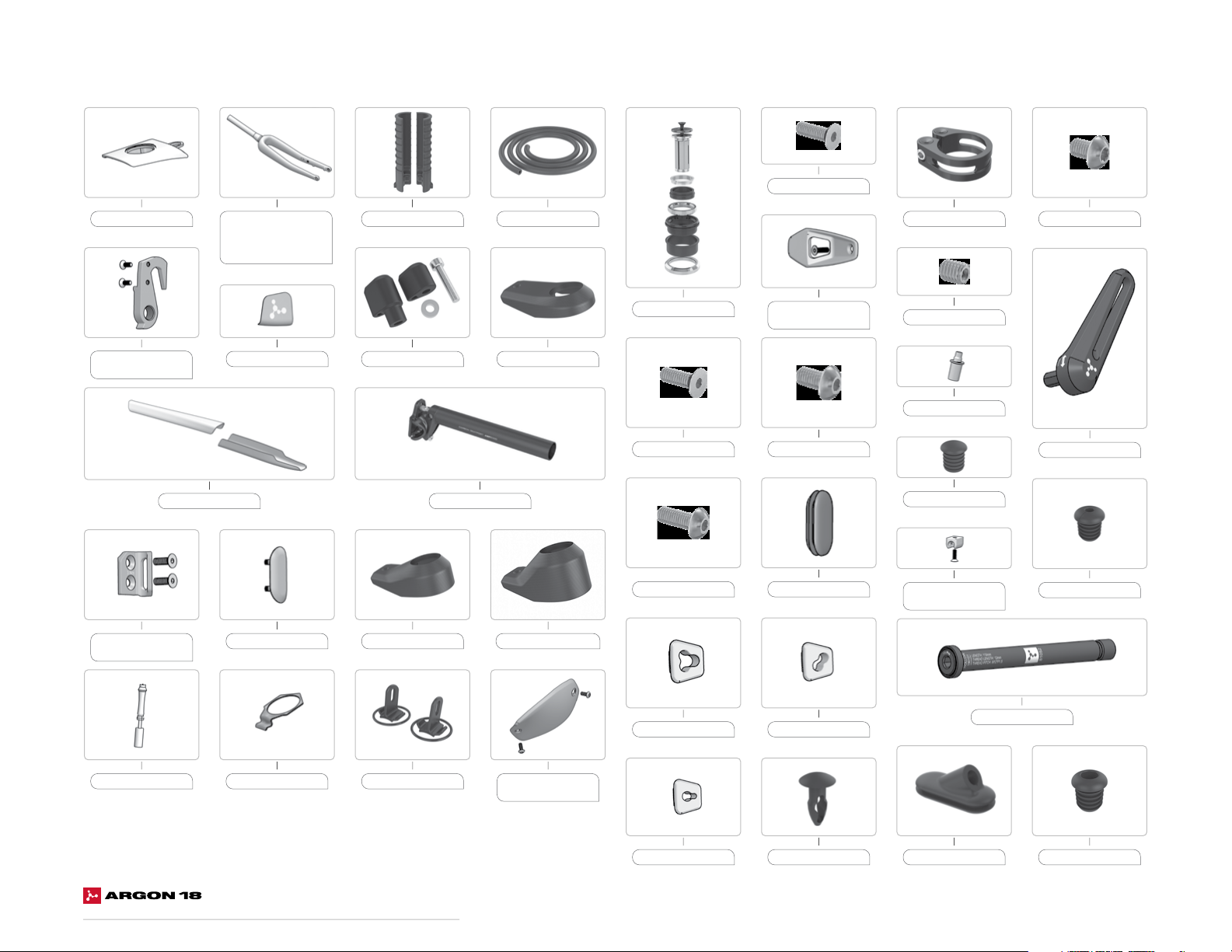

4.1 Frameset SKUs and Descriptions
81236
81258
81087
80801
81254
8080581239 &
81252 (screw)
80804
81242
80551
80249
81247
80988 80808
80771
38446
80806
81240 81260
81250
81255
80985
80826
8124681245
80264
81243 81241 &
81251 (screws)
80811
81244 &
81252 (screw)
8125681234
81045 SP.KRYCS.273B
81052
FK.SUBR.M-XL.314A
FK.SUBR.XXS-S.314A
FK.SUBG.M-XL.314B
FK.SUBG.XXS-S.314B
81054
81235 &
81253 (screws)
81238 &
81248 (screws)
81252

8SUBITO 314A / 314B: ASSEMBLY GUIDE
4.2 Frameset SKUs and Descriptions
No. Name A18 SKU# Qty
1 Subito Frame Not available as spare part. 1
2 Subito Fork (XSS/XS/S)
-OR-
Subito Fork (M/L/Xl)
FK.SUBR.XXS-S.314A
FK.SUBG.XXS-S.314B
FK.SUBR.M-XL.314A
FK.SUBG.M-XL.314B
1
3 Subito Seatpost (Same as Krypton CS) SP.KRYCS.273B 1
4 Seatpost Collar 31.8mm 80801 1
5 Rear Derailleur Hanger 81235 1
6 FD Hanger Removable 81238 1
7CS Wire Clip 81239 1
8 FD Plug 81240 1
9 BB Opening Cover 81241 1
10 FD Cable Stopper 81242 1
11 Button Cap Clip 81243 1
12 HT Side Guide 81244 1
13 Side Grommet 2X 81245 1
14 Side Grommet 1X 81246 1
15 Side Grommet Di2 81247 1
16 Chain Catcher (Incl. Small/Large, Washer and Screw) 80806 1
17 Plastic Plug M5 80264 6
18 Long Grommet Mechanical 80985 2
19 Long Plug Grommet 80804 3
20 Long Grommet Di2 80805 2
21 Rear Brake Oblong Cable Guide 80551 1
22 Oblong Plug 80826 1
23 Foam Liner 80811 3
24 Headset No.30 + 3D Assembly, with Compressor Th-881-1, Headset Assembly 80771 1
25 A18 Front Thru Axle M12 x 1.5 x 119 81052 1
26 A18 Thru Axle Lever 81054 1
27 Fender Bracket 80808 1
28 Battery Holder 38446 1

9
No. Name A18 SKU# Qty
29 FD Hanger Screw 81248 2
30 Water Bottle Screw 81249 4
31 Battery Screw 81250 3
32 BB Cover Screw 81251 2
33 Headset Cap Screw 81087 1
34 Charger Connector Screw, Side Guide Screw and Cable Clip Screw 81252 4
35 RD Hanger Screw 81253 2
36 PAS Sensor Screw 81254 1
37 Rear Disc Screw 81255 6
38 Subito Headset Cap 0mm 81256 1
39 Subito Headset Cap 15mm 81258 1
40 Subito Headset Cap 30mm 81260 1
41 Subito Road Top Tube Button Cap 81236 1
42 Dirt Guard Kit, Two Parts 80988 1
43 CS Protector (Same as Dark Matter, Refer to Subito Installation Instructions) 81045 1
44 Chainsuck Guard 81234 1
4.3 Frameset SKUs and Descriptions

10 SUBITO 314A / 314B: ASSEMBLY GUIDE
5.1. MAHLE ebikemotion SKUs and Descriptions – North America
North American Version North American Version
81217
Available Separately
81184 (314A) 700C
81192 (314B) 650B
*81223* N/A
81183 (314A) 700C
81185 (314B) 650B
81227
81228
81226
81219
81223
81232
81230
8122981218
81225
81231
81220
North American Version

11
5.2.MAHLE ebikemotion SKUsand Descriptions – North America
No. Name A18 SKU# Qty
Parts included in the frameset
1 Rear Wheel Road – North America (for 314A)
-OR-
Rear Wheel Gravel – North America (for 314B)
81184
-OR-
81192
1
2 Front Wheel Road – North America (for 314A)
-OR-
Front Wheel Gravel – North America (for 314B)
81183
-OR-
81185
1
3 KIT X35 – C – One Flat – North America 81217 1
3.1 X35 B1-C Battery – 6.9A 81218 1
3.2 Drive Unit-M1-C – North America (*Already Included in the Rear Wheel) 81225 1
3.3 Torque Washer Nut 81229 2
3.4 Motor Lock Nut 81228 2
3.5 Shield M1 81230 1
3.6 Freewheel Nut 81226 1
3.7 One Remote 81231 1
3.8 Charging Point – ROUND CONN. 81220 1
3.9 PAS Sensor B – ROUND CONN. 81232 1
3.10 Magnet Lock Nut 81227 1
3.11 Charger-C (Without Wire) 81219 1
3.12 Charger Wire for North America 81223 1
Optional parts that can be ordered separately
- External Battery SP1 + Holder 81223 1
- Light Wire – eBikeMotion X35 N/A 1
-PCAN USB Adaptor 81282 1
-Diagnosis Wire 81283 1

12 SUBITO 314A / 314B: ASSEMBLY GUIDE
6.1. MAHLE ebikemotion SKUs and Descriptions – EU
European Version
Available Separately
81187 (314A) 700C
81189 (314B) 650B
*81223* N/A
81186(314A) 700C
81188 (314B) 650B
81227
81228
81226
81219
81222
81221
81232
81230
8122981218
81224
81231
81220
European Version
European Version
81216

13
6.2.MAHLE ebikemotion Parts and Descriptions — EU
No. Name A18 SKU# Qty
Parts included in the frameset
1 Rear Wheel Road – EU (for 314A)
-OR-
Rear Wheel Gravel – EU (for 314B)
81187
-OR-
81189
1
2 Front Wheel Road – EU (for 314A)
-OR-
Front Wheel Gravel – EU (for 314B)
81186
-OR-
81188
1
3 KIT X35 – C – One Flat – EU 81216 1
3.1 X35 B1-C Battery - 6.9A 81218 1
3.2 Drive unit-M1-C – EU (*Already Included in the Rear Wheel) 81224 1
3.3 Torque Washer Nut 81229 2
3.4 Motor Lock Nut 81228 2
3.5 Shield M1 81230 1
3.6 Freewheel Nut 81226 1
3.7 One Remote 81231 1
3.8 Charging Point – ROUND CONN. 81220 1
3.9 PAS Sensor B – ROUND CONN. 81232 1
3.10 Magnet Lock Nut 81227 1
3.11 Charger-C (Without Wire) 81219 1
3.12 Charger Wire for Europe 81221 1
3.13 Charger Wire for United Kingdom 81222 1
Optional parts that can be ordered separately
- External Battery SP1 + Holder 81223 1
- Ligth Wire – eBikeMotion X35 N/A 1
-PCAN USB Adaptor 81282 1
-Diagnosis Wire 81283 1

14 SUBITO 314A / 314B: ASSEMBLY GUIDE
7. Seat Post Collar Assembly
1. Assemble the seat post collar
(SKU: 80801) on the frame.
2. Apply grease on the thread
of the M5 x 22mm bolt.
3. Apply carbon paste on the inside
of the frame (seat tube).
4. Insert the seat post
(SKU: SP.KRYCS.273B)
to the desired height.
5. Tighten the M5 x 22mm
bolt to 4Nm.
80801
SP.KRYCS.273B
M5 x 22mm
4
4Nm
4
3Nm
3Nm
2
2Nm
3
3Nm
5
9.5Nm
4
5Nm
2
HT
8
12Nm
8
35Nm
2.5
2Nm
2
0.5-1Nm
40Nm
4Nm
T25
T25
IMPORTANT:
Refer to p.50 for seat post MIN and MAX insertion limits.

15
8. Seat Post Assembly
b
a
4
4Nm
4
3Nm
3Nm
2
2Nm
3
3Nm
5
9.5Nm
4
5Nm
2
HT
8
12Nm
8
35Nm
2.5
2Nm
2
0.5-1Nm
40Nm
4Nm
T25
T25
The seat post is supplied fully assembled.
1. Unscrew both bolts slightly until the
top clamp (a) and the cradle (b) are
separated enough to insert the saddle
rail. Do not unscrew the bolts
completely.
2. Apply grease on the thread
of each bolt.
3. Screw both bolts in order
to adjust the angle of the saddle
and clamp the rail.
4. Tighten the rear bolt to 9.5Nm.

16 SUBITO 314A / 314B: ASSEMBLY GUIDE
9. Rear Derailleur Hanger Adjustment
1. Assemble the rear derailleur
hanger (SKU: 81235) on the frame
with the two bolts (Flat head cap
screw M3 x 8mm SKU: 81253).
2. Tighten bolts to 2Nm, do not apply
grease on the thread.
3. Use a rear derailleur hanger
alignment gauge to align the
rear derailleur hanger.
For assistance, visit Park Tool’s
website at:
https://www.parktool.com/blog/repair-help/
rear-derailleur-hanger-alignment
81253
M3 x 8mm
81235
4
4Nm
4
3Nm
3Nm
2
2Nm
3
3Nm
5
9.5Nm
4
5Nm
2
HT
8
12Nm
8
35Nm
2.5
2Nm
2
0.5-1Nm
40Nm
4Nm
T25
T25

17
1. Apply grease on the thread
of both M5 x 16mm bolts (SKU: 81248).
2. Assemble the front derailleur hanger (SKU: 81238) on the frame with
the two bolts.
3. Tighten bolts to 3Nm.
Using a Single Chainring Set-Up:
1. Install the FD plug (SKU: 81240) to cover the hole.
81248
M5 x 16mm
81238 81240
10. Front Derailleur Hanger Assembly
4
4Nm
4
3Nm
3Nm
2
2Nm
3
3Nm
5
9.5Nm
4
5Nm
2
HT
8
12Nm
8
35Nm
2.5
2Nm
2
0.5-1Nm
40Nm
4Nm
T25
T25

18 SUBITO 314A / 314B: ASSEMBLY GUIDE
11.1 Mahle Connector Identification
Down Up
Down
Up
Motor Side
Light
Wire Side
PAS Sensor Side Charging Port Side
iWok Side
Battery Side
Battery Side
Battery Side Battery Side
Battery Side
Motor
Connector
Light
Connector
PAS Sensor
Connector
Charging Port
Connector
iWok Button
Connector

19
11.2 Battery Installation
1. Insert the battery (SKU: 81218)
through the hole under the
bottom bracket.
The three threaded mounting holes
on the battery must face down.
The side with the two connectors
(iWok button connector and light
connector) must be inserted first.
2. Guide the two connectors
(iWok button connector and light
connector) through the top of
the head tube.
3. Install the 3 M5 x 10mm battery
screws (SKU: 81250). Once the 3
screws are installed, tighten to
5Nm. Do not apply grease
to the thread.
4. Guide the motor connector into
the NDS chainstay and through
the exit hole.
81250
M5 x 10mm
81218
4
4Nm
4
3Nm
3Nm
2
2Nm
3
3Nm
5
9.5Nm
4
5Nm
2
HT
8
12Nm
8
35Nm
2.5
2Nm
2
0.5-1Nm
40Nm
4Nm
T25
T25
IMPORTANT:
Use only M5 x 10mm screws. Using longer
screws will damage the battery and void the
warranty.

20 SUBITO 314A / 314B: ASSEMBLY GUIDE
11.3 Charging Port Installation
1. Install the charging port with the arrow pointing the rear of the bike,
that way the cover will open facing the down tube.
2. Allow the charging port connector to exit through the BB hole.
3. Install and tighten both M3 x 10mm screw (SKU: 81252) only by hand,
do not apply grease on the thread.
4. Connect the charging port connector to the matching connector on the battery.
Align both arrows on each connector.
81252
M3 x 10mm
81220
4
4Nm
4
3Nm
3Nm
2
2Nm
3
3Nm
5
9.5Nm
4
5Nm
2
HT
8
12Nm
8
35Nm
2.5
2Nm
2
0.5-1Nm
40Nm
4Nm
T25
T25
