Sumitomo Drive Technologies DeviceNet HF-520 Series User manual

DeviceNet
Inverter HF-520 Option
Installation Manual
Type: SI-N3/V-H
NOTICE
1. Make sure that this installation manual is dellvered to
the end user of inverter unit.
2. Read this manual before installing or operating the
inverter unit, and store it in a safe place for
reference.
Manual DM2305E-1

2
Copyright © 2014 Sumitomo Heavy Industries, LTD.
All rights reserved. No part of this publication may be reproduced, stored in a retrieval system, or
transmitted, in any form or by any means, mechanical, electronic, photocopying, recording, or otherwise,
without the prior written permission of Sumitomo. No patent liability is assumed with respect to the use of the
information contained herein. Moreover, because Sumitomo is constantly striving to improve its high-quality
products, the information contained in this manual is subject to change without notice. Every precaution has
been taken in the preparation of this manual. Sumitomo assumes no responsibility for errors or omissions.
Neither is any liability assumed for damages resulting from the use of the information contained in this
publication.

..... .. ......................................... 3
Table of Contents
1 PREFACE AND SAFETY . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4
2 PRODUCT OVERVIEW . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 9
3 RECEIVING . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 10
4 DEVICENET OPTION COMPONENTS . . . . . . . . . . . . . . . . . 11
5 INSTALLATION PROCEDURE . . . . . . . . . . . . . . . . . . . . . . .16
6 DEVICENET OPTION DRIVE PARAMETERS . . . . . . . . . . .25
7 TROUBLESHOOTING. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 29
8 CONFIGURING DEVICENET MESSAGING . . . . . . . . . . . . .33
9 EUROPEAN STANDARDS . . . . . . . . . . . . . . . . . . . . . . . . . . 36
10 SPECIFICATIONS . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .38
11 WARRANTY . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 39

4
1 Preface and Safety
1 Preface and Safety
Sumitomo manufactures products used as components in a wide variety of industrial
systems and equipment. The selection and application of Sumitomo products remain the
responsibility of the equipment manufacturer or end user. Sumitomo accepts no
responsibility for the way its products are incorporated into the final system design. Under
no circumstances should any Sumitomo product be incorporated into any product or design
as the exclusive or sole safety control. Without exception, all controls should be designed to
detect faults dynamically and fail safely under all circumstances. All systems or equipment
designed to incorporate a product manufactured by Sumitomo must be supplied to the end
user with appropriate warnings and instructions as to the safe use and operation of that part.
Any warnings provided by Sumitomo must be promptly provided to the end user. Sumitomo
offers an express warranty only as to the quality of its products in conforming to standards
and specifications published in the Sumitomo manual. NO OTHER WARRANTY,
EXPRESS OR IMPLIED, IS OFFERED. Sumitomo assumes no liability for any personal
injury, property damage, losses, or claims arising from misapplication of its products.

1 Preface and Safety
5
◆Applicable Documentation
The following manuals are available for the DeviceNet Option:
◆Terms
Option Unit
HF-520 Option
SI-N3/V-H DeviceNet
Installation Manual
Manual No: DM2305E
(This book)
Read this manual first.
The installation manual is packaged with the option
and contains a basic overview of wiring, settings,
functions, and fault diagnoses.
HF-520 Option
SI-N3/V-H DeviceNet
Technical Manual
Manual No: DM2306E
The technical manual contains detailed information
and command registers.
http://cyclo.shi.co.jp/
Inverter
HF-520
Operating and Maintenance Manual
Manual No: DM2301E To obtain instruction manuals for Sumitomo
products access these sites:
http://cyclo.shi.co.jp/
HF-520
Technical Manual
Manual No: DM2302E
Note: Indicates a supplement or precaution that does not cause drive damage.
Drive: HF-520 Series
DeviceNet SI-N3/V-H
Option: HF-520 Option DeviceNet
STOP
(Hz)
(Hz)
(A)
(V)
:
:
:
:
:
:
:
:
:
:
HF-520
周波数指令
正転逆転選択
出力周波数
出力電流
出力電圧
モニタ
ベリファイ
セットアップ
パラメータ設定
オートチューニング
据え付け、運転の前には必ず取扱説明書を読むこと。
通電中および電源遮断後
5
分以内はフロントカバーを
外さないこと。
400V 級インバータの場合は、電源の中性点が接地
されていることを確認すること。（ 対応）
けが．感電のおそれがあります。
危 険

1 Preface and Safety
6
◆Registered Trademarks
• DeviceNet is a trademark of the ODVA.
• All trademarks are the property of their respective owners.
◆Supplemental Safety Information
Read and understand this manual before installing, operating,or servicing this option unit.
The option unit must be installed according to this manual and local codes.
The following conventions are used to indicate safety messages in this manual. Failure to
heed these messages could result in serious or possibly even fatal injury or damage to the
products or to related equipment and systems.
DANGER
Indicates a hazardous situation, which, if not avoided, will result in death or serious
injury.
WARNING
Indicates a hazardous situation, which, if not avoided, could result in death or
serious injury.
CAUTION
Indicates a hazardous situation, which, if not avoided, could result in minor or
moderate injury.
NOTICE
Indicates an equipment damage message.

1 Preface and Safety
7
■General Safety
General Precautions
• The diagrams in this section may include option units and drives without covers or safety shields to
illustrate details. Be sure to reinstall covers or shields before operating any devices. The option board
should be used according to the instructions described in this manual.
• Any illustrations, photographs, or examples used in this manual are provided as examples only and
may not apply to all products to which this manual is applicable.
• The products and specifications described in this manual or the content and presentation of the
manual may be changed without notice to improve the product and/or the manual.
DANGER
Heed the safety messages in this manual.
Failure to comply will result in death or serious injury.
The operating company is responsible for any injuries or equipment damage resulting
from failure to heed the warnings in this manual.
NOTICE
Do not modify the drive or option circuitry.
Failure to comply could result in damage to the drive or option and will void warranty.
Sumitomo is not responsible for any modification of the product made by the user. This
product must not be modified.
Do not expose the drive or option to halogen group disinfectants.
Failure to comply may cause damage to the electrical components in the drive or option
unit.
Do not pack the drive in wooden materials that have been fumigated or sterilized.
Do not sterilize the entire package after the product is packed.

1 Preface and Safety
8
■Option Unit Warning Labels
Warning information is displayed on the option unit as shown in the figure below. Follow all
warnings and safety instructions when using the product.
When using the drive in an area that may require displaying warning information in
Japanese or Chinese, a warning label is provided with the DeviceNet Option. This label can
be placed over the English and French warnings on the front of the DeviceNet Option.
■Warning Contents
HF-520
Warning
information
AVERTISSEMENT
Lire le manuel avant l'installation.
Attendre 5 minutes apres la coupure de l'alimentation,
pour permettre la decharge des condensateurs.
Pour repondre aux exigences , s assurer que le
neutre soit relie a la terre, pour la serie 400V.
WARNING
Read manual before installing.
Wait 5 minutes for capacitor discharge after
disconnecting power supply.
To conform to ޓrequirements, make sure
to ground the supply neutral for 400V class.
Risk of electric shock.
Risque de decharge
electrique.
AVERTISSEMENT
Lire le manuel avant l'installation.
Attendre 5 minutes apres la coupure de l'alimentation,
pour permettre la decharge des condensateurs.
Pour repondre aux exigences , s assurer que le
neutre soit relie a la terre, pour la serie 400V.
WARNING
Read manual before installing.
Wait 5 minutes for capacitor discharge after
disconnecting power supply.
To conform to ޓrequirements, make sure
to ground the supply neutral for 400V class.
Risk of electric shock.
Risque de decharge
electrique.

9
2 Product Overview
2 Product Overview
◆About This Product
The DeviceNet option provides a communications connection between the drive and an
ODVA DeviceNet network. The SI-N3/V-H DeviceNet Option connects the drive to a
DeviceNet network and facilitates the exchange of data.
This manual explains the handling, installation and specifications of this product.
DeviceNet is a communications link to connect industrial devices (such as limit switches,
photoelectric switches, valve manifolds, motor starters, smart motor controllers, operator
interfaces, and variable frequency drives) as well as control devices (such as programmable
controllers and computers) to a network. DeviceNet is a simple, networking solution that
reduces the cost and time to wire and install factory automation devices, while providing
interchangeability of "like" components from multiple vendors.
DeviceNet is an open device network standard.
By installing the DeviceNet Option to a drive, it is possible to do the following from a
DeviceNet master device:
• Operate the drive
• Monitor the operation status of the drive
• Change parameter settings.
Figure 2.1
Figure 1 DeviceNet Approved

10
3 Receiving
3 Receiving
Please perform the following tasks after receiving the DeviceNet Option:
• Inspect the DeviceNet Option for damage.
If the DeviceNet Option appears damaged upon receipt, contact the shipper immediately.
• Verify receipt of the correct model by checking the information on the nameplate (see
Figure 1).
• If you have received the wrong model or the DeviceNet Option does not function
properly, contact your supplier.
◆Contents and Packaging
Table 1 Contents of Package
◆Tool Requirements
Note: Tools required to prepare DeviceNet cables for wiring are not listed in this manual.
Description: Option Unit Ground Cables Warning Labels Installation
Manual
_
Quantity: 1411
A Phillips screwdriver (M3, M3.5 to M5 <1>) metric or (#1, #2 <1>) U.S. standard size is
required to install the DeviceNet Option.
<1> Screw sizes vary by drive model. Select the appropriate screwdriver.
MANUAL

11
4 DeviceNet Option Components
4 DeviceNet Option Components
◆DeviceNet Option
Figure 2.2
Figure 2 Option Unit
A – LED (MS) <1> G – Function Earth cable connection
(FE)
B–LED(NS)
<1> H – Mounting tabs
C – Option cover I – Ground cable <2>
<1> Refer to DeviceNet Option LED Display on page 13 for details on the LEDs.
<2> Ground cables are packaged loose inside the DeviceNet Option shipping package and must be connected during
installation.
D – DeviceNet PCB J – Pass-through hole for cable
E – Attachment screw hole for
option cover
K – Terminals
F – Nameplate L – Option connector
A
B
C
DeviceNet Option with cover removed
Underside
DeviceNet Option with cover attached
L
H
E
D
H
G
I
J
K
SI-N3
F

4 DeviceNet Option Components
12

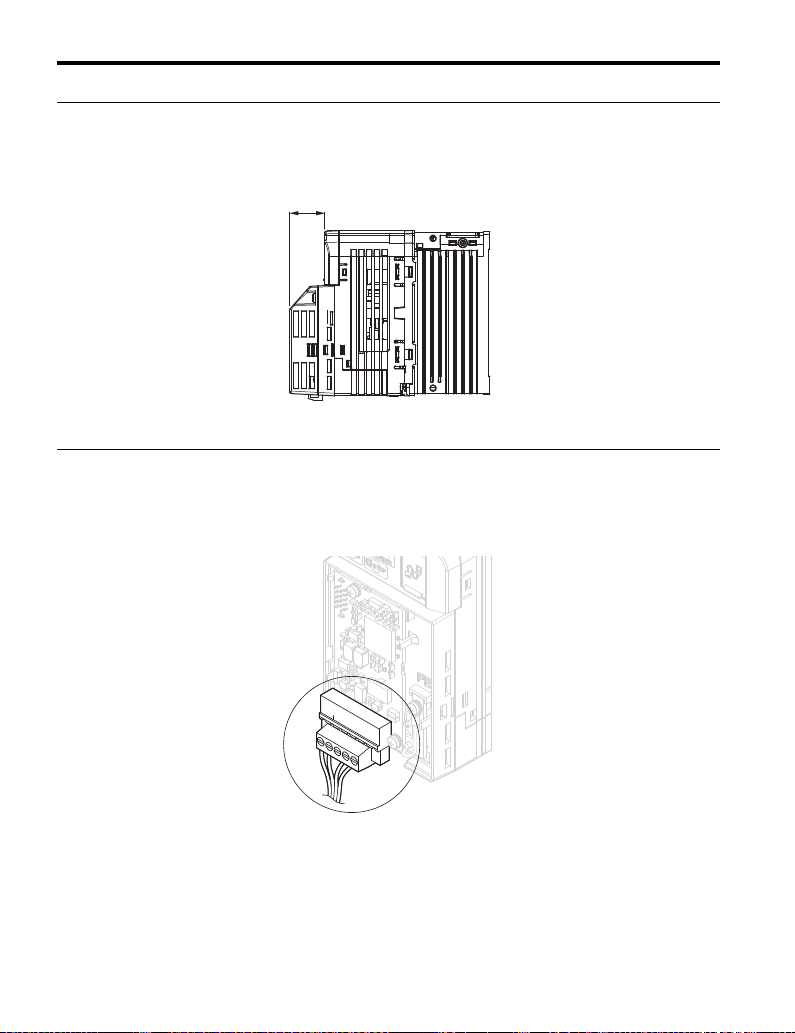

◆Dimensions
The installed DeviceNet Option adds 27 mm (1.06 in.) to the total depth of the drive.
Figure 2.3
Figure 3 Dimensions
◆Terminal
The communication connector is a pluggable terminal block. This pluggable terminal block
is the connection point of the DeviceNet network communication cable to the Option.
Figure 2.4
Figure 4 Pluggable terminal block
27 mm (1.06 in.)

4 DeviceNet Option Components
13

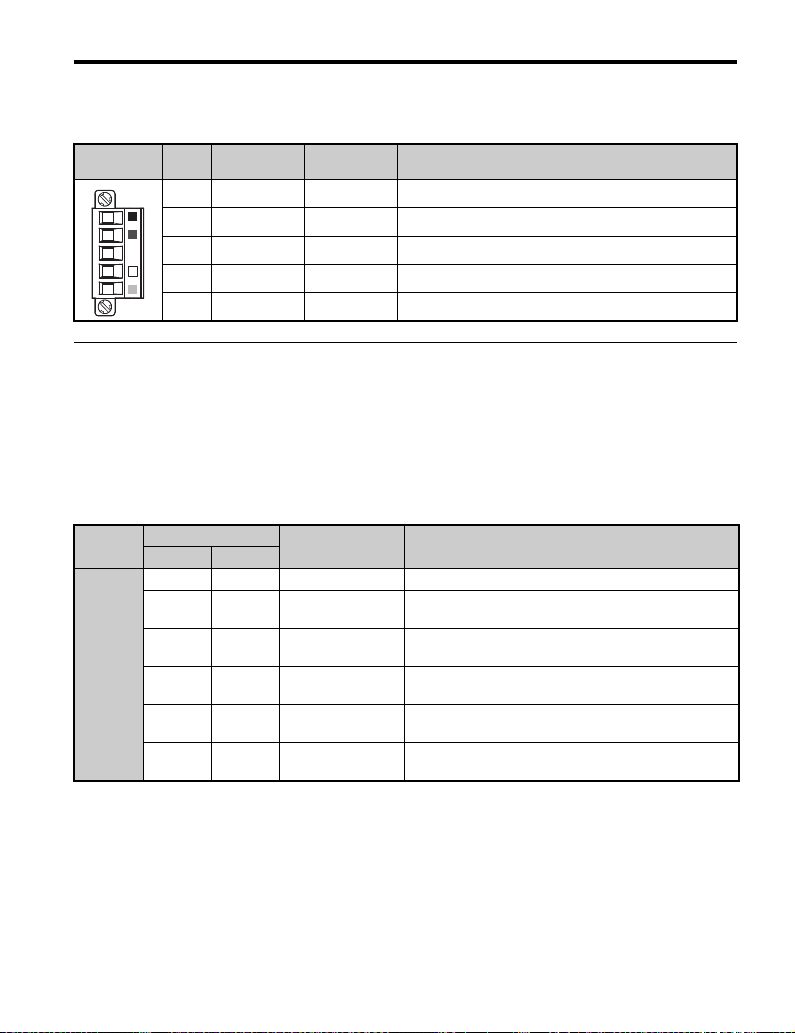

Table 2 Communication terminal block
◆DeviceNet Option LED Display
The DeviceNet Option has two bi-color, red/green LEDs, one for Module Status (MS) and
one for Network Status (NS).
The operational states of the DeviceNet Option LEDs after the DeviceNet power-up
diagnostic LED sequence is completed are described in Table 4. Wait at least 2 seconds for
the power-up diagnostic process to complete before verifying the states of the LEDs.
Table 3 DeviceNet Operation LED States
SI-N3/V
Connector Pin Color Signal Description
1 Black V- Network common
2 Blue CAN_L CAN data Low
3 – Shield Cable shield
4 White CAN_H CAN data High
5 Red V+ Communications DC+24V
Name Indication Operating Status Remarks
Color Status
MS
– OFF Power supply OFF Power is not being supplied to the drive.
Green ON SI-N3/V-H Option
operating The SI-N3/V-H Option is operating normally.
Green Flashing SI-N3/V-H Option
initializing
There is an incorrect baud rate setting or there is a MAC
ID.
Red ON Fatal error occurred A fatal (irrecoverable) error occurred in the SI-N3/V-H
Option.
Red Flashing Non-fatal error
occurred A non-fatal (recoverable) error occurred.
Green/
Red Flashing Device self-test Device in self-test mode.

4 DeviceNet Option Components
14
■Power-Up Diagnostics
An LED test is performed each time the drive is powered up. The initial boot sequence may
take several seconds. After the LEDs have completed the DeviceNet diagnostic LED
sequence, the DeviceNet Option is successfully initialized. The LEDs then assume
operational conditions as shown in Table 3.
Table 4 Power-Up Diagnostic LED Sequence
NS
–OFF Offline or Power
supply OFF –
Green ON
Online
communications
established
Device is on-line and has connections in the established
state.
Green Flashing
Online
communications not
established
Device is on-line but has no connections in the
established state.
Dup Mac-ID test has been passed, is on-line but has no
open connections to other nodes.
Red ON Communications
error
An error occurred that disables DeviceNet
communications.
• MAC ID duplication
• Bus Off detected
Red Flashing Communications
time-out A communications time-out occurred with the master.
Green/
Red Flashing Communication faulted
Specific communication faulted device.
• The device has detected a network access error and is in
the communications faulted state.
• The device has then received and accepted an Identify
communication fault request-long protocol message.
Sequence Module Status (MS) Network Status (NS) Time (ms)
1 GREEN OFF 250
2REDOFF250
3 GREEN GREEN 250
4 GREEN RED 250
5 GREEN OFF -
Name Indication Operating Status Remarks
Color Status

4 DeviceNet Option Components
15
◆Set the DeviceNet Option Card MAC ID
■Parameter F6-50, MAC ID Setting
Range: 0~64
The MAC ID is set by drive parameter F6-50. A MAC ID setting in the range of 0~63 is
considered a valid MAC ID. A value other than 0~63 indicates the MAC ID is settable via
the network.
The DeviceNet Option SI-N3/V-H reads the MAC ID value from parameter F6-50 upon
power-up and upon a network reset.
◆Set the DeviceNet Option Baud Rate
The DeviceNet Option supports standard baud rates of 125 kbps, 250 kbps, and 500 kbps.
Table 5 Parameter F6-51 Baud Rate Setting
■Auto Baud Rate Sensing (F6-51=4)
Setting parameter F6-51=4, "Auto Detect" causes the DeviceNet Option to determine the
data rate of the DeviceNet Network and configure itself appropriately.
Note: The capability described will only be valid when there is more than one node physically on the
DeviceNet network segment. The drive digital operator will display “bUS” and the DeviceNet
option LEDs will be (NS-OFF and MS=Solid Green) if it fails the process of determining the
data rate, when in 'Auto Detect' mode.
Description Value
125 kbps 0
250 kbps 1
500 kbps 2
Programmable From Network 3
Auto Detect 4

16
5 Installation Procedure
5 Installation Procedure
◆Section Safety
DANGER
Electrical Shock Hazard
Do not connect or disconnect wiring while the power is on.
Failure to comply will result in death or serious injury.
Disconnect all power to the drive, wait at least five minutes after all indicators are off,
measure the DC bus voltage to confirm safe level, and check for unsafe voltages before
servicing to prevent electric shock. The internal capacitor remains charged even after the
power supply is turned off. The charge indicator LED will extinguish when the DC bus
voltage is below 50 Vdc.
WARNING
Electrical Shock Hazard
Do not remove option board cover while the power is on.
Failure to comply could result in death or serious injury.
The diagrams in this section may include option units and drives without covers or safety
shields to show details. Be sure to reinstall covers or shields before operating any devices.
The option board should be used according to the instructions described in this manual.
Do not allow unqualified personnel to use equipment.
Failure to comply could result in death or serious injury.
Maintenance, inspection, and replacement of parts must be performed only by authorized
personnel familiar with installation, adjustment, and maintenance of this product.

5 Installation Procedure
17
Do not use damaged wires, place excessive stress on wiring, or damage the wire
insulation.
Failure to comply could result in death or serious injury.
Fire Hazard
Tighten all terminal screws to the specified tightening torque.
Loose electrical connections could result in death or serious injury by fire due to
overheating of electrical connections.
NOTICE
Damage to Equipment
Observe proper electrostatic discharge (ESD) procedures when handling the option
unit, drive, and circuit boards.
Failure to comply may result in ESD damage to circuitry.
Never shut the power off while the drive is outputting voltage.
Failure to comply may cause the application to operate incorrectly or damage the drive.
Do not operate damaged equipment.
Failure to comply may cause further damage to the equipment.
Do not connect or operate any equipment with visible damage or missing parts.
Do not use unshielded cable for control wiring.
Failure to comply may cause electrical interference resulting in poor system performance.
Use shielded twisted-pair wires and ground the shield to the ground terminal of the drive.
WARNING

5 Installation Procedure
18
◆Wiring Diagram
Figure 5 Wiring Diagram
◆Prior to Installing the Option Unit
Prior to installing the DeviceNet Option, wire the drive and make necessary connections to
the drive terminals. Refer to the Operating and Maintenance Manual for information on
wiring and connecting the drive. Verify that the drive functions normally prior to installing
the Option.
Properly connect all pins and connectors.
Failure to comply may prevent proper operation and possibly damage equipment.
Check wiring to ensure that all connections are correct after installing the option
unit and connecting any other devices.
Failure to comply may result in damage to the option unit.
<1> The FE terminal on the DeviceNet Option is supplied with a ground cable that should be connected to the ground
terminal on the drive.
NOTICE
HF-520
SI-N3/V-H
M
U
V
W
R
V+
V-
CAN_H
CAN_L
Shield
S
T
CN5
FE
<1>
DeviceNet Master
or
drop line
DeviceNet Cable
MotorPower
（Red）
（Black）
（White）
（Blue）

5 Installation Procedure
19
◆Installing the Option Unit
Remove the front cover of the drive before installing the DeviceNet Option. Follow the
directions below for proper installation.
1. Switch off the power supply to the drive.
DANGER! Electrical Shock Hazard - Do not connect or disconnect wiring while the power is on. Failure to
comply will result in death or serious injury. Before installing the DeviceNet Option, disconnect all power to
the drive. The internal capacitor remains charged even after the power supply is turned off. The charge
indicator LED will extinguish when the DC bus voltage is below 50 Vdc. To prevent electric shock, wait at
least five minutes after all indicators are off and measure the DC bus voltage level to confirm safe level.
2. Remove the front cover. The original drive front cover may be discarded because it
will be replaced by the DeviceNet Option cover in step 8.
Figure 2.5
Figure 6 Remove Front Cover
3. Remove the bottom cover and connect the DeviceNet Option ground cable to the
ground terminal.
Figure 2.6
Figure 7 Connect Ground Cable
Note: The four different ground cables packaged with the DeviceNet Option connect the unit to
different models. Select the proper ground cable from the DeviceNet Option kit depending on
drive size.
Ground terminal
Ground cable
Bottom cover

5 Installation Procedure
20
Figure 2.7
Figure 8 Ground Cable
Note: Cover removal for certain larger models with a Terminal Cover:
-Single-Phase 200 V Class: HF520S-A75 to 2A2
-Three-Phase 200 V Class: HF5202-1A5 to 7A5
-Three-Phase 400 V Class: All models
Remove the terminal cover before removing the bottom cover to install the DeviceNet Option.
Replace the terminal cover after wiring the DeviceNet Option.
Figure 2.8
Figure 9 Models with Terminal Cover
4. Reattach the bottom cover.
5. Connect the DeviceNet Option to the drive. Properly secure the tabs on the left and
right sides of the DeviceNet Option to the drive case.
Figure 2.9
Figure 10 Attach DeviceNet Option
A – Option unit connection: screw size = M3
B – Drive-side connection: screw size = M3.5 to M6
A
B
Tabs should line up
Tabs should line up
