Summit SBC570NCF User manual

COFFEE DISPENSERS
Models SBC570NCF
SBC570CF
SBC570CMTWIN
Instruction Manual
BEFORE USE, PLEASE READ AND FOLLOW ALL SAFETY RULES AND OPERATING INSTRUCTIONS.
Write Model No. and Serial No. (from
back of unit) here:
________________________________
________________________________
Felix Storch, Inc.
An ISO 9001:2015 registered company
770 Garrison Avenue
Bronx, NY 10474
ww.summitappliance.com
SBC570NCF

1
IMPORTANT SAFEGUARDS
1. You will need this manual for the safety warnings and precautions, operating, inspection,
maintenance and cleaning procedures, parts list and assembly diagram. Record the Model
and Serial Numbers (from the back of the unit) on the cover of this manual. Keep the
manual in a safe and dry place for future reference.
2. The warnings, cautions and instructions discussed in this manual cannot cover all possible
conditions and situations that may occur. It must be understood by the operator that common
sense and caution are factors that cannot be built into this product but must be supplied by
the operator.
3. Never use this product for anything but its intended use. Never modify this product. Failure to
comply with the precautions, warnings and recommendations in this manual will nullify your
warranty and may result in injury or even death.
4. Always insure that this coffee dispenser is plugged into a grounded outlet with the proper
power supply available.
5. Do not unplug the machine by pulling or tugging on the power cord. Firmly grasp the plug
and remove from the outlet.
6. Make sure the power outlet, plug and power cords are in good condition. Worn, frayed or
damaged plugs, cords and outlets should be replaced or repaired by a certified electrician
who is properly qualified to meet local safety and electrical codes. Power supply cords
should be replaced by the manufacturer.
Avoid using extension cords or 3-prong adaptors.
7. To reduce the risk of electrical shock or fire, make sure your unit is properly grounded. Never
tamper with, remove or cut the grounding pin! The wall outlet used with this coffee dispenser
MUST be properly grounded. If you do not have a grounded outlet, have one installed by a
certified electrician who is properly qualified to meet local safety and electrical codes.
8. Make sure your machine is unplugged when you conduct any maintenance or repair. A
qualified service technician should always perform service or repair.
9. This product is not intended for commercial use.
10. Do not cover the power cord. Do not immerse cord in water or use in high traffic areas. Do
not run cord over carpets or heating sources or elements. Never use the appliance with
damaged cords or plugs.
11. This product is intended for upright, free-standing use only. Do not install in a cabinet or
enclosed space.
12. Do not operate with missing or broken parts.
13. This product is intended for indoor use only. Do not use outdoors.
14. Only qualified repair personnel should perform generator service. Service or maintenance
performed by unqualified personnel could result in injury.
15. Do not operate this coffee dispenser in explosive atmospheres, such as in the presence of
flammable liquids, gases or dust.
16. Do not tamper with or modify the controls.
17. Do not roll a loaded coffee dispenser over carpeting. Make sure your unit is empty before
moving it.
IMPORTANT –All persons who will operate this equipment
must read and become thoroughly familiar with all
operating procedures and safety precautions. Misuse
of this equipment may result in personal injury, death,
or property damage.

2
18. KEEP UNIT UPRIGHT when transporting. Do not allow to tilt past 45 degrees. Do not upend
or turn upside down.
19. WARNING! Children must be supervised around this machine. Make sure that children
know that this coffee dispenser is NOT A TOY. Close door during operation and leave closed
at all times when children are present.
WARNING: EXTENSION CORDS
Because of inherent dangers from faulty or inferior cords, avoid the use of extension cords.
When you cannot avoid their use, be sure that the cord is a 3-wire cord with a 3-prong
grounded plug. The cord should be rated for AT LEAST 1875 watts and a No. 14 AWG
minimum size.
DANGER: RISK OF CHILD ENTRAPMENT
If you are disposing of this machine, we recommend that you remove the door but leave any
shelves in place to reduce the risk of injury to children. DO NOT ALLOW CHILDREN TO
BECOME TRAPPED.
ALWAYS supervise children when using this product when they are present. At all times be
sure that children are not playing with the unit.
LOCATION RECOMMENDATIONS
1. INDOOR USE ONLY. DO NOT ATTEMPT TO USE OUTDOORS.
2. INTENDED FOR UPRIGHT, FREE-STANDING USE ONLY. Do not install in cabinet or
enclosed space.
3. Get the most out of your coffee dispenser! To maximize efficiency and long life, use near a
proper electrical outlet and ensure that there is adequate ventilation and clearance around
the unit. Allow at least 5 inches clearance around all sides of the coffee dispenser.
Dimensions: 21.3"W x 26.6"D x 33.2"H (with casters and without tap)
4. Avoid locations where this unit will be in contact with heating elements or direct sunlight.
NITROGEN (N2) SAFETY PRECAUTIONS, WARNINGS & DANGER NOTICES
1. DANGER! Nitrogen is a potentially dangerous gas. Canisters or cylinders are under
pressure and proper handling is essential for safety. Familiarize yourself with canister
installation and replacement before operating this unit. HANDLE WITH CARE. Never jostle,
toss or treat cylinders roughly. If you experience headache or difficulty breathing, a leak may
be occurring; open windows and doors to ventilate the area and leave immediately.
2. INTENDED FOR UPRIGHT, FREE-STANDING USE ONLY. Do not install in cabinet or
enclosed spaces.
3. Store N2cylinders away from heat or explosive gases. Keep in a cool, dry space (lower than
70°F) and chain canisters upright to avoid tipping or knocking. Always wear gloves and
safety glasses when around chemicals.
4. Review and follow instructions for changing N2cylinders. NEVER CONNECT A NITROGEN
CANISTER DIRECTLY TO THE UNIT. To avoid potential explosion that could result in grave
injury or even death, ALWAYS CONNECT THE CANISTER TO THE N2REGULATOR.
There are two safety valves, located separately. One is in the regulator and one on the N2
canister. DO NOT REMOVE VALVES, AND DO NOT EXCEED 50 PSI.
5. DO NOT ATTEMPT TO REFILL N2CANISTERS! Refills are available where most canisters
are sold (see page 6 for more information).
SAVE THESE INSTRUCTIONS

3
TABLE OF CONTENTS
Important Safeguards .................................................................................. 1-2
Technical Information .......................................................................................3
Coffee Dispenser Accessories .........................................................................4
Coffee Dispenser Assembly ......................................................................... 5-7
Caster Assembly ...................................................................................5
Guardrail Assembly ...............................................................................5
Coffee Tap Installation ..........................................................................5
N2Regulator Installation .................................................................... 6-7
Operation, Maintenance & Storage ..................................................................8
Limited Warranty ............................................................................................11
TECHNICAL INFORMATION
Models: SBC570NCF(for nitro-infused cold brew coffee)
SBC570CF (for “flat” cold brew coffee)
SBC570CMTWIN (for both types)
Capacity: 6.0 cubic feet
Electrical Input: 115VAC ~ 60Hz
Rated Current: 1.9A
High Side Pressure: 300psi
Low Side Pressure: 88psi
Refrigerant: R134a, 2.82 oz.
Net Weight: 88.2 lbs
Unit Dimensions: 21.3"W x 26.6"D x 33.2"H
(with casters but without coffee dispenser tower)

4
COFFEE DISPENSER ACCESSORIES
(not included)

5

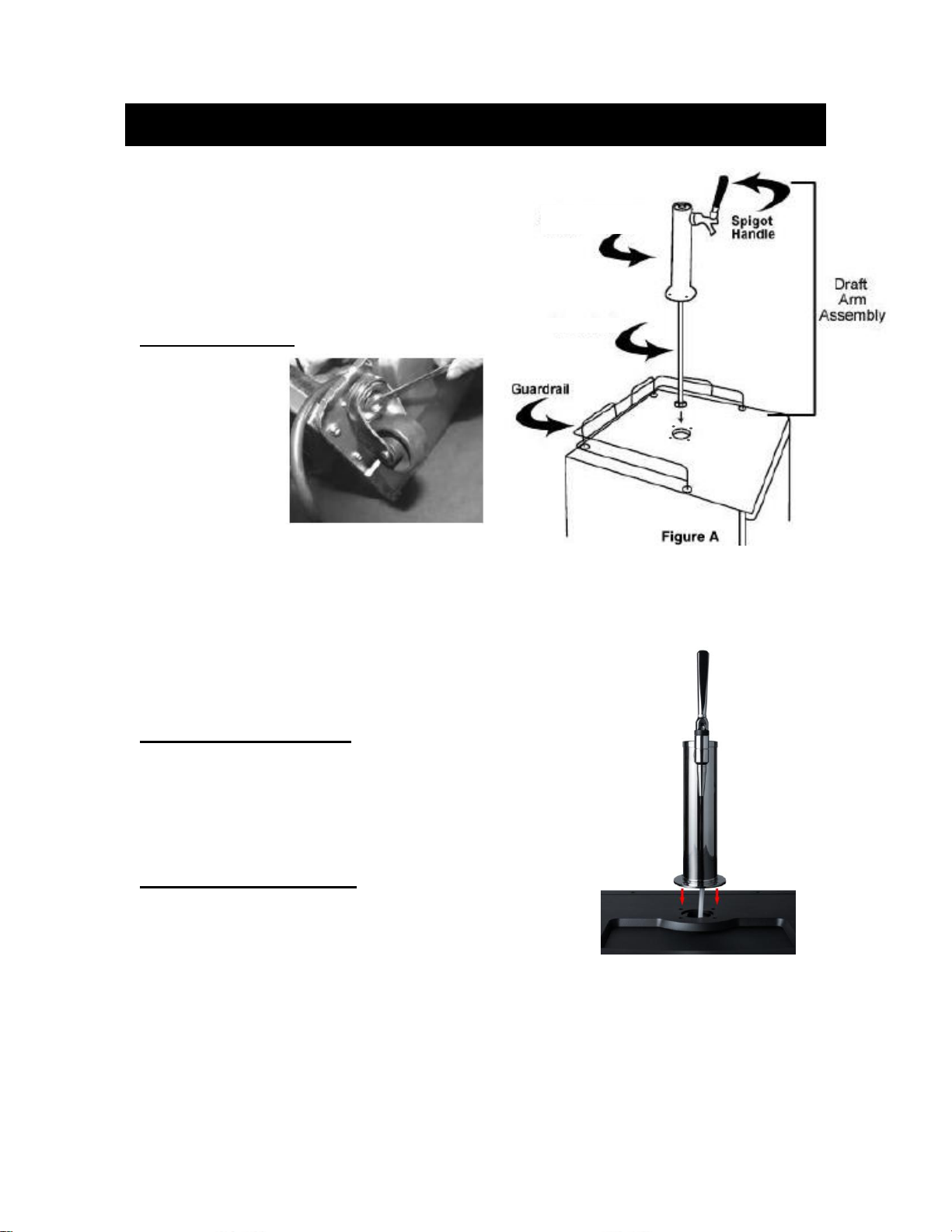

COFFEE DISPENSER ASSEMBLY
Be sure you have a thorough familiarity with the
assembly and installation process before turning
on your coffee dispenser.
NOTE: Once casters are assembled, place your
unit in an upright position and allow it to sit for
at least 8-10 hours before plugging into an
outlet. This will allow the refrigerant to settle
before operation.
CASTER ASSEMBLY
1. Remove every-
thing from the
cabinet and lay
the unit on a
clean, dry and
padded surface.
2. Install casters
into holes on
bottom of unit
as shown and
tighten with a wrench. Two of the four casters
provided are equipped with locks to prevent
slippage of the keg on smooth surfaces such
as hardwood floors, linoleum or tile. These
casters should be installed on the front of
the unit.
3. Once all four casters are attached, return the
coffee dispenser to an upright position and
allow it to rest for at least 8-10 hours. (See
Note above.)
GUARDRAIL INSTALLATION
To install the guardrail,
1. Place the guardrail on top of the coffee
dispenser and line up the feet of the guardrail
with the holes on top of the cabinet.
2. Using the screws provided, secure each foot to
the cabinet.
COFFEE TAP INSTALLATION
1. Put draft tower directly over the hole on the
top of the coffee dispenser’s upper
surface. Fix the tower assembly with screws
directly to the upper surface of the
dispenser. (See figures A and B in the next
column.)
While not required, we recommend the use of
the black rubber gasket when installing the
coffee tap. Using the gasket will provide a
more secure seating for the arm assembly.
Coffee Dispenser
Tower
Coffee Duct
Figure B

6
N2REGULATOR INSTALLATION
Proper installation of your nitrogen
regulator and a thorough under-
standing of N2canisters are essential
to the safe use of this product.
Review and follow instructions for
handling N2cylinders and this section
in particular to ensure your safety and
the safety of others.
NEVER CONNECT A NITROGEN
CANISTER DIRECTLY TO THE
UNIT! To avoid potential explosion
that could result in grave injury or
even death, ALWAYS CONNECT
THE CANISTER TO THE N2
REGULATOR.
IMPORTANT! Your N2canister is
shipped to you EMPTY for safety
reasons. You will need to get this
canister filled before you can use your unit. In most areas, you can get canisters filled at:
stores that sell kegs
party stores or convenience stores
fire and welding supply stores.
DO NOT ATTEMPT TO REFILL N2CANISTERS YOURSELF!
DANGER! Nitrogen is a potentially dangerous gas. Canisters or cylinders are under
pressure and proper handling is essential to safety. ALWAYS HANDLE WITH CARE!
To install the nitrogen (N2) cylinder:
1. Using a wrench, tighten the hex nut port on the regulator
valve to the N2gas outlet on the N2 gas cylinder. (See
figure D.)
2. Place the N2 gas cylinder into the bracket on the rear wall of the coffee
dispenser’s inside cabinet and fix the N2 cylinder with the bolt.
(See figure E.)
Connect to
N2cylinder
N2Regulator
N2
N2cylinder
N2
Gas Line
Figure C
Figure E
Figure D
Strap with Bolt

7
3. Carefully place the keg inside the coffee dispenser. Attach the coffee
tube from the tower to the “out” post of the of the Cornelius keg by
pushing the ball lock down over the “out” post until it snaps in place.
(See figure F.)
4. Attach the N2 tube to the “in” post of the Cornelius keg by pushing the ball lock down over
the “in” post unit it snaps on.
5. Set the desired pressure on the regulator valve. If serving flat iced coffee, open the regulator
valve and set the pressure between 4-8 psi. If serving nitro-infused coffee from the stout-
style tap, set the pressure between 30-45 psi.
6. Install the tap handle(s) and coffee tap(s). Screw the tap handle clockwise into the coffee tap
to make a firm connection, then connect the tap to the coffee tower components and
tighten with a wrench.
NOTE: For optimum nitro-infused coffee service, agitate the keg before serving.
7. Install the upper cover guardrail (provided with your kegerator) and drip tray.
SPECIAL PRECAUTIONS: Ensure that the safety devices for your pressurized system are
installed and remain installed. Once installed, NEVER remove the rubber washers in the
regulator attachment nut to the canister or in the tap mechanism. NEVER bypass these safety
features.
Failure to comply will void your warranty and could result in serious injury or death!
Notes:
These taps are designed for dispensing coffee and should not be used for milk or any
other substance.
When replacing the coffee keg, first turn the safety switch on the N2 regulator valve and
remove the ball locks to take out the keg.
When replacing the N2 gas cylinder, remember to turn off the main switch of the N2 tank
and the safety switch on the N2 regulator valve. Afterwards, use a wrench to loosen the
hexagonal nut port connecting the N2 regulator valve with the N2 tank. Then, using a
wrench, remove the fixed bolt of the N2 tank.
During the installation process, be sure that all parts are connected tightly and that there
are no gas leaks.
High-pressured compressed gas in the N2 tank can be dangerous if not handled properly.
For optimum safety, make a note of the D.O.T. testing date on the cylinder neck before
installation. If it is more than 5 years old, do not use.
Keep the gas cylinder away from heat sources. Unused cylinders should be placed
upright in a cool, ventilated place, preferably at 70°F.
Figure F

8
OPERATION, MAINTENANCE & STORAGE
USING YOUR COFFEE DISPENSER
1. First be sure that you are connected safely to the proper power supply: a 120V, 60Hz, 16 Amp
grounded AC outlet. The cord should be rated for AT LEAST 1875 Watts and a No. 14 AWG
minimum size.
2. Slide the drip tray beneath the spigot to catch any spillage, then pull the tower handle toward
your body to open the tap and dispense coffee.
Note: If coffee does not dispense, check previous sections on Coffee Dispenser Assembly.
If your coffee is dispensing too slowly, adjust the pressure on the regulator judiciously (DO NOT
EXCEED 8 PSI FOR “FLAT” COLD BREW COFFEE, OR 45 PSI FOR NITRO-INFUSED).
Condensation on the spigot or tap is normal.
STORING YOUR COFFEE DISPENSER
1. To prevent ice buildup on the inside of the cabinet, set the temperature control to MID or LOW
if you live in a cold area. This unit does not self-defrost. The temperature control is located
inside the coffee dispenser.
2. If you do not expect to use your coffee dispenser for an extended period of time, rinse the
coffee line to prevent mold or bacterial buildup which could cause illness.
3. Never use sharp objects in your coffee dispenser. If you are storing your machine, be sure to
prevent children from playing in or around the unit.
DANGER! Children can become trapped in an unsecured and unsupervised environment.
CLEANING AND MAINTENANCE
To clean the lines and tap, first:
1. TURN OFF THE N2.
2. Next, wipe the outside of the machine, clean drip
tray and around guardrail. Clean the inside of
the cabinet by wiping with a damp cloth. Clean
gasket on door to help eliminate trapped, spilled
coffee which could produce mold and mildew.
3. Disconnect the coffee hose from the tap coupler
and twist dispenser faucet carefully off the top of
the coffee dispenser.
4. Set the dispenser handle to the open or down
position before flushing, then position the faucet
over a sink and hold the coffee line under
running water for approximately 5 minutes,
allowing the water to flush out the faucet head.
This will also help eliminate trapped, spilled
coffee which could produce mold and mildew.
5. Reconnect coffee line and dispenser faucet
when done or leave disconnected if you plan to
store for a long period.
Flush hose with water
Detach coffee line

9
NOTES

10
NOTES

11
LIMITED WARRANTY
ONE-YEAR LIMITED WARRANTY
Within the 48 contiguous United States, for one year from the date of purchase, when this appliance is
operated and maintained according to instructions attached to or furnished with the product, warrantor will
pay for factory-specified parts and repair labor to correct defects in materials or workmanship. Service must
be provided by a designated service company. Outside the 48 states, all parts are warranted for one year
from manufacturing defects. Plastic parts, shelves and cabinets are warranted to be manufactured to
commercially acceptable standards, and are not covered from damage during handling or breakage.
5-YEAR COMPRESSOR WARRANTY
1. The compressor is covered for 5 years.
2. Replacement does not include labor.
ITEMS WARRANTOR WILL NOT PAY FOR:
1. Service calls to correct the installation of your appliance, to instruct you how to use your appliance, to
replace or repair fuses or to correct wiring or plumbing.
2. Service calls to repair or replace appliance light bulbs or broken shelves. Consumable parts (such as
filters) are excluded from warranty coverage.
3. Damage resulting from accident, alteration, misuse, abuse, fire, flood, acts of God, improper installation,
installation not in accordance with electrical or plumbing codes, or use of products not approved by
warrantor.
4. Replacement parts or repair labor costs for units operated outside the United States.
5. Repairs to parts or systems resulting from unauthorized modifications made to the appliance.
6. The removal and reinstallation of your appliance if it is installed in an inaccessible location or is not
installed in accordance with published installation instructions.
DISCLAIMER OF IMPLIED WARRANTIES; LIMITATION OF REMEDIES
CUSTOMER'S SOLE AND EXCLUSIVE REMEDY UNDER THIS LIMITED WARRANTY SHALL BE
PRODUCT REPAIR AS PROVIDED HEREIN. IMPLIED WARRANTIES, INCLUDING WARRANTIES OF
MERCHANTABILITY OR FITNESS FOR A PARTICULAR PURPOSE, ARE LIMITED TO ONE YEAR.
WARRANTOR SHALL NOT BE LIABLE FOR INCIDENTAL OR CONSEQUENTIAL DAMAGES. SOME
STATES DO NOT ALLOW THE EXCLUSION OR LIMITATION OF INCIDENTAL OR CONSEQUENTIAL
DAMAGES, OR LIMITATIONS ON THE DURATION OF IMPLIED WARRANTIES OF MERCHANTABILITY
OR FITNESS, SO THESE EXCLUSIONS OR LIMITATIONS MAY NOT APPLY TO YOU. THIS WARRANTY
GIVES YOU SPECIFIC LEGAL RIGHTS AND YOU MAY ALSO HAVE OTHER RIGHTS, WHICH VARY
FROM STATE TO STATE.
FELIX STORCH, INC.
770 Garrison Avenue
Bronx, NY 10474
Phone: [phone]
Fax: [phone]
www.summitappliance.com
For parts and accessory ordering,
troubleshooting and helpful hints, visit:
www.summitappliance.com/support
WARNING: This product can expose you to chemicals including Nickel
(Metallic) which is known to the State of California to cause cancer.
For more information go to www.P65Warnings.ca.gov
Note: Nickel is a component in all stainless steel and some other metal components.
