OPERATOR’S SAFETY MANUAL

Sumner Pipe Jacks

USA

7514 Alabonson Rd.

Houston, TX 77088

p: 281-999-6900

f: 281-999-6966

Rev. 1, 03/23

Owner’s Reponsibilities

NOTICE: Throughout this publication, the words

WARNING, CAUTION, and IMPORTANT

will be used to alert the user to special

instructions concerning a particular

operation that may be hazardous if

performed incorrectly or carelessly.

OBSERVE THEM CAREFULLY!

These “Safety Alerts” alone cannot eliminate the

hazards that they signal. Strict compliance to these

special instructions while performing the service plus

“common sense” operation are major accident

prevention measures.

WARNING Hazards or unsafe practices which

could result in severe personal injury

or death.

CAUTION Hazards or unsafe practices which

could result in minor personal injury,

product or property damage.

IMPORTANT Indicates information or instructions

that are necessary for proper

operation and/or maintenance.

of this book may be reproduced or utilized in any form or by any means, electronic

or mechanical, including photocopying, recording or by any information storage and

retrieval system, without permission in writing from Sumner Manufacturing Co., LLC,

7514 Alabonson Road, Houston, TX 77088.

SUMNER PIPE JACKS 1

Operator Safety Instructions

To operate jacks safely requires dexterity, mechanical skills

and sound safety habits.

Although Sumner jacks are manufactured for safe,

dependable operation, it is impossible to anticipate those

combinations of circumstances which could result in an

accident. The following instructions are recommended for

safe operation of this unit:

Read and understand the instructions for safe

operation. Before working with a Sumner jack,

understand the correct operation, applications and

limitations. Always contact Sumner when in doubt. Be

manual in a clean area and always at a readily

available location. Additional copies are available for

download from www. .com.

Inspect the equipment. Prior to using Sumner jacks,

check all parts to ensure that they are in proper

operating condition. Inspect legs for bends, breaks or

metal deformation.

SUMNER PIPE JACKS

CAUTION In the event of any jack stand leg

deformation, discontinue use

immediately.

IMPORTANT Make any necessary repairs before

attempting to use the jack.

3. Wear proper clothing. Hard hat or welding helmet,

safety shoes and welding gloves should be worn as a

precaution while operating this equipment.

4. Keep work area clean.

area clear of clutter for unobstructed movement around

the jack.

5. Operate from proper position. Keep balance and

proper footing at all times.

6. Keep alert. Avoid horseplay around equipment and

keep bystanders at a safe distance. Do not allow

children to operate jacks and always keep them out of

work areas.

CAUTION Never allow anyone under jack stand

with load.

7. Do not misuse unit. Perform only the functions for

which the jacks are designed. Never attempt to

operate the equipment at more than the recommended

capacity.

WARNING Modifying the jack stand can result in

injury or death.

Commonly Found Issues

If found, REMOVE FROM SERVICE.

Damaged / Bent Legs Cracked Tube

Wrong Washer in

Jack Stand

Jack without

ID Tube

Wrong ID Tube in Jack Stand

SUMNER PIPE JACKS 3

SUMNER PIPE JACKS

8. Operate only on level surfaces. Use the jack only

on smooth and level surfaces to avoid tipping and

the possibility of operator injury.

9. Hold both jack head and jack leg or carrying

handle when transporting. To prevent foot injury,

always carry jack by both the head and the jack leg

or carrying handle.

10. Use only Sumner parts. Mixing other manufactured

jack stand parts on Sumner jacks can result in

operator injury.

ADJUSTING

SCREW

SPANNER

NUT

LOCK

WASHER

LOCK

WASHER

POST

JACK LEG

STRUT

JACK HEAD

ASSEMBLY

I.D. BARREL

SET SCREW

JACK LEG

Maximum

36"

89 cm

Minimum

21"

51 cm

Maximum

49"

125 cm

Minimum

28"

71 cm

LO JACK STAND HI JACK STAND

Heavy Duty Jacks,

Fold-A-Jacks, Hi Heavy Duty Plus Jack and Hi Pro

Jacks. The adjustable height range for other jacks

varies by type. Consult the latest Sumner Welding

NOTE: Do not mix and match heads.

SUMNER PIPE JACKS 5

SUMNER PIPE JACKS6

1. Read and understand these instructions prior to

operating.

2. Always inspect the equipment for damage and make

any needed repairs before using.

3. Wear hard hat or welding helmet and safety shoes.

5. Stay alert and always avoid horseplay.

6. Use on level and solid surfaces only.

7. Secure set screw after adjustment of I.D. barrel.

8. Always transport with jack head up.

9. Adjust I.D. barrel to desired work height before placing

load on jack.

10. Center load on jack head.

DON’T

1. Never attempt to lift more than the jack’s

recommended capacity.

2. Do not work under a load.

3. Never operate jack on an unstable foundation.

4. Do not force unit if operation is restricted.

5. Never modify jacks.

6. Do not pull or push loads when mounted on jacks.

Operating Instructions

Select the right head style:

SUMNER PIPE JACKS 7

HEAD STYLES FO R SUMNER'S PRO JACK™, HEAVY DUTY JACKS AND F OLD-A-JACKS™

Standard Vee Head Ball

Transfer Set

Part # 780551 (standard)

Part # 780274 (stainless steel)

Attachments slide over

standard vee head.

Accommodates 3/8" - 12"

(10 - 300 mm) pipe sizes.

1,000 lb (450 kg) capacity.

Stainless Steel

Vee Head Attachment

Part # 780502

Fits over vee and secures with

two bolts – no tools required!

780518

780498

Part #Head Style Description Cacpacity Pipe Size Minimum

2,500 lb

(1,135 kg)

Standard Vee Head

Standard Vee Head w/SS Sleeve

Pipe Size Maximum

1/8"

(3 mm)

24"

(600 mm)

780518 &

780551

780518 &

780274

Ball Transfer Head

Ball Transfer Head (Stainless Steel)

1,000 lb

(450 kg)

3/8"

(10 mm)

12"

(300 mm)

780514

780517

785220

Roller Head Assy. w/Aluminum Wheels

Roller Head Assy. w/SS Wheels

Aluminum Roller Head

2,500 lb

(1,135 kg)

1 1/4"

(30 mm)

24"

(600 mm)

Rubber Wheel Head

780499 1,000 lb

(450 kg)

1 1/2"

(40 mm)

24"

(600 mm)

Bar Stock Head 2,000 lb

(900 kg)

1/8"

(3 mm)

24"

(600 mm)

780519 (Hi)

780944 (Lo)

HEAD STYLES FO R SUMNER'S PRO JACK™, HEAVY DUTY JACKS AND F OLD-A-JACKS™

Standard Vee Head Ball

Transfer Set

Part # 780551 (standard)

Part # 780274 (stainless steel)

Attachments slide over

standard vee head.

Accommodates 3/8" - 12"

(10 - 300 mm) pipe sizes.

1,000 lb (450 kg) capacity.

Stainless Steel

Vee Head Attachment

Part # 780502

Fits over vee and secures with

two bolts – no tools required!

780518

780498

Part #Head Style Description Cacpacity Pipe Size Minimum

2,500 lb

(1,135 kg)

Standard Vee Head

Standard Vee Head w/SS Sleeve

Pipe Size Maximum

1/8"

(3 mm)

24"

(600 mm)

780518 &

780551

780518 &

780274

Ball Transfer Head

Ball Transfer Head (Stainless Steel)

1,000 lb

(450 kg)

3/8"

(10 mm)

12"

(300 mm)

780514

780517

785220

Roller Head Assy. w/Aluminum Wheels

Roller Head Assy. w/SS Wheels

Aluminum Roller Head

2,500 lb

(1,135 kg)

1 1/4"

(30 mm)

24"

(600 mm)

Rubber Wheel Head

780499 1,000 lb

(450 kg)

1 1/2"

(40 mm)

24"

(600 mm)

Bar Stock Head 2,000 lb

(900 kg)

1/8"

(3 mm)

24"

(600 mm)

780519 (Hi)

780944 (Lo)

Head capacity equals max capacity of jack.

SUMNER PIPE JACKS8

Proper Operation:

1. Sumner offers two different jack heights (hi and lo),

that allow welders to work at a comfortable height,

depending upon the diamter of the pipe or load.

Based on the size of the material to be welded,

select the correct jack for the job (see page 8 on

jack height).

Correct Jack Height

Operator work level is at

comfortable position.

Incorrect Jack Height

Work too low for operator

can result in back injury.

IMPORTANT Inspect jack prior to each use to

ensure legs are free of bends,

breaks or metal deformation and

that spanner nut rotates freely.

SUMNER PIPE JACKS 9

2. Position jacks 5 feet (1.5 m) to 12 feet (3.5 m) apart,

depending on length and weight of load.

For an extra margin of safety it is recommended to have at

least 4 jack stands spread evenly under any load.

3. Adjust spanner nut so that at least 2–3" (50–75 mm)

of adjustment screw is showing out of the I.D. barrel.

IMPORTANT Always use same height jacks

(hi or lo) per load. Do not mix jack

makes or head styles.

SUMNER PIPE JACKS10

4. To position jack to desired height, loosen set screw

and lift I.D. barrel. Lock washer will unlock when I.D.

barrel is being raised and will grip automatically with

the slightest load pressure.

WARNING Raising or lowering I.D. barrel with

load on jack can result in serious

injury.

SUMNER PIPE JACKS 11

5. To lower jack head, lift both I.D. barrel and lock washer

to loosen barrel. While holding lock washer lower I.D.

barrel to desired height. Release lock washer to secure

I.D. barrel.

IMPORTANT

I.D. barrel.

SUMNER PIPE JACKS12

at equal heights.

7. Always center the load on the jack head.

8. Level load by rotating spanner nut.

SUMNER PIPE JACKS 13

Transporting Jack Stand:

Vee head assembly can be

locked in the jack for

transportation. Position locator

hole in ID tube so that it is in-line

with set screw.

Tighten set screw so that the

head cannot come out of stand.

Jack head assembly can slide out

of the I.D. barrel if jack is carried

incorrectly. To prevent foot injury,

always carry jack by both the jack

head and leg or carrying handle.

WARNING Set screw should only be used to

hold jack head in place during

transport and should not be used to

hold a load. Release set screw before

putting jacks under a load.

SUMNER PIPE JACKS14

Adjusting Ball Transfer Heads:

Ball transfer assemblies slide over each vee of the

Sumner Vee Head Jack. Make sure set screws are fully

recessed. Note that the ball transfer locations are

adjustable to accommodate both small 3/8" (10 mm)

diameter pipe or larger diameter pipe up to 12" (300 mm).

CAUTION To be sure that pipe stays on the ball

transfer head when rotating, tighten

set screws.

Positioned for small

diameter pipe

Positioned for large

diameter pipe

SUMNER PIPE JACKS 15

Adjusting Roller Head and Rubber

Wheels:

Remove wheel attaching bolt and nut and reposition for

correct pipe size.

Using Jack Stand with Threading

Machine:

When using the pipe stand behind threading machines,

pipe stand vee should be positioned so that the pipe has

level entry into the threader. A pipe stand should be

positioned under the pipe every 8 feet.

SUMNER PIPE JACKS16

Hold-Down Device (PN 781050):

Sumner offers as an option to vee head users, a quick-action

chain vise to secure pipe up to 12" in diameter onto the jack

stand. The Hold-Down Device is highly recommended as a

or short pipe lengths.

For users of larger pipe, a Chain Extension Kit (PN 781056) is

available in increments of 12".

Hold-E Pipe Clamp (PN 785000)

(Stainless Steel PN 784999):

The Hold-E Pipe Clamp is for use with vee heads to secure

pipe 3/4" to 6" in diameter. The Hold-E Pipe Clamp is highly

recommended as a quick, easy safety precaution for the

SUMNER PIPE JACKS 17

Pipe Stand Details

Pipe Stand Part # Description

Load

Capacity

Min.

Pipe Capacity

Max.

Pipe Capacity

Min.

Height

Max.

Height Width Length Weight

FO LD-A-JACK™

781300 HI FAJ - Vee 2,500 lb (1,135 kg) 1/8" (3 mm) 24" (600 mm)

28"

(71 cm)

49"

(125 cm)

22"

(56 cm)

22"

(56 cm)

25 lb (11.4 kg)

781301 HI FAJ - Roller 2,000 lb (900 kg) 1-1/4" (30 mm) 24" (600 mm) 28 lb (12.7 kg)

781302 HI FAJ - Bar Stock 2,000 lb (900 kg) 1/8" (3 mm) 10" (250 mm) 25 lb (11.4 kg)

781303 HI FAJ - SS Roller 2,000 lb (900 kg) 1-1/4" (30 mm) 24" (600 mm) 29 lb (13.1 kg)

781304 HI FAJ - SS Vee 2,500 lb (1,135 kg) 1/8" (3 mm) 24" (600 mm) 24 lb (10.9 kg)

781305 HI FAJ - Ball Trans 1,000 lb (450 kg) 3/8" (10 mm) 12" (300 mm) 29 lb (13.1 kg)

781306 HI FAJ - Rubber Whls 1,000 lb (450 kg) 1-1/2" (40 mm) 24" (600 mm) 26 lb (11.8 kg)

781310 LO FAJ - Vee 2,500 lb (1,135 kg) 1/8" (3 mm) 24" (600 mm)

21"

(51 cm)

36"

(89 cm)

15-1/2"

(39 cm)

15-1/2"

(39 cm)

21 lb (9.5 kg)

781311 LO FAJ - Roller 2,000 lb (900 kg) 1-1/4" (30 mm) 24" (600 mm) 24 lb (10.9 kg)

781313 LO FAJ - SS Roller 2,000 lb (900 kg) 1-1/4" (30 mm) 24" (600 mm) 24 lb (10.9 kg)

781314 LO FAJ - SS Vee 2,500 lb (1,135 kg) 1/8" (3 mm) 24" (600 mm) 22 lb (10.0 kg)

781315 LO FAJ - SS Vee 1,000 lb (450 kg) 3/8" (10 mm) 12" (300 mm) 25 lb (11.3 kg)

781316 LO FAJ - Rubber Whls 1,000 lb (450 kg) 1-1/2" (40 mm) 24" (600 mm) 22 lb (10.0 kg)

HEAVY DUTY JACKS

780375 HI HD - Vee 2,500 lb (1,135 kg) 1/8" (3 mm) 24" (600 mm)

28"

(71 cm)

49"

(125 cm)

22"

(56 cm)

22"

(56 cm)

24 lb (10.9 kg)

780376 HI HD - Roller 2,000 lb (900 kg) 1-1/4" (30 mm) 24" (600 mm) 27 lb (12.2 kg)

780377 HI HD - Bar Stock 2,000 lb (900 kg) 1/8" (3 mm) 10" (250 mm) 24 lb (10.9 kg)

780378 HI HD - SS Roller 2,000 lb (900 kg) 1-1/4" (30 mm) 24" (600 mm) 28 lb (12.7 kg)

780379 HI HD - SS Vee 2,500 lb (1,135 kg) 1/8" (3 mm) 24" (600 mm) 24 lb (10.9 kg)

780380 HI HD - Ball Trans 1,000 lb (450 kg) 3/8" (10 mm) 12" (300 mm) 27 lb (12.2 kg)

780381 HI HD - Rubber Whls 1,000 lb (450 kg) 1-1/2" (40 mm) 24" (600 mm) 26 lb (11.8 kg)

780385 LO HD - Vee 2,500 lb (1,135 kg) 1/8" (3 mm) 24" (600 mm)

21"

(51 cm)

36"

(89 cm)

15-1/2"

(39 cm)

15-1/2"

(39 cm)

19 lb (8.6 kg)

780386 LO HD - Roller 2,000 lb (900 kg) 1-1/4" (30 mm) 24" (600 mm) 22 lb (10.0 kg)

780387 LO HD - Bar Stock 2,000 lb (900 kg) 1/8" (3 mm) 24" (600 mm) 18 lb (8.2 kg)

780388 LO HD - SS Roller 2,000 lb (900 kg) 1-1/4" (30 mm) 24" (600 mm) 22 lb (10.0 kg)

780389 LO HD - SS Vee 2,500 lb (1,135 kg) 1/8" (3 mm) 24" (600 mm) 19 lb (8.6 kg)

780390 LO HD - Ball Trans 1,000 lb (450 kg) 3/8" (10 mm) 12" (300 mm) 22 lb (10.0 kg)

780391 LO HD - Rubber Whls 1,000 lb (450 kg) 1-1/2" (40 mm) 24" (600 mm) 21 lb (9.6 kg)

HEAVY DUTY JACK PLUS

780326 HD PLUS - Vee 3,500 lbs

(1,580 kg)

1/8"

(3 mm)

24"

(600 mm)

28"

(71 cm)

49"

(125 cm)

22"

(56 cm)

22"

(56 cm)

24 lb

(10.9 kg)

PRO JACK™

780471 HI PRO - Vee 2,000 lb (900 kg) 1/8" (3 mm) 24" (600 mm)

28"

(71 cm)

49"

(125 cm)

24"

(61 cm)

24"

(61 cm)

23 lb (10.4 kg)

780472 HI PRO - Roller 2,000 lb (900 kg) 1-1/4" (30 mm) 24" (600 mm) 26 lb (11.8 kg)

780473 HI PRO - Bar Stock 2,000 lb (900 kg) 1/8" (3 mm) 10" (250 mm) 23 lb (10.4 kg)

780474 HI PRO - SS Roller 2,000 lb (900 kg) 1-1/4" (30 mm) 24" (600 mm) 26 lb (11.8 kg)

780475 HI PRO - SS Vee 2,000 lb (900 kg) 1/8" (3 mm) 24" (600 mm) 24 lb (10.9 kg)

780476 HI PRO - Ball Trans 1,000 lb (450 kg) 3/8" (10 mm) 12" (300 mm) 28 lb (12.7 kg)

780477 HI PRO - Rubber Whls 1,000 lb (450 kg) 1-1/2" (40 mm) 24" (600 mm) 25 lb (11.4 kg)

FAT JACK™

Maxi Fat Jack - Vee

Midi Fat Jack - Vee

Mini Fat Jack - Vee

Maxi Fat Jack - Roller

Midi Fat Jack - Roller

Mini Fat Jack - Roller

6,000 lb (2,722 kg) 1/8" (3 mm) 24" (600 mm)

36" (91.4 cm)

26.5" (67.3 cm)

16" (40.6 cm)

36" (91.4 cm)

26.5" (67.3 cm)

16" (40.6 cm)

61" (154.9 cm)

44.5" (113 cm)

28.5" (72.4 cm)

61" (154.9 cm)

44.5" (113 cm)

28.5" (72.4 cm)

34" (86.3 cm)

21" (53.3 cm)

19" (48.3 cm)

34" (86.3 cm)

21" (53.3 cm)

19" (48.3 cm)

34" (86.3 cm)

21" (53.3 cm)

19" (48.3 cm)

34" (86.3 cm

21" (53.3 cm)

19" (48.3 cm)

47 lb (21.4 kg)

37 lb (16.8 kg)

28 lb (11.4 kg)

47 lb (21.4 kg)

37 lb (16.8 kg)

28 lb (11.4 kg)

780395

780400

FAB SAF - Vee 3,500 lb (1,580 kg)

2,500 lb (1,135 kg)

1/8" (3 mm)

1-1/4" (30 mm)

36" (900 mm)

39 lb (17.6 kg)

Pipe Stand Details

FAB SAF™JACK

38"

(81 cm)

52"

(132 cm)

30"

(76 cm)

30"

(76 cm) 42 lb (19.0 kg)

FAB SAF - Roller

SUMNER PIPE JACKS18

Pipe Stand Part # Description

Load

Capacity

Min.

Pipe Capacity

Max.

Pipe Capacity

Min.

Height

Max.

Height Width Length Weight

HI BO Y™

783250 HI BOY 1,000 lb

(450 kg)

1/8"

(3 mm)

24"

(600 mm)

39"

(98 cm)

72"

(180 cm)

38"

(97 cm)

38"

(97 cm)

45 lb

(20.4 kg)

ADJUST-A-ROLLS™

780365 HI AAR - Steel Whls 2,000 lb (900 kg)

1/2"

(12 mm)

36"

(900 mm)

31"

(78 cm)

23"

(58 cm)

32"

(81 cm)

35 lb (15.8 kg)

780366 HI AAR - Ball Trans 1,000 lb (450 kg) 38 lb (17.3 kg)

780367 HI AAR - Rubber Whls 1,200 lb (550 kg) 34 lb (15.4 kg)

780368 HI AAR - SS Whls 2,000 lb (900 kg) 35 lb (15.8 kg)

780369 HI AAR - Bar Stock 2,000 lb (900 kg) 39 lb (17.6 kg)

780370 LO AAR - Steel Whls 2,000 lb (900 kg)

1/2"

(12 mm)

36"

(900 mm)

24"

(61 cm)

22"

(56 cm)

31"

(79 cm)

34 lb (15.4 kg)

780371 LO AAR - Ball Trans 1,000 lb (450 kg) 24 lb (10.9 kg)

780372 LO AAR - Rubber Whls 1,200 lb (550 kg) 32 lb (14.5 kg)

780373 LO AAR - SS Whls 2,000 lb (900 kg) 34 lb (15.4 kg)

780359 LO AAR - Bar Stock 2,000 lb (900 kg) 37 lb (16.8 kg)

780360 TBL AAR - Steel Whls 2,000 lb (900 kg)

1/2"

(12 mm)

36"

(900 mm)

7" (18 cm)

6-1/4"

(16 cm)

22"

(56 cm)

22 lb (10.0 kg)

780361 TBL AAR - Ball Trans 1,000 lb (450 kg) 5-3/4" (15 cm) 22 lb (10.0 kg)

780362 TBL AAR - Rubber Whls 1,200 lb (550 kg) 7" (18 cm) 20 lb (9.0 kg)

780363 TBL AAR - SS Whls 2,000 lb (900 kg) 7" (18 cm) 22 lb (10.0 kg)

780364 TBL AAR - Bar Stock 2,000 lb (900 kg) 5-3/4" (15 cm) 24 lb (10.9 kg)

PRO RO LL ™

780441 PRO ROLL - Steel Whls 2,000 lb (900 kg)

1/2"

(12 mm)

36"

(900 mm)

29"

(74 cm)

43"

(109 cm)

23"

(58 cm)

32"

(81 cm)

47 lb (21.3 kg)

780442 PRO ROLL - Ball Trans 1,000 lb (450 kg) 49 lb (22.2 kg)

780443 PRO ROLL - Rubber Whls 1,200 lb (550 kg) 45 lb (20.4 kg)

780444 PRO ROLL - SS Whls 2,000 lb (900 kg) 47 lb (21.3 kg)

780446 PRO ROLL - Bar Stock 2,000 lb (900 kg) 49 lb (22.2 kg)

BIG V™JACK

780260 Big V 2,500 lb

(1,135 kg)

(100 mm)

36"

(900 mm)

29-1/2"

(75 cm)

41"

(104 cm)

29-1/2"

(75 cm)

29-1/2"

(75 cm)

36 lb

(16.4 kg)

MAX JA X™I &I I

781460 Max Jax Basic 2,500 lb

(1,135 kg)

21"

(53 cm)

33"

(84 cm)

29-5/8"

(75 cm)

29-5/8"

(75 cm)

68 lb

(31.1 kg)

781403 Max Jax Kit

(Roller Head)

2,000 lb

(900 kg)

30-1/2"

(78 cm)

42-1/2"

(108 cm)

39-1/2"

(100 cm)

39-1/2"

(100 cm)

144 lb

(65.5 kg)

786450 4,500 lb

(2045 kg)

52"

(133 cm)

74"

(188 cm)

37.5"

(95 cm)

37.5"

(95 cm)

106 lb

(48.3 kg)

BIG V™/ MAX JA X™I &II HEAD STYLES

781381 BV/MJ - Large Roller 2,000 lb (900 kg) 4" (100 mm) 36" (900 mm)

8 lb (3.6 kg)

781382 BV/MJ - SS Sleeves 2,500 lb (1,135 kg) 4" (100 mm) 36" (900 mm) 8 lb (3.6 kg)

781383 BV/MJ - Ball Trans 1,000 lb (450 kg) 3/8" (9 mm) 36" (900 mm) 8 lb (3.6 kg)

781394 BV/MJ - Rubber Whls 1,000 lb (450 kg) 4" (100 mm) 36" (900 mm) 8 lb (3.6 kg)

781397 BV/MJ - SS Ball Trans 1,000 lb (450 kg) 3/8" (9 mm) 36" (900 mm) 5 lb (2.3 kg)

781406 BV/MJ - Roller 2,000 lb (900 kg) 4" (100 mm) 36" (900 mm) 8 lb (3.6 kg)

781407 BV/MJ - SS Roller 2,000 lb (900 kg) 4" (100 mm) 36" (900 mm) 8 lb (3.6 kg)

(100 mm)

36"

(900 mm)

786451 Max Jax 2 Kit #2

(Drop Slot Head)

4,500 lb

(2045 kg)

23"

(58 cm)

36"

(91 cm)

37.5"

(95 cm)

37.5"

(95 cm)

127 lb

(57.7 kg)

Max Jax 2 Kit #1

(Vee Head)

sumner.com

Pipe Stand Details cont.

This manual suits for next models

Table of contents

Popular Jack manuals by other brands

Silverline

Silverline Scissor Jack 1 Tonne quick start guide

Sealey

Sealey 2500LE.V4 quick start guide

Meganex

Meganex MEG106 instruction manual

ATD Tools

ATD Tools ATD-7465 operating instructions

CERTIFIED

CERTIFIED 299-7004-0 instruction manual

IDEAL

IDEAL RAJ-7K Series ASSEMBLY & OPERATION INSTRUCTION MANUAL

MAC TOOLS

MAC TOOLS JSA350LR-LE owner's manual

Gude

Gude 3T Translation of the original instructions

TE Connectivity

TE Connectivity 1053159-1, 1053181-1, 1053182-1 instruction sheet

BGS technic

BGS technic 70042 instruction manual

Napa

Napa 791-6570 D manual

Torin

Torin BIG RED JACKS T80501 owner's manual

Lippert Components

Lippert Components Standalone Smart Jack Install manual

Westfalia

Westfalia 86 39 89 instruction manual

Clarke

Clarke STRONG-ARM CTJ2B Operation & maintenance instructions

TMG

TMG TMG-AJF03L product manual

Carlyle Tools

Carlyle Tools NAPA 791-6570D manual

Toparc

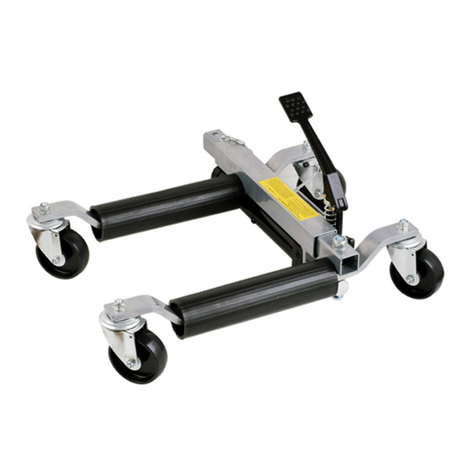

Toparc 064126 Translation of the original manual

Sumner Southwire ST-882 Instruction Manual

Popular Jack manuals by other brands
