Sunbeam’s Safety Precautions 1
Features of your Sunbeam DiamondForce Banquet Frypan 2
Parts & Accessories 4
Usage Instructions 4
Care & Cleaning 6
Temperature Setting Guide 7
Cooking Guide 8
Recipes 10
Troubleshooting 23

Waiting on Front
Cover from Energi
1
If you have any concerns regarding the performance and use of your appliance, please visit
www.sunbeam.com.au or contact the Sunbeam Consumer Service Line. Ensure the above safety
precautions are understood.
Sunbeam’s Safety Precautions
This symbol indicates, temperature of accessible surfaces may be high
when the appliance is operating and for some time after use.
Hot Surface Do Not Touch
Sunbeam is very safety conscious when designing and
manufacturing consumer products, but it is essential
that the product user also exercise care when using an
electrical appliance. Listed below are precautions which
are essential for the safe use of an electrical appliance:
• Read carefully and save all the instructions provided
with the appliance.
• Always turn the power off at the power outlet before
you insert or remove a plug. Remove by grasping the
plug - do not pull on the cord.
• Turn the power off and remove the plug when the
appliance is not in use and before cleaning.
• Do not use your appliance with an extension cord
unless this cord has been checked and tested by a
qualified technician or service person.
• Always use your appliance from a power outlet of the
voltage (A.C. only) marked on the appliance.
• Children should be supervised to ensure that they do
not play with the appliance.
• Use well away from walls and curtains.
• Do not use in confined spaces.
• Never leave an appliance unattended while in use.
• Do not use an appliance for any purpose other than
its intended use.
• Do not place an appliance on or near a hot gas
flame, electric element or on a heated oven.
• Do not place on top of any other appliance.
• Do not let the power cord of an appliance hang over
the edge of a table or bench top or touch any hot
surface.
• Do not operate any electrical appliance with a
damaged cord or after the appliance has been
damaged in any manner. If damage is suspected,
return the appliance to the nearest Sunbeam
Appointed Service Centre for examination, repair or
adjustment.
• For additional protection, Sunbeam recommend the
use of a residual current device (RCD) with a tripping
current not exceeding 30mA in the electrical circuit
supplying power to your appliances.
• Do not immerse the appliance in water or any other
liquid unless recommended.
• Appliances are not intended to be operated by means
of an external timer or separate remote control
system.
• This appliance is intended to be used in household
and similar applications such as: staff kitchen areas
in shops, offices and other working environments;
farm houses; by clients in hotels, motels and other
residential type environments; bed and breakfast
type environments.
• Refer to "Care and Cleaning" section for details
concerning precautions during use maintenance.
• Cleaning and user maintenance shall not be made
by children unless they are older than 8 and
supervised.
• Keep the appliance and its cord out of reach of
children less than 8 years old.
• This appliance is not intended for use by persons
(including children) with reduced physical, sensory
or mental capabilities, or lack of experience
and knowledge, unless they have been given
supervision or instruction concerning use of the
appliance by a person responsible for their safety.
SAFETY PRECAUTIONS FOR YOUR SUNBEAM
DIAMONDFORCE™ FRYPAN.
• Use your frypan at least 200mm away from
walls and curtains.
• Do not immerse the control probe in water.
• If using a plastic spatula do not leave in
cooking vessel when hot.
• The frypan must only be used with the
control probe provided.
• Avoid using on metal surfaces e.g. sink,
hotplate.
• Remove the control probe before cleaning the
frypan.
• After cleaning the frypan ensure that the
control probe Inlet area is completely dry
before using again.

Waiting on Front
Cover from Energi
2
Features of your Sunbeam
DiamondForce™ Banquet Frypan

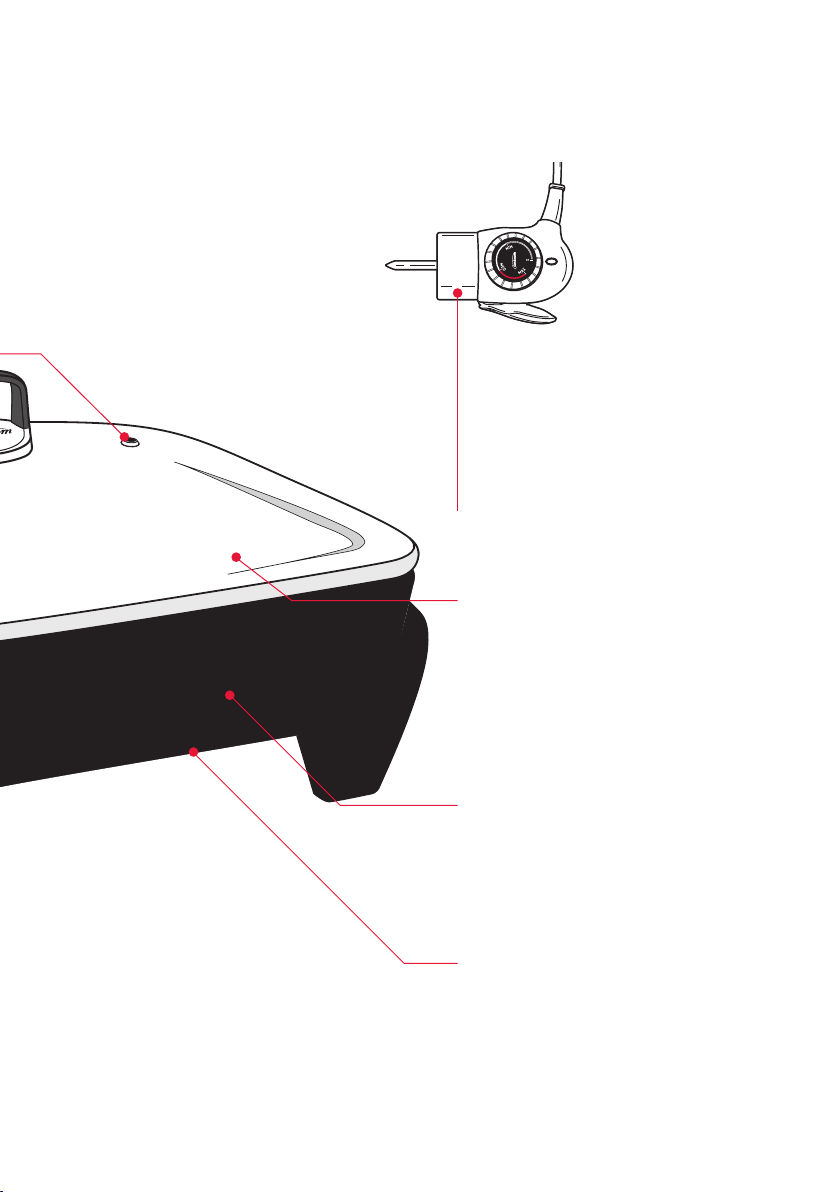

Integrated steam vent
Fixed steam vent controls the moisture level
during cooking.
DiamondForce™ non-stick cooking surface
The DiamondForce™ coating advantage with
advanced non-stick performance provides
superior food release, requiring little to no oil
when cooking food and easy wipe clean up.
Cool touch handles and lid knob
For safer cooking and carrying of the frypan
Control probe inlet
Tilt & baste lever
When the lever is in the lowered position the
cooking pan is tilted, forcing juices to collect
at one end of the pan. Both hands are then
free for basting.
Dishwasher safe
The pan, base and lid are dishwasher safe
and fully immersible making cleaning a
breeze.

Waiting on Front
Cover from Energi
3
Perfect Temp control probe
The removable probe is thermostatically
controlled to provide accurate cooking
temperatures. The trigger-release makes
the probe easy to remove.
Glass lid
The clear glass lid allows you to monitor
the cooking process without lifting the
lid and allowing the heat to escape,
ensuring the selected temperature is
maintained.
Extra large cooking vessel
The large rectangular frypan (38cm (15")
x 29.5cm (11.5")) is 78mm deep, ideal
for cooking 2 chickens, roasts, family
size meals or liquid based dishes.
Cast-in rectangle element
The powerful 2400 watt rectangle
element is completely cast into the
heavy duty base providing superior heat
distribution, faster heating and a longer
element life.

Waiting on Front
Cover from Energi
4
Parts & Accessories
Trigger-Release Control Probe
The heat control probe is thermostatically
controlled to deliver perfect cooking control.
The indicator light switches 'on' when it
is heating. When the frypan has reached
the desired temperature the indicator
light switches 'off'. The indicator light will
then cycle 'on' and 'off' as the thermostat
maintains the set temperature.
The heat control probe is ergonomically
designed with a handy trigger-release. Simply
hold the probe and squeeze the trigger with
your thumb to remove it.
Heat control probe with trigger release

Waiting on Front
Cover from Energi
5
Usage Instructions
Before First Use
Before using your Frypan for the first time,
remove all packaging and promotional
materials from the product and control probe.
With the control probe detached, wash with
warm soapy water using a mild household
detergent.
Rinse thoroughly and dry. Make sure the
interior of the probe inlet is fully dry.
Note: Do not immerse the heat control probe in
water or any other liquid.
Using your Frypan
1.Place on a flat, level, heat-resistant
surface.
2.Insert the control probe fully into the probe
inlet of the frypan.
3.Plug the cord into 230-240V power outlet
and turn the power on.
4.Pre heat the frypan on MED/MAX setting.
Then set the control probe dial to the
desired temperature setting. Refer to page
9 for the temperature guide.
Note: The thermostat light on the control
probe indicates the temperature at which the
dial is set. The light will remain on until the
set temperature has been reached and then
will cycle on and off throughout the cooking.
This will ensure that the frypan maintains
the correct temperature. On the initial
heating of the frypan , it is recommended
that the temperature be allowed to cycle (the
light cycling on and off) several times. This
will help the cooking surface to adjust to a
more accurate cooking temperature.
5.After you have completed cooking, turn
the power OFF and unplug from the power
outlet.
Note: Ensure the cord is kept well away from
the frypan when in use.
Caution: Do not touch the frypan when in
use. Avoid touching hot surfaces. Take care
when removing food from the frypan . Do not
transport the frypan when it is hot.

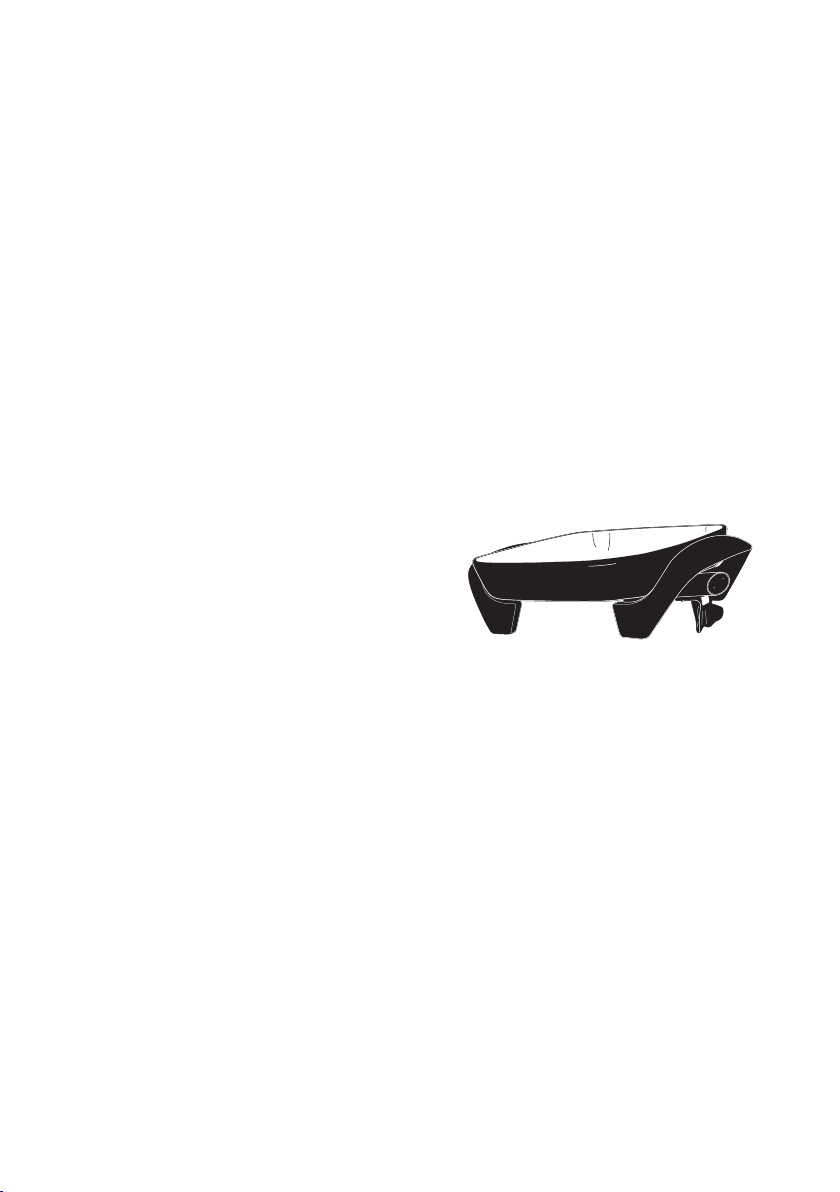

Using the tilt & baste lever
The tilt & baste lever of the frypan is positioned
under the inlet where the control probe is
inserted. To tilt the frypan, push the lever
down. This allows the fat and juices to drain
from the food for crisp, low fat cooking. It also
makes it easier to baste food and serve sauces
or gravy.

Waiting on Front
Cover from Energi
6
Care & Cleaning
Use heat-resistant plastic or wooden or
silicone utensils when cooking on the frypan.
Avoid using sharp or metal objects as these
will scratch the non-stick surface. Do not cut
food on top of the cooking surface. Do not
leave plastic utensils om contact with the
cooking surface while in use.
To clean after use
Always turn the power off and remove the
plug from the power outlet and the control
probe from the probe inlet before cleaning.
Allow the frypan to cool before cleaning.
DiamondForce™ non-stick coating
When cleaning with the DiamondForce™
non-stick coating, do not use metal (or other
abrasrive scourer). When the frypan have
cooled down, you may wipe using a paper
towel to remove residue on the frypan .
With the control probe detached, wash with
warm soapy water using a mild household
detergent. Rinse thoroughly and dry the
frypan with a soft cloth before storing. Make
sure the interior of the probe inlet is fully dry.
Heat Control probe
If cleaning is necessary, wipe over with a
damp cloth.
Note: The control probe must be removed
before the frypan is cleaned and the control
probe inlet must be dried before the frypan is
used again.
Important: Do not immerse the control probe
in water or any other liquid. Store the crontrol
probe carefully. Do not knock or drop it as this
can damage the probe.
Storage
Store the control probe carefully in a safe
place. Do not knock or drop it as this can
damage the probe.
If damage is suspected, return the control
probe to your nearest Sunbeam Service
Centre for inspection.
Glass lid
Wash the lid in warm soapy water using
a soft sponge, rinse and dry thoroughly.
Alternatively, wash the lid in a dishwasher.

Waiting on Front
Cover from Energi
7
Temperature Setting Guide
Note: The temperature settings are a guide only and may require adjustment to suit various
foods and individual tastes. When the dial is set to a MIN setting, it is quite normal for
food to stop and start bubbling, as the thermostat maintains the selected temperature.
The settings on the dial represent the following temperatures approximately.
Pre-heat your frypan on MAX setting then change to your desired setting.
DIAL
SETTING
CELCIUS
(approx) USES TEMPERATURE
MIN 50°C - 70°C Keeping food warm LOW
MIN/MED 80°C - 105°C Simmering, slow cooking
MED 120°C - 140°C Pan frying MEDIUM
MED/MAX 150°C - 175°C Shallow frying, roasting
MAX 190°C - 210°C Searing and sealing HIGH

Waiting on Front
Cover from Energi
8
Cooking Guide
Baking
Your frypan can be used for baking cakes,
with deliciously moist results.
1.Preheat the frypan to MAX setting, with the
lid on.
2.Elevate the cake pan or tray from the base
of the frypan using a small wire rack.
Cooking times will be longer than those of a
conventional oven.
Basting
The tilt & baste lever makes basting easy as
it allows the juices to drain to one side of the
pan. Reduce the temperature to prevent any
fat and juices splattering. Position the pan
tilt lever and spoon the juices over the food
as desired.
Browning and Sealing Meat
It is necessary to brown and seal meat in
many recipes. Meat retains its juices and the
flavours develop after browning and sealing.
This also prevents it from sticking when
baking or roasting. Preferably use meat that
is at room temperature, as this reduces the
cooking time.
1.Preheat the frypan to MED/MAX setting.
2.Brown meat on all sides, with the lid off.
3.After sealing, reduce the temperature to
MED setting and replace the lid until the
meat is cooked as desired.
Frying
The frypan is ideal for shallow or dry frying.
Deep frying is not particularly suitable as
the frypan has shallow sides and a greater
surface area, which results in heat loss and
the possible overflow of oil.
Pan frying: Suitable for eggs, omelettes,
bacon, sausages, steaks and chicken pieces.
Preheat to MED setting with a little oil to add
flavour. Non-stick cooking surfaces do not
require a large amount of oil. Steaks should
only be turned once during cooking.
Shallow frying: Suitable for vegetable pieces
e.g roast pumpkin and potato, and crumbed
food. Preheat on MED setting with sufficient
oil so that the food is half immersed. Cook
food with the lid off.
Sautéeing: Preheat on MED setting with a
little oil to add flavour.
Stir frying: Food is cooked quickly, over a high
heat and vegetables retain their flavour and
crispness. For best results and even cooking,
cut food into even sized, smaller pieces.
1.Preheat the frypan on MED/MAX setting
with a little oil.
2.Slice meat into strips. Coat meat in a little
oil and stir-fry in batches until browned.
This prevents meat from stewing.
3.Add vegetables and seasoning, stirring
continuously. Vegetables which take longer
to cook, such as carrots, should be cooked
first, adding the other ingredients later.
Cook until the vegetables are crisp.
Return the meat back into the pan when
the vegetables are almost cooked. The lid
can be in position in the last few minutes
of cooking.

Waiting on Front
Cover from Energi
9
Roasting
Meat and poultry: The frypan is ideal for
roasting meat and poultry, as the meat
retains the flavour and juices.
1.Preheat the frypan to MED/MAX setting.
Use only a small amount of oil for less
fatty joints and no oil for fattier joints of
meat.
2.Brown and seal the meat on all sides and
position the lid.
3.After browning, turn the dial to MED
setting to cook the meat as desired. Turn
meat occasionally during cooking to ensure
even cooking.
4.Remove meat from pan and cover with
foil. Allow meat to rest for 5-10 minutes,
meanwhile you can make a gravy from the
juices in the frypan.
Vegetables: Cut into even sized pieces. Add
to the frypan 45-60 minutes before serving.
For crisper vegetables, remove the meat and
increase the heat for the last few minutes of
cooking.
Roasting times:
Note: These times are for well done. Reduce
the times to suit personal taste.
PORK 30-40 minutes per 500g after
browning.
VEAL 30-40 minutes per 500g after
browning.
BEEF 20-25 minutes per 500g after
browning.
LAMB 25-30 minutes per 500g after
browning.
CHICKEN 30-35 minutes per 500g after
browning.
Cooking Guide
