SUNFLOWER Static Sapphire Series User manual

User
Manual
#8083 Rev. 8.0
03.04.2021
User Manual
Sapphire Series® Static™
Low-Air-Loss Mattress Replacement System

1
Table of Contents
Definition of Symbols..................................................................................................................... 3
Manual Definitions ..................................................................................................................... 3
Warnings and Cautions............................................................................................................... 3
General Warnings and Precautions................................................................................................. 5
Device Information......................................................................................................................... 6
Description of the Device ........................................................................................................... 6
Purpose of the Device................................................................................................................. 6
Indications for Use...................................................................................................................... 6
Specifications.................................................................................................................................. 7
Unpacking and Set-Up Instructions................................................................................................ 8
Unpacking/Parts Breakdown ...................................................................................................... 8
Operating Instructions................................................................................................................... 10
Modes of Operation .................................................................................................................. 10

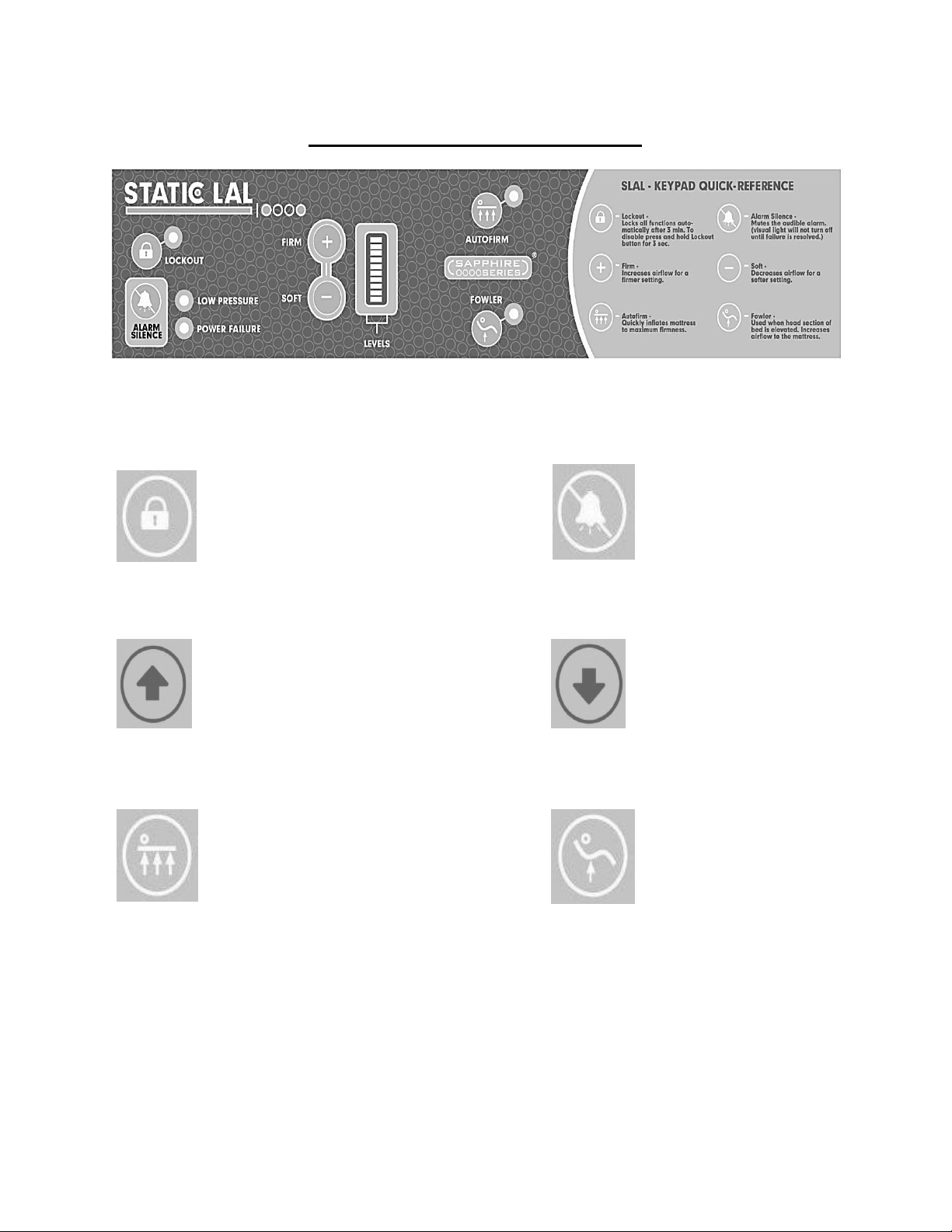

Keypad Quick Reference.............................................................................................................. 12
Patient Care Functions.................................................................................................................. 13
Placing the Patient on the Mattress Surface.............................................................................. 13
Positioning the Patient .............................................................................................................. 13
Backrest Up or Fowler Position................................................................................................ 13
Prone Position........................................................................................................................... 14
Bedpan Placement & Removal................................................................................................. 14
Removing the Patient from the Mattress Surface..................................................................... 14
Mattress Cleaning Instructions ..................................................................................................... 15
Laundry Instructions................................................................................................................. 16
Cleaning Instructions: Control Unit/Blower............................................................................. 18
Maintenance.................................................................................................................................. 19
Storage and Disposal................................................................................................................. 22
Safety Tips.................................................................................................................................... 23
Important Safety Instructions.................................................................................................... 23
Electromagnetic Compatibility (EMC)..................................................................................... 24
Seven Zones of Bed Rail Entrapment........................................................................................... 29
Troubleshooting............................................................................................................................ 30
Frequently Ordered Parts.............................................................................................................. 31
HEPA Filter. .................................................................................................................................. 20

2
Warranty Provisions: ................................................................................................................ 32
User Assistance Information......................................................................................................... 33
Warranty Information ................................................................................................................... 32
Return/Exchange Goods Policy:............................................................................................... 32

3
Definition of Symbols
Manual Definitions
Throughout this manual different type fonts and icons are used to aid user readability and
understanding of the content. Below are some examples.
Standard Text Used for regular information.
Bold Face Text Emphasizes a word or phrase.
NOTE SETS APART SPECIAL INFORMATION OR IMPORTANT
INSTRUCTION CLARIFICATION.
Warnings and Cautions
Warnings/Cautions: This symbol is intended to alert the user to the presence of
important operating, maintenance or servicing instructions. Disregarding a
warning could result in patient and/or user injury as well as damage to equipment.
Electrical Shock Hazard Warning: This symbol is intended to alert the user to
the presence of electrical shock hazards. It is important to follow all instructions
and special procedures to avoid electrical shock to the operator, care provider
and/or patient.
Manufacture
Address
Edison Testing
Laboratories Logo
European CE
Marking
Manufacture
Date
Ratings
Federal
Communications
Commission
Unit Grounding
Specifications
Sunflower
Medical Logo

4
Power Cord Label
This symbol signifies that the device is properly protected
from electrical shock.
This symbol marks the location of the leakage test
point screw.
The hazards and warnings
are indicated on the
shipping container by this
label.
This symbol marks the location and
specification of the fuse.
Replace fuse as
marked

5
General Warnings and Precautions
WARNINGS
WARNING: DO NOT use this device if the power cord is cut, frayed or loosely
connected to the device.
WARNING: (110V unit) Electrically Powered Mechanism. Electrical Hazard may occur
if device is plugged into inadequate electrical outlet. To avoid electrical shock hazard,
make sure unit is plugged into a grounded A/C 110V outlet.
WARNING: (220V unit) Electrically Powered Mechanism. Electrical Hazard may occur
if device is plugged into inadequate electrical outlet. To avoid electrical shock hazard,
make sure unit is plugged into a grounded A/C 220V outlet.
WARNING: DO NOT remove cover. Refer servicing to qualified service personnel.
Disconnect power supply before servicing or cleaning.
WARNING: Be sure to secure mattress to the bed frame with the straps provided.
Failure to do so could result in personal injury or equipment damage.
CAUTIONS
CAUTION: Overheating may cause equipment damage or failure. Monitor the unit to
ensure that it functions in the proper operating temperature.
CAUTION: Keep out of direct sunlight.
CAUTION: DO NOT store in temperatures below 0°F (-18°C) or above 95°F (35°C).
CAUTION: DO NOT expose to moisture or areas of humidity greater than 95%.
CAUTION: Ensure that strap placement does not interfere with the operation of the bed
functions.
CAUTION: Medical Electrical Equipment needs special precautions regarding EMC and
needs to be installed and put into service according to the EMC information provided in
this manual. Portable and mobile RF communications equipment can affect Medical
Electrical Equipment. The use of Accessories, transducers, and cables other than those
specified by the manufacturer, may result in increased emissions or decreased immunity
of the equipment or system.
The equipment or system should not be used adjacent to or stacked with other equipment
and that if adjacent or stacked use is necessary, the equipment or system should be
observed to verify normal operation in the configuration in which it will be used.
CAUTION: DO NOT use around an open flame.

6
Device Information
Description of the Device
The two principle components of the SAPPHIRE SERIES® Static Low-Air-Loss Mattress
Replacement System are a specialized air inflatable bladder (air mattress) and an electrically
powered Blower / Control Unit.
Purpose of the Device
The purpose of the Sapphire Series® Static Low-Air-Loss Mattress Replacement System is to
provide therapeutic benefit to patients at risk or suffering from pressure ulcers.
The active component that has contact with the patient is a specialized, multi-cell air mattress
sized to fit a standard medical bed frame. The air mattress serves as a replacement mattress and
is equipped with 4 air hoses with connectors that mate with the Blower / Control Unit. The
Control Unit is a self-contained, totally enclosed module that hangs by hinged hooks on the bed
frame at the foot of the bed or sits on the floor under the bed.
The Sapphire Series® Static Low-Air-Loss Mattress Replacement System has a detachable
hospital grade electrical cord and a control panel with selector switches and indicator lights. The
switches and indicators are protected under a flexible membrane to keep out liquid spills and
enhance clean-up and sanitation. Inside the Control/Blower Unit is a variable output blower, a
valve motor and air valves that allow the air mattress to operate in static mode. There is also a
printed circuit board, which provides the electrical controls.
Indications for Use
The Sapphire Series® Static Low-Air-Loss Mattress Replacement System is a 3-zoned Clinically
Effective Low Air Loss therapy mattress with optimal pressure redistribution therapeutic
mattress that provides either active or reactive pressure redistribution. When mobility, moisture
and/or inactivity are healthcare concerns, it is indicated for the prevention and treatment of
pressure ulcers and other skin related injuries.

7
Specifications
Control Unit/Blower
Mode of Use……………………………………………………………………………………….…. For Indoor Use Only
Duty Cycle...............………………………………………………………………………………………….... Continuous
Controller Dimensions…………………….…….…..… (LxWxH) 6”(15 cm) x 16”(41 cm) x 10.5”(27cm)
Controller Weight…………………………………………………………….…………………………… 11 lbs. (4.98 kg)
Operating Temperature……………………………………………………………….. -18°C to 35°C (0°F to 95°F)
Alarms…………………………………………………………………………………..Power Failure and Low Pressure
Fowler Positioning………………………………………………………………………………………………………………YES
Clinically Effective Low Air Loss………………………………………………………………………………….……….YES
Electrical
Rated Voltage/s…………………………………………………………………………………110 Volts and 220 Volts
Rated Frequency 110 Volts/Input Power……………………………………………………..…60Hz/120 Volts
Rated Frequency 220 Volts/Input Power……………………………………………………..…50Hz/230 Volts
Degree of Shock Protection………………………………………………………………………………………….Type B
Maximum Relative Humidity................................................................................................95%
Storage Temperature……………………………………………….……………….……-18°C to 35°C (0°F to 95°F)
Environmental Conditions…….…Product must be stored and transported in packaging free of
moisture and dust
Power Cord…………………………………..………….16’ (5 meters) detachable with hospital grade plug
Fuses 110 Volt………………………………………………………………………………...T300mA 250V…T5A 250V
Fuses 220 Volt……………………………………………………………………………………………………….T2.5A 250V
Power Failure Alarm…………………………………………………………………………………………………………..YES
Mattresses
Inflated Dimensions 35”………………………..….(LxWxH) 80”(203.2cm) x 35”(88.9cm) x 8”(20.3cm)
Weight Capacity 35”……………………….……..……..………………....…………..….up to 600 lbs (158.76 kg)
Top Cover Material: ............................................70 Denier Polyurethane Coated Nylon Taffeta
Weight Capacity 39”,42”,48,54”,60”………………………………..……………………up to 1,000 lbs(454kg)

8
Unpacking and Set-Up Instructions
Unpacking/Parts Breakdown
The Sapphire Series® Static Low-Air-Loss Mattress Replacement System consists of a control
unit, power cord, a clinically effective low air loss mattress and a waterproof, vapor permeable,
easy-to-clean cover.
Parts:
Air Blower / Control Unit
Power Cord (Hospital Grade)
Clinically Effective Low Air Loss Mattress Replacement
Mattress Cover
Unpacking Instructions (no tools required)
Remove the products from the packing material and examine for shipping damage. If damage is
detected in shipping, contact the freight company and file a damage complaint immediately.
Environmental Conditions:
CAUTION: Keep out of direct sunlight.
DO NOT expose to temperatures greater than 35°C (95°F) or below -18°C (0°F).
DO NOT expose the blower/control unit to humidity greater than 95%.
Portable and mobile RF communications equipment can affect Medical Electrical Equipment.
The use of accessories, transducers and cables, other than those specified by the manufacturer,
may result in increased emissions or decreased immunity of the equipment or system.
The equipment or system should not be used adjacent to, or stacked with, other equipment; and if
adjacent or stacked use is necessary, the equipment or system should be observed to verify
normal operation in the configuration in which it will be used.

9
NOTE: Some cellular telephones, and similar devices, transmit signals while they are ON, even
when not being used.
Directions for Mattress Placement:
Replace the existing bed mattress with the Sapphire Series® Static Low-Air-Loss Mattress
Replacement System. Secure air mattress to the bed frame with straps provided.
Warning or Safety Instructions Relating to Set-Up:
WARNING: (110V unit ONLY) Ensure the power cord is plugged into a
properly grounded AC 110V outlet.
(220V unit ONLY) Ensure the power cord is plugged into a properly grounded
AC 220V outlet.
