Sunjoy Industries D-GZ822PCO User manual

1
Congratulations on your purchase of our SUNJOY 10’ x 13’ Domed Top Gazebo. Our clear, easy to
follow, step-by-step instructions will guide you through the assembly process from start to finish.
This unit is heavy. Do not assemble this item alone. 4 people are recommended for safe assembly.
WARNING:
Keep all children and pets away from assembly area. Children and pets should be supervised when they are
in the area of the Gazebo construction.
Keep assembly area at least 6ft/1.8m from any obstruction such as a fence, garage, house, overhanging
branches, laundry line or electrical wires.
Some parts may contain sharp edges. When assembling and using this product, basic safety precautions
should always be followed to reduce the risk of personal injury and damage to the product.
Please read all instructions before assembly and use.
Check all bolts for tightness before use, and periodically check and tighten bolts as necessary.
Assemble on level ground.
For outdoor use only.
Parts List
Assembly Instructions
Item# D-GZ822PCO
IMPORTANT
Please take time to read these instructions thoroughly and follow each step carefully for safe and easy
operation. Keep this manual for future reference.
Important: Please do not return this product to the store. For technical assistance on assembly or
replacement parts. Please call Sunjoy Industries at 1-866-578-6569 from 8:00 am EST to 8:00 pm PST
or fax the replacement part form which is in the box to 1-740-283-3549 or Email
[e-mail] for assistance.

2
No. Description Qty Picture
A1 Top Connector 2
A2 Top Connecting Middle Beam 1
B Oblique Beam 4
C Middle Beam 6
D Bottom Connecting Oblique
Beam
4
E1 Long Mosquito Netting Runner 1 2
E2 Long Mosquito Netting Runner 2 2
F1 Short Mosquito Netting Runner 1 2
F2 Short Mosquito Netting Runner 2 2
G Beam Connector 4
H Corner Support 4
I Pole Support Slice 8
J Pole 4
K Base 4
L Hook 1
M1 Big Canopy 1
M2 Small Canopy 1
N Mosquito Netting 1
O Curtain 1
P Baffle 4
Q1 Small Top Connector 2
Q2 Small Top Beam 1
R Small Top Arc Beam 4
S Beam connector (down) 6
Parts List

3

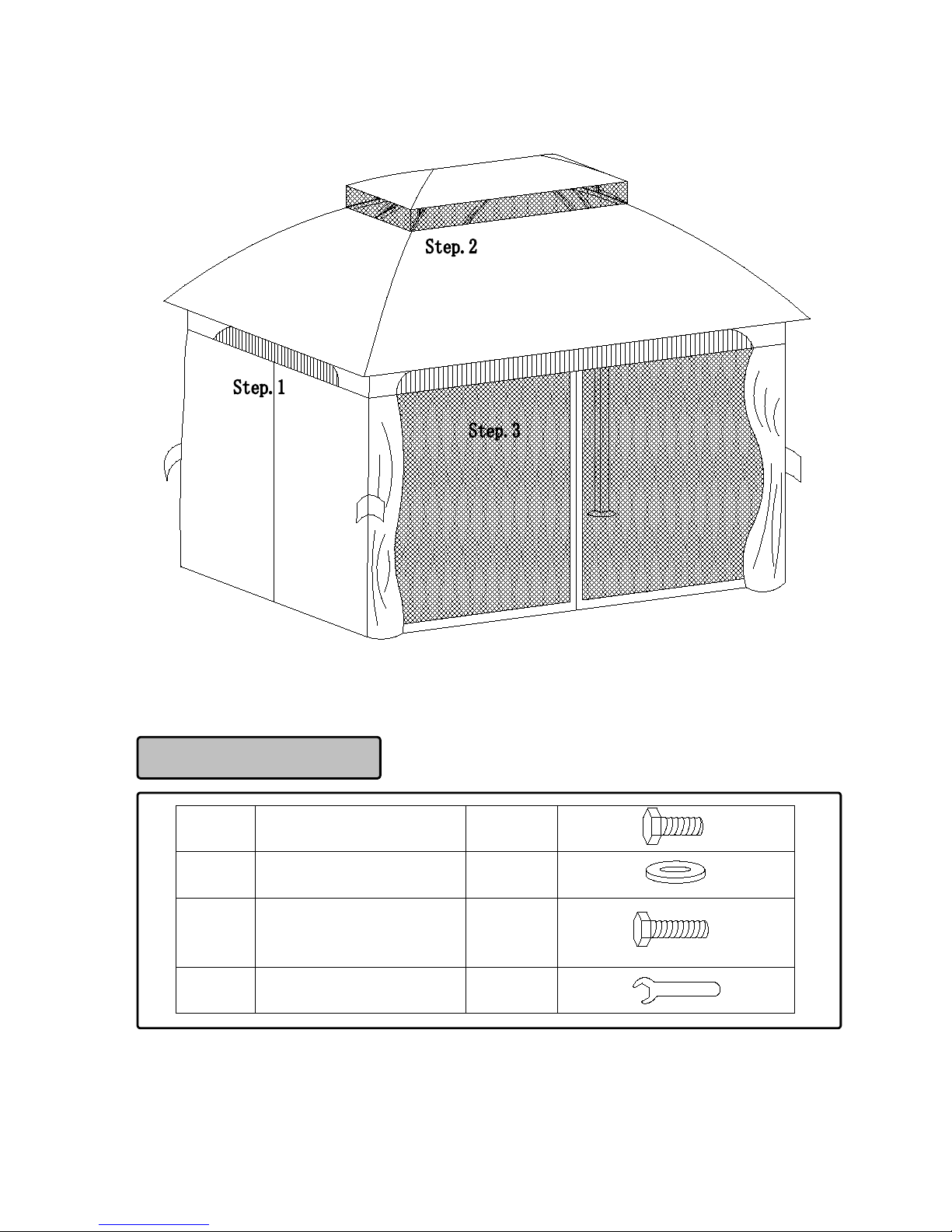

Hardware Pack 1
AA Bolt M6x20 92pcs
BB Flat Washer M6 108pcs
CC Bolt M6X50 16pcs
DD Wrench M6 1pc

4
·
Fig.1: Assemble Long Mosquito Netting Runner 1&2 (E1&E2) together by Beam Connector (G), Bolt (AA),
Flat Washer (BB). (Note: Assemble Short Mosquito Netting Runner 1&2 (F1&F2) as above same way.)
Fig.2: Put Base (K) under Post (J), then use Bolt (AA) and Flat Washer (BB) to fasten.
Fig.3: Attach Long Mosquito Netting Runner (E1&E2) and Bottom Oblique Beam Connector (D) to Pole
(J) with Bolt CC and Flat Washer BB. Don’t tighten the bolts at this step.
Fig.4: Attach Short Mosquito Netting Runner (F1&F2) and Bottom Oblique Beam Connector (D) to Pole
(J) with Bolt CC and Flat Washer BB. Tighten two sides of bolts.

5
KK Bolt M5*15 4 pcs
LL Flat Washer M5 4 pcs
BB Flat Washer M6 10 pcs
JJ Mosquito Netting Hook
（Pre-assembled）112pcs
EE Bolt M6X30 4 pcs
HH Bolt M6*40 6 pcs
II Nut M6 6 pcs
Hardware Pack 2
Fig.5: Attach Pole Support Slice (I) to Post (J) and Mosquito Netting Runner 1&2 (E1, E2, F1, F2) with
Bolt (AA) and Flat Washer (BB).
Fig.6: Attach Corner Support (H) to Long Mosquito Netting Runner 1&2 (E1&E2) and Short Mosquito
Netting Runner 1&2 (F1&F2) with Bolt (AA) and Flat Washer (BB).
Fig.7: Attach Beam connector (down) (S) to Short Mosquito Netting Runner 1&2(F1&F2) with Bolt AA
and Flat washer BB.
Fig.8: Attach Beam connector (down) (S) to Long Mosquito Netting Runner 1&2(E1&E2) with Bolt AA
and Flat washer BB.

6
Fig.12: Insert Middle Beam (C) into Top Connector (A1).
Fig.13: Attach Middle Beam (C) to Beam connector (S) with Bolt (HH), Flat washer (BB), Nut (II). Put the
Big Canopy (M1) on the big top and do not expand it now.
Fig.14: Attach Baffle (P) to Long Mosquito Netting Runner 1&2(E1&E2) with Bolt EE and Flat washer BB.
Fig.9: Insert Top Connecting Middle Beam (A2) into Top Connector (A1) with Bolt (KK) and Flat Washer
(LL). Then fix Hook (L) to connecting Middle Beam (A2).
Fig.10: Insert Oblique Beam (B) into Top Connector (A1).
Fig.11: Insert bottom of Oblique Beam (B) into Bottom Connecting Oblique Beam (D).
Fig.15: Insert Small Top Beam (Q2) into Small Top Connector (Q1).
Fig.16: Insert Small Top Arc Beam (R) into Small Top Connector (Q1).
Fig.17: Attach the Small Canopy (M2) to Small Top Arc Beam (R).
Fig.18: Attach assembled small top to Oblique Beam (B) by Small Top Arc Beam (R). Spread canopy and
attach it to Beams of B and C.

7
Hardware Pack 3
GG Stake ￠6 x 180 12pcs
Fig.19: Fasten the Base (K) on the ground by using Stake (GG).
Fig.20: Attach Mosquito Netting (N) and Curtain (O) to Mosquito Netting Hook (JJ).
(Note: Mosquito Netting should be inside, Curtain should be outside.)

8
Steel components of garden accessories and furniture are treated with rust inhibiting paint. However, due
to the nature of steel, surface oxidation (rusting) will occur if this protective coating is scratched.
Care & Maintenance
To minimize this condition, it is recommended that care be taken when assembling and handling the
product, in order to prevent the paint from being scratched.
Sunjoy Industries warrants to the original purchaser that this item is free from defects in workmanship and
materials for a period of 1 year from the date of purchase, provided the item was factory-sealed at the
time of purchase and is maintained with care and used only for personal, residential purposes. Should
any manufacturing defect arise within this warranty period, Sunjoy Industries will repair or replace (at our
option) any defective merchandise upon proof of purchase; however, transportation and delivery costs, as
well as payments to a third party for assembly or disassembly of the item, remain the responsibility of the
purchaser. A purchaser of an "open box," previously-returned, or "clearance" item, as well as original
purchasers outside of the warranty period, may obtain replacement parts from Sunjoy Industries for
products in current production, at nominal cost.
Limited Warranty
Items used for commercial, contract, or other non-residential purposes, or items damaged due to acts of
nature, vandalism, misuse, or improper assembly are not covered. Corrosion or rusting of hardware is not
covered. Proof of purchase (dated register receipt) is required for warranty claims. Warranty is to the
original purchaser and is non-transferable. Any replacement of warranted items will be in the original style
and color, or a similar style and color if the original is unavailable or has been discontinued. As some
states do not allow exclusions or limitations on an implied warranty, the above exclusions and limitations
may not apply. This warranty gives you specific rights, and you may also have other rights, which vary
from state to state.
Exclusions

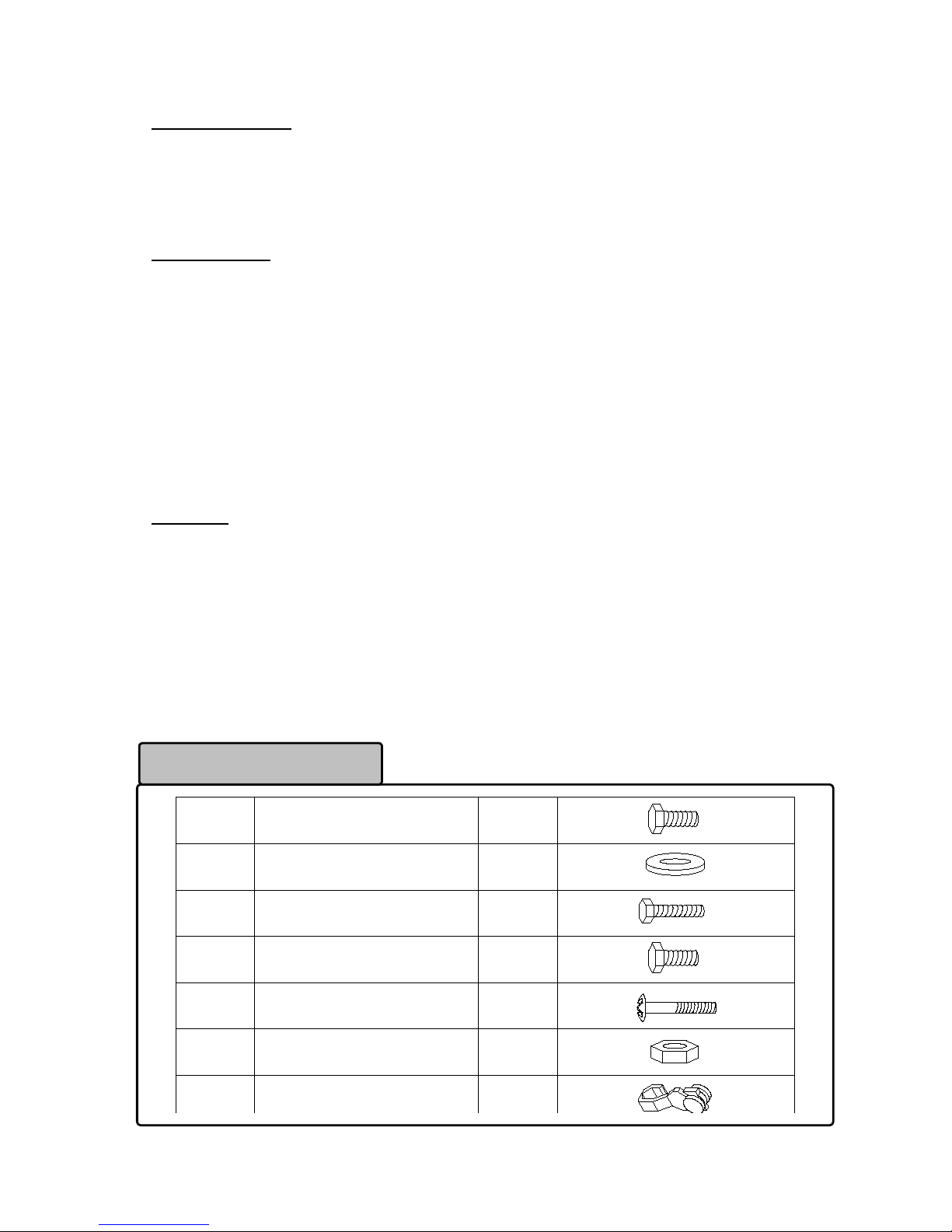

AA Bolt M6X20 10 pcs
BB Flat Washer M6 20 pcs
CC Bolt M6X50 4pcs
EE Bolt M6X30 2 pcs
HH Bolt M6*40 2 pcs
II Nut M6 2 pcs
JJ Mosquito Netting Hook 10pcs
Backup Hardware
