User Guide NebuTech® 8960 Disposable Nebulizer
The NebuTech 8960 consists of 4 components:
1. Reservoir tower with one-way inspiratory valve.
2. Medication chamber (connects to the reservoir tower).
3. Mouthpiece with one-way exhalation valve.
4. 7 ft or 14 ft gas supply tubing.
A mask adapter is also included for use with an aerosol mask.
To prevent loss or misplacement of the adapter, consider slipping
adapter over gas supply tubing, or tie adapter to the tubing. You
can also place the adapter in a clean equipment bag or bring back
to the department and store in an extra parts container.
The NebuTech Nebulizer recommended use is up
to 7 days.
The NebuTech nebulizer is for single-patient use and is not intended
to be reprocessed or autoclaved.
• Follow your facilities policies for cleaning and changing nebulizers.
• If the nebulizer is used for more than one day, consider writing the
date on the equipment bag or nebulizer tower with a permanent
marker.
Instructions for use
1. Wash your hands. Use an aseptic technique to
assemble the nebulizer.
2. Remove the NebuTech Nebulizer from the package.
3. Ensure that the medication chamber is connected tightly
to the reservoir tower (A).
4. Insert the mouthpiece into the side elbow on
the reservoir tower (B).
• Ensure that the exhalation valve is facing upward.
5. Attach the gas supply tubing to the connector port
at the bottom of the medication chamber (C).
• Ensure connections are on tight and secure.
Disposable | Single Patient Use

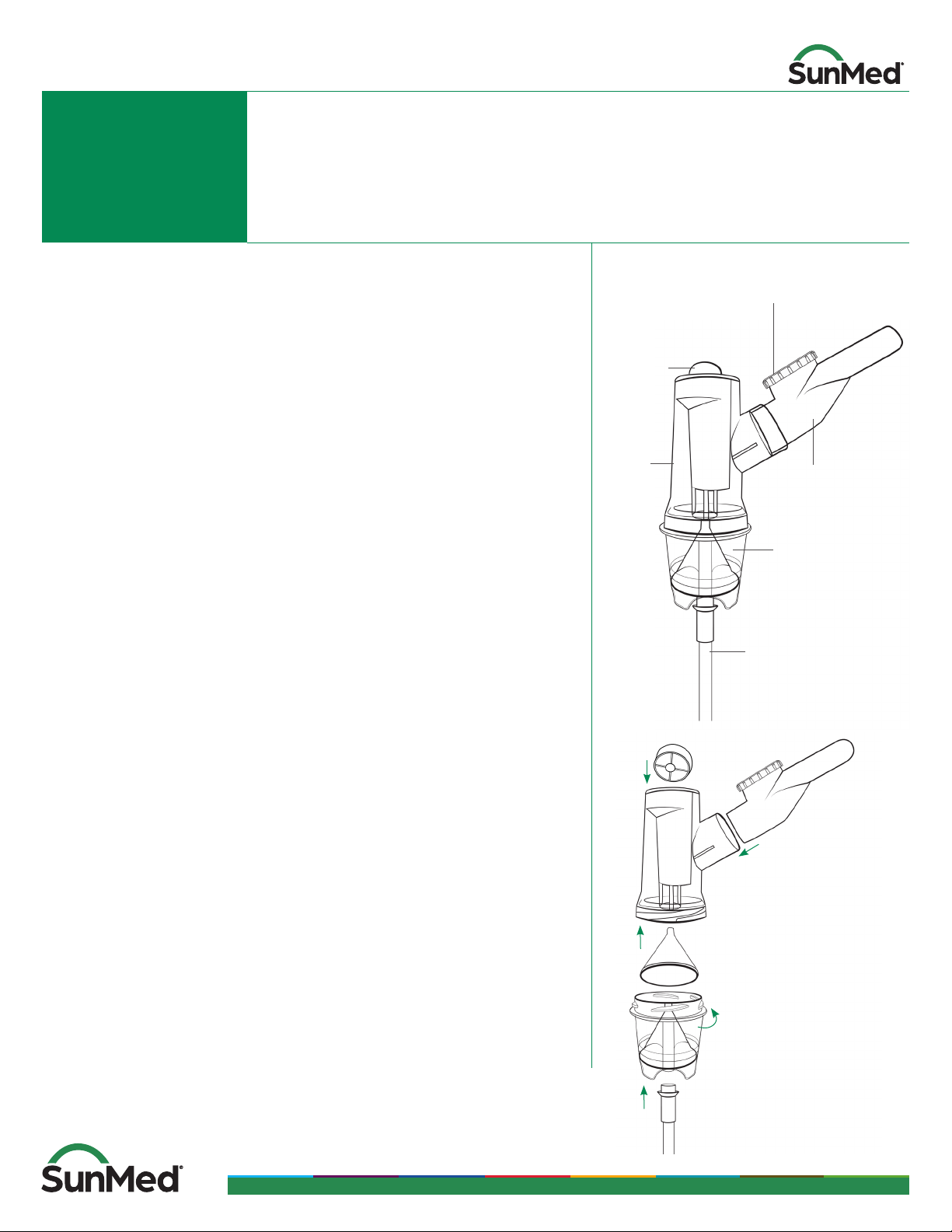

Medication
Chamber
Mouthpiece
Exhalation
Valve
Inspiratory
Valve
Reservoir
Tower
Gas Supply
Tubing
B
A
C

800-433-2797 www.Sun-Med.com
User Guide
Instruction for use, continued
6. To add prescribed medication, do not unscrew medication chamber.
Remove the inspiratory valve and instill medication through the top (D).
• Any medication indicated for use with small-volume jet nebulizer
can be used with the NebuTech.
• Maximum medication volume is 5 mL.
• Do not instill medication through the side elbow because medication
can be caught in the drool catcher.
• Replace inspiratory valve after adding medication (E).
7. To start treatment set ow rate at 4 LPM to 8 LPM
(25 PSI to 52 PSI)
• For optimal performance use a ow rate of 8 LPM.
• 3.0 mL of medication will nebulize approximately 4 minutes @ 8 LPM.
8. After treatment, shake out excess uid.
9. Follow hospital’s policy for storage and cleaning
of nebulizers between treatments.
Treatment Tips
1. If the nebulizer does produce a heavy aerosol, tap the sides of the
medication chamber to ensure the green cone is seated properly. Ensure
that the medication cup is screwed on tightly to the reservoir tower.
2. Instruct patient to keep their lips sealed around mouthpiece during
inspiration and exhalation.
3. Ensure nebulizer is in a position upright or greater than
a 45 degree angle.
4. After each treatment, shake out any residual medication.
5. If the nebulizer has been in use for the several days, the capillary tube
of the nebulizer may be partially occluded. Replace nebulizer.
6. Ensure the exhalation valve on mouthpiece is upright to prevent moisture
dripping on patient.
NebuTech® 8960 Disposable Nebulizer Cont.
Disposable | Single Patient Use
D
E

800-433-2797 www.Sun-Med.com
User Guide
To Use the Nebulizer with a Mask
1. Remove the mouthpiece and place in respiratory equipment bag,
in case you need it later.
2. Remove the inspiratory valve and place on the side elbow port. (A) .
To ensure a proper t, push and turn the valve into the side port .
3. Keep the nebulizer upright. Add the prescribed medication through
top of the reservoir tower (B).
4. Insert mask connector into the top of the reservoir tower (C).
• If not using a Salter Labs aerosol mask, use the universal mask
adapter included in package to connect the mask to the nebulizer.
5. Set the ow rate from 5 LPM to 8 LPM (25 PSI to 52 PSI)
to begin the treatment.
6. Apply the mask to the patient
Alternative Mask Placements
If the patient is unable to sit upright or is in a semi-fowlers position,
attach the mask to the nebulizer’s side port.
Setup A
1. Connect mask to the side port.
Setup B
1. Additional equipment is required. Gather a standard 15 mm ID / 22 mm
OD adapter and a 6 inch corrugated aerosol tubing with 22 mm ID.
2. Attach adapter to side port.
3. Attach one end of corrugate tubing to the adapter
and the other end to the aerosol mask.
NebuTech® 8960 Disposable Nebulizer Cont.
Disposable | Single Patient Use
BA
C
Setup A
Setup B
1. ALL GRAPHICS UPDATE

800-433-2797 www.Sun-Med.com
User Guide
Suggested Cleaning Instructions for Hospital Use
Cleaning procedures may vary depending on the patient population, disease process and hospital infection control
policies. Always follow the facility’s policy and procedure for the delivery of aerosol treatments and for the cleaning
of equipment. SunMed recommended cleaning procedures are provided below. The NebuTech Nebulizer is for
single-patient use and should be replaced every 7 days, or after 21 cleaning cycles, whichever is rst. Replace the
nebulizer sooner if the it becomes damaged, contaminated or is not functioning properly.
Cleaning Method
1. After each use, thoroughly rinse the nebulizer with sterilized water. DO NOT submerge the supply tubing in water.
2. Disassemble all nebulizer components; do not remove any of the one-way valves.
3. Rinse with sterilized water, shake out any excess.
4. Allow the device to dry.
5. Re-assemble and place in a dry, dust free location.
6. Replace the nebulizer every 7 days, or after 21 cleaning cycles, whichever is rst.
NebuTech® 8960 Disposable Nebulizer Cont.
Disposable | Single Patient Use
UG-10001 Rev 2
