SUNNEX TRI-STAR TS2035M Manual

SUNNEX MEDICAL LIGHT
MOBILE
TS2035M, TS2015MWALL
TS2035W, TS2015W
TRI-STAR
TM
INSTALLATION AND SERVICE MANUAL

2
Sunnex TRI-STAR Service & Installation
Manual
Table of Contents
1. SHIPPING CARTON & CONTENTS......................................................... 3
2. INTRODUCTION....................................................................................... 4
3. OPERATION............................................................................................. 5
4. ASSEMBLY OF TRI-STAR MOBILE ........................................................ 5
5. ASSEMBLY AND INSTALLATION OF TRISTAR WALL ......................... 5
6. ABOUT YOUR TRI-STAR.......................................................................... 7
7. CARE FOR YOUR TRI-STAR LIGHT ........................................................ 8
8. SERVICE AND MAINTENANCE............................................................... 9
9. WARRANTY ........................................................................................... 12
10. TROUBLESHOOTING.......................................................................... 13
SAVE THIS PRODUCT MANUAL
READ ALL INSTRUCTIONS BEFORE ASSEMBLY AND USE
IF YOU DON’T UNDERSTAND ANY GUIDELINES IN THIS MANUAL, CALL
DISTRIBUTOR OR MANUFACTURER
DO NOT USE THIS LIGHT IF IT IS DAMAGED, BROKEN, OR HAS MISSING
PARTS

3
Sunnex TRI-STAR Service & Installation
Manual
1. SHIPPING CARTON & CONTENTS
TS2015M / TS2035M
The 14” (35cm) base
The upright column
The lamp head and Flex arm
A four-arm wire frame with casters assembled
TS2015W / TS2035W
Wallboard with Tee Nuts and “U”mounting bracket
Wall extension arm 30” (75cm)
The lamp head with the gooseneck
Two X (1/4”-20) socket cap screws for attaching wall extension arm to
wallboard
Plastic washers (Two)
Allen wrench (5/32)
Aluminum cylinder
CAREFULLY CHECK THE CONTENTS OF THE SHIPMENT. REPORT SHORTAGES
AND/OR ERRORS, TO SUNNEX OR YOUR DEALER’S CUSTOMER SERVICE
DEPARTMENT, WITHIN FIVE (5) WORKING DAYS.
ALL FREIGHT CLAIMS BY EITHER THE DEALER OR CONSIGNEE SHOULD BE
FILED WITH THE TRANSPORTATION COMPANYWITHIN FIVE (5) WORKING
DAYS. THE CARTON AND ITS INSERTS SHOULD BE KEPT FOR INSPECTION BY
THE TRANSPORTATION COMPANY.
2. INTRODUCTION
The objective of this manual is to assist you in assembling your TRI-
STAR light, and, to familiarize you to its more important features. Some
suggestions for its care are also included.
CAUTION: IF A WALL DIMMER IS USED WITH THE LIGHT, IT VOIDS
CERTIFICATION LISTING OF THE PRODUCT. NO DIMMERS ARE APPROVED
TO BE USED WITH THIS LIGHT.

4
Sunnex TRI-STAR Service & Installation
Manual
2.1 APPLICATIONS
The Sunnex TRI-STAR offers an economical alternative to traditional
examination lights.
2.2 TECHNICAL DATA
This light is certified according to the following standards:
CAN/CSA-C22.2 No. 601.1-M90
EN 60601-1, UL 60601-1, IEC 60601-2-41
Power Supply: 120V 60Hz or 230V 50Hz
Nominal Effect 105VA
Light Intensity: 38,000 Lux @ 1 meter (35 W MODEL)
27,000 Lux @ 1 meter (20 W MODEL)
Light Source: 35 W MODEL: Halogen Bulb –12V/3x35W/10°
20 W MODEL: Halogen Bulb –12V/3x20W/10°
Color temp: 3,000K
Medical Standard: Class II Listing
Weight: 25 lbs (Mobile)
20.4 lbs (Wall)
This product is rated as a Class II device; mode of operations is
suited for continuous use
Radiated and conducted emissions testing has been completed
on the TS2015 series lights and for compliance with IEC 60601-1-2
(2001-09) 2nd edition (EN55011:1991, Group I Class B)
2.3 TRANSPORTATION AND STORAGE
The light is packaged in cardboard and should be transported protected from
moisture. The light should be stored in a dry environment at room
temperature.
Transportation and storage temperature: -5°F to 140°F
Humidity < 95%

5
Sunnex TRI-STAR Service & Installation
Manual
3. OPERATION
Plug the three prong molded plug into an appropriate Hospital Grade
receptacle. Power-on your light via the rocker switch on the back cover of the
lamp head. The TRI-STAR is powered by a 105W isolation, step-down
transformer, that contains an internal thermal cutoff for your added safety.
The transformer steps down ordinary wall current to allow for activation of the
three lamp reflectors.
4. ASSEMBLY OF TRI-STAR MOBILE
Remove the upright column and the lamp head assembly from the shipping
carton.
Insert the threaded end of the upright column and screw the upright column
into the base. Mount the screw with washer to the bottom of pole, using Allen
wrench (provided).
Attaching the lamp head assembly is a simple procedure. Raise the metal
collar of the connector, and slip the assembly onto the standoff on top of the
upright column. Once in place, push down on the metal collar to properly seat
the connection. CAUTION: IF YOU DO NOT FEEL A POSITIVE SEATING,
PROPER CONNECTION HAS NOT BEEN ACCOMPLISHED. CHECK AGAIN
TO ENSURE YOU HAVE SECURELY CONNECTED THE LAMP HEAD
ASSEMBLY TO THE UPRIGHT COLUMN.

6
Sunnex TRI-STAR Service & Installation
Manual
5. ASSEMBLY AND INSTALLATION OF TRI-STAR WALL
Your shipping carton will contain a lamp head and flex arm, an extension
arm, Melamine covered wall board (24” W X 16” L X 0.78” THK OR 610mm
W X 407mm L X 20mm THK) with U-bracket and transformer enclosure
mounted on the board, and four (4) plastic fasteners to capture the power
cord on the underside of the arm. Surface mounting lag bolts are not
supplied. These should be purchased to meet local codes, and to ensure
they are appropriate for your particular mounting surface.
The length of the board has been chosen so that two wall studs may be
engaged during installation.
WARNING! Please check local building codes for your specific application.
ATTACHMENT OF LAMP HEAD/ARM/ASSEMBLY:

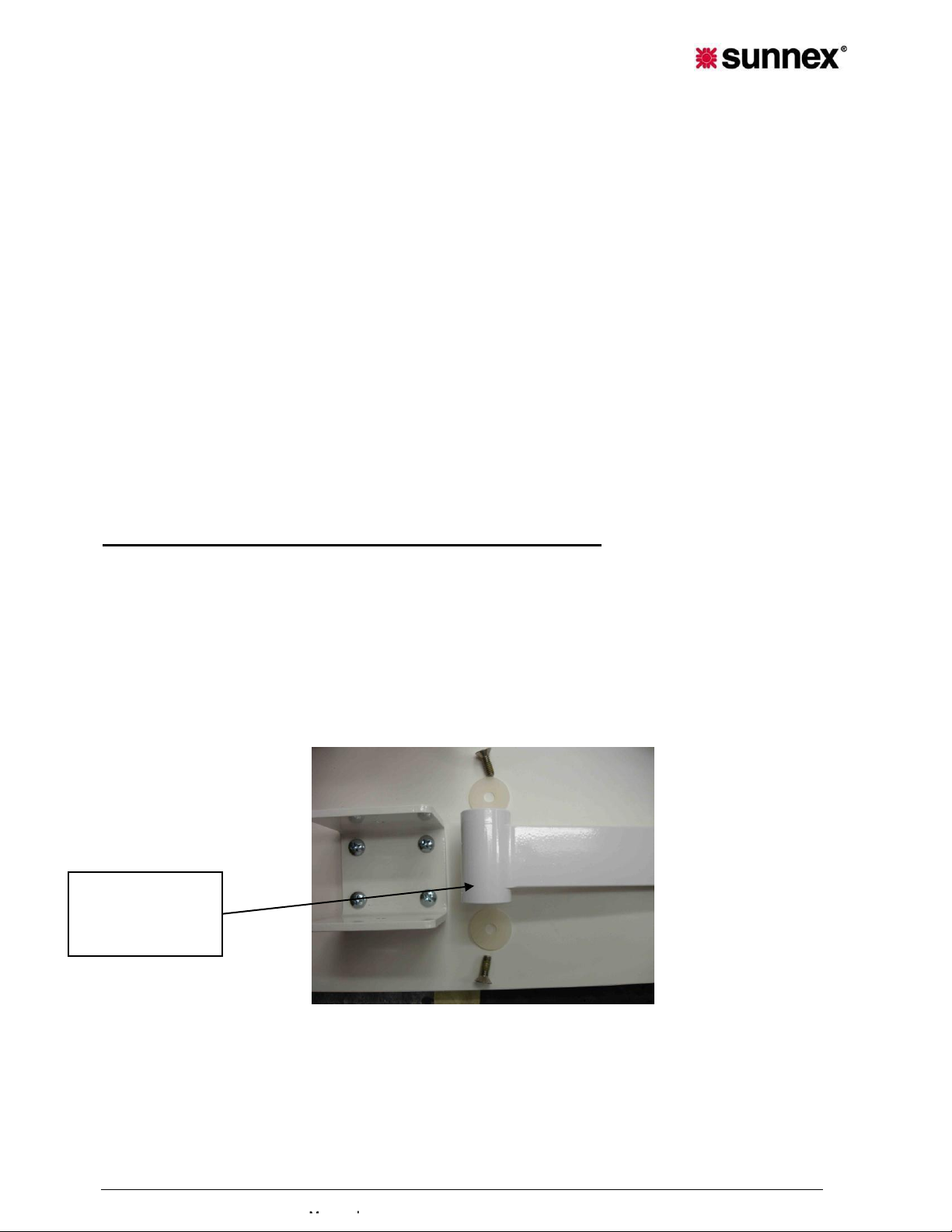

1. Attaching extension arm to wallboard: Place the end of the extension
arm inside U-bracket and place plastic washers so that washers are
between U-bracket and end of arm. Secure arm end to U-bracket with
countersunk screws (2 X 1/4”-20), use provided Allen key (5/32). (See
following illustrations).
END OF
EXTENSION
ARM

7
Sunnex TRI-STAR Service & Installation
Manual

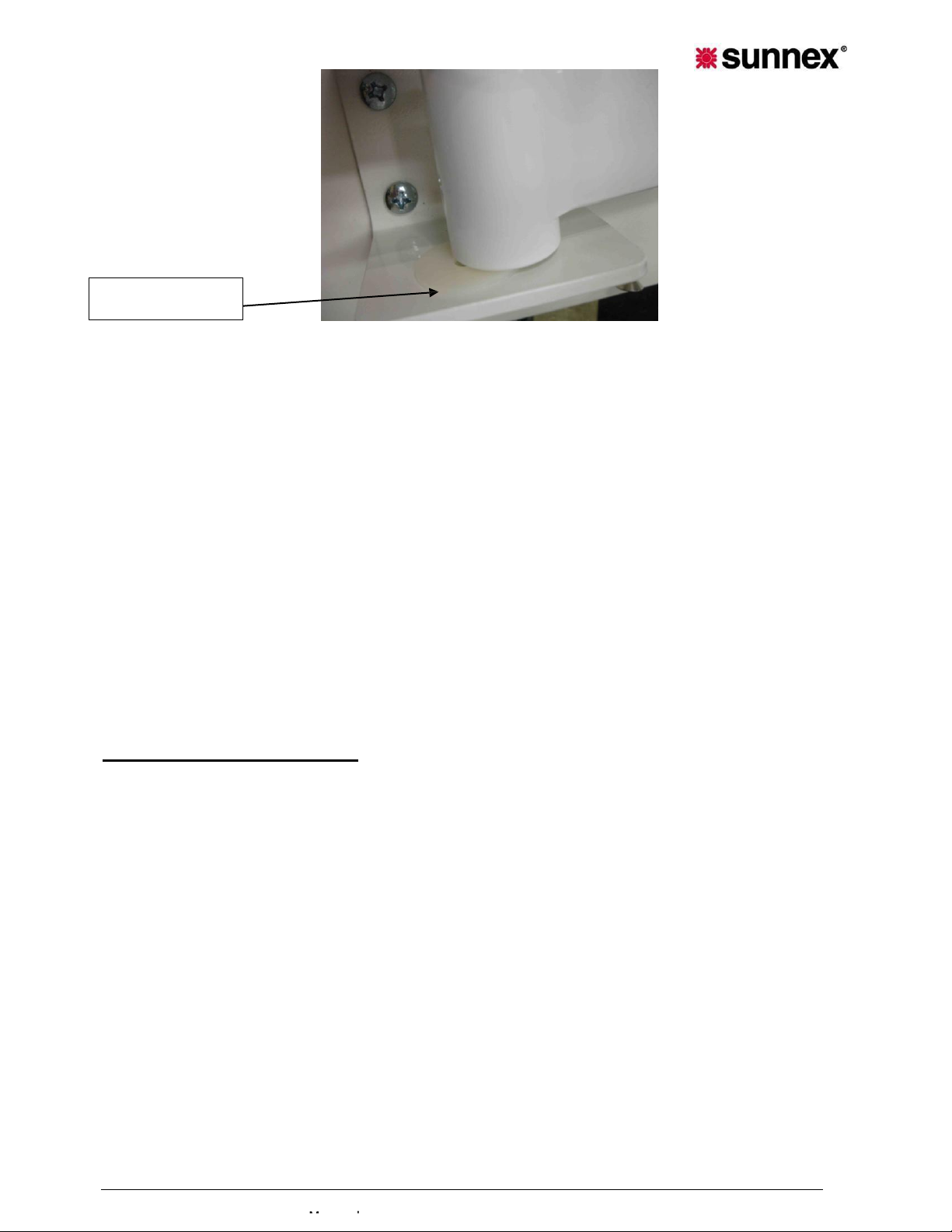

WASHER
2. Raise the metal QUIK-CONNECT collar at the base of the arm, and slip
the assembly onto the standoff on top of the wall extension arm. Once
in place, push down on the collar to properly seat the connection.
CAUTION! IF YOU DO NOT HEAR IT SNAP INTO PLACE OR FEEL A
POSITIVE SEATING, PROPER CONNECTION HAS NOT BEEN
ACCOMPLISHED. CHECK AGAIN TO ENSURE YOU HAVE
SECURELY CONNECTED THE LAMP HEAD/ARM ASSEMBLY TO
THE STANDOFF.
3. Fix the lamp head arm cord to the under surface of the arms with the
furnished plastic fasteners.
4. Plug the lamp head cord into the outlet in the transformer enclosure.
5. Plug the three-prong power cord from the transformer enclosure into
the wall outlet.
6. ABOUT YOUR TRI-STAR
TRI-STAR LAMP HEAD: The lamp head is constructed of high impact
polycarbonate, which offers certain protection not available with metal
reflector lights. The covers and frame provide a safeguard to the reflectors
encased within their design. Along with good physical and thermal qualities,
polycarbonates offer the added advantage of presenting a level of protection
against possible current leakage.
The lamp head rotates 359 degrees in either direction at the point at which it
attaches to the vinyl-coated arm. The control of its movement is via the
handles built into the lamp head frame.

8
Sunnex TRI-STAR Service & Installation
Manual
THE ARM: A vinyl covered 17” flexible positioning arm connects
the lamp head to the upright column, via a QUIKLOK CONNECTOR.
The arm is engineered to two sections with different degrees of tension. The
lower section has a tenseness which allows for proper positioning of
the lamp head while ensuring the beam does not drift. The upper section
provides a lesser degree of tension to allow you the fine lamp head
adjustments needed for more precise positioning.
LAMP HEAD & ARM MOVEMENT: The combination of the lamp head on the
arm, the arm on the Upright column, plus the unrestricted movement of the
arm itself, provides you the greatest range of lamp head motion and
positioning. They adjust to your requirements, and not you to them.
UPRIGHT EXTENSION COLUMN: This uniquely designed column allows you
one hand control of the height of your lamp. Simply squeeze the control at
the top of the column and you can raise or lower the column, easily. The
lamp head-positioning arm connects with an inner column that extends 32” out
of a 31” outer, fixed column. The lamp head and positioning arm combines
with both columns, to offer you a range of light positioning from a low of 55”,
to a height of 80” and, anywhere in between.
THE BASE: The low-profile base provides good support, whether the column
is at full extension or, at its lowest position.
7. CARE FOR YOUR TRI-STAR LIGHT
The design of bulb housing is such the ambient heat that builds up in front of
any lamp, is moved up and through the back cover louvers, providing a
cooler and more comfortable work atmosphere for you and your patient. In
addition, that movement of air over each lamp/reflector adds to their longer
useful life. While your TRI-STAR has been designed to provide many hours
of professional performance, it will benefit from your periodic care and
cleaning.

9
Sunnex TRI-STAR Service & Installation
Manual
The covers and frame may be easily cleaned by using a soft damp cloth with
a mild soap and water solution or, mineral spirits. Isopropyl alcohol is another
acceptable cleansing agent.
The heat absorbing glass filters offer a protection between the patient and
the lamp/reflectors. “They can be cleaned with any commercial glass cleaner.
CAUTION! DO NOT USE EXCESSIVE AMOUNTS OF ANY FLUID AND
WHEN CLEANING, DO NOT INTRODUCE ANY FLUIDS TO THE INSIDE OF
THE LAMP HEAD HOUSING.
The metal components of your light are powder coated for long life. They too
can be cleaned by using a damp cloth of mild soap and water solution,
mineral spirits or, isopropyl alcohol.
SUGGESTION! Periodically dust the backside louvers to ensure
uninterrupted convection of the ambient air.
8. SERVICE AND MAINTENANCE
Other than fuse replacement and bulb replacement, there are no repair
procedures or preventive maintenance requirements for the
lamp. A qualified technician must perform any repairs to the lamp or the
lamp can be returned to the Sunnex, LLC for repair.

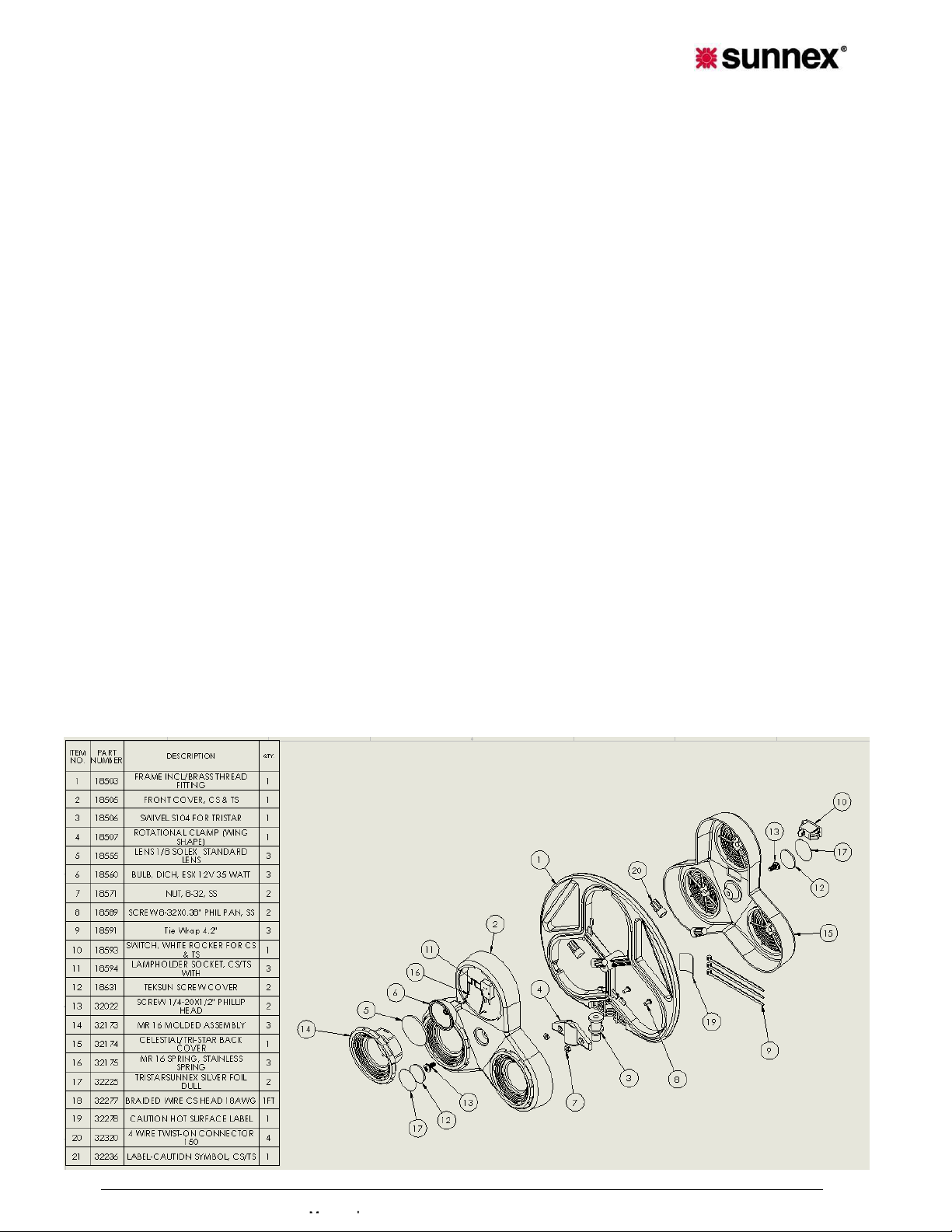

8.1 BULB REPLACEMENT

10
Sunnex TRI-STAR Service & Installation
Manual
Push Here
To Move
CAUTION: ONLY USE DICHROIC BULBS; ANY DEVIATION FROM THE DIRECTIONS
MAY SERIOUSLY DAMAGE YOUR LIGHT. 35W IS MAXIMUM ALLOWED.
When a lamp/reflector burns out, ALLOW SUFFICIENT TIME FOR IT TO COOL
BEFORE ATTEMPTING A REPLACEMENT. Once cool, you should:
1. Refer to figure above. Turn the lamp head over so the three glass
assemblies face upward.
2. With one hand supporting the backside of the lamp, grasp the notched
ring (1) and twist it counter clockwise.
3. Grasp the bulb with one hand and unplug socket connector with the other.
4. The notched ring assembly can now be removed from the lamp head and placed
face down on a flat surface.
5. Hold the notched ring assembly with thumbs and place two index
fingers at flat part of spring (two red lines in figure above), push the spring away
from you pulling it out from the slot (Keep the other two ends of spring inside its
holes)
6. Remove old bulb
7. Install new bulb. Do not touch inside reflector surface of bulb, always grasp
from bulb outside edges
8. Close the retainer spring on the bulb by inserting the front tab of
spring in the slot, so that it fits properly. Check to ensure proper seating of the
spring, by pulling on the bulb. [Position (1) in figure above is “CLOSED
SPRING”]. Ensure that two open ends of spring are properly seated into holes in
the notched ring assembly.
9. Reconnect plug socket to bulb.
10. Replace the notched ring assembly in the lamp head by aligning the
three guide projections into the slots on the lamp head. Press gently inward as you
twist the assembly clockwise. You will hit a stop and set in place.
11. The light is now ready for use.

11
Sunnex TRI-STAR Service & Installation
Manual
Only use the following bulbs:
Sunnex part# 18562
CAUTION! A CHOICE OF A REPLACEMENT LAMP/REFLECTOR CAN AFFECT THE
PERFORMANCE OF YOUR TRISTAR LIGHT.
8.2 FUSE REPLACEMENT
1. Remove the plug from wall receptacle.
2. Access the transformer housing and detach the front cover by removing
the four plastic screws using a flat screwdriver.
3. Locate fuse blocks (2) in the transformer.
4. Turn the fuse holder counter clockwise using a suitable tool and remove
the fuse holder from the fuse block by pulling it out.
5. Replace fuse with proper replacement fuse.
Fuse Replacement Specifications:
USA (110V): Buss Fuse –MDA 2 250 Volt OR Interpower 813MDA-2
(250V, 2 Amp Fuse, MUST USE A SLOW-BLOW FUSE) Europe
(230V): Littlefuse –T-1.25A-218 (250V, 1.25 Amp Fuse,
MUST USE A SLOW-BLOW FUSE)
6. Follow procedure in reverse to return lamp to operating condition.
For more information on our product, visit our web site at
www.sunnexonline.com or call us at [phone].

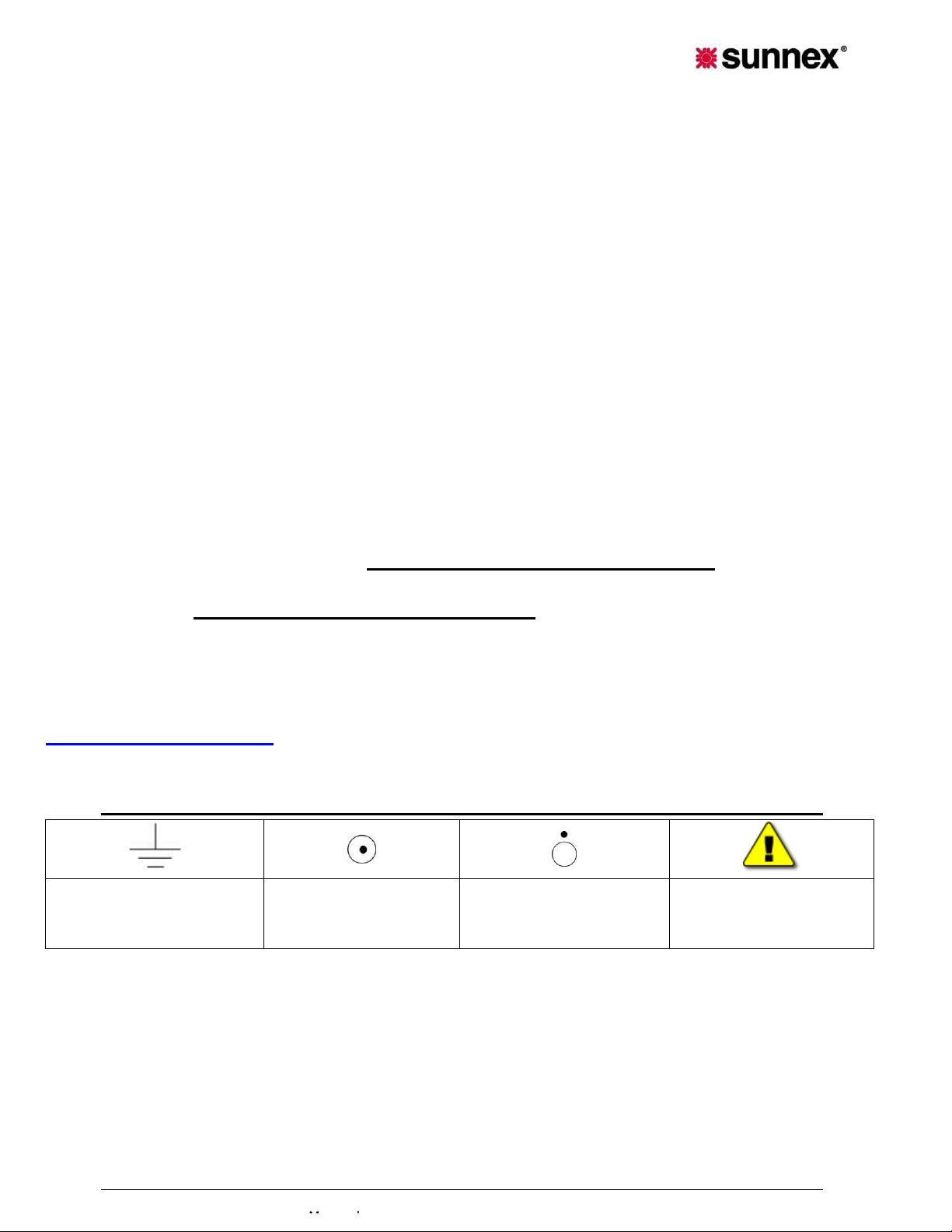

SYMBOLS
GROUND
SWITCH ON
SWITCH OFF
CAUTION
9. WARRANTY
Limited Warranty
Sunnex warrants that the Product, if properlyused, will be free from defects in material and
workmanship, for a period of three (3) years from the date of shipment to Customer. This Limited
Warrantyextends onlyto the original buyer. If the Product is determined to be defective within
the warrantyperiod, Sunnex, at its option, will repair or replace the Product, at no charge.

12
Sunnex TRI-STAR Service & Installation
Manual
9.2 Disclaimers and Limitations.
This Limited Warranty shall be the sole remedy of Customer and the sole liability of
Sunnex to Customer.
This Limited Warranty does not extend or apply to any defects, failures or damage due to or
resulting from: (a) acts of God, accident, misuse, use of the Product other than its normal
and customary manner, abuse or negligence; (b) everyday wear and tear; (c) alteration or
modification of, or to any part of, the Product; (d) improper operation and maintenance; or
(d) any repairs or attempted repairs by anyone other than Sunnex. This Limited Warranty
does not cover any products sold AS IS or WITH ALL FAULTS. This Limited Warranty
excludes the replacement of bulbs for the Product.
TO THE FULL EXTENT PERMITTED BY APPLICABLE LAW, THIS LIMITED WARRANTY
REPLACES ALL OTHERWARRANTIES OR CONDITIONS, EXPRESS OR IMPLIED
INCLUDING, WITHOUT LIMITATION, ANY AND ALL IMPLIED WARRANTIES OF
MERCHANTABILITY AND FITNESS FOR A PARTICULAR PURPOSE. SUNNEX
DISCLAIMS ALL OTHER WARRANTIES AND CONDITIONS, EXPRESS OR IMPLIED,
INCLUDING, WITHOUT LIMITATION, IMPLIED WARRANTIES OF TITLE,
NONINFRINGEMENT, ABSENCE OF LIENS OR INCUMBRANCES, MERCHANTABILITY
AND FITNESS FOR A PARTICULAR PURPOSE, REGARDLESS OF WHETHER SUNNEX
KNOWS OR HAS REASON TO KNOW OF CUSTOMER’S
PARTICULAR NEEDS. IF IMPLIEDWARRANTIES MAY NOT BE DISCLAIMED UNDER
APPLICABLE LAW, THEN ANY IMPLIED WARRANTIES THAT MAY BE IMPOSED BY
LAW ARE LIMITED IN DURATION TO THE LIMITED WARRANTY PERIOD SET FORTH
HEREIN, AND THEREAFTER ANY IMPLIED WARRANTIES ARE EXPRESSLY
DISCLAIMED.
No employee, agent, dealer, reseller or distributor of Sunnex is authorized to modify this Limited
Warranty, or to make any additional warranties.
REPAIR, REPLACEMENT, AS PROVIDED UNDER THIS LIMITED
WARRANTY, ARE CUSTOMER’S SOLE AND EXCLUSIVE REMEDIES. IN NO EVENT SHALL
SUNNEX BE LIABLE FOR ANY DIRECT, INDIRECT, SPECIAL, INCIDENTAL, CONSEQUENTIAL OR
TORT DAMAGES OR LOSSES, WHETHER TO PERSON OR PROPERTY, INCLUDING DEATH,
ARISING OUT OF OR RESULTING FROM ANY BREACH OF WARRANTY OR ANY OTHER LEGAL
THEORY, OR ARISING OUT OF OR IN CONNECTIONWITH THE PRODUCT OR CUSTOMER’S
USE OF THE PRODUCT, EVEN IF SUNNEX IS ADVISED OF THE POSSIBILITY OF SUCH
DAMAGES. IN ANY EVENT, THE TOTAL LIABILITY OF SUNNEX TO YOU FOR ANY CAUSE
WHATSOEVER SHALL BE LIMITED TO THE PURCHASE PRICE YOU PAID FOR THE PRODUCT.
THIS LIMITATION SHALL APPLY REGARDLESS OF THE FORM OF ACTION,WHETHER IN
CONTRACT OR TORT (INCLUDING, WITHOUT LIMITATION, NEGLIGENCE).
SOME STATES DO NOT ALLOW THE EXCLUSION OR LIMITATION OF INCIDENTAL OR
CONSEQUENTIAL DAMAGES, OR ALLOW LIMITATIONS ON HOW LONG AN IMPLIED
WARRANTY LASTS, SO THE ABOVE LIMITATIONS OR EXCLUSIONS MAY NOT APPLY TO YOU.
THIS LIMITED WARRANTY GIVES YOU SPECIFIC LEGAL RIGHTS, AND YOU MAY HAVE OTHER
RIGHTS THAT VARY FROM STATE TO STATE.

13
Sunnex TRI-STAR Service & Installation
Manual
9.3 Claims Procedure.
(a) Customer must contact Sunnexat (800)-445-7869 with a request for warranty service or to report a
technical issue. Sunnex Technical Support will attempt to identify, diagnose and resolve the reported
problem via the telephone.
(b) If attempts bySunnex to resolve a reported problem are unsuccessful, Customer will then be provided
with a Customer-specific Returned Merchandise Authorization number (“RMA”). The RMA number must be
noted on anycorrespondence to Sunnexand displayed prominentlyon the outside packaging of any
Product shipped to Sunnex.
(c)Within ten (10) days of receipt of the RMA number, Customermust ship the Product to Sunnex at
Customer’s expense (insuring the Product is recommended) in either its original packaging or packaging
affording an equal degree of protection, to Sunnex Inc. 8001 Tower Point Drive, Charlotte NC 28227,
with a statement describing the problem in reasonable specificity. Proof of purchase must be included
to obtain warranty service.
Sunnex will not be held responsible for shipping damages that occur in transit. Anydamage to the Product
during shipping will not be covered under this LimitedWarrantyand shall be subject to a service charge.
(d) Subject to the limitationsspecified herein, upon receipt, Sunnexwill inspect the shipped Product and, at
its sole discretion, repair or replace the Product with the same or a like product to the extent it does not
conform to this Limited Warranty. In the event Sunnex, at its sole discretion, opts to replace the Product,
should said product be discontinued or no longer be offered for sale by Sunnex, a like product in design and
functionality will be provided to Customer.
(e) Sunnex will ship the repaired Product or a replacement to Customer within ten (10) business days
after receiptfrom the date that Sunnex receives the Product. Standard shipments to the Customer will
be paid bySunnex. Sunnexassumes no responsibilityfor shipment delays bythe carrier.
(f) If Customer requires warranty service to be provided in lessthan ten (10) business days, but not less
than three (3) business days, Sunnex will charge Customer an additional One Hundred Dollars ($100.00)
express handling charge per request for each Product.
9.4 Customer Responsibilities.
(a) To validated warranty customer is required to fill out online or provided warranty card.
(b) Customer is required to follow the user manual associated with the Product for proper operation.
(c) Customer is required to perform periodic preventive maintenance as called for in the user
manual associated with the Product.
(d) Any modifications or repairs made to the Product without prior written authorization from
Sunnex will render this Limited Warranty null and void. Instances whereby this is determined to be
the case by Sunnex technical staff will be subject to an initial service charge of $75.00 ($25.00
evaluation charge and $50.00 minimum labor cost).
9.5 Miscellaneous.
In the event that any provision of this Limited Warranty should be or becomes invalid and/or
unenforceable during the warranty period, the remaining provisions shall continue in full force and
effect.
The provisions of this Limited Warranty shall be governed by the laws of the State of North
Carolina without regard to its conflict of laws principles. This Limited Warranty shall not be
modified except by an agreement signed by both parties specifically referencing this Limited
Warranty.
This Limited Warranty represents the entire agreement between Sunnex and Customer with
respect to the subject matter herein and supersedes all prior or contemporaneous oral or written
communications, representations, understandings or agreements relating to this subject.
For service assistance or resolution of a service problem, or for Product or warranty information,
write to Sunnex Inc. 8001 Tower Point Drive, Charlotte NC 28227, or visit www.sunnex.com.

14
Sunnex TRI-STAR Service & Installation
Manual
Sunnex Customer Service
Sunnex, LLC
+ 1 800 445 7869
Warranty
+ 1 800 445 7869
10. TROUBLESHOOTING
Please refer to the following table for troubleshooting.
CAUTION! DISCONNECT THE LIGHT FROM THE POWER
SUPPLY BEFORE ATTEMPTING ANY OF THE
ELECTRICAL CHECKS MENTIONED BELOW.
PROBLEM
POSSIBLECAUSE
SOLUTION
No light from light head
Light head is on OFF
position
Turn on the ON/OFF switch to
ON position
No light from light head, when
ON/OFF switch is ON
Bulb has not been
installed or it has burned
out
Refer to bulb replacement
procedurein the manual
Fuse is blown
Inspect / replacethe fuse
followingthe fuse replacement
procedure
No power to the
transformerbox
Check for facilitypower to the
transformerbox
Transformer is
malfunctioning
Check for 14 V AC output at
the transformerwhen it is
under load.
Incorrect bulb installed
Install correct bulb
Bulb burns out quickly
Incorrect bulb installed in
the light head
Install correct bulb
Light output is irregular in its
shape or intensity
Incorrect bulb installed in
the light head
Install correct bulb
Bulb/reflector is not
seated in its holder
correctly
Adjust the bulb/reflector so it
seats in the holder properly.
No light from light head even
when the bulb and fuse are in
good condition,light head
flashes intermittently when light
head or arms are moved
Circuit or wiring problem
within transformer,arm
assembliesor other part
of lighting system
Check all wiring connections. If
problem cannot be repaired,
call SunnexCustomerService

www.sunnexmedical.com
Sunnex Inc.
8001 Tower Point Drive
Charlotte, NC 28227
Ph: 800-445-7869
Fax: [phone]
REV. 4
September 22, 2019
