Sunny Health & Fitness SF-B122055 User manual

ESSENTIAL CONNECTED MAGNETIC
CYCLE BIKE
SF-B122055
USER MANUAL
IMPORTANT! Please retain owner’s manual for maintenance and adjustment instructions. Your
satisfaction is very important to us, PLEASE DO NOT RETURN UNTIL YOU HAVE CONTACTED
US: [email protected] or 1-877-90SUNNY (877-907-8669).

1
IMPORTANT SAFETY INFORMATION
We thank you for choosing our product. To ensure your safety and health, please use this
equipment correctly. It is important to read this entire manual before assembling and using the
equipment. Safe and effective use can only be achieved if the equipment is assembled,
maintained and used properly. It is your responsibility to ensure that all users of the equipment are
informed of all warnings and precautions.
1. Before starting any exercise program, you should consult your physician to determine if you
have any medical or physical conditions that could put your health and safety at risk, or prevent
you from using the equipment properly. Your physician’s advice is essential if you are taking
medication that affects your heart rate, blood pressure or cholesterol level.
2. Be aware of your body’s signals. Incorrect or excessive exercise can damage your health. Stop
exercising if you experience any of the following symptoms: pain, tightness in your chest,
irregular heartbeat, shortness of breath, lightheadedness, dizziness or feelings of nausea. If
you do experience any of these conditions, you should consult your physician before continuing
with your exercise program.
3. Keep children and pets away from the equipment. The equipment is designed for adult use
only.
4. Use the equipment on a solid, flat level surface with a protective cover for your floor or carpet.
To ensure safety, the equipment should have at least 2 feet (60 CM) of free space all around it.
5. Ensure that all nuts and bolts are securely tightened before using the equipment. The safety of
the equipment can only be maintained if it is regularly examined for damage and/or wear and
tear.
6. Always use the equipment as indicated. If you find any defective components while assembling
or checking the equipment, or if you hear any unusual noises coming from the equipment
during exercise, discontinue use of the equipment immediately and do not use until the problem
has been rectified.
7. Wear suitable clothing while using the equipment. Avoid wearing loose clothing that may
become entangled in the equipment.
8. Do not place fingers or objects into the moving parts of the equipment.
9. The maximum weight capacity of this unit is 220 pounds (100 KG).
10. The equipment is not suitable for therapeutic use.
11. To avoid bodily injury and/or damage to the product or property, proper lifting and moving is
required.
12. Your product is intended for use in cool, dry conditions. You should avoid storage in extreme
cold, hot or damp areas as this may lead to corrosion and other related problems.
13. This equipment is designed for indoor and home use only. It is not intended for commercial use!

2
PRE-ASSEMBLY CHECK LIST
.Before you start to assemble, please make sure all parts are included.
No.
Description
Spec.
Qty.
No.
Description
Spec.
Qty.
1
Main Frame
1
11
Tablet Holder
1
2
Front Stabilizer
1
12
Right Pedal
1
3
Rear Stabilizer
1
13
Left Pedal
1
4
Seat Post
1
14
Adjustment Knob
M16
2
5
Handlebar Post
1
15
Adjustment Knob
M10
1
6
Handlebar
1
A
Manual
1
7
Seat Slider
1
B
Hardware Package
1
9
Meter
1
C
Thank You Card
1

3
HARDWARE PACKAGE
HARDWAREPACKAGE
SF-B122055
STEP 1
#19 Φ25xΦ10.5x2.0
STEP4
#25 13-15 1pc
#27 6mm1pc
#26 17-19 1pc
#16 M8x20 4pcs
#17 Φ20xΦ8.5x1.5
1pc
4pcs
Ordering Replacement Parts (U.S. and Canadian Customers only)
Please provide the following information in order for us to accurately identify the part(s) needed:
✓The model number (found on cover of manual)
✓The product name (found on cover of manual)
✓The part number found on the “EXPLODED DIAGRAM” and “PARTS LIST” (found near the front
of the manual)
Please contact us at [email protected] or 1-877-90SUNNY (877-907-8669).

4
ASSEMBLY INSTRUCTION
We value your experience using Sunny Health and Fitness products. For assistance with parts or
troubleshooting, please contact us at [email protected] or 1-877-90SUNNY
(877-907-8669).
3
17
16 2
16
16
1
#2513-15 1pc
#17 Φ20xΦ8.5x1.5 4pcs
#16 M8x204pcs
17
16
17
17
STEP 1:
Attach the Front Stabilizer (No. 2) and Rear
Stabilizer (No. 3) onto the Main Frame (No.
1) with 4 Screws (No. 16), 4 Flat Washers
(No. 17). Tighten and secure with Open End
Wrench (No. 25).
NOTE: Ensure that all bolts and washers are
in place and partially threaded in before
completely tightening any of them.

5
We value your experience using Sunny Health and Fitness products. For assistance with parts or
troubleshooting, please contact us at [e-mail] or 1-877-90SUNNY
(877-907-8669).
13
25
12
25
#25 13-15 1pc
14
14
1
Fig.3
Fig.2
#26 17-19 1pc
#14 M16 2pcs
#10L/R 2pcs
Fig.1
Fig.4
10R
24R
24L 10L
25
25
STEP 2:
WARNING! Read instructions carefully as
improper assembly may cause permanent
damage to your bike.
Remove Left & Right Nuts (No. 10L/R)from
Left Pedal (No. 13) and Right Pedal (No.
12)with Open End Wrench (No. 25) and
Open End Wrench (No. 26). Left Pedal
(No. 13) is marked “L” on it, Right Pedal
(No. 12) is marked “R” on it.
Align the Left Pedal (No. 13) with the Left
Crank (No. 24L) at 90°. Turn the pedal bolt
on the Left Pedal (No. 13)
COUNTER-CLOCKWISE as tightly as you
can with your hand. Then, use Open End
Wrench (No. 25) to tighten and secure. Turn
the Left Nut (No. 10L) CLOCKWISE as
tightly as you can with your hand. Use Open
End Wrench (No. 25) to hold the pedal bolt
on the Left Pedal (No. 13) and use Open
End Wrench (No. 26) to turn the Left Nut
(No. 10L) CLOCKWISE at the same time,
until it is tightened onto the Left Crank (No.
24L).
Align the Right Pedal (No. 12) with the
Right Crank (No. 24R) at 90°. Turn the
pedal bolt on Right Pedal (No. 12)
CLOCKWISE as tightly as you can with your
hand. Then, use Open End Wrench (No.
25) to tighten and secure. Turn the Right
Nut (No. 10R) COUNTER-CLOCKWISE as
tightly as you can with your hand. Use Open
End Wrench (No. 25) to hold the pedal bolt
on the Right Pedal (No. 12) and use Open
End Wrench (No. 26) to turn Right Nut (No.
10R) COUNTER- CLOCKWISE at the same
time, until it is tightened onto the Right
Crank (No. 24R).
Attach 2 Adjustment Knobs (No. 14) to Main
Frame (No. 1). Don’t tighten the Adjustment
Knobs (No. 14) at this step.

6
We value your experience using Sunny Health and Fitness products. For assistance with parts or
troubleshooting, please contact us at [email protected] or 1-877-90SUNNY
(877-907-8669).
1
4
5
14
14
15
19
7
4
#19 Φ25xΦ10.5x2.0 1pc
#15 M101pc
STEP 3:
Pull out Adjustment Knob (No. 14) on the
rear post of Main Frame (No. 1). Insert Seat
Post (No. 4) into the rear post of Main
Frame (No. 1), adjust to desired height,
tighten and secure with Adjustment Knob
(No. 14).
Pull out Adjustment Knob (No. 14) on the
front post of Main Frame (No. 1). Insert
Handlebar Post (No. 5) into the front post of
Main Frame (No. 1), adjust to desired
height, tighten and secure with Adjustment
Knob (No. 14).
STEP 4:
Attach Seat Slider (No. 7) to the Seat Post
(No. 4), adjust to desired position, then
tighten and secure with Adjustment Knob
(No. 15) and Flat Washer (No. 19).

7
We value your experience using Sunny Health and Fitness products. For assistance with parts or
troubleshooting, please contact us at [email protected] or 1-877-90SUNNY
(877-907-8669).
5
6
21
20 6
#21 Φ8.5 4pcs
#20 M8x164pcs
#27 6mm1pc
66
22
23
Fig.1
#18 M5x9.54pcs
#27 6mmpc 9
18
9a
9b
9a
22 9b
23

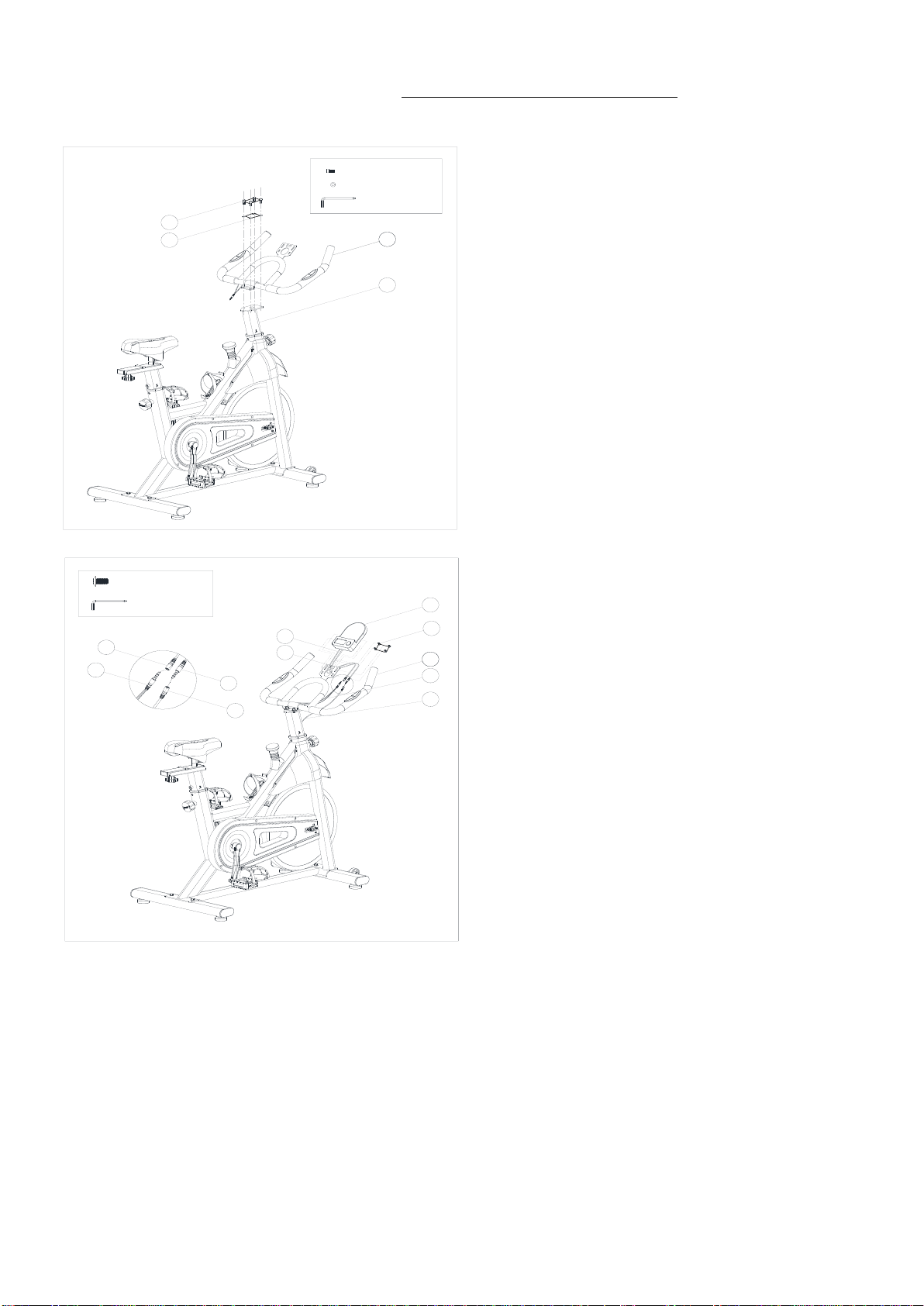

STEP 5:
Remove 4 Bolts (No. 20) and 4 Spring
Washers (No. 21) from Handlebar Post
(No. 5) with Allen Wrench (No. 27).
Attach Handlebar (No. 6) to the Handlebar
Post (No. 5) with 4 Bolts (No. 20) and 4
Spring Washers (No. 21) that were
removed. Tighten and secure with Allen
Wrench (No. 27).
STEP 6:
Remove 4 Screws (No. 18) from the Meter
(No. 9) with Allen Wrench (No. 27).
Insert Meter Wire A (No. 9a) and Meter
Wire B (No. 9b) into the middle hole of
bracket on the Handlebar (No. 6). Then
connect the Meter Wire A (No. 9a) to the
Pulse Wire (No. 22), and connect Meter
Wire B (No. 9b) with Sensor Wire (No. 23).
Attach the Meter (No. 9) to the bracket of
the Handlebar (No. 6) using 4 Screws (No.
18) that were just removed. Tighten and
secure with Allen Wrench (No. 27).

8
We value your experience using Sunny Health and Fitness products. For assistance with parts or
troubleshooting, please contact us at [e-mail] or 1-877-90SUNNY
(877-907-8669).
11
6
STEP 7:
Attach Tablet Holder (No. 11) onto the
Handlebar (No. 6).
The assembly is complete!

9

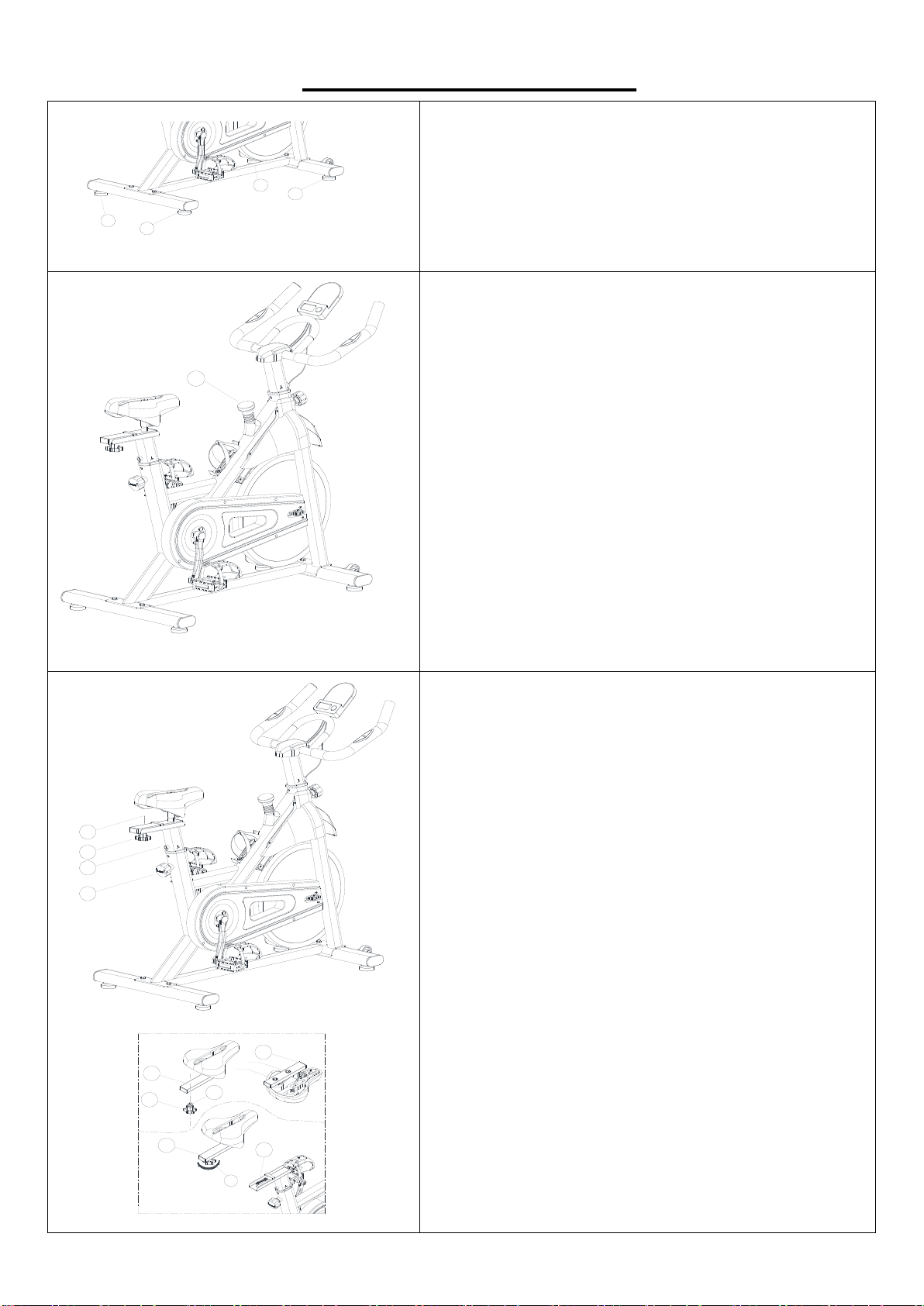

ADJUSTMENT GUIDE
28 28
28
28
30
14
4
15
7
Loose Tight
15
7
AB
74
7
15 19
ADJUSTING THE SEAT
The seat of this bike is fully adjustable as it moves
Up,Down, Fore (forward), Aft (backward).
To adjust the height of Seat Post (No. 4), loosen and
pull the Adjustment Knob (No. 14) outward, then
raise or lower the seat to the desired height. Once
adjusted, reinsert and tighten the Adjustment Knob
(No. 14) to secure the Seat Post (No. 4) in place.
To adjust the seat back and forth, loosen the
Adjustment Knob (No. 15), then slide the Seat
Slider (No. 7) to desired position. Once positioned,
re-tighten the Adjustment Knob (No. 15) to secure
the Seat Slider (No. 7) in place. There are 2 holes
on the Seat Slider (No. 7) to make the adjustment
range larger. If the adjustment range for the current
hole is not enough, please remove the Adjustment
Knob (No. 15)and Flat Washer (No. 19) from Seat
Slider (No. 7), then attach Adjustment Knob (No.
15)and Flat Washer (No. 19) to the other hole on
the Seat Slider (No. 7) and retry it. Once positioned,
re-tighten the Adjustment Knob (No. 15) to secure
the Seat Slider (No. 7) in place.
ADJUSTING THE HEIGHT AND BALANCE
In order to achieve a smooth and comfortable ride,
you must ensure that the stability of the bike is
secured. If you notice that the bike is unbalanced
during use, adjust the Adjustment Foot Pad (No.
28), located beneath the stabilizers of the bike.
ADJUSTING THE RESISTANCE
Adjust the resistance of the bike using the Tension
Control Knob (No. 30). Increase the level of
resistance by turning the Tension Control Knob
(No. 30) to the RIGHT (clockwise), decrease the level
of resistance by turning the Tension Control Knob
(No. 30) to the LEFT (counter-clockwise).
EMERGENCY BRAKE
During use, users can stop the bike completely by
pushing down on the Tension Control Knob (No.
30). Pushing down on the Tension Control Knob
(No. 30) will enforce the brake and bring the bike to
an immediate stop. When the Tension Control
Knob (No. 30) is tightened, the flywheel can be
locked.

10
14
5
6
2
29
14
DISMOUNTING
For your safety, it is recommended that you never attempt to dismount or remove your feet from
the pedals until both the flywheel and pedals/cranks have come to a complete stop. Failure to
follow this recommendation may lead to loss of control and/or serious injury.
Here are a few examples of how to safely dismount the bike:
1. Reduce the pedal speed until the pedals/cranks come to a complete stop.
2. Increase the resistance until the pedals/cranks come to a complete stop.
3. Push and hold the tension control knob down until the pedals/cranks come to a complete
stop.
TRANSPORTING THE BIKE
To move the bike, first ensure that the Handlebar
(No. 6) is properly secured. If the Handlebar (No.
6) is loose, tighten the Adjustment Knob (No.
14) to secure it. Next, stand at the front of the
bike so that you’re directly in front of the
Handlebar (No. 6). Firmly grasp and hold each
side of the Handlebar (No. 6), place one foot on
the Front Stabilizer (No. 2), and tilt the bike
towards you until the Transportation Wheels
(No. 29) on the Front Stabilizer (No. 2) touch the
ground. With the Transportation Wheels (No.
29) on the ground, you can transport the bike to
the desired location with ease.
NOTE: Always use caution when moving the
bike. Unexpected impact, such as dropping the
bike, may cause injury and affect the bike’s
operation.
ADJUSTING THE HANDLEBAR
It is important that the handlebar and seat are
both set to the correct height to your body.
To adjust the handlebar height, loosen and pull
the Adjustment Knob (No. 14) outward, then
slide the Handlebar Post (No. 5) up or down to
the desired height. Once adjusted, reinsert and
tighten the Adjustment Knob (No. 14) to secure
the handlebar in place.
PEDAL STRAP ADJUSTMENT
Your feet should be secured in the toe clips
during exercise. Place your feet as far forward
into the toe clips as you can. With your feet in
place, turn the crank to bring one foot to within
arm’s reach, grasp the pedal strap and pull it
upward to tighten the toe clip cage. Then insert
the strap back into the hoop of the toe clip.
Repeat this process to secure your other foot.

11
BATTERY INSTALLATION & REPLACEMENT
BATTERY INSTALLATION
1. Take out 2 AAA batteries from computer box.
2. Press the buckle of battery cover on the Meter (No. 9), then remove battery cover.
3. Install 2 AAA batteries into the battery case on the back of the Meter (No. 9). Pay attention to the
battery + and –poles before installing.
4. Press the buckle of battery cover, then put the battery cover back to the back of the Meter (No.
9).
The installation is complete!
BATTERY REPLACEMENT
1. Press the buckle of battery cover on the back of the Meter (No. 9), then remove battery cover.
2. Remove the 2 old AAA batteries in the battery case and install 2 new AAA batteries into the
battery case on the back of the Meter (No. 9). Pay attention to the battery + and –poles before
installing.
3. Press the buckle of battery cover, then put the battery cover back to the back of the Meter (No.
9).
The replacement is complete!
BATTERY DISPOSAL
Dispose the batteries according to the laws and regulations of your local region. Some batteries
may be recycled. When disposing or recycling, do not mix battery types.
Battery Cover
Battery
9

12
EXERCISE METER
■KEY FUNCTIONS：
⚫Pressing the MODE key to select and lock on a function.
⚫Pressing and hold the MODE key with 3 seconds to reset all the values to zero, except ODO.
■SLEEP MODE:
⚫The system turns on when MODE key is pressed and system senses a signal input from the
sensor. All the values will be reset to zero, except ODO.
⚫The system turns off automatically when the sensor has no signal input or no key are pressed
for approximately 4 minutes.
■FUNCTIONS:

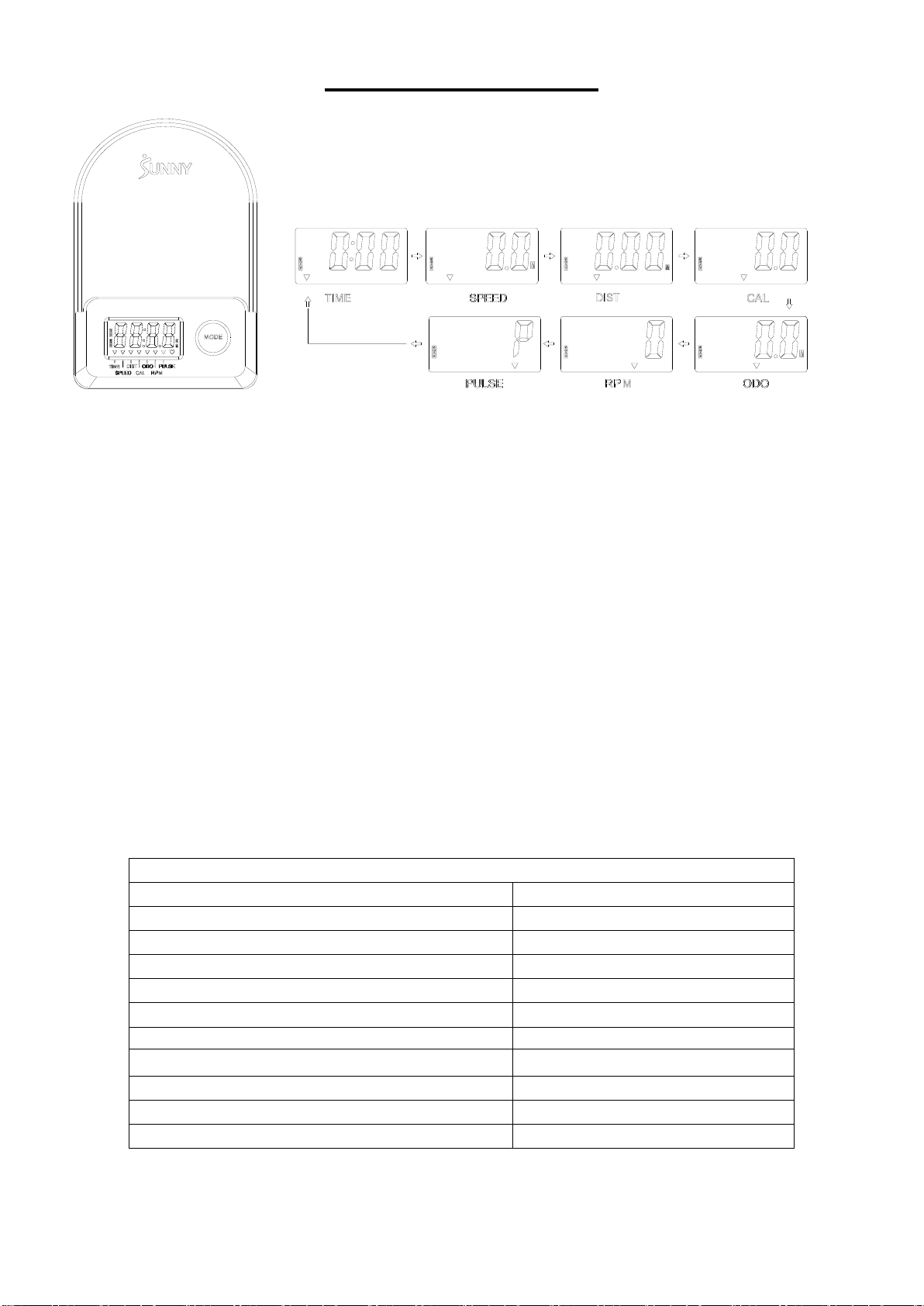

⚫SCAN: Display changes according to the next diagram every 6 seconds in the following
sequence: TIME- SPEED- DIST (DISTANCE) - CAL (CALORIES) - ODO (TOTAL DISTANCE)
-CADENCE (RPM) -PUL (PULSE).
⚫SPEED: The current speed from starting exercise.
⚫DIST (DISTANCE): The current distance from starting exercise.
⚫TIME: The total working times elapsed from starting exercise.
⚫ODO (TOTAL DISTANCE): The total distance from first inserting batteries
⚫CAL (CALORIES): The calorie burned from starting exercise.
⚫CADENCE (RPM): The frequency per minute from starting exercise.
⚫PUL (PULSE): The current heart rate from starting exercise.
SPECIFICATION
SCAN
6S
TIME
0:00~99:59 (M:S)
SPD (SPEED)
0.0~999.9 Miles/Hour
DIST (DISTANCE)
0.00~999.9 Miles
ODO (TOTAL DISTANCE)
0.0~999.9 Miles
CAL (CALORIES)
0.0~999.9 Kcal
CADENCE (RPM)
0~299
PUL (PULSE)
40~240 BPM (Beats per Minute)
BATTYERY
SIZE-AAA *2
OPERATING TEMPERATURE
0~40℃(32℉-104℉)
STORAGE TEMPERATURE
-10~60℃(14℉-140℉)

13
APP CONNECTION:
1. Scan the QR code below to download the SunnyFit app onto your mobile device.
2. If this is your first time using the SunnyFit app, follow the in-app instructions to register for your
free SunnyFit account and log in.
3. Ensure that the Bluetooth function is turned on from your mobile device.
4. To connect the equipment to the SunnyFit app:
a. From the “Workout” tab, press on the “Search” button to search for your equipment.
b. Once your equipment appears on the list, tap the “Select” button to confirm.
c. Note: If your equipment does not appear on the "Searching for Equipment" list, check the
EXERCISE METER on your equipment to ensure that it is not in sleep mode and your
phone's Bluetooth function is on, then tap "Retry" to search again.
d. Once your equipment shows up on the “Workout” tab as “Currently Selected”, your
equipment is now ready to display, track, and record your equipment’s workout stats on
the app!
5. If you are unable to replicate these steps, or have any other issues with the SunnyFit app,
please contact SunnyFit support at [email protected], or use the in-app “Contact Us’ form
to request support (“Me” tab -> “Contact Us”).

14
MAINTENANCE INSTRUCTIONS
This is general information for daily, weekly and monthly maintenance to be performed on your
bike.
DAILY MAINTENANCE
After each exercise session, wipe down all the
equipment: seat, frame, and handlebars. Pay
special attention to the seat post, handlebar post
and belt/chain guard. Sweat is very corrosive
and may cause problems that require parts
replacement later.
1. Get on the bike and engage the crank.
2. Pay attention to any vibrations felt through
the pedals. If you feel any vibrations, you
may need to tighten the pedals, bottom
bracket, or adjust the drive belt/chain
tension.
3. Use a wrench to tighten the pedals until they
are secure.
MONTHLY MAINTENANCE
1. Check if all hardware is secure, such as:
water bottle holder, flywheel nuts, belt/chain
guard bolts, brake caliper lock nuts, and
brake caliper tension rod nuts.
2. Inspect the brake tension rod for signs of
wear such as missing threads. Clean and
lubricate the brake tension rod.
3. Clean and lubricate the seat post, handlebar
post and seat slider. Remove any buildup of
foreign material.
WEEKLY MAINTENANCE
1. Inspect moving parts and tighten the
hardware.
2. Inspect pull pin frame fittings to make sure
the fittings are snug. Loose frame fittings
may strip out threads over time and cause
extensive damage.
3. Clean and lubricate pop pin assemblies. Pull
on the pin and spray a small amount of
lubricant onto the shaft.
4. Tighten the seat hardware to make sure the
seat is level and centered.
5. Brush and treat the resistance pads.
Remove any foreign material that may have
collected on the pads. Spray the pads with
silicone lubricant. This helps to reduce noise
from friction between the pads and the
flywheel.
6. Visually inspect the bottom bracket, toe clips
and toe straps. If any of them are loose or
disconnected, attach and tighten.
LEATHER BRAKE PAD CARE (If applicable)
1. Perform this maintenance when the brake
pad is first installed and for the life of the
brake pad. Following these simple guidelines
can increase the life of your brake pads.
2. Some brake pad assemblies are
pre-lubricated. Squeeze the brake pad. If
lubricant is released, then the pad has been
pre-lubricated.
3. If the brake pad is dry, then coat the brake
pad with 3-n-1 oil (not included with product).
Brush the leather with a clean, wire bristle
brush, and then apply the oil. The oil should
be allowed to soak into the pad. Repeat 4-5
times until the pad is saturated, but not
dripping with oil. When the pad is saturated,
it will no longer absorb oil.
4. Inspect the brake pad weekly and lubricate if
needed. The pad should not have a glazed
appearance. If the pad appears glazed, then
brush it with wire brush and apply lubricant
as needed. If any of the sponge padding is
showing through the leather pad, the brake
pad should be replaced.

15
EXPLODED DIAGRAM
2
4
5
6
7
9
9a 9b
3
1
10L
10R
11
12
13
14
15
16
17
16
17
18
19
20
21
22
23 14
24L
24R
25
26
27
28
28
28
28
29 29
75
75
75
31
31
32
32
8
33
34
34
31
79
17 35
31 79
37
45
44
36
38
38
39
40
41
42
46 49
48
48
49
47
51
50
51
52
57
54
56
55
54
53
61
62
63
64
59 58 60
65
66
67
68
69
30
75
70
76
71
72
71
73
73
74
82
76
76
82
76
76
78
77
33
76
80
81
54
54 54
56 57
55 43
53
41
39
17
17
17
76
82
78
74
77
77
77 77
77
76
76
76

16
PARTS LIST
No.
Description
Spec.
Qty.
No.
Description
Spec.
Qty.
1
Main Frame
1
41
Wave Washer
Φ16*Φ12*1.0
2
2
Front Stabilizer
1
42
Spacer
Φ24xΦ20x2.0
1
3
Rear Stabilizer
1
43
Spacer
Φ16xΦ12x20L
1
4
Seat Post
1
44
Belt Pulley
Φ220
1
5
Handlebar Post
1
45
Belt
PJ490
1
6
Handlebar
1
46
Hexagon Screw
M8x12
3
7
Seat Slider
1
47
C-clip
Φ24xΦ20x1.0t
1
8
Seat
1
48
Flange Nut
M10x1.25
2
9
Meter
1
49
Crank Cover
2
9a
Meter Wire A
1
50
Flywheel
Φ420
1
9b
Meter Wire B
1
51
Flywheel Plastic Disc
Φ388
2
10L/R
Nut
2
52
Flywheel Shaft
Φ12x150L
1
11
Tablet Holder
1
53
Plastic Flat Pad
Φ12
2
12
Right Pedal
1
54
Nut
M12x1.25
5
13
Left Pedal
1
55
Flat Washer
Φ24xΦ12.5x2.0t
2
14
Adjustment Knob
M16
2
56
Adjusting Screw
M6
2
15
Adjustment Knob
M10
1
57
Nut
M6
2
16
Screw
M8x20
4
58
Screw
M8x32L
1
17
Flat Washer
Φ20xΦ8.5Φ1.5
8
59
Screw
M6x12L
1
18
Screw
M5x9.5
4
60
Screw
M5x10L
2
19
Flat Washer
Φ25×Φ10.5x2.0
1
61
Magnet
40Lx20Wx6H
5
20
Bolt
M8x16
4
62
Leather
10Lx20Wx9H
1
21
Spring Washer
Φ8.5
4
63
Brake Board
1
22
Pulse Wire
1
64
Spring
1
23
Sensor Wire
1
65
Cap Nut
M8
1
24L/R
Crank
2
66
Square Nut
M10
1
25
Open End Wrench
13-15
1
67
Flat Washer
Φ14xΦ10.5x1.5t
1
26
Open End Wrench
17-19
1
68
Bushing
1
27
Allen Wrench
6mm
1
69
Brake Cover
1
28
Adjustment Foot Pad
4
70
Bottle Holder
1
29
Transportation Wheel
2
71
Limit Post
2
30
Tension Control Knob
1
72
Front Cover
1
31
Oval End Cap
40x80
4
73
Foam Grip
2
32
3
Bushing
40x80
2
74
Handle Pulse
2
33
Square End Cap
40x40
2
75
Nut
M10x10t
4
34
Round End Cap
Φ28
2
76
Screw
M4x12
11
35
Lock Nut
M8
2
77
Self-tapping Screw
M4x10
6
36
Inner Belt Cover
1
78
Screw
M4x25
2
37
Outer Belt Cover
1
79
Dome Head Bolt
M8x28
2
38
Bearing
6004ZZ
2
80
Middle Axle
1
39
Bearing
6001ZZ
2
81
Wire Plug
1
40
Wave Washer
Φ22*Φ20*1.0
1
82
Self-tapping Screw
M4x12
15
Version 1.0

17
