Sunny Health & Fitness Synergy Pro User manual

SYNERGY PRO MAGNETIC INDOOR
CYCLING BIKE
SF-B1851
USER MANUAL
IMPORTANT! Please retain owner’s manual for maintenance and adjustment instructions. Your
satisfaction is very important to us, PLEASE DO NOT RETURN UNTIL YOU HAVE
CONTACTED US: [email protected] or 1- 877 - 90SUNNY (877-907-8669).

1
IMPORTANT SAFETY INFORMATION
We thank you for choosing our product. To ensure your safety and health, please use this
equipment correctly. It is important to read this entire manual before assembling and using the
equipment. Safe and effective use can only be achieved if the equipment is assembled,
maintained, and used properly. It is your responsibility to ensure that all users of the equipment
are informed of all warnings and precautions.
1. Before starting any exercise program, you should consult your physician to determine if you
have any medical or physical conditions that could put your health and safety at risk or prevent
you from using the equipment properly. Your physician’s advice is essential if you are taking
medication that affects your heart rate, blood pressure, or cholesterol level.
2. Be aware of your body’s signals. Incorrect or excessive exercise can damage your health.
Stop exercising if you experience any of the following symptoms: pain, tightness in your chest,
irregular heartbeat, shortness of breath, lightheadedness, dizziness, or feelings of nausea. If
you do experience any of these conditions, you should consult your physician before
continuing with your exercise program.
3. Keep children and pets away from the equipment. The equipment is designed for adult use
only.
4. Use the equipment on a solid, flat level surface with a protective cover for your floor or carpet.
To ensure safety, the equipment should have at least 2 feet (60 CM) of free space all around it.
5. Ensure that all nuts and bolts are securely tightened before using the equipment. The safety of
the equipment can only be maintained if it is regularly examined for damage and/or wear and
tear.
6. Always use the equipment as indicated. If you find any defective components while
assembling or checking the equipment, or if you hear any unusual noises coming from the
equipment during exercise, discontinue use of the equipment immediately and do not use until
the problem has been rectified.
7. Wear suitable clothing while using the equipment. Avoid wearing loose clothing that may
become entangled in the equipment.
8. Do not place fingers or objects into the moving parts of the equipment.
9. The maximum weight capacity of this unit is 300 pounds (135 KG).
10.The equipment is not suitable for therapeutic use.
11. To avoid bodily injury and/or damage to the product or property, proper lifting and moving are
required.
12.Your product is intended for use in cool and dry conditions. You should avoid storage in
extreme cold, hot or damp areas as this may lead to corrosion and other related problems.
13.This equipment is designed for indoor and home use only; it is not intended for commercial
use.

2
EXPLODED DIAGRAM
10
11
3
12
12
7
13
14R
14L
15L
15R
16
18
19
20
22
22
23
24
26
27 27
30
29
39
38
42 43
43
31
44
45
48
49
83
83
62
62
61
61
62
58
58
60
63
63
63
75
75
66
76
67
67
73
86
78
89
89
85
80
80 81
82
70
70
61
61
1
2
4
6
8
9
17
22
25
33
33
33
33
34
34
35
36
37
37
37
50
53
53
46
57
57
65
74 79
74
79
74
79
47
50a 50b
52
54
55
84L
84R
76
76
76
94
95
96
62
21
91 90
91
90
61
61 61
64
90 85
71
68 30
28
59
72 69
19
19
19
59 72
69
59
72
40 32 5
76
40 32
65
37
41
77
46 62 51
87
88
92 75 75
93 75
75
56
90 90
90
90
46

3
PARTS LIST
No.
Description
Spec.
Qty.
No.
Description
Spec.
Qty.
1
Main Frame
1
50
Computer
1
2
Seat Post
1
50a
Computer Wire A
1
3
Idler Wheel Shaft
1
50b
Computer Wire B
1
4
Handlebar Post
1
51
Magnet
1
5
Front Stabilizer
1
52
Sensor Wire
800mm
1
6
Rear Stabilizer
1
53
Handle Pulse Sensor
2
7
Brake Cover
1
54
Handle Pulse Wire
1
8
Seat Slider
1
55
Inductor Seat
1
9
Handlebar
1
56
Screw
M5*15
1
10
Magnet Bracket
1
57
Self-tap Screw
ST4.2*15
2
11
Support Bar
1
58
Screw
M5*10
2
12
Connection Plate
2
59
Hex Bolt
M5*10
3
13
Belt Wheel
1
60
Hex Bolt
M6*40
1
14L/R
L/R Crank
2
61
Self-tap Screw
ST4.2*15
7
15L/R
L/R Pedal
2
62
Self-tap Screw
ST4.2*15
5
16
Flywheel
1
63
Hex Socket Head
Screw
M8*15
3
17
Seat
1
64
Round Head Screw
M10*45
1
18
Belt
1
65
Hex Socket Head
Screw
M6*12
2
19
High-intensity Magnet
7
66
Hex Lock Nut
M6
1
20
Idler Wheel
1
67
Hex Flange Nut
M10*1.25P
2
21
Tension Control Knob
1
68
Flat Washer
Φ6.4*Φ12*t1.6
1
22
Adjustment Knob
3
69
Flat Washer
Φ5.4*Φ10*t1.0
3
23
Left Belt Cover
1
70
Pan Head Screw
M5*10
4
24
Right Belt Cover
1
71
Spring Washer
Φ6.1*Φ9.3*t1.6
1
25
Front Cover
1
72
Spring Washer
Φ5.1*Φ7.7*t1.3
3
26
Crank Cover
1
73
Hex Flange Nut
M12*1.0P
1
27
Magnet Plate Cover
2
74
Flat Washer
Φ10.5*Φ20*2.0
4
28
Expandable Cover
1
75
Hex Socket Head
Bolt
M10*15*S6
8
29
Compressed
Spring
1
76
Hex Thin Nut
M10
5
30
Bushing
2
77
Wave Washer
Φ20.7*Φ29.1*0.
3T
1
31
Round Bushing
1
78
Spring Washer
Φ20
1
32
Transportation Wheel
2
79
Hex Socket Bolt
M10*25*S6
4
33
Square End Cap
4
80
Bearing
6203-2RS
3
34
Flat Oval Bushing
2
81
Sleeve
1
35
Square Bushing
1
82
Flywheel Axle
1
36
Square End Cap
1
83
Crank Cap
2
37
Adjustment Foot Pad
4
84L/R
Nylon Nut
9/16
2
38
Brake Washer
1
85
Hex Thin Nut
M12*1.0
2
39
Middle Axle
1
86
Hex Flange Cap Nut
M12*1.0P
1
40
Hex Bolt
2
87
Spring Washer
Φ8.1*Φ13.1*t1.6
1
41
Sleeve 1
1
88
Flat Washer
Φ8.4*Φ20*t1.6
1
42
Sleeve 2
1
89
Flat Washer
Φ8.4*Φ16*t1.6
2
43
Bearing
6004-ZZ
2
90
Flat Washer
Φ10.5*Φ20*2.0
Black
7
44
Water Bottle Holder
1
91
Hex Socket Head
Bolt
M10*25*S6
Black
2
45
Dumbbell Holder
1
92
Front Shipping Tube
1
46
Grommet
3
93
Rear Shipping Tube
1
47
Ribbon
1
94
Spanner
S13-S14-S15
1
48
Middle Axle Cover
1
95
Allen Wrench
S6
1
49
Plastic Washer
1
96
Wrench
S17-S19
1

4
HARDWARE PACKAGE
#79 M10*25*S6 4PCS
#91 M10*25*S6 2PCS
#74 φ10.5*φ20*2.0 4PCS
#90 φ10.5*φ20*2.0 2PCS
#70 M5*10 4PCS #95 S6 1PC
#94 S13-S14-S15 1PC
#96 S17-S19 1PC
Ordering Replacement Parts (U.S. and Canadian Customers only)
Please provide the following information in order for us to accurately identify the part(s) needed:
The model number (found on cover of manual)
The product name (found on cover of manual)
The part number found on the “EXPLODED DIAGRAM” and “PARTS LIST” (found near the
front of the manual)
Please contact us at [e-mail] or 1- 877 - 90SUNNY (877-907-8669).
#74 Φ10.5*Φ20*2.0 4PCS
#90 Φ10.5*Φ20*2.0 2PCS
#70 M5*10 4PCS
#94 S13-S14-S15 1PC
#91 M10*25*S6 2PCS
#95 S6 1PC
#96 S17-S19 1PC
#79 M10*25*S6 4PCS

5
ASSEMBLY INSTRUCTIONS
We value your experience using Sunny Health and Fitness products. For assistance with parts or
troubleshooting, please contact us at su[email protected] or 1-877-90SUNNY (877-
907-8669).
1
#95
S6
75 75
93
92
7575
90
90
90
90
#75 M10*15*S6 4PCS
#90φ10.5*φ20*2.0 4PCS
1
79
74
6
79
74
5
#79 M10*25*S6 4PCS
#74φ10.5*φ20*2.0 4PCS #95
S6
74
79
79
74
STEP 1:
Unscrew 4 Hex Socket Head Bolts (No.
75) from Main Frame (No. 1) with Allen
Wrench (No. 95). Remove 4 Flat
Washers (No. 90), the Rear Shipping
Tube (No. 93), and Front Shipping Tube
(No. 92) from Main Frame (No. 1).
You may save these parts [Hex Socket
Head Bolts (No. 75), Flat Washers (No.
90), Rear Shipping Tube (No. 93) and
Front Shipping Tube (No. 92)] in case
you would like to repackage and transport
this equipment in the future.
STEP 2:
Attach the Front & Rear Stabilizers (No.
5 & No. 6) to the Main Frame (No. 1)
using 4 Hex Socket Bolts (No. 79) and 4
Flat Washers (No. 74). Tighten and
secure with Allen Wrench (No. 95).

6
We value your experience using Sunny Health and Fitness products. For assistance with parts or
troubleshooting, please contact us at su[email protected] or 1-877-90SUNNY (877-
907-8669).
1
52 4
9
50
91
90 50b
50a
54
#91 M10*25*S6 2PCS
#90 φ 10.5*φ 20*2.0 2PCS #95
S6
22
91
90
50b 50a
52 54
70
44
70
45
1
#94 S13-S14-S15
1PC
#70 M5*10 4PCS
70
70
45
70
STEP 3:
Loosen and pull out Adjustment Knob
(No. 22), insert Handlebar Post (No. 4)
into Main Frame (No. 1) and adjust to the
desired height. Secure it in place by
reinserting and tightening the Adjustment
Knob (No. 22).
Attach Handlebar (No. 9) onto Handlebar
Post (No. 4) with 2 Hex Socket Head
Bolts (No. 91) and 2 Flat Washers (No.
90). Secure and tighten with Allen Wrench
(No. 95).
Insert Computer (No. 50) into the
computer bracket located on Handlebar
(No. 9). Be sure not to pinch the Computer
Wire A (No. 50a) and Computer Wire B
(No. 50b). Connect Computer Wire A (No.
50a) with Handle Pulse Wire (No. 54) on
Handlebar (No. 9) and connect Computer
Wire B (No. 50b) with Sensor Wire (No.
52).
STEP 4:
Attach Water Bottle Holder (No. 44) and
Dumbbell Holder (No. 45) onto the Main
Frame (No. 1) with 4 Pan Head Screws
(No. 70). Tighten and secure with
Spanner (No. 94).
Note: please assembly the Dumbbell
Holder (No. 45) as the arrow showed on
the left picture.

7
We value your experience using Sunny Health and Fitness products. For assistance with parts or
troubleshooting, please contact us at su[email protected] or 1-877-90SUNNY (877-
907-8669).
1
15L
15R
84L
84R
14R
14L
#94 S13-S14-S15
1PC
#96 S17-S19 1PC
S15
S19
#84L 9/16 1PC
#84R 9/16 1PC
S15
94
14L
15L
15L
S15
94
96 84L
S19
15R
14R
S15
94
84R
96
S19
S15
94

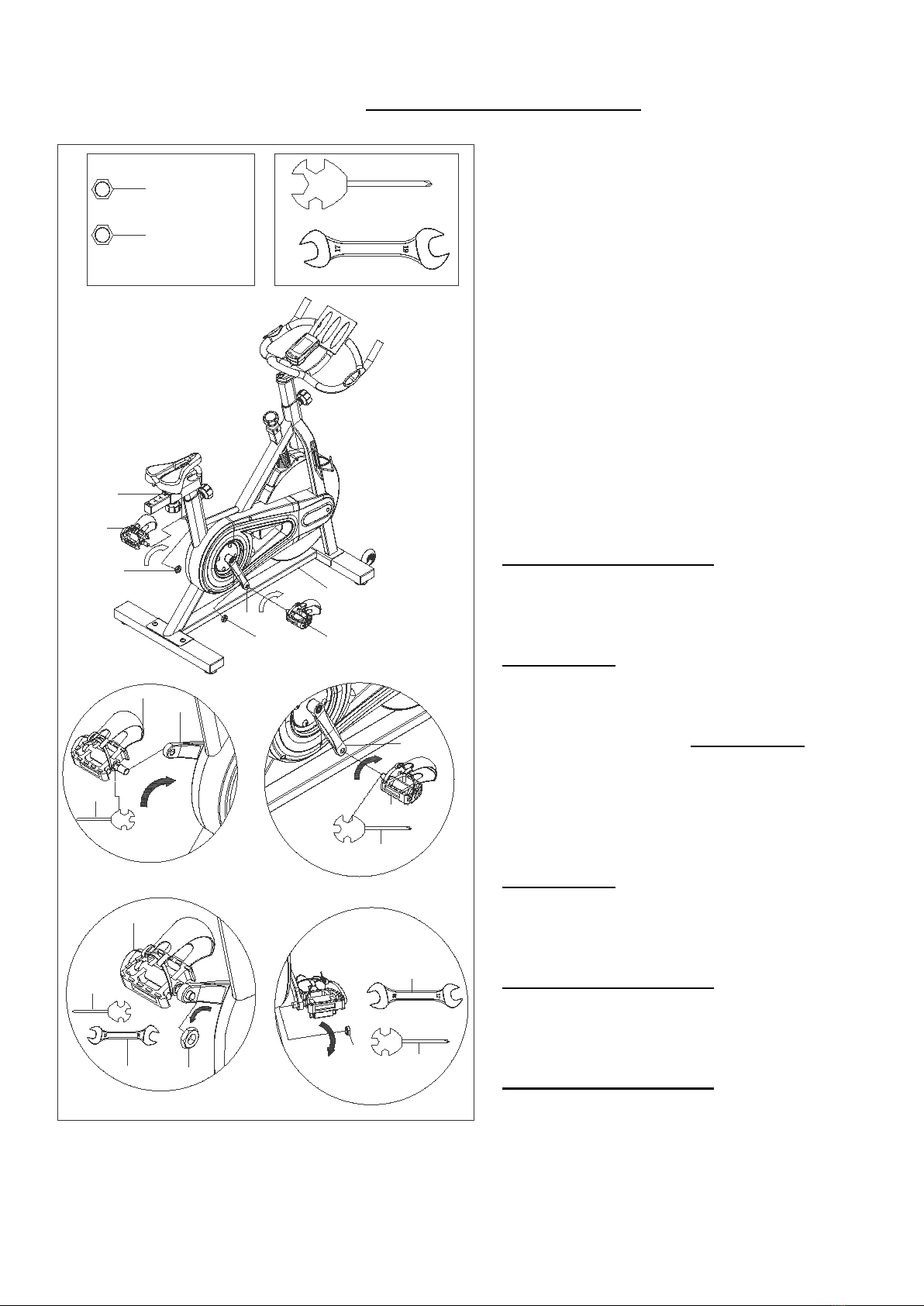

STEP 5:
WARNING! Read instructions carefully as
improper assembly may cause permanent
damage to your bike.
Note: The Pedals (No. 15L & NO. 15R) are
marked “L” and “R” for Left and Right.
Remove the Left & Right Nylon Nuts (No.
84L/R) located on the Left & Right Pedals
(No. 15L/R) with Wrench (No. 96).
Turn the Tension Control Knob (No. 21)
clockwise as tightly as you can with your
hand.
Align the Left Pedal (No. 15L) with the Left
Crank (No. 14L) at 90°. Turn the pedal bolt
on the Left Pedal (No. 15L)
COUNTER-CLOCKWISE as tightly as you
can with your hand. Then, use Spanner
(No. 94) to tighten and secure.
Turn the Left Nylon Nut (No. 84L)
CLOCKWISE as tightly as you can with
your hand. Use Spanner (No. 94) to hold
the pedal bolt on the Left Pedal (No. 15L)
and use Wrench (No. 96) to turn the Left
Nylon Nut (No. 84L) CLOCKWISE at the
same time, until it is tightened on to the Left
Crank (No. 14L).
Align the Right Pedal (No. 15R) with the
Right Crank (No. 14R) at 90°. Turn the
pedal bolt on Right Pedal (No. 15R)
CLOCKWISE as tightly as you can with
your hand. Then, use Spanner (No. 94) to
tighten and secure.
Turn the Right Nylon Nut (No. 84R)
COUNTER-CLOCKWISE as tightly as you
can with your hand. Use Spanner (No. 94)
to hold the pedal bolt on the Right Pedal
(No. 15R) in place. Then use Wrench (No.
96) to turn Right Nylon Nut (No. 84R)
COUNTER-CLOCKWISE at the same time,
until it is tightened on to the Right Crank
(No. 14R).
The assembly is complete!

8
BATTERY INSTALLATION AND REPLACEMENT
50
Battery
Battery
Cover
50b
50a
BATTERY INSTALLATION:
1. Take out 2 AAA batteries from the plastic bag for manual.
2. Press the buckle of battery cover on the back of the Computer (No. 50), then remove battery
cover.
3. Install 2 AAA batteries into the battery case on the back of the Computer (No. 50). Pay
attention to the battery + and – ends before installing.
4. Press the buckle of battery cover, then put the battery cover back to the back of the Computer
(No. 50).
The installation is complete!
BATTERY REPLACEMENT:
1. Press the buckle of battery cover on the back of the Computer (No. 50), then remove battery
cover.
2. Remove the 2 old AAA batteries in the battery case and install 2 new AAA batteries into the
battery case on the back of the Computer (No. 50). Pay attention to the battery + and – ends
before installing.
3. Press the buckle of battery cover, then put the battery cover back to the back of the Computer
(No. 50).
The replacement is complete!
NOTE: Always change both batteries at the same time. Do not mix battery types and do not mix
old and new batteries. Dispose batteries according to your state and regional guidelines.

9
ADJUSTMENTS AND USAGE GUIDE
37
76
#96 S17-S19 1PC
S17

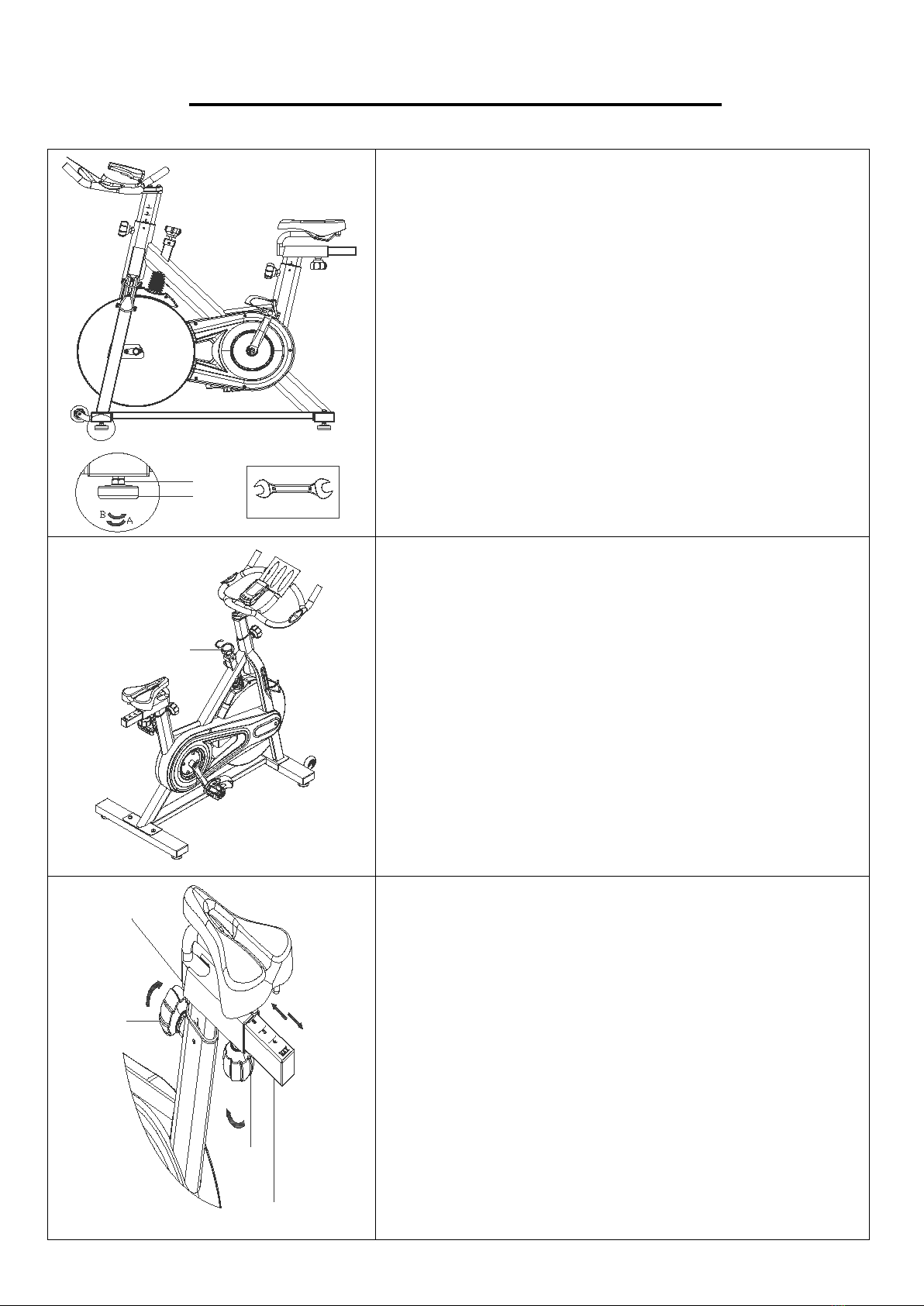

ADJUSTING THE HEIGHT AND BALANCE
In order to achieve a smooth and comfortable ride, you
must ensure that the stability of the bike is secured. If you
notice that the bike is unbalanced during use, adjust the
Adjustment Foot Pad (No. 37), located beneath the
Front & Rear Stabilizers (No. 5 & No. 6) of the bike. To
do so, use Wrench (No. 96) to loosen Hex Thin Nut (No.
76) by turning it clockwise (direction A). With the nut
loosened, rotate the Adjustment Foot Pad (No. 37) until
it sits level with the surface that the bike is on. When you
have finished adjusting the Adjustment Foot Pad (No.
37), re-tighten the Hex Thin Nut (No. 76) by turning it
counter-clockwise (direction B) to complete the balance
adjustment of the bike. If needed, repeat this process to
adjust the remaining adjustment foot pad.
21
ADJUSTING THE RESISTANCE
Adjust the resistance of the bike using the Tension
Control Knob (No. 21). Increase the level of resistance
by turning the Tension Control Knob (No. 21) to the
RIGHT (clockwise), decrease the level of resistance by
turning the Tension Control Knob (No. 21) to the LEFT
(counter-clockwise).
EMERGENCY BRAKE
During use, users can stop the bike completely by pushing
down on the Tension Control Knob (No. 21). Pushing
down on the Tension Control Knob (No. 21) will enforce
the brake and bring the bike to an immediate stop.
22
22
2
8
ADJUSTING THE SEAT
The seat of this bike is fully adjustable as it moves Up,
Down, Fore (forward), Aft (backward).
To adjust the height of Seat Post (No. 2), loosen and pull
the Adjustment Knob (No. 22) outward, then raise or
lower the seat to the desired height. Once adjusted,
re-insert and tighten the Adjustment Knob (No. 22) to
secure the Seat Post (No. 2) in place.
To adjust the seat back and forth, loosen and pull the
Adjustment Knob (No. 22) outward, then slide the Seat
Slider (No. 8) to desired position. Once positioned,
re-insert and tighten the Adjustment Knob (No. 22) to
secure the Seat Slider (No. 8) in place.
22
22
2
8
21

10
22
9
ADJUSTING THE HANDLEBAR
It is important that the handlebar and seat are both set
to the correct height to your body. To adjust the
handlebar height, loosen and pull the Adjustment
Knob (No. 22) outward, then slide the Handlebar (No.
9) up or down to the desired height. Once adjusted,
re-insert and tighten the Adjustment Knob (No. 22) to
secure the handlebar in place.
PEDAL STRAP ADJUSTMENT
Your feet should be secured in the toe clips during
exercise. Place your feet as far forward into the toe clips
as you can. With your feet in place, turn the crank to
bring one foot to within arm’s reach, grasp the pedal
strap and pull it upward to tighten the toe clip cage.
Then insert the strap back into the hoop of the toe clip.
Repeat this process to secure your other foot.
9
22
5
TRANSPORTING THE BIKE
To move the bike, first ensure that the Handlebar (No.
9) is properly secured. If the handlebar is loose, tighten
the Adjustment Knob (No. 22) to secure it. Next, stand
at the front of the bike so that you’re directly in front of
the handlebar. Firmly grasp and hold each side of the
Handlebar (No. 9), place one foot on the Front
Stabilizer (No. 5), and tilt the bike towards you until the
transportation wheels on the Front Stabilizer (No. 5)
touch the ground. With the wheels on the ground, you
can transport the bike to the desired location with ease.
NOTE: Always use caution when moving the bike.
Unexpected impact, such as dropping the bike, may
cause injury and affect the bike’s operation.
DISMOUNTING
For your safety, it is recommended that you never attempt to dismount or remove your feet from the
pedals until both the flywheel and pedals/cranks have come to a complete stop. Failure to follow
this recommendation may lead to loss of control and/or serious injury.
Here are a few examples of how to safely dismount the bike:
1. Reduce the pedal speed until the pedals/cranks come to a complete stop.
2. Increase the resistance until the pedals/cranks come to a complete stop.
3. Push and hold the tension control knob down until the pedals/cranks come to a complete stop.

11

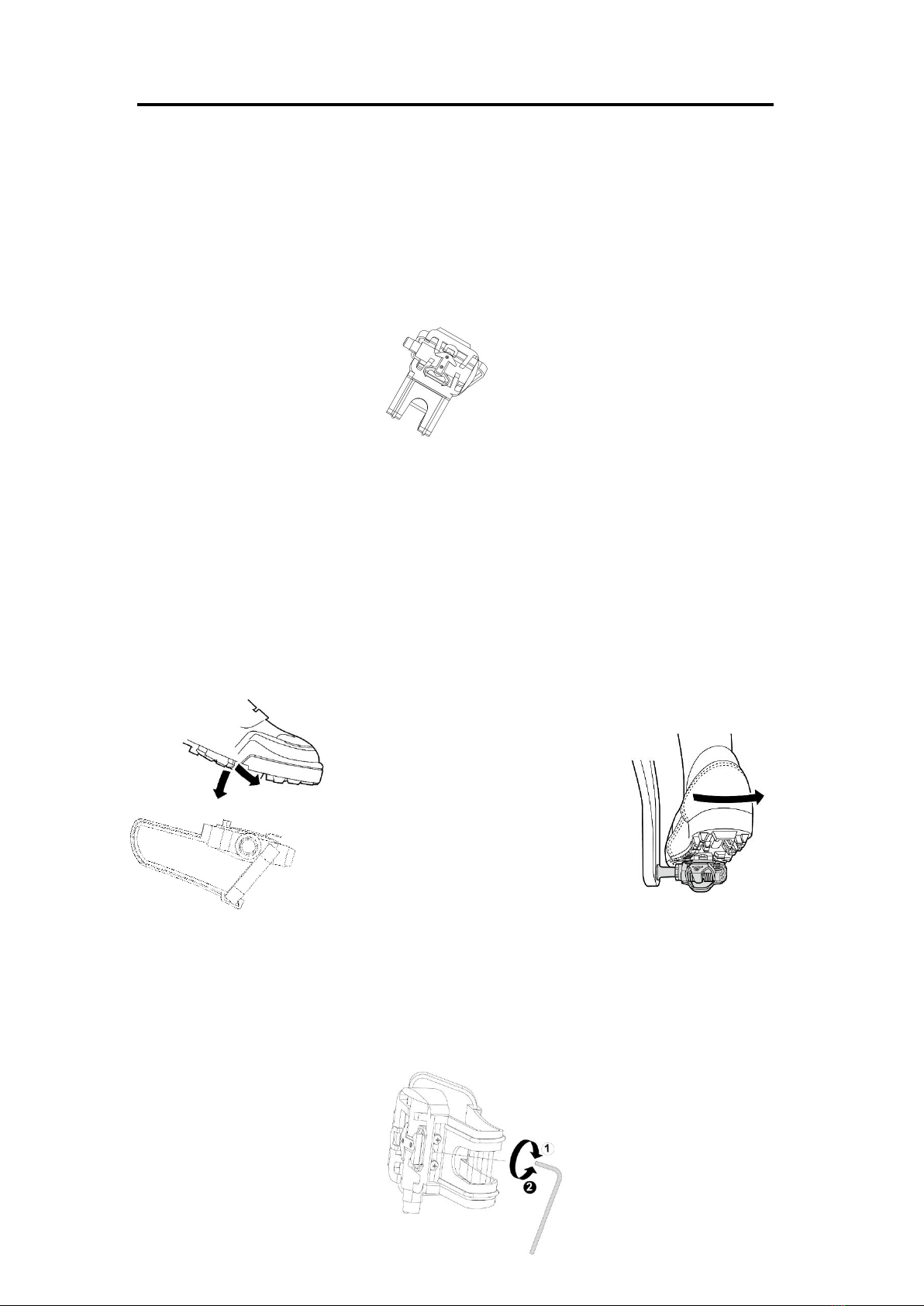

SPD TECHNICAL SERVICE INSTRUCTIONS
Caution!
Before use, read these instructions carefully.
Practice engaging and disengaging from the pedals several times in a stationary position
before riding.
Before using, lubricate the concave area of the clip.
Keep the cleat and pedal clean to ensure proper usage.
Before using, adjust the retention force of the pedal to suit your needs.
Note:
1. After tightening the cleat, practice engaging and releasing one shoe at a time.
2. Check your pedals each time before you ride the bike.
3. When the pedal starts to wear on the axle, it will not function properly. We recommend you
replace the entire pedal.
USE
Engaging Disengaging
Press the cleat into the pedal. Remove by twisting your heel to the
outside.
ADJUSTING THE SPRING TENSION OF THE BINDING
The tension of the spring is adjusted for each pedal (top & bottom) with the adjustment bolt in the
rear using a 4mm Allen Wrench.
Using a 4mm Allen Wrench, turn the bolt in a clockwise direction to increase retention force. Turn
the bolt in a counter-clockwise direction to decrease retention force.
Decrease
Increase
4mm Allen Wrench

12

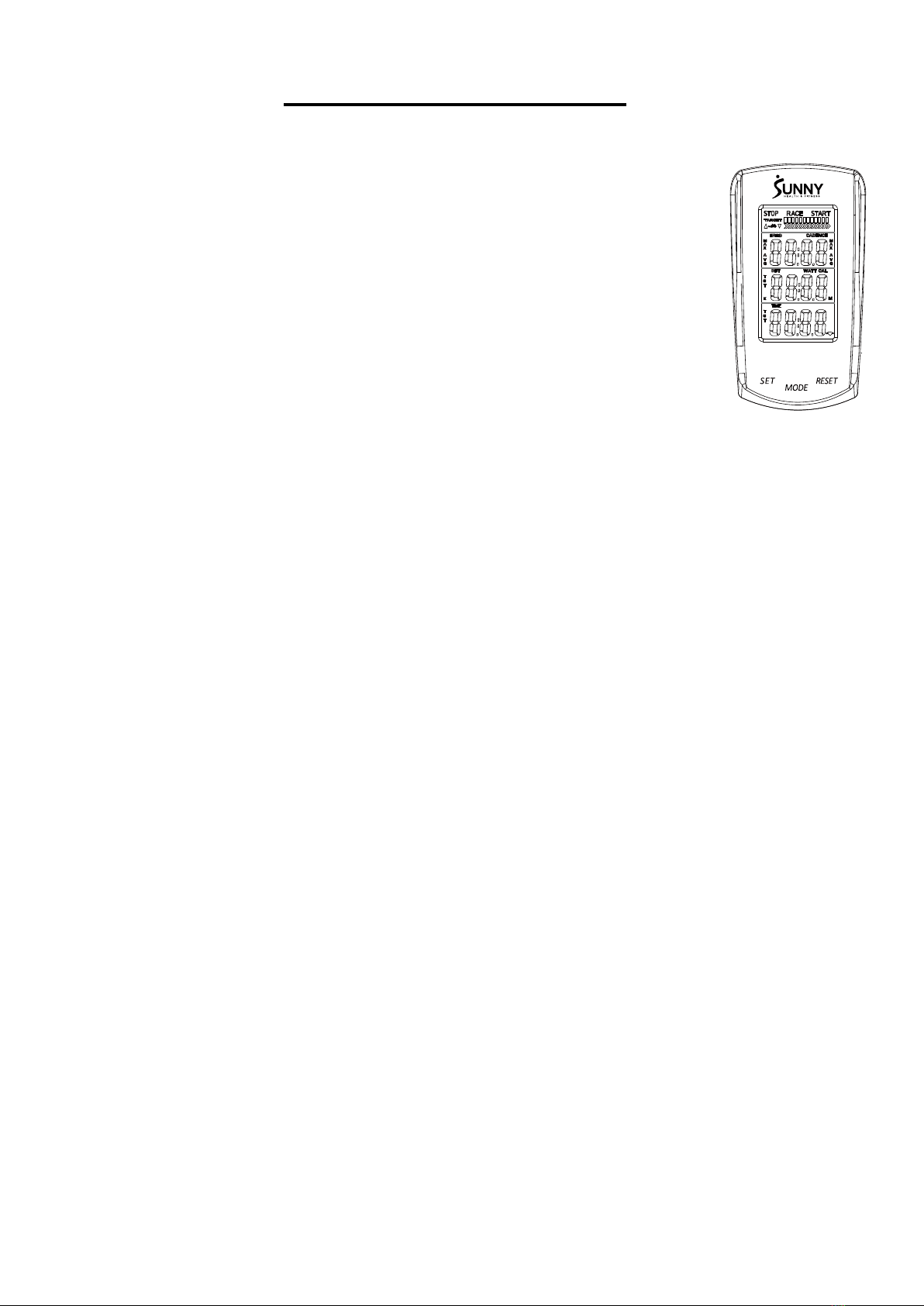

EXERCISE COMPUTER
FUNCTION BUTTONS
MODE:
Press to select the function displayed or during setting mode.
Press and hold for 2 seconds to enter the RACE MODE interface during
stop mode.
SET:
To set up the target value of TARGET, TIME, DIST, CAL.
Press the button and hold for 2 seconds to speed up the increment during
stop mode.
RESET:
Press the button to reset function value during setting mode.
Press the button and hold for 2 seconds to reset all value to zero.
(When the user replaces the batteries, all values will reset to zero.)
FUNCTIONS:
SPEED: Displays the speed from 0 to 99.9 KPH or MPH.
AVG SPEED: Displays the average speed only in STOP mode.
MAX SPEED: Displays the maximum speed only in STOP mode.
CADENCE (RPM): Displays the frequency per minute from 0 to 999.
AVG CADENCE (AVG RPM): Displays the average cadence (RPM) in STOP mode.
MAX CADENCE (MAX RPM): Displays the maximum cadence (RPM) in STOP mode.
DISTANCE (DIST): Accumulates total distance from 0.0 to 999.9 KM or Miles. User can preset
TARGET DISTANCE by pressing MODE & SET.
TARGET DISTANCE (TGT DIST): Users can preset the Distance in the TARGET mode.
CALORIES (CAL): Accumulate total Calories from 0.0 to 9999. User can preset target calories.
RACE: Exercise in the TARGET MODE.
TIME: Accumulates total time from 00:00 to 99:59. User can preset target Time.
TARGET TIME: Users can preset the Time in the TARGET MODE.
PULSE: Display the current pulse rate.
MILES OR KILOMETERS SETTING:
The default setting is miles. Press and hold SET and MODE together for 2 seconds to change to
kilometers.
SET TARGET VALUES:
1. Press SET to select a target value. CADENCE will start to flash.
2. Press and hold SET and the value will increase continuously.
3. Press MODE to enter.
4. TIME will flash.
5. Press SET to select a value.
6. Press MODE to enter.
7. Repeat to select values for DIST and CAL.

13
1. TARGET: the preset CADENCE.
2. In STOP mode, press SET key to enter the TARGET setting in stop mode. Press SET to
increase the CADENCE five at a time. The setting change is 15 →20→ ……110→115→120→
15→20→……→115→120→15 →20→ ……
3. The setting range of 15 -120 (Preset value is 60 CADENCES which equals six bars).
4. Each bar equals 10 CADENCE. Total is 12 bars.
Each arrow equals 10 CADENCES (1-10 CADENCES displays one arrow,
11-20 displays two). The maximum arrows displayed is 12.
This down arrow next to the bicycle icon will be displayed when the current
CADENCE is more than the TARGET CADENCE. The bicycle icon will be displayed during
exercise mode.
RACE MODE:
Press and hold MODE for 2 seconds to enter RACE mode.
In RACE MODE, only TIME and DIST can be set.
Default values for 10 minutes / 4 (KM or Miles).
Total is 10 bars.
PULSE:
To measure the pulse, press MODE until computer is on the PULSE function. Hold the handle
pulse sensor for at least 5 seconds to measure your pulse. This value is for reference only. It
cannot be used as the basis for medical treatment.
BATTERY: This computer uses two AAA batteries. If the display appears incorrectly or becomes
difficult to read, please install new batteries. Always change both batteries at the same time. Do
not mix battery types and do not mix old and new batteries. Dispose batteries according to your
state and regional guidelines.
When Current CADENCE is less than Target CADENCE,
the up arrow next to the bicycle will be displayed.

14
MAINTENANCE INSTRUCTIONS
This is general information for daily, weekly and monthly maintenance to be performed on your
bike.
DAILY MAINTENANCE
After each exercise session, wipe down all the
equipment: seat, frame, and handlebars. Pay
special attention to the seat post, handlebar post
and belt/chain guard. Sweat is very corrosive
and may cause problems that require parts
replacement later.
1. Get on the bike and engage the drive train.
2. Pay attention to any vibrations felt through
the pedals. If you feel any vibrations, you
may need to tighten the pedals, bottom
bracket, or adjust the drive belt/chain
tension.
3. Use a wrench to tighten the pedals until they
are secure.
MONTHLY MAINTENANCE
1. Check if all hardware is secure, such as:
water bottle holder, flywheel nuts, belt/chain
guard bolts, brake caliper lock nuts, and
brake caliper tension rod nuts.
2. Inspect the brake tension rod for signs of
wear such as missing threads. Clean and
lubricate the brake tension rod.
3. Clean and lubricate the seat post, handlebar
post and seat slider. Remove any buildup of
foreign material.
WEEKLY MAINTENANCE
1. Inspect moving parts and tighten the
hardware.
2. Inspect pull pin frame fittings to make sure
the fittings are snug. Loose frame fittings
may strip out threads over time and cause
extensive damage.
3. Clean and lubricate pop pin assemblies. Pull
on the pin and spray a small amount of
lubricant onto the shaft.
4. Tighten the seat hardware to make sure the
seat is level and centered.
5. Brush and treat the resistance pads.
Remove any foreign material that may have
collected on the pads. Spray the pads with
silicone lubricant. This helps to reduce noise
from friction between the pads and the
flywheel.
6. Visually inspect the bottom bracket, toe clips
and toe straps. If any of them are loose or
disconnected, attach and tighten.
LEATHER BRAKE PAD CARE (If applicable)
1. Perform this maintenance when the brake
pad is first installed and for the life of the
brake pad. Following these simple guidelines
can increase the life of your brake pads.
2. Some brake pad assemblies are
pre-lubricated. Squeeze the brake pad. If
lubricant is released, then the pad has been
pre-lubricated.
3. If the brake pad is dry, then coat the brake
pad with 3-n-1 oil. Brush the leather with a
clean, wire bristle brush, and then apply the
oil. The oil should be allowed to soak into the
pad. Repeat 4-5 times until the pad is
saturated, but not dripping with oil. When the
pad is saturated, it will no longer absorb oil.
4. Inspect the brake pad weekly and lubricate if
needed. The pad should not have a glazed
appearance. If the pad appears glazed, then
brush it with wire brush and apply lubricant
as needed. If any of the sponge padding is
showing through the leather pad, the brake
pad should be replaced.
Version 1.2

15
