Sunny SF-B901 User manual

PRO INDOOR CYCLING BIKE
SF-B901
USER MANUAL
IMPORTANT! Please retain owner’s manual for maintenance and adjustment instructions.
Your satisfaction is very important to us, PLEASE DO NOT RETURN UNTIL YOU HAVE
CONTACTED US: [email protected] or 1-877-90SUNNY (877-907-8669).

2
IMPORTANT SAFETY INFORMATION
We thank you for choosing our product. To ensure your safety and health, please use this equipment
correctly. It is important to read this entire manual before assembling and using the equipment. Safe
and effective use can only be achieved if the equipment is assembled, maintained and used properly.
It is your responsibility to ensure that all users of the equipment are informed of all warnings and
precautions.
1. Before starting any exercise program, you should consult your physician to determine if you have
any medical or physical conditions that could put your health and safety at risk, or prevent you
from using the equipment properly. Your physician’s advice is essential if you are taking
medication that affects your heart rate, blood pressure or cholesterol level.
2. Be aware of your body’s signals. Incorrect or excessive exercise can damage your health. Stop
exercising if you experience any of the following symptoms: pain, tightness in your chest, irregular
heartbeat, shortness of breath, lightheadedness, dizziness or feelings of nausea. If you do
experience any of these conditions, you should consult your physician before continuing with your
exercise program.
3. Keep children and pets away from the equipment. The equipment is designed for adult use only.
4. Use the equipment on a solid, flat level surface with a protective cover for your floor or carpet. To
ensure safety, the equipment should have at least 4 feet (1.2 M) of free space all around it.
5. Ensure that all nuts and bolts are securely tightened before using the equipment. The safety of the
equipment can only be maintained if it is regularly examined for damage and/or wear and tear.
6. Always use the equipment as indicated. If you find any defective components while assembling or
checking the equipment, or if you hear any unusual noises coming from the equipment during
exercise, discontinue use of the equipment immediately and do not use until the problem has
been rectified.
7. Wear suitable clothing while using the equipment. Avoid wearing loose clothing that may become
entangled in the equipment.
8. Do not place fingers or objects into the moving parts of the equipment.
9. The maximum weight capacity of this unit is 275 pounds (125 KG).
10.The equipment is not suitable for therapeutic use.
11.To avoid bodily injury and/or damage to the product or property, proper lifting and moving is
required.
12.Your product is intended for use in cool, dry conditions. You should avoid storage in extreme cold,
hot or damp areas as this may lead to corrosion and other related problems.
13. This equipment is designed for indoor and home use only, it is not intended for commercial use!

3
EXPLODED DIAGRAM

4

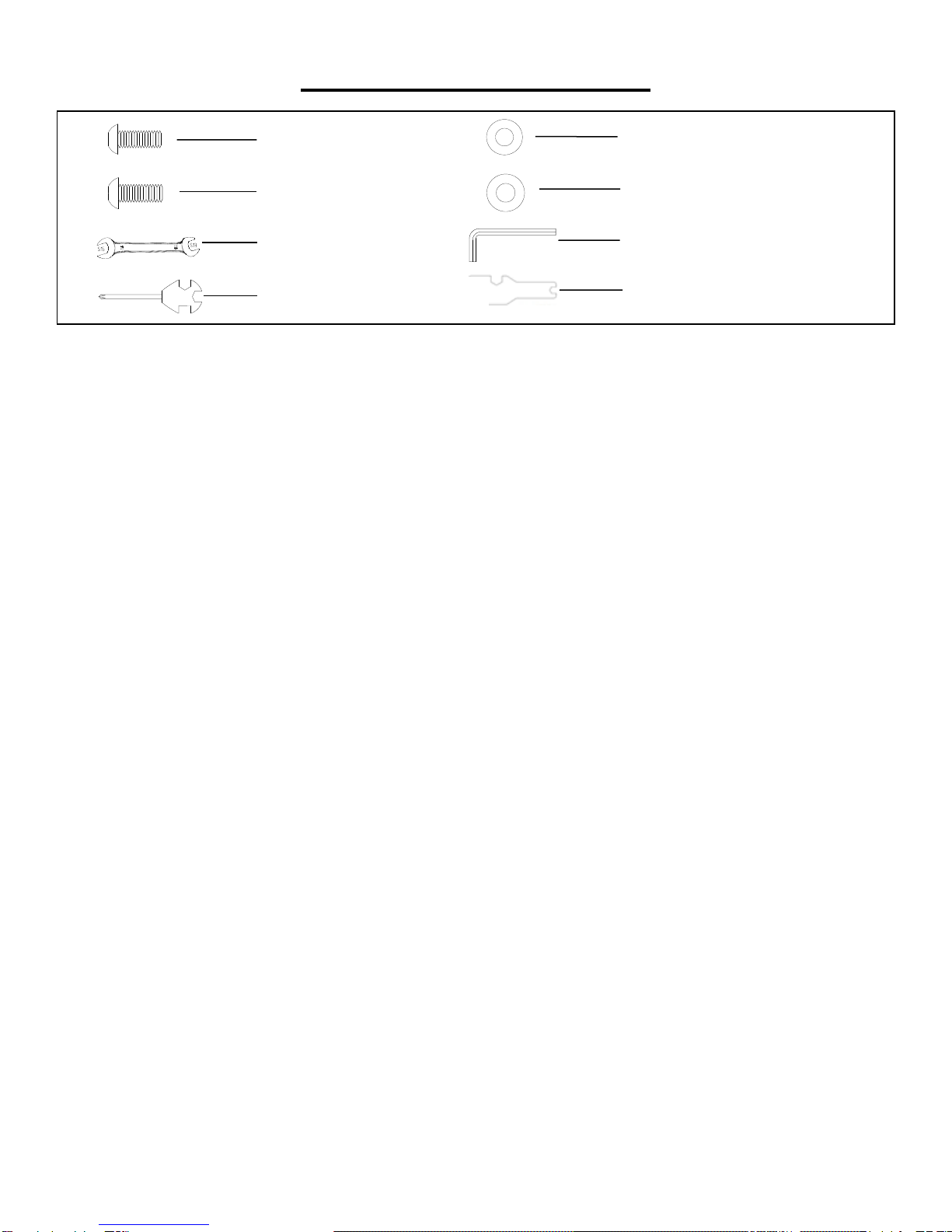

HARDWARE PACKAGE
Ordering Replacement Parts (U.S. and Canadian Customers only)
Please provide the following information in order for us to accurately identify the part(s) needed:
The model number (found on cover of manual)
The product name (found on cover of manual)
The part number found on the “EXPLODED DIAGRAM” and “PARTS LIST” (found near the front of the
manual)
Please contact us at [e-mail] or 1 - 877 - 90SUNNY (877-907-8669).
#34 (M10*25*S6) 4PCS
#33 (d10*Φ20*2.0) 4PCS
#78 (S=8、14、22) 1PC
#77 (S=14、15、17) 1PC
#75 (S=13、15) 1PC
#66 (M10*25*S6) 2PCS
#67 (d10*Φ20*2) 2PCS
#76 (S=6) 1PC

5
PARTS LIST
No.
Description
Spec.
Qty.
No.
Description
Spec.
Qty.
1
Main Frame
1
41
Brake Pad
2
2
Seat Post
1
42
Clamp Brake Holder
1
3
Seat Slider
1
43
Flat Washer
Φ11*Φ25*4
1
4
Handlebar Post
1
44
Bearing
6001-2RZ
2
5
Handlebar
1
45
Bearing
6004-2RS
2
6
Cap Nut
M12*1*H19.5*S19
2
46
Bearing
608ZZ
4
7
Rear Stabilizer
1
47
Bi-Direction Small
Chain Wheel
1
8
Front Stabilizer
1
48
C-Shape Buckle
D20
2
9
Brake-Handle
1
49
Nut
M10*H7*S17
4
10
Washer
D10*Φ25*1
1
50
Inner Hexagon Flat
Round Head Screw
Φ7.8*30
3
11
Tension Knob
1
51
Screw
M6*38*S5
1
12
Left Crank
1
52
Flat Washer
D5*Φ10*1
2
13
Cross Self-
Tapping Screw
ST4.8*16
7
53
Hexagon Flange Nut
M10*1.25*H7.5*S1
4
2
14
Right Chain Cover
1
54
Cross Self-Tapping
Screw
M5*23
3
15
Left Chain Cover
1
55
Hexagon Thin Nut
M12*1*H6*S19
3
16
Base Leveler
4
56
Hexagon Flange Nut
M6*H7*S10
1
17
Bushing
3
57
Nut
2
18
Cap
J80*40*1.5
4
58
Nylon Nut
M10*H9*S17
1
19
Cap
F38*38*14
1
59
Cross Pan Head Bolt
M5*12*Φ8
2
20
Front Cover
1
60
Inner Hexagon Flat
Round Head Screw
M6*12*S5
3
21
Transport Wheel
Φ71*Φ19*24
2
61
Pedal Strap
2
22
Seat
1
62
Pedal Belt
2
23
Pop Pin
3
63
Brake Cable
2
24
Plug
Φ22*16
1
64
Clamp Brake
Assembly
1
25
Cap
F45*45*24
1
65
Brake Pad Holder
2
26
Washer
Φ8*Φ25*6
3
66
Hexagon Flat Round
Head Screw-Black
M10*25*S6
2
27
Screw
δ0.6*35.3*10.6
5
67
Flat Washer
D10*Φ20*2
2
28
Silent Chain
1
68
Front Packing Base
1
29
Washer
D12*Φ24*1.5
2
69
Rear Packing Base
1
30
Bottom Bracket
Axle
1
70
Inner Hexagon Flat
Round Head Screw
M10*16*S6
4
31
Right Crank With
Big Chain Wheel
1
71
Screw
ST4.2*16
2
32
Crank Cap
Φ25*7
2
72
Left Nylon Nut
9/16*20*H8*S22
1
33
Flat Washer
D10*Φ20*2
8
73
Right Nylon Nut
9/16*20*H8*S22
1
34
Inner Hexagon
Flat Round Head
Screw
M10*25*S6
4
74
Wave Washer
1
35L/R
Refer To Part #79
-
75
Wrench
S13-15
1
36
Flywheel
1
76
Allen Wrench
S6
1
37
Flywheel Spindle
1
77
Spanner
S14-15-17
1
38
Chain Adjuster
Welding
M8*83*Φ12*5
2
78
Spanner
S8-14-22
1
39
Sleeve
Φ18*Φ12.1*18.5
1
79L/R
Pedal
2
40
Nylon Nut
M8*H7.5*S13
2

6
ASSEMBLY INSTRUCTIONS
We value your experience using Sunny Health and Fitness products. For assistance with parts or
troubleshooting, please contact us at [e-mail] or 1-877-90SUNNY (877-907-8669).
STEP 1:
Use Allen Wrench (No. 76) to unscrew 4
Inner Hexagon Flat Round Head Screws
(No. 70) and 4 Flat Washers (No. 33) from
Front & Rear Packing Bases (No. 68 & No.
69). Then remove and discard the Front &
Rear Packing Bases (No. 68 & No. 69).
OPTIONAL: You may save these parts: Inner
Hexagon Flat Round Head Screws (No. 70),
Flat Washers (No. 33), Front & Rear
Packing Bases (No. 68 & No. 69)for future
packaging and transportation of bike.
STEP 2:
Attach the Front & Rear Stabilizers (No. 8 &
No. 7) to the Main Frame (No. 1) using 4
Inner Hexagon Flat Round Head Screws
(No. 34)and 4 Flat Washers (No. 33).
Tighten and secure with Allen Wrench (No.
76).

7
We value your experience using Sunny Health and Fitness products. For assistance with parts or
troubleshooting, please contact us at [e-mail] or 1-877-90SUNNY (877-907-8669).

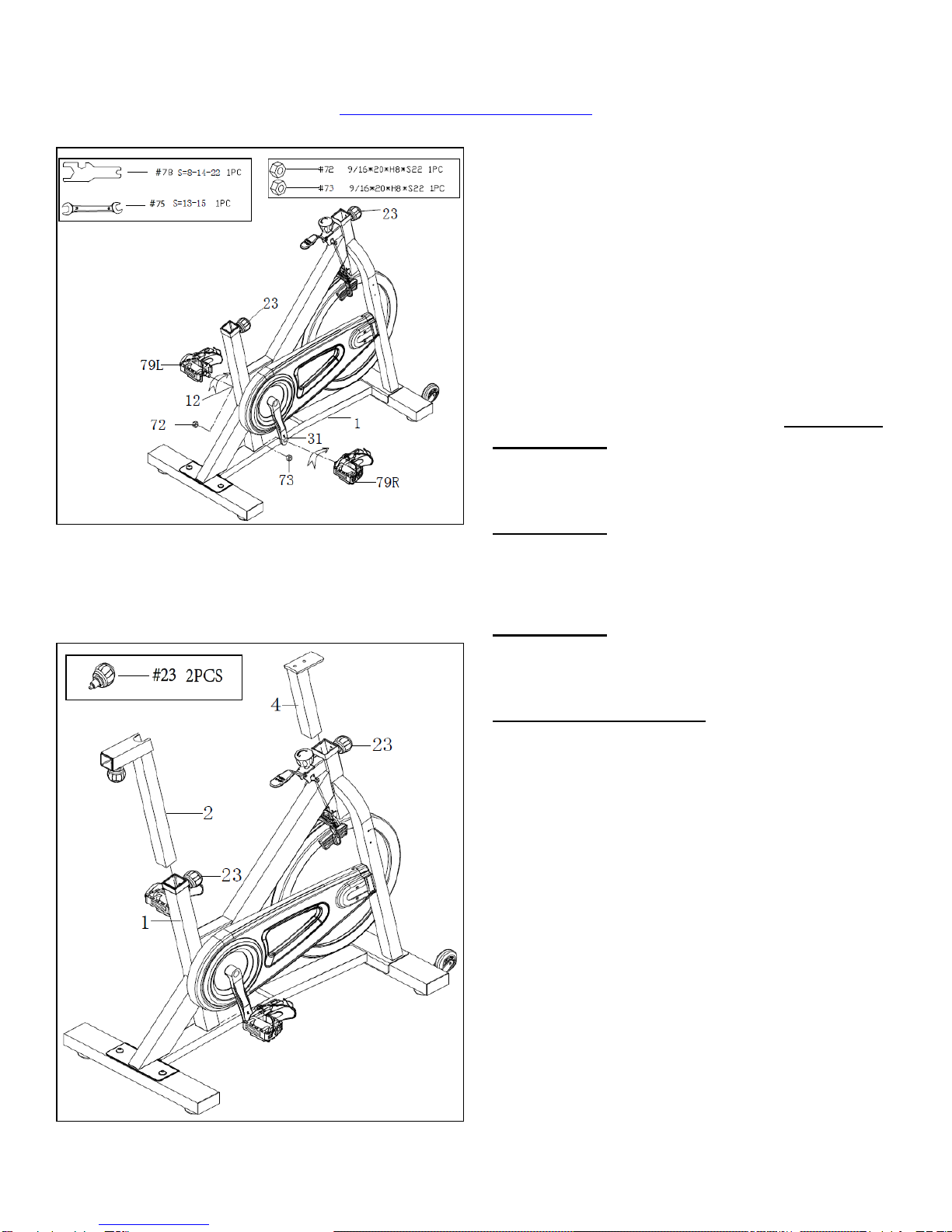

STEP 3:
IMPORTANT! Read instructions carefully,
failure to do so may cause permanent
damage to your bike.
Remove the Left & Right Nylon Nuts (No. 72
& 73) located on the Pedals (No. 79L/R). The
Right Nylon Nut (No. 73) is white on the
inside. The Left Nylon Nut (No. 72) is blue on
the inside.
Screw the Left Pedal (No. 79L) COUNTER-
CLOCKWISE into the Left Crank (No. 12).
Once it is properly screwed into the place, use
the Wrench (No. 75) to hold the bolt of the
pedal and screw the Left Nylon Nut (No. 72)
CLOCKWISE to the thread end of the Left
Pedal (No. 79L) securely with Spanner (No.
78).
Screw the Right Pedal (No. 79R)
CLOCKWISE into the Right Crank (No. 31).
Once properly screwed into the place, use the
Wrench (No. 75) to hold the bolt of the pedal
and screw the Right Nylon Nut (No. 73)
COUNTER-CLOCKWISE to the thread end of
the Right Pedal (No. 79R) securely with
Spanner (No. 78).
STEP 4:
Loosen and remove 2 Pop Pins (No. 23).
Insert the Seat Post (No. 2) and Handlebar
Post (No. 4) into the post housing located on
the Main Frame (No. 1). Adjust the Seat Post
(No. 2) and Handlebar Post (No. 4) to the
desired positions. Re-insert and tighten the 2
Pop Pins (No. 23) to secure the posts in
place.

8
We value your experience using Sunny Health and Fitness products. For assistance with parts or
troubleshooting, please contact us at [e-mail] or 1-877-90SUNNY (877-907-8669).
STEP 5:
NOTE: In order to properly tighten the seat, it
is important to note that you will need two open
faced wrenches (1 for each side) and will need
to tighten the nut on each side simultaneously
working in opposite direction of each other.
Loosen and remove the Pop Pin (No. 23).
Next, insert the Seat Slider (No. 3) into the
Seat Post (No. 2) and adjust it to the desired
position. Re-insert and tighten Pop Pin (No.
23) to secure the Seat Slider (No. 3) in place.
Attach the Seat (No. 22) to the Seat Slider
(No. 3). Tighten and secure with Wrench (No.
75).
Attach the Handlebar (No. 5) to the
Handlebar Post (No. 4) using 2 Hexagon Flat
Round Head Screws (No. 66)and 2 Flat
Washers (No. 67), tighten and secure with
Allen Wrench (No. 76).
The assembly is complete!

9

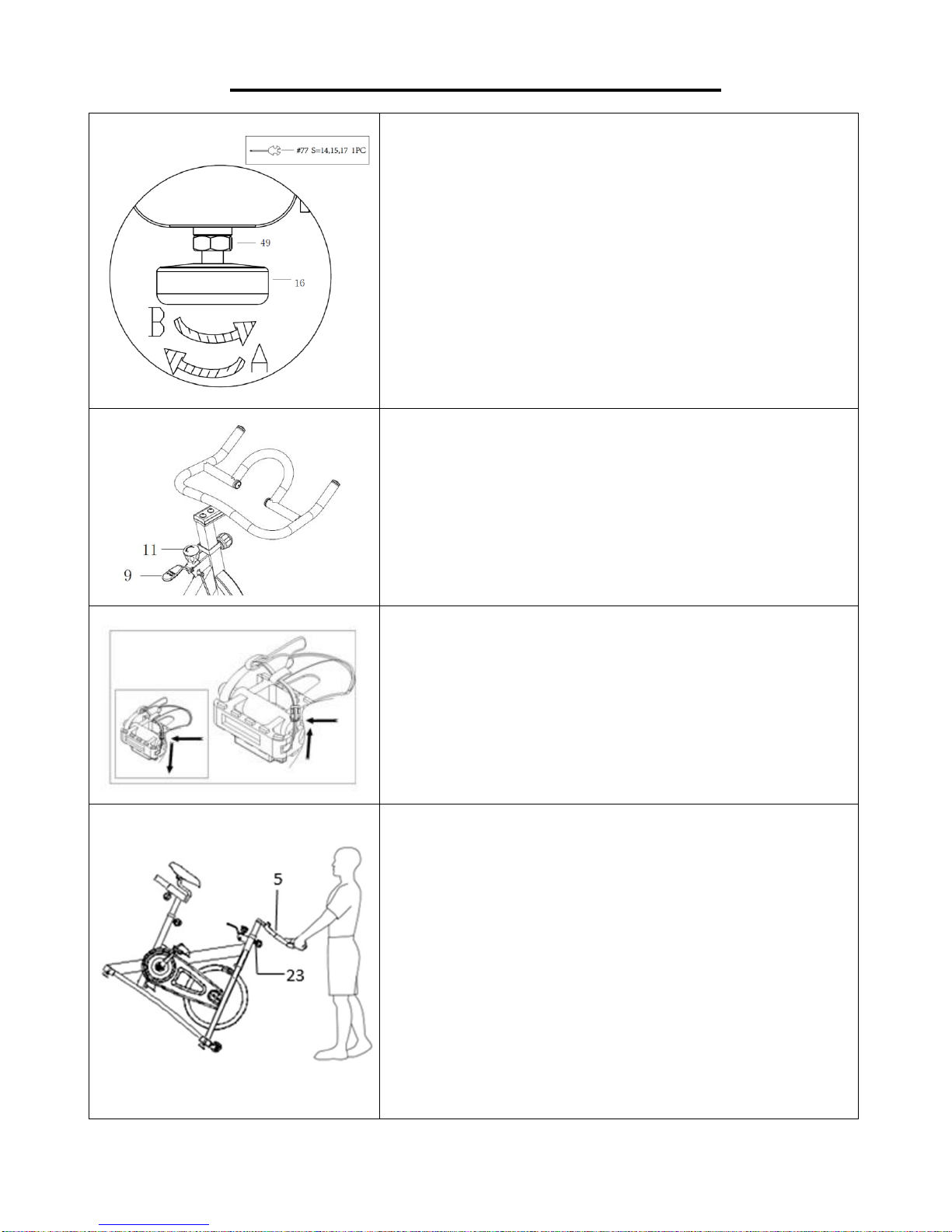

ADJUSTMENTS & USAGE GUIDE
ADJUSTING THE BALANCE
In order to achieve a smooth and comfortable ride during
use, you must ensure that the stability of the bike is correct.
If during use you notice that the bike is unbalanced you can
adjust the base levelers located beneath the front and rear
bases. To do so, use Spanner (No. 77) to loosen the Nut
(No. 49)by turning it clockwise (direction A). With the nut
loosened, rotate the Base Leveler (No. 16)until it sits level
with the surface that the bike is on. When you have finished
adjusting the base leveler, re-tighten the Nut (No. 49)by
turning it counter-clockwise (direction B) using Spanner (No.
77). If required, repeat this process to adjust the remaining
base levelers.
RESISTANCE AND BRAKING
You may adjust the tension level of the bike by rotating the
Tension Knob (No. 11). To increase the level of resistance,
rotate the tension knob clockwise, to decrease the level of
resistance, rotate the tension knob counter-clockwise.
During exercise, you may stop the bike immediately by
pushing down on the Brake-Handle (No. 9). This is the
emergency brake.
PEDAL STRAP ADJUSTMENT
Your feet should be secured in the toe clips during exercise.
Place your feet as far forward into the toe-clips as you can.
With your feet in place, turn the crank to bring one foot to
within arm’s reach, grasp the pedal strap and pull it upward
to tighten the toe-clip cage, then insert the strap back into
the hoop of the toe-clip. Repeat this process to secure your
other foot.
TRANSPORTING THE BIKE
To move the bike, first ensure that the Handlebar (No. 5) is
properly secured. If the handlebar is loose, tighten the Pop
Pin (No. 23)to secure it. Next, stand at the front of the bike
so that you’re directly in front of the handlebar. Firmly grasp
and hold each side of the handlebar, place one foot on the
front base and tilt the bike towards you until the transport
wheels on the front base touch the ground. With the wheels
on the ground, you can transport the bike to the desired
location with ease.
NOTE: When moving the bike, always move with caution as
unexpected impact, such as dropping the bike, may cause
injury and affect the bike’s operation.

10
ADJUSTING THE SEAT
The seat of this bike is fully adjustable as it moves Up,
Down, Fore (forward), Aft (backward).
To adjust the height of the Seat Post (No. 2), loosen and
pull the [seat post] Pop Pin (No. 23)outward, then raise or
lower the seat to the desired height. Once adjusted, re-insert
and tighten the [seat post] Pop Pin (No. 23)to secure the
seat in place.
To adjust the seat back and forth, loosen and pull [seat
slider] Pop Pin (No. 23) outward, then slide the Seat Slider
(No. 3) to the desired position. Once positioned, re-insert
and tighten the [seat slider] Pop Pin (No. 23) to secure the
seat slider tube in place.
ADJUSTING THE HANDLEBAR
It is important that the handlebar and seat are both set to the
correct height of your body. To adjust the handlebar height,
loosen and pull the Pop Pin (No. 23) outward, then slide the
Handlebar Post (No. 4) up or down to the desired height.
Once adjusted re-insert and tighten the Pop Pin (No. 23) to
secure the handlebar post in place.
CHECKING BRAKE PADS AND PEDALS
Ensure all the Nuts, Nut Caps and Pedals are secured and
inspect the equipment regularly. If you should find any
defective parts, do not exercise until they’ve been repaired.
Pay close attention to easily damaged parts due to wear and
tear. Please inspect Brake Pads (No. 41) to ensure there is
still adequate padding on each side before exercising. Make
sure to replace brake pads as necessary. Also, inspect the
Pedals before exercise. If they have become loose, please
re-tighten.
TIGHTENING THE SEAT
Please adjust the Hexagon Nuts by using the Wrench (No.
75)if the Seat (No. 22) is loose.
NOTE: In order to properly tighten the seat, it is important to
note that you will need two open faced wrenches (1 for each
side) and will need to tighten the nut on each side
simultaneously working in opposite direction of each other.
23

11
INSTRUCTIONS ON CHANGING BRAKE PAD
STEP 1:
Remove Nylon Nut (No.
58) which is under
Tension Knob (No. 11)
with Wrench (No. 75)
first, and then adjust the
Brake Resistance to least
amount of resistance.
STEP 6:
Insert the new Right
Brake Pad Holder (No.
65) into the Right Clamp
Brake Assembly (No.
64).
STEP 2:
Push Left Brake Pad
Holder (No. 65)
separated from its Clamp
Brake Assembly (No.
64) by hand.
STEP 7:
Open the Left Clamp
Brake Assembly (No.
64) with hand.
STEP 3:
Take down the Left
Brake Pad Holder (No.
65).
STEP 8:
Insert the new Left
Brake Pad Holder (No.
65) into the Left Clamp
Brake Assembly (No.
64).
STEP 4:
Push Right Brake Pad
Holder (No. 65)
separated from its Clamp
Brake Assembly (No.
64) by hand.
STEP 9:
After tightening up the
Tension Knob (No. 11)
put the Nylon Nut (No.
58) onto and fix it with
Wrench (No. 75) to the
normal working place.
STEP 5:
Take down the Right
Brake Pad Holder (No.
65).
STEP 10:
Put down the Brake
Handle (No. 9) by Left
hand; and tap the Brake
pad inside its clamp
brake assembly with
wooden mallet (or plastic
mallet) gently by right
hand.
75

12
MAINTENANCE INSTRUCTIONS
This is general information for daily, weekly and monthly maintenance to be performed on your bike.
Version 3.1
DAILY MAINTENANCE
After each exercise session, wipe down all
the equipment: seat, frame, handlebars. Pay
special attention to the seat post, handlebar
post and belt/chain guard. Sweat is very
corrosive and may cause problems that
require parts replacement later.
1. Get on the bike and engage the drive
train.
2. Pay attention to any vibrations felt
through the pedals. If you feel any
vibrations, you may need to tighten the
pedals, bottom bracket, or adjust the drive
belt/chain tension.
3. Use a wrench to tighten the pedals until
they are secure.
MONTHLY MAINTENANCE
1. Check all hardware is secure, such as: water
bottle holder, flywheel nuts, belt/chain guard
bolts, brake caliper lock nuts and brake
caliper tension rod nuts.
2. Inspect the brake tension rod for signs of
wear such as missing threads. Clean and
lubricate the brake tension rod.
3. Clean and lubricate the seat post, handlebar
post and seat slider. Remove any build up of
foreign material.
WEEKLY MAINTENANCE
1. Inspect moving parts and tighten the
hardware.
2. Inspect pull pin frame fittings, making
sure the fittings are snug. Loose frame
fittings may strip out threads over time
and cause extensive damage.
3. Clean and lubricate pop pin assemblies.
Pull on the pin and spray a small amount
of lubricant onto the shaft.
4. Tighten the seat hardware, making sure
the seat is level and centered.
5. Brush and treat the resistance pads.
Remove any foreign material that may
have collected on the pads. Spray the
pads with silicone lubricant. This helps to
reduce noise from friction between the
pads and the flywheel.
6. Visually inspect the bottom bracket, toe
clips and toe straps. If any of them are
loose or disconnected, attach and tighten.
LEATHER BRAKE PAD CARE (If Applicable)
1. Perform this maintenance when the brake
pad is first installed and for the life of the
brake pad. Following these simple guidelines
can increase the life of your brake pads.
2. Some brake pad assemblies are pre-
lubricated. Squeeze the brake pad. If
lubricant is released, then the pad has been
pre-lubricated.
3. If the brake pad is dry, then coat the brake
pad with 3-n-1 oil. Brush the leather with a
clean, wire bristle brush, and then apply the
oil. The oil should be allowed to soak in to
the pad. Repeat 4-5 times until the pad is
saturated, but not dripping with oil. When the
pad is saturated, it will no longer absorb oil.
4. Inspect the brake pad weekly and lubricate if
needed. The pad should not have a glazed
appearance. If the pad appears glazed, then
brush it with wire brush and apply lubricant
as needed. If any of the sponge padding is
showing through the leather pad, the brake
pad should be replaced.
