Sunny SF-B1509 User manual

BELT DRIVE PREMIUM
INDOOR CYCLING BIKE
SF-B1509
USER MANUAL
IMPORTANT! Read all instructions carefully before using this product. Retain owner’s
manual for future reference. For customer service, please contact:
[email protected]

1
IMPORTANT SAFETY INFORMATION
We thank you for choosing our product. To ensure your safety and health, please use this
equipment correctly. It is important to read this entire manual before assembling and using the
equipment. Safe and effective use can only be assured if the equipment is assembled,
maintained, and used properly. It is your responsibility to ensure that all users of the equipment
are informed of all warnings and precautions.
1. Before starting any exercise program you should consult your physician to determine if you
have any medical or physical conditions that could put your health and safety at risk or prevent
you from using the equipment properly. Your physician’s advice is essential if you are taking
any medication that may affect your heart rate, blood pressure, or cholesterol level.
2. Be aware of your body’s signals. Incorrect or excessive exercise can damage your health.
Stop exercising if you experience any of the following symptoms: pain, tightness in your chest,
irregular heartbeat, shortness of breath, lightheadedness, dizziness, or feelings of nausea. If
you do experience any of these conditions, you should consult your physician before
continuing with your exercise program.
3. Keep children and pets away from the equipment. The equipment is designed for adult use
only.
4. Use the equipment on a solid, flat level surface with a protective cover for your floor or carpet.
To ensure safety, the equipment should have at least 2 feet of free space all around it.
5. Ensure that all nuts and bolts are securely tightened before using the equipment. The safety of
the equipment can only be maintained if it is regularly examined for damage and/or wear and
tear.
6. It is recommended that you lubricate all moving parts on a monthly basis.
7. Always use the equipment as indicated. If you find any defective components while assembling
or checking the equipment, or if you hear any unusual noises coming from the equipment
during exercise, stop using the equipment immediately and don’t use the equipment until the
problem has been rectified.
8. Wear suitable clothing while using the equipment. Avoid wearing loose clothing that may
become entangled in the equipment.
9. Do not place fingers or objects into the moving parts of the equipment.
10. The maximum weight capacity of this unit is 265 pounds.
11. This equipment is not suitable for therapeutic use.
12. Move with caution when lifting and moving the equipment. Always use proper lifting technique
and seek assistance if necessary.
13. Your product is intended for use in cool, dry conditions. You should avoid storage in extreme
cold, hot, or damp areas as this may lead to corrosion and other related problems.
14. This equipment is designed for indoor use only! It is not intended for commercial use!

2

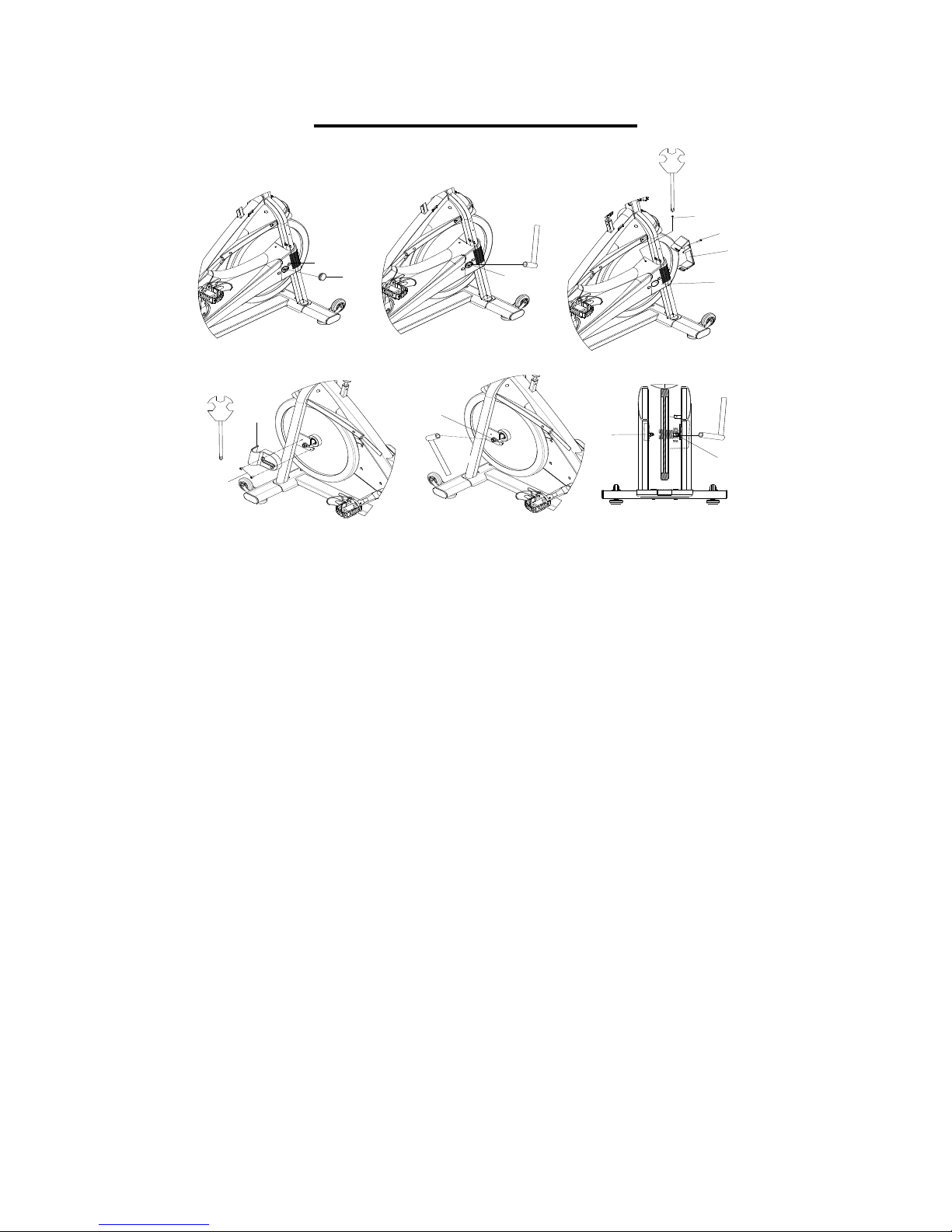

EXPLODED DRAWING
1
6
7
9
9
10
10
10
9
11
11
11
11
12
12
13
13
14
15
15
15
15
16
16
19
20
21
23
22
16
25
18
26
27
28
29
30
31
32
33
35
36R
36L
37
38
39
40
40
41L
42
42
43
43
44
45
47
46
49
50
51
53
54
55
57
17
17
61
63
62
60
48
52
67
68
69
45
64
64
56
58
81 41R
65
48
48
48
48
79
80
70
566
S6
S14-15-17
59
59
59
59
2
8
4
3
71
73
72
74
74
74
74
78
75
76
76
25
77
77
64
76
18
24
71
77
77
77
62
25
34
566
31
29

3
PARTS LIST
No.
Description
Qty
No.
Description
Qty
1
Main Frame
1
42
Bearing 6004-2RS
2
2
Saddle post
1
43
Reed d20
2
3
Handlebar
1
44
Wave washer d20*26*0.3
1
4
Handlebar post
1
45
Nut M10*1.25*H7.5*S14
2
5
Adjusting screw
2
46
Nut M8*H5.5*S14
1
6
Front stabilizer
1
47
Tension knob 55*44*M8*18
1
7
Rear stabilizer
1
48
Nut M10*H7*S17
5
8
Seat slider tube
1
49
Brake rod
10*270*M8*20*M6*7*M10*95
1
9
Screw M10*25*S6
4
50
Bushing 20*20*74
1
10
Flat washer d10*20*2.0
4
51
Spring 2.0*15*54*N12
1
11
End cap PT80*40*20
1
52
Square nut 15*15*25*M10
1
12
Transport wheel 71*19*24
2
53
Nut M6*H14*S10
1
13
Screw 7.8*30*M6*15*S5
2
54
Spring piece t2.0*15.8*153
1
14
Screw M6*12*S5
2
55
Brake board 12*25*138
1
15
Foot leveler M10*30*52*49
4
56
EVA pad 10*22*95
1
16
Adjustment knob M16*1.5*18*56
3
57
Cow leather t5*25*138
1
17
Screw M5*20*8.5
2
58
Screw M6*12*12
1
18
Bushing
PT45*51*2PT35*41*L198 PP
2
59
Bearing 608ZZ*8
4
19
Screw M10*25*S6 (black)
2
60
Screw M5*12*10
1
20
Flat washer d10*20*1.5 (black)
2
61
Nut M5*H4*S8
1
21
Water bottle holder
1
62
Washer d6*16*1.5
3
22
Screw M5*16*10
2
63
Bolt M6*16*S10
2
23
Washer d5*13*1
2
64
Screw M6*10*12
4
24
Bushing
PTB45*51*PT35*41*L198
1
65
Nut M5*H9*S8
1
25
End cap PTB35*41*2.5*L20
3
66
Nut M8*H7.5*S13
2
26
Saddle
1
67
Inner chain cover
1
27
Flywheel
18*460*80*30*55*42*PK
1
68
Outer chain cover
1
28
Inertial axle 15*162*M12*1*29*29
1
69
Front cover
1
29
Bearing 6202-2RS C&U
3
70
End cap 38*34
1
30
Spacer 20*15.1*28
1
71
Screw ST4.8*16*10
2
31
Nut M12*1*H6*S19
2
72
Left cover for cant beam
1
32
Nut M12*1*H19.5*S19
1
73
Right cover for cant beam
1
33
Washer d12*24*2
1
74
Screw ST4.2*16*8
4
34
Nut M12*1.0*H11*S18
1
75
Upper cover for flywheel
1
35
Middle axle
20*184*43*10.5*74.5*4-10.1*105
1
76
Screw M5*8*8
4
36L/R
Crank 170 “L” “R” 9/16
2
77
Screw ST4.2*16*8
8
37
Belt wheel 204*20*5PK
1
78
Left stay cover
1
38
Belt 5PK520
1
79
Allen wrench S6
1
39
Screw M10*16*S6 grade 8.8
4
80
Spanner S14-15-17
1
40
Crank cap 25*7
2
81
Open end wrench S13-15
1
41L/R
Pedal 9/16
2

4
HARDWARE PACKAGE

5
ASSEMBLY INSTRUCTIONS
STEP 1:
Attach the Front and Rear Stabilizers (No. 6 and No. 7) to the Main Frame (No. 1) using
4 Screws (No. 9) and 4 Flat Washers (No. 10). Tighten and secure with Allen Wrench
(No. 79).
#9 M10*25*S6 4PCS
#10 d10*Φ20*2.0 4PCS
1
S6
7
6
#79
10
9
9
10
4PCS
4PCS

6
STEP 2:
Connect the Left and Right Pedals (No. 41L and No. 41R) to the Left and Right Crank Arms
(No. 36L and No. 36R). Before you begin, immobilize the crank arms by turning the tension
knob all the way to the right.
The Left and Right Pedals (No. 41L and No. 41R) are marked Lfor the left pedal and Rfor
the right pedal.
Left Pedal: Align the Left Pedal (No. 41L) with the Left Crank Arm (No. 36L) at 90 degrees.
Gently insert the pedal into the crank arm, turn the pedal counter-clockwise as tightly as you
can with your hand. Tighten and secure with Open End Wrench (No. 81).
Right Pedal: Align the Right Pedal (No. 41R) with the Right Crank Arm (No. 36R) at 90
degrees. Gently insert the pedal into the crank arm, turn the pedal clockwise as tightly as you
can with your hand. Tighten and secure with Open End Wrench (No. 81).
Attach the Water Bottle Holder (No. 21) to the Main Frame (No. 1) using 2 Screws (No. 22)
and 2 Washers (No. 23). Tighten and secure with Spanner (No. 80).
#22 M5*16*Φ10 2PCS
#23 d5*Φ13*1 2PCS
36L
41L
41R
36R
1
21
23
22
2PCS
2PCS

7

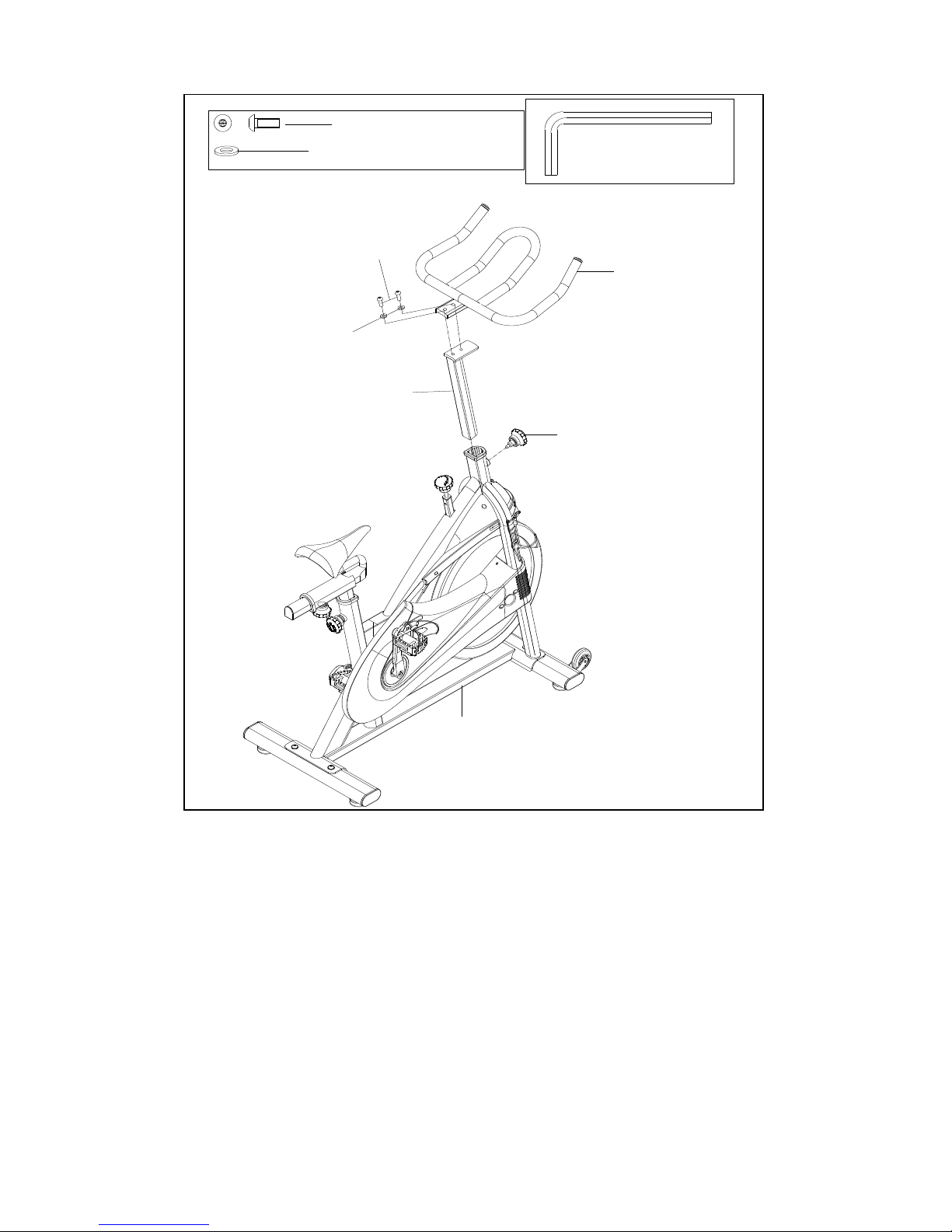

STEP 3:
Loosen and remove the Adjustment Knob (No. 16). Insert the Handlebar Post (No. 4) into
the tube located on the front of the Main Frame (No. 1). Adjust the Handlebar Post (No. 4) to
the desired position then secure it in place by reinserting and tightening the Adjustment Knob
(No. 16).
Attach the Handlebar (No. 3) to the Handlebar Post (No. 4) using 2 Screws (No. 19) and 2
Washers (No. 20), tighten and secure with Allen Wrench (No. 79).
The assembly is complete!
4
3
1
S6
#19 M10*25*S6 2PCS
#20 d10*Φ20*1.5 2PCS
19
20
#79
16

8
ADJUSMENTS GUIDE
ADJUSTING THE HEIGHT AND BALANCE
In order to achieve a smooth and comfortable ride, you must ensure that the stability of the
bike is secured. If you notice that the bike is unbalanced during use, you should adjust the foot
levelers located beneath the Front and Rear Stabilizers of the bike. To do so, use Spanner
(No. 80) to loosen Nut (No. 48) by turning it clockwise (direction A). With the nut loosened,
rotate the Foot Leveler (No. 15) until it sits level with the surface that the bike is on. When you
have finished adjusting the foot leveler, use Spanner (No. 80) to re-tighten the Nut (No. 48) by
turning it counter-clockwise (direction B). If required, repeat this process to adjust the
remaining foot levelers.
#80
48
15

9
ADJUSTING THE SADDLE

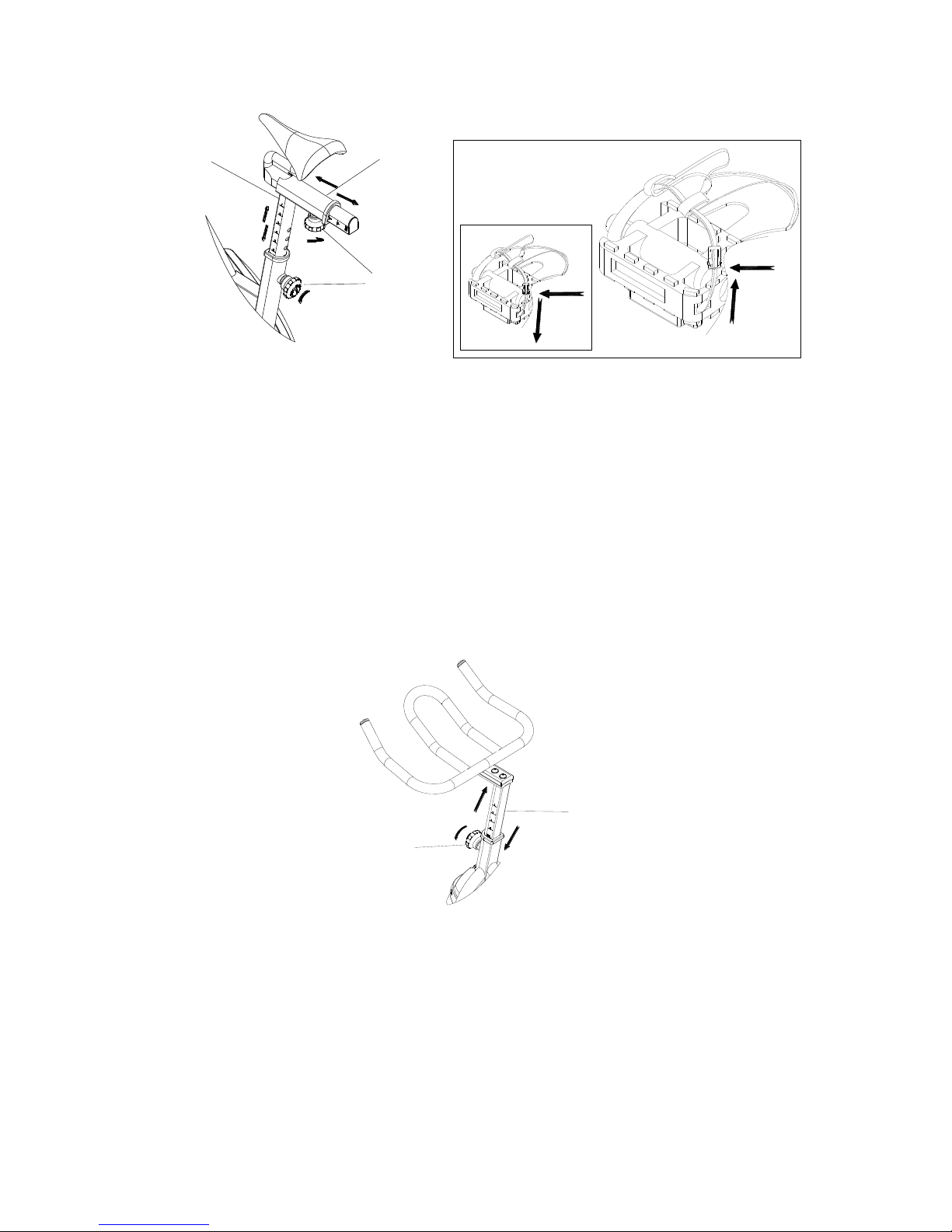

The seat of this bike is fully adjustable as it moves Up, Down, Fore (forward), Aft (backward).
To adjust the height of the Saddle Post (No. 2), loosen and pull the Adjustment Knob (No.
16) outward, then raise or lower the saddle to the desired height. Once adjusted, re-insert and
tighten the Adjustment Knob (No. 16) to secure the saddle in place.
To adjust the saddle back and forth, loosen and pull Adjustment Knob (No. 16) outward, then
slide the Seat Slider Tube (No. 8) to the desired position. Once positioned, re-insert and
tighten the Adjustment Knob (No. 16) to secure the seat slider tube in place.
ADJUSTING THE HANDLEBAR
It is important that the handlebar and seat are both set to the correct height of your body. To
adjust the handlebar height, loosen and pull the Adjustment Knob (No. 16) outward, then
slide the Handlebar Post (No. 4) up or down to the desired height. Once adjusted re-insert
and tighten the Adjustment Knob (No. 16) to secure the handlebar post in place.
16
4
16
8
2

10
PEDAL STRAP ADJUSTMENT
Your feet should be secured in the toe clips during exercise. Place your feet as far forward into
the toe-clips as you can. With your feet in place, turn the crank to bring one foot to within arm’s
reach, grasp the pedal strap and pull it upward to tighten the toe-clip cage, then insert the strap
back into the hoop of the toe-clip. Repeat this process to secure your other foot.
ADJUSTING THE RESISTANCE
Adjust the resistance of the bike using the Tension Knob (No. 47). Increase the level of
resistance by turning the tension knob to the RIGHT (clockwise), decrease the level of
resistance by turning the tension knob to the LEFT (counter-clockwise).

11
MOVING THE BIKE & BRAKING/DISMOUNTING

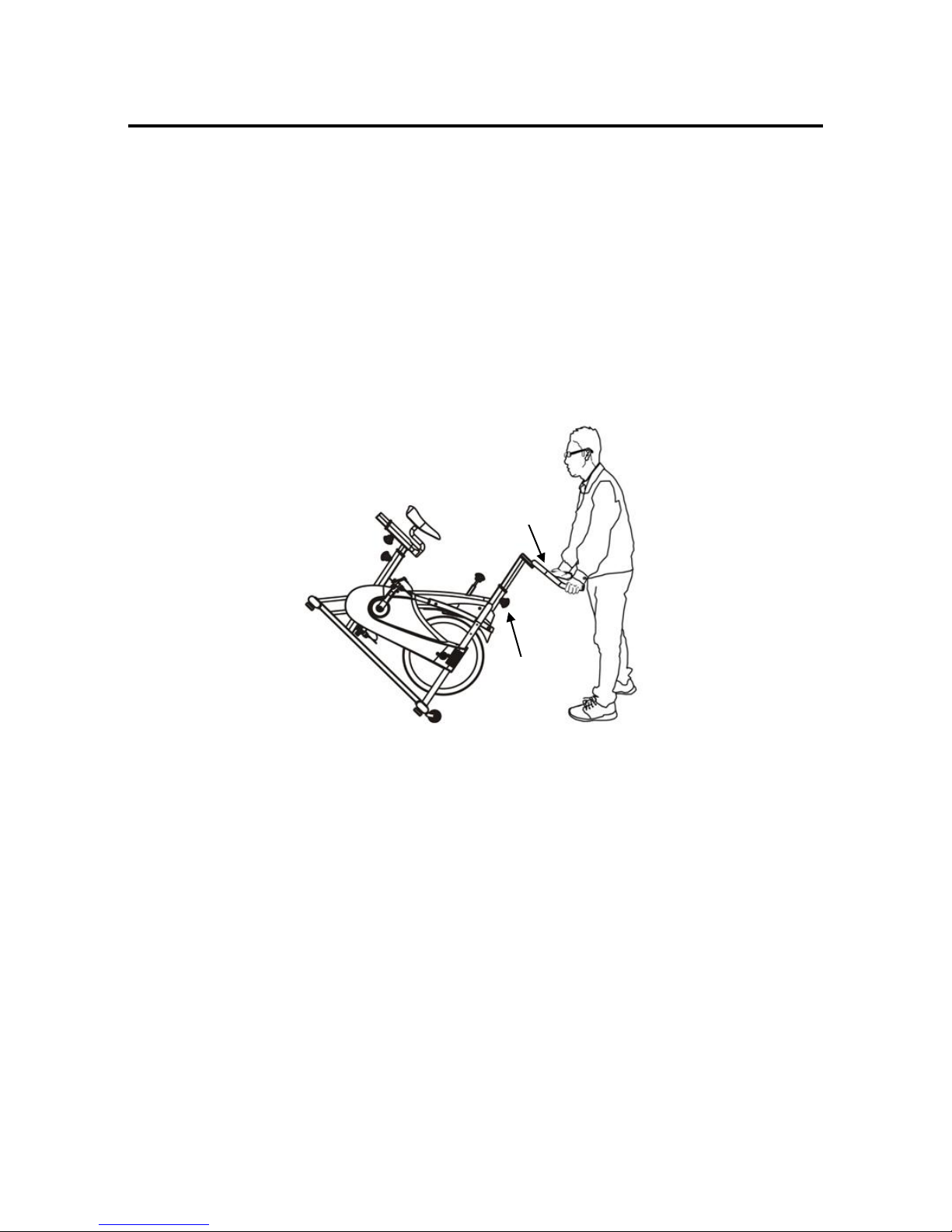

TRANSPORTING THE BIKE
To move the bike, first ensure that the Handlebar (No. 3) is properly secured. If the handlebar
is loose, tighten the Adjustment Knob (No. 16) to secure it. Next, stand at the front of the bike
so that you’re directly in front of the handlebar. Firmly grasp and hold each side of the
handlebar, place one foot on the front stabilizer and tilt the bike towards you until the
transportation wheels on the front stabilizer touch the ground. With the wheels on the ground,
you can transport the bike to the desired location with ease.
NOTE: When moving the bike, always move with caution as unexpected impact, such as
dropping the bike, may cause injury and affect the bike’s operation.
EMERGENCY BRAKE
During use, users can stop the bike completely by pushing down on the Tension Knob (No.
47).Pushing down on the tension knob will enforce the brake and bring the bike to an
immediate stop.
DISMOUNTING
For your safety, it is recommended that you never attempt to dismount or remove your feet
from the pedals until both the flywheel and pedals/crank have come to a complete stop. Failure
to follow this recommendation may lead to loss of control and/or serious injury.
Here are a few examples of how to safely dismount the bike:
1. Reduce the pedal speed until the pedals/crank come to a complete stop.
2. Increase the resistance until the pedals/crank come to a complete stop.
3. Push and hold the tension knob down until the pedals/crank come to a complete stop.
3
16

12
BELT ADJUSTMENTS
*PLEASE NOTE: Tools S19, S18, & S13 (Cylinder Allen Wrenches) are not included.
Remove the End Cap (No. 70) from the Outer Chain Cover (No. 68) as indicated above in
Figure A.
Unscrew and remove the Nuts (No. 32) on the right side of the flywheel using Cylinder Allen
Wrench S19 as indicated above in Figure B.
Unscrew and remove Screws (No. 77 and No. 76) using Spanner (No. 80), then remove the
Front Cover (No. 69) as indicated above in Figure C.
Unscrew and remove Screws (No. 64) using Spanner (No. 80). Remove the Left Stay Cover
(No. 78) as indicated above in Figure D.
Unscrew and remove Nut (No. 34) on the left side of the flywheel using Cylinder Allen
Wrench S18 as shown in Figure E.
As shown in Figure F, secure Nuts (No. 66) onto both sides of the Flywheel (No. 27) using
Cylinder Allen Wrench S13 and tighten. While tightening, check the Belt (No. 38) to ensure
that it’s secured and does not slip. Lastly, ensure that the Flywheel (No. 27) is properly
centered.
Re-install and tighten Nuts (No. 32 and No. 34) to their prospective sides of the Flywheel (No.
27) using Cylinder Allen Wrench S19. Next, secure the Front Cover (No. 69) to the Outer
Chain Cover (No. 68) using Screws (No. 77 and No. 76) and tighten with Spanner (No. 80).
Secure the Left Stay Cover (No. 78) to the Main Frame (No. 1) using 2 Screws (No. 64).
Attach End Cap (No. 70) to the Outer Chain Cover (No. 68).
ab
e
d
68
70
S19
32
69
68
76
77
S13
66
66
c
64
78
f
34
S18
#80
#80
A
B
C
D
E
F

13
MAINTENANCE & CARE
IMPORTANT!
Safe and effective use can only be assured if the equipment is assembled, maintained, and
used properly. It is your responsibility to ensure that the equipment is maintained regularly.
Any components found to be worn and/or damaged should be replaced before continuing use
of the equipment. Equipment should only be used and stored indoors as prolonged exposure
to extreme weather and changes in temperature or humidity may have a severe impact on
moving parts of the machine.
Daily Maintenance:
The life span and performance of your bike will be determined by how consistently you upkeep
the maintenance.
Part
Recommended Action
Cleaner
Lubricant
Bike
(Frame,
seat/handlebar
post)
Wipe down to remove
mositure, sweat and water
This is important because
excessive sweat or water
may lead to rust or corrosion
Damp cloth or soap & water
diluted non- abrasive
cleaning liquids
N/A
Flywheel
Check the alignment
N/A
N/A
Pedal/Crank
Arms
Inspect for wear and tear,
excessive play indicates
that the pedal is loose and
needs to be tightened or
that the pedal and/or crank
arm threading may be
worn. Replace if necessary
before continuing use.
N/A
N/A
Main Frame
While riding, check for
vibration. If the bike vibrates
during use you may need to
tighten the pedals, bottom
bracket of adjust the belt
tension.
N/A
N/A

14
Weekly Maintenance:
This maintenance ensures overall performance. Check for vibration and loose parts during this
inspection.
Part
Recommended Action
Cleaner
Lubricant
Toe Clips/
Toe Straps
Inspect for ware and tear. Re-tighten if
loose or disconnected. Replace if needed.
N/A
N/A
Hardware
Tighten all the frame hardware (Bolts, nuts,
screws)
N/A
N/A
Adj. Knob
Inspect, clean, lubricate and tighten all
adjustment knobs
Damp cloth
WD-40 / 3-n-1
Stabilizers
/Foot Pads
Inspect the stabilizers to ensure that they
aren’t loose. Check Foot Pads for wear.
N/A
N/A
Bottom
Bracket
Visually inspect to ensure that it is tight and
secure. Re-attach and re-tighten if needed.
N/A
N/A
Monthly Maintenance:
This maintenance should be comprehensive and should involve checking the overall frame
and main assembly components.
Part
Recommended Action
Cleaner
Lubricant
Resistance
Pads
Inspect & clean the resistance pads.
Remove any foreign material that may
have collected on the pads, check for
damage, replace if needed. (Damaged
pads will affect the balance of bike).
Brush
Non- Abrasive
Silicone
Lubricant
Hardware
(Full
Inspection)
Re-check and secure all hardware such as
(water bottle holders, flywheel nuts, brake
caliper lock nuts, brake caliper tension rod
nuts, handlebar screws, chain guard
screws and nuts etc.
N/A
N/A
Brake Tension
Rod
Clean and lubricate the brake tension rod,
inspect for signs of wear such as missing
threads.
Small Brush
WD-40 / 3-n-1
Seat
Post/Handlebar
Post and Seat
Slider Tube
Clean and lubricate the seat post,
handlebar post and seat slider tube. During
cleaning, inspect each part for any build
up, foreign material or wear at the insertion
points. Replace parts if needed.
Small Brush
WD-40 / 3-n-1
