Sunsky TGPS0503 User manual
1
GSM/GPRS/GPS TRACKER
MANUAL
Preface
Thank you for purchasing the tracker. This manual shows how to operate the device
smoothly and correctly. Make sure to read this manual carefully before using this
product. Please note that specification and information are subject to changes
without prior notice in this manual. Any change will be integrated in the latest release.
The manufacturer assumes no responsibility for any errors or omissions in this
document.
2
1.Led indicator status
LED INDICATOR STATUS
MEANING
Red light continuously work
Charging
Red light not lit
Fully charged
Green light Flashing
Success get GSM singnal
Green light continuously lit
Searching GSM signal
2.Operational
Notices:
1).GPS tracking can be worked outdoor. Must have mobile phone gsm signal
and have GPS signal, It can block GPS satellite signal when there are metal
or building above the GPS tracker etc.
2).Pls make sure GSM 2g SIM card or3G/4G compatibility 2G GSM network
sim card, supports making calls, sending messages, GPRS network.have
money
3

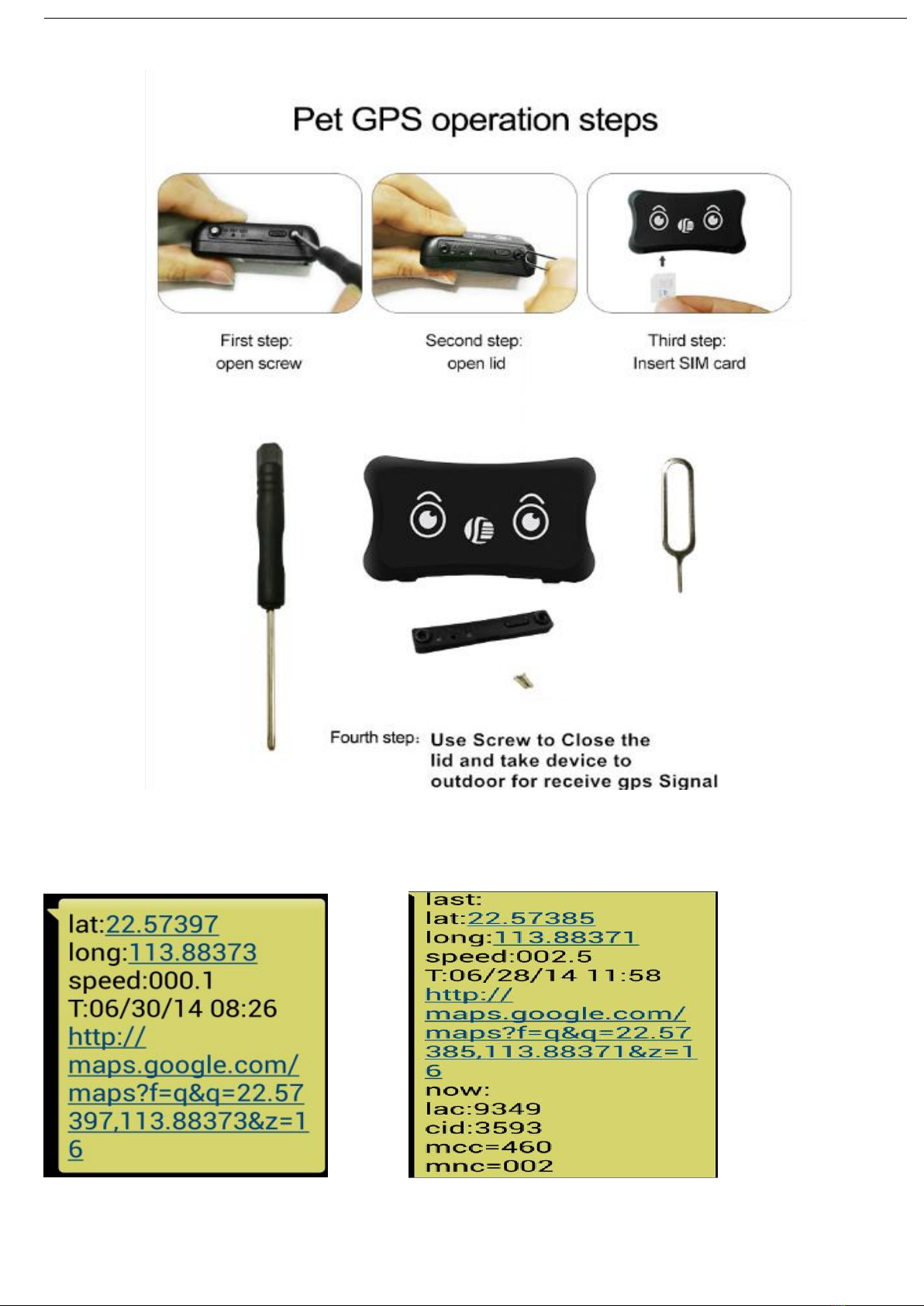

Quick using
Then Use mobile phone call the device and hang up
or sending message “smslink123456” to sim card in tracker ,device reply position
Picture (1) With GPS Signal Picture (2) Without GPS Signal
4
Pic(1)：Replied real-time tracking information
Lat:22.67533 lon:114.03913: Position of the latitude and longitude
Speed：000.1: Device moving speed. The unit is km/h.
T:06/14/17 09:14 : Real-tracking time, the Default is London time. You can
Set a time zone by sms command
Google Link: Google map showing the position of the device.
Pic( 2) ：Replied last time position information. Now is LBS position
information. no GPS signal
smcc:27a4 1223: Real-time LBS data.
Time:08/00/00 LBS position time.
If you received position message as picture 2, please take GPS tracker to outside till
satellite signal searched.
LBS positioning error 50-1000 meters indoors, if you no need to LBS
positioning,please turn off LBS
Open www.gps110.org, Use tracker ID to login in, default password 123456, Click
advanced and close lbs
3:Support Website tracking and APP tracking
3.1 Scan APP and Download APP
1)scan QR code---open with browser--- choose Android or
IPHONE---download-- installation app
6
PC login APP login
It is Real time positioning,every 1min upload position by default,you can
change upload position time interval
NOTE: If device online in platform, no need set apn commands
If you insert the correct SIM card and open GPS device in outside, the device is still
not online. Please set the APN commands
we have two methods to find out APN content: ask SIM card company or insert SIM
card into Mobile phone to find out APN
SMS: APN123456+space+Apn name
( for example tell you the apn name is ABC,so send :APN123456 ABC)
(If have the APN user name and password, need plus APN user name and
password behind the APN name)
Eg: APN123456+space+APN name+space+ APN user name+space+ APN
password
4.Working mode (APP setting)
7
You can switch mode by APP anytime and anywhere.
【Mode 1】：Vibration Saving Power mode (no need set by default )
Send the position data when device is moving and do not send the data when
device is static. This mode can save power and save GPRS cost
It is every 1mins/1 times positioning when device is vibrating
【Mode 2】：real-time T mode( urgent mode)
If you app setting upload time is 60s, It is every 1mins/1 times positioning
(positioning time interval can be changed,T-mode is the most consuming power)
【Mode 3】:single positioning,smart power saving(Lowest power consumption)
If you want to positioning, click request single positioning.then the device
Automatic enter the saving power Standby.
If you want to urgently positioning, look at the historical track and real-time
dynamic positioning, you can change to real-time T-mode
【Mode 4】：SMS mode position (close GPRS)
Switch way: SMS 1: sms123456
SMS 2: notn123456
Use mobile phone call the device and hang up,you will receive positioning
or send “smslink123456 ”to sim card in tracker, you wil receive positioning
5.Command
NOTE:
1) Device default password:123456 (note the space key in the command)
2) Use the DAGPS phone app or send message to the tracker for all command setting
3) If you want longer standby time, please don't open move alarm and real-time location
tracking function (Trajectory mode). Otherwise, the battery will run out very quickly.
8
INSTRUCTION
Example
REPLY
Set time zone
time zone123456 1(default no need set)
(1 is east 1, -1 is west 1)
Time zone ok
Set time zone(half time zone)
time zone123456 8 30default no need set
(8 30 is east 8.5 time zone)
Time zone ok
gprs mode(default app tracking)
Gprs123456(default no need set)
Gprs ok
set APP online position(set apn)
APN123456 APN Name
(Apn name is SIM card access point)
Apn ok
real-time tracking (default
2min)set time interval
t001m***n123456(default no need set)
Every 1min/1times positioning,can
change positioning time interval
Tn0k
Cancel GPRS(instead of sms
mode)
sms123456
smsok
Notn123456
Notn ok
sms tracking
smslink123456
Get address
Set admin number
(Support 5 admins)
admin123456 mobile number
admin number receive alarm message
admin ok
Cancel admin number
noadmin123456 mobile number
noadmin ok
Set shock alarm
Shock123456
Shock ok
Cancel shock alarm
noshock123456
noshock ok
Parameter
Check123456
Device status
Restore factory settings
Begin123456(default no need set)
Begin ok
Vibration Power Saving mode
static123456 60(default no need set)
every 1mins/1 times positioning when
device is vibrating
Set ok
9
5.FAQ
FAQ
Instructions/Solutions
Fail to turn on
Please check if device has electricity and charge cable
is rechargeable
No GSM signal
Please check if SIM card installed correctly and have
money,have gprs
there a mobile phone GSM signal
Please check if SIM card is 2G or 3G/4gCompatible 2G
No GPS
Make sure the device can receive the GPS signal
normally. please take the device to outside and search
satellite signal.take device to walk around
No reply to SMS
command
SMS command password wrong or the format is wrong.
Please restore factory settings send “begin123456”
No reply & No alarm
message
Check if Authorized / admin phone number is incorrect
and SIM card is normal working
SMS can get
position, APP and
web platform can’t
Please check if APN is correctly set and find out the
correct APN content
Platform position is
different from the
actual position.
No upload position time or no GPS signal, received last
time position. If it shows like Pic 2, please make sure the
device can receive the GPS signal normally. Please
take device to outdoor and walk around.
6.Specifications
10
Content
Specs
Dim.
60*34*19MM
Weight
38g
Network
GSM/GPRS
Band
850/900/1800/1900Mhz
GPS sensitivity
-159dBm
GPS accuracy
5-10m
Time To First Fix
Cold status 45-85s
Warm status 35s
Hot status 1s
Work voltage
5V
Battery
Chargeable changeable 3.7V, 800ma
Storage Temp.
-40°C to +85°C
Operation Temp.
-20°C to +55°C
Humidity
5%--95% non-condensing
7. If need register Administrator account and tracking multiple devices
operation ：point user register--- Fill in the APP---login in registered accounts device
list----add device---fill in --OK
If you add device more than two , continue to add ID number
8.If you want use the device on other platform, please set customer service IP and
port. send message to SIM card with below format
SMS1: adminip123456+space+IP+space+port(No need to set by default)
Eg: Adminip123456 103.110.152.62 7018
or SMS1: adminip123456+space+DNS+port(No need to set by default)
Eg:adminip123456 www.gps110.org 7018
