Sunsystem Burnit pell series User manual

TECHNICAL PASSPORT

INSTALLATION and OPERATION MANUAL

FOR AUTHORIZED INSTALLER / SERVICE SHOP

PELLET BURNER

Pell series

Version i0.4.6

INSTALLATION and OPERATION MANUAL

TABLE OF CONTENTS

1. EXPLANATION OF SYMBOLS AND SAFETY INSTRUCTIONS ........................... 4

2. PRODUCT DESCRIPTION ............................................................................... 7

3. FUEL ............................................................................................................. 8

4. TRANSPORTATION OF THE PELLET BURNER ................................................ 10

5. DELIVERY OF THE PELLET BURNER .............................................................. 10

6. STORAGE OF THE PELLET BURNER .............................................................. 11

7. INSTALLATION OF THE BURNER .................................................................. 11

8. BURNER OPERATING .................................................................................. 16

9. MICROPROCESSOR CONTROL ....................................................................... 18

10. ADJUSTMENTS OF OPERATING PARAMETERS ..............................................28

11. TECHNICAL FEATURES ................................................................................. 36

12. RECYCLING .................................................................................................. 39

INSTALLATION and OPERATION MANUAL

1. EXPLANATION OF SYMBOLS AND

SAFETY INSTRUCTIONS

1.1. Explanaonofsymbols

CAUTION! - Important

recommendaon or warning

concerning safety condions during

installaon and operaon of the pellet

burner

DANGER! - fault or improper use

may cause injury or be hazardous

to life of humans or animals.

FIRE HAZARD! - fault or improper

installaon and operaon may

cause re.

INFORMATION - Important

informaon on the proper

operaon of the product.

1.2. Requirements to pellet burner

installaonroom

This manual contains important

informaon for the safe and correct

installaon, start-up and trouble-free

operaon and maintenance of the pellet

burner.

The pellet burner can be used for heang

rooms only in the manner described in

this manual.

The applicaon and any other was the

area of operaon is not recommended by

the manufacturer and is not responsible

for the occurrence of defects or failures.

Note the pellet burner type data

indicated on the factory rang label and

the technical data provided in chapter 12

in order to ensure proper operaon of

the product.

1.2.1. Instruconstoboilerinstaller

During installaon and operaon, the

country-specic requirements and

regulaons must be observed:

• local construcon regulaons on

installaon, air supply and exhaust

gas extracon as well as chimney

connecon.

• regulaons and norms concerning the

ng of the heang installaon with

safety devices.

iUseonlyoriginalBURNiTparts



WARNING! Installation and

setting the pellet burner should

be done by an authorized

specialist/serviceshopandmust

follow the safety instructions

andrulesofoperation.



DANGERofintoxication,

suffocation.

Inadequate inflow of fresh air

to the boiler room may result in

dangerous leak of exhaust gases

during burner operation.

- Make sure the air inlets and

exhaust gas outlets are not

clogged or closed.

- If faults are not remedied

immediately, the burner must

not be operated

- The user must be provided with

written instructions on the fault

and the hazard it entails.

It is mandatory to assure a

backup power generator of

corresponding rated power!

(see 12.3)

DANGER of fire when burning

flammablematerialsorliquids.

- Flammable materials/liquids

must not be left in close

proximity of the burner and

heating boiler.

- Instruct system user of the

allowed minimum clearances

from surrounding objects.

INSTALLATION and OPERATION MANUAL

• Do not install the burner in sleeping

premises.

• Do not connect the burner to any other

air-intake systems .

• The burner must be connected to the

boiler as a heang device

• Improper installaon may cause re or

injury. Contact your local construcon

supervisory body in case you need

prior approval for installaon of this

product.

• Mandatory is the installaon of smoke

detectors in the room where the

burner is installed.

• Pellet burner is NOT designed for

installaon in motorhomes, caravans

etc.

1.2.2.Instruconstoinstallaonuser

DANGER of intoxication or

explosion

Toxic gases may be discharged

when burning waste, plastics,

liquids.

- Use only the fuels indicated in

this manual.

- In case of danger of explosion,

ignition or discharge of exhaust

gases in the room, stop the

pellet burner from operation.



CAUTION! Danger of injury

/ damage of system due to

incompetentoperation.

- The pellet burner must be

serviced only by persons familiar

with the operation manual.

- As a user, you are only allowed

to start the pellet burner up,

adjust the temperature of the

burner, shut the burner down

and clean it.

- Unattended children must not

be allowed access to premises

with running pellet burner

inside..

It is mandatory to assure a

backup power generator of

corresponding rated power!

(see 12.3)

Safetyrulesforuseroperaon:

- Operate the pellet burner on

recommended fuel only, and to that

end you must regularly inspect the

boiler room.

- Do not use ammable liquids for

ignion or increase of burner output.

- Collect ash in lid-covered reproof

containers.

- Clean the burner surface using non-

ammable agents only.

- Do not place ammable objects onto

the burner housing and heang boiler

cabinet or in their proximity. (see

diagram 1 for the minimum clearances)

- Do not store ammable materials in the

boiler room.

- Boilers, chimneys and other

connecons of mounted burner must

meet standards for re and emergency

safety of the country.

- It is mandatory to strictly observe

instrucons for connecng the burner

to power network as well as to all

peripherals.

- Structural changes to burner by user

can cause damage to equipment or

injury.

- Do not allow contact transmission of

electrical wire or touch any part of the

boiler, where the surface temperature

can exceed 70 °C.

- Dismount the burner when the boiler

are heang alternave (mainly) of fuel

- wood, wood briquees, coal or other

fuel.

- This manual should be kept throughout

the lifeme of the burner.

INSTALLATION and OPERATION MANUAL

;

CAUTION!Hotsurface!

Risk of burns if you touch the

running system. Burner housing,

body and flange are hot surfaces

during burner operation.

It is strictly prohibited to open

boiler inspection doors with the

burner running.

Also, exercise caution when

touching the observation port for

monitoring the burning process.

It may be hot.

1.2.3. Minimum clearances for

installaon and combusbility of

construconmaterials

The applicable minimum clearances in

your country may dier from the ones

specied below. Please, consult your

installer.

The minimum distance from the burner,

heang boiler or exhaust gas pipe to

objects or walls must be at least 200 mm.

Diagram 1

Recommended clearances between the boiler with mounted burner and walls.

INSTALLATION and OPERATION MANUAL

Table 1. Combusbility of

PPPconstrucon materials

ClassА -

non-

combusble

Stone, bricks, ceramic

tiles, baked clay,

solutions, plaster free of

organic additives.

Class B -

hard

combusble

Gypsum board panels,

basalt fiber needled

felt, fiberglass board,

AKUMIN, Izomin, Rajolit,

Lignos, Velox, Heraklit.

ClassС1/С2-

Medium

combusble

Wood beech, oak

Wood softwood, layered

wood

Class C3 -

easy

combusble

Asphalt, cardboard,

cellulose, tar, fiberboard,

cork, polyurethane,

polyethylene.

For general safety consideraons, we

recommend that the boiler be placed

on a foundaon with height of 100 mm

made of class A material, see table 1.

2. PRODUCT DESCRIPTION

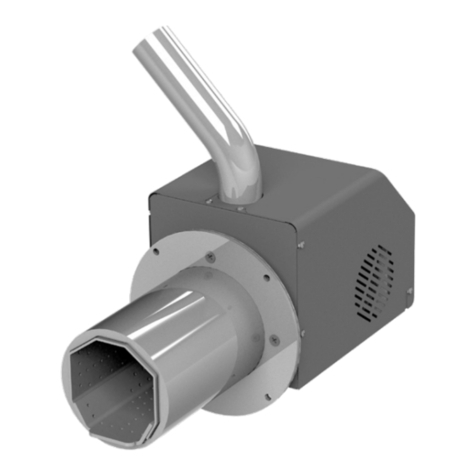

The BURNiT Pell pellet burner for hot

water boilers is designed to burn only

and exclusively wood pellets and it is

intended to heat up heang boilers. The

built-in control unit, automac cleaning

system and internal pellet auger ensure

the automated operaon of the burner

and opmal burning of the fuel.

2.1.Design.

The burner is made of high-quality

stainless steel able to withstand

temperatures of up to 1150°С. The

burner must be installed on a heang

boiler.

The burner consists of two parts:

combuson chamber tube and

external tube with sheet metal mantle.

Longitudinally, under the housing, there

are blow chamber, fuel ignion heater,

fan and power supply. On the upper part

of the burner there is a feeder chute

to which the pellet auger is aached.

The housing of the burner has been

designed to meet all regulatory safety

requirements (no sharp or protruding

elements) with operang temperature

not exceeding 50 °C.

The combuson chamber consists of two

tubes:

Ember resistant steel tube inside the

burner with holes for air intake along

its enre length, opening for the hot air

from the fuel ignion heater, opening for

photosensor.

Outer stainless steel tube. Between the

two tubes there is a gap which provides

for free circulaon of the air necessary

both for cooling and oxygen supply into

the combuson chamber.

The feeder chute allows 360° rotaon

for its best convenient posioning

when connecng the pellet auger to the

hopper.

Diagram 2. Pellet burner Pell design

INSTALLATION and OPERATION MANUAL

•Built-incontroller.

The main control unit, located in the

burner, manages the enre heang

process. Controler funcons:

Controlerfuncons:

1) fully automated ignion and pellet

feed;

2) self-cleaning funcon (adjustable 1-6

mes over 24 hours at equal intervals),

programmable start me;

3) controls the operaon of the

circulaon pump of the central

heang;

4) controls the operaon of the pump of

the domesc hot water;

5) opon for control by room thermostat;

6) mer;

•Photo-sensor - monitors the power of

the burner ame

•Internalauger

• Dry contactless resistance heater

assuring ignion of fuel

•Innovave cleaning system of the

combuson chamber

•Air feed fan, step-regulated (0% to

100%).

2.2.Burnersafetydevices

•Elbow-shape feeder chute. The

geometrical shape of burner feeder

chute prevents backre entry from

burner into pellet hopper.

•Thermostac protecon (80°С). The

thermostac protecon is ed on the

feeder chute. When the surface of the

feeder chute reaches 80°С, the control

stops the feeding of pellets into the

burner and signals for fault.

•Fuse. In case of electrical fault in the

system of the burner (short circuit, high

current, etc.), the overload is borne by

the electrical fuse ed on the main

control panel of the burner (10 А).

•Power interrupon. In case of power

interrupon, all parameter sengs are

stored in the memory of the controller.

Upon the subsequent restart of the

burner, the controller resumes the

execuon of the program from the

point when the power interrupon

occurred.

3. FUEL

All pellets are biomass manufactured

from common low-growing plants and

trees. The most common household type

pellets are made of sawdust and milled

wood chippings which are waste material

from wood used in the producon of

logs, furniture and other products. Wood

is the richest raw material which does

not have any impact on the producon

costs of food products or ethyl alcohol

(ethanol). The raw material is processed

under high-pressure and temperature

and is pressed to produce small-size

cylindrical pellets. The producon

process may ulize so wood material

(such as sowood, pine), hardwood (oak)

as well as recycled waste wood. Wood

pellets are produced in hammer mills or

wood pellet plants.

Advantagesofwoodpellets:

Convenient storage. Pellet bags can be

stored on a small area in a dry garage,

basement, service room or shed.

Easy loading. In most cases the boiler

hopper needs loading only once a week –

this depends on the hopper capacity.

INSTALLATION and OPERATION MANUAL

Beercontroloffuelquanty. The small

size of the pellets allows for precise fuel

feeding. On the other hand, the supply

of air for reaching opmal combuson

eciency is easier to adjust since the

fuel quanty in the combuson chamber

remains constant and predictable.

Fuel eciency. High combuson

eciency is also determined by

consistently low moister content of

pellets (consistently under 10% as

opposed to 20% to 60% moisture content

of the logs). Low moisture content,

controlled fuel porons and precise air

seng means high combuson eciency

and very low carbon oxides in the ue

gases.

Table 2. European Certification of Wood Pellets for Heating Purposes

Parameters Units ENplus-A1 ENplus-A2 EN-B

Diameter mm 6 (± 1)

8 (± 1)

6 (± 1)

8 (± 1)

6 (± 1)

8 (± 1)

Lenght mm 15 ≤ L ≤ 40 1) 15 ≤ L ≤ 40 1) 15 ≤ L ≤ 40 1)

Bulk dentsity kg / m2≥ 600 ≥ 600 ≥ 600

Caloric/heang value MJ / kg ≥ 16,5-19 ≥ 16,3-19 ≥ 16,0-19

Humidity /moisture Ма .-% ≤ 10 ≤ 10 ≤ 10

Dust Ма .-% ≤ 1 3) ≤ 1 3) ≤ 1 3)

Mechanical durability Ма .-% ≥ 97,5 4) ≥ 97,5 4) ≥ 96,5 4)

Ash Ма .-% 2) ≤ 0,7 ≤ 1,5 ≤ 3,5

Melng point of ash °C ≥ 1200 ≥ 1100 -

Chlorine content Ма .-% 2) ≤ 0,02 ≤ 0,02 ≤ 0,03

Sulfur content Ма .-% 2) ≤ 0,03 ≤ 0,03 ≤ 0,04

Nitrogen content Ма .-% 2) ≤ 0,3 ≤ 0,3 ≤ 1,0

Copper content mg / kg 2) ≤ 10 ≤ 10 ≤ 10

Chromium content mg / kg 2) ≤ 10 ≤ 10 ≤ 10

Arsenic content mg / kg 2) ≤ 1,0 ≤ 1,0 ≤ 1,0

Cadmium content mg / kg 2) ≤ 0,5 ≤ 0,5 ≤ 0,5

Mercury content mg / kg 2) ≤ 0,1 ≤ 0,1 ≤ 0,1

Plumbum content mg / kg 2) ≤ 10 ≤ 10 ≤ 10

Nickel content mg / kg 2) ≤ 10 ≤ 10 ≤ 10

Zinc content mg / kg 2) ≤ 100 ≤ 100 ≤ 100

1) Not more than 1% of the pellets may be longer than 40 mm, max. Length 45 mm;

2) Dry weight;

3) Particles <3.15 Mm, particulate matter, before handing over the goods;

4) Measurements with lignotester limit value ≥ 97,7% by weight.

INSTALLATION and OPERATION MANUAL

When purchasing pellets, ask

for conformity declaration

and certificate issued by an

accredited laboratory and

make sure the fuel meets the

requirements indicated in the

manual. If you purchase large

amount of pellets (bulk supply

for the entire heating season

for example), ask your supplier

to provde accurate and true

information about the storage

conditions.

We recommend to use pellet with size of

6 - 8mm. Density 600 - 750kg/m3 heang

value 4.7 - 5.5 kWh/kg. Ash content – less

than 1% and moisture content up to 8%,

EN ISO 17225-2:2014.

The opmal density of the pellets which

guarantees their quality is 605-700 kg per

cubic meter.

Pellet moisture content must not exceed

10%. Make sure you store your fuel in a

dry and well-venlated place.

The opmal pellet ash content is ≤ 1%.

This also provides for less frequent

cleaning intervals for the burner.

The table below contains the parameters

which we recommend that you take into

consideraon when choosing fuel for

your „Pell” burner.

4. TRANSPORTATION OF THE PELLET

BURNER

When loading, transporng and

unloading of the device appropriate

safety equipment must be used in

accordance with Direcve 2006/42/SE.

Product must be in original packaging

following the instrucons on the label -

to be protected from adverse weather

condions (snow, rain and dust) from

the shocks, and other acvies likely to

cause damage. In case of malfuncon

of the fan or the motor drive (noise,

fricon) or failure of high-tech elements

such as broken LCD screen, contact your

nearest authorized service center for

repairs and maintenance.

- Dimensions of the packaging of the

burner: 450х350х750 mm

- Dimensions of the packaging of the

auger: 260х120х1700 mm

- Dimensions of the packaging /woody

coer/ of the burner (modellPell150):

865х435х630 mm

5. DELIVERY OF THE PELLET BURNER

• Inspect the integrity of the packaging

upon delivery.

• Check whether all components

have been delivered to you. Burner

consignment package includes

(diagram 3):

1) Pellet Burner Pell with built-up

Control unit

2) Feeding chute

3) Fire irons

4) Auger

5) Technical passport. Installaon and

operaon manual

6) Service booklet and Warranty card

If any of the above items are missing,

contact your supplier.

INSTALLATION and OPERATION MANUAL

Diagram 3.

Pellet burner consignment elements

6. STORAGE OF PELLET BURNER

Pellet burners shall be stored in dry and

well venllated spaces, free from any

gases, liquids, acids and oil vapours that

may damage the burner. Storing burner

and auger in spaces with ferlizers,

chlorinated lime, acids, chemicals, ect.

is not allowed. Recommended storage

temperature shall be from +5°С tо +40°С.

Recommended relave humidity -below

70%. When stored, the devices shall not

have direct contact with the ground,

placed on pallets, maximum two ers and

in their original packaging. The storage

period is not more than 2 years from date

of manufacture. It is recommended that

every burner is tested before installaon.

Quality and safety of the burner must

be conrmed by a test menoned in the

warranty card.

7. MOUNTING OF THE BURNER



Mounting,installationandsetup

ofburner should be carriedout

byauthorizedtechnician.

Installer shall advise the user

of the installation minimum

clearances to combustible

materialsandliquids.

Recommended boiler chamber sizes for

mounng of Pell pellet burner:

Diagram 4.

Mounng of Pell pellet burner

to boiler combuson chamber

INSTALLATION and OPERATION MANUAL

Pell

150

А250 350 350 500 500

B390 450 550 750 800

C250 450 450 500 500

7.1.Pelletburnerconnecontothefuel

hopperandpelletauger

Take the feeder chute exible hose (from

the auger set). Using a bracket, clamp

one end of the hose onto the motor-end

outlet of the pellet auger.

- Remember – pellet auger must be

installed at 45° angle to the ground

horizontal surface.

- Fill the hopper with fuel (see table 2 for

parameters of the fuel types used)

- Plug the power cord of the pellet auger

into the indicated Schuko-type burner

socket on the le side of the burner

housing.

Diagram 5.

Mounng the pellet burner Pell to WBS

boiler

1. WBS boiler; 4. Auger;

2. Pellet burner Pell; 5. Fuel hopper.

3. Auger flexible pipe;

7.2.Connecngthepelletburnertothe

mainspowersupply

Such connection must be

performed by a technician /

serviceshopauthorizedforsuch

operations.



Caution! ELECTRIC SHOCK

HAZARD!

-Before opening the unit: switch

o the voltage and secure the

unit against accidental restart.

-Observe installaon instrucons.

It is mandatory to assure a

backup power generator of

correspondingratedpower!(see

12.3)

Impropercableconneconsmay

damagetheregulator!

The device may be damaged

if struck by a lightning. Make

sure it is unplugged during the

storms.

The burner must be connected to a

220V/50Hz mains using power plug

(3 meters long, bound to the burner).

Create ght connecon with the

electrical mains which complies with the

local regulaons.

INSTALLATION and OPERATION MANUAL

Table 3. OUPUTS of NPBC-V3C-1/NPBC-V4C-1/NPBC-V4E-1

OUTPUTS INPUTS

FM Air fan RT Room thermostat. A normally open

or normally closed contact can be

connected to this input without

additional voltage!

FSG Flue gas fan

The pin is not output for binding!

PS Photosensor

SF Fuel auger RB Temperature sensor at the top of the

buffer

SB Internal auger BThermosensor for boiler

PH Heating circulation pump WH Thermosensor in DHW boiler

PWH DHW circulation pump PT Temperature sensor at the bottom of

the buffer

IGN Ignition heater OD Reverse combustion sensor

FC Cleaning fan ---

INSTALLATION and OPERATION MANUAL

Main

fan

Fan for

exhaust gases

Screw

for fuel

Internal

auger

Pump

for heating

Pump for

Hot water

Heater Cleaning

fan

Room

thermostat

Photosensor NTC sensor

upper part

on the buer

NTC sensor

for boiler

NTC sensor

for boiler

РТ100

bottom part

on the buer

Sensor

back burning

NRC-6

module

PC system

Diagram 6. Electrical diagram of connecting the internal devices / sensors to the controller

INSTALLATION and OPERATION MANUAL

7.3.Trouble-shoong

Table 4.

Fault Cause Soluon

1. Low temperature in

the boiler on which

the burner is installed.

Unable to reach

normal temperature

mode of 65° - 85° С

1.1. Inadequate sizing and/

or combination of heating

appliances

1.1. Immediately consult your

installer about the problem.

Mount the supplied filling and

drainage cock on the drainage

outlet Y.

2. Ejection of unburned

pellets into the

combustion chamber

of the boiler

2.1. Poor adjustment of the

fuel-to-air ratio from the

burner controller

2.1. Contact your installer. It

is necessary to set the burner

properly using gas analyzer

2.2. Utilization of low-quality

pellets (shorter than the

specified length)

2.2. Use only fuel which meets

the requirements specified in

the manual.

3. Formation of clinkers

and noncombustible

inclusions inside

burner body.

3.1. Utilization of low-quality

pellets (with higher ash

content)

3.1. Use only fuel which meets

the requirements specified in

the manual.

3.2. Low performance of the

automatic cleaning system

3.2. Increase turn-on frequency

of the automatic cleaning

system.

3.3. Improper setting of fuel-

air mixture 3.3. Adjust using gas analyzer

4. Smoke in the pellet

hopper

4.1. Poor chimney draught or

high internal resistance of the

boiler combustion chamber

4.1. Immediately consult your

installer about the problem.

4.2. Blockage of burner

combustion chamber due to

build-up of noncombustible

materials

4.2. It is necessary to clean the

burner combustion chamber

using brush

4.3. Improper setting of fuel-

air mixture 4.3. Adjust using gas analyzer

5. Unstable flame

(photosensor detects >

180 units at maximum

output)

5.1. Blockage of burner

combustion chamber due to

build-up of noncombustible

materials

5.1. It is necessary to clean the

burner combustion chamber

using brush

5.2. Dust on the photosensor

5.2. It is necessary to clean

the photosensor. Refer to

the manual for the cleaning

procedure.

5.3. Improper setting of fuel-

air mixture 5.3. Adjust using gas analyzer

6. Boiler temperature too

high. Controller failure

6.1. Grid power fluctuations

6.2. Power failure

It is mandatory to assure a

backup power generator of

corresponding rated power!

(see 12.3)

INSTALLATION and OPERATION MANUAL

8. BURNER OPERATING

8.1. Ignion.

Aer the start up of the burner from

the control panel, the main pellet auger

conveys certain amount of fuel from the

pellet hopper to the burner. This specic

amount of pellets is set by the installer

and depends on the fuel characteriscs.

The fed-in quanty of pellets is conveyed

from the auger conveyor built in the

burner to the combuson chamber

where it is being ignited using hot air.

8.2.Burning.

The burning process takes place in

the combuson chamber and, aer

it has been fed into the combuson

chamber, the fuel is then transported

from the internal auger conveyor to

the combuson chamber in porons.

This allows for constant and opmal

burning rate of the fuel . Flame intensity

is monitored by a photosensor which

monitors the burning and feeds data

into the control unit which enables the

starng or stopping of the combuson

process, if necessary. The output of the

burner is determined by the intervals

preset on the control panel taking into

account the heang value, size and

density of the pellets.

8.3. Automaccleaningsystem.

The “Pell” pellet burner is equipped with

innovave automac cleaning system

for the combuson chamber. Thanks to

a powerful cleaning motor built in the

burner body, air is being blown in at high

speed and rate thus removing all residues

– ash, noncombusble inclusions, etc.

built up into the combuson chamber

of the boiler. These automac cleaning

cycles last several seconds and can be

addionally adjusted as well as their

repeat rate depending on the load of the

burner.

8.4. Installer prescripons regarding

burnerservicingandmaintenance

Before the heang season it is mandatory

to check up and clean the burner and its

components.

It is mandatory to clean up the

combuson chamber of burner using the

scraper brush from the maintenance kit.

In case of combuson chamber orices

clogged by non-combusve material,

those should be released using a bodkin.

Clean thoroughly the inner combuson

chamber using the scraper brush to

remove all deposits on the metal surface.

Use a vacuum cleaner to remove all sand

and ashes from inside the combuson

chamber. Check integrity of gasket

between outer combuson chamber and

closing hatch, replace if compromised.

It is mandatory to clean dust o main

fanandcontrollerboard

8.5. Important recommendaons for

long-lasngandcorrectoperaonofthe

boiler

- For assembly and installaon of the

burner follow the requirements in this

manual.

- Use only recommended in this manual

fuel.

- Disassemble the burner from the boiler

body before clean it. Depending on fuel

and burner sengs, clean the pellet

burner once a month.

- User`s training for operaon and

maintenance of burner is performed by

an authorized installer or service shop.



Failure to observe the

installation and operating

requirements described in the

manualandtheservicebooklet

voidsthewarranty.

INSTALLATION and OPERATION MANUAL

Typeof

maintenance Procedure Dutyof:

Weekly Cleaning of combustion chamber by poker and scraper

brush User

Monthly

Dismantling of combustion chamber housing (A).

Cleaning of combustion chamber by scraper brush and

vacuum cleaner. Replacement of gasket if faulty (see

Diagram 8)

User /

Installer

Yearly Full dismantling and cleaning of burner. Replacement

of all gaskets (see Diagram 10 in 12.2.) Installer

Diagram 7. Dismantling of the combuson chamber housing

INSTALLATION and OPERATION MANUAL

9. MICROPROCESSOR CONTROL

9.1.Viewofthecontroller.Explanation

ofthebuttonsandindicators

The NPBC-V4C-1 controller is controlled

via its "Control Module" using 6 buttons.

The functions of each button are shown

below:

MenuOn/Oﬀ

Micro USB

Naviga on

bu ons

Screen/

Display



TheNPBC-V4controllermustbe

powered for at least 3 minutes

for the clock maintenance and

fuel monitoring system towork

properlywhenthepowerisoff!

INSTALLATION and OPERATION MANUAL

MenuOn/Oﬀ

Micro USB

Naviga on

bu ons

Screen/

Display

During the operation of the burner, the

operation of both augers and the fan is

depicted with animated pictures of

their respective place. When a fire is lit,

a flame will appear in the boiler. If there

is a need to display several messages on

the bottom line, they alternate every 4

seconds.

The date is displayed in white, the

operating phase in green and the

registered errors in red. If the watch has

not been adjusted, its reading will be -: -.

You will need to adjust the clock for the

burner to work properly.

9.2. LCD Screen. Explanation of the

displayindication:

After turning on the power, the controller

displays its main screen, which has the

following view:

In most cases, when there are error

messages displayed in red on the bottom

line, a warning three-tone beep will

sound

Some of the error messages are cleared

automatically after the reason that led to

their registration disappears. There are

other messages such as "back-burning",

"frozen boiler", etc., which can be cleared

only by pressing and holding the button

for more than 2 seconds.

Ribbon with icons

for the status of the

outputs and Inter-

net connec on

Informa on ﬁ elds

- selec on of the

displayed informa-

 o n

Clock

Boiler water

temperature

Ac ve forced

STOP / input OD /

Heater included

Main fan speed

Field “Fuel number” -

currently used

Date, burner

opera ng phase

or error message

INSTALLATION and OPERATION MANUAL

Explanationofthedisplayindication:

Illuminance level measured by the

photosensor.

Chimney fan speed.

Displays information about the

next action of the timers. If the

timers are not activated or the

burner is on, there will be no information

under the icon. If at least one timer is

active and the burner is on, below the

icon will be the next timer action and

the time or day of the week when it will

occur.

Temperature measured by the

DHW thermosensor.

Calculated burner power at the

moment. In order for this power

to be reliable, you must enter a

calibration constant for the auger from

"Service Settings" -> "Basic Settings" ->

"Auger Fuel Capacity".

Temperature measured by the

flue gas thermosensor.

9.3.Controlleroperation:

The burner operated by NPBC-V4C-1 can

operate in both continuous mode and

timer mode. When in timer mode, the

burner operates only at user-specified

intervals of the day and days of the

week. During operation, it goes through

several phases: cleaning, ignition,

fire stabilization, combustion with

modulation of power depending on

the current and set temperature of the

boiler, intermediate cleaning performed

in the combustion process, extinguishing

and cleaning after combustion. In what

phase is the process of operation of the

burner at the moment, is displayed with

text in green on the bottom row of the

main screen.

Each burner ignition starts with a

cleaningcycle. The purpose is to remove

all remnants of previous combustion.

First for a specific time set in the "Service

settings" menu ->"Service settings"

combustion "->"Fuel X"->"Cleaning"

column "Vent" row "Start", only the

main fan works, then the additional fan

for cleaning is turned on, if any and is not

turned off from the time settings set in

the "FC" column.

Internet

connec on

DHW

pump

included

Hea ng

pump

included

Fan

for

cleaing-outlet

included /FC/

Room

thermostat

ac vated

Other manuals for Burnit Pell Series

Table of contents

Other Sunsystem Burner manuals

Sunsystem

Sunsystem WBS-A 20 User manual

Sunsystem

Sunsystem BURNiT FH 500-V.2 User manual

Sunsystem

Sunsystem BURNiT Pell BIO Series Owner's manual

Sunsystem

Sunsystem BURNiT Pell Mega Series Owner's manual

Sunsystem

Sunsystem Burnit User manual

Sunsystem

Sunsystem Burnit Pell ECO Series User manual

Sunsystem

Sunsystem Burnit Pell Series Owner's manual

Popular Burner manuals by other brands

Riello

Riello RS 45/E LN Installation, use and maintenance instructions

Riello

Riello RS 64/M MZ Installation, use and maintenance instructions

Easy Camp

Easy Camp VENTURE CAMP instructions

Riello

Riello MB8LE Installation, use and maintenance instructions

Saber Compact

Saber Compact K00SB5317 Grill assembly & product guide

Riello

Riello MB 412/2 manual

Weishaupt

Weishaupt WL10/1-D 1LN manual

Ecoflam

Ecoflam MAIOR P 700.1 Operator's manual

CIB UNIGAS

CIB UNIGAS PBY1025 Installation, use & maintenance manual

Bertello

Bertello Bertello One user manual

Tucker

Tucker GTR S Operating instructions manual

Viessmann

Viessmann MatriX Service instructions for contractors

Empire Comfort Systems

Empire Comfort Systems BXM18MTN-1 Installation instructions and owner's manual

Unigas

Unigas N18 MANUAL FOR INSTALLATION, OPERATION AND MAINTENANCE

Outdoor Plus

Outdoor Plus OPT-TT M Series manual

Midco

Midco Blue Flame Series Installation and service instructions

Ariterm

Ariterm BioCompPX PX52 Installation and user instructions

Velleman

Velleman GASMT1 user manual

Sunsystem Burnit Pell Series User manual

Popular Burner manuals by other brands
