SUPER 73 SUPER73-Z1 User guide

OWNER’S HANDBOOK
ASSEMBLY & MAINTENANCE
SUPER73-Z1/ZG
EN
2020 V.05

2
WELCOME!
Please read this owner’s handbook carefully before using your
Super73 in order to become thoroughly familiar with the correct
operation of your bike’s controls, its features, capabilities, and
limitations. This handbook includes safe riding tips, but does not
contain any of the techniques and skills necessary to ride an electric
bicycle safely.
Join the Supersquad community of riders wherever you are!
This is just the beginning of your adventure with us! We look forward
to hearing about your experience and seeing you online on our social
networks:
Instagram.com/Super73 and Instagram.com/Super73eu
Youtube.com/c/Super73
Facebook.com/groups/Super73owners/
Tag us! @Super73 @super73eu #Super73 #super73eu
tv
CONTACT SUPER73
This handbook was drafted in the English language (Original instructions) and may
have been translated into other languages as applicable (translation of Original
instructions).
This handbook contains information on the Super73 electric bikes. Always store this
Owner’s Manual with the Super73 and refer to it for information whenever necessary.
The information contained in this publication is based on the latest information
available at the time of printing.
Please note all instructions and notices are subject to change and updates without
notice. Please visit www.Super73.com for periodic tech updates.
Feedback: customercar[email protected]
This is not to be reproduced wholly or in part without the written permission of
Super73. ©Copyright 2020 Super73, Inc. , V05. Updated 09/2020.
North America:
SUPER73, Inc.
16591 Noyes Ave, Irvine,
California 92606
United States
[phone]
customer[email protected]
www.super73.com
Europe:
SUPER73 B.V.
Industrieweg 61
1115 AD Duivendrecht
The Netherlands
0031 (0)20 30 800 73
customer[email protected]
eu.super73.com

3
TABLE OF CONTENTS
2
5
6
8
8
9
10
13
14
15
16
18
19
20
24
Contact Information
General Information
Diagram of Z1/ZG
Legal Information
Intended Use
Unpacking Instructions
Assembly Instructions
Registration
Pre-Ride Safety Check
Operating the Bike
General Warnings
Safety
Maintenance Schedule
Maintenance and Components
Warranty

4
MISSION STATEMENT
+ +
SUPER73 exists to create adventure and community.
We strive to bolster adventurous exploration through
innovation, create positive and forward-thinking
experiences with integrity, and cultivate enthusiastic
support and vision for the community.

5
WARNING!
Warnings, precautions, and potential risks associated with the use of your Super73.
Danger!
Possible dangers for your life and health if respective calls to action are ignored.
Tip!
Recommendation! Meaningful additional information.
Please perform a safety check before each use, as described on in the “Pre-ride Safety
Check” section on pg. 15 of this handbook.
If you feel uncertain about proper configuration after assembling your Super73 according
to the provided assembly instructions, please contact your specialized retailer or Super73
directly.
TIP
!
!
!
If any of the instructions are beyond your skill set, we recommend taking
your Super73 to a certified E-Bike specialist or professional cycle mechanic for
assembly.
This owner’s handbook includes assembly and maintenance work which may need to
be done at frequent intervals to maintain an operational and safe Super73. Never
perform work on your Super73 beyond instructions in this handbook. This handbook is
not intended as a comprehensive use, service, repair or maintenance handbook. Do NOT
ride your Super73 if it has been assembled incorrectly. Maintenance beyond what the
owner’s handbook instructs is to be handled by an E-Bike specialist or professional cycle
mechanic. Riding an incorrectly assembled bike can put your own safety at risk as well as
others.
GENERAL INFORMATION
Please note the following symbols:
EUROPE - PREAMBULE
Super73 electric bikes purchased in Europe and sold for use in Europe have been
tested, certified and are conform to security requirements of EPAC (Electric Power
Assisted Cycle) according to EN 15194, have a maximum speed of 25 km/h and a 250
Watt motor power output. Principles of operation of a pedelec:
Your power-assisted bike is “assisted”. This means that, according to the legislation,
you have to pedal continuously for assistance. The assist is active only during the
pedaling movement. The assistance of your bike is cut beyond 25km/h as required by
French and European regulations.

6

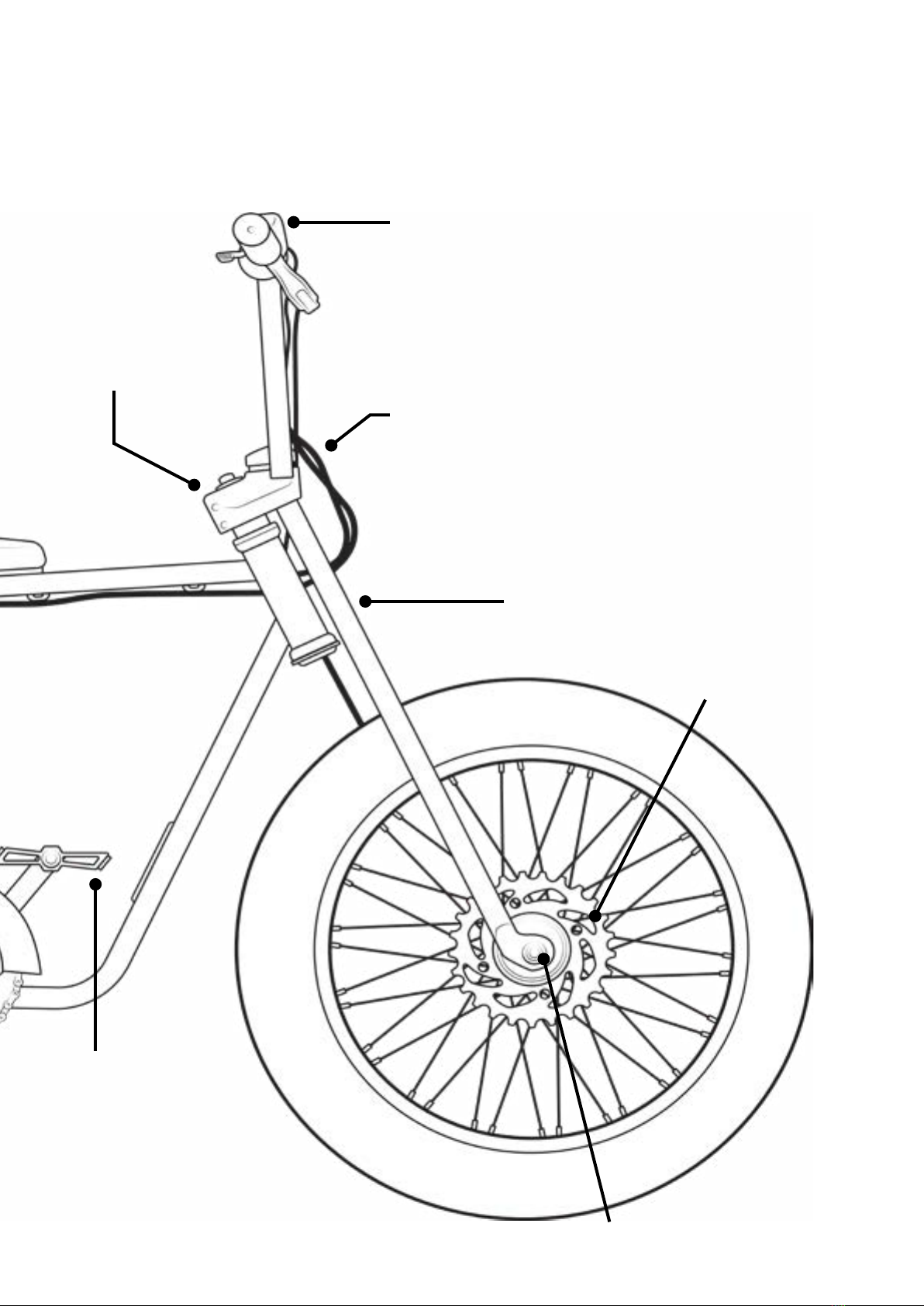

DIAGRAM OF THE SUPER73 Z1 / ZG
Bottom Bracket
Seat Assembly with
Battery and Controller
Power Button
Charging Port
Rear Dropout
Crank Set
Chainguard
Street Tire

7
Throttle (Z1) or Speed
Levels Control Panel (ZG)
Power Button
Charging Port
Front Dropout
Pedals
Lower Fork
Brake Rotor
Wiring Harness
Handlebar Clamp

8
!Please check your country or state’s regulations on electric bikes before riding. There
are variations on age limit, speed, motor wattage, and road accessibility. Visit this
website for more information: https://peopleforbikes.org/our-work/e-bikes/policiesand-
laws/
In most European countries and Australia, the rules of public traffic valid for bicycles also
apply to e-bikes traveling up to 25 km/h. However, there are some notable differences
(such as the age limit of the cyclist). More information here:
http://bike-eu.com.s3-eu-central-1.amazonaws.com/app/uploads/2015/09/rules-
regulation-on-electric-cycles-in-the-european-union-may-2017.pdf
For the latest information on assembly and maintenance,
please visit the support section of www.Super73.com or
eu.super73.com
No liability or warranty shall be accepted if the use of the Super73 deviates from this
intended use, if safety instructions are not observed, in the event of overloading, or if
faults are not properly rectified. Similarly, no liability and warranty shall be accepted
in the case of assembly errors, willful intent, accidents, and/or if care and maintenance
specifications are not followed. Any modification or alterations to the electrical system
(tuning) voids all claims under warranty and guarantees.
• Your Super73 electric bike is designed for use on paved paths only. You should
therefore never ride on stairs, jump, or perform wheelies or similar activities.
• Super73 electric bikes are not approved for participation in competitions.
• Commercial use does not form part of the intended use.
• Operation parameters, maintenance, guidelines, and service instructions described in
this manual are part of the intended use.
Please observe the permitted overall weight of 275 lbs (125 kg).
!
DANGER!
If the user rides the Super73 beyond its intended use, there may be a risk of an
accident, serious injury, or death and the risk of injury to those around the user.
LEGAL REQUIREMENTS
INTENDED USE

9
A second person is recommended to help unpack and assemble your Super73
1. Remove the accessories box. Remove packaging and the two protective foam inserts.
2. Use two people to lift the bike out of the box and place on a clean flat surface.
3. Remove all protective packaging and prepare your new Super73 for assembly!
4. Please read all assembly instructions in full before beginning the build of your new bike.
DANGER!
Please read the instructions entirely before assembly to ensure the proper
functioning of the Super73. Failure to do so could result in serious personal injury or
damage to the bike.
TIP VIDEO
View our assembly video to follow step-by-step instructions on our website in the
Support section at www.super73.com.
UNPACKING INSTRUCTIONS
!
IN THE PACKAGING
• 2 x reflectors
• 1 x battery charger
• 1 x set of pedals
• 1 x two-sided open-end wrench with 15mm and 13mm ends
• 1 x 5mm hex wrench
ADDITIONAL RECOMMENDED TOOLS
• 2.5 mm hex wrench
• 4 mm hex wrench
• Bicycle Grease
GOOD TO KNOW
• Bolts for the handlebars mount are M6 X 12mm socket head cap screws
• Right pedal has the letter “R” inscribed on it, the left pedal has the letter “L”
inscribed on it.
• 5mm Allen key can also be used to adjust brakes.
• Tire tubes size is 20”x 4.25” or 20”x 4” for the rear and front tires with Schrader
valve.
Before performing any work on your Super73, turn off the power system and remove
the battery. Be sure to also turn off the power system and remove the battery during
transport in a vehicle. Involuntary activation of the electrical assistance system
presents a risk of damage or injury.
DANGER!
!If any serious damage has occured to your Super73 during transit, please contact our
customer support immediately and submit photos of the packaging.

10
1. HANDLEBAR INSTALLATION
A. Use the 5mm hex wrench to remove the bolts of the handlebar clamp.
B. Once the clamp is open, place the lower crossbar of the handlebar in the groove of
the top crown.
C. Loosely tighten the handlebar clamp with the 5 mm hex wrench, and adjust the angle
of the handlebar to riders comfort.
D. Cross tighten the handlebar clamp from corner to corner making sure the clamp is
evenly placed, tight, and handlebars do not move.
ASSEMBLY INSTRUCTIONS
DANGER !
Do not ride with a bike that has not passed 100% safety verification before each ride as
described in the section pre-ride safety check on pg. 14.
A
C D
B

11
2. INSTALL PEDALS
A. Install and tighten the pedals using the 15 mm open wrench. Look for a letter
marking “L” “R” on each respective pedal and make sure you install the left pedal on
the left crank, the right pedal on the right crank.
B. The right pedal is screwed on in a clockwise direction. The left pedal is screwed on by
turning it counter-clockwise.
It is recommended that you apply a small amount of bicycle grease to the threads of
the pedals prior to installation.
3. TIRE INFLATION
For transport purposes, tires are packed partially inflated. Tires must be inflated using a
pump with a Schrader valve tip to a recommended 18 - 25 psi (1.24 - 1.72 bar).
A. Inflate the tube to a max pressure of 30 PSI (2.06 bar) in order to ensure the tire is
properly seated in the rim.
B. Once properly seated, deflate to a recommended 18 - 25 psi(1.24 - 1.72 bar). PSI will
vary based on the weight of rider and type of terrain.
The inner tube size is 20”x 4.25” for the rear and the front.
TIP
AB
TIP

12
The battery can be charged both mounted on the bike or separately from the bike. Two keys are
supplied to unlock and lock the battery.
A. Plug in the charger into a 120v wall outlet. Chargers can take 110-220V.
B. Connect the charger cable to the battery charging port.
C. Turn the battery on by pressing the power button. The battery is on when the power
button illuminates. The battery will not charge unless it is switched on.
When the charging process starts, the charger LED turns red. Once the battery is charged, the
LED turns green.
PROPERLY SHUTTING OFF THE BATTERY
A. Turn the battery off by switching off the side button.
B. Remove the charger cable from the battery charging port.
C. Remember to put the protective cap back onto the battery charging port after
charging to protect it from dirt and moisture.
D. Unplug the charger from the socket.
Always make sure there is plenty of ventilation and a dry, fireproof environment for the
charger and follow these operating instructions.
• Do not leave the battery connected to the active charger for more than 48 hours.
• Do not leave the charger connected to a socket for more than 48 hours.
• Charge the battery and use the bike at least once every 90 days.
• Do not store the bike for more than 24 hours with an empty battery. This prevents a
deep discharge with irreparable consequences from occurring.
• Do not use the charger if the charger, main cable or connector cable have any visible
signs of damage.
• After being charged, if the battery remains connected to the charger, it will turn on
and off again in short spurts of green light. This is not a defect. It simply indicates
that individual battery cells are being slowly charged. Nevertheless, make sure that
the battery is not connected to the charger for more than 48 hours.
More information on battery care and range in the Maintenance and Components
section on pg. 22 of this handbook.
5. CHARGE THE BATTERY
We recommend charging the battery for 6-8 hours on the first charge. This will help
condition the lithium-ion cells for optimal performance.
TIP
TIP
!
BATTERY RANGE
Power output will vary depending on battery capacity. If your battery is at 20%, for example, it
won’t have as much power as a fully charged battery. If your Super73 has been shipped to you
along with the battery, please fully charge the battery first. When a battery leaves the factory,
it’s not fully charged as required by international air and sea legislation. Battery is fully charged
when the LED light on the charger is green.
More information on range and performance in Maintenance and Components section of
this manual on pg. 23.
TIP

13
!You’re almost ready to ride. Your Super73 should look like below. Before your first ride,
please verify your bike is safe to ride using the Pre-ride safety check on pg. 14.
ASSEMBLY IS FINISHED!
REGISTER YOUR SUPER73
All original owners must register on our website to validate your warranty.
Please register online at super73.com/pages/register
If you can’t register online, please call us for assistance in registration. Write down below
the following information for future reference:
Location or website of purchase: __________________________________________
Date of purchase: ______________________________________________________
Model name: SUPER73-Z1 or SUPER73-ZG
Bike Serial #: __________________________________________________________
(Engraved on the side of the bottom bracket in between the pedal cranks)
Battery #: _____________________________________________________________
We recommend that you keep your original receipt with this handbook.
TIP
!

5. KICKSTAND
Make sure that the kickstand is tightly secured, and not rubbing against the
ground or tires.
Do not sit on a bike with a kickstand engaged.
2. BRAKES SYSTEM
Pull both brake levers. You should feel an obvious pressure point and the levers
should not be able to touch the handle.
More information on brakes in our Maintenance & Components section of this
handbook.
PRE-RIDE SAFETY CHECK
Make sure the brakes have already been applied before getting on to your bike.
DANGER!
Use the following checklist before each ride to verify your bike is safe to ride.
!
!
TIP
CHECKLIST:
1. WHEELS
Check the condition of both tires making sure the tread is in good condition
free from punctures, cracks, and deformations.
Maintain proper tire pressure. We recommend a range of 18 - 25 psi (1.24 - 1.72
bar) dependent on the weight of rider and type of terrain.
Ensure wheels are true and properly dished.
3. CABLES
Look out for any loose cables.
Make sure the male and female plugs are properly connected.
There should be no strain on any wiring near the fork when turning the
handlebars from left to right.
Verify that the wiring on the frame is secure and free from any moving parts
that may damage the wiring. This includes any wires and brake cable lines near
the wheel or other moving parts.
4. DISPLAY
Check that your display turns on and functions properly.
DANGER! Do not place any metal object into the charging port as this can result in a
short circuit and render your battery nonchargeable and in need of replacement This will
void the warranty.
14

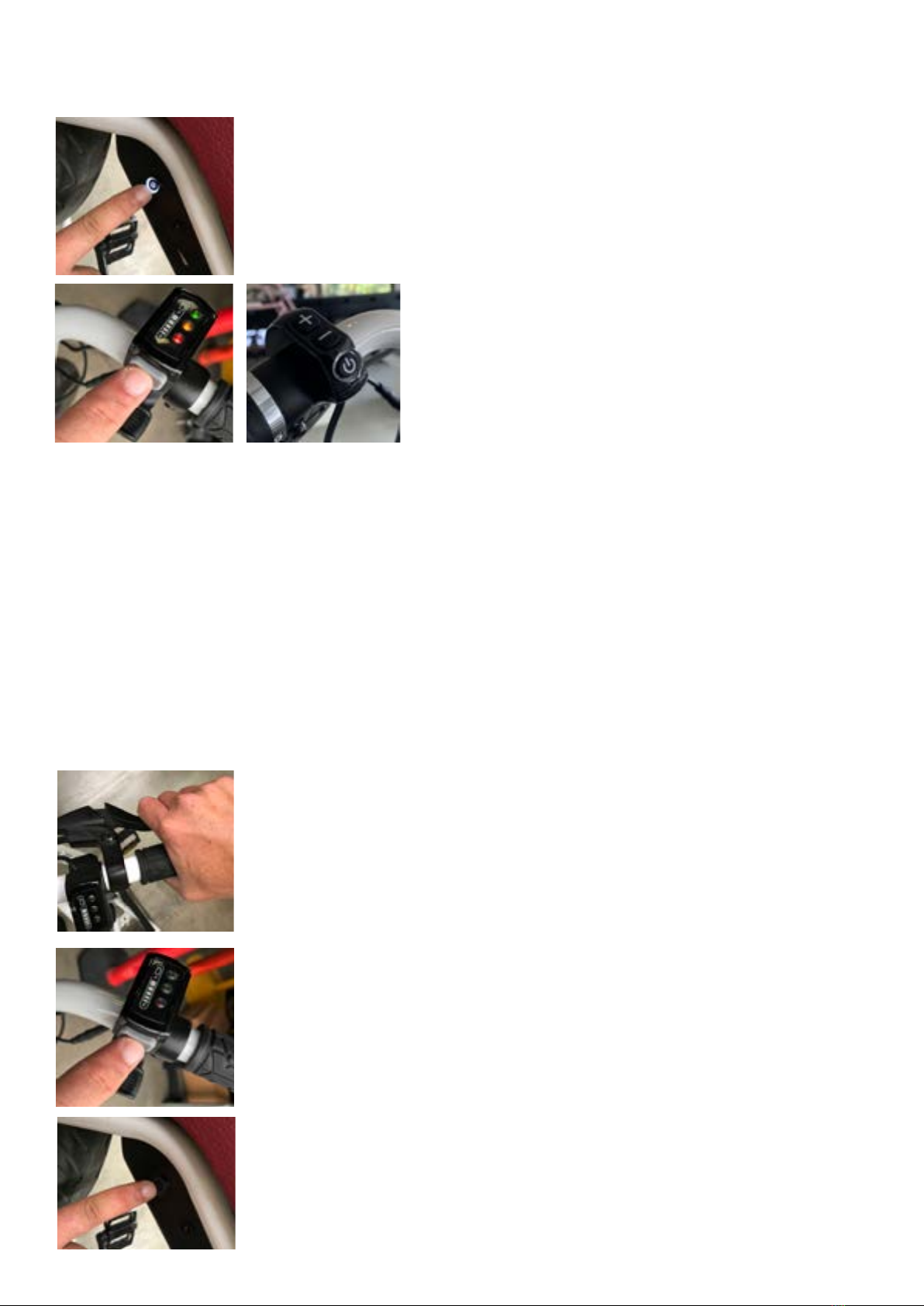

3. POWER-ON THE DISPLAY
a. On displays with a throttle:
To turn the power on, press the gray push button
and the LED lights will come on. The button will stay
pressed in while the throttle is on. The LED lights
indicate battery power level.
b. On displays without a throttle for pedal assist bikes, press the lower power button for a few
seconds. There are a total of 5 LEDs that indicate the battery level in Red. When the PAS is
adjusted, however, the same LEDs turn blue to indicate the Pedal Assist (PA)S level.
4. ENGAGE THE THROTTLE / PEDAL ASSIST
a. For throttle displays (Z1): The battery indicator lights will come on, indicating the bike is on
and ready. Throttle is now live. Proceed with care on a flat surface as bike will move forward
when the throttle is pressed.
b. For pedal assist displays (ZG), start pedaling and electric assist will engage.
Press on the + button once to get to the first level of pedal assist. One bar will turn blue. Press
a second time to reach the second level, and a third time to reach the third level.
OPERATING THE BIKE
15
6. TURNING OFF THE BIKE
When you are done riding your Super73 it is important to turn off the
power properly.
a. Turn off the system by first pressing the gray button on the throttle
or speed level control panel.
b. Shut off the power by pressing the power button on the battery.
1. TURN ON THE BATTERY
2. Disengage the kickstand, grab the brake handle to engage the
brakes, and seat yourself on the Super73.
5. BRAKING
The Z1 / ZG employs the Tektro mechanical brake systems.
The RIGHT lever will activate the REAR brakes when compressed and
the LEFT lever will activate the FRONT brakes when compressed.
• The brake levers are equipped with brake sensors that cut power to
the motor when either of the levers are compressed.

GENERAL WARNINGS
Like any sport, cycling involves risk of injury and it is the rider’s responsibility to assume
potential risks and injury involved when riding. By choosing to ride a bicycle, you assume the
responsibility for that risk. You need to know and practice the rules and safety regulations of
riding this bicycle. Proper use and maintenance of your bicycle reduces risk of injury. Check
your local state or country regulations for electric bike laws. For example, check the minimum
age for using an electric bike as this differs in various regions.
Riders must have the physical condition, reaction time, and mental capability to ride and
manage traffic, road conditions, and sudden situations. Also, respect the laws governing
E-bike use in accordance with each region. If you have an impairment or disability (i.e. visual
impairment, hearing impairment, physical impairment, cognitive/language impairment, seizure
disorder, etc.), consult your physician before riding any bicycle.
• When riding, obey the same road laws as all other road vehicles, including giving right
of way to pedestrians and stopping at red lights and stop signs.
• For additional information, contact the road traffic authority, police department or
Department of Motor Vehicles in your state or country.
• Use correct hand signals to indicate turning or stopping.
• Concentrate on the path ahead. Avoid potholes, gravel, wet or oily roads, curbs,
trains, tracks, speed bumps, and other obstacles.
• Walk your bike across all train tracks.
• Expect the unexpected, such as opening car doors or cars backing out of driveways
• Be aware at intersections and when preparing to pass other vehicles or other
cyclists.
• Familiarize yourself with all the bike features. Practice using the brakes and throttle.
• If you are wearing loose pants, secure the bottom using leg clips or elastic bands to
prevent them from being caught in the chain.
• Wear proper riding clothes and avoid wearing open-toe shoes.
• Don’t carry passengers or cargo that will interfere with your ability to control the
• bicycle.
• Never ride and use the your phone simultaneously.
• Don’t use music devices such as headphones while riding. This will restrict your
hearing and impair your awareness ofyour surrounding environment.
• Maintain a comfortable stopping distance from all other objects, riders, and vehicles.
Safe braking distances are based on forces, such as weather and lighting conditions
among other variables.
! !
NOTICE: Only take on tasks for which you have the necessary knowledge and tools. It is recom-
mended that users pay special attention to all of the general operating rules below before
operating their Super73 bike.
16

17
Take extra care while riding in wet conditions. The Super73 is not meant for use in puddles,
heavy rain, and streams. Never immerse this product in water as the electrical system
may be damaged. Take extra care while riding in wet conditions. Feet or hands can slip in
wet conditions and lead to serious injury from a fall. Brake earlier as it will take longer
to slow than when operating in dry conditions. Decrease riding speed. Wear
reflective clothing and use approved safety lights. Road hazards are more difficult to see
when wet, proceed with caution.
Be safe! It is recommended to not ride at night. Ensure your Super73 is equipped with
a full set of correctly positioned and clean reflectors. Use a properly functioning lighting
set comprised of a white front light and red rear light. Wear reflective and light-colored
clothing. Slow down and use familiar roads with street lighting, if possible.
WET WEATHER
RIDING AT NIGHT
!
!
As a parent or guardian, you are responsible for the activities and safety of your child.
The Super73 is not designed for use by children under the age of 16. Obey local regula-
tions and always wear a helmet.
FOR PARENTS AND GUARDIANS
!

18
• All users must read and understand this manual before first use. Additional manuals
for components used on your bicycle may also be provided and should be read before
use in addition to this manual.
• Always wear an approved bicycle helmet whenever using this product and ensure that
all helmet manufacturer instructions are used for fit and care of your helmet. Failure
to wear a helmet when riding may result in serious injury or death in the event of an
accident.
• Ensure correct tightening and setup is performed on your bicycle after assembly.
• It is your responsibility to familiarize yourself with the laws and requirements of
operation of this product in the area(s) where you ride.
• Ensure handle bar grips are not damaged and properly installed. Loose or damaged
grips can cause you to lose control and fall.
• Off-road riding requires close attention and specific skills and presents variable
conditions and hazards which accompany the conditions. Wear appropriate safety
gear and do not ride alone in remote areas.
• Bicycles and bicycle parts have strength and integrity limitations and extreme riding
should not be performed or you risk damaging the components or becoming seriously
injured.
• After any incident you must consider your bike unsafe to ride until an inspection
is made according to provided safety check in the is handbook. Consult with a
profesional cycle mechanic for a comprehensive inspection.
• Failure to properly charge, store, or use your battery will void the warranty and may
cause a hazardous situation.
• Extreme care should be taken when using the pedal assist sensor and propulsion on
this product. Ensure you understand and are prepared for the power assistance to
engage as soon as pedaling is underway.
• You should check the operation of the brake inhibitor switches before each ride.The
brake system is equipped with an inhibitor that shuts down the power to the electric
motor whenever the brakes are engaged.
• User must understand the operation of the throttle and pedal-assist levels before
using, and take ample care in their usage at speeds appropriate for each region and
user experience level. Use the lowest assist level until you are comfortable with the
bike and feel confident in controlling the power.
• Because e-bikes are heavier and faster than normal bicycles, they require extra
caution and care while riding.
• Do not remove the front, rear or pedal reflectors.
• Be familiar with your local e-bike laws.
• Any after-market changes to your Super73 bike not expressly approved by Super73
may void the warranty and create an unsafe riding experience.
SAFETY
The following safety notes provide additional information on the safe operation of your Super73
and should be closely reviewed. Failure to review these notes can lead to serious injury or
death.

19
1. BEFORE AND AFTER EACH RIDE
Check the alignment of the wheels.
Check the state of charge of the battery.
Check that brakes function properly.
Check tires for any punctures, and wheels for proper alignment.
Store the bike carefully in a clean and dry place.
Check that your kickstand is tightly secured.
Check for loose cables or wires that may be strained when turning the
front wheel from left to right.
2. EVERY MONTH
Inspect the handlebar and steer tube for any unusual movement.
Check the cables, tires, handles.
Check the wear of brake rotors, brake pads (see section on brakes), and
replace them if necessary.
Check the tension of the spokes, and ensure that the wheels are true and
properly dished.
Lube the chain and check the tension in the chain. It should be tight
enough that it only allows you to move it up and down about one inch. If it
is sagging or much looser than that, you need to tighten the chain.
3. EVERY SIX MONTHS (depending on frequency and type of use)
Inspect the frame, fork and look for signs of cracks in the metal.
Check the bottom bracket and crankshaft and tighten the bolts on each
crank.
Check and grease the wheel hubs, headset, all parts in friction.
For your own safety, if any of the recommended maintenance procedures are not within
your skill set, we advise taking your Super73 to an E-bike specialist or professional cycle
mechanic for inspection.
!
DANGER!
Intensive use of the Super73 may cause possible damage to the frame and the fork. It is
important to inspect the frame and the fork and look for signs of cracks. A broken or
cracked frame and fork can cause an accident and injury. Refer to the Intended Use
section of this manual.
MAINTENANCE SCHEDULE
In order to prolong the life expectancy of your bike, here is an example of a maintenance
schedule, under intended use, that we recommend the following:
TIP
WASHING AND CARING FOR YOUR BIKE
Dirt, salt, and other elements can damage your bike. Regularly clean your Super73 and
protect it against corrosion. Use clear water for cleaning and a gentle soap if necessary
to dissolve grease and other residues. Do not spray water directly onto your Super73.
Instead, use a lightly damp cloth to wipe down any dirt or debris. After drying
your bike, treat surfaces with a care product. Finally, wipe all parts with a clean, soft
cloth.
Do not clean your Super73 with a strong water jet or steam jet from a short distance.
The water can get passed the seals and get inside the bearings. Lubricants are then di-
luted, increasing friction. In the long run, the bearing surfaces will deteriorate.

MAINTENANCE & COMPONENTS
Before performing any work on your Super73 electronics system, turn off the system.
Involuntary activation of the Super73 system poses a risk of injury.
The Z/ZG has tire sizes of 20” x 4.25” rubber tires with inner tubes and a rim liner.
The tube size for both the front and rear tires is 20” x 4.25” or 20” x 4”. The tires are
designed for durability and safety for regular cycling activities. However, tires must be
checked before each use for proper inflation and condition.
Proper inflation, good maintenance, and quick replacement will help ensure that the
operational characteristics of your bike will be maintained and dangerous conditions
avoided.
Tires must be inflated using a pump with a Schrader valve tip with a recommended
pressure between 18 and 25 psi (1.24 - 1.72 bar). Check the condition of the tires and
rims for damage, cracks or deformation. The recommended tightening torque of the
wheel nuts is 25ft/lb (34 N m).
It is essential that the proper air pressure is maintained in the tires all the time. Do not
under-inflate or over-inflate your tires. Low pressure can cause loss of control and tires
that are too inflated can burst. Failure to maintain proper air pressure rating indicated
in the handbook may at any time result in tire and/or wheel failure.
Inflate your tires from a regulated air source with an available manometer. Inflating your
tires with an unregulated air source could over-inflate them, resulting in an exploded
tire. When tire wear becomes obvious or a hole in the tire is found, you must replace the
tires and / or tubes before using the bike, otherwise injury to operators and / or
damage to your bike could occur.
In addition to proper inflation, correct wheel alignment helps to decrease tire wear. If
you find a tire is worn unevenly, have a professional cycle mechanic check the wheel
alignment.
!
DANGER!
TIRES / WHEELS
CHAIN TENSION
There should be approximately one half inch of movement in the chain up and down at a
point halfway between the front and rear sprockets. To change the tension loosen one
of the axle-nuts and move the wheel forward or backward to adjust and then tighten the
bolts when proper tension is achieved.
20
