Ancheer AMA005757 Specification sheet




Caution : Please read the manual before your first ride!
























ANCHEER
1
Thank you for choosing our products.
To ensure your safety and health, we encourage you to read this manual thoroughly before
you assemble the bike and take the first ride.Safe and effective use can only be assured if the
equipment is assembled, maintained, and used properly. More importantly, this will offer you a
general understanding and get the most out of your bike.Please check your electric bike before
every ride, especially when traveling long distances.
This manual is intended as a general guide to your new e-bike. For technical support, including
repair information, please consult your dealer.
Things to know before use
Do not use the product before carefully reading the instructions from this manual and
understanding the performance of the item;
Don't lend this product to people who can't operate it, so as not to cause harm; if you
lend the bike, please let the user follow instructions, it could help to decrease the risk
of accident;
The E-bike cannot be used as off-road vehicles or used for extreme bicycle sports; when
riding the bicycle, please wear a safety helmet and protective gear. It is forbidden to ride
with one hand;
Please abide by the traffic rules and prohibit riding on motorized lanes and roads with
multiple pedestrians;
Carry people or objects in accordance with the requirements of laws and regulations,
and do not park in the building's lobby, evacuation stairs, walkways, and safe entrances
and exits;
It is recommended to charge and park in an outdoor dedicated parking hall, while
avoiding rain; when charging, keep away from combustibles, and the charging time
should not be too long;
For safety reasons, please do not change the default speed setting of the electric
bicycle and do not exceed speed limit in accordance with the traffic rule. Riding on non-
motorized lanes, downhills and paved roads not exceeding 15km/h;
When adjusting the handlebar or saddle, please be careful not to exceed the safety line
markings on the handlebar and saddle;
Please check the tire pressure before riding, the recommended tire pressure is 35-45PSI;
Please check the power circuit, lighting circuit, etc. before riding;
Ɣ
Ɣ
Ɣ
Ɣ
Ɣ
Ɣ
Ɣ
Ɣ
Ɣ
Ɣ
Safety Instruction

ANCHEER
2
Safety Instruction
Before riding, please check whether the front and rear brakes work normally, check
the fastening status of the handlebars and front and rear wheels, and check whether
the reflector is damaged or contaminated;
When using the motor, please be careful not to hit vigorously and keep the rotating
shaft lubricated;
Try to avoid traveling in severe weather such as heavy rain;
Riding in rain or snow, the braking distance will be extended, pay attention to slow
down;
It is not allowed to exceed the maximum load of the vehicle body when riding (the
maximum load is 120KG);
It is suitable for people between 16 and 45 years old, and it is strictly forbidden to
drive electric bicycles on the road by people under 16 years old.
Ɣ
Ɣ
Ɣ
Ɣ
Ɣ
Ɣ

ANCHEER
3
General Information
1. About ANCHEER Electric Bike
ANCHEER electric bike is a leading icon of e-bikes. For years, ANCHEER has been not only
dedicating to innovation, cutting-edge technology and premium materials, but also
providing cost effective e-bikes, to satisfy riders' various needs of transportation and even
desire of exploring sports & outdoors life. Just ride freely with ANCHEER!
2. What’s In the Box (Parts List)
Description Quantity
ANCHEER Electric Bike
Pedal 2
1
User Manual
Saddle 1
1
Key
Saddle Tube
Kickstand
1
1
2
Charging Adapter
Tools Bag
Front & Rear Fender 1
1
1
Battery
Throttle 1
1
We will decide whether to include the throttle in your product package in accordance
with local laws and regulations. If it is included, it will come as a single part and will
not be pre-installed. You can choose whether to install or not. If you choose to install,
please use the throttle accurately under the guidance of laws and regulations.
Note:

ANCHEER
4
General Information
3. Tool List
CORRECT FRAME SIZE
For safe and comfortabel riding there should be clearance of 59cm/23in from ground to
the crotch of the intended rider. Also, at least 3-8cm/1-3in between the crotch and the
top tube of the bicycle with both feet flat on the ground. Women can use a men's style
bicycle to determine the correct size for women's model.
MODEL:AMA005757

ANCHEER
5
Bike Usage
Before Riding
During riding
Before riding the bike on the open road, try all the settings on the electric bike, and get
used to various results in a safe and controllable environment.
Please check the power circuit, lighting circuit, and test the brake system before cycling.
Always check the tire pressure before starting to ride, and make sure that the tire is
inflated to a pressure within the specified range.
In order to ensure the safety of riding, please check regularly for loose parts or screws.
The places that need to be checked include but not limited to the seat tube, wheels,
handlebars and pedals.
If necessary, please confirm whether the battery capacity can meet you riding demand.
2.
1.
If the pressure exceeds the recommended maximum value, the tire may blow out
of the rim, which may damage the bicycle and cause injury to the cyclist and nearby
people.
If the pressure is too low, the wheel may be damaged, or the inner tube may be
squeezed, causing the tire to leak air.
Please wear helmets and riding gear that meet the requirements in accordance with
regulations.
Avoid traveling in severe weather such as heavy rain.
Carry people or objects in accordance with the requirements of laws and regulations,
and the load of the entire bike should not exceed 120kg.
Obey the traffic rules.
Ɣ
Ɣ
Ɣ
Ɣ
Ɣ
Ɣ
Ɣ
Ɣ
Ɣ
After riding
After heavy use, do not touch the hot surface, such as the disc brake rotor or the side edge
of the brake rim.
When folding the kickstand, always make sure that the stand is secure and the base is firm
to prevent the bicycle from falling.
If the bicycle is splashed with moisture, please wipe it dry and clean in time.
Ɣ
Ɣ
Ɣ

ANCHEER
6
Bike Usage
Shifting Recommendations
Brake Adjustment
In order to increase the range, we recommend shifting according to the speed.
For starting and low-speed riding, it is best to use a low-speed gear.
At higher speeds, a higher gear should be selected.
Loosen or tighten the barrel adjuster at the end of the brake cable lever. This will make a
small adjustment to the gap of the brake pads. If this is not enough to create the correct
gap, then:
Loosen the two positioning bolts, but do not remove them. Slowly rotate the wheel
and check the space between the rotor and the brake pad; adjust the position of the
brake pad so that the rotor does not rub and is slightly close to the outer pad (the gap
between the rotor and the pad should be just enough to prevent friction). Make sure
that the rotor and the pads are parallel to each other. After the adjustment is complete,
tighten the bolts.
If the rotor always rubs against the brake pads or the gap is too large, you can adjust
the brake pad gap by loosening the cable clamp bolts and slightly releasing the cable to
increase the gap or tightening the cable to reduce the gap, and then tighten the bolts
again.
Ensure that the brake cables are properly inserted into the brake levers before aligning a
mechanical disc brake. If the disc rotor is bent or damaged, replace the rotor first.
Ɣ
Ɣ
Ɣ
2.
1.

ANCHEER
7
Installation And Adjustment
Open the package of the bike, take out the electric bike and all the accessories inside and
use the tool to cut off the packing rope.
1. Install the handlebar
2. Assemble the saddle tube
1.1
2.1
1.2
Install the handlebar into the folding stem and unfold the folded stem and fasten
the buckle.
Install the saddle tube into post receiver. Set right its position and adjust height
to fit your ridding habit. (Note: please be careful not to exceed the limit line) and
then tighten the seat with the clamp.
Adjust the height of the stem(Note: please be careful not to exceed the limit line.),
and then fasten the clamp.

ANCHEER
8
Installation And Adjustment
3. Assemble the front fender and headlight
3.2
3.3
3.1
Connect the front light, and after that, re-fix the loosened screw and tighten it.
Loosen the screw that secures the fender, fix the fender and then tighten it again.
Loosen the screw on the corresponding position of the front wheel, as shown in
the figure below. Put the fender in this position.

ANCHEER
9
Installation And Adjustment
4. Install the front wheel
Using the tool to loosen the fixing rod of the front fork and remove it (this accessory
is to prevent the front fork from being deformed during delivery).
Remove the protective washer from the hub of wheel (this accessory is to prevent
the brake from damage during delivery).
Take out the quick release skewer from Wheel and unscrew the bolt from the quic
k release.Set front wheel set into front fork. Make sure fork hanger hold onto whe el
axle, and make sure the disc put into middle of brake.Insert quick-release axle into
spring and tighten screw(Quick release nut to be at the same en d as the brake).
4.1
4.2
4.3

ANCHEER
10
Installation And Adjustment
5. Install the pedals
There are a right pedal marked "R" and a left
pedal marked "L". When installing, make sure
to identify the R/L letter on the pedal bolt.
Ensure that the thread of each pedal is fully
inserted into the crank arm. Tighten the pedals
completely with a wrench. (Counterclockwise
screw the pedal marked "L" on the left side
crank. Clockwise screw the pedal marked "R"
on the right side crank.)
So far, congratulations! You have completed the assembly of the entire bike.
5.1
5.2

ANCHEER
11
Meter Operation
1. Meter Instruction
Insert the key to the battery and turn on the power switch.
Ɣ

ANCHEER
12
Meter Operation

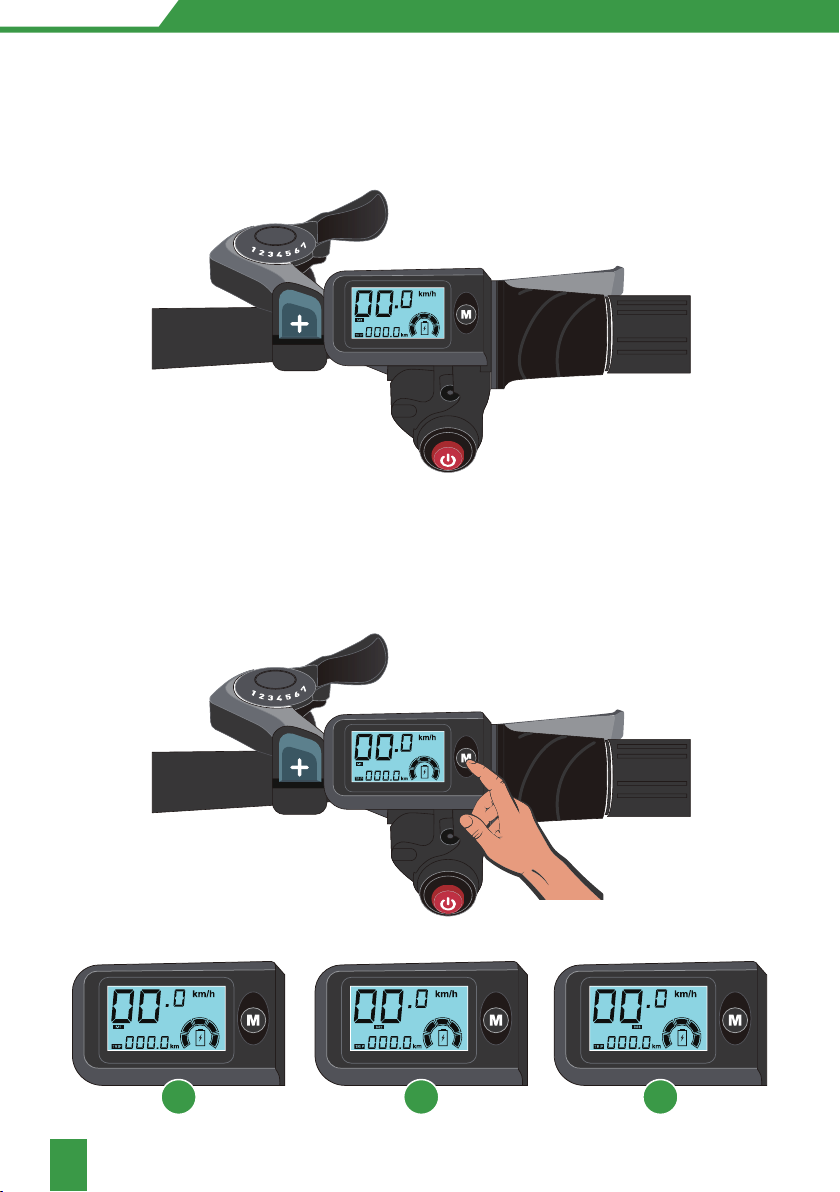

You can also use pedal assist mode, there are three levels to choose(M1, M 2, M3)
Ɣ
Ɣ
And then you can just turn the throttle to move forward and control the speed.
M1 M2 M3

ANCHEER
13
Press and hold the function button before switching on to enter the parameter
settings, where the parameter number is displayed in the real time speed area and the
parameter value is displayed in the mileage area.
After entering the parameter setting interface, short press (<1 second) the function
button(“M”) to switch between different parameters, long press (>3 seconds) the
function button(“M”) to enter the parameter modification state, the parameter value
flashes at this time, short press (<1 second) the function button (“M”) to change the
parameter value, after changing the parameter value long press (>3 seconds) the
function button again to save the parameter value, then wait for 10 seconds the
instrument will automatically exit the parameter setting mode and enter the normal
working mode, or directly switch off and on again, the new parameter value will also
work.
Ɣ
Ɣ
Meter Operation
2. Operation Cautions
Avoid the risk of collision.
Don’t modify system parameters to avoid parameters disorder.
Contact the seller when error code appears.
Ɣ
Ɣ
Ɣ
3. Parameter Setting
Setting method
3.1

ANCHEER
14
Meter Operation
Parameter list:
3.2
P05-Cumulative mileage
The accumulated mileage (ODO) is displayed here and is not normally modified by the
user. To clear it, press the M button 10 times in succession while the mileage is flashing.
P08-Auto cruise disable/enable
0: no automatic cruise
1: with automatic cruise ( press the M button and held in position for a few seconds and
then automatically entered)
P09 - Metric/Imperial Switching
0: metric, (KM)

ANCHEER
15
Meter Operation
P10-Setting the maximum speed
This parameter sets the maximum speed when driving, e.g. 20mph means the maximum
speed when driving will not exceed 20mph/h,
The maximum speed is 32 km/h (20 mph/h).
0KM or 0Mi means the parameter is not effective, i.e. no upper speed limit.
1: imperial (MI)
mi

ANCHEER
16
Battery And Charging: Further Information
Please follow the instructions for use, otherwise the consequences are at his own risk.
Please use the original special charger. It is strictly prohibited to use other chargers.
Pay attention to the battery type and applicable voltage that the charger can charge, and
it is strictly forbidden to mix them. The charging time shall not exceed 12 hours, and the
charging current shall not exceed 2A.
When charging, it should be placed in a ventilated environment, and it is strictly
forbidden to charge in a confined space or in a hot environment.
When charging, insert the battery first, then add the mains. After charging fully (the
green light will be on), first cut off the mains, and then unplug the battery. It is forbidden
to connect the charger to the AC power supply without load for a long time. During
the charging process, if the indicator light is abnormal, a peculiar smell appears, or the
charger casing is overheated, stop charging immediately, and repair the charger or
replace the charger.In the process of use and storage, pay attention to avoid the entry of
foreign objects, especially avoid the inflow of water or other liquids, so as to avoid short
circuit inside the charger.
The charger should not be carried with the car as much as possible. If it is really necessary
to carry it, it should be placed in the toolbox after the shock absorption treatment is done.
It is not allowed to disassemble or replace the components in the charger by yourself.
When not in use for a long time, keep the battery in a cool and dry place, and charge the
battery for two hours a month.
Ɣ
Ɣ
Ɣ
Ɣ
Ɣ
Ɣ
Battery: Further information
Charging: Safe operation guide
Keep the battery out of reach of children.
Charging at 0°C~40°C/ 32°F~104°F, and discharging at -5°C~40°C/ 23°F~104°F. Please do
not store the battery in temperatures above 35°C/ 95°F or below -5°C/ 23°F.
Keep the battery dry, do not put the battery in acidic or alkaline liquid, keep away from
rain, fire and high temperature environment.
It is strictly forbidden to connect the positive and negative poles of the battery reversely,
and it is strictly forbidden to damage, disassemble or short-circuit the battery.
Used batteries are hazardous chemicals, and the used batteries should not be disassembled
without authorization, and recycled by relevant professional departments.
Ɣ
Ɣ
Ɣ
Ɣ
Ɣ

ANCHEER
17
Reminder
Battery and charging: Further Information
Battery must be recycled or disposed of in an environmentally sound manner.
Do not dispose of the battery in a fire. The battery may explode or leak.
Do not dispose of a battery in your regular household trash.
Ɣ
Ɣ
Ɣ
Battery Disposal
Charge a new battery 4-6 hours before you use it in your product for the first time.
If the battery is dropped or damaged due to a bicycle accident, there may be a danger of
electrolyte leakage. Please stop using it immediately.
It is better not to wait until the power is completely exhausted before charging, which
can more effectively extend the battery life. Besides, Overheating or undercharging the
battery may shorten battery life.
How far can a fully charged battery go? It depends on the load weight, road conditions
and battery capacity. But under the same conditions, the average speed can last longer
riding distances. Using pedal assist mode allows you to go further.

ANCHEER
18
Maintenance
The front and rear wheels of the vehicle should be located in the center of the front
fork or frame.
After riding, please store the bike in a place without sunlight and rain.
Water showering is forbidden, and the surface of the car body can be wiped with a
semi-dry cloth.
Do not touch the charging hole on the bicycle, or touch it with metal, otherwise, it
may cause an accident due to an instantaneous short circuit of the current.
Check all cables and cable housings for fraying, breaks, rust, or corrosion and replace
if necessary.
Check the motor and brake frequently, and do not fill the brake area with oil.
Additionally, check the brake pads for any damage as they will be worn over time
and eventually need replacement.
Regularly check the various screws of the car and the places that need to be fastened,
and regularly reinforce to prevent injury and unnecessary wear and tear on your
e-bike.
Recommended torque (unit: kgf.cm): the horizontal screw 60-80, the stem screw 175-
200, the seat cushion screw 175-250, the wheel screw 320-450.
Regularly check the tension of the chain, which can be adjusted by the chain regulator.
Always check the tire for scratches, cracks, or excessive wear. The inner tube and
the valve should be perpendicular to the wheel hub and not crooked. Accidentally
punctured, damaged or excessively worn inner and outer tires need to be replaced
immediately, please seek professional technicians to repair or replace your tires.
It is forbidden to modify key structural parts such as the frame, front fork, standpipe,
and electrical function parts. If damaged, use the original parts to replace it.
Otherwise, the guarantee service will not be provided. Any loss or damage caused by
the modification shall be solely responsible
Ɣ
Ɣ
Ɣ
Ɣ
Ɣ
Ɣ
Ɣ
Ɣ
Ɣ
Ɣ
Ɣ
