superbrightleds HLV4 Series User manual

LED Headlight Kit
Important: Read all instructions prior to installation.
User Manual
LED Headlight Kit
HLV4 Series
User Manual
Rev Date: V2 10/24/2018Rev Date: V2 10/24/2018
Warranty Agreement
x-HLV4
WATER-RESISTANT
65IP
Lifetime Warranty is to the original purchaser. The warranty is for
repair or replacement of parts and covers manufacturing faults
only. Labor costs are not covered by warranty. Warranty does
not cover parts that fail due to physical damage or damage from
improper operation or electrical connection. Repair or replacement
as provided under this warranty is the exclusive remedy to
the customer. Manufacturer is not liable for any incidental or
consequential damages related to any breach of this warranty.
Beam Pattern adjustment for H13
These bulb numbers may require bulb body to be rotated in relation to
mounting ange to achieve desired beam pattern. Follow steps below
to adjust. Bulb cannot be adjusted while installed in headlight housing.
To adjust, use a hex key to remove screw on locking ring.
Rotate bulb in ring to desired position and reinstall screw.

x-HLV4
User Manual
Installation Instructions (continued)
Installation Instructions
LED Headlight Kit
Important: Read all instructions prior to installation.
Rev Date: V2 10/24/2018
Safety and Notes
H4/H7*
9004/9007
880/881/9005/9006/H8/H11/H13/H16JP/P13/PSX24/PSX26
H1

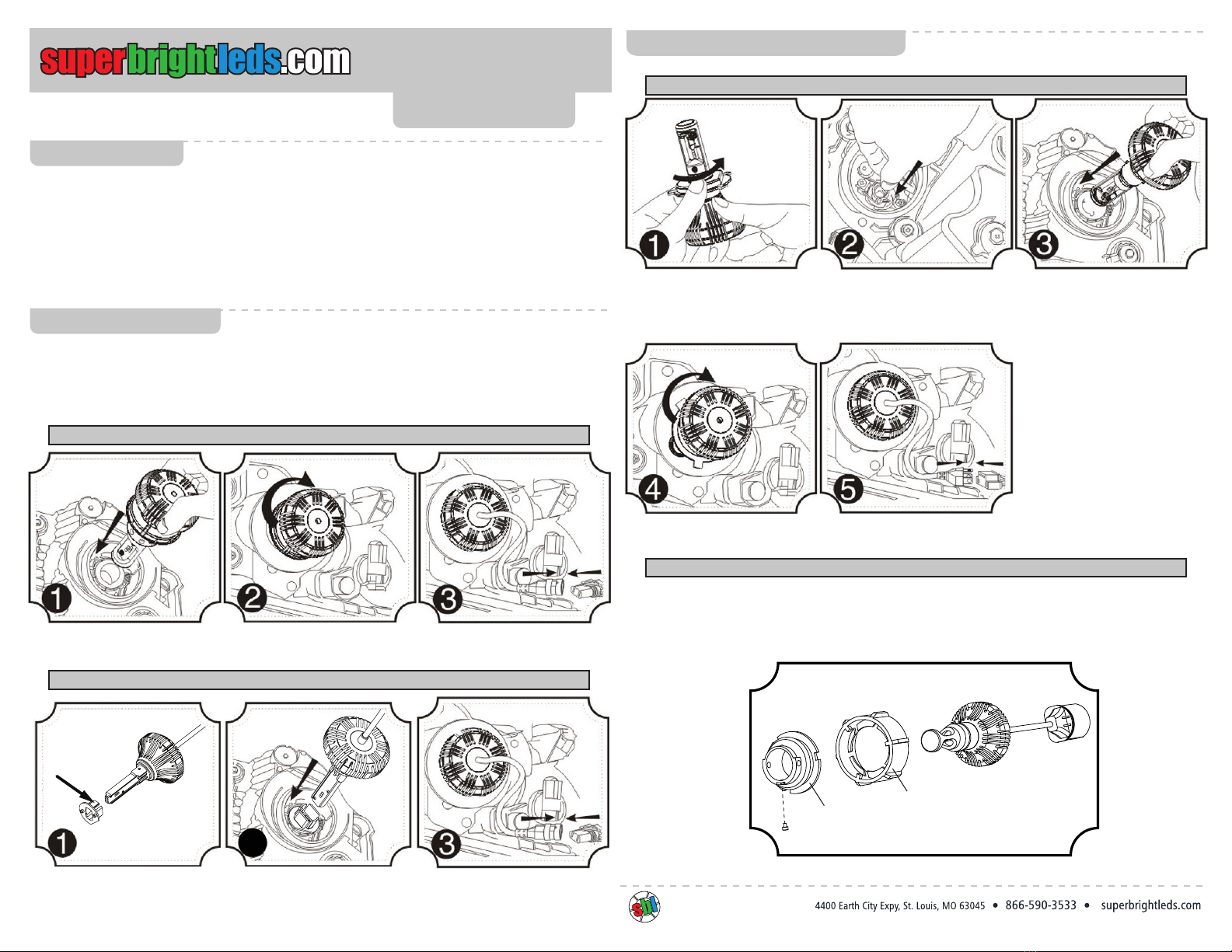

1. Turn mounting ange
counterclockwise to release
bayonet-style connection and
remove ange.
4. Gently rotate light clockwise
until locked in place.
1. Insert light into housing.
1. Remove mounting
ange by gently prying out
on both retaining tabs.
2. Install mounting ange
into headlight housing.
5. Connect light to vehicle
wiring harness.
*H7 bulbs may require an
additional adapter/retainer
on some Buick, BMW,
Ford, Kia, Mercedes,
Nissan, and VW/Audi
models. Check your
vehicle before ordering.
1. Remove hex key screw holding mounting ange to bulb, then slide ange o󰀨 of bulb.
2. Align three ears on original retainer with three notches on ange and slide.
3. Re-insert bulb into ange then reinstall hex key screw.
4. Install bulb into headlight housing and rotate to adjust beam angle. Lock retainer in
place when desired angle is achieved.
*Note: Some Ford models may require the retainer to be trimmed to clear heat sink on bulb.
Flange
Retainer*
(not included)
2. Rotate clockwise to lock
in place.
2. Install mounting ange into
headlight housing, then install
light into ange.
3. Line up and install light into
mounting ange.
3. Connect light to vehicle
wiring harness.
3. Connect light to vehicle
wiring harness.
Begin by removing factory light. Due to di󰀨erence in physical size, existing rear dust cover will
need to be modied or discarded where applicable.
Note: Headlight images below may dier from actual part you receive. Wiring has been removed
in some instances for clarity, but does not detach from bulb assembly.
• Product should be installed by a qualied technician.
• Ensure adequate ventilation—good heat dissipation prolongs product life.
• Power source must be 9–32 VDC.
• Ensure all wire connections are correctly made before applying power.
• If a fault occurs, contact Super Bright LEDs. Do not attempt to repair product yourself.
• Beam pattern is only adjustable through vehicle’s existing aim adjustment mechanisms.
• Images shown are for illustration purposes and may not directly represent all models.
2
