Sonata Mirror, Auto-dim w/
HL4, BL, & Comp
~ Accessory Installation
( B )
2015 ~
FMVSS 110
Compliance
Information
Part Number:
C2062 ADU00
C2062 ADUP0
1.31 lbs
0.593 kg
(Gross Weight)
All dealers must determine if
the weight they have added
in the form of all options or
accessories, when added to
the weight of all Port/Dealer
Installed options or acces-
sories, exceeds the lesser
of 1.5% of GVWR or 100
lbs. If the additional weight
does exceed the lesser of
the indicated thresholds,
a “Load Carrying Capacity
Reduced” label must be
installed. A black ne point,
indelible marker must be
used to write by hand onto
the label, the reduced car-
rying capacity in kilograms
or pounds, which is the total
weight of all added options
and accessories.
Load Label Part Number:
NP070 - 09003
C2062 ADU00/P0
*550-0624-000*
550-0624 Rev. AAA
Thisproductisonlyapplicabletovehiclesequippedwith Blue Link.

Page: 2 of 9
Revision Date
03/03/2014
HYUNDAI Genuine Accessories
1
2
No. Qty. Description No. Qty. Description

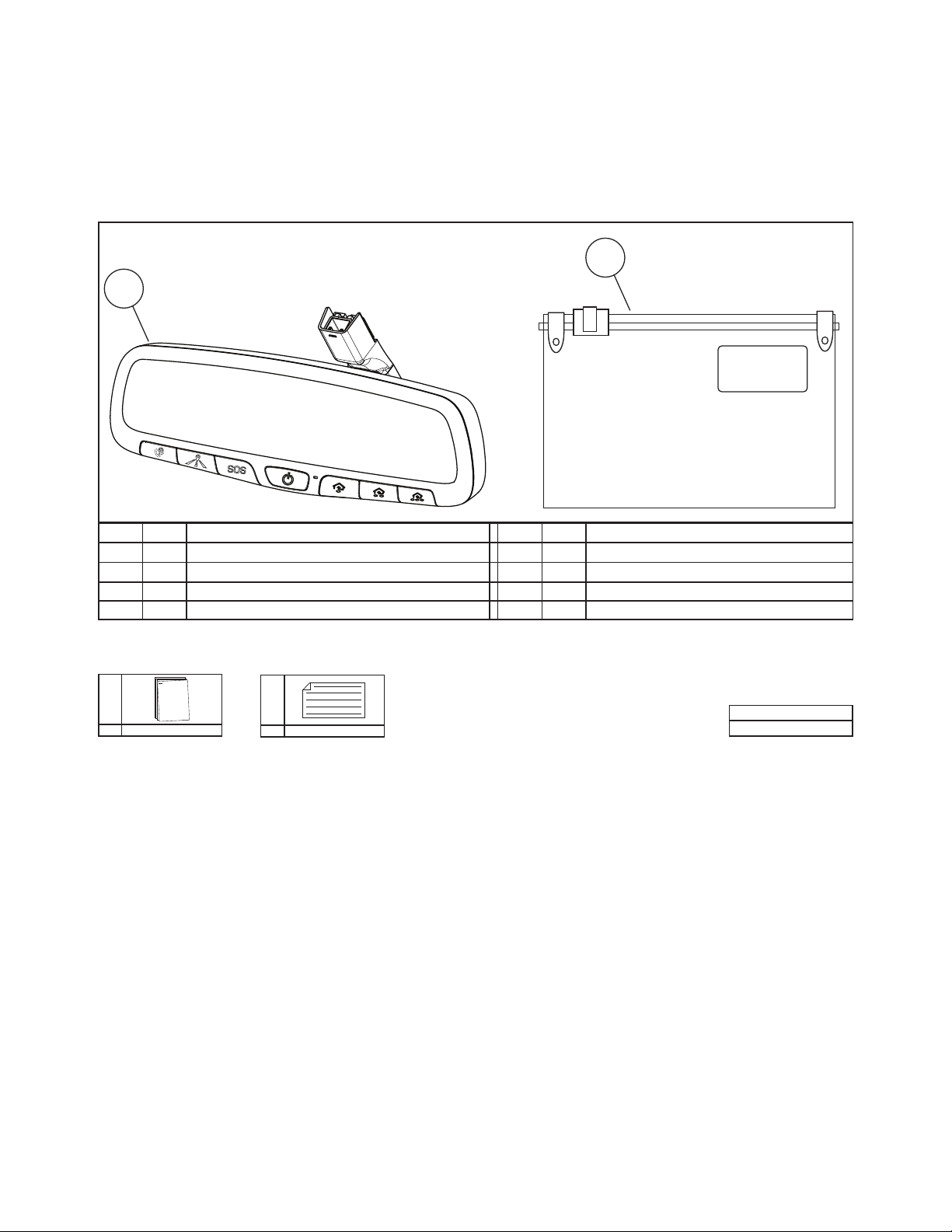

11Auto-dimming Mirror w/ Blue Link, Compass, & HomeLink
2 1 Hardware Kit
HardwareKitReview
A
1Installation Instructions
Hardware Kit Total
2
B
1Quick Reference Guide

Page: 3 of 9
Revision Date
03/03/2014

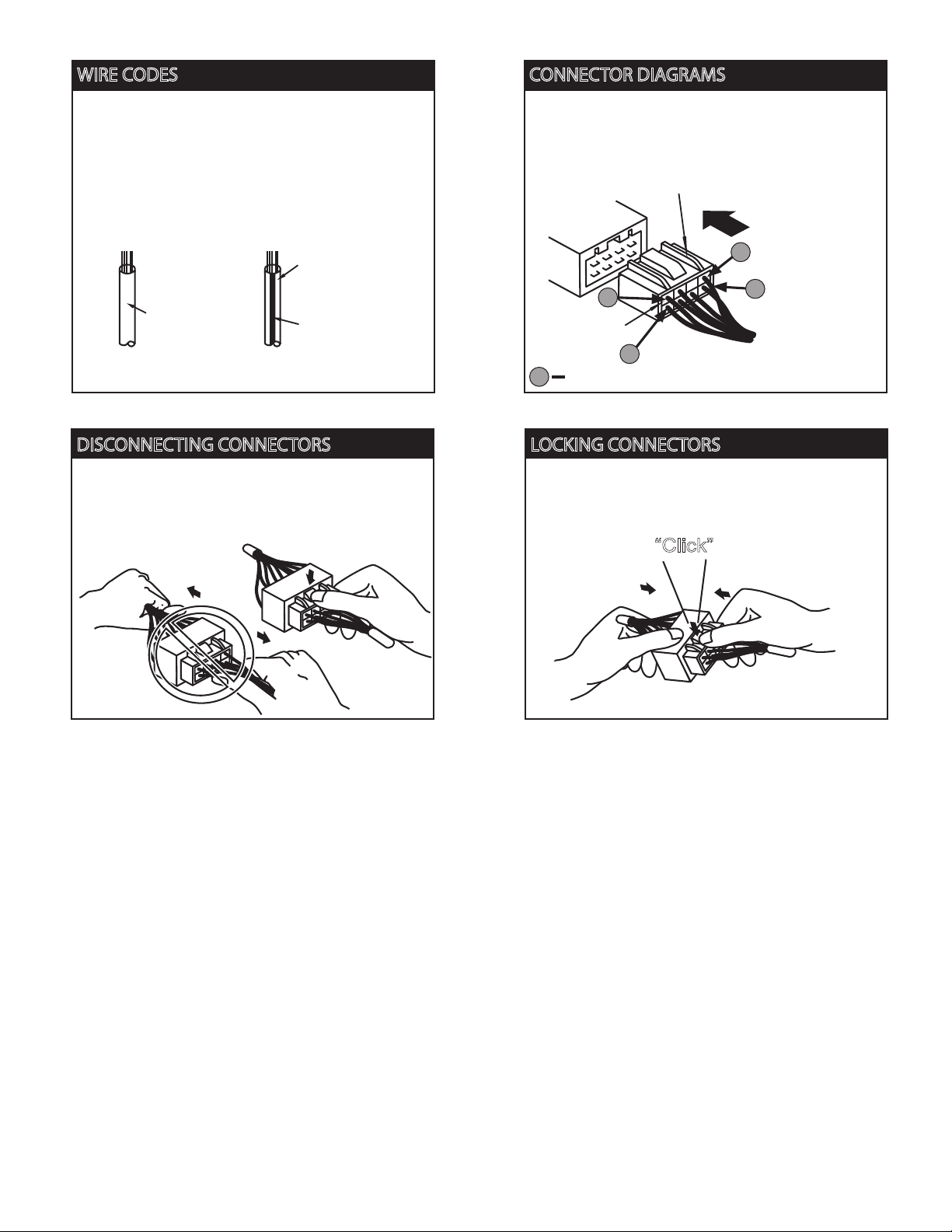

WIRE CODES
Wires are either solid color or striped wires. The
first color in the description indicates the base
color of the wire, the second indicates the color
of the stripe (or tracer).
Example:
Solid Color Wire
Black
White
(Base Color)
Red
(Stripe Color)
CONNECTOR DIAGRAMS
Connector diagrams show the harness side
view. The pin numbers are from the
harness side view.
Example:
View from
harness side
DISCONNECTING CONNECTORS
When disconnecting the wires, grasp the
connectors, not the wires.
Example:
CORRECT
INCORRECT
“Click”
LOCKING CONNECTORS
When locking connectors, listen for a click,
indicating they are securely locked.
Example:
Black wire White w/ Red Tracer wire
Striped Wire
Connector on Harness Side
Pin #1
Pin Locations (For Reference Only)
1
5
8
4

Page: 4 of 9
Revision Date
03/03/2014

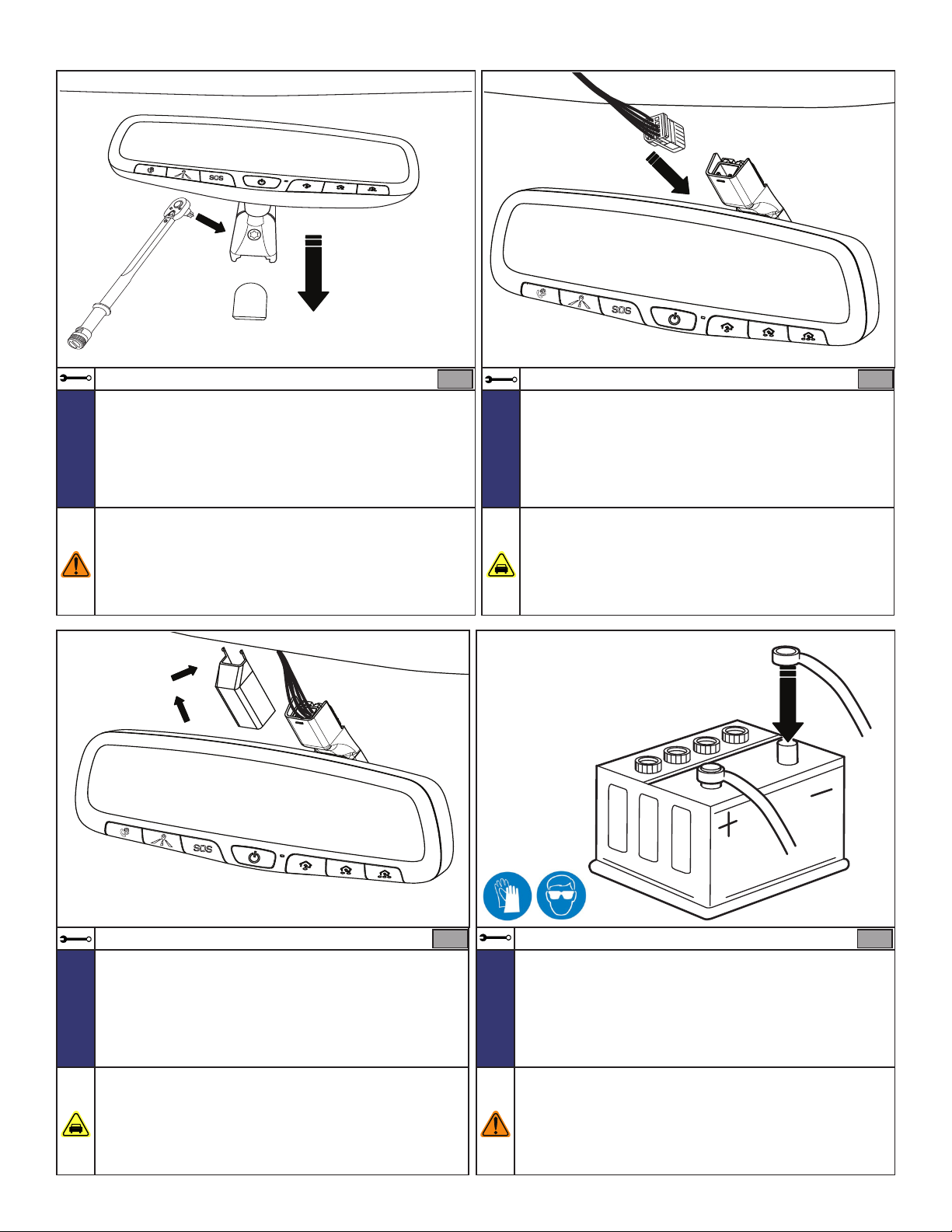

1. Unplug OEM wire harness from OEM mirror.
Caution:Donotdamageheadlinerorconnectors.
HYUNDAI Genuine Accessories
Ratchet & 10mm Socket
1. Ensure the correct part is being installed. Verify part number on the
order request with the part number on the kit box label.
2. Record all pre-set radio stations (if applicable).
3. Disconnect and isolate vehicle’s negative battery terminal.
WARNING:ShockHazard.Donottouchvehicle’snegativebatteryterminal
tovehicle’spositivebatteryterminal.Seriousinjuryanddamagetothe
vehiclemayoccur.
1. Slide upper portion of wire cover down from underneath headliner and pull out
towards rear of vehicle to remove from mount.
2.Saveupperportionofwirecoverforreinstallationofnewmirror.
Caution:Donotdamageheadlinerorwirecover.
T20 Torx Driver
1. Loosen screw on mirror mount with a T20 Torx driver.
2. Gently slide mirror upwards in a parallel direction to the windshield. DO NOT
pull away from windshield.
Caution:Ensurecareistakentopreventdamagetomirrormount,wind-
shield,andheadliner.
1 2
3 4
N
O
T
E
N
O
T
E
N
O
T
E
N
O
T
E

Page: 5 of 9
Revision Date
03/03/2014
HYUNDAI Genuine Accessories
T20 Torx Socket & Torque Wrench

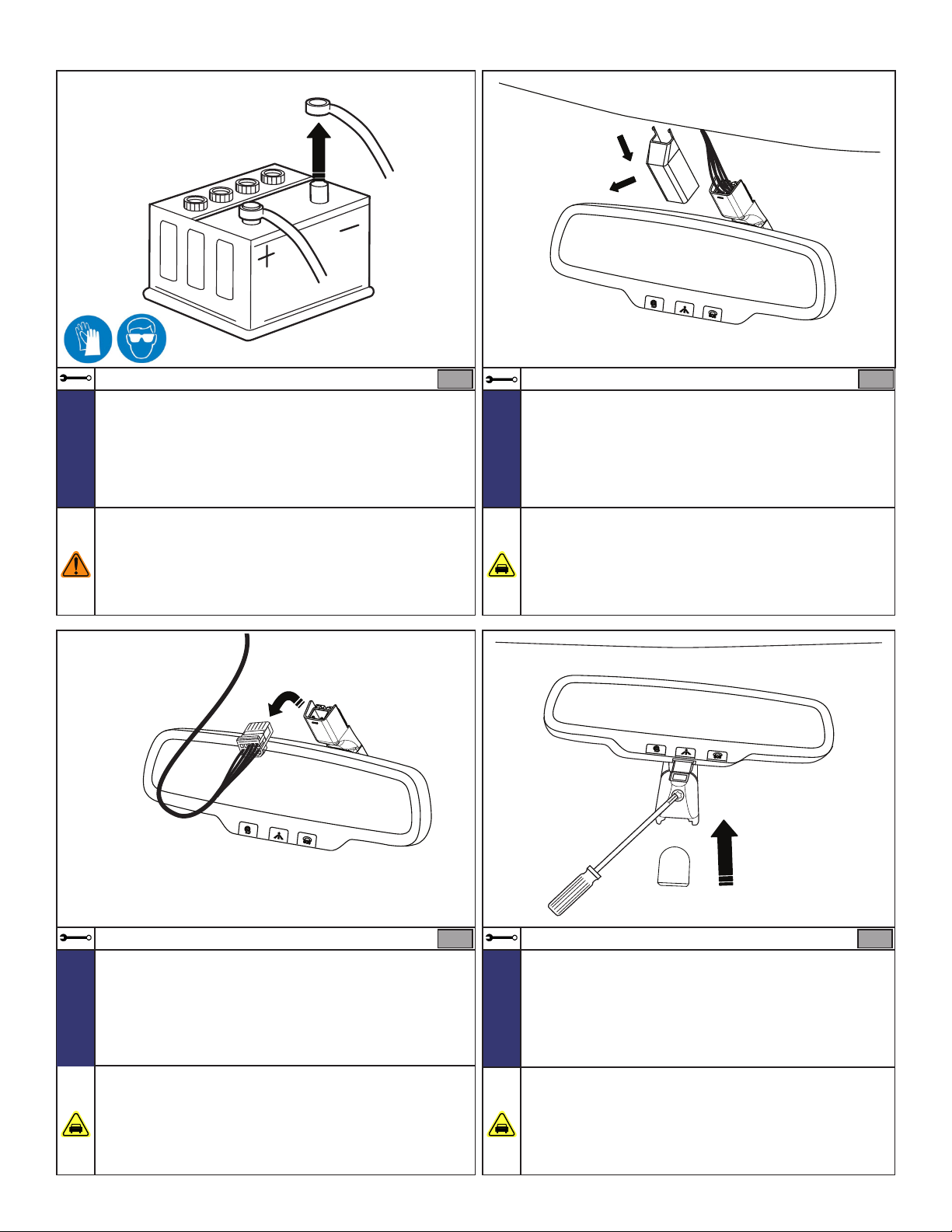

1. Slide auto-dimming mirror onto windshield button
2. Tighten using T20 Torx Socket and Torque Wrench to 1.76 N-m (0.18 kgf-m,
15.6 lb-in)
WARNING:Donotovertightenscrew.Tightenthemirrormountingbracket
screwto1.76N-m(0.18kgf-m,15.6lb-in).Overtighteningthescrewwon’t
properlysecurethemirrorandcouldcausethemirrortobreaklooseand
injurethevehicle’soccupants.
1. Snap the upper portion of the wire cover onto lower wire cover of the mirror.
2. Slide the upper cover up until forks extend fully into headliner, while making
sure cover is vertical.
Caution:Ensureupperportionofcoverisproperlyseatedontolowercover
onmirrorandthatthe“forks”areproperlyseatedunderheadliner.Ensure
thecoverisverticalwithoutinterferencefromharness.
1. Insert factory connector into mirror.
Caution:Ensurefactoryconnectorisfullyseatedintomirror.
Rachet and 10mm Socket
1. Reconnect vehicle’s negative battery terminal using a ratchet and 10mm
socket.
2. Program radio pre-sets recorded in step 1 (if applicable).
WARNING:ShockHazard.Donottouchvehicle’snegativebatteryterminal
tovehicle’spositivebatteryterminal.Seriousinjuryanddamagetothe
vehiclemayoccur.
5
7
6
8
N
O
T
E
N
O
T
E
N
O
T
E
N
O
T
E

Page: 6 of 9
Revision Date
03/03/2014

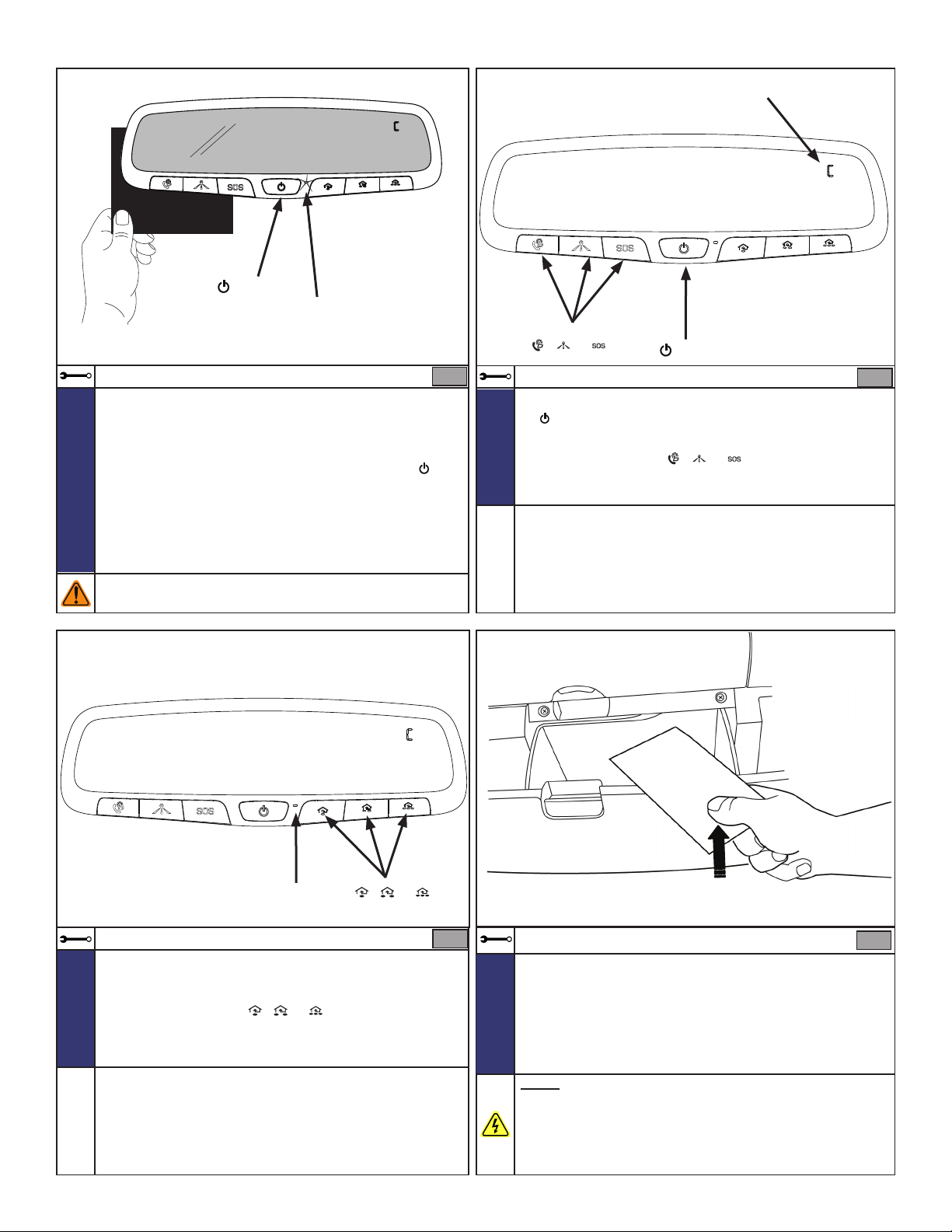

1. Place Quick Reference Guide in vehicle glove box.
2. Remove ngerprints, smudges, etc. from mirror and windshield.
DO NOTsprayglasscleanerorothercleaningliquiddirectlyontothemirror
asitmaydamagetheelectronics.
1. Verify that either a direction, such as NE, or “C” is displayed in the display
window. If not, ensure the compass feature is turned on by pressing the
“ ” button.
2. Ensure that the radio is ON.
3. Press each Blue Link button (“ ,” “ ,” & “ ”), one at a time. The appropri-
ate Blue Link message will play once a button is pressed. Cancel the call and
continue for each button.
1. Turn the ignition to the “OFF” position.
2. Ensure that the Compass display is no longer visible and the Green LED is no
longer on.
3. Push each HomeLink button (“ ,” “ ,” & “ ”), one at a time, and verify that
the LED indicator to the right of the center button illuminates with a RED LED
when buttons are pressed.
4. Testing is now complete.
2
34
N
O
T
E
N
O
T
E
N
O
T
E
CompassDisplay
“ ”Button
Blue Link Buttons
(“ ,” “ ,” & “ ”)
Indicator LED
- Red
HomeLinkButtons
(“ ,” “ ,” & “ ”)
HYUNDAI Genuine Accessories
Function Check
1. Cover the forward looking photocell on the back of the mirror with a dark cloth
or towel.
2. Turn the ignition to the “ON” position, making sure NOT to
start the engine.
3. To make sure the auto-dimming feature is on, verify that the GREEN LED to
the right of the center button is on. If it is not on, push and hold the “ ” but-
ton for 3 seconds to turn the GREEN LED on.
4. At this time, the mirror will begin to darken.
5. With the mirror covered, press the brake pedal and place the shift lever into
the reverse position. The mirror should begin to clear.
6. Shift the vehicle into the park position and remove the cloth from the forward
looking photo cell.
WARNING:DoNOTaccidentlystartthevehiclewhenperformingthis
function check.
1
N
O
T
E
Indicator LED -
Green
“ ”Button

Page: 7 of 9
Revision Date
03/03/2014

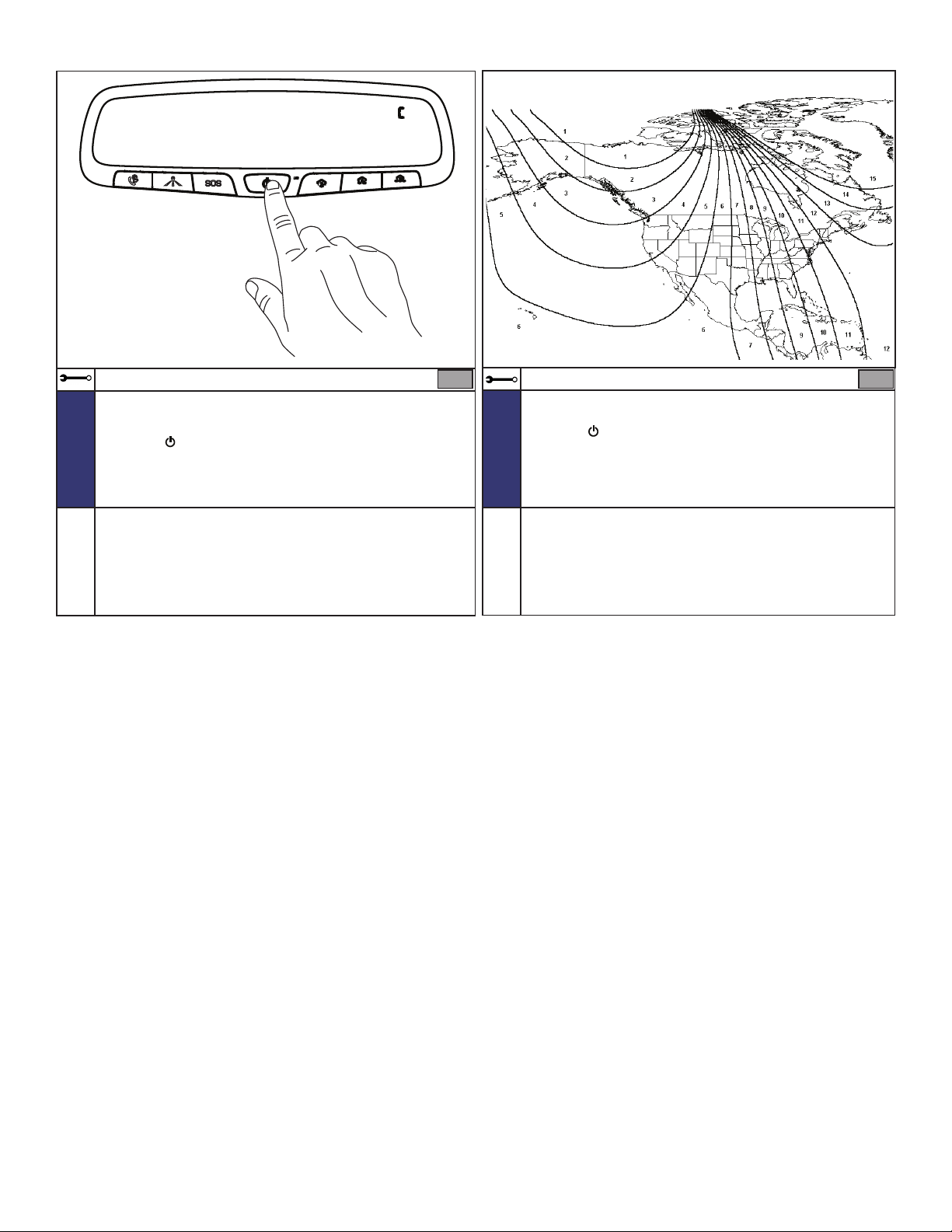

1. Find your current location and variance Zone Number on the zone map,
shown above.
2. Press the “ ” button until the new desired Zone Number appears in the
display. Within a few seconds a compass direction will be displayed and the
new zone is set.
3. Conrm compass direction.
HYUNDAI Genuine Accessories
Calibration(DEALERINSTALLONLY)
1. If the display reads “C,” the compass feature must be calibrated. To calibrate
the compass, drive the vehicle in up to 3 complete circles at less than 5 mph.
2. To adjust for compass variance:
Press the “ ” button for more than 9 seconds, or until the current Zone Num-
ber appears in the display.
1 2
N
O
T
E
N
O
T
E

Page: 8 of 9
Revision Date
03/03/2014
Hyundai Genuine Accessories
Visual Check
ItemstoBeChecked Results Of The Check
Negative Battery Terminal Tightened
Battery cable is correctly fastened to the negative terminal.
WARNING:ShockHazard.Donottouchvehicle’snegativebatteryterminalto
vehicle’spositivebatteryterminal.Seriousinjuryanddamagetothevehicle
mayoccur.
Torx Screw Torx screw is tightened to 1.76 N-m (0.18 Kgf-m, 15.6 lb-in).
Harness
Factory mirror harness connector is securely fastened.
Wire Cover
Ensure upper portion of cover is properly seated onto lower cover
on mirror and that the “forks” are properly seated under headliner.
Ensure cover is vertical without interference from harness.
Blue Link The appropriate Blue Link message will play once a button is
pressed.
Auto-Dimming
Mirror dims with ignition in the “ON” position when the forward
looking photocell is covered. Mirror is clear and does NOT dim with
ignition in the “OFF” position.
Compass Display Compass display reads either “C” or a directional heading with igni-
tion in the “ON” position only and NOT in the “OFF” position.
HomeLink Red LED illuminates when each button is pushed with ignition in
both the “OFF” and “ON” positions.

Page: 9 of 9
Revision Date
03/03/2014
Hyundai Genuine Accessories
Troubleshooting

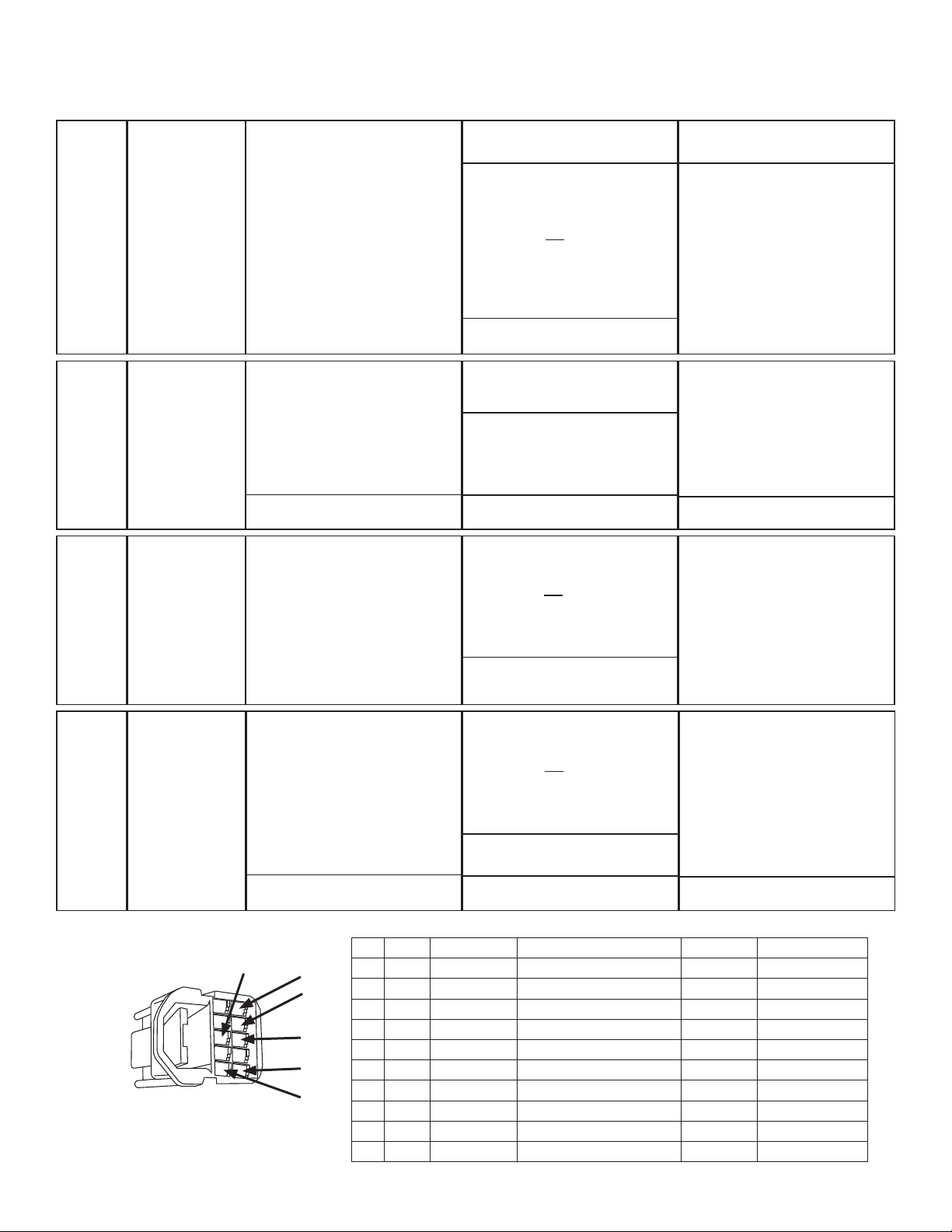

FactoryMirrorHarnesstoAuto-dimmingMirrorCONNECTORPIN-OUT
NO. GAGE COLOR FUNCTION CIRCUIT FUSE
1
2
3 22 LAV Blue Link - Key Out (-)
4
5 22 PNK Blue Link - Key In (+)
6 22 ORG IGNITION (Switched +12 Volts)
7 22 LAV Reverse Inhibit
8 22 BLK GROUND
9
10 22 GRN BATTERY (Constant +12 Volts)
5
8
10
6
7
3
EnsureTransportFuseisON/Installed
Blue Link No audio or visual message from
audio/navigation unit
Check for 12 Volts at T-tap in pin
#10 of factory harness.
Check vehicle grounds (refer to
ETM)
Replace unit
If all checks are OK, replace unit
Press each button
independently
If all checks are OK, replace unit
If all checks are OK, replace unit
If original unit does not operate,
repair vehicle
If all checks are OK, replace unit
Compass
HomeLink
Auto-
Dimming
Press each button
independently
Press Power
Button
Press and Hold
the Power
Button for 3
seconds
Compass display does not illuminate
Green LED does not illuminate
Green LED illuminates, but mirror
does not darken
Red LED does not illuminate after
any button is pressed
Red LED illuminates only for one or
two buttons pressed
With Ignition ON, check for 12 Volts
in pin #6 of factory harness.
Check vehicle grounds (refer to
ETM)
Reinstall original unit and check
operation
With Ignition ON,check for 12 Volts
in pin #6 of factory harness.
Check vehicle grounds (refer to
ETM)
With Ignition ON, check for 12 Volts
in pin #6 of factory harness.
Check vehicle grounds (refer to
ETM)
Replace Unit
