SuperCloset SUPERLOCKER User manual

INSTRUCTION MANUAL
SUPERLOCKER
SMART GROW CABINET
LED

WELCOME TO THE FAMILY
SUPERCLONER
CARBON AIR FILTER
GROW LIGHT
HYDROMETER
INTERNAL
CIRCULATION
FAN
T5 SIDE LIGHTS
GROWING
SYSTEM
(HYDROPONIC OR SOIL)
Congratulations, and thank you for choosing SuperCloset.
You now have the world's best grow cabinet.
These instructions will guide you through the process of
setting up your SuperLocker. Please read through the entire
instruction manual before you begin, including any and all
instructions that come with the individual components.
Lets take a look at the layout and components of your SuperCloset.

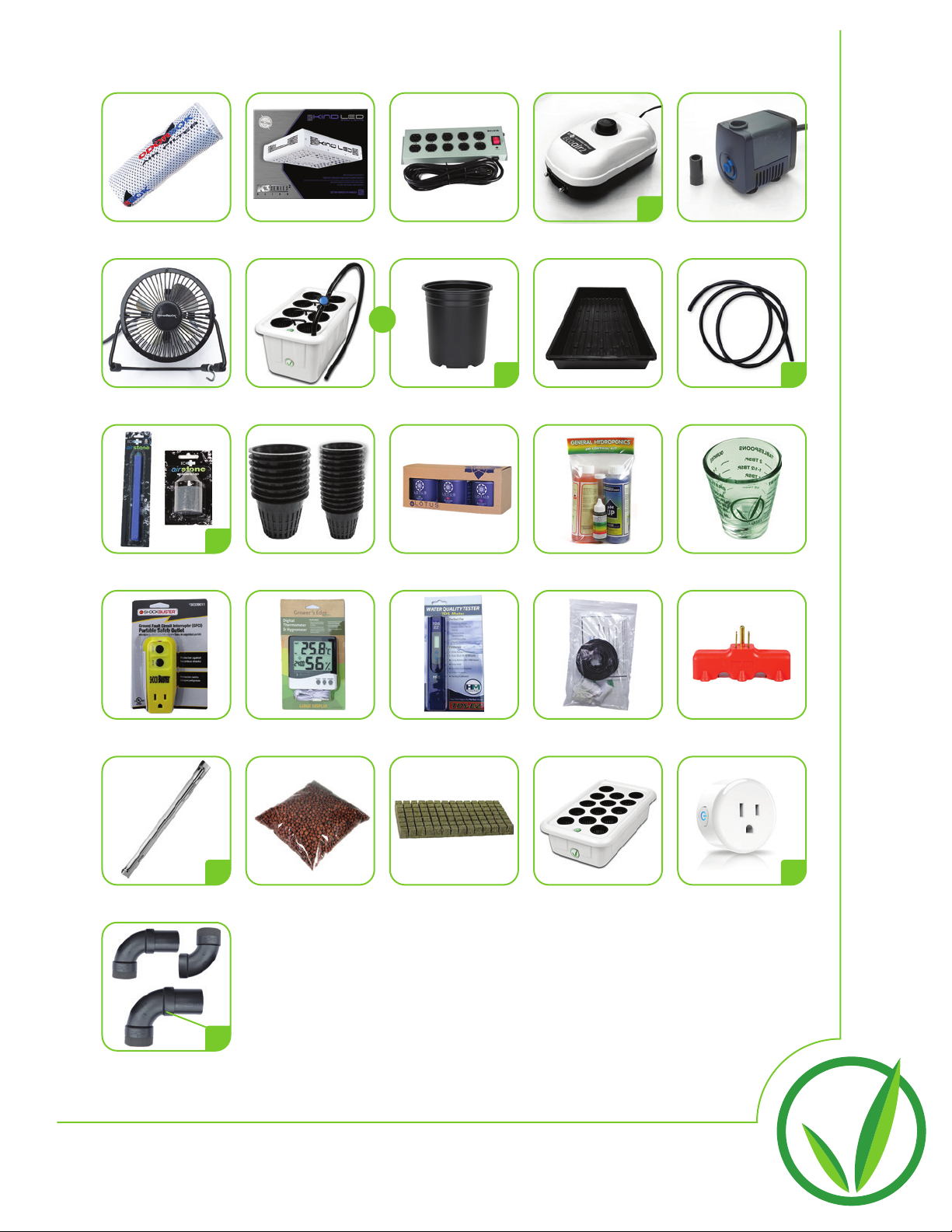

COMPONENTS
CARBON AIR FILTER KIND LED LIGHT POWER STRIP AIR PUMP WATER PUMP
INTERNAL CIRCULATION FAN SUPERPONICS 8 SOIL POTS SOIL POT TRAY 1/4” AIR PUMP TUBING
AIR STONES 3” & 2” NET CUPS LOTUS NUTRIENTS STARTER KIT Ph TESTING KIT SHOT MEASURING GLASS
GFCI THERMOMETER/
HYDROMETER TDS METER NET TRELLIS, HOOKS, TIES 3-1 ADAPTER
T5 LIGHT
2” ELBOW W/ EXTENSION
1½” ELBOW W/ EXTENSION
1½” ELBOW
CLAY ROCKS 1” GROW PLUGS SUPERCLONER 14 SMART PLUG
OR
X2X2
X2
X2
X3
X3
X2

GETTING READY
1
2
3
Carefully unbox your SuperCloset and remove all
contents from inside the cabinet.
Unpack the contents of the cabinet, as well as any
components packaged inside the cabinet reservoir.
Reference your Quality Assurance Checklist and
verify that you have all of the needed components
for your system.
Let’s start with unpacking the SuperCloset...
Prior to setup, make sure you have all of the necessary components by cross
referencing with the QAC (Quality Assurance Checklist). Take this time to
familiarize yourself with each of the components.

If you have any questions during the setup process, please call a SuperCloset representative at 1.877.476.9787
1. Make sure the cabinet is in its final location, as it will be more difficult to move
when fully assembled. We will not be plugging in any of the components just
yet. Let’s get everything in place first.
2. Your cabinet comes with 5 Black Plastic Elbows (image a). You will have 3 2”
Elbows with Foam Tape affixed to one side, and two 1.5” Elbows with Foam
Tape.
3. Locate your Power Strip (image c). Locate the two screws on the center rear of
the cabinet. Your power strip has holes on it that fit on these screws for
mounting (image d).
4. Locate and unpack the bubble wrapped T5 Light Strip located in your package.
The T5 comes equipped with magnetic backing and is mounted to the
underside ceiling of the cloning chamber (upper chamber) in this manner
(image e).
Once attached, run the T5 power cord through the nearest elbow ofthe back of
the cabinet.
The exterior Elbows will allow you to run your cords out of your
cabinet with minimal light leaks and allow for fresh air flow into
your cabinet. The interior Elbow will facilitate airflow between
the Cloning Chamber and the Veggie/Flower Chamber.
a. Insert the foam side of the three 2” Elbows into large holes
located at the bottom corners and middle, in rear of the cabinet.
b. Insert the 1.5” Elbow with extension into the top hole in the rear
of the cabinet.
c. Insert the 1.5” Elbow into the top hole located in the interior of
the cabinet (image b).
We are now ready to set up the SuperCloset
Use masking tape and a marker to label the power cords of your
components at the plug to help identify your components later in
the assembly.
SUPER GROW TIP:
NOTE:
a
b
c
d
e
X3

If you have any questions during the setup process, please call a SuperCloset representative at 1.877.476.9787
5. Locate the power cord for the Carbon Filter and thread that cord
through the same opening as the power cord for the light.
6. Locate the Internal Circulation Fan (image a). Note the “S” hook connected
to the base of the fan. This hook will fit into the notches located on the
backside of the inner door frame (image b). Mount the fan on one of the
lower notches. As your plants grow taller, move the fan to the upper
notches. Ideally the fan will blow air across the top of the plants. Thread the
power cord through the upper hole found on the lower interior of the cabinet
(same as the Light power cord).
7. Locate the Thermometer/Hydrometer (image c). You will need to remove the
battery cover and remove the plastic safety blocker from the battery terminal.
8. Use the included Velcro Strips to affix your Thermometer/Hydrometer to the
inside of your cabinet. The best placement for this is towards the top of the
cabinet, either on the side or back wall.
9. Run the external probe to the outside of the cabinet, through one of the
openings in the bottom of the cabinet used for the power cords (image d).
Make sure the probe is not touching any surface on the out side of the
cabinet as this will give you false readings. This will read the outside (”out”)
temperature while the digital readout module will measure the inside
temperature and humidity.
Setting up the SuperCloset a
b
c
d

If you have any questions during the setup process, please call a SuperCloset representative at 1.877.476.9787
1. Unpack KIND LED Grow Light (image a).
2. Locate your Hanging Hardware Kit. Using the four (4) shorter lengths of
cable and the (4) small carabiners, (image b) connect one cable assembly
to each of the brass hangers on the light (image c).
We have set the light on a convenient Yo-Yo system so the height can be
adjusted as your plants grow. To lower the light, simply press the button
located on the side of the Yo-Yo and adjust to the desired height. To raise
the light pull upward on the end of the Yo-Yo cord.
4. Place the Kind LED Light in the bottom of the cabinet. Lower the Yo-Yo
system until you can connect the other ends of the cable assemblies to the
Yo-Yo carabiners (image d). Raise the light to the desired height.
5. Run the power cord from the LED light through the nearest Elbow opening
to the back of the cabinet.
Hanging your LED Light
1. Locate and unpack the remaining T5 Light Strips in your package. Attach
the power cord and affix one T5 to each side of your cabinet, via the
magnetic backing, in the main growing chamber (image e). Run cords
through the nearest Elbow opening.
Installing your T5 Side Lights
a
b
c
d
e

If you have any questions during the setup process, please call a SuperCloset representative at 1.877.476.9787
1. Locate your SuperCloner14 (image a). Remove lid, and set aside. Remove
all contents, including the Air Pump, the blue 8” Air Stones, and fourteen
Net Cups.
2. Unwrap the Air Stones and lay them down inside of the SuperCloner
(image b).
3. Locate your Air Pump (image c) and place it next to the SuperCloner.
THIS PUMP SHOULD NEVER BE PLACED IN WATER!
4. Locate and attach the two black tubes (image d) to the metal nodes on the
front of the Air Pump. Run the other end of the black tubing through the
channels located on the rim of the reservoir (image e).
5. Connect the other end of the black tubing to the Air Stones. Once these
two pieces are connected, ensure the Air Stones remain flat on the floor of
the reservoir.
6. Turn the black dial on top of your Air Pump clockwise until it stops.
Replace the lid of the SuperCloner and position in the Cloning Chamber
along with the Air Pump into the Locker. Run the Air Pump Power Cord out
of the cabinet through the same Elbow through which you ran the T5 Light
Strip Power Cord. Do not plug in the Air Pump yet.
7. Insert the 2” net cups.
SuperCloner 14 Assembly
NOTE:
a
b
c
d
e

If you have any questions during the setup process, please call a SuperCloset representative at 1.877.476.9787
1. Remove the lid from the SuperPonic 8 system and set it aside for now.
Notice the channels located on the rim of the reservoir (image a). These
channels will be for the placement of your Air Pump Tubing and Water
Pump power cord.

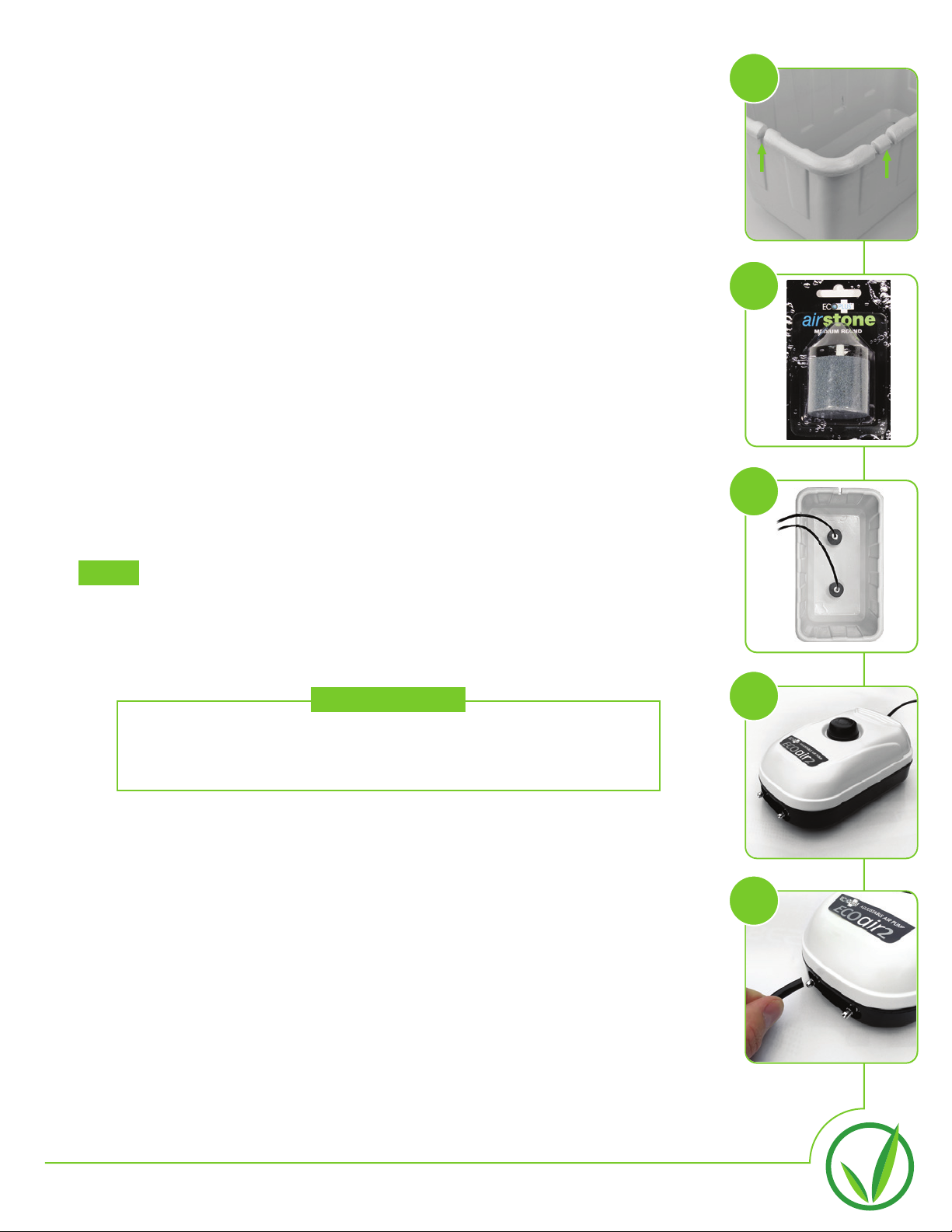

AIR PUMP AND AIR STONES
2. Locate the two gray Air Stones included in your shipment (image b). Place
the Air Stones at the bottom of the SuperPonics reservoir. Note: the
airstones have a male end that will fit in the black Air Pump tubing.
3. Locate the black ¼” Air Pump Tubing and connect to the end of the Air
Stones. Arrange the tubing into the channels located on rim of the
Reservoir (image c).
4. Locate the Air Pump included in your shipment (image d). Connect the
open end of the black tubing from the Air Stones to the metallic outputs
located on the Air Pump.
THIS PUMP SHOULD NEVER BE PLACED IN WATER
SuperPonic 8 System Assembly
Your plant roots need and love oxygen! It is extremely important
to the health of the plants that you keep your Air Pump and Air
Stones running at all times when the system is in use.
SUPER GROW TIP:
NOTE:
a
b
c
d
e

If you have any questions during the setup process, please call a SuperCloset representative at 1.877.476.9787
7. Locate the Water Pump (image a). Attach the supplied 1/2” fitting to the
top of the Water Pump.
8. Place the Water Pump in the SuperPonics® Reservoir near end with the
channel in the rim. Arrange the power cord of the Water Pump into the
channel located on the rim of the Reservoir (image b).
9. Locate the Reservoir Lid and run the short end of the preassembled Ball
Valve and Drain Tube through the hole in the lid and connect it to the
tubing on the underside of the lid (image c).
10. On the under side of the lid, locate the open end of the black tubing.
Attach the end of the tubing to the connector on the top of the Water
Pump. Return the lid to the Reservoir (image d).
11. Now we can place our Net Cups into the openings of the top of the
reservoir. Once in place, arrange the top feed hoses to the center of the
net cups.
12. Notice the length of tubing located on the top side of the reservoir lid
(image e) This is your Reservoir Drainage Tube. By opening the valve
(turning parallel to the tube) and turning the pump on, you can easily drain
your reservoir. See (image e) for open/closed positions.
13. Place the SuperPonics system and Air Pump inside the cabinet with the
Drainage Tube towards the front.
14. Now we can run our Air Pump and Water Pump power cords through the
lower opening in the back of the cabinet.
Read the instructions for the water pump, as they
contain valuable information on how to maintain this
component. THIS PUMP SHOULD NEVER RUN WHEN
NOT FULLY SUBMERGED IN WATER.
SuperPonic 8 System Assembly
NOTE:
Valve should always be in the CLOSED position,
unless you are draining your reservoir.
NOTE:
OPEN CLOSED
a
b
c
d
e

If you have any questions during the setup process, please call a SuperCloset representative at 1.877.476.9787
T5 SIDE LIGHTS KIND LED LIGHT T5 CLONE CHAMBER
CARBON
FILTER FAN
AIR PUMP
#2
WATER PUMP
INTERNAL
CIRCULATION FAN
AIR PUMP
#1

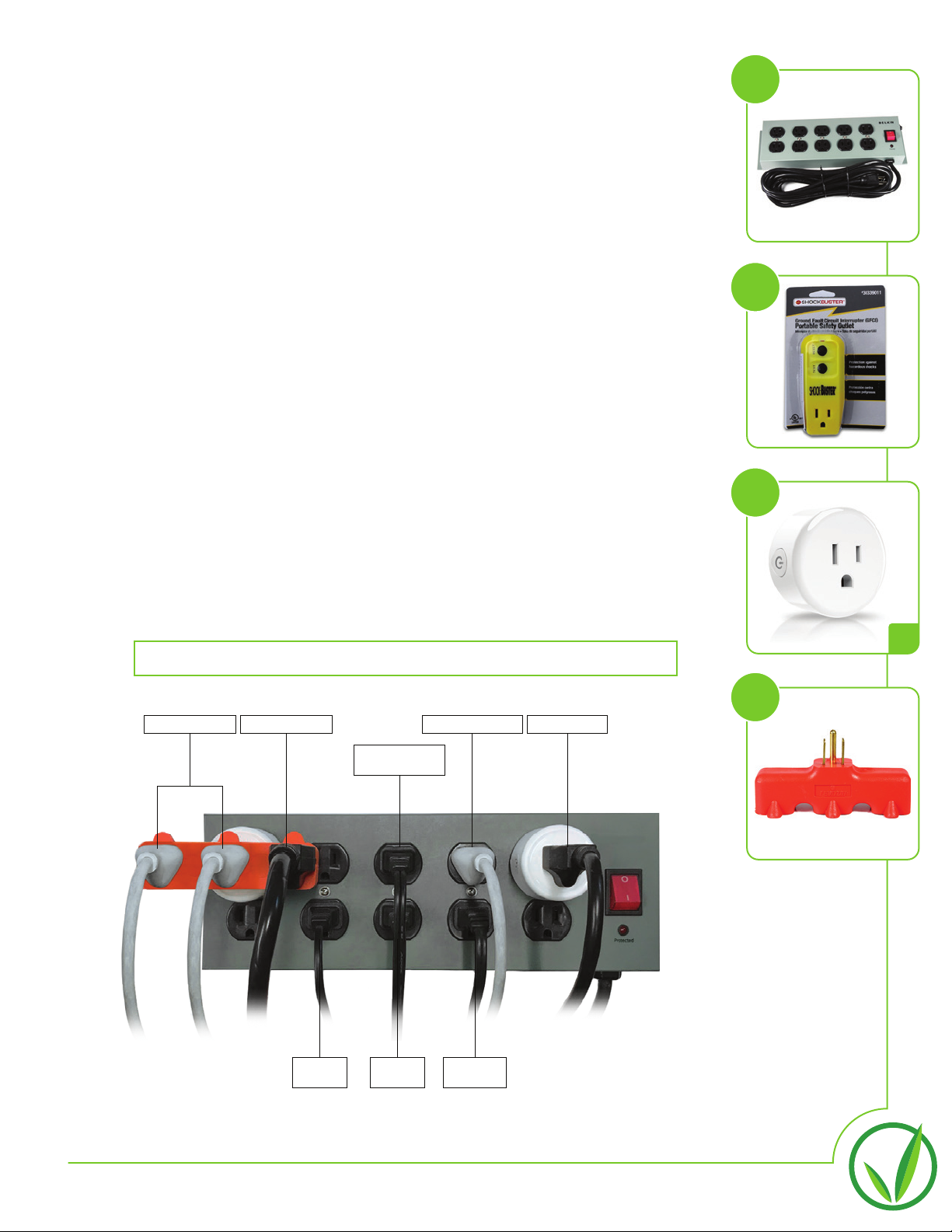

1. Locate the power strip (image a), the GFCI Protector (image b), the two
Single Timers (image c), and the 3-IN-1 adapter (image d).
DO NOT PLUG IN THE POWER STRIP YET.
2. Plug in the following from left to right:
Properly configured Power Strip Should look like this
1) Smart Plug #1
Once the Smart Plug is plugged in, plug in the 3-in-1
Adapter with the following.
- T5 Side Light #1
- T5 Side Light #2
- Kind LED Grow Light
2) Air Pump #1
3) Air Pump #2
4) Internal Circulation Fan
5) Carbon Filter Fan
6) T5 Clone Chamber
7) Smart Plug #2
Once this Smart Plug is plugged in, the Water Pump
can now be plugged into it.
Final Assembly a
b
c
d
X2

If you have any questions during the setup process, please call a SuperCloset representative at 1.877.476.9787
3. At this time, add water to your reservoir. When filled to the appropriate
levels, the SuperCloner reservoir will hold about 1.5-2 gallons of water. The
SuperPonic 8 reservoir will hold about 2-3 gallons.
4. Plug the GFCI Protector (image b) into any 110v wall socket. With the power
strip turned OFF, plug the power strip into the GFCI Protector.
DO NOT POWER UP YOUR CABINET YET!
5. Now that everything is plugged into the power strip, lets verify some import-
ant steps:
6. After verifying all of the above, it’s time to turn on your SuperCloset. Turn the
power strip switch to the ON position, and the system should spring to life
before your very eyes!
1) LED Light is properly hung.
2) Watering System tube is securely fastened to the top of the Water Pump.
3) Both Reservoirs are filled with water and Water Pump is fully submerged.
4) Air Pump is next to (NOT IN!) the reservoir.
5) Light Power Cord and T5 Power Cords are plugged into Smart Plug#1.
6) Water Pump Power Cord is plugged into Smart Plug #2.
7) Power Strip is off and plugged into the GFCI Protector.
Almost Done
Your reservoir should always be filled at least halfway. In the
beginning stages, we recommend maintaining a water level
extremely close (½” - 1”) from the bottom of the net cups, but not
touching (image a). The water should remain at this level until an
evident root structure begins to develop.
SUPER GROW TIP:
NOTE:
EARLY STAGE
MATURE STAGEEARLY STAGE
EVERY 6 HOURS
MIN.
15
EVERY 3-4 HOURS
MIN.
15
WATER PUMP TIMER SUGGESTED SETTINGS
a
b
