SuperCloset SUPERBOX User manual

INSTRUCTION MANUAL
SUPERBOX
SMART GROW CABINET

WELCOME TO THE FAMILY
CARBON AIR FILTER
GROW LIGHT
HYGROMETER
INTERNAL
CIRCULATION
FAN
GROWING
SYSTEM
(HYDROPONIC OR SOIL)
Congratulations, and thank you for choosing SuperCloset.
You now have the world's best grow cabinet.
These instructions will guide you through the process of
setting up your SuperBox. Please read through the entire
instruction manual before you begin, including any and all
instructions that come with the individual components.
Lets take a look at the layout and components of your SuperCloset.

COMPONENTS
2” ELBOW W/ EXTENSION
CARBON AIR FILTER CFL GROW LIGHT POWER STRIP AIR PUMP WATER PUMP
INTERNAL CIRCULATION FAN SUPERPONICS 8 SOIL POTS SOIL POT TRAY 1/4” AIR PUMP TUBING
AIR STONES 3” NET CUPS LOTUS NUTRIENTS STARTER KIT Ph TESTING KIT SHOT MEASURING GLASS
GFCI TDS METER NET TRELLIS, HOOKS, TIES
CLAY ROCKS 1” GROW PLUGS SMART PLUG
OR

GETTING READY
1
2
3
Carefully unbox your SuperCloset and remove all
contents from inside the cabinet.
Unpack the contents of the cabinet, as well as any
components packaged inside the cabinet reservoir.
Reference your Quality Assurance Checklist and
verify that you have all of the needed components
for your system.
Let’s start with unpacking the SuperCloset...
Prior to setup, make sure you have all of the necessary components by cross
referencing with the QAC (Quality Assurance Checklist). Take this time to
familiarize yourself with each of the components.

If you have any questions during the setup process, please call a SuperCloset representative at 1.877.476.9787
1. Make sure the cabinet is in its final location, as it will be more difficult to move
when fully assembled. We will not be plugging in any of the components just
yet. Let’s get everything in place first.

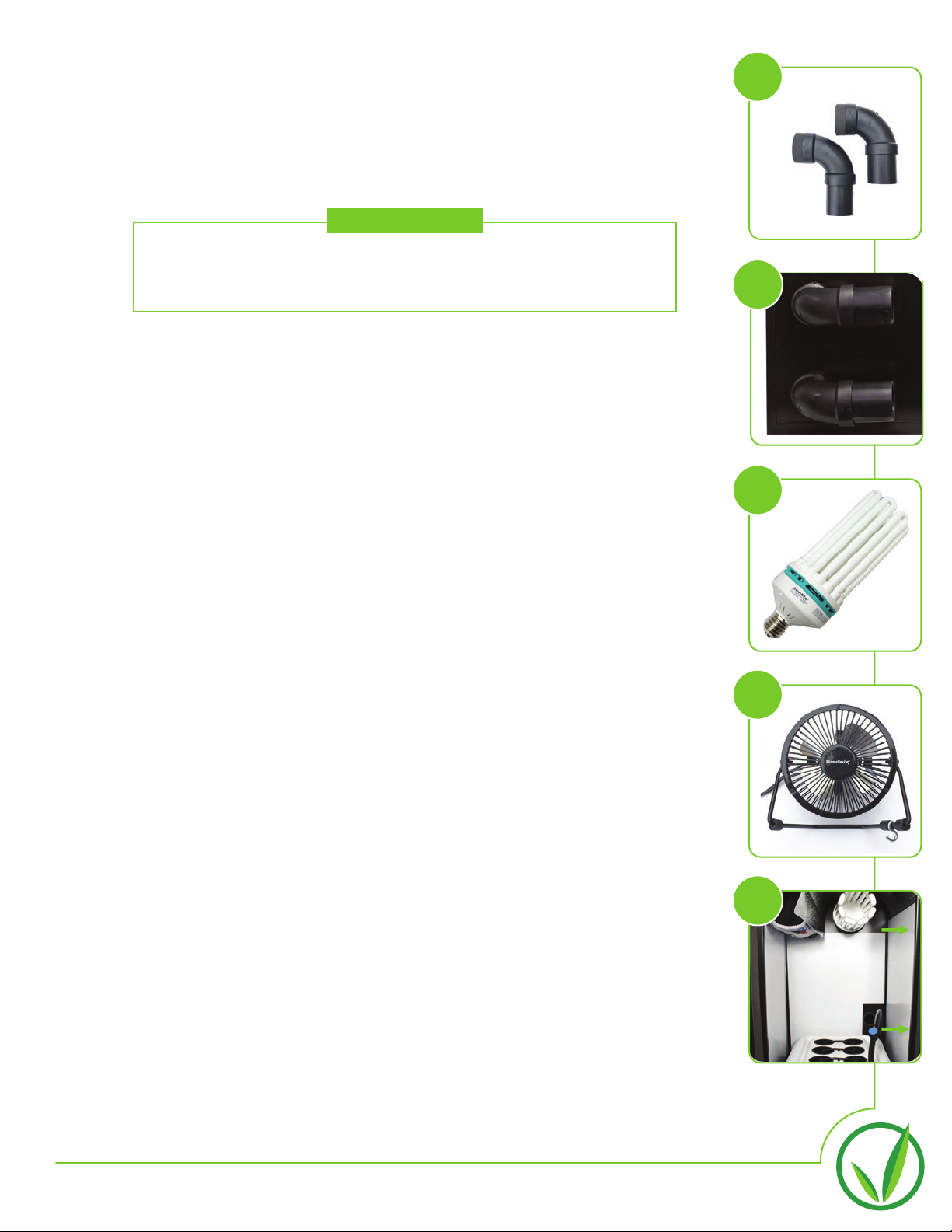

2. Locate the two 2” elbows (image a). From the outside of the cabinet, insert
the end with the foam tape into the 2” hole located on the exterior back of the
cabinet. Repeat this step for the 2nd elbow into the upper hole. Be sure to
adjust the elbows so the openings face towards the center of the cabinet
(image b). This will allow enough slack for the power cords to reach the
power strip.
3. The power cord for the light will be wrapped around the fixture and secured
with a zip tie. Cut the zip tie, being careful not to damage the power cord.
Thread the power cord through the upper hole found on the lower interior of
the cabinet.
4. Locate the power cord for the Carbon Filter and thread the cord through the
same opening as the power cord for the light.
5. Locate the 200 watt Florescent Bulb (image c) and carefully remove it from the
packaging. DO NO TOUCH THE BULB WITH YOUR BARE HANDS. Using a
cloth or rag and two hands, one at the tip of the bulb and one at the base,
carefully screw the bulb securely into the light fixture.
6. Locate the internal circulation fan (image d). Note the “S” hook connected to
the base of the fan. This hook will fit into one of the two provided notches
located on the backside of the inner door frame (image e). Mount the fan on
the lower notch. As your plants grow taller, move the fan to the upper notch.
Ideally the fan will blow air across the top of the plants. Thread the power cord
through the upper hole found on the lower interior of the cabinet (same as the
light power cord).
We are now ready to set up the SuperCloset
Use masking tape and a marker to label the power cords of your
components at the plug to help identify your components later in
the assembly.
SUPER GROW TIP:
a
b
c
d
e
X3

If you have any questions during the setup process, please call a SuperCloset representative at 1.877.476.9787
1. Remove the lid from the SuperPonic 8 system and set it aside for now.
Notice the channels located on the rim of the reservoir (image a). These
channels will be for the placement of your Air Pump Tubing and Water
Pump power cord.
AIR PUMP AND AIR STONES
2. Locate the two gray Air Stones included in your shipment (image b). Place
the Air Stones at the bottom of the SuperPonics reservoir. Note: the
airstones have a male end that will fit in the black Air Pump tubing.
3. Locate the black ¼” Air Pump Tubing and connect to the end of the Air
Stones. Arrange the tubing into the channels located on rim of the
Reservoir (image c).
4. Locate the Air Pump included in your shipment (image d). Connect the
open end of the black tubing from the Air Stones to the metallic outputs
located on the Air Pump.
THIS PUMP SHOULD NEVER BE PLACED IN WATER
SuperPonic 8 System Assembly
Your plant roots need and love oxygen! It is extremely important
to the health of the plants that you keep your Air Pump and Air
Stones running at all times when the system is in use.
SUPER GROW TIP:
NOTE:
a
b
c
d
e

If you have any questions during the setup process, please call a SuperCloset representative at 1.877.476.9787
7. Locate the Water Pump (image a). Attach the supplied 1/2” fitting to the
top of the Water Pump.
8. Place the Water Pump in the SuperPonics® Reservoir near end with the
channel in the rim. Arrange the power cord of the Water Pump into the
channel located on the rim of the Reservoir (image b).
9. Locate the Reservoir Lid and run the short end of the preassembled Ball
Valve and Drain Tube through the hole in the lid and connect it to the
tubing on the underside of the lid (image c).
10. On the under side of the lid, locate the open end of the black tubing.
Attach the end of the tubing to the connector on the top of the Water
Pump. Return the lid to the Reservoir (image d).
11. Now we can place our Net Cups into the openings of the top of the
reservoir. Once in place, arrange the top feed hoses to the center of the
net cups.
12. Notice the length of tubing located on the top side of the reservoir lid
(image e) This is your Reservoir Drainage Tube. By opening the valve
(turning parallel to the tube) and turning the pump on, you can easily drain
your reservoir. See (image e) for open/closed positions.
13. Place the SuperPonics system and Air Pump inside the cabinet with the
Drainage Tube towards the front.
14. Now we can run our Air Pump and Water Pump power cords through the
lower opening in the back of the cabinet.
Read the instructions for the water pump, as they
contain valuable information on how to maintain this
component. THIS PUMP SHOULD NEVER RUN WHEN
NOT FULLY SUBMERGED IN WATER.
SuperPonic 8 System Assembly
NOTE:
Valve should always be in the CLOSED position,
unless you are draining your reservoir.
NOTE:
OPEN CLOSED
a
b
c
d
e

If you have any questions during the setup process, please call a SuperCloset representative at 1.877.476.9787
1. Locate the power strip (image a), the GFCI Protector (image b), the two
Smart Plugs (image c)
DO NOT PLUG IN THE POWER STRIP YET.
2. Plug in the following from left to right:
Properly configured Power Strip Should look like this
Final Assembly
CARBON FILTER
FAN
WATER PUMP
(Hydro Only)
AIR PUMP
(Hydro Only)
INTERNAL
CIRCULATION FAN
CFL
GROW LIGHT
1) Smart Plug #1
Once the Smart Plug is plugged in, plug in the CFL light
2) Internal Circulation Fan
3) Carbon Filter Fan
4) Air Pump (Hydro Only)
5) Smart Plug #2
Once the Smart Plug is plugged in, plug in the Water Pump (Hydro Only).
a
b
c

If you have any questions during the setup process, please call a SuperCloset representative at 1.877.476.9787
3. At this time, add water to your reservoir. When filled to the appropriate
levels, the SuperCloner reservoir will hold about 1.5-2 gallons of water. The
SuperPonic 8 reservoir will hold about 2-3 gallons.
4. Plug the GFCI Protector (image b) into any 110v wall socket. With the power
strip turned OFF, plug the power strip into the GFCI Protector.
DO NOT POWER UP YOUR CABINET YET!
5. Now that everything is plugged into the power strip, lets verify some import-
ant steps:
6. After verifying all of the above, it’s time to turn on your SuperCloset. Turn the
power strip switch to the ON position, and the system should spring to life
before your very eyes!
1) LED Light is properly hung.
2) Watering System tube is securely fastened to the top of the Water Pump.
3) Both Reservoirs are filled with water and Water Pump is fully submerged.
4) Air Pump is next to (NOT IN!) the reservoir.
5) Light Power Cord and T5 Power Cords are plugged into Smart Plug#1.
6) Water Pump Power Cord is plugged into Smart Plug #2.
7) Power Strip is off and plugged into the GFCI Protector.
Almost Done
Your reservoir should always be filled at least halfway. In the
beginning stages, we recommend maintaining a water level
extremely close (½” - 1”) from the bottom of the net cups, but not
touching (image a). The water should remain at this level until an
evident root structure begins to develop.
SUPER GROW TIP:
NOTE:
EARLY STAGE
MATURE STAGEEARLY STAGE
EVERY 6 HOURS
MIN.
15
EVERY 3-4 HOURS
MIN.
15
WATER PUMP TIMER SUGGESTED SETTINGS
a
b
