suprema BioLite Solo User manual

EN 102.00.BLS V1.13

2
This manual is provided for information purpose only. All information included
herein is subject to change without notice. Suprema is not responsible for any
changes, direct or indirect, arising from or related to us of this manual.
ⓒCopyright 2008 Supremainc. All rights reserved.

3
Contents
Safety Instructions....................................................................................................4
1. Before Use .............................................................................................................5
1.1 Components..................................................................................................................5
1.2 Body..............................................................................................................................6
1.3 Methods for fingerprint input..........................................................................................7
1.4 System setup procedure................................................................................................8
1.4.1 Registering the initial administrator..........................................................................9
1.4.2 Stand-alone configuration......................................................................................10
1.4.3 Configuring Secure I/O..........................................................................................12
1.4.4 Configuring environment settings..........................................................................14
1.5 Authorization methods.................................................................................................14
2. User Management................................................................................................16
2.1 Enrolling a user ...........................................................................................................16
2.2 Editing a user data.......................................................................................................18
2.3 Deleting a user data ....................................................................................................21
3. Configuration for Screen and Sound.................................................................22
3.1 Date, Time...................................................................................................................22
3.2 Backlight......................................................................................................................23
3.3 Sound..........................................................................................................................23
4. Device Configuration ..........................................................................................24
4.1 Authorization...............................................................................................................24
4.2In/Out..........................................................................................................................26
4.3 System........................................................................................................................30
5. FAQ.....................................................................................................................334
5.1 Error messages.........................................................................................................345
5.2 Troubleshooting.........................................................................................................356
5.3 Usage summary........................................................................................................367
5.4 System Installation ....................................................................................................378
5.4.1 Cable specifications .............................................................................................378
5.4.2 Connecting Power & 485.....................................................................................389
5.4.3 Connecting the relay.............................................................................................40
5.4.4 Connecting the switch.........................................................................................411
5.4.5 Electrical specifications.......................................................................................411
5.4.6 Installing the bracket ...........................................................................................422
5.5 Specifications............................................................................................................433

4
Safety Instructions
Installation
In Use
Do not arbitrarily install or repair the product.
The warranty does not apply to any product damage caused by an arbitrary installation
or repair.
Endure that password does not
exposed to unauthorized
individuals. Frequent change of
password is recommended.
Any illegal access to
your product may
happen.
Do not operate the product with
wet hands and keep the device
away from any liquid contact.
It may cause a damage
or a failure to the
product..
Do not forcibly press the buttons
of the product and avoid any
contact with sharp object to the
device.
It may cause a failure.
Do not clean the device with any
form of liquid. Use soft and dry
cloth only.

5
1. Before Use
1.1 Components
Main Body
Wall mounting bracket
Extended bracket
(Option)
Fixing Screws
(2 EA)
Knife Blocks
(2 EA)
Star-shape wrench
(For fixing bracket)
Adapter
(Option)
Shrinkable Tubes
The components shown above may differ depending on the installation
environment.
Diode
(1 EA)

6
1.2 Body
No.
Name
Description
1
LCD
Display
The operation status is displayed.
2
Key Pad
0–9 Buttons: Used to enter the ID and password.
< >Arrow Buttons: Used to move the selecteditem.
Button: Used to select the desired function.
Button: Used to enter the menu.
Button: Used to exit from themenu or cancel the desired action.
3
LED Lamp
The operation status is displayed with an alert sound.
- Green (Sound: beep beep beep beep!):Authorization success
- Red (Sound: beep beep beep!) :Authorization failure
- Pink (Sound: beep!) : Processing
- Blue and Sky Blue blink in turn at an interval of 2 seconds (No sound): Normal
operation
- Red and Pink blink in turn at aninterval of 2 seconds (No sound): Devicelocked or
no administrator
- Blue and Red blink in turn at an interval of 2 seconds (No sound):The time is reset
due to battery discharge.
- Red blinks at an interval of 2 seconds (No sound): Device initialization failure.
Please contact with the manufacturer.
- Yellow blinks shortly (No sound): Input ready status
4
Fingerprint
TouchArea
Used to input a fingerprint for authentication.

7
1.3 Methods for fingerprint input
BioLite Solo can easily recognize fingerprints even though the angle and location of the
pattern change. However, it is recommended to properly input fingerprints for more
precise recognition.
Selecting a finger on fingerprint enrollment
How to proerply place a fingerprint
Place your finger firmly on the sensor area.
Adjust the finger so that its middle position can be located in the center
of the sensor.
When the finger is vertically placed or its angle goes astray, the
recognition may be a failure.
Up to two fingerprints can be enrolled for each user in preparation of
any abnormal situation like having a wounded finger or carrying an
object with a hand.
In the case of a low recognition, the user can register
the same fingerprint twice to increase the recognition
rate.
It is recommended to use the index or middle finger.
In case of other fingers, the recognition rate
decreases because it tends to be more difficult to
place the finger in the center of the sensor area.
Place the first
Finger
When enrolling your fingerprint, the first finger input window prompts.
Then register the desired finger on the terminal as shown in the figure
below.
When the re-entry window appears with a “tick”sound, re-enter the
previously enrolled finger. The fingerprint input is made twice.
(Gently push your finger on the sensor to have a full fingerprint.)

8
1.4 System setup procedure
Install the system according to the environment
- Grasp the locations for installation site, door open switch,
dead bolt, and such.
- Install the system (see 5.4).
Step 1
Register an initial administrator
- Register the initial administrator for setting devices (See 1.4.1).
Step 2
Configure the system
- Stand alone configuration (see 1.4.2.) or
- Secure I/O configuration (see 1.4.3)
Step 3
Test for system operation
- Check the door lock/unlock status and switch operation.
- Deliver the setting items to the customer.
Step 4
Configure the environment
- Configure various environments (see 1.4.4).
Step 5
Register users
- Use the system after user registration (see 2.1).
Step 6

9
1.4.1 Registering the initial administrator
There is no administrator set for the product in the initial status. So register an
administrator for configuring the environments for relay, door open switch, door open
detection sensor, and such.
1. When the product is connected, a window
appears as shown in the right figure. Enter an ID
and press OK.
2. When the authorization mode window appears,
use ▶/◀buttons to move to PIN Only, and
press OK.
3. When the password entry windowappears, enter
the desired password and press OK.
4. When the password re-entry window appears,
enter the previously input password again and
press OK.
5. The completion message windowappears.
Operation Mode
PIN Only
Enroll
Enter PIN
****
Enroll
Confirm PIN
****
Enroll
Completed
This procedure is necessary to temporarily configure the installation-
related settings. Modify the administrator information after the
installation is complete.
Enter ID
1
Enroll Admin

10
1.4.2 Stand-alone configuration
This configuration is the most common installation method.
1. As shown in the figure, connect BioLite Solo to
respective switches.
※See “5.4.6 Installing the bracket.”
2. Configure the internal relay settings as shown below. (It is explained based on the
figure above.)
Use ▶/◀buttons to
select Internal and
press OK.
Use ▶/◀buttons to
select Input 0 and press
OK.
Relay
Internal
Door
Exit Button
Input 0
Internal
Use ▶/◀buttons to
select N.O and press
OK.
*N.O/N.C
Type
N.O
Exit Button
Device
In/Out
Use ▶/◀buttons to
select the In/Out icon and
press OK.
Press MENU -> Enter ID -
> Enter the password ->
Use ▶/◀buttons to
select the Device icon
and press OK.
Item
Door
In/Out
Use ▶/◀buttons to
select Door and press
OK.
For actual wring method,
see ”5.4 System Installation.”
Cont.

11
※
Opening Mode
-
Temporary Open
: When the door is open, it is automatically closed after a specific time.
- Toggle: The door is open after the first authorization success and it remains unlocked
until the second authorization success.
Enter the time and press
OK.
*The time is set for
automatically closing the
door after the specified
time.
Use ▶/◀buttons to
select Not Use for
Held
Open Alarm
and press OK.
*Not Use/Sound/
Backlight/Sound and
Light/SIO Relay0/SIO
Relay1
Door Sensor
Input 1
Internal
Held Open Alarm
Not Use
Door
Use ▶/◀buttons to
select N.O and press OK.
*N.O/N.C
Use ▶/◀buttons to select
Input 1 and press OK.
*Not Use/Input0/Input1
Use ▶/◀buttons to
select Temporary Open
for opening mode and
press OK.
* Temporary Open/ Toggle
Opening Mode
Temporary Open
Door
Type
N.O
Door Sensor
Open Time
3
Door
Use ▶/◀buttons to
select Not Use for Forced
Open Alarm and press OK.
*Not Use/Sound/
Backlight/Sound and
Light/SIO Relay0/ SIO
Relay1
The completion message
window appears.
Forced Open Alarm
Not Use
Door
Complete
When you exit from the menu before completing the relay setup, the
configuration is not stored so please finish configuration until the
message “Complete”appears.

12
Cont.

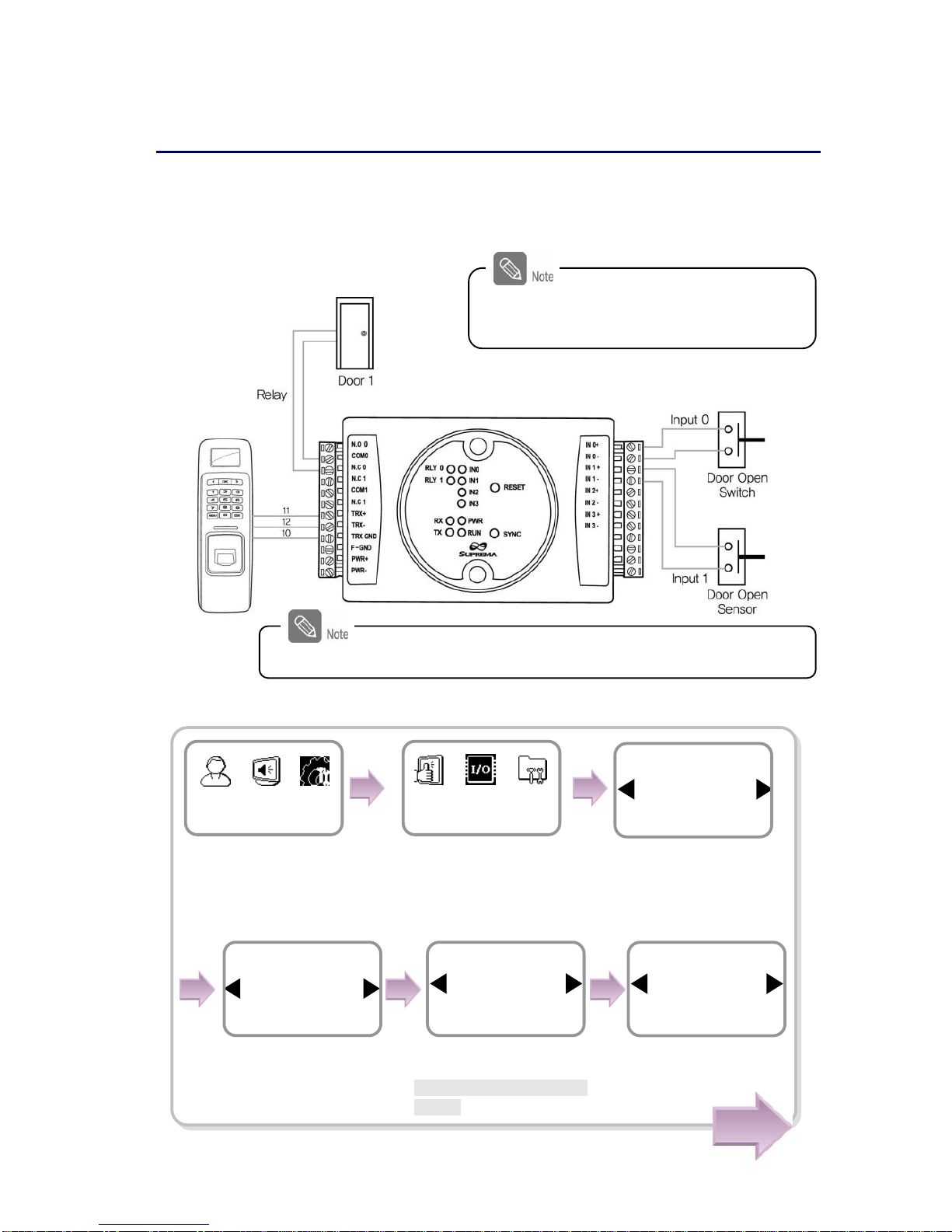

1.4.3 Configuring Secure I/O
This connects BioLite Solo to Secure I/O.
1. Connect wires between BioLite Solo, Secure I/O, and respective switches as shown
below.
※See “5.4.6 Installing the bracket.”
2. Configure the relay settings as shown below. (Based on the figure above)
Use ▶/◀buttons to
select SIO Relay 0 and
press OK.
Use ▶/◀buttons to select
SIO Relay 0 and press OK.
(*Not Use/ SIO Input 0/ SIO
Input 1)
Relay
SIO Relay 0
Door
Exit Button
SIO Input 0
SIO Relay 0
Use ▶/◀buttons to
select N.O and press OK.
Type
N.O
Exit Button
Device
In/Out
Use ▶/◀buttons to
select the In/Out icon and
press OK.
Press Menu -> Enter ID ->
Enter password ->Use▶/
◀buttons to select the
Device icon and press OK.
Item
Door
In/Out
Use ▶/◀buttons to
select Door and press
OK.
For actual wiring, see “5.4 System
Installation.”
Sync button should be pressed after complete the relay setting.

13
※Opening Mode
-Temporary Open: When the door is open, it is automatically closed after a specific time.
-Toggle: The door is opened after the first authorization success and it remains unlocked
until the second authorization success.
Enter the time and press
OK.
*The time is set for
automatically closing the
door after the specified
time.
Use ▶/◀buttons to
select Not Use for Held
Open Alarm and press OK.
*Not Use/Sound/Backlight/
Sound & Light/SIO Relay0/
SIO Relay1
Door Sensor
SIO Input 1
SIO Relay 0
Held Open Alarm
Not Use
Door
Use ▶/◀buttons to
select N.O and press OK.
Use ▶/◀buttons to
select SIO Input 1 and
press OK.
*Not Use/ SIO Input0/ SIO
Input1
Opening Mode
Temporary Open
Door
Use ▶/◀buttons to
select Temporary Open
for opening mode and
press OK.
* Temporary Open/Toggle
Type
N.O
Door Sensor
Open Time(sec)
3
Door
Use ▶/◀buttons to
select Not Use for Forced
Open Alarm and press
OK.
*Not Use/Sound/Backlight/
Sound & Light/SIO Relay0/
SIO Relay1
The completion message
window appears.
Forced Open Alarm
Not Use
Door
Complete
When you exit from the menu before completing the relay setup, the
configuration is not stored so please finish configuration until the
message “Complete” appears.
Sync button (In case of using Secure I/O)
Synchronization between Secure I/O and BioLite
Solo is to enhance security by exchanging an
encrypted key, which prevents the operation of
Secure I/O when the external device has been
exchanged by an intruder. Sync button should be
pressed when Relay setting is completed.

14
1.4.4 Configuring environment settings
Settings for date and time: Set the values as “3.1 Date, Time.”
Setting for authorization period: Set the value after reading the case of
authorization period selection in “4.1 Authorization,”
Fingerprint authorization related settings: Set the values after reading the case of
fingerprint selection in “4.1 Authorization.”
Setting for fingerprint sensor mode: Set the value after reading the case of
fingerprint sensor mode selection in “4.1 Authorization.”
1.5 Authorization methods
Finger Only
Finger or PIN
Enter the ID of the
user and press OK.
Enter the password
of the user and
press OK.
The door is open with the
authentication success
message.
Input the fingerprint
of the user.
The door is open with the
authentication success
message.
Enter ID
2
Enter Finger or PIN
****
Access Granted
ID : 2
Access Granted
ID : 2
BioLite Solo
10:33:02
In case of the user registration by Finger or PIN, you can open the
door by entering the fingerprint only.
Input the fingerprint
of the user.
The door is open with the
authentication success
message.
Access Granted
ID : 2
BioLite Solo
10:33:02
Or

15
Finger and PIN
PIN Only
Enter the ID of the
user and press OK.
Input the fingerprint
of the user.
Enter the password
of the user and
press OK.
The door is open with the
authentication success
message.
Enter ID
2
Enter Finger
Enter PIN
****
Access Granted
ID : 2
Enter ID
2
Enter the ID of the
user and press OK.
Enter the password
of the user and
press OK.
The door is open with the
authentication success
message.
Enter PIN
****
Access Granted
ID : 2

16
2. User Management
This chapter explains how to enroll, modify, and delete user data.
2.1 Enrolling a user
You can enroll a newuser as shown below:
1. Use ▶/◀buttons to select the User ( ) icon
and press OK.
2. Use ▶/◀buttons to select Enroll ( ) icon and
press OK.
3. The ID that can be used appears. Use it or enter
another ID and press OK.
(1–8 digit number)
4. Use ▶/◀buttons to select Level and press OK.
(Level: General /Administrator)
※The user enrollment and environment configuration
are enabled only in Administrator level.
5. Use ▶/◀buttons to select Operation Mode.
(Finger Only/PIN Only/Finger or PIN/Finger and
PIN)
※Refer “1.5 Authorization methods.”
User
Enroll
Enter ID
3
Enroll
Level
General
Enroll
Operation Mode
Finger Only
Enroll
ID is used to edit or delete the user data so
please keep it carefully.

17
6. Enter the finger or PIN depending on the operation mode.
(Password: 4–8 digit number, Fingerprint: 1st finger/1st + 2nd fingers)
Finger Only/Finger or PIN/Finger and PIN
※In order to skip the second fingerprint enrollment after enrolling the first
fingerprint, press ESC.
※The user can enroll one or two fingerprints for passing the door.
PIN Only/ Finger and PIN
※For password, it is recommended to enter 4 to 8 digit number not to be easily
exposed.
7. When the user enrollment is successfullydone,
the completion message window appears.
※User can be enrolled up to maximum 200.
Completed
Confirm PIN
*****
Enroll
Place the first
finger again
Place the first
finger
Place the second
finger
(Skip=ESC)
Enter PIN
*****
Enroll
Place the first finger
on the sensor.
Place the same finger
on the sensor again.
Place the second
finger in the same
manner.

18
2.2 Editing a user data
You can modify the data of the previously enrolled user.
1. Use ▶/◀buttons to select the User ( ) icon
and press OK.
2. Use ▶/◀buttons to select the Edit ( ) icon
and press OK.
3. Enter the ID or fingerprint of the desired user and
press OK.
4. Use ▶/◀buttons to select the desired item and press OK.
※Select any of Level, Operation Mode, Security Level, Fingerprint, PIN, and Access
Timezone.
Changing the user level
※The user registration and environment configuration are enabled only in
Administrator level.
User
Item
Level
Edit
Use ▶/◀buttons
to select Level and
press OK.
Use ▶/◀buttons
to select General or
Administrator.
Press OK.
Edit
Enter ID/Finger
4
Edit
Level
General
Edit

19
Changing the operation mode of the user
※Operation: *PIN Only/Finger or Pin/Finger and PIN
/Finger Only
Changing the security level of the user
※
Security Level
: *Per Device/Lower/Low/
Normal
/High/Higher
-Per Device: The security in “Device>Authorization>Fingerprint>”on page 25 is applied.
-The higher the security level, the more sensitive the fingerprint recognition.
But the authorization failure rate can increase.
Changing the fingerprint of the user
Item
Operation Mode
Edit
Use ▶/◀buttons to
select Operation Mode
and press OK.
Use ▶/◀buttons
to select a operation
mode and press OK.
Press OK.
Use ▶/◀buttons to
select Security Level and
press OK.
Use ▶/◀buttons
to select a security
level.
Place the first
finger again
Operation Mode
Finger Only
Edit
Item
Security Level
Edit
Security Level
Normal
Edit
Press OK.
Item
Fingerprint
Edit
Place the second
finger
(Skip=ESC)
Place the first
finger
Use ▶/◀buttons to
select Fingerprint and
press OK.
Place the first finger on
the sensor.
Place the same finger
on the sensor again.
Enroll the second fingerprint
in the same manner.

20
Changing the PIN of the user
Changing the access timezone (authorization trial is enabled) of the
user
※
Access Timezone
: *
Per Device
/Always Allowed/Always Blocked/Per Weekday
-
Per Device
: The access timezone set in “4.1 Authorization”is applied.
[In case of selecting Per Weekday]
※Select Weekday: You can select maximum of 5 timezone for each day.
Press OK.
Use ▶/◀buttons to
select Access Timezone
and press OK.
Select the access
time zone of the
user.
Select Weekday
Sunday
Per Weekday
After selecting the timezone for each day
as shown in the figure, enter values for
Start Time and End Time.
Item
PIN
Edit
Use ▶/◀buttons to
select PIN and press OK.
Enter the desired
password and press
OK.
After re-entering the
password of the
user, press OK.
Enter PIN
****
Edit
Confirm PIN
****
Edit
Item
Access Timezone
Edit
Access Timezone
Per Device
Edit
Timezone
1
Sunday
Start Time(hhmm)
0000
1
End Time(hhmm)
(hhmm)
1200
1
When you exit without setting the time after selecting Select
Weekday only, the start time and end time are set to “00:00”and
Timezone is set to “Always Blocked.”
Table of contents
