Congratulations on your purchase of the Sureshot PINLOC 5000iPS featuring Slope
technology.
The PINLOC 5000iPS is packed with features such as:
i – Intelligent Pin seeking technology. This advanced mode uses uniquely developed
software that ensures the closest object is chosen eliminating objects beyond the ag.
P – The pulse feature provides a short vibration when the target is acquired.
S – Slope mode automatically adjusts the measured distance based on the incline or
decline to the object using the built-in inclinometer, giving a more accurate measurement.
GETTING STARTED
ADJUSTABLE EYE PIECE
SLOPE ON/OFF SWITCH
BATTERY DOOR
MODE BUTTON
1. Press and hold for 5 seconds to
toggle between Metres/Yards
2. Quick press to cycle between:
– Scan Mode
– Pulse Mode
– Default Mode
POWER BUTTON
1. Press once to turn on LCD display
2. Press again to measure distance

3
PINLOC5000iPS USER MANUAL
sureshotlaser.com
CONTENTS OF BOX
• Sureshot PINLOC 5000iPS with Slope Technology Laser
• Protective Pouch
• Quick Start Guide
• Lens Cloth
• Wrist Strap
• Long Life Lithium Battery (CR2 3V)
To begin using your PINLOC 5000iPS, remove the protective plastic from the battery and
insert into the laser rangender. Please refer to page 2 to locate the Battery Door.
STARTING YOUR PINLOC 5000iPS
The PINLOC 5000iPS has two buttons: the Power button and the Mode button (refer to
page 2).To turn on, press the Power button for one second, the PINLOC 5000iPS with Slope
Technology Laser LCD screen will turn on.
ADJUSTING THE FOCUS
The PINLOC 5000iPS is designed with an adjustable eyepiece (dioptre). By adjusting the
focus, people with far sighted or near sighted vision can use the PINLOC 5000iPS without
glasses. Looking through the eyepiece, turn the dioptre a quarter turn left or right until the
view is focused for you.

4
PINLOC5000iPS USER MANUAL
sureshotlaser.com

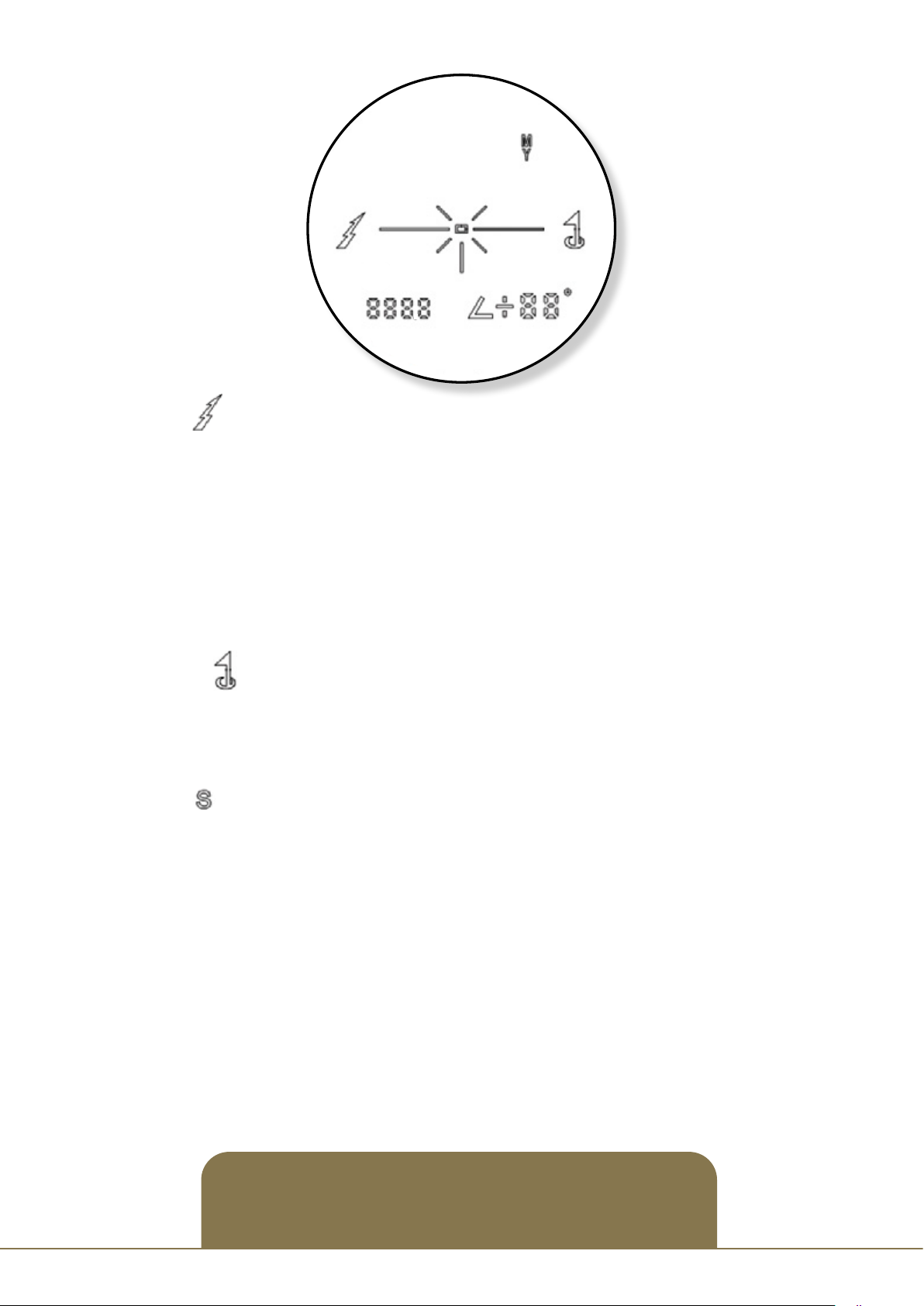

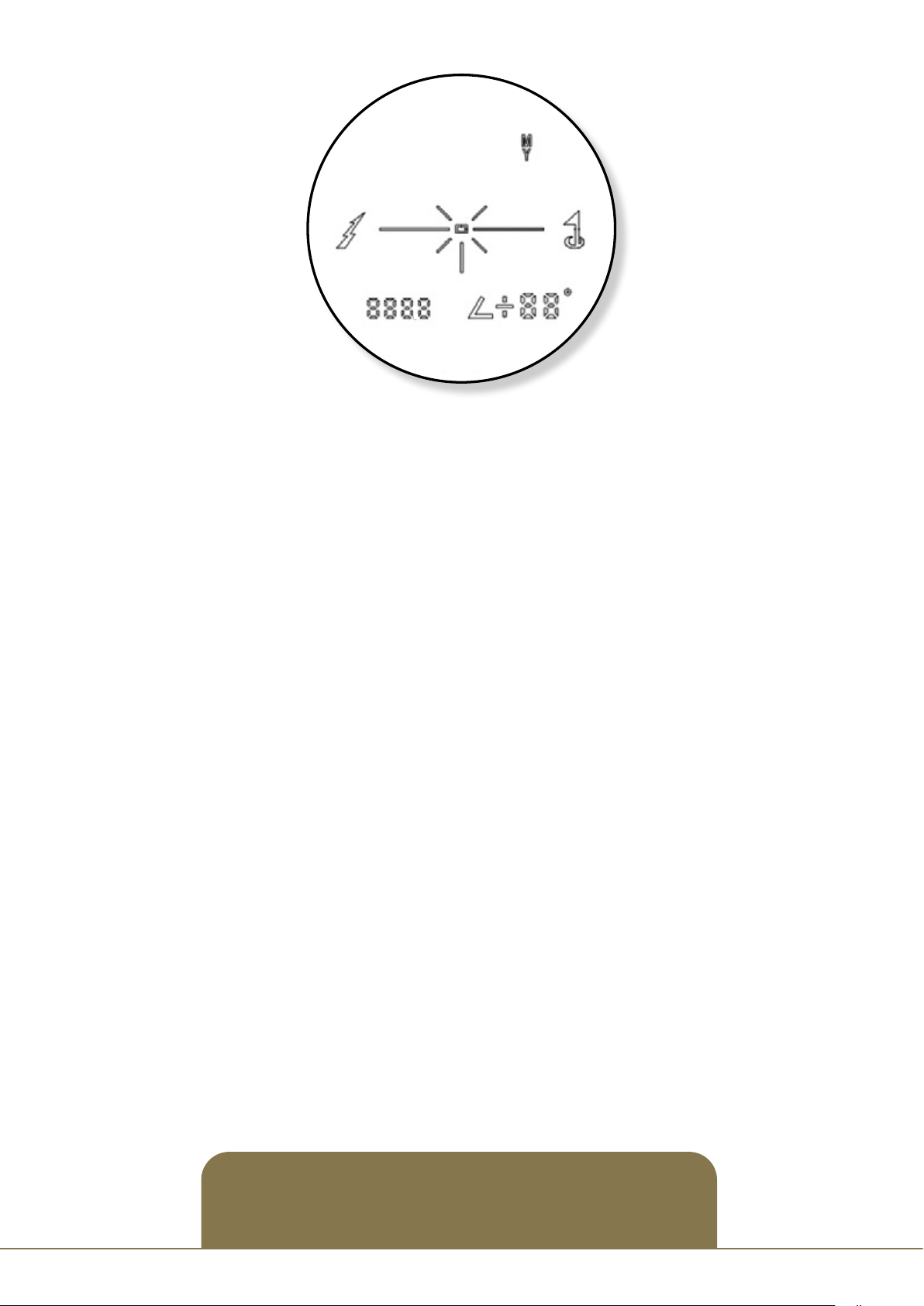

DISTANCE M/Y
PULSE MODE
LOW BATTERY INDICATOR
TARGET MARK
PINLOC MODE
SCAN MODE
SLOPE DISTANCES & DEGREES
SLOPE ADJUSTED DISTANCES
OPERATING INSTRUCTIONS
Hold the PINLOC 5000iP to your eye and depress the Power button once to turn on.The
LCD display will now show three lines and a small rectangular box. Line the target up so
it appears inside the rectangular box, then depress the Power button once.The distance
from you to the target will be displayed on the screen instantly.
SLOPE MODE ( )
To turn on Slope mode, slide the toggle on the back of the laser to the left.You will now
see “<” in the eld of view when using the laser, informing you that you are in the Slope
mode.To activate, use the laser as normal. Press the red Power button to turn on the laser
and again to measure your distance.You will now see the actual distance (top centre),
a compensated distance to your target (bottom left) and the angle of incline or decline
(bottom right).To turn off Slope mode, slide the toggle on the back of the laser to the
right.
Horizontal distance + height = slope adjusted ±
Actual distance ±
Height

5
PINLOC5000iPS USER MANUAL
sureshotlaser.com
PULSE MODE ( )
The pulse feature provides a short vibration when the target is acquired through the
rangender, ensuring you have correctly measured the distance to your chosen target.
PRIORITY LOC
The PINLOC 5000iPS instinctively locks onto the nearest target, which may be the smallest
among multiple objects in the background giving you condence you have the correct
distance every time. Priority Loc intelligence delivers the rst and closest target by
scanning the area and displaying only the nearest distance.This feature automatically
works by pressing the Power button once.
PINLOC MODE ( )
PINLOC technology ensures even the smallest target is locked On from the longest
possible distance.This is important for delivering pinpoint accuracy.This feature is
automatically delivered when the Power Button is depressed quickly once.
SCAN MODE ( )
The Scan feature displays a continuous update of distances to various targets across
a panoramic area.To use the Scan feature, press the Power Button once, crosshairs will
appear on screen. Pan across the target area. Once complete, press the Power Button
again and the crosshairs will disappear and the laser will stop scanning.
255

6
PINLOC5000iPS USER MANUAL
sureshotlaser.com
DISPLAY LOC
Each time the Power button is pressed, the distance is displayed on screen for 15 seconds,
after which the screen automatically switches off.
UNIT MEASUREMENT CHANGE
The PINLOC 5000iPS can be used to measure distances in metres or yards. Press the Mode
button for 5 seconds to change the unit of measurement display.
AUTOMATIC POWER-SAVE
The PINLOC 5000iPS will automatically switch off after 15 seconds of inactivity.
BATTERY INDICATOR
A battery level warning will appear when the battery is running low.The battery will last
approximately 3,000 actuations.The battery can be replaced by removing the battery
door (see diagram on page 2).Any brand BCR2-3V lithium battery can be used.
ACCURACY
The PINLOC 5000iPS delivers incredible accuracy at +1 or -1 yard.The range is dependent
on the reectivity of the target.The color, surface, shape and size of the target will affect
reectivity and the range. For example, red is highly reective and will give longer range
as opposed to black which is the least reective color.A shiny surface will also provide
more range than a dull one and likewise, a small target is more difcult to range than a
large target.The angle to which you set your target also affects accuracy. A 90 degree
angle will give you good range while a steep angle will provide limited range. Please note
lighting, rain and fog can also affect accuracy levels, the less light the shorter the unit’s
maximum range.
255

7
PINLOC5000iPS USER MANUAL
sureshotlaser.com
REGISTERING
Follow the easy instructions at www.mgigolf.com/register-sureshot and enter the serial
code found on the box/unit.The serial code starts with 5I (capital i). e.g. 5I12345
WHY SHOULD I REGISTER MY LASER?
It is recommended that you register your PINLOC 5000iPS for warranty purposes.
Registering your device helps you by allowing our customer service team to quickly view
which equipment you own, where you purchased it and if you misplace or lose your
sureshot and the unit is found.
CLEANING AND MAINTENANCE
Gently blow away any dust or debris on the lenses or use the lens cloth.To remove dirt or
ngerprints, rub in a circular motion. Use of a coarse cloth or unnecessary rubbing may
scratch the lens surface and eventually cause permanent damage. For a more thorough
cleaning, photographic lens tissue and photographic-type lens cleaning uid or isopropyl
alcohol may be used.Always apply the uid to the cleaning cloth – never directly on the
lens. For protection of your PINLOC 5000iPS, always store in the pouch provided.
IMPORTANT ADVICE
• Users need to change the battery when the battery icon displays empty. A low battery
can affect accuracy. If you do not use the PINLOC 5000iPS for a long period of time,
please take the battery out to minimize drainage.
• Do not touch the eyepiece directly or disassemble the device for any reason.
• If the external lens is dirty, please clean it with the lens cloth or isoprohy alcohol.
• Impacts or high pressure should be avoided.
• This unit is water resistant only – it is not waterproof.
• Avoid prolonged exposure of the lens in direct sunlight as this may cause damage to
the optics of the device.

8
PINLOC5000iPS USER MANUAL
sureshotlaser.com
NEED HELP?
Our friendly team is available via our website, telephone or email. It is recommended that
you contact us rst rather than returning to the place of purchase for the fastest response
to your query.
www.mgigolf.com
MGI AUSTRALIA
Service Email: [e-mail]
Live Chat: visit www.mgigolf.com
Toll Free within Australia: 1300 644 523 (excludes mobiles)
Western Australia/ Internal phone [phone]
Local Service Centres: visit www.mgigolf.com
to locate you local service centre.
MGI USA
Service Email: [e-mail]
Live Chat: visit www.mgigolf.com
Telephone: [phone]
MGI GLOBAL
Sales Email: [e-mail]
Service Email: [e-mail]
Live Chat: visit www.mgigolf.com

9
PINLOC5000iPS USER MANUAL
sureshotlaser.com
SPECIFICATIONS
Product Imperial Metric
Low level battery indicator YES YES
PINLOC YES YES
Weight 6.5oz 173g
Range to Flag 330yd 300m
Measure Range 5yd - 1000yd 4.5m - 915m
Objective Lens 0.9” 24mm
Magnication 6 X 6 X
Field of View 7˚ 7˚
Exit Pupil Diameter 0.15” 4.0mm
Working Temperature -15˚F – 120˚F -25˚C – 50˚C
Battery CR2 3V lithium CR2 3V lithium
Dimensions 4.1” x 1.6” x 2.8” 106 x 76 x 41mm
Accuracy ± 1yd ± 1m
Display LCD LCD
Water Resistant YES YES
Auto Battery Saving YES YES
Multi Coated Lens for Optimum Clarity YES YES

10
PINLOC5000iPS USER MANUAL
sureshotlaser.com
WARRANTY
Limited Warranty
Sureshotgps™ Pty Ltd (“SS”) warrants that product delivered in this package will be free from material defects for one
(1) year following the date of purchase from SS or its authorized reseller, (2) year warranty if you register on sureshotgps.
com within 30 days of purchase (Australia only). Specications subject to change without notice. For the purpose of
this warranty,“material defect” means any defect in a SS product that can be reproduced by SS and is a substantial
nonconformity from the published specications for such product. SS shall not be responsible for any loss or damage
whatsoever resulting from any defect in or associated with its products which occur or are notied by the purchaser to
SS or its authorized repairer more than one year from said date of purchase.This Limited Warranty does not apply to the
battery, normal wear and tear or if any component of the sureshot hardware is opened or repaired by an unauthorized
person or company, and does not cover repair or replacement of any sureshot hardware damaged by: MISUSE,
MOISTURE OR LIQUIDS, EXPOSURE TO HEAT, ACCIDENT, ABUSE OR NEGLECT. Dropping your sureshot can permanently
damage the laser, optical lenses and LCD, display which is not covered under the terms of the Limited Warranty.This
Limited Warranty does not cover physical damage to the surface of the SS, including cracks or scratches on the LCD
screen and Lenses.This Limited Warranty does not extend to any defects which have been caused or contributed by
neglect, misuse or accident, nor in respect of product which has been altered by other than authorized SS personnel
or its authorized repairers.The determination as to whether the terms of this warranty are to apply to returned products
is within the sole discretion of SS or its authorized repairer. Provided any returned product is determined to be covered
by this warranty, SS or its authorized repairers shall at SS’s sole discretion, repair or replace, free of charge, any products
or parts thereof. In no event whatsoever shall SS be liable for any incidental, special or consequential loss or damage
resulting from the purchase and/or use of its products howsoever caused and howsoever claimed.Any liability on SS
under this warranty in respect of any repair and /or replacement and/or any action involving any of its products shall
be limited to and not exceed the purchase price of the product in question.The terms of this warranty are subject
to relevant provisions of any Federal, State or Municipal law. Any dispute or action in relation to this warranty or the
construction of it shall be subject to and conducted in accordance with the laws of Victoria,Australia.
Before returning any product, contact the SS Customer Support Group and obtain an RA number.Visit the sureshotgps™
website www.sureshotgps.com for support contact details. If the Customer Support Group veries that the product is
likely to be defective they will issue an RA number to place on the outer package in which the product will be shipped.
SS cannot accept any product without an RA number on the package. Warranty returns must also be accompanied
by a copy of the dated proof of purchase. Deliver the product along with the RA number to SS. If you ship the product
you must assume the risk of damage or loss in transit.You must use the original container (or the equivalent) and pay
the shipping charge. SS may replace or repair the product with either a new or reconditioned product and the returned
product becomes SS’s property. SS warrants the repaired or replaced product to be free from material defects for a
period of the greater of (i) ninety (90) days from the return shipping date; or (ii) the period of time remaining on the
original one (1) year warranty. If there is any inconsistency between this Limited Warranty and any Warranty included in
the packaging of the sureshot, the provisions of this Limited Warranty shall apply.
Our goods come with guarantees that cannot be excluded under Consumer Law.You are entitled to a replacement
or refund for a major failure and for compensation for any other reasonably foreseeable loss or damage.You are also
entitled to have the goods repaired or replaced if goods fail to be of acceptable quality and the failure does not
amount to a major failure.This warranty is in addition to other rights and remedies available to the consumer under law.
The consumer is responsible for expenses associated with a warranty claim.To make a warranty claim, cease using the
goods immediately and contact SS directly using the contact details on the back of this User Manual. Proof of purchase
is mandatory.

www.mgigolf.com
GLOBAL CUSTOMER SUPPORT
E[email protected]
MGI GOLF AUSTRALIA
MGI HEAD OFFICE
11 Maurice Court Nunawading 3131
Victoria Australia
T+61 3 8872 6700 [e-mail]
SERVICE [e-mail]
MGI GOLF USA
T1800 617 2990 [e-mail]
SERVICE [e-mail]
MGI GLOBAL
[e-mail]
Follow us on
Absolute attention has been taken to ensure this User Manual is correct at time
of exporting. Specications, images and statistics may change at any time.
Visit www.mgigolf.com for the most current model information. 02/2021
