Svan SVCR187NFX User manual

REFRIGERATOR
INSTRUCTION MANUAL
MODEL:
SVCR187NFX

1
SAFETY
WARNING!
It is hazardous for anyone other than authorized service personnel to carry out servicing
or repairs which involves the removal of covers. To avoid the risk of an electric shock do
not attempt to repair this appliance yourself.
Safety tips
Do not use electrical appliances such as a hair dryer or heater to defrost your
Fridge/Freezer.
Containers with flammable gases or liquids can leak at low temperatures.
Do not store any containers with flammable materials, such as spray cans, fire
extinguisher refill cartridges etc. in the Fridge/Freezer.
Do not place carbonated or fizzy drinks in the Freezer compartment. Ice lollies can cause
“Frost/Freeze burns”. If consumed straight from the Fridge/Freezer.
Do not remove items from the Fridge/Freezer compartment if your hands are damp/wet,
as this could cause skin abrasions or “Frost/Freezer burns”. Bottles and cans must not be
placed in the Freezer compartment as they can burst when the contents freeze.
Manufacturer’s recommended storage times should be adhered to. Refer to relevant
instructions.
Do not allow children to tamper with the controls or play with the Fridge/Freezer. The
Fridge/Freezer is heavy. Care should be taken when moving it. It is dangerous to alter the
specification or attempt to modify this product in any way.
Do not store inflammable gases or liquids inside you Fridge/Freezer.

2
If the power cable is damaged, it must be replaced by the manufacturer, its service agent
or similarly qualified persons in order to avoid a hazard.
This appliance can be used by children aged from 8 years and above and persons with
reduced physical, sensory or mental capabilities or lack of experience and knowledge if
they have been given supervision or instruction concerning use of the appliance in a safe
way and understand the hazards involved. Children shall not play with the appliance.
Cleaning and user maintenance shall not be made by children without supervision.
This appliance is intended to be used in household applications.
Keep ventilation openings, in the appliance enclosure or in the built-in structure, clear of
obstruction.
Do not use mechanical devices or other means to accelerate the defrosting process,
other than those recommended by the manufacturer.
Do not damage the refrigerant circuit.
Do not use electrical appliances inside the food storage compartments of the appliance,
unless they are of type recommended by the manufacturer.
Do not store explosive substances such as aerosol cans with a flammable propellant in
this appliance.
Disposal
Old appliances still have some residual value. An environmentally friendly method of
disposal will ensure that valuable raw materials can be recovered and used again.
The refrigerant used in your appliance and insulation materials requires special disposal
procedures. Ensure that none of the pipes on the back of the appliance are damaged prior
to disposal. Up to date information concerning options for disposing of your old appliance
and packaging from the new one can be obtained from your local council office.

3
Locks
If your Fridge/Freezer is fitted with a lock, to prevent children being entrapped keep the
key out of reach and not in the vicinity of the appliance. If disposing of an old
Fridge/Freezer break off any old locks or latches as a safeguard.
INTRODUCTION
Before use
Please read these instructions and the Safety guidelines on page 1 carefully before using
your new Fridge/Freezer. The Fridge/Freezer is for indoor, domestic use only.
No Description
1 Freezer drawer pannel
2 Freezer drawers
3 Leveling feet

4
INSTALLATION
Location
When selecting a position for your Fridge/Freezer you should make sure the floor is flat
and firm, and the room is well ventilated with an average room temperature of between
10 °C and 43°C. Avoid locating your Fridge/Freezer near a heat source, eg. cooker,
boiler or radiator.Also avoid direct sunlight in out-buildings or sun lounges. If you are
placing your Fridge/Freezer in an out-building such as a garage or annex ensure that the
Fridge/Freezer is placed above the damp course, otherwise condensation will occur on
the Fridge/Freezer cabinet. Never place the Fridge/Freezer in a wall recess or into fitted
cabinets or furniture. When your Fridge/Freezer is working, the grille at the back may
become hot and the sides warm. It must therefore be installed so that the back of the
Fridge/Freezer has at least 9cm (31/2”)of free space and the sides have 2cm (3/4”).Do
not drape the Fridge/Freezer with any covering.
Leveling the Fridge/Freezer
If the Fridge/Freezer is not level, the door and magnetic seal alignment will be affected
and may cause you Fridge/Freezer to work incorrectly. Once the Fridge/Freezer is placed
in its final location, adjust the leveling feet at the front by turning them.
Cleaning before use
Wipe the inside of the Fridge/Freezer with a weak solution of bicarbonate of soda. Then
rinse with warm water using a damp sponge or cloth. Wash the baskets and shelves in
warm soapy water and dry completely before replacing in the Fridge/Freezer. The external
parts of the Fridge/Freezer can be cleaned with wax polish.
Before plugging in YOU MUST

5
Check that you have a socket which is compatible with the plug supplied with the
Fridge/Freezer.
Before switching on!
DO NOT SWITCH ON UNTIL FOUR HOURS AFTER MOVING THE FRIDGE/FREEZER.
The coolant fluid needs time to settle. If the appliance is switched off at any time, wait 30
minutes before switching back on to allow the coolant fluid to settle.
Before filling your Fridge/Freezer
Before storing foods in your Fridge/Freezer, turn the Fridge/Freezer on and wait for 24
hours, to make sure it is working properly and to allow the Fridge/Freezer to fail to the
correct temperature.
Electrical Connection
WARNING
Improper use of the grounded plug can result in the risk of electrical shock. If the power
cord is damaged, have it replaced by an authorized service center.
This refrigerator should be properly grounded for your safety. The power cord of this
refrigerator is equipped with a three-prong plug which mates with standard three prong
wall outlets to minimize the possibility of electrical shock.
Do not, under any circumstances, cut or remove the third ground prong from the power
cord supplied.
This refrigerator requires a standard 220 -240V A.C. ~/50Hz electrical outlet with
three-prong ground.
This refrigerator is not designed to be used with an inverter.
The cord should be secured behind the refrigerator and not left exposed or dangling to
prevent accidental injury.
Never unplug the refrigerator by pulling the power cord. Always grip the plug firmly and
pull straight out from the receptacle.
Do not use an extension cord with this appliance. If the power cord is too short, have a
qualified electrician or service technician install an outlet near the appliance. Use of an
extension cord can negatively affect the performance of the unit.

6
START

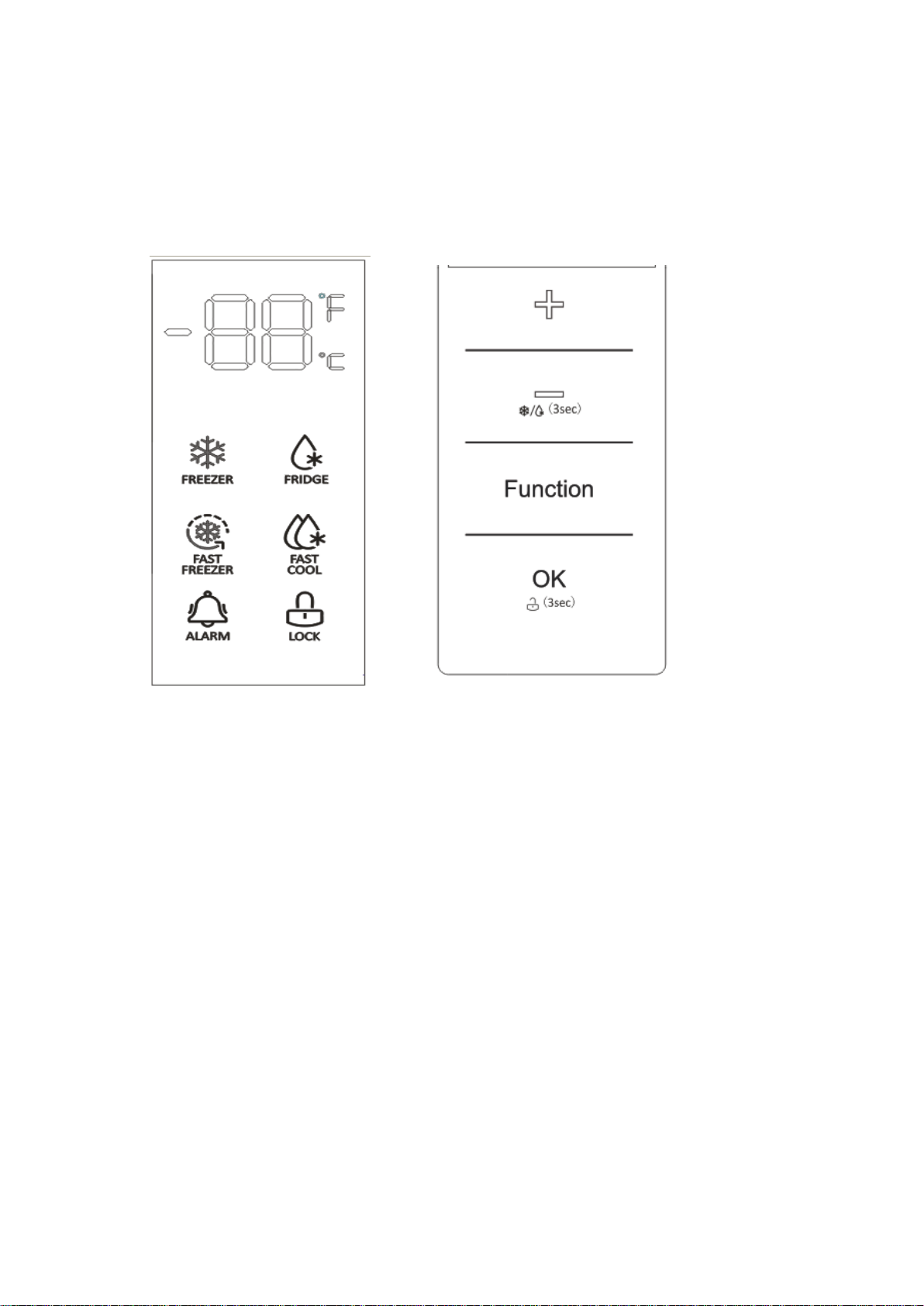

Temperature Control Panel
introduction of the buttons
（1）+: to increase the refrigerator/freezer temperature
（2）-: to set the refrigerator/freezer temperature / 3s to change the refridgerator into a fridge or
freezer.
（3）Function: to choose functions of fast cool, fast freezer
（4）OK: to enter or to quit the existing function /3s to lock or unlock
function setting
★appliance connected to power at the first time
When the appliance is connected to power at the first time, the display will be lit for 2 seconds
before going normal and the appliance runs with intelligence function.
★display control
When the refrigerator door is closed and there is no button operation in 3 minutes, the display
light goes off.
When the display light is off, open the refrigerator door or click any button to light it up.
★fridge/freezer choose
When the refrigerator is not in fast cool or fast freezer, press the “-“button for 3 seconds, can
choose the refrigerator works as a fridge or a freezer.

7
★temperature setting
1) Click the “+” or “-” button and when it flickers in the symbol, temperatures can be set; each
time when the button is clicked, the temperature changes accordingly (the display shows
the temperature accordingly).
(Temperatures cannot be set under functions of fast cool, fast freezer)
2) Under temperature setting, if there is no button operation in 5 seconds, the symbol stops
flickering and the set temperature comes into effect.
3)Temperature cycle
If the refrigerator works as a fridge: 2℃↔3℃↔4℃↔5℃↔6℃↔7℃↔8℃；
If the refrigerator works as a freezer: -16℃↔-17℃↔-18℃↔-19℃↔-20℃↔-21℃↔-22℃
↔-23℃↔-24℃；
★fast cool
Under fast cool, it is 2℃in the fridge and the refrigerator temperature cannot be changed.
1)To enter fast cool
When the refrigerator works as a fridge, click “function” until it flickers in “fast cool” and then
click “OK” to enter this function.
2) To quit fast cool
Under fast cool, click “function” until it goes to “fast cool” and then click “OK” to quit this
function.
The light in fast cool goes off and the refrigerator temperature goes back to the value before
fast cool.
★fast freezer
Under fast freezer, the refrigerator temperature cannot be set.
1) To enter fast freezer
When the refrigerator works as a freezer. click “function” until it flickers in “fast freezer” and
then click “OK” to enter this function.
2) To quit fast freezer
Under fast freezer, click “function” until it goes to “fast freezer” and then click “OK” to quit this
function.
The light in fast freezer goes off and the freezer temperature goes back to the value before fast
freezer.
When fast freezer time is up (26 hours), it quits automatically.
★power off memory
With this design, the refrigerator can automatically keep all the setting in case of power off.
When the unit is plugged in again, the refrigerator will run with the setting before power off.
★Power-On Delay
To prevent harm to the refrigerator in case of sudden power cut and power on, the unit does
not start immediately if the power off time is less than 5 minutes.
★Freezer over-temperature alarm (only in case of power on)

8
When the refrigerator works as a freezer, while the freezer temperature is higher than the first time it is
connected to the power supply, the camera light will freeze and the number representing the temperature
will flash.
Press any button, display the freezer temperature when turning on, press this button again for 5 seconds,
blinking stops and returns to the set temperature.
★Refrigerator door opening alarm
When the refrigerator is open for 3 minutes, the buzzer will buzz. Close the door or press any button to
stop the alarm, but for the alarm, the alarm will sound again after 3 minutes.
★Sensor failure alarm
When it shows "E0", "E1", "E2" or other abnormal symbols, it means sensor failures and the
refrigerator needs repair.
Tips for keeping food perfect in the Fridge
Take extra care with meat and fish
Cooked meats should always be stored on a shelf above raw meats to avoid bacterial
transfer. Keep raw meats on a plate which is large enough to collect juices and cover it
with cling film or foil.
Leave space around food
This allows cold air to circulate around the Fridge, ensuring all parts of the Fridge are kept
cool.
Wrap up food!
To prevent transfer of flavors and drying out, food should be separately packed or
covered. Fruit and vegetables need not be wrapped.
Pre-cooked food should be cooled properly
Allow pre-cooked food to cool down before placing in the Fridge. This will help to stop the
internal temperature of the Fridge from rising.
Shut the door!
To prevent cold air escaping, try to limit the number of times you open the door. When
retuning from shopping, sort foods to be kept in your Fridge before opening the door. Only
open the door to put food in or take it out.
Where to store your foods in the freezer
Coldest area
This is where foods which must be cold to keep them safe should be kept:
·Raw and uncooked foods should always be wrapped.

9
·Pre-cooked chilled foods, eg. Ready meals, meat pies, soft cheeses.
·Pre-cooked meats eg. Ham,
·Prepared salads(including pre-packed mixed green salads, rice, potato salad etc).
·Desserts, eg. Fromage frais, home-prepared food and leftovers or cream cakes.
NOTE：Always wrap and store raw meat, poultry and fish on the lowest shelf at the bottom
of the fridge. This will stop them dripping onto, or touching other foods. Do not store
inflammable gasses or liquids in the fridge.
Freezing fresh foods, useful tips
Use quality food and handle it as little as possible. Freeze food in small quantities, it
freezes faster, takes less time to thaw and enables you to eat it in the quantity you need.
Freezing fresh foods
First, estimate the amount of food you will be freezing. If you are freezing large amounts of
fresh food, Switch to frozen mode. This will lower the temperature in the Freezer (approx
-30℃), freezing your food quicker and helping to keep the goodness in. However you
should do this sparingly to conserve energy.
Preparations for freezing
·Leave cooked food to cool completely.
·Chill food in a Fridge before freezing if possible.
·Consider how you want to cook the food before freezing it.
·Don’t freeze food in metal containers as you may want to microwave it straight from the
Freezer.
·Use special Freezer bags available from supermarkets, Freezer film, polythene bags,
plastic containers, aluminum foil for acidic foods(such as citrus fruits).
Do not use thin cling film or glass. Do not use used food containers (unless cleaned
thoroughly first).
·Exclude as much air from the container as possible. You could buy a special vacuum
pump which sucks excessive air out of the packaging.
·Leave a small amount of “air space” when freezing liquids, to allow for expansion.
·You can use the space in the Freezer most efficiently if you freeze liquids(or solids with
liquids, such as stew) in square blocks.
This is known as “performing” Pour the liquid into a polythene bag which is inside a
square sided container. Freeze it like this, then remove it from the container and seal
the bag.

10
Defrosting
This appliance is designed as automatic defrosting ,no need to defrost by hand.
Recommended storage periods
For recommended food storage time, refer to the information given on your food
packaging.
Cleaning inside the Fridge/Freezer
You should clean the Fridge/Freezer internally with a weak solution of bicarbonate of soda.
Then rinse with warm water using a damp sponge or cloth and wipe dry. Wash the baskets
in warm soapy water and ensure they are completely dry before replacing in the
Fridge/Freezer.
Cleaning outside the Fridge/Freezer
Use standard non-abrasive detergent diluted in warm water to clean the Fridge/Freezer
exterior.
The grille of the condenser at the back of the Fridge/Freezer and the adjacent
components can be vacuumed using a soft brush attachment.
Do not use harsh cleaners, scouring pads or solvents to clean any part of the
Fridge/Freezer

11
TROUBLESHOOTING AND MAINTENANCE
Trouble Shooting
Power cut
If the internal temperature of the Fridge/Freezer compartment is -18℃or less when the
power returns, your food is safe. The food in your Fridge/Freezer will remain frozen for
approx 16 hours with the door closed. Do not open the Fridge/Freezer door more than
necessary.
The Fridge/Freezer is exceptionally cold
You may have accidentally set the refrigerator temperature to a higher position.
The Fridge/Freezer is exceptionally warm
The compressor may not be working. Set the refrigerator temperature to minimum setting
and wait a few minutes. If there is no humming noise, it is not working. Contact the local
store where your purchase was made.
The Fridge/Freezer is not working
Check it is plugged in and switched on. Check that the fuse in the plug has not blown. Plug
In another appliance, such as a lamp, to see if the socket is working. The Fridge/Freezer
should be placed in a well ventilated room with an ambient temperature of between 10℃
and 43℃. Leave the Fridge/Freezer for 30 minutes.
Condensation appears on the outside of the Fridge/Freezer
This may be due to a change in the room temperature. Wipe off any residue of moisture. If
the problem continues contact the local store where your purchase was made.
GURGLING, WHOOSHING
These noises are caused by the circulation of the refrigerant liquid in the cooling system. It
has become more pronounced since the introduction of CFC free gases. This is not a fault
and will not affect the performance of your Fridge/Freezer.
HUMMING, PURRING OR PULSATING
This is the compressor motor working, as it pumps the refrigerant around the system.
Moving the Fridge/Freezer
Location
Do not place your Fridge/Freezer near a heat source, eg. Cooker, boiler or radiator. Also
avoid direct sunlight in out-buildings or sun lounges.
Leveling the Fridge/Freezer
Make sure the Fridge/Freezer is level. Use the rotating leveling feet at the front. If the
Fridge/Freezer is not level, the doors and magnetic seal alignments will be affected and
may cause your Fridge/Freezer to work incorrectly.

12
Do not turn on the Fridge/Freezer for 4 hours
After the Fridge/Freezer is in place it needs to be left for 4 hours. This allows time for the
coolant to settle.
Installation
Don’t cover or block the vents or grilles of your appliance.
Vacation Time
•Turn off the refrigerator first and then unplug the unit from the wall outlet.
•Remove all the food.
•Clean the refrigerator.
•Leave the lid open slightly to avoid possible formation of condensation, mold, or
odors.
•Use extreme caution in the case of children. The unit should not be accessible to
child’s play.
•Short vacations: Leave the refrigerator operating during vacations of less than three
weeks.
•Long vacations: If the appliance will not be used for several months, remove all food
and unplug the power cord. Clean and dry the interior thoroughly. To prevent odor
and mold growth, leave the door open slightly: blocking it open if necessary or have
the door removed.
Servicing
This product should be serviced by an authorized engineer and only genuine spare parts
should be used.
Under no circumstances should you attempt to repair the appliance yourself.
Repairs carried out by inexperienced persons may cause injury or serious malfunctioning.
Contact the local store where your purchase was made.
When the appliance is not in use for long periods, disconnect from the electricity supply,
empty all foods and clean the appliance, leaving the door ajar to prevent unpleasant
smells.
THIS APPLIANCE MUST BE EARTHED.
This appliance is fitted with a plug which will be suitable for use in all houses fitted with
sockets to current specifications.
If the fitted plug is not suitable for your socket outlets, it should be cut off and carefully
disposed of. To avoid a possible shock hazard, do not insert the discarded plug into a
socket.

13
Correct Disposal of this product
This marking indicates that this product should not be
disposed with other household wastes throughout the EU. To
prevent possible harm to the environment or human health
from uncontrolled waste disposal, recycle it responsibly to
promote the sustainable reuse of material resources. To
return your used device, please use the return and collection
systems or contact the retailer where the product was
purchased. They can take this product for environmental safe
recycling.

REFRIGERADOR
MODELO:
SVCR187NFX
MANUAL DE INSTRUCCIONES

           

             
  

 



             

No           

No 
No  

No           

Consideraciones



         

           
         

2

No Descripción
1 Panel de cajonera congelador
2 Cajones de congelador
3 Pies ajustables

-


Limpiar antes de usar



  

Antes de conectar DEBES
           

Antes de encender!

  

Antes de llenar su refrigerador / congelador



Conexión eléctrica
PELIGRO







B 

 -  V  5  H 





N 

N 



