Svan SVRR090 User manual

REFRIGERATOR
INSTRUCTION MANUAL
Model No.: SVRR090
To ensure proper use of this appliance and your safety, please read
the instruction manual completely before operating this appliance.

NAMES OF THE PARTS
The refrigerator you purchased may be improved, which maybe not completely
consistent with the manual, However the functions and operating methods will not
change. Please feel free to use!
If you use the refrigerator for the first time, remove the adhesive tapes of the drawers,
balconies, egg tray, and the drain tube plug.
Do not pull or push the drawers and balconies fiercely during use in case of damage.
Adjusted the temperature control as higher as you could accept, which will save the
energy consumption of the refrigerator and your money;
Don’t open the refrigerator door continually if it is in the normal working situation.
Keep the combination of drawers, baskets and shelves of the refrigerator is consistent
with its original standard.
1
Thank for purchasing our products and thank you for placing your confidence
Please read this manual carefully before using. Follow instructions and keep
it for future reference.
Please follow the operating instructions and safety notices in the manual.
If any trouble arise, do not fix it yourself or hand it to the after sales service
center which has not been authorized. Please contact the local authorized
service center.
Names of the parts ......................................................................................
Safety warnings ............................................................................................
Installation instructions .................................................................................
Operation instructions....................................................................................
Packing and moving.......................................................................................
Maintenance..................................................................................................
Defrost...........................................................................................................
Disconnecting the appliance..........................................................................
User notifications...........................................................................................
Troubleshooting tips.......................................................................................
Specifications and parameters......................................................................
Packing list....................................................................................................
CONTENTS
1
2
4
4
5
5
6
6
6
7
8
9
in us.

SAFETY WARNINGS
For ensure your personal safety, please follow the points below:
Do stop the power only by pulling the power plug out of the socket directly but not by
the wire.
Do not damage the refrigerant circuit.
This appliance is not intended for use by persons(including children) with reduced
physical, sensory or mental capabilities, or lack of experience and knowledge,unless
they have been given supervision or instruction concerning use of the appliance by a
person responsible for their safety.
Children should be supervised to ensure that they do not play with the appliance.
Keep ventilation opening, in the appliance enclosure or in the built in structure,clear
of obstruction.
The circuitry for refrigerator must be isolated. The area of cross section of wire must
be larger than 0.75mm². The power plug should have its own socket, the socket must
be ground as adapter may cause the socket to overheat.
Do not store explosive substances such as aerosol cans with a flammable propellant in
this appliance.This appliance is intended to be used in household and similar applications
such as
-staff kitchen areas in shops, offices and other working environments;
-farm houses and by clients in hotels, motels and other residential type environments;
-bed and breakfast type environments;
-catering and similar non-retail applications.
Before you throw away your old refrigerator or freezer.
- Take off the doors;
- Leave the shelves in place so that children may not easily climb inside.
Do not use electrical appliance inside the food storage compartments of the appliance,
unless they are of the type recommended by the manufacture.
The voltage and frequency of this product should be 220-240V;50Hz. Contact with the
local maintenance station or retailer if the wire is damaged.
This appliance can be used by children aged from 8 years and above and persons with
reduced physical, sensory or mental capabilities or lack of experience and knowledge
if they have been given supervision or instruction concerning use of the appliance in a
safe way and understand the hazards involved. Children shall not play with the appliance.
Cleaning and user maintenance shall not be made by children without supervision.
1.
2.
3.
4.
5.
6.
7.
8.
9.
10.
11.
2
Children aged from 3 to 8 years are allowed to load and unload refrigerating
appliances.
To avoid contamination of food, please respect the following instructions:
-Opening the door for long periods can cause a significant increase of the
temperature in the compartments of the appliance.
-Clean regularly surfaces that can come in contact with food and accessible
drainage systems.
3
NOTICE:
When gas leaks from its container, don't pull the plug, out or in, for it may
arouse sparks and fire calamities.
1.
Don't splash water on the rear of the appliance, for it may cause malfunction
or electric shock.
2.
3. Don't stor inflammabe materials such as ether, benzene, LP gas and glue
etc in the refrighterator.
-Clean water tanks if they have not been used for 48 h; flush the water system
connected to a water supply if water has not been drawn for 5 days.
-Store raw meat and fish in suitable containers in the refrigerator, so that it is
not in contact with or drip onto other food.
-Two-star frozen-food compartments are suitable for storing pre-frozen food,
storing or making icecream and making ice cubes.
-One-, two- and three-star compartments are not suitable for the freezing of
fresh food.
-If the refrigerating appliance is left empty for long periods, switch off, defrost,
clean, dry, and leave the door open to prevent mould developing within the
appliance.
WARNING:When positioning the appliance, ensure
the supply cord is not trapped or damaged.
WARNING: Do not locate multiple portable socket
-outlets or portable power supplies at the rear of
the appliance.
It is better not place object on the top of appliance which is magnetic, heavy, or be
filled with water. Electronic components may not work steadily if water gets inside.
4.
The refrigerant of this product is R600a,which is inflammable. So,make sure not to
damage the cooling system during the transportation and installation.
DISPOSAL:Do not dispose this product asunsorted
municipal waste.Collection of such wasteseparately
for special treatment is necessary.
5.
6.
Do not store object which is costly or impressible to temperature and , e.g. serum,
bacterin and so on.
USE METHOD AND PRECAUTIONS OF DIFFERENT
COMPARTMENTS
TIPS FOR USE OF REFRIGERATOR COMPARTMENT
1. the common refrigerating temperature of food stored in refrigerator is from
4°C to 8°C. In this environment, cooked meat can not be stored for more
than 4 days, and fruits and vegetables should not exceed one week at most.

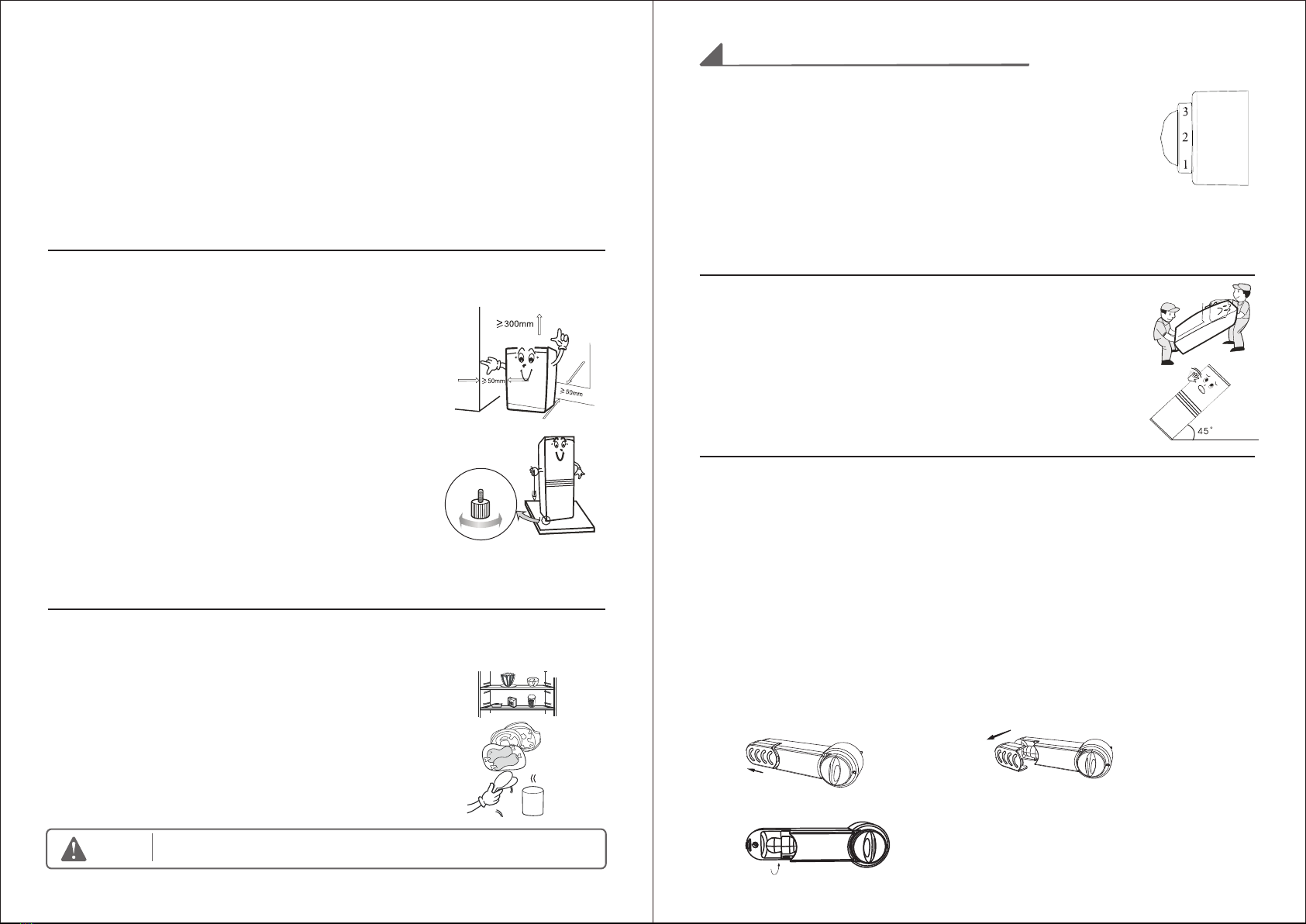

The refrigerator should be located in a completely flat surface , Leave 5~10 cm
between each side of the appliance and the wall, and leave 30 cm between the top
of the appliance and the ceiling.
Choose a location which is not exposed to sunlight ,
high temperature or humid , as humidity maycause stain.
Pulled out the bottom panel before installation.
The appliance can be adjusted by rolling its two legs in
front the bottom when it is unstable. Rolling in clockwise
can rise up the machine.
The location should be firm and flat. An un-securely
position may cause noise and libration:
(a)The noise may be increased if the floor is not firm.
(b) Put a sheet under the appliance for solving the heat
emission if you need to locate it onto a carpet.
Make sure the adjustable legs are clung to the floor,
and set the appliance slope backward slightly for keeping the doors closed tightly.
PLACEMENT OF FOOD
INSTALLATION INSTRUCTIONS
OPERATION INSTRUCTIONS
1.
2.
3.
4.
5.
6.
There should always be some space between items inside for air circulation.
Food should be
dry or with odour.
kept in sealed package to avoid becoming
Hot food should be cooled down before placing into the
appliance. Otherwise, interior temperature and electronic
consumption will increase.
Reduce the frequency of door opening can efficiently low
down the electronic consumption.
Do not use any electronic equipment inside the appliance.
Warning
1.
2.
3.
4.
4
can not be stored for more than7 days.
3. Meat and seafood need to be packed in different containers and stored for
not more than 3 days.
4. Raw food and cooked food need to stored in different containers. In order
to prevent bacterial contamination, raw vegetables and fruits should not
be exposed to raw meat or fish. Vegetables and fruits should be wrapped
by film and stored in the crisper.
2. The common temperature of the chilling room is from -1 to 4°C, and meat
INSTRUCTION FOR USAGE
Unpack , repack and carry
Please memorize the position of each accessory of the appliance
when unpack it, repack the product and check it carefully before
transportation.
Do not lift or pull the door or the door handle during transportation.
When moving, the appliance can not be sloped over 45 degrees
(the angle to the vertical direction). Please avoid strong vibration
and hit.
PACKING AND MOVING
1.
2.
3.
The appliance should be maintained and cleaned frequently. For your safety,do
please pull the plug out of the socket before the cleaning.
Interior maintenance
Clean the interior of the appliance with clean water or neutral abluent.Scour it with
clean water and wipe it with a piece of dry cloth.
Maintenance of door gasket
It is easy to damage if the door gaskets are polluted by the stain like oil, sauce and
etc., so it is better to clean them carefully.
Outer maintenance
Wipe the dusty with a piece of dry cloth ,clean it with neutral abluentif necessary.
MAINTENANCE
1.
2.
3.
The displacement of interior light Uninstall the cover and replace the light with a
screwing light (E14 , 220V/10W)，Consult the following pictures：
4.
1) Move the lampshade 3~5mm according
to arrow point direction.
2) Take out the lamp shade.
3) Rotate and take out the bullb in counterclockwise direction.
5
The temperature of refrigerator can be controlled manually by
the knob. However, the number shown on the knob does not
directly represent the temperature. Instead, the larger the
number is, the lower the interior temperature will be. 0 stands for
off. 7 stands for the coldest temperature level. The tempreture in
every apartment will be at the lowest degree under this level, and
it probably make it below 0°C in the fridge department, so please
choose carefully before you use.Turn the knob to level 4 when it
is normal, turn it to the level 4-6 if a lower interior temperature is
required; contrarily, lower to
4-1, when a higher one is needed.

Do not use any other equipment or method to push the
defrost process. It may destroy the cooling system.
DEFROST
The heavy frost will influence the refrigerating of the appliance and increase the
energy consumption. Thus, defrosting is needed as the frost is as thick as 5 mm.
Processes of the manual defrost are listed as following: take all the food out of the
compartment; uninstall the drawers and shelves; unplug the electronic power cord;
open the doors and wait for the thaw; wipe up the water with dry cloth.
DISCONNECTING THE APPLIANCE
In a general condition, do not stop the appliance in case of affecting
its life. After unplugging the power, please leave at least 5 minutes
before resumption.
USER NOTIFICATIONS
Attention
Do not splash water on the refrigerator, as it will cause oxidation and malfunction.
Electronic component such as on/off button should be wiped dryly.
Cleansers such as soap powder, abrasive cleaning powder, alkali cleansers,
chemical cloth, thinner, alcohol, acid petroleum productand hot water should not be
used to clean the refrigerator as they may damage the painted cover and plastics.
Smear can damage the interior plastic component, so wipe it as soon as possible.
1.
2.
3.
Discontinuation during power failure
After power failure, do not put additional food in the appliance and reduce the
frequency of door opening.Make several ices in a container if know the power failure
beforehand, and put it in the top of the fridge.
Discontinuation during vacation
Please fetch out the easy-rot food and the food in fridge before shot vacation. After
confirmation, close the door firmly.If have a long vacation, please fetch out all the
food and cut off the power. After defrosting, clean up the liner of the appliance and
wipeit dry, and leave the door open.
Stop using
If the refrigerator may be stopped using for a long time, please unplug the outlet and
clean up the appliance. The door should be kept open in order to prevent unpleasant
smell caused by food leavings.
1.
2.
3.
After power failure, even in summer, the refrigerator can store food normally in
several hours.
Please check the points below after maintenance:
(1) Is there any damage or loss of the electronic wire ?
(2) Can the plug be put in the socket reliably and smoothly?
(3) Is the plug heating unconventionally?
4.
6
The follow cases are not malfunction
Moisture may form dew on the outside of the product during the humid season, just
get it wiped.
The flow of refrigerant through the pipeline coil can cause a bicker.
It is normal that the sides of product get warm as a result of the cooling pipeline
working.
1.
2.
3.
The frame of the appliance will be warm during working by the defrost pipeline inside
it.
Please check the points above first.
If the supply cord is damaged, it must be replaced by the manufacturer,
its service agent or similarly qualified persons in order to avoid a hazard.
4.
Heavy frost occurs on the rear of the appliance
Putting humid or hot food into the appliance may cause this problem. Or it may be
caused by the heavy environment moisture.
Disgusting odour happens
Food with strong odour should be packed tightly before being put inside the appliance.
Please check whether there is any deteriorated item or whether the liners are left dirty
for a long time.
Water leaks from the bottom of the refrigerator
The drain tube is jammed. Please use a proper tool to solve it.
5.
6.
7.
The compressor keeps working for a long period
The environment temperature may be too high. The doors may be opened frequently
or even they are left open. The temperature control knob setting in (4-7) state may
increase the working time of compressor.
4.
TROUBLESHOOTING TIPS
The refrigerator does not work
It may not be connected to the power supply(plug, power cut or fuse); Voltage is too
low.
The refrigerator does not work efficiently as expected
It may be caused by heavy frost, or by warm temperature setting,or by frequently door
operating.
It makes unusual noise
It may be caused by an imbalance or loose ground locating the appliance, or by
resonation between the appliance and other ambient objects.
1.
2.
3.
Please get rid of the gasket of the door before the disposal.
The disposed apparatus should be handled by professional
staff, as it may be harmful to the environment.
Warning
7

SPECIFICATIONS AND PARAMETERS
Climate class
Electric shock protection type
Capacity (L)
Freezer
Freezer
Refrigerator
Voltage (V)
Frequency (Hz)
Current (A)
Voice [dB(A)]
Energy consumption (kW.h/24h)
Refrigerant
Weight (Kg)
Interior
temperature ( C)
Dimension (mm)
Width
Depth
Height
Refrigerator
o
R600a/33g
N/ST
I
93
220-240
0.45
50
0.365
<42
32
552
0~8
617
900
8
18
9
PACKING LIST
Vagetable crisper 1pcs
Crisper glass cover 1copy
NumberParts
Stee Shelf
Door bar
2pcs
3pcs
Note: Products are subject to improve from time to time, any
changes in parts without further notice.
Owner's manual 1copy
