OPERATION
MANUAL
2.0 Multimedia Speaker System
SPS-702

Congratulations on your purchase of the Sven speaker system!
COPYRIGHT
© 2014. SVEN PTE. LTD. Version 1.0 (V 1.0).
This Manual and information contained in it are copyrighted. All rights reserved.
TRADEMARKS
All trademarks are the property of their legal holders.
NOTICE OF RESPONSIBILITY RESTRICTION
Despite the exerted efforts to make this Manual more exact, some discrepancies may occur. The
information in this Manual is given on “as is” terms. The author and the publisher do not bear any
liability to a person or an organization for loss or damage which has arisen from the information
contained in this Manual.
CONTENTS
1. BUYER RECOMMENDATIONS ..................................................
.............
2. PACKAGE CONTENTS............................................................. ............
3. SAFETY PRECAUTIONS .................................................. ...................
4. TECHNICAL DESCRIPTION .................................................... ................
5. PREPARATION AND OPERATION .......................................... ......................
6. TROUBLESHOOTING................................. ...............................................
7. TECHNICAL SPECIFICATIONS .................................................... ...........
1
2
2
2
3
4
5
1. BUYER RECOMMENDATIONS
•Unpack the device carefully. Make sure there are no accessories left in the box. Check up the
device for damage; if the product was damaged during transportation, address the firm which
carried out the delivery; if the product functions incorrectly, address the dealer at once.
•Check up the package contents and availability of the warranty card. Make sure the warranty card
has a shop stamp, a legible signature or the seller’s stamp and purchase date, and the goods
number corresponds to that in the warranty card. Remember: in case of warranty card loss or
discrepancy of numbers you forfeit the right for warranty repairs.
• Do not switch on the speaker system immediately after you bring it into a room from environment
with negative temperature! After unpacking, the speaker system should be kept in conditions of
room temperature for at least 4 hours.
•Before installing and using the speaker system, read this Manual carefully and keep it for future
reference.
Technical support is on www.sven.fi.
ENG
1
Operation Manual sPS-702

2. PACKAGE CONTENTS
• Speakers — 2 pcs
• Signal cable — 1 pc
• Operation manual — 1 pc
• Warranty card — 1 pc
3. SAFETY PRECAUTIONS
•To avoid electric shock, do not open the MSS and do not perform repairs by yourself. Service and
repairs should be performed only by qualified specialists in an authorized service center. The list of
authorized service centers is available on www.sven.fi.
•Do not allow the circuit of wires (including the grounded ones) between the speakers, on the
power amplifier or the ground, for it causes damage to the power amplifier output stage.
•Do not touch the MSS power cord plug pins for 2 seconds after unplugging it from the mains.
•Do not put foreign objects inside the holes of the MSS.
•Protect the MSS from high humidity, water and dust.
•Protect the MSS from heating: do not place it closer than 1 m from a heat source. Do not expose it
to direct sunlight.
•Do not place any open flame sources on or close to MSS.
•Do not place the MSS in poorly ventilated areas. Leave an air gap of 10 cm or more. When ope-
rating the MSS, do not put any devices on it, do not cover it with cloth or other objects preventing it
from cooling.
•Do not use any chemical agents for cleaning. Clean it with dry soft cloth only.
4. TECHNICAL DESCRIPTION
SPS-702 Multimedia Speaker System (MSS) is designed to play music and sound games, movies,
etc. The built-in amplifier enables to connect the MSS to any sound source. One speaker is active
(it has a built-in power amplifier and a control panel), while the other one is passive. The passive
speaker is connected to the active speaker via an audio cable. The signal cable and the power
cable are built into the active speaker.
Special features
•Built-in transformer power supply
•Volume, treble and bass control
•Control knobs on front panel of the active speaker
• Speaker system is compatible with PCs, DVD/Media-players,
mobile devices and other sound sources
•Headphone jack
•Power LED
• Magnetic shielding
•MDF speaker cabinets
Caution! High voltage inside! To avoid the risk of electric
shock do not open or touch elements inside.
ENG
2
2.0 Multimedia Speaker System

ab c d e
TREBLE BASS
VOLUME
Special features
•Built-in transformer power supply
•Volume, treble and bass control
•Control knobs on front panel of the active speaker
• Speaker system is compatible with PCs, DVD/Media-players,
mobile devices and other sound sources
•Headphone jack
•Power LED
• Magnetic shielding
•MDF speaker cabinets

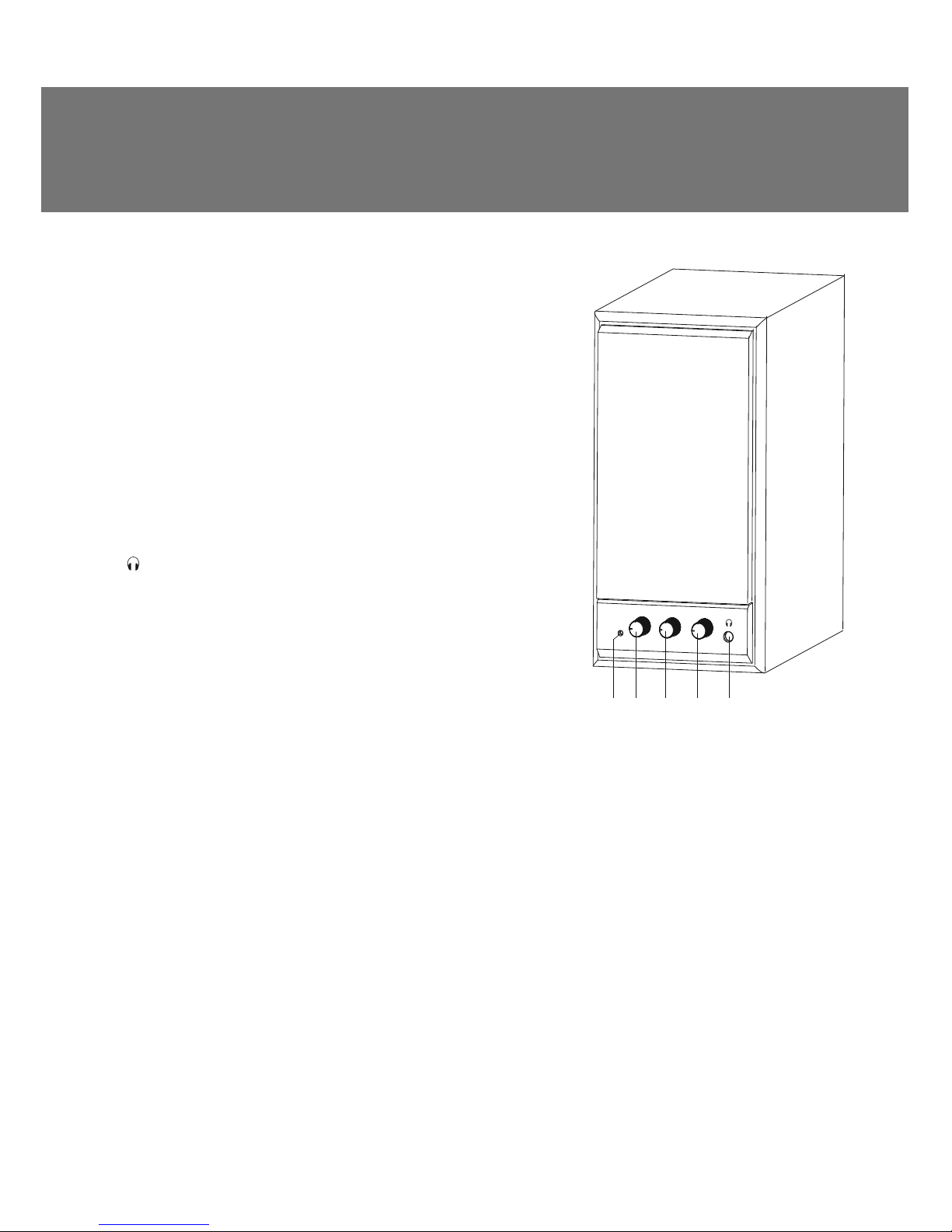

Active speaker front panel
aPower LED
bVOLUME: master volume control knob
cTREBLE: treble control knob
dBASS: bass control knob
e: headphone jack
5. PREPARATION AND OPERATION
Speaker placement
•Place the speakers symmetrically to the listener at least
one meter away.
•Since the speaker system has a rear-ԛring bass reԜex
port, place it at the distance of 20-30 cm from a wall or
any other obstacle.
•Place MSS far away from monitors and TV sets, as
insigniԛcant image distortion in these supersensitive
devices is possible.
MSS Connecting
SPS-702 Multimedia Speaker System (MSS) can be connected to virtually any audio source (see
connection diagram in Fig. 2).
• Before making any connections, make sure that the MSS is unplugged.
• Then connect the speakers to each other via the audio cable built into the passive speaker (see
the connection diagram, as shown in Fig. 2).
•Plug the RCA connectors of the included 2RCA to 3.5 mm mini-jack stereo signal cable into the
INPUT R/L jacks of the MSS, and connect the mini-jack of the signal cable to the output jack of your
PC sound card or to the audio output (Ø 3.5 mm jack) of any other sound source, as shown in Fig. 2.
Note. To connect the MSS to a CD/DVD/MP3 player or TV, use a 2RCA to 3.5 mm mini-jack
stereo signal cable (included) with a mini-jack to 2RCA adapter (not included), as shown in
Fig. 2 or use a 2RCA to 2RCA stereo signal cable (not included).
• Insert the power cord plug built in active speaker into the mains outlet, as shown above.
• Adjust the volume knob to the minimum b, set the POWER switch on the rear panel of the active
speaker into the ON position, and the power LED awill illuminate. Then turn on your audio source.
Fig. 1. Active speaker
front panel
ENG
3
Operation Manual sPS-702

B
L-SPKINPUT
POWER
ON
L
OFF
CD
DVD
ƴudio cable
Power cord
• Set the volume and timbre level by turning the corresponding knobs b, cand dclockwise. By
turning the knobs clockwise, you increase the volume and timbre, and by turning the knobs
counterclockwise, you reduce it.
Notes:
• After using the MSS, mind to unplug the power cord.
• Use the soundcard Line-Out port to improve the sound quality.

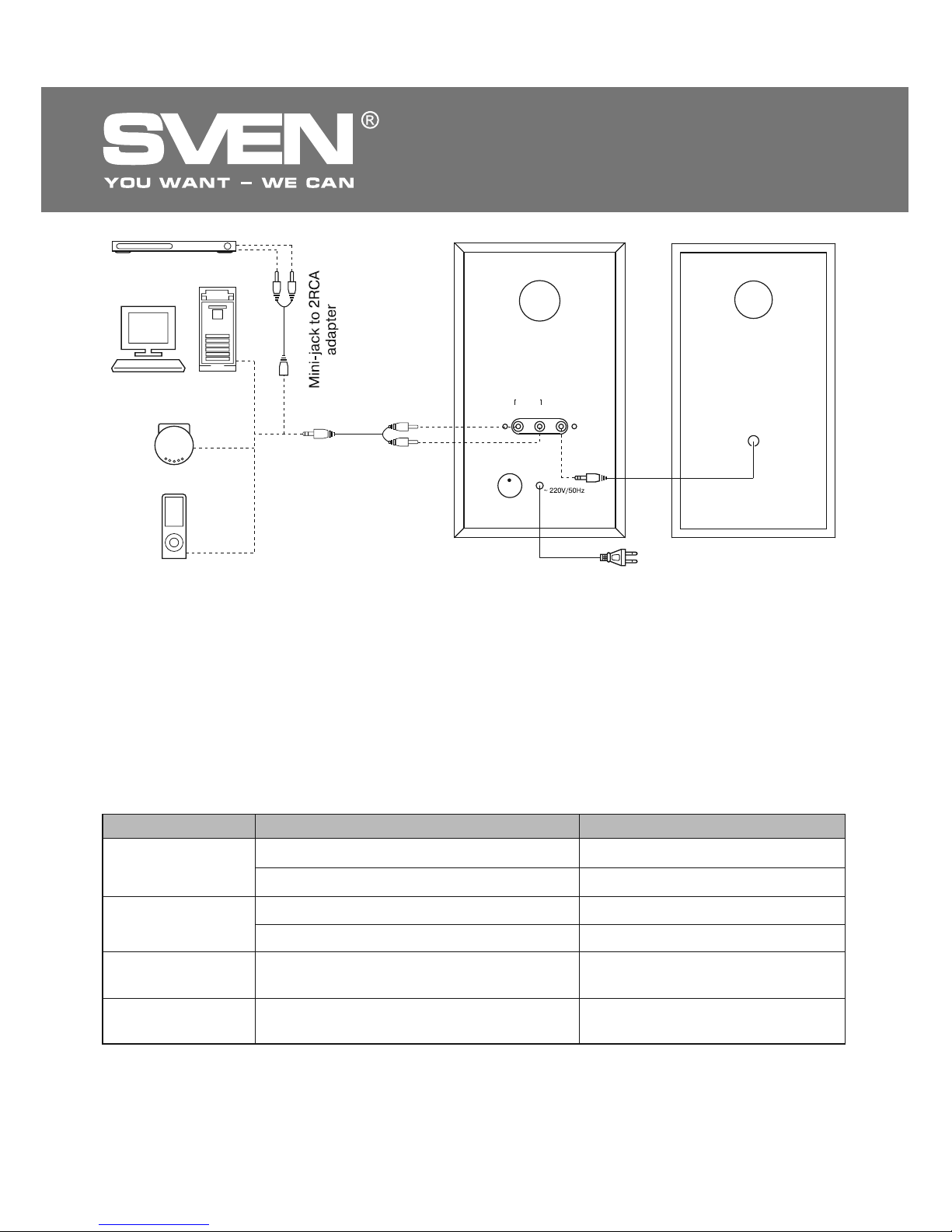

Fig. 2. Connection diagram
2RCA to mini-jack
signal cable
PC
Player
6. TROUBLESHOOTING
If none of the above methods can solve the problem, please seek professional advice at your
nearest service center. Never attempt to repair the product yourself.
Problem
The MSS does not
turn on.
No sound.
There is too quiet
sound of speakers.
Distortion of
sound.
Cause
The MSS isn’t connected to a mains outlet.
Power switch is oԚ.
The volume level is set at minimum value.
Improperly connected audio source.
The volume level is set at minimum value.
Large amplitude of the input signal.
Solution
Check the connection.
Turn on the switch.
Adjust the volume control knob.
Connect audio sources correctly.
Adjust the volume control knob.
Turn down the source volume and
MSS volume.
4
ENG
2.0 Multimedia Speaker System

Value
40 (2 × 20)
40 – 22,000
Ø 19 + Ø 100
~220/50
143 × 265 × 150
4.2
Parameter, measurement unit
Output power (RMS), W
Frequency range, Hz
Speaker diameters (tweeter + woofer), mm
Power supply, V/Hz
Dimensions (one speaker) (W × H × D), mm
Weight, kg
Notes:
• Technical specifications given in this table are supplemental information and cannot give
occasion to claims.
• Technical specifications and package contents are subject to change without notice due
to the improvement of SVEN production.
7. TECHNICAL SPECIFICATIONS
ENG
5
Operation Manual sPS-702

Модель: SPS-702
Импортер вРоссии: ООО «СКАНДИТРЕЛ», 111024, РФ,
г. Москва, ул. Авиамоторная, д. 65, стр. 1.
Уполномоченная организация вРоссии: ООО «РТ-Ф»,
105082, г. Москва, ул. Фридриха Энгельса, д. 75, стр. 5.
Условия гарантийного обслуживания смотрите
вгарантийном талоне или на сайте www.sven.fi .
Гарантийный срок: 12 мес.
Срок службы: 5 лет.
Производитель: «СВЕН ПТЕ. Лимитед»,
176 Джу Чиат Роуд, №02-02, Сингапур, 427447.
Произведено под контролем «Свен Скандинавия
Лимитед», 48310, Финляндия, Котка,
Котолахдентие, 15. Сделано вКитае.
Manufacturer: SVEN PTE. LTD, 176 Joo Chiat Road,
№02-02, Singapore, 427447. Produced under the
control of Oy Sven Scandinavia Ltd. 15, Kotolahdentie,
Kotka, Finland, 48310. Made in China.
® Registered Trademark of Oy SVEN
Scandinavia Ltd. Finland.
