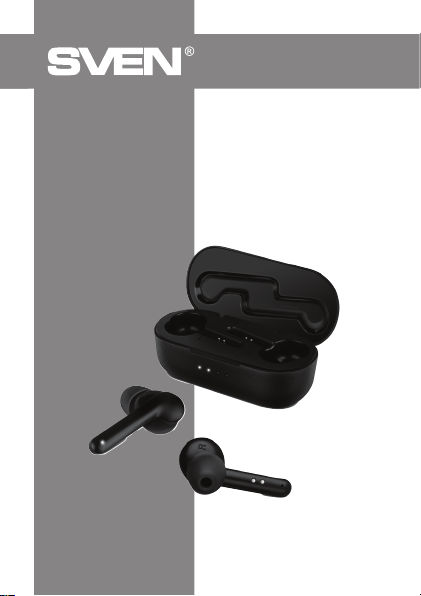

Sven E-700B User manual

www.sven.fi
USER MANUAL
Wireless Stereo Headphones
with Microphone
E-700B

ENG
2
Wireless Stereo Headphones
with Microphone
Congratulations on your purchase of the SVEN stereo headphones!
COPYRIGHT
© 2021. SVEN PTE. LTD. Version 1.0 (V 1.0).
This Manual and information contained in it are copyrighted. All rights reserved.
TRADEMARKS
All trademarks are the property of their legal holders.
NOTICE OF RESPONSIBILITY RESTRICTION
Despite the exerted eorts to make this Manual more exact, some discrepancies may oc-
cur. Theinformation in this Manual is given on «as is» terms. The author and the publisher
do not bear any liability to a person or an organization for loss or damage which has arisen
from theinformation contained in this Manual.
BUYER RECOMMENDATIONS
•Unpack the device carefully. Make sure there are no accessories left in the box. Check up
the device for damage; if the product was damaged during transportation, address therm
which carried out the delivery; if the product functions incorrectly, address the dealer
atonce.
•Check up the package contents and availability of the warranty card. Make sure thewar-
ranty card has a shop stamp, a legible signature or the seller’s stamp and purchase date,
and the goods number corresponds to that in the warranty card. Remember: in case
ofwarranty card loss or discrepancy of numbers you forfeit the right for warranty repairs.
•Before installing and using the speaker system, read this Manual carefully and keep
itforfuture reference.
•Shipping and transportation equipment is permitted only in the original container.
•Does not require special conditions for realization.
•Dispose of in accordance with regulations for the disposal of household and computer
equipment.
APPLICATION
SVEN E-700B wireless stereo headphones with microphone are designed for operation with
PC, notebookes and other mobile devices by means of data transfer via Bluetooth protocol.
They can be also used in internet telephony, during video conferences, in multimedia
applications, in interactive games, for speech recognition and foreign language teaching.
PACKAGE CONTENTS
•Wireless stereo headphones set — 1 pc
•USB power cord to Type-C — 1 pc
•Charging case — 1 pc
•Additional interchangeable ear pads set — 2 pcs
•User Manual — 1 pc
•Warranty card — 1 pc
Technical support is on www.sven..

ENG
3
E-700B
User Manual
SAFETY PRECAUTIONS
•Don’t use the stereo headphones while driving.
•Don’t use the stereo headphones at high volume for a long time (more than 15 minutes),
as this may cause hearing impairment.
SPECIAL FEATURES
•Bluetooth wireless signal transmission
•Touch control of incoming calls and track switching
•Two additional sets of interchangeable ear pads
•Battery operation time up to 4 hours
•Operating time using a charging case up to 15 hours
CONNECTION
First connection
•Remove both headphones from the
charging case, then put them back to the
case to activate the headphones.
•If there is a protective film on the
contacts, you must remove it before
using the headphones.
•The battery in the headphones and
case is used as an integral part of the
device. Before using for the rst time,
make sure that the headphones are
fully charged. If the headphones are
discharged, they need to be fully charged
(see headphone charging section). Fig. 1.
DESCRIPTION
a Charging сase LED indicator
bEar pad
c Multifunction sensor button
dHeadphones LED indicator
e Magnetic contact with charging case
f Charging case
g TYPE-C jack for battery charging
Headset to a device interfacing
• It is necessary rst to interconnect the device with a signal source (see the connection
diagram in Fig. 2) to transfer signals via Bluetooth. To pair the headphones with the device,
put them to the charging case, then get them out. Both earphones are automatically
switched on and connected to each other. At the same time on one earphone LED indicator
d will alternate white and red glow, and indicator d on another earphone will light white.

ENG
4
Wireless Stereo Headphones
with Microphone
•It is necessary to select Bluetooth device search mode on a signal source (telephone,
notebook, smartphone, etc.). «SVEN E-700B» massage will be displayed on the screen,
which is to be connected to*.
• If connection successful, there will be a short beep signal in the headphones; the search
mode indication on the headphones is over. If no devices connected, headphones will
turned o automatically in 2 minutes.
•If you cannot connect your device or connect a headset to each other, or the sound is
played from only one earphone, you must re-enter the system to the search mode. Put
the headphones to the charging case (headphone indicators d turn red), press and hold
the multi-function button con two headphones for 9 seconds, until the indicator dlight
on both headphones will not blink red 1 time. Take headphones out the caseand they will
automatically connect to each other. After that, pair the headphones with the device, as
described above**.
Bluetooth Technology
•Wireless data transfer via the Bluetooth protocol enables to connect wireless head-
phones to compatible devises. Maximum radi us of action of data transfer is 10 m. Such
obstacles as walls or other electronic devices can interfere with the signal transfer.
OPERATION
Case Charging
•Connect the charging case (jack g) to PC USB port or USB charger using USB to USB
type-C (included). During battery charging indicator a will alternately flash white. Each
LED symbolizes approximately 25% of the charge. Indicator a goes out when the battery
is charged.
Case Headset Charging
•Put the headphones to the charging case. During battery charging indicator dlights red.
When device is charged full, indicator d is white within 1 minute, then go out.
•The battery in the headphones and case is used as an integral part of the device,
therefore do not try to extract or replace it, because this can result in the warranty
cancellation or the device damage.
* You might have to enter «0000» code to connect some models of devices via Bluetooth.
** If the item has been already registered to the source device list, then the second search
mode activation is not obligatory. Choose only the item name «SVEN E-700B» and the
«connect» command on the source.
Fig. 2. Connection diagram
PC Headphones
Mobile device

ENG
5
E-700B
User Manual
Device switching on
•Remove the headphones from the charging case and they will automatically turn on.
Make sure the headphones are charged.
Device switching off
•Put the headphones to the charging case. They will automatically turn o, or long touch
of button c on either headphone disconnects both headphones.
Headphone control
When connected to a telephone:
•In order to receive an incoming call press multifunction button c. Press button cagain
to nish the call.
•In order to reset the call, press and hold button c (~2 seconds)*.
•Рlay/pause: while listening music press button con the right earphone.
•Previous/next track: while listening music press button c twice on the right earphone to
go to the next track, press button c twice on the left earphone to go to the previous track.
•Long press button c for about 2-3 seconds starts the voice assistant of the phone*.
* Depending on telephone/smartphone conguration.
TECHNICAL SPECIFICATIONS
Parameter, measurement unit Value
Sensitivity, dB headphones: 102 ± 3
microphone: -58 ± 3
Frequency range, Hz headphones: 20 – 20 000
microphone: 30 – 16 000
Impedance, Ohm 16
Membrane, mm Ø 7
Connection type Bluetooth
Bluetooth supported proles HSP, HFP, A2DP, AVRCP
Radius of operation, m up to 10
Operation time, h up to 4
Operation time using a charging case, h up to 15
Weight, g 45
Notes:
• Technical specications given in this table are supplemental information and cannot
give occasion to claims.
• Technical specications and package contents are subject to change without notice
due to the improvement of SVEN production.

Wireless Stereo Headphones
with Microphone
E-700B
Model: E-700B
Импортер в России: OOO «Регард», 105082,
г.Москва, ул. Фридриха Энгельса, д.75,
стр. 5. Уполномоченная организация
в России: ООО «РТ-Ф», 105082, г. Мо-
сква, ул. Фридриха Энгельса, д. 56,
стр. 1. Условия гарантийного обслужи-
вания смотрите в гарантийном талоне
илинасайте www.sven.fi. Гарантийный
срок: 12мес. Срок службы: 2 года.
Производитель: «СВЕН ПТЕ. Лимитед»,
176 Джу Чиат Роуд, № 02-02, Сингапур,
427447. Произведено под контролем
«Свен Скандинавия Лимитед», 48310,
Финляндия, Котка, Котолахдентие, 15.
Сделано в Китае.
Manufacturer: SVEN PTE. LTD, 176 Joo Chiat
Road, № 02-02, Singapore, 427447.
Produced under the control of Oy Sven Scan-
dinavia Ltd. 15, Kotolahdentie, Kotka, Finland,
48310. Made in China.
® Registered Trademark of Oy SVEN
Scandinavia Ltd. Finland.
