SW SUN CONTROL WIND CLIMATE SENSOR User manual

ki
5YEAR MOTORWARRANTY
PREMIUM SENSORS POWERED BY SW SUN CONTROL
WIND CLIMATE SENSOR
WIND CLIMATE SENSOR
ATTENTION: before installing and using the sensor
please read the instructions carefully. Before the
installation check the compatibility of the device
with the associated motors and controls.
SAFETY INSTRUCTIONS
• Risk of injury through an electric shock.
• Terminal connections to network must be made
by an authorised electrician.
• Disconnect all connecting cables throughout
the system before carrying out installation or
maintenance.
• Ensure that the device cannot be accidentally
switched on.
• Keep persons away from the systems operating
range.
• An automatically controlled sun protection
system can move unexpectedly. Therefore,
never place objects in the travel range.
• Keep children away from controls.
• Always observe country-specific regulations.
• If the system is controlled by one or more
devices, the system operating range must be
visible during operation.
• Always adhere to relevant building regulations.
• Automatic and manual movement when frozen
(e.g. frozen wind wheel) and during storms can
seriously damage the system.
• The receivers (e.g. radio control) no longer
function correctly after a power failure. In this
case, an extended sun protection system cannot
be retracted, e.g., during a storm.
Wireless climatic sensor 434.15MHz which controls radio motor/s for awnings according to weather
conditions under stated thresholds.
IMPORTANT: this sensor does not protect the awnings against strong gusts of wind. When weather
conditions presents this sort of risk, ensure that the awning remains closed.
INSTALLATION
Note: ensure that sensors are not installed close to metal surfaces, panes of metalised glass or
generally magnetic fields can reduce the radio signals range.
Radio devices working on the same frequency could interfere with signals reception.
Select the right place for the installation of the sensor. Be careful that trees, roofs or parts of the
building do not affect the light intensity and wind measurement.

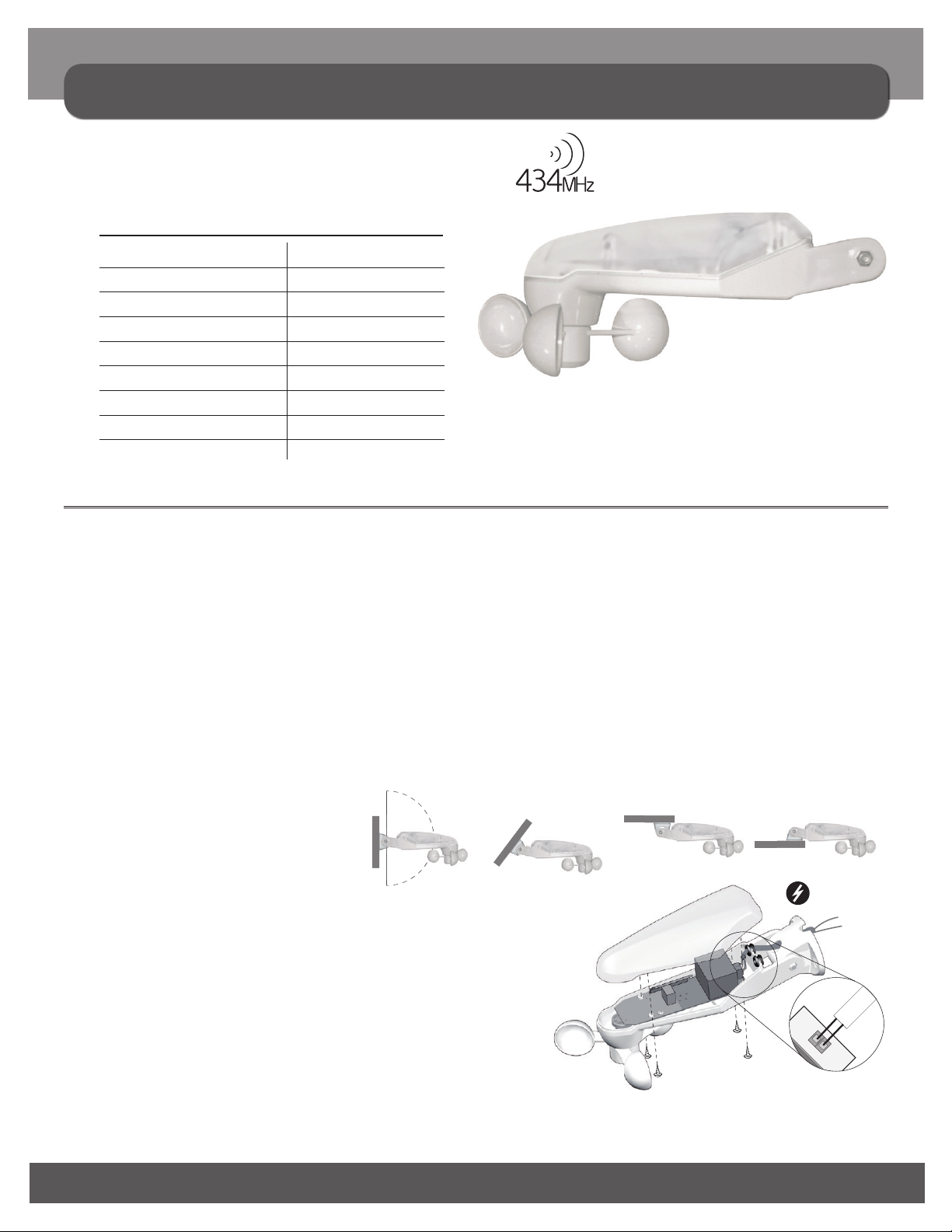

The adjustable base of the sensor allows the right installation (horizontal position) on any surface
INSTALLATION
TECHNICAL DATA
Frequency (MHz) 434.15
Power Supply 120V - 60Hz
Wind Sensor (5 levels) 6 / 12 / 18 / 25 / 31 mph
Sun Sensor (4 levels) 5 / 20 / 40 / 60 Klux
Protection Rate IP54
Coverage (int/ext) 65 ft
Working Temp (°F) 23° to 104°
Dimensions (in) 10.62 x 4.72 x 3.54
Weight (lbs) 0.14
WIRING CONNECTION
1. Open the top cover by the 4 screws
on the bottom.
2. Connect the power line as described
below. Check that the power supply
corresponds to the label data.
3. Close the top cover and tight the
screw to seal it.
120V - 60Hz
Power Supply
Additional Accessories required:
2-wire cable that meets the standards of the country in which it is installed

5YEAR MOTORWARRANTY
PROGRAMMING REMOTES CONT.
WIND PROTECTION FUNCTION
Retracts and prevents the awning to open for 20
minutes if the wind threshold is exceeded.
TESTING MODE (short timing)
Most of the signals coming from the sensor are
often delayed for the optimal movements of the
motor/s.
For testing purposes the sun-wind sensor can be
turned in a “testing status” where timings and
feedbacks are shortened (seconds instead of
minutes).
1. To start the test press shortly the button Wfor
5 times. The motor makes a brief jog.
2. To end the test press again shortly the button
Wfor 5 times. The motor makes a long jog.
IMPORTANT NOTE: the testing mode if not closed
by pressing again Wbutton for 5 times, expires
automatically after 10 minutes.
AWNING FEEDBACK
- Wind alarm - Manual extension is stopped after
2 seconds and the awning retracts
- Sensor loss (Motor safety mode*) - Manual
extension works in “press and hold” way only. In
this status of safety mode the awning anyway
retracts automatically every 30 minutes.
- Power failure - In case of power failures, when
it comes back the awning automatically closes
for safety aspects.
*MOTOR SAFETY MODE:
If the motor doesn’t receive the wind signal for at
least once every 30min. it will close the awnings
for safety reason and turns in safety mode status.
This may happen if the radio anemometer is
broken or if it has no power.
During the safety mode status the motor will be
re-activated in “press and hold” way only.
When the sun-wind sensor restarts sending the
wind signal the motor will end the safety mode
status, otherwise, it will continue to close the
awning every 30min.
SETTING AND PROGRAMMING PROCEDURES
PROGRAMMING SENSOR
IMPORTANT: First program a transmitter with the
motor then set the limits of the motor and finally
set the transmitter with the sensor.
Programming procedure of sensor is like adding a
new transmitter to the motor so:
1. Press and hold PROG-TX button on the back of
transmitter till the motor starts moving, then
release. PROG-TX button (the motor stops).
2. Press and hold for at least 3 seconds Sbutton
on the wind sensor until LED 9 on the wind
sensor blinks.
Wind sensor is now programmed.
CHECKING CONNECTION BETWEEN SENSOR AND MOTOR
1. Using already set transmitter press
simoultaneously UP STOP DOWN buttons till the
motor makes a number of jogs corresponding to
the number of wind threshold
2. Press and hold for at least 3 seconds Sbutton
on the wind sensor until LED 9 on the wind
sensor blinks.
SETTING WIND THRESHOLD (5 LEVELS TO BE SELECTED
ONLY THROUGH THE TRANSMITTER)
1. Using already set transmitter press
simoultaneously UP STOP DOWN buttons till the
motor makes a number of jogs corresponding to
the number of wind threshold.
3. Press STOP to confirm the selected wind
threshold. The motor makes the selected
number of jogs as confirmation.
The wind speed level that the sensor detects is
displayed by the number (from 1 to 5) of LEDs ON.
1 LEVEL LOW WIND SPEED
2 LEVEL LOW/MEDIUM WIND SPEED
3 LEVEL MEDIUM WIND SPEED
4 LEVEL (DEFAULT) MEDIUM/HIGH WIND SPEED
5 LEVEL HIGH WIND SPEED
