SWAGTRON EBIKE EB-15 User manual

USER MANUAL
In order to continue serving our customers and providing the best products, our product information including our user manuals
may receive updates from time to time. Please check our website for the latest user manuals and product materials.
Ver. 1.0 5/7/21
Scan here to
download the
user manual
15

PROTECT YOUR DOME
HELMETS SAVE LIVES
Helmets can reduce 85% of critical head injuries.
Elbow pads can reduce 82% of elbow injuries.
Knee pads can reduce 32% of knee injuries.
From https://www.ncbi.nlm.nih.gov/pubmed/2716781
Always wear proper protective gear when riding. This includes knee and elbow pads and an age-
appropriate helmet.

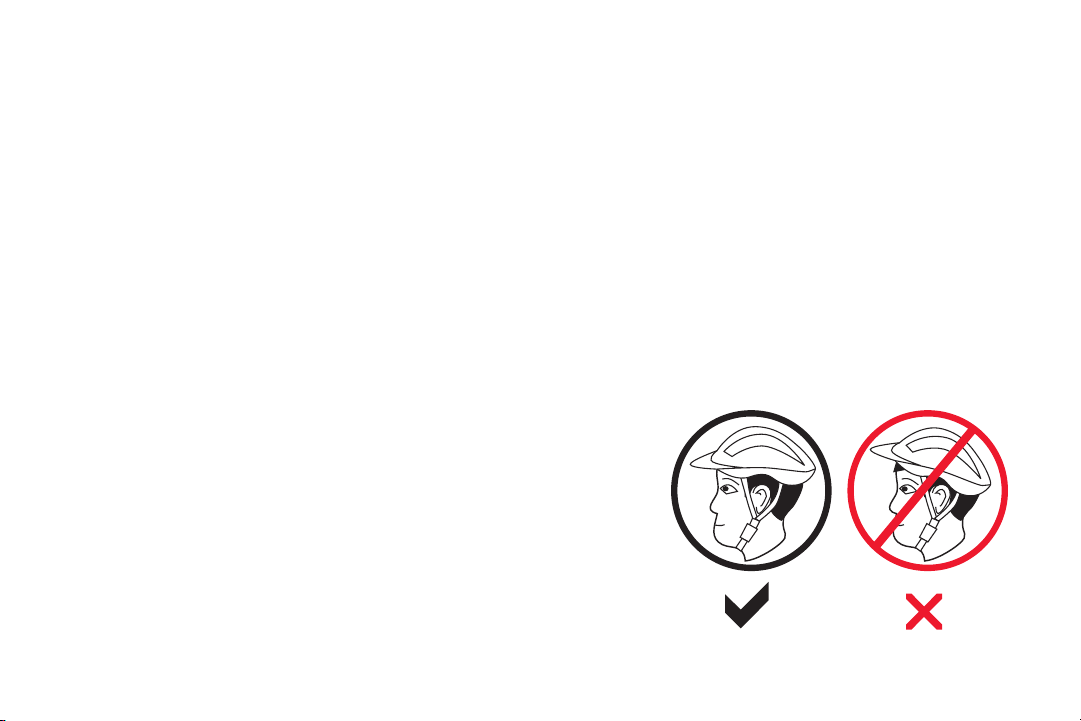

• Helmets should fit comfortably and snugly, covering the forehead but
not hindering your field of vision.
• The helmet should have a chin strap and buckle to keep the helmet in
place.
• The helmet should be made out of a hard, protective outer shell and
an impact-absorbing inner layer at least 1/2-inch thick.
• The helmet should be approved by the U.S. Consumer Product Safety
Commission (CPSC), the Snell Memorial Foundation, or the American
Society for Testing and Materials (ASTM).

Thank you for your purchase of the EB15 Viper eBike!
The EB15 Viper fuses a traditional pedal bike with all-electric power to create a ride unlike anything else. With the
EB15 Viper, hills seem atter. Your city feels smaller. Frustrating commutes become fun-lled joyrides. So charge up
your new eBike and recharge your love of riding.
To ensure your safety and the safety of others, please read and follow the guidelines in this user manual carefully and
thoroughly before and during riding.
If you have any questions regarding the EB15 Viper, contact us at 1-844-299-0625 for further assistance.
Happy Riding!
-The SWAGTRON® Team

Table of Contents
PRODUCT SAFETY NOTICE ..................................................1
Section 1. General Information .............................................3
1.1 About the SWAGTRON EB15 Viper................................ 3
1.2 What’s In the Box? ........................................................... 4
1.3 Product Overview ............................................................ 5
Section 2. Assembling the Front Wheel................................6
Section 3. Assembling the Handlebar ...................................8
Section 4. Assembling the Battery Pack................................10
Section 5. Assembling Fenders (Optional) ............................11
Section 6. Assembling the Seat & Finding Optimal Seat
Height....................................................................................12

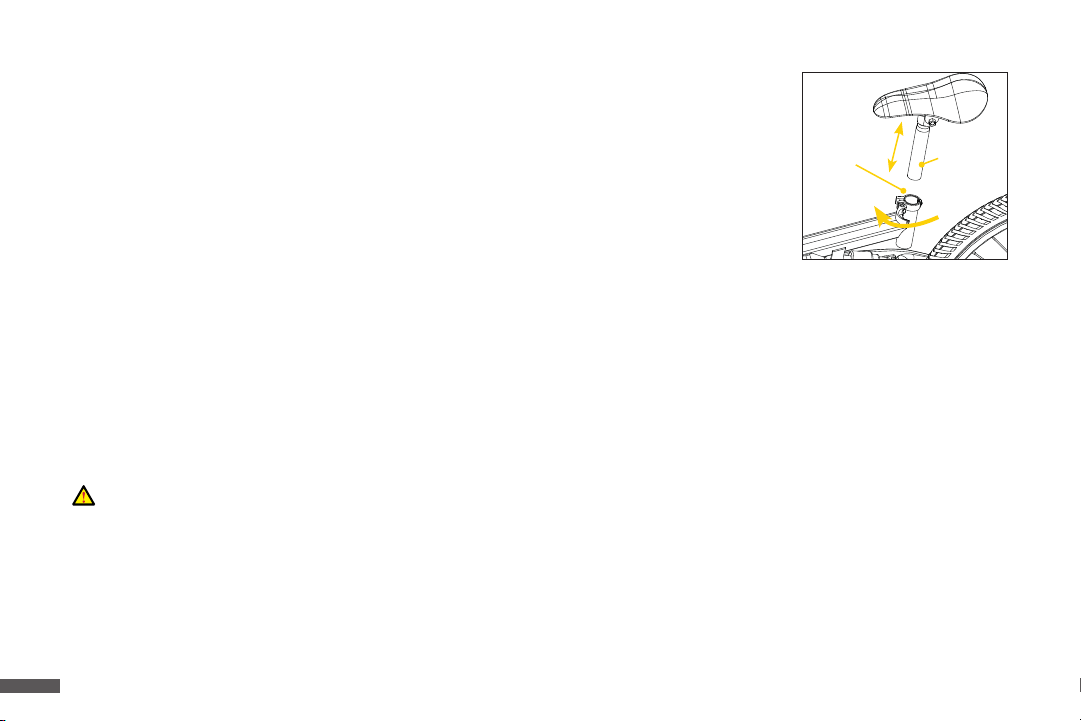

6.1 Assembling & Adjusting the Seat.................................... 12
6.2 Finding Your Optimal Seat Height .................................. 13
Section 7. Handling Your eBike .............................................13
7.1 Assembling, Unfolding & Folding the Pedals ................. 13
7.2 Folding & Unfolding the Frame....................................... 14
Section 8. Charging the Battery............................................16
Section 9. Riding Your eBike .................................................18
9.1 How to Ride ..................................................................... 18
9.2 Buttons Information ......................................................... 19
9.3 Switching Riding & Speed Modes .................................. 19
9.4 Display Information.......................................................... 21
9.5 Display Settings ............................................................... 21
Section 10. Safe Riding Techniques & Tips............................22
10.1 Before Your First Ride .................................................... 23
10.2 Daily Bike Inspections.................................................... 23
10.3 Semi-Annual Bike Mechanic Inspections ...................... 23
Section 11. Maintenance .......................................................24
11.1 Tires Ination.................................................................. 24
11.2 Cleaning......................................................................... 25
11.3 Storage........................................................................... 25
11.4 Transportation................................................................ 25
11.5 Disposal at End-of-Life ................................................. 26
Section 12. Specications......................................................27
One-Year Limited Hardware Warranty ..................................28

1ENGLISHSWAGTRON EB15 Viper eBike
PRODUCT SAFETY NOTICE
The SWAGTRON EB15 Viper eBike has been designed with plenty of safeguards in place for its riders. Extra
precautions have been taken to protect the user from hardware malfunctions through our meticulous design and
engineering.
Like any mode of transportation, however, the SWAGTRON EB15 Viper has inherent hazards associated with its use
(e.g., losing control, falling off, or riding into hazardous situations). Be sure to read and follow all instructions and
safety recommendations in this user manual prior to and when riding your eBike.
Before each ride, especially before and after traveling long distances, inspect your bike. Check the tires for proper
ination and cracks on the tire walls. Keeping the tires properly inated and maintained will help prevent ats and
maximize performance. Second, check all cables and cable housings for fraying, breaks, rust, or corrosion and
replace if necessary. Lastly, inspect the brakes to make sure they are working properly. Additionally, check the brake
pads for any damage as they will wear over time and eventually need replacement.
If a replacement of the brake pads or any other part is needed, please contact customer support for replacement
service. In general, it is recommended to make sure all nuts and bolts are taut and properly fastened to prevent
injury and unnecessary wear and tear on your eBike.
Max. Rider Capacity 198.4 lb. / 90 kg
Max. Speed (Throttle-Only) 19.5 mph / 31.4 km/h
Range per Charge (throttle-only) Up to 16.8 mi / 27 km (60KG rider)
Max. Incline (Throttle-Only) 12° (throttle only)
This device requires coordination, agility and balance. Use your best judgment to determine if an individual can use
the SWAGTRON EB15 Viper eBike safely.

2
ENGLISH SWAGTRON EB15 Viper eBike
SAFETY GEAR, CLOTHING, AND FOOTWEAR Please wear appropriate clothing and safety gear
including shoes, kneepads, elbow pads and an ASTM
F1492 approved helmet.
Avoid wearing anything that can drape over or get
caught into/under the wheels. Wear closed-toe, at
shoes to maintain exibility and stability.
MODIFICATIONS AND REPAIRS The SWAGTRON EB15 Viper is a highly sophisticated
electronics product that includes complex, technical
circuitry. Attempting to repair or modify your can void all
warranties. Only authorized repair centers may service
the EB15 Viper.
OBEY LOCAL LAWS AND REGULATIONS Always check and adhere to local laws regarding
personal transportation devices, including pedestrian
laws.
The eBike is considered a motor vehicle and should not
be ridden after consuming alcohol or drugs.
By riding the SWAGTRON EB15 Viper eBike, the user acknowledges and accepts personal responsibility of all risks
associated with the use of the SWAGTRON EB15 Viper eBike, which may include, but are not limited to, muscle injuries,
broken bones, lacerations, or serious injury that may be sustained while using the SWAGTRON EB15 Viper eBike.

3ENGLISHSWAGTRON EB15 Viper eBike
Section 1. General Information
Before operating your eBike, please read all instructions. This manual will guide you through the functions, usage,
and proper care of your EB15 Viper. If you have any questions or cannot nd the information you need in the
manual, please contact your place of purchase or our customer service at 1-844-299-0625. Before contacting
customer service, please have your purchase information ready as this may be needed during the call.
When reading this manual, note these icons:
Notes with this icon MUST be read, understood, and obeyed to prevent injury or damage.
Notes with this icon include relevant information.
1.1 About the SWAGTRON EB15 Viper
The EB15 Viper is a compact, zero-emissions, personal
transportation device that feels like a bike but rides
like a moped. It's environmentally-friendly and built
with premium-grade components using industry-
leading manufacturing processes.
• Eco-friendly with zero emissions
• Folds at the frame, stem and pedals
• Offers powered speeds up to 19.5 mph (60KG
rider)
• Rechargeable, portable and durable

4
ENGLISH SWAGTRON EB15 Viper eBike

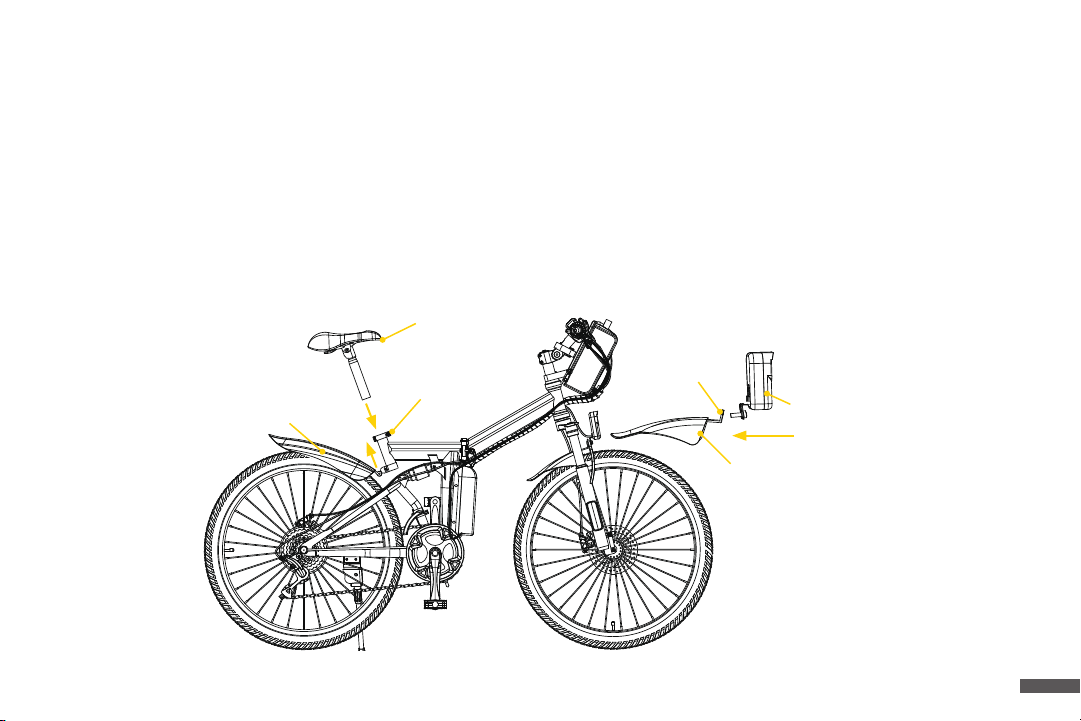

1.2 What’s In the Box?
• 1 x SWAGTRON EB15 Viper eBike Frame
• 1x Front Wheel
• 1x Seat
• 1x Battery Pack
• 2x Pedals
• 2x Fenders
• 1x Charging Cable & Adapter
• 1x Phillips Screwdriver
• 2x M6 Spanners
• 1x M4 Spanner
• 1x Socket Spanner
• 1x Spanner (10x13)
• 1 x User Manual
比例 1,000
User Manual x 1M6 Spanners x 2 Socket Spanner x 1Phillips Screwdriver x 1 M4 Spanner x 1 10x13 Spanner x 1
Charging Cable & Adapter x 1
Seat x 1
L&R Pedals x 2
Battery Pack x 1 Front & Rear Fenders x 2
Front Wheel x 1EB15 Viper Electric Bike Frame x 1
USER MANUAL
Inorder to continue serving our customers and providing the best products, our product information including our user manuals
mayreceive updates from time to time. Please check our website for the latest user manuals and product materials.
Ver.1.0 5/7/21
Scan here to
download the
userm anual
15

5ENGLISHSWAGTRON EB15 Viper eBike

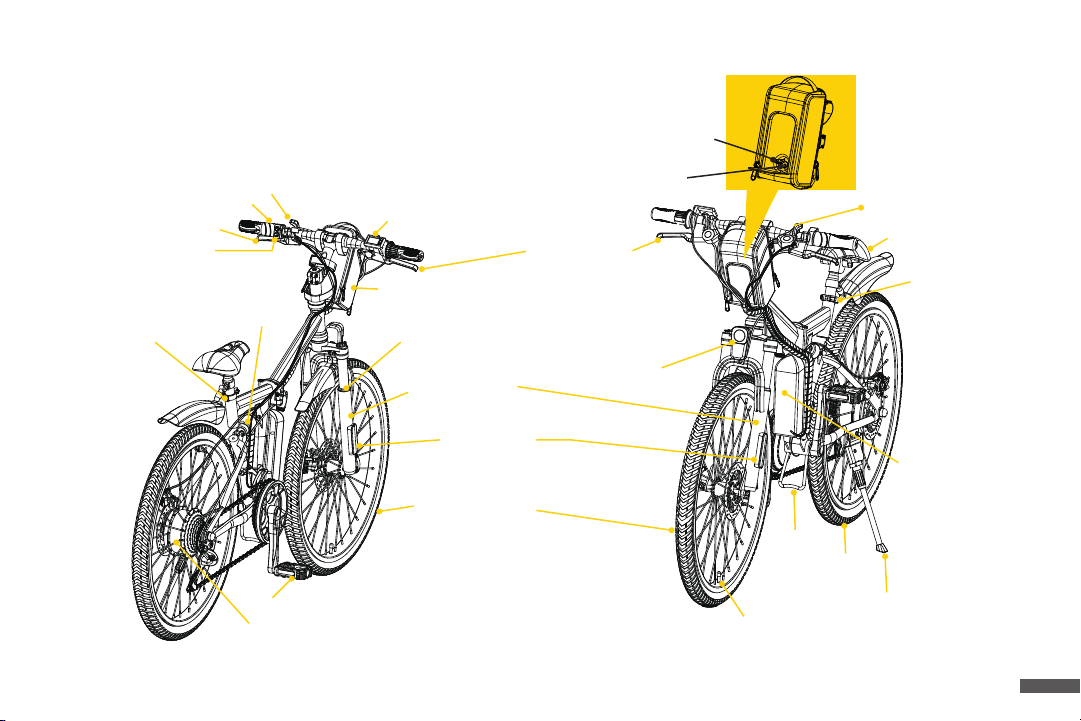

1.3 Product Overview
FRONT WHEEL
KICKSTAND
PEDAL
MOTORIZED HUB VALVE
REAR WHEEL
SEAT CLAMP
CONTROLLER
SEAT
STAND
SUSPENSION
SUSPENSION
FRONT BRAKE
REAR BRAKE
DISPLAY
BATTERY PACK
GEAR DOWN SHIFTER
GEAR UP SHIFTER
HEADLIGHT POWER
HORN
CLAMP
HEADLIGHT
REFLECTOR
FRONT FORK
BATTERY CONNECTION
CHARGER PORT

6
ENGLISH SWAGTRON EB15 Viper eBike
Section 2. Assembling the Front Wheel
You might need to ask someone to assist with initial assembly.

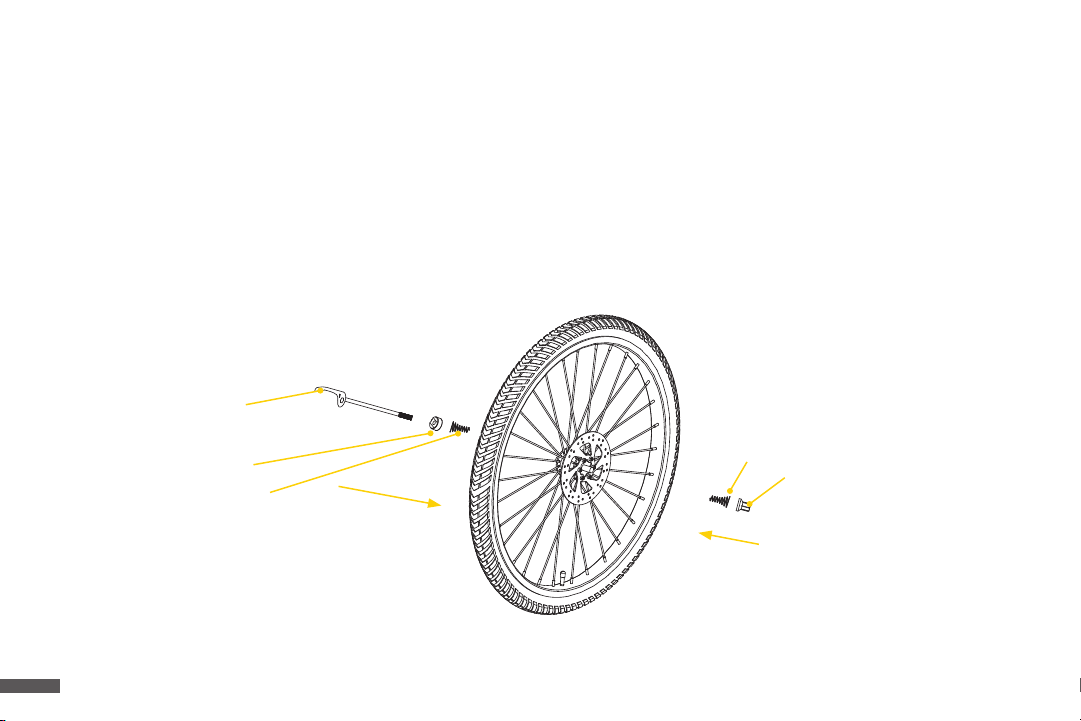

Step 1. Release the preinstalled quick lock axle, nuts and springs included in the package and put them aside.
Remove the end rubber cap from the front wheel.
Step 2. Line up the center of the front wheel with the front fork. Insert the nut and spring on one end of the Quick
Lock Axle and slide the axle through the center hole of front wheel then tighten up.
Quick Lock Axle
Nut Nut
Spring
Spring
