SWAGTRON K7 User manual

SWAGTRON K7 3-in-1 Balance Bike & Tricycle User Manual 1
USER MANUAL Ver. 2.0 9/4/20
In order to continue serving our customers and providing the best products, our product information
including our user manuals may receive updates from time to time. Please check our website for the
latest user manuals and product materials.
3-in-1 Balance Bike & Tricycle

2 SWAGTRON K7 3-in-1 Balance Bike & Tricycle User Manual

SWAGTRON K7 3-in-1 Balance Bike & Tricycle User Manual 3
PROTECT YOUR DOME
HELMETS SAVE LIVES
Helmets can reduce 85% of critical head injuries.
Elbow pads can reduce 82% of elbow injuries.
Knee pads can reduce 32% of knee injuries.
From https://www.ncbi.nlm.nih.gov/pubmed/2716781

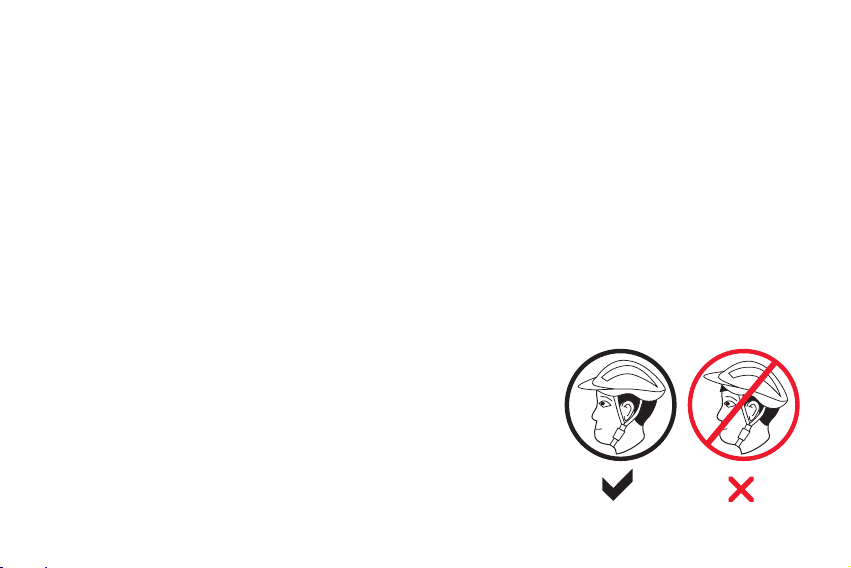

Always wear proper protective gear when riding. This includes knee and elbow pads and an age-
appropriate helmet.
• Helmets should t comfortably and snugly, covering the forehead
but not hindering your eld of vision.
• The helmet should have a chin strap and buckle to keep the helmet
in place.
• The helmet should be made out of a hard, protective outer shell
and an impact-absorbing inner layer at least 1/2-inch thick.
• The helmet should be approved by the U.S. Consumer Product
Safety Commission (CPSC), the Snell Memorial Foundation, or the
American Society for Testing and Materials (ASTM).

4 SWAGTRON K7 3-in-1 Balance Bike & Tricycle User Manual
TABLE OF CONTENTS
HELMETS SAVE LIVES ......................................................................................... 3
BOX CONTENTS .................................................................................................... 5
PRODUCT PARTS .................................................................................................. 6
MAIN ASSEMBLY.................................................................................................... 7
INSTALLING THE PEDALS .................................................................................... 8
HANDLEBAR ADJUSTMENT.................................................................................. 9
SEAT ADJUSTMENT............................................................................................... 10
SWITCHING MODES (BALANCE BIKE & TRICYCLE) .......................................... 11
USAGE INSTRUCTIONS........................................................................................ 12
PRACTICING GUIDELINES.................................................................................... 12
SAFETY INFORMATION & WARNINGS................................................................. 13
SPECIFICATIONS................................................................................................... 14
90-DAY LIMITED HARDWARE WARRANTY.......................................................... 15

SWAGTRON K7 3-in-1 Balance Bike & Tricycle User Manual 5
Thank you for purchasing the K7 3-in-1 Balance Bike & Tricycle from SWAGTRON®!
Before assembling this product and/or giving it to a child, please read all instructions. This guide
will walk you through the functions, usage, and proper care of the SWAGTRON® K7. If you have
any questions or cannot nd the information you need in the guide, please contact your place
of purchase or our customer service at 1-844-299-0625.
BOX CONTENTS
Head x 1
Seat x 1
Front Wheel & Fork x 1Pedals Section x 1
Hex Key x 1 Backup Screw & Nut x 1
Frame with Rear Wheels x 1
Quick Start Guide x 1
USER MANUAL Ver.2.0 9/4/20
Inorder to continue serving our customers and providing the best products, our product information
includingour user manuals may receive updates from time to time. Please check our website for the
latestuser manuals and product materials.
3-in-1 Balance Bike & Tricycle

6 SWAGTRON K7 3-in-1 Balance Bike & Tricycle User Manual
PRODUCT PARTS
1
2
3
5
4
6
7
8
9
11
10
1 Head Fixture Screw
2Pedal
3Front Fork
4Front Wheel
5Frame
6Bike Locking Fixture
7Rear Wheels
8Tricycle Locking Fixture
9Seat
10 Big Button
11 Handlebar Grip(s)

SWAGTRON K7 3-in-1 Balance Bike & Tricycle User Manual 7
1 2
3 4
5
MAIN ASSEMBLY
Before starting assembly, collect all necessary parts
and tools. The head xture screw is pre-installed on
the head tube (Fig. 3).
If needed, ask someone for help during initial assembly.
Step 1. Take out the pedals section and the front wheel
with fork. Slide the pedals section over the front
fork (Fig. 1).
Step 2. Take out the frame with head tube. Slide the head
tube over the front fork tube (Fig. 2).
Step 3. Take out the handlebar section and use the
included hex key to release the pre-installed
xture screw. Adjust the head to make handlebars
aligned with the frame and front wheel.
Step 4. Align the holes on the front fork with the screw holes on head tube
and insert the head section onto the front fork. Then insert the xture
screw back and tighten the head onto fork (Fig. 3).
Step 5. Insert the seat onto the frame and adjust the seat height. Tighten the
screw to x the seat in place with the included hex key (Fig. 4).

8 SWAGTRON K7 3-in-1 Balance Bike & Tricycle User Manual
The pedals are collected on the pedals section for balance
mode by default. When you want to use the pedaled
tricycle mode, install them on both sides of the front
wheel.
Step 1. Push the peg on one pedal while removing the
pedal from the pedals holder. Repeat steps to
remove the other pedal (Fig. 6).
Step 2. Align the pegs with the holes on both sides
of front wheel, then insert the pedals into the
installing part on front fork. The pedals will “click”
into place (Fig. 7).
The pedals only function while in Tricycle mode. Do
not use pedals while in Balance Bike mode.
INSTALLING THE PEDALS
Pegs
Peg
6
7

SWAGTRON K7 3-in-1 Balance Bike & Tricycle User Manual 9
The handlebar can be adjusted into ve
modes (Standard, 45o/90o Backward or
Frontward) as desire.
Step 1. Press the big button down.
Step 2. Keep the big button pressed
while adjusting handlebar
angle. When the handlebar
is adjusted, it will “click” into
place.
HANDLEBAR ADJUSTMENT 45o/90o Backward 45o/90o Forward
Big Button

10 SWAGTRON K7 3-in-1 Balance Bike & Tricycle User Manual
!
56 mm
For better pedaling, safety, and overall comfort,
positioning the seat at the right height is key.
Refer to the following information to adjust your
child’s bike seat.
• Use the included hex key to loosen the screw
of the clamp under the seat.
• Pull the seat up or push it down to adjust
height.
• Make sure the seat post is fully inserted into
the frame.
• Tighten the screw to secure the seat.
Make sure the seat stem is inserted at least
56mm into the frame. Do not raise the seat
higher than the safety mark on the post.
SEAT ADJUSTMENT

SWAGTRON K7 3-in-1 Balance Bike & Tricycle User Manual 11
SWITCHING MODES (BALANCE BIKE & TRICYCLE)
The K7 can be converted into three different
modes (as needed) as your child grows in skill
and confidence. Recommended ages* for
each K7 mode is as follows:
10+ months: Balance trike (no pedals)
12-18 months: Tricycle (with pedals)
18+ months: Balance bike (no pedals)
* These are suggested guidelines. Each child’s
growth and development is different.
Because of their placement, pedals should not be used while in
balance bike mode.
Step 1. Remove the xture lock from the outside holes of frame (Fig. 8).
Step 2. Press the peg under the seat while opening the two rear wheels
(Fig. 9).
Step 3. Insert the xture lock into the inside holes of frame after the two
rear wheels have been opened (Fig. 10).
Fixture Lock
Peg
Fixture Lock
8 9
10

12 SWAGTRON K7 3-in-1 Balance Bike & Tricycle User Manual
USAGE INSTRUCTIONS
• Age-appropriate protective gear, including helmet, elbow pads and knee pads, must be
worn at all times.
• The bike supports up to 55 lb. (25 kg).
The K7 should always be used with adult supervision. Always make sure your child wears suitable
protective gear while riding the K7. Always ride the bike on at, level and undamaged surfaces.
Carefully read all safety information and warnings before allowing your child to use the bike.
Make your child aware of the following riding requirements:
• Sit on the seat and hold both handles firmly.
• Push off the ground with both feet, as if walking, to move forward.
• In tricycle mode, you can use the pedals to add momentum, as you would a bicycle. Do
not use pedals while in balance bike mode.
• To stop, simply use your feet to slow down until you come to a complete stop.
PRACTICING GUIDELINES
Children should practice using the K7 under your strict supervision, until they are com-
fortable. Make sure your child takes the following precautions while riding:
• Wear casual clothing and flat shoes to maintain flexibility and stability.
• Make sure the riding area is obstruction-free, level and even. Do not ride on steep slopes.
• If riding on uneven terrain, slow down. The bike is designed for relatively smooth, flat terrain.
• Watch for pedestrians and obstacles when using the bike.

SWAGTRON K7 3-in-1 Balance Bike & Tricycle User Manual 13
The SWAGTRON®K7 3-in-1 Kick Scooter & Balance Bike is a self-propelled, balancing “ride-
on” toy, designed for children ages 10 months and older. By operating the K7, and/or allowing
your child to operate it, you acknowledge and accept responsibility for all risks associated with
the use of the product. These risks may include, but are not limited to, muscle injuries, broken
bones, lacerations, serious injury, and possible death.
• Kids should be supervised at all times by a parent or guardian while riding the K7.
• Age-appropriate protective gear, including helmet, elbow pads and knee pads, must be
worn at all times.
• The K7 is designed for a single rider only. It is not intended or equipped for road use, off-
road use, or off-road with any motorized device.
• This bike has no brake.
• Check that all screws and fittings are secure before giving the bike to a child. Screws and
fixtures may loosen over time. Please check and tighten periodically.
• Keep fingers away from moving parts to avoid pinching and entrapment.
• Never ride at night or in low-light areas. Always obey all traffic and pedestrian regulations
and give right of way to pedestrians.
• Riding on wet pavement or surfaces is not recommended.
• Do not modify the bike or change the bike in any way not outlined in these instructions.
• Because of their placement, pedals should not be used while the K7 is in balance bike
mode.
SAFETY INFORMATION & WARNINGS

14 SWAGTRON K7 3-in-1 Balance Bike & Tricycle User Manual
SPECIFICATIONS
Item Parameters
Material Iron, ABS, PU, EVA
Dimensions Tricycle mode: 23.2 x 17.7 x 18.5 in. (59 x 45 x 47cm)
Bicycle mode: 25.5 x 10.2 x 18.5 in. (65 x 26 x 48 cm)
Seat Height 11~13 in. / 28~33 cm
Handle Height 14.6 /16.5 / 18.5 in. (37/42/47 cm)
Handlebar Adjust 45o/90o Backward or Forward
Wheel Sizes Front Wheel: 8.3 in. (21cm)
Rear Wheel: 5.9 in. (15 cm)
Product Weight 6.61 lb. / 3 kg
Maximum Load 55 lb. / 25 kg
Ages 10 mos. ~ 5 years
Certications ASTM F963, EN71

SWAGTRON K7 3-in-1 Balance Bike & Tricycle User Manual 15
90-DAY LIMITED HARDWARE WARRANTY
Your SWAGTRON®K7 3-in-1 Kick Scooter & Balance Bike (“Product”) includes a 90-Day
Limited Hardware Warranty (“Warranty”). The Warranty covers product defects in materials
and workmanship under normal use. This Warranty is limited to residents of the United States
(excluding Hawaii, Alaska and U.S. Territories) and Canada only and is available only to original
purchasers. This Warranty gives you specic legal rights and you may also have other rights
which vary from state to state.
This Warranty starts on the date of your purchase and lasts for ninety (90) days (the "Warranty
Period"). The Warranty Period is not extended if the Product is repaired or replaced. We may
change the availability of this limited warranty at our discretion, but any changes will not be
retroactive.
Warranty services are provided by SWAGTRON®. If a hardware defect arises and a valid
claim is received within the Warranty Period, at its option and to the extent permitted by law,
SWAGTRON®will: (1) repair the hardware defect by using new or refurbished parts that are
equivalent to new in performance and reliability; or (2) exchange the Product with a product
that is new or refurbished which is substantially equivalent to the original product. This
Warranty is for one replacement only of like-items and does not cover items out of production
if the product is no longer made or stocked. This Warranty is not assignable or transferable.

16 SWAGTRON K7 3-in-1 Balance Bike & Tricycle User Manual
The original purchaser may call SWAGTRON’s toll-free number at 1-844-299-0625 for service
request.
When a product or part is exchanged, any replacement item becomes your property and the
replaced item becomes SWAGTRON®’s property. This warranty only covers technical hardware
defectiveness during the warranty period and under normal use conditions. SWAGTRON®
does not warrant uninterrupted or error-free operation of this Product.
Return shipping shall only be provided for Products dead on arrival (“DOA”) within 30 days of
purchase only. All other returns/repairs shall require payment of shipping cost at discounted
rate to be determined as follows:
SWAGTRON®K-Line shall be Eight Dollars ($8)**
**shipping prices are subject to change without further notice.
This Warranty does not cover any damage due to: (a) transportation; (b) storage; (c) improper
use; (d) failure to follow the product instructions or to perform any preventive maintenance;
(e) modications; (f) unauthorized repair; (g) normal wear and tear (including but not limited to
wearables and other consumable parts such as tires); or (h) external causes such as accidents,
abuse, or other actions or events beyond our reasonable control.

SWAGTRON K7 3-in-1 Balance Bike & Tricycle User Manual 17
Important: Do not disassemble the Product. Disassembling the Product will void this Warranty.
Only SWAGTRON®or a party expressly authorized by SWAGTRON®should perform service on
this Product.
DISCLAIMER OF WARRANTY: THE REMEDIES DESCRIBED ABOVE ARE YOUR SOLE AND
EXCLUSIVE REMEDIES AND OUR ENTIRE LIABILITY FOR ANY BREACH OF THIS LIMITED
WARRANTY. OUR LIABILITY SHALL UNDER NO CIRCUMSTANCES EXCEED THE ACTUAL
AMOUNT PAID BY YOU FOR THE DEFECTIVE PRODUCT, NOR SHALL WE UNDER ANY
CIRCUMSTANCES BE LIABLE FOR ANY CONSEQUENTIAL, INCIDENTAL, SPECIAL OR
PUNITIVE DAMAGES OR LOSSES, WHETHER DIRECT OR INDIRECT.
SOME STATES DO NOT ALLOW THE EXCLUSION OR LIMITATION OF INCIDENTAL OR
CONSEQUENTIAL DAMAGES, SO THE ABOVE LIMITATION OR EXCLUSION MAY NOT
APPLY TO YOU.
THE DURATION AND REMEDIES OF ALL IMPLIED WARRANTIES, INCLUDING WITHOUT
LIMITATION THE WARRANTIES OF MERCHANTABILITY AND FITNESS FOR A PARTICULAR
PURPOSE ARE LIMITED TO THE DURATION OF THIS EXPRESS LIMITED WARRANTY.

COPYRIGHT ©2020 SWAGTRON.ALL RIGHTS RESERVED.
