Swann activair SFA23022N User manual

12” (30cm) Desk Fan
Model: SFA23022N (all colours)
Help line
0333 220 6050
SFA23022_IM.indd 1 25/03/2020 11:30

2
When using any electrical appliance, basic safety
precautions should always be followed including the
following:
•Always ensure that the voltage on the rating label
corresponds to the mains voltage in your home
•Incorrect operation and improper use can damage the
appliance and cause injury to the user.
•This appliance can be used by children aged from 8
years and above if they have been given supervision or
instruction concerning use of the appliance in a safe way
and if they understand the hazards involved. Cleaning and
user maintenance shall not be made by children unless
they are older than 8 and supervised. Keep the appliance
and its cord out of reach of children aged less than 8
years. Check the power cord and plug regularly for any
damage. If the cord or the plug is damaged, it must be
replaced by the manufacturer or qualified person in order
to avoid an electrical hazard.
•Appliances can be used by persons with reduced physical,
sensory or mental capabilities or lack of experience
and knowledge if they have been given supervision or
instruction concerning use of the appliance in a safe way
and understand the hazards involved.
•Do not use the appliance if it has been dropped or
damaged in any way. In case of damage, take the unit in
for examination and/or repair by an authorised service
agent.
•Never immerse the unit in water or any other liquid for
IMPORTANT INFORMATION - RETAIN FOR FUTURE USE
SFA23022_IM.indd 2 25/03/2020 11:30

3
IMPORTANT INFORMATION - RETAIN FOR FUTURE USE
cleaning purposes.
•Remove the plug from the socket by gripping the plug.
Do not pull on the cord to disconnect the appliance from
the mains. Always unplug the unit when not in use, before
cleaning or when adding or removing parts.
•The use of accessory attachments that are not
recommended or supplied by the manufacturer may
result in injuries, fire or electric shock.
•Do not let the cord hang over the edge of a table or
counter. Ensure that the cord is not in a position where it
can be pulled on inadvertently.
•Do not allow the cord to touch hot surfaces and do not
place on or near a hot gas or electric burner or in a
heated oven.
•Do not use the appliance on a gas or electric cooking top
or over or near an open flame.
•Use of an extension cord with this appliance is not
recommended. However, if it is necessary to use an
extension lead, ensure that the lead is suited to the power
consumption of the appliance to avoid overheating of
extension cord, appliance or plug point. Do not place the
extension cord in a position where it can be pulled on by
children or animals or tripped over.
•This appliance is not suitable for outdoor use. Do not use
the appliance for anything other than its intended use.
• Do not carry the appliance by the power cord.
•Do not leave the appliance unattended during use. Always
unplug the unit when not in use or before cleaning.
•Always operate the appliance on a smooth, even, stable
SFA23022_IM.indd 3 25/03/2020 11:30

4
IMPORTANT INFORMATION - RETAIN FOR FUTURE USE
surface. Do not place the unit on a hot surface.
• Ensure that the unit is switched off after use.
•The manufacturer does not accept responsibility for any
damage or injury caused by improper or incorrect use, or
for repairs carried out by unauthorised personnel.
•In case of technical problems, switch off the product and
do not attempt to repair it yourself. Return the appliance to
an authorised service facility for examination, adjustment
or repair. Always insist on the use of original spare parts.
Failure to comply with the above mentions precautions
and instructions, could affect the safe operation of this
product.
•Your appliance must never be switched on through an
external timer or any kind of separate remote control
system
•This appliance is intended to be used in household and
similar applications such as: staff kitchen areas, in shops,
offices and other working environments; farm houses;
by clients in hotels, motels and other residential type
environments; bed and breakfast type environments.
• Keep loose clothing and hair away from the fan
Description: 12” (30cm) Desk Fan
Model: SFA23022N (all colours)
Input Voltage: 220-240V ~ 50/60Hz
Power: 45 Watts
Max flow rate: 39.7 cubic metres per minute
Sound level: 55 dB(A)
Max air velocity: 2.84 metres per second
TECHNICAL DATA
SFA23022_IM.indd 4 25/03/2020 11:30

5
GET TO KNOW YOUR PRODUCT
1. Fan blade
2. Ring screw
3. Base
4. Rear grill
5. Oscillation button
6. Motor
7. Fan main body
8. Front grille
9. Speed control
• Remove the lock nut from motor shaft. (anti-clockwise)
• Place the rear grill on the motor housing, making sure to position the housing
lugs in the guide holes of the grill (handle at the top).
• Firmly tighten (clockwise) the locknut to secure the rear grill.
• Place the fan blade on the motor shaft by placing the notches in the blade in the
shaft passing through the motor shaft.
• Tighten with the reverse nut (counterclockwise and lock the blade securely).
ASSEMBLY
SFA23022_IM.indd 5 25/03/2020 11:30

6
ASSEMBLY
• Place the front grill and install the plastic strapping ring around the grills to hold
them. Be sure to position the edges of the 2 grids in the 2 notches inside the
strapping.
• Tighten the ring screw (2) to secure the ring.
• Pass the power cord through the base, then assemble the main body of the fan
on the base by matching the attachment points, snap it firmly and secure with
the screws.
SFA23022_IM.indd 6 25/03/2020 11:30

7
OPERATION
Connect the power cord to a suitable wall socket and select the desired setting
below:

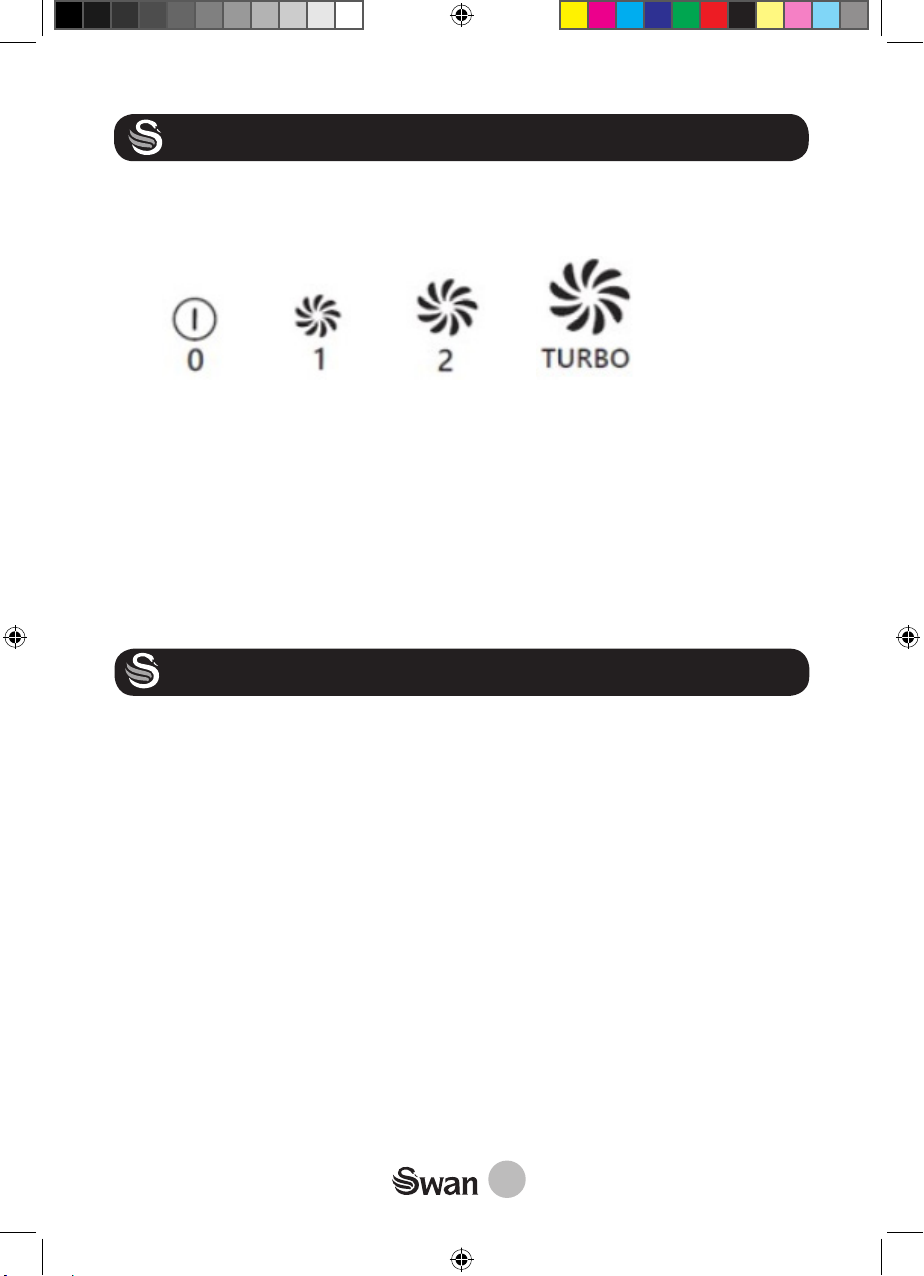

Off Low High Turbo Quiet
OSCILLATION FUNCTION
Press the oscillation button (5) down to engage oscillation function. The fan will
sweep back and forth to cover a wider area. To stop the oscillation function, pull the
oscillation button upward.
TILT FUNCTION
The fan can be tilted forward and backward a few degrees to better direct the air
flow.
CLEANING & MAINTENANCE
Your fan requires little maintenance and contains no user serviceable parts.
Do not attempt to dismantle the unit yourself. The fan is permanently lubri-
cated and will not require additional lubrication.
Cleaning:
• Always unplug the fan from the mains outlet before cleaning.
• The fan can be cleaned with a soft dry cloth. Deposits of dust can be re-
moved by using a vacuum cleaner, ensuring that the air vents and grilles
remain free from dust to prevent overheating.
• Important: Do not allow water to run into the interior of the fan, as this
can cause an electric shock.
• Do not use abrasive cleaners or chemical agents to clean the product.
• When not in use, store the fan in it’s retail box.
SFA23022_IM.indd 7 25/03/2020 11:30

8
SFA23022_IM.indd 8 25/03/2020 11:30

9
BS PLUG
WARRANTY
This product is guaranteed for 2 years from the date of original purchase. If any defect arises due to faulty
materials of workmanship the faulty products must be returned to the place of purchase. Refunds or
replacement is at the discretion of the store.
The following conditions apply:
• The product must be returned to the retailer with proof of purchase.
•The product must be installed and used in accordance with the instructions contained in this
instruction guide.
• It must be used only for domestic purposes.
• It does not cover wear and tear, damage, misuse or consumable parts.
• Swan Products Ltd has limited liability for incidental or consequential loss or damage.
• This guarantee is valid in the UK and Eire Only.
DISPOSAL OF UNIT
Appliances bearing the symbol shown here may not be disposed of in domestic rubbish. You
are required to dispose of old electrical and electronic appliances like this separately.
Please visit www.recycle-more.co.uk or www.recyclenow.co.uk for access to information
about the recycling of electrical items. Please visit www.weeeireland.ie for access to information
about the recycling of electrical items purchased in Ireland. The WEEE directive, introduced in
August 2006, states that all electrical items must be recycled, rather than taken to landfill. Please arrange
to take this appliance to your local Civic Amenity site for recycling, once it has reached the end of its life.
The wires in the mains lead are coloured in accordance with the following code:
BLUE NEUTRAL
BROWN LIVE
As the colours of the wire in the mains lead of this appliance may not correspond with the colour markings
identifying the terminals on your plug, proceed as follows:
The wire which is coloured BLUE must be connected to the terminal which is marked with the letter N or
coloured black. The wire which is coloured BROWN must be connected to the terminal which is marked
with the letter L or coloured red.
WARNING: THIS APPLIANCE IS DOUBLE INSULATED. DO NOT CONNECT ANY WIRE TO THE EARTH PIN
