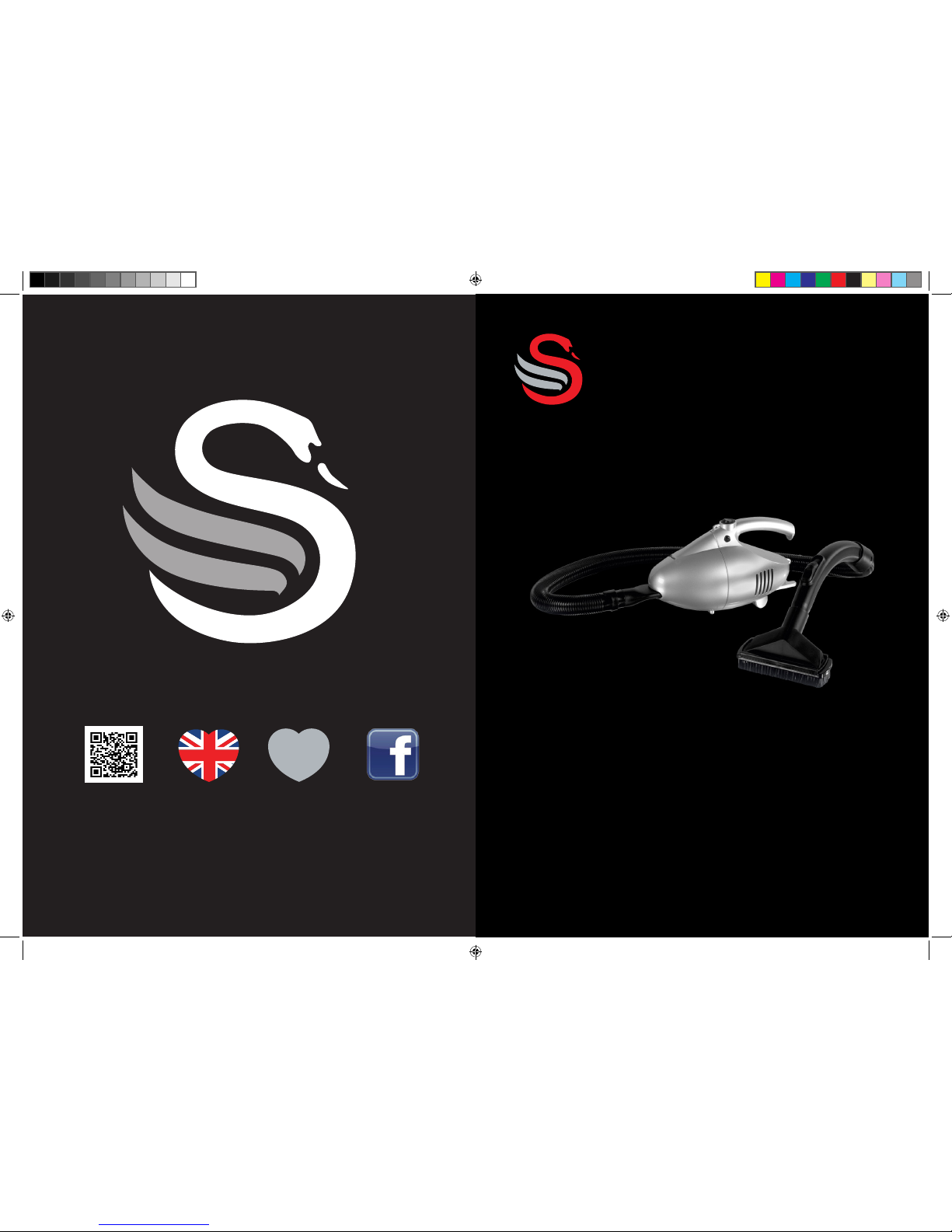

Swann SC4010N User manual

wan
designed for life
v2.0
www.swan-brand.co.uk
Copyright © 2012
Swan Products Ltd. PO Box 3117, Stoke-on-Trent ST4 9GD
Est.1931
We love
what we do
s
2year
GUARANTEE
we’re proud
of our quality
Scan this QR code
to hear about
our story
Find us on Facebook
Handheld | Vacuum
Model: SC4010N
SC4010N.indd 2-3 21/06/2012 14:45

Parts & AssemblyImportant Safeguards
When using any electrical appliance, basic safety precautions should always be followed
including the following:
1. Always ensure that the voltage on the rating label corresponds to the mains voltage in your
home
2. Incorrect operation and improper use can damage the appliance and cause injury to the user.
3. This appliance is not intended for use by persons (including children) with reduced
physical, sensory or mental capabilities, or lack of experience and knowledge, unless
they have been given supervision or instruction concerning use of the appliances by
a person responsible for their safety. Children should be supervised to ensure that
they do not play with the appliance.
4. Check the power cord and plug regularly for any damage. If the cord or the plug is damaged,
 itmustbereplacedbythemanufacturerorqualiedpersoninordertoavoidanelectrical
hazard.
5. Do not use the appliance if it has been dropped or damaged in any way. In case of damage,
take the unit in for examination and/or repair by an authorised service agent.
6. Never immerse the unit in water or any other liquid for cleaning purposes.
7. Remove the plug from the socket by gripping the plug. Do not pull on the cord to discon-
nect the appliance from the mains. Unplug the unit when not in use or before cleaning
8. The use of accessory attachments that are not recommended or supplied by the manufac
 turermayresultininjuries,reorelectricshock.
9. Do not let the cord hang over the edge of a table or counter. Ensure that the cord is not in a
position where it can be pulled on inadvertently.
10. Do not allow the cord to touch hot surfaces and do not place on or near a hot gas or electric
burner or in a heated oven.
11. Donotusetheapplianceonagasorelectriccookingtoporoverornearanopename.
12. Use of an extension cord with this appliance is not recommended. However, if it is necessary
to use an extension lead, ensure that the lead is suited to the power consumption of the ap-
pliance to avoid overheating of extension cord, appliance or plug point. Do not place the
extension cord in a position where it can be pulled on by children or animals or tripped over.
13. This appliance is not suitable for outdoor use. Do not use the appliance for anything other
than its intended use.
14. Do not carry the appliance by the power cord.
15. Do not leave the appliance unattended during use.
16. Keep hair away from openings in product
17. The manufacture does not accept responsibility for any damage or injury caused by improper
or incorrect use, or for repairs carried out by unauthorised personnel.
18. In case of technical problems, switch off the product and do not attempt to repair it yourself.
Return the appliance to an authorised service facility for examination, adjustment or repair.
Always insist on the use of original spare parts. Failure to comply with the above mentions
precautions and instructions, could affect the safe operation of this product.
19. Your appliance must never be switched on through an external timer or any kind of separate
remote control system
20. DO NOT PICK UP WET OR BURNING ITEMS WITH THIS PRODUCT
Helpline Number: 01733 404703
WWW.SWAN-BRAND.CO.UK
Helpline Number: 01733 404703
WWW.SWAN-BRAND.CO.UK
Specication
Model No.SC4010N
220-240V~50Hz
700W
wan
designed for life
wan
designed for life
1. Push to Open Dust Cup
(Container)
2. On/Off Power Switch
3. Suction Hole
4. Handle
5. Shoulder Strap
6. Square Brush
7. Nozzle Brush
8. Dust Cup Filter
9. Holes for attaching the
shoulder strap
10. Dust Cup (container)
11. Flexible Hose
Detatchingthelterfromthedustcup Fitting the strap
Vaccum must be switched off and unplugged during assembly, cleaning
or when emptying the dust cup
SC4010N.indd 4-5 21/06/2012 14:45

How to Use
1.Holdthehandvacuumrmlywithyourhandonthehandle(4).
2. Push the On/Off Power Switch (2) to “On” position.
3. Start vacuuming.
CAUTION: The Hand Vacuum is a very powerful unit. Make sure that
youholditrmly;otherwiseitcanslipoutofyourhandcauseinjury.
Cleaning and Maintainance
WARNING: Always unplug from electrical outlet before opening the
Dust Cup (container) (10)
1. To open the Dust Cup (container) (10), push button (1) and pull out
the Dust Cup (container) (10)
2. Pull out the Dust Cup Filter (8).
3. Empty the dust from the Dust Cup Filter (8).
4. Rinse the Dust Cup Filter (8) in cold water, and then wait until it dries
up before replacing it into the Dust Cup (container) (10).
5. Place the Dust Cup Filter (8) carefully into the Dust Cup (container)
(10).
6. Attach the Dust Cup (container) (10) to the Hand Vacuum.
CAUTION: The suction hole (3) must be open, free of any obstructions
at all items. Otherwise, the motor will overheat and could get damaged.
The outside of the vacuum can be cleaned with a cloth moistened in
mild detergent solution if necessary.
wan
designed for life
wan
designed for life
Helpline Number: 01733 404703
WWW.SWAN-BRAND.CO.UK
Helpline Number: 01733 404703
WWW.SWAN-BRAND.CO.UK
Parts & Assembly cont.
Pushattachmentsorexiblehoseintosuctionhole.Ifusingtheexible
hose,theattachmentcanbexeedintothat.
Overheat Protection Device
The motor on this product is equipped with a thermal safety cut-out.
If the vacuum is used for an unusually long period or if the bag is full or
clogged, the motor can become too hot. If this happens the vacuum will
stop working for a while. In this event simply put the switch to the OFF
positions and allow the unit to cool for 10-15 minutes. Once the motor
has cooled, switch the unit back on again.
NEVER USE THIS VACUUM TO PICK UP HOT ASH OR WATER
Spares
SC4010N-xx where xx is the part number:
SC4010N-5. Shoulder Strap
SC4010N-6. Square Brush
SC4010N-7. Nozzle Brush
SC4010N-8. Dust Cup Filter
SC4010N-10. Dust Cup (container)
SC4010N-11. Flexible Hose
SC4010N.indd 6-7 21/06/2012 14:45

The wires in the mains lead are coloured in accordance with the following code:
BLUE NEUTRAL
BROWN LIVE
As the colours of the wire in the mains lead of this appliance may not correspond with the colour
markings identifying the terminals on your plug, proceed as follows:
The wire which is coloured BLUE must be connected to the terminal which is marked with the letter
N or coloured black. The wire which is coloured BROWN must be connected to the terminal which
is marked with the letter L or coloured red.
WARNING: THIS APPLIANCE IS DOUBLE INSULATED DO NOT CONNECT ANY WIRE TO
THE EARTH TERMINAL
Declaration of EC Conformity
BS Plug Wiring
Disposal of Unit
Disposal instructions for Swan items in accordance with the WEEE directive. Appliances
bearing the symbol shown here may not be disposed of in domestic rubbish. You are
required to dispose of old electrical and electronic appliances like this separately. Please
visit www.recyclemore.co.uk, or www.recylcenow.co.uk for access to information about
the recycling of electrical items. The WEEE directive, introduced in August 2006, states
thatallelectricalitemsmustberecycled,ratherthantakentolandll.Pleasearrange
to take this appliance to your local Civic Amenity site for recycling, once it has reached
the end of its life.
WEEE Directive
We Swan Products Ltd Declare that this product conforms to all the following
product legislation. In accordance with the following directive(s):
2004/108/EEC. The Electromagnetic Compatibility Directive
2006/95EC. The LVD directive (Low Voltage Directive)
2002/95/EC. The RoHS. Directive. (Restriction of Hazardous substances Directive)
Kev Stewart
Product Manager
wan
designed for life
Helpline Number: 01733 404703
WWW.SWAN-BRAND.CO.UK
This product is guaranteed for 2 years from the date of original purchase. If any defect arises due
to faulty materials of workmanship the faulty products must be returned to the place of purchase.
Refunds or replacement is at the discretion of the store.
The following conditions apply:
The product must be returned to the retailer with proof of purchase.
The product must be installed and used in accordance with the instructions contained in this
instruction guide. It must be used only for domestic purposes. It does not cover wear and tear,
damage, misuse or consumable parts. Swan Products Ltd has limited liability for incidental or
consequential loss or damage.This guarantee is valid in the UK and Eire Only.
Two Year Warranty
Swan Brand Heritage
Components for the Swan Teasmade were
still being made at the original Bullpitt &
Sons factory o n Camden St, B irmingham
as recently as 2006.
Did you know...
Camden St, Birmingham c1933
SC4010N.indd 8-9 21/06/2012 14:45
