IBISTM
Duct diffuser with discs for supply air
IBIS
Quick facts
Ź100% flexible distribution pattern
ŹHigh induction capacity
ŹSuspended installation
ŹEasy installation
ŹModular length: 1500 mm
ŹAvailable in alternative colours
ŹIncluded in the MagiCAD and CadVent databases
Quick guide
A I R F L O W – S O U N D L E V E L
IBIS l/s
Size 25 dB(A) 30 dB(A) 35 dB(A)
160-1500-2 29 36 43
160-1500-4 40 48 56
160-3000-2 37 46 56
160-3000-4 47 57 69
200-1500-4 50 60 72
200-1500-6 62 76 86
200-3000-4 62 74 90
200-3000-6 77 90 110
A I R F L O W – S O U N D L E V E L
IBIS l/s
Size 25 dB(A) 30 dB(A) 35 dB(A)
250-3000-4 125 150 180
250-3000-6 145 170 205
250-4500-4 140 165 198
250-4500-6 158 180 215
315-3000-6 190 225 270
315-3000-8 220 260 310
315-4500-6 215 255 305
315-4500-8 230 270 325
400-3000-8 285 340 410
400-3000-10 320 380 455
400-4500-8 330 390 470
400-4500-10 355 420 500
500-1500-12 300 355 420
500-3000-12 450 530 625
630-1500-16 400 475 570
630-3000-16 650 775 900

2
IBIS
Swegon reserves the right to alter specifications. 20120925 www.swegon.com
Technical description
Design
IBIS duct air diffuser with discs has a diameter that is
compatible with standard duct sizes. IBIS is equipped with
aerodynamically designed discs that have a high induction
capacity. The 160 mm dia. and 200 mm dia. IBIS duct air dif-
fusers are equipped with Swegon’s small discs. The standard
duct diffuser is available in a number of sizes as shown in
Figure 12 as well as in the Dimensions and weights table. There
is an aluminium profiled bracket along the top of the duct. The
bracket runs longitudinally and serves as a flexible mounting
bracket for hanging the duct diffuser from the ceiling.
Materials and finish
The duct air diffuser with discs is made of galvanized
sheet steel and is painted in Swegon’s white standard
colour, RAL 9010. The discs are made of recyclable ABS
plastic. The air diffusers are also available in alternative
standard colours: RAL 7037 dusty grey, RAL 9006 white
aluminium, RAL 9005 jet black, RAL 9007 grey aluminium
and RAL 9003 signal white (NCS 0500).
Customizing
In addition to the size specified, the duct diffusers are available
in alternative sizes, number of discs, etc. For more info, get
in touch with your nearest Swegon representative.
Project planning
The discs are rotatable through 360°. This makes it pos-
sible to achieve an infinite number of horizontal or vertical
air diffusion combinations without altering the airflow,
sound level or pressure drop.
The duct diffusers are well-suited for installation in the
junction of a ceiling with a wall without reducing its
flow capacity. The discs on the back side are then set for
upward air discharge enabling the duct air diffuser to oper-
ate as a air diffuser with one-way air discharge. See Figures
1 and 2 for examples of principle air diffusion patterns.
Normal hanger length is 200 mm. The smallest permit-
ted hanger length is 100 mm which generates slightly
increased throw.
Commissioning
An IBIS C (see under accessories) or a flow measuring damper
installed in the duct system upstream of the duct diffuser is
recommended for commissioning and airflow measurements.
The Methodic errors table and Figure 3 describes require-
ments on straight duct lengths for upstream obstructions.
Accessories
IBIS D: Duct section of the same design as IBIS but
without discs.*)
IBIS C: Sound attenuating measurement and control unit.*)
IBIS B: 45° and 90° bend painted white.*)
IBIS T: T-piece painted white.*)
*) Available for sizes 160-400. For 500 and 630, standard acces-
sories are recommended.

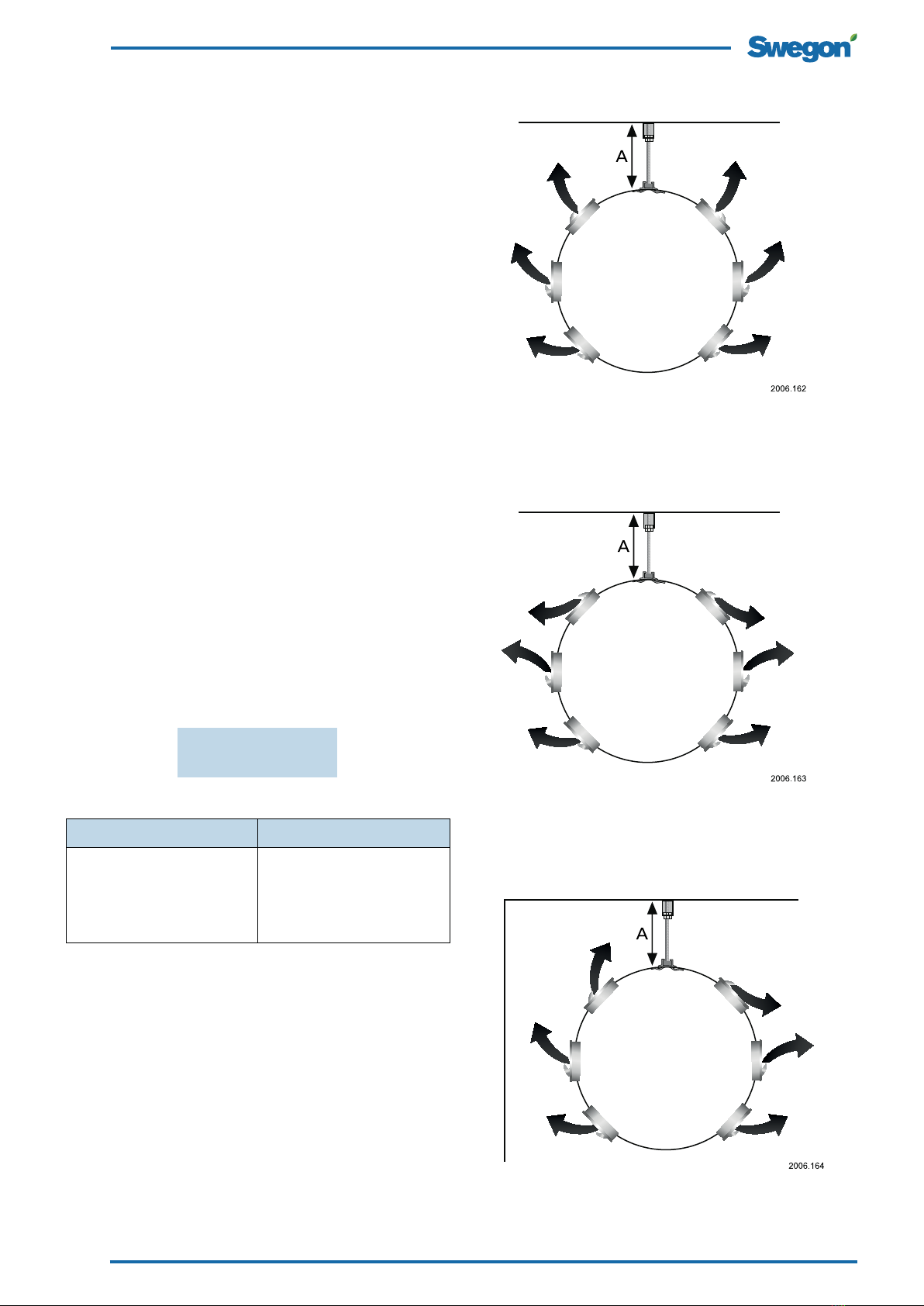

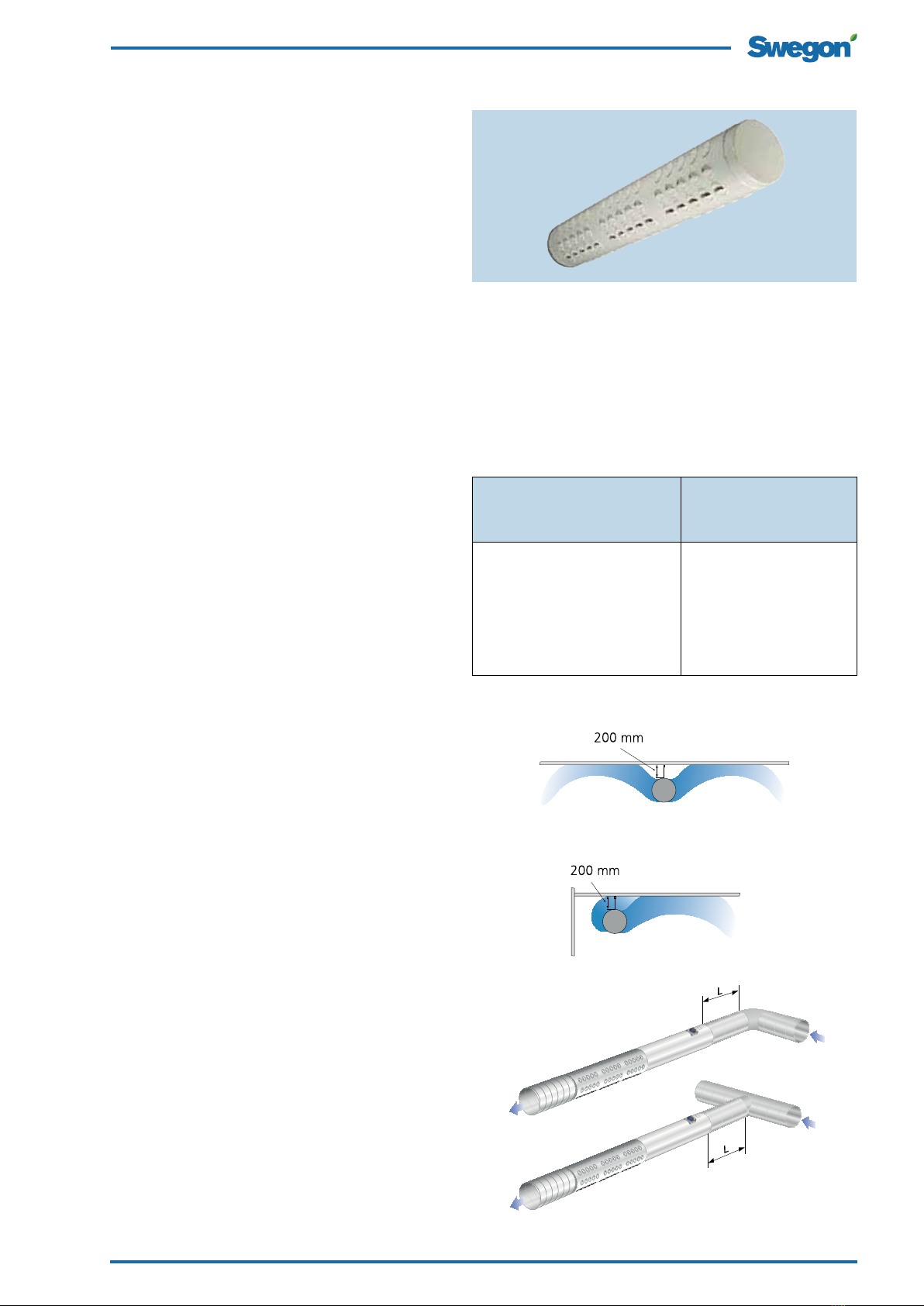

Figure 1. 2-way air discharge.
Figure 2. 1-way air discharge.
Figure 3. Project planning.
Maintenance
The air diffuser can be cleaned, if necessary, using luke-
warm water with dishwashing detergent added or by
vacuum cleaning using a brush nozzle.
Environment
The Declaration of Construction Materials is available
from www.swegon.com.
Methodic Errors
Type of obstruction Length of straight duct (L)
upstream of the IBIS C
upstream of the IBIS C For m2= 5% For m2=10%
One 90° bend. 3 x Ød 2 x Ød
Two 90° bends in the same plane. 4 x Ød 2 x Ød
Two 90° bends in aligment at
right angles to one another.
4 x Ød 2 x Ød
One 45° damper. 6 x Ød 3 x Ød
One T-piece. 4 x Ød 3 x Ød
m2= methodic error. Method for measurement of airflows in
ventilation Installations.

3
IBIS
Swegon reserves the right to alter specifications. 20120925 www.swegon.com
IBIS
IBIS components
Size Sections Standard joint Distribution joint End cover Set with installation accessories
IBIS -aaa-1500-c 1 1 - 1 1
IBIS -aaa-3000-c 2 1 1 1 2
IBIS -aaa-4500-c 3 1 2 1 3
IBIS D-aaa 1 1 1
Figure 4. Installation options: A, B and C.
15
C
15
A
a.
b,
15
B
II. Position after reassembly
and installation
I.
II.
I. Position on delivery
Installation
The duct diffuser is suspended by hangers from the cei-
ling. The air diffusers can be installed as in the following
examples:
Phase A
s While the duct section (1) is lying on the floor, insert a
size M-8 bolt (2) approx. 100 mm from the end on the
longitudinal profiled bracket (3). Do the same in the
other end of the profiled bracket.
s Secure the bolts in the profiled bracket with long nuts
(4). Screw a threaded rod (5) of appropriate length into
each long nut.
s Secure the Z-profiled brackets (6) with bolts to the cei-
ling to serve as mounting brackets for the duct-shaped
air diffusers with discs.
s Hang the duct air diffuser with discs (1) in the Z-profiled brack-
ets (6) and join it together with the connecting supply air duct
(7) using the standard duct joint (8) included in the supply.
s Adjust the duct diffuser using the nuts (9) until the air
diffusers are horizontal and have the correct height
above the floor. Fit the white plastic covering supplied
(15) onto the threaded rod.
Phase B
s Remove the end cover (13) and move it to the outmost
section if more sections are to be installed. Press the
distribution joint supplied (10) in the mounted section
of the duct diffuser (1).
s Insert the guide pin (11) in the free end of the installed
section.
s Repeat phase A to install the next section (12). Now it
is sufficient to use one bolt in the other end when the
second duct diffuser section is to be secured across the
joint to the section that you’ve already installed. Secure
the distribution joint (10) with self-tapping screws in
the sections. Repeat Phase B for last section.
Phase C
s Install the inactive IBIS D duct sections (14) in the same
way as the duct air diffuser sections with discs. Note
the use of supplied joints (8) and distribution joints (10)
included in the supply.
s In all deliveries, the end cover (13) supplied is already
fitted to the first section. The end cover is always moved
to the last section (except when only 1500 mm long
ducts are installed), see Phase B in Figure 4.

4
IBIS
Swegon reserves the right to alter specifications. 20120925 www.swegon.com
Technical data
s Sound level dB(A) applies to rooms with 10 m2equiva-
lent sound absorption area (4 dB room attenuation).
s Throw l0.2 is measured for isothermal air discharge and
applies to installation 200 mm from the ceiling.
s A max. permissible temperature below room temperature
of 8 °C is recommended for standard setting of the discs.
s The recommended highest permissible air velocity in
the duct upstream of the air diffuser is 3-4 m/s.
s For calculating the air stream propagation, air veloci-
ties in the occupied zone, or sound levels in rooms
with other dimensions, we refer to our ProAir Web and
ProAc calculation programs at www.swegon.com.
Acoustic data
IBIS – supply air – diffuser only
Sound power level, LW(dB)
Table Kok
Size Mid-frequency (Octave band) Hz
IBIS 63 125 250 500 1000 2000 4000 8000
160-1500-2 -1 2 7 4 -2 -11 -21 -21
160-1500-4 -3 3 6 5 -5 -16 -25 -20
160-3000-2 -4 5 9 4 -5 -16 -23 -19
160-3000-4 -3 3 8 4 -6 -19 -26 -21
200-1500-4 14 8 4 -4-14-23-20
200-1500-6 1 3 7 5 -5 -16 -22 -16
200-3000-4 15103 -7 -19-28-20
200-3000-6 2 4 9 4 -8 -21 -28 -23
250-1500-4 28 9 3 -6 -15-20-20
250-1500-6 2 6 8 4 -5 -16 -19 -16
250-3000-4 48102 -7 -16-20-18
250-3000-6 3 6 8 4 -6 -15 -18 -14
250-4500-4 1810 2 -6 -15-20-19
250-4500-6 3 7 7 4 -5 -14 -18 -14
315-1500-6 1 7 10 2 -5 -17 -24 -25
315-1500-8 08103 -6-18-21 -17
315-3000-6 2 9 10 2 -6 -19 -24 -23
315-3000-8 1 8 9 3 -6 -17 -19 -15
315-4500-6 29102 -6-18-22-21
315-4500-8 5 8 9 2 -6 -15 -16 -12
400-1500-8 4 9 9 2 -5 -15 -19 -17
400-1500-10 2 8 9 2 -5 -15 -20 -17
400-3000-8 5 11 10 2 -6 -17 -21 -19
400-3000-10 410 9 2 -6 -16 -18 -15
400-4500-8 4 11 10 2 - 6 -17 -21 -19
400-4500-10 4 10 9 2 -6 -16 -19 -16
500-1500-12 38 8 3 -3 -14-25-25
500-3000-12
510 9 3 -5 -19 -26 -21
630-1500-16 2 9 7 4 -3 -15 -24 -21
630-3000-16
410 8 3 -5 -17 -20 -14
Tol. ± 22 2 2 2 2 2 2
Sound attenuation 'L(dB)
Table 'L
Size Mid-frequency (Octave band) Hz
IBIS 63 125 250 500 1000 2000 4000 8000
160-1500-2 2115952100
160-1500-4 2115952100
160-3000-2 2115952100
160-3000-4 2115952100
200-1500-4 1610521000
200-1500-6 1610521000
200-3000-4 1610521000
200-3000-6 1610521000
250-1500-4 106521000
250-1500-6 106521000
250-3000-4 105411000
250-3000-6 105411000
250-4500-4 105410000
250-4500-6 95410000
315-1500-6 96411000
315-1500-8 96411000
315-3000-6 96411000
315-3000-8 96411000
315-4500-6 95420000
315-4500-8 95420000
400-1500-8 95321000
400-1500-10 95321000
400-3000-8 95310000
400-3000-10 95310000
400-4500-8 95310000
400-4500-10 95310000
500-1500-12 84311111
500-3000-12 84311111
630-1500-16 63211100
630-3000-16 63211100
Tol. ± 22222222

5
IBIS
Swegon reserves the right to alter specifications. 20120925 www.swegon.com
IBIS
IBIS + IBIS Ca 1500
Sound power level, LW(dB)
Table KOK
Size Mid-frequency (Octave band) Hz
IBIS a +
IBIS Ca 1500 63 125 250 500 1000 2000 4000 8000
160-1500-2 -1 6 7 3 -2 -10 -20 -22
160-1500-4 06 6 4 -3 -12 -23 -25
160-3000-2 38 8 3 -4 -13 -22 -23
160-3000-4 07 7 4 -4 -13 -22 -22
200-1500-4 07 8 4 -5 -14 -22 -25
200-1500-6 1 7 8 4 -6 -15 -23 -24
200-3000-4 0 8 9 3 -7 -16 -22 -24
200-3000-6 0 8 9 4 -7 -16 -22 -24
250-3000-4 59 8 3 -5 -11 -20 -22
250-3000-6 59 8 3 -5 -11 -20 -22
250-4500-4 38 7 3 -4 -7 -15 -21
250-4500-6 38 7 3 -4 -7 -15 -21
315-3000-6 49 9 2 -5 -14 -20 -23
315-3000-8 49 9 2 -5 -14 -20 -23
315-4500-6 49 9 2 -5 -14 -20 -23
315-4500-8 49 9 2 -5 -14 -20 -23
400-3000-8 410 9 2 -5 -14 -20 -23
400-3000-10 410 9 2 -5 -14 -20 -23
400-4500-8 49 9 2 -4 -12 -19 -23
400-4500-10 49 9 2 -4 -12 -19 -23
Not applicable to control unit with sizes 500 and 630)
Sound attenuation 'L (dB)
Table'L
Size Mid-frequency (Octave band) Hz
IBIS a +
IBIS Ca 1500 63 125 250 500 1000 2000 4000 8000
160-1500-2 30 20 14 10 8 11 17 14
160-1500-4 30 20 14 10 8 11 17 14
160-3000-2 30 20 14 10 8 11 17 14
160-3000-4 30 20 14 10 8 11 17 14
200-1500-4 20 15 11 10 10 17 17 14
200-1500-6 20 15 11 10 10 17 17 14
200-3000-4 20 15 11 10 10 17 17 14
200-3000-6 20 15 11 10 10 17 17 14
250-3000-4 16 13 9 11 14 22 17 15
250-3000-6 16 13 9 11 14 22 17 15
250-4500-4 16 13 9 11 14 22 17 15
250-4500-6 16 13 9 11 14 22 17 15
315-3000-6 15 10 7 8 11 15 10 11
315-3000-8 15 10 7 8 11 15 10 11
315-4500-6 15 10 7 8 11 15 10 11
315-4500-8 15 10 7 8 11 15 10 11
400-3000-8 11 7 5 6 8 11 9 9
400-3000-10 11 7 5 6 8 11 9 9
400-4500-8 11 7 5 6 8 11 9 9
400-4500-10 11 7 5 6 8 11 9 9
Not applicable to control unit with sizes 500 and 630)

6
IBIS
Swegon reserves the right to alter specifications. 20120925 www.swegon.com
Figure 5. 2-way air discharge with short throw. All the discs are
set for discharging air upward toward the aluminium strip.
Figure 7. 1-way air discharge toward a wall. The uppermost row
of discs on the air diffuser half facing the room should discharge
air downward; the other discs should discharge air upward.
Throws
2-way air discharge, short
The throws for 2-way air discharge, short, are specified on
the following pages in the sizing diagram.
Example:
IBD-315-3500-8 produces a flow of 260 l/s at 30 dB(A). A
throw of 4.3 m is specified.
2-way air discharge, long
To calculate the throw for "2-way air discharge, long"
multiply the throw in the relevant diagram by 1.75.
Example:
IBD-315-3000-8 produces a flow of 260 l/s at 30 dB(A).
A throw of 4.3 m is specified. The throw for 2-way air
discharge will then be: 1.75 x 4.3 m = 7.5 m
1-way air discharge
To calculate the throw for 1-way air discharge, multiply
the throw in the relevant diagram by 2.0.
Example:
IBD-315-3000-8 produces a flow of 260 l/s at 30 dB(A).
A throw of 4.3 m is specified. The throw for 1-way air
discharge will then be: 2.0 x 4.3 m = 8.6 m
For the calculation of throws for air that is below or above
room temperature, refer to our ProAir air diffuser selec-
tion program which is available at www.swegon.com.
Figure 6. 2-way air discharge with long throw. The uppermost
row of discs on both sides of the aluminium strip should be set
for downward air discharge.
Correction factor for hanger lengths
Throw for different hanger lengths according to table
below. Throw illustrated in catalog diagrams refers to
hanger length A = 200 mm.
l0,2 = KPx l 0,2 standard
Hanger length A KP
300 mm 0,85
200 mm 1,0
100 mm 1,15
0 mm*) 1,2
*) Direct installation against ceilings can only be done for
2-way air discharge, according to figure 6.

7
IBIS
Swegon reserves the right to alter specifications. 20120925 www.swegon.com
IBIS

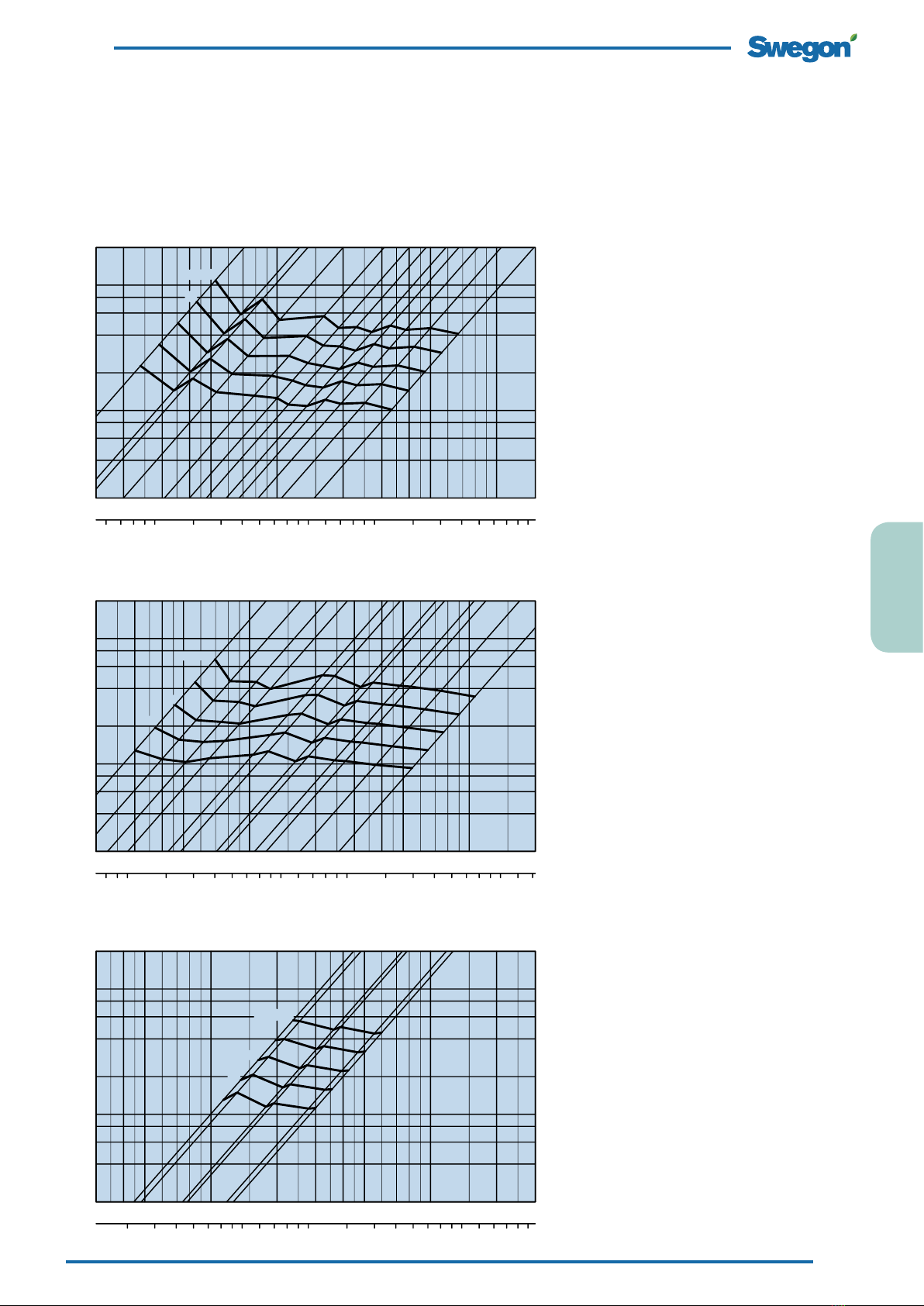

Sizing diagram
1. IBIS 160 -1500 -2
2. IBIS 160-1500-4
3. IBIS 200-1500-4
4. IBIS 200-1500-6
5. IBIS 250-1500-4
6. IBIS 250-1500-6
7. I B IS 315 -15 0 0 - 6
8. IBIS 315-1500-8
9. IBIS 400-1500-8
10. IBIS 400-1500-10
11. IBIS 500-1500-12
12. IBIS 630-1500-16
1. IBIS 250-4500-4
2. IBIS 250-4500-6
3. IBIS 315-4500-6
4. IBIS 315-4500-8
5. IBIS 400-4500-8
6. IBIS 400-4500-10
IBIS 250-400 4500
1. IBIS 160-3000-2
2. IBIS 160-3000-4
3. IBIS 200-3000-4
4. IBIS 200-3000-6
5. IBIS 250-3000-4
6. IBIS 250-3000-6
7. IBIS 315-3000-6
8. IBIS 315-3000-8
9. IBIS 400-3000-8
10. IBIS 400-3000-10
11. IBIS 500-3000-12
12. IBIS 630-3000-16
IBIS 160-400 all 3000
IBIS 160-630 all 1500
Airflow - Pressure drop - Sound level
s The diagram should not be used for commissioning.
s The dB(A) values are for rooms with normal acoustic
absorption (4 dB room attenuation).
s The dB(C) value is normally 6-9 dB higher than the
dB(A) value. For more accurate calculations, see the
calculation template in the Technical Information sec-
tion of the catalogue under Acoustic Data.
p
t
Pa
100 200 300 400 500 1000 2000 3000 4000m
3
/h
20 30 40 50 100 200 300 400 500 1000 l/s
1
2
3
4
5
10
20
30
40
50
100
20
25
30
35
40 dB(A)
1
23 4
5 678910
11
12
p
t
Pap
t
Pa
200 300 400 500 1000 2000 3000 40005000 m
3
/h
p
t
Pap
t
Pa
30 40 50 100 200 300 400 500 1000 2000 l/s 3000
1
2
3
4
5
10
20
30
40
50
100
'
20
25
30
35
40 dB(A)
12 34
56
p
t
Pa
100 200 300 400 500 1000 2000 3000 40005000 m
3
/h
20 30 40 50 100 200 300 400 500 1000 l/s 2000
1
2
3
4
5
10
20
30
40
50
100
20
25
30
35
40 dB(A)
1 2 34 56
78
910
11
12

8
IBIS
Swegon reserves the right to alter specifications. 20120925 www.swegon.com
p
t
Pa
400 500 1000 2000 m
3
/h
100 200 300 400 500 l/s 1000
1
2
3
4
5
10
20
30
40
50
20 25
30 35
40 dB(A)
1500
3000
3000
2 3 4 5 10
1500
m
0,2
l
p
t
Pa
1000 2000 3000 4000 m
3
/h
200 300 400 500 1000 l/s
1
2
3
4
5
10
20
30
40
50
20
25
30
35
40 dB(A)
1500
3000
3000
3 4 5 10 20
1500
m
0,2
l
IBIS 500 IBIS 630
Diagrams for IBIS – diffuser only
Diagrams for IBIS with control unit IBIS C
p
t
Pa
40 50 100 200 m
3
/h
10 20 30 40 50 l/s 100
10
20
30
40
50
100
200
300
20
25
30
35
40 dB(A)
100%
0%
1 2 3 4 5 m
0,2
l
p
t
Pa
50 100 200 300 m
3
/h
20 30 40 50 100 l/s
10
20
30
40
50
100
200
300
20
25
30
35
40 dB(A)
100%
0%
1 2 3 4 5 m
0,2
l
IBIS 160-1500-2 + IBIS C 1500 IBIS 160-1500-4 + IBIS C 1500

9
IBIS
Swegon reserves the right to alter specifications. 20120925 www.swegon.com
IBIS
p
t
Pa
50 100 200 300 m
3
/h
20 30 40 50 100 l/s
10
20
30
40
50
100
200
300
20
25
30
35
40 dB(A)
100%
0%
1 2 3 4 5 m
0,2
l
p
t
Pa
100 200 300 400 m
3
/h
20 30 40 50 100 l/s
10
20
30
40
50
100
200
300
20
25
30
35
40 dB(A)
100%
0%
1 2 3 4 5 m
0,2
l
p
t
Pa
100 200 300 400 500 m
3
/h
20 30 40 50 100 l/s
10
20
30
40
50
100
200
300
20
25
30
35
40 dB(A)
100%
0%
1 2 3 4 5 m
0,2
l
p
t
Pa
100 200 300 400 500 m
3
/h
20 30 40 50 100 l/s 200
10
20
30
40
50
100
200
300
20
25
30
35
40 dB(A)40 dB(A)
100%
0%
1 2 3 4 5 m
0,2
l
IBIS 160-1500-2 + IBIS C 1500 IBIS 160-1500-4 + IBIS C 1500
IBIS 160-3000-2 + IBIS C 1500 IBIS 160-3000-4 + IBIS C 1500
p
t
Pa
100 200 300 400 500 m
3
/h
20 30 40 50 100 l/s 200
5
10
20
30
40
50
100
200
20
25
30
35
40 dB(A)
100%
0%
1 2 3 4 5 m
0,2
l
p
t
Pa
100 200 300 400 500 m
3
/h
20 30 40 50 100 l/s 200
5
10
20
30
40
50
100
200
20
25
30
35
40 dB(A)
100%
0%
1 2 3 4 5
m
0,2
l
IBIS 200-1500-4 + IBIS C 1500 IBIS 200-1500-6 + IBIS C 1500

10
IBIS
Swegon reserves the right to alter specifications. 20120925 www.swegon.com
p
t
Pap
t
Pa
200 300 400 500 1000 m
3
/h
p
t
Pap
t
Pa
40 50 100 200 300 l/s 400
5
10
20
30
40
50
100
200
20
25 30
35
40 dB(A)
100%
0%
1 2 3 4 5 m
0,2
l
p
t
Pap
t
Pa
200 300 400 500 1000 m
3
/h
p
t
Pap
t
Pa
40 50 100 200 300 l/s 400
5
10
20
30
40
50
100
200
20
25 30
35
40 dB(A)
100%
0%
1 2 3 4 5 m
0,2
l
p
t
Pap
t
Pa
200 300 400 500 1000 m
3
/h
p
t
Pap
t
Pa
40 50 100 200 300 l/s 400
5
10
20
30
40
50
100
200
20
25 30 35
40 dB(A)
100%
0%
1 2 3 4 5 m
0,2
l
p
t
Pap
t
Pa
200 300 400 500 1000 m
3
/h
p
t
Pap
t
Pa
40 50 100 200 300 l/s 400
5
10
20
30
40
50
100
200
20
25
30
35
40 dB(A)
100%
0%
1 2 3 4 5 m
0,2
l
IBIS 250-3000-4 + IBIS C 1500 IBIS 250-3000-6 + IBIS C 1500
IBIS 250-4500-4 + IBIS C 1500 IBIS 250-4500-6 + IBIS C 1500
p
t
Pap
t
Pa
300 400 500 1000 2000 m
3
/h
p
t
Pap
t
Pa
100 200 300 400 500 l/s
5
10
20
30
40
50
100
200
20
25
30
35
40 dB(A)
100%
0%
2 3 4 5 10 m
0,2
l
p
t
Pap
t
Pa
300 400 500 1000 2000 m
3
/h
p
t
Pap
t
Pa
100 200 300 400 500 l/s
5
10
20
30
40
50
100
200
20
25 30
35
40 dB(A)
100%
0%
2 3 4 5 10 m
0,2
l
IBIS 315-3000-6 + IBIS C 1500 IBIS 315-3000-8 + IBIS C 1500

11
IBIS
Swegon reserves the right to alter specifications. 20120925 www.swegon.com
IBIS
p
t
Pap
t
Pa
400 500 1000 2000 m
3
/h
p
t
Pap
t
Pa
100 200 300 400 500 l/s 1000
5
10
20
30
40
50
100
200
20 25
30
35
40 dB(A)
100%
0%,
2 3 4 5 10 m
0,2
l
p
t
Pap
t
Pa
400 500 1000 2000 m
3
/h
p
t
Pap
t
Pa
100 200 300 400 500 l/s 1000
5
10
20
30
40
50
100
200
20 25
30
35
40 dB(A)
100%
0%
2 3 4 5 10
m
0,2
l
p
t
Pap
t
Pa
300 400 500 1000 2000 m
3
/h
p
t
Pap
t
Pa
100 200 300 400 500 l/s
5
10
20
30
40
50
100
200
20
25
30
35
40 dB(A)
100%
0%
2 3 4 5 10 m
0,2
l
p
t
Pap
t
Pa
300 400 500 1000 2000 m
3
/h
p
t
Pap
t
Pa
100 200 300 400 500 l/s
5
10
20
30
40
50
100
200
20
25 30
35
40 dB(A)
100%
0%
2 3 4 5 10
m
0,2
l
p
t
Pap
t
Pa
400 500 1000 2000 m
3
/h
p
t
Pap
t
Pa
100 200 300 400 500 l/s 1000
5
10
20
30
40
50
100
200
20 25
30
35
40 dB(A)
100%
0%
2 3 4 5 10 m
0,2
l
IBIS 315-4500-6 + IBIS C 1500 IBIS 315-4500-8 + IBIS C 1500
IBIS 400-3000-8 + IBIS C 1500 IBIS 400-3000-10 + IBIS C 1500
p
t
Pap
t
Pa
400 500 1000 2000 m
3
/h
p
t
Pap
t
Pa
100 200 300 400 500 l/s 1000
5
10
20
30
40
50
100
200
20 25
30
35
40 dB(A)
100%
0%
2 3 4 5 10
m
0,2
l
IBIS 400-4500-8 + IBIS C 1500 IBIS 400-4500-10 + IBIS C 1500

12
IBIS
Swegon reserves the right to alter specifications. 20120925 www.swegon.com
Dimensions and weights
Size ØD L m n Weight (kg)
160-1500-2 159 1450 1 30 4.5
160-1500-4 159 1450 1 60 4.5
160-3000-2 159 2950 2 60 9.0
160-3000-4 159 2950 2 90 9.4
200-1500-4 199 1450 1 60 6,0
200-1500-6 199 1450 1 90 6.0
200-3000-4 199 2950 2 120 12.0
200-3000-6 199 2950 2 180 12.0
250-1500-4 249 1450 1 60 6.0
250-1500-6 249 1450 1 90 6.0
250-3000-4 249 2950 2 120 12.0
250-3000-6 249 2950 2 180 12.0
250-4500-4 249 4350 3 180 18.0
250-4500-6 249 4350 3 207 18.0
315-1500-6 314 1450 1 90 8.5
315-1500-8 314 1450 1 120 8.5
315-3000-6 314 2900 2 180 17.0
315-3000-8 314 2900 2 240 17.0
315-4500-6 314 4350 3 270 25.5
315-4500-8 314 4350 3 360 25.5
400-1500-8 399 1450 1 120 10.0
400-1500-10 399 1450 1 150 10.0
400-3000-8 399 2900 2 240 20.0
400-3000-8 399 2900 2 300 20.0
400-4500-8 399 4350 3 360 300,
400-4500-10 399 4350 3 450 30.0
500-1500-12 499 1450 1 180 12.5
500-3000-12 499 2950 2 360 25
630-1500-16 629 1450 1 240 15
630-3000-16 629 2950 2 480 30
m = number of duct modules
n = number of discs/total length
Figure 8. IBIS and IBIS D*). (The dimension refers to one section.)
Figure 11. IBIS T*).
Figure 10. IBIS B*).
Figure 9. IBIS C*).
*) Available for sizes 160-400, not for sizes 500 and 630.

13
IBIS
Swegon reserves the right to alter specifications. 20120925 www.swegon.com
IBIS
Figure 12. Arrangement of the discs.
Disc settings

14
IBIS
Swegon reserves the right to alter specifications. 20120925 www.swegon.com
Specification text
TD XX
Swegon’s type IBIS circular duct air diffuser with discs
for suspended installation from a ceiling with the fol-
lowing functions:
s 100% flexible air distribution pattern
s Individually adjustable discs made of recyclable ABS
plastic
s 1500 mm long modules
s Duct joints and end cover
s Powder paint sprayed and baked white finish
Size: IBISa -315-3000-6 xx items
Accessory:
Duct section, 1,500 mm: IBIS Da -315 xx items
Ordering key
Product
IBIS Duct air diffuser with discs
For suspended installation
from the ceiling
IBIS a -aaa -bbbbb -c
Version
Size: 160, 200, 250, 315, 400, 500 and 630
Nom. length: 1500, 3000, 4500*)
Number of disc rows: 2, 4, 6, 8, 10, 12 and 16.
Accessories
Duct section. Nom. length of 1500 mm IBIS D a -bbb
Version
Size: 160, 200, 250, 315 and 400
Sound attenuating measurement
and control unit
IBIS C a -bbb
Version
Size: 160, 200, 250, 315, 400
Duct bend IBIS B a -aa -bbb
Version
Variant: 45°, 90°
Size: 160, 200, 250, 315, 400
T-piece IBIS T a -aaa
Version
Size: 160, 200, 250, 315, 400
*) 1500, 3000 for 160, 200, 500 and 630
1500, 3000, 4500 for 250-400
