Swegon EXP Free a Guide

kpq
k
pq

( )2
EXP Free x
Tomelilla
Sweden
XXX
k = XX
k
p
q
F
R
Å
N
L
U
F
T
/
E
X
T
R
A
C
T
A
I
R
Installation
The air diffuser is normally suspended from the ceiling. An M8
pop nut, i.e. a threaded grommet that facilitates installation,
is provided at the top and in the centre of the air diffuser. On
sizes 315 and 400, there are two M8 pop nuts for more stable
mounting, see figure 3 and 4.
Commissioning
Commissioning should be carried out with the wall dif-
fuser face mounted. Pull the measuring tubes and damper
adjustment cords out of the air diffuser through the hole
in the front. Then connect the manometer to the cor-
rect measuring tube(s); A transparent measuring tube for
extract air. The rated coefficient of performance of the
air diffuser can be used in a calculation to determine the
required commissioning pressure. Conclude commission-
ing by adjusting the damper to the correct blade position,
tie a commissioning knot in the damper cords to indicate
the damper position. See Figure 3.
The K-factor is specified on the product’s identification
label and last in these instructions.
Maintenance
• Clean the air diffuser if needed with lukewarm water
and dishwashing detergent added.
• The duct system can be accessed and lightly pulling
the spring-loaded diffuser face downwards and then
tilting, see figure 2.
• Dismantle the perforated air distribution plate located
on the inlet as shown in figure 5.
• Loosen the damper in the inlet from its bayonet fasten-
ing by rotating to the side.

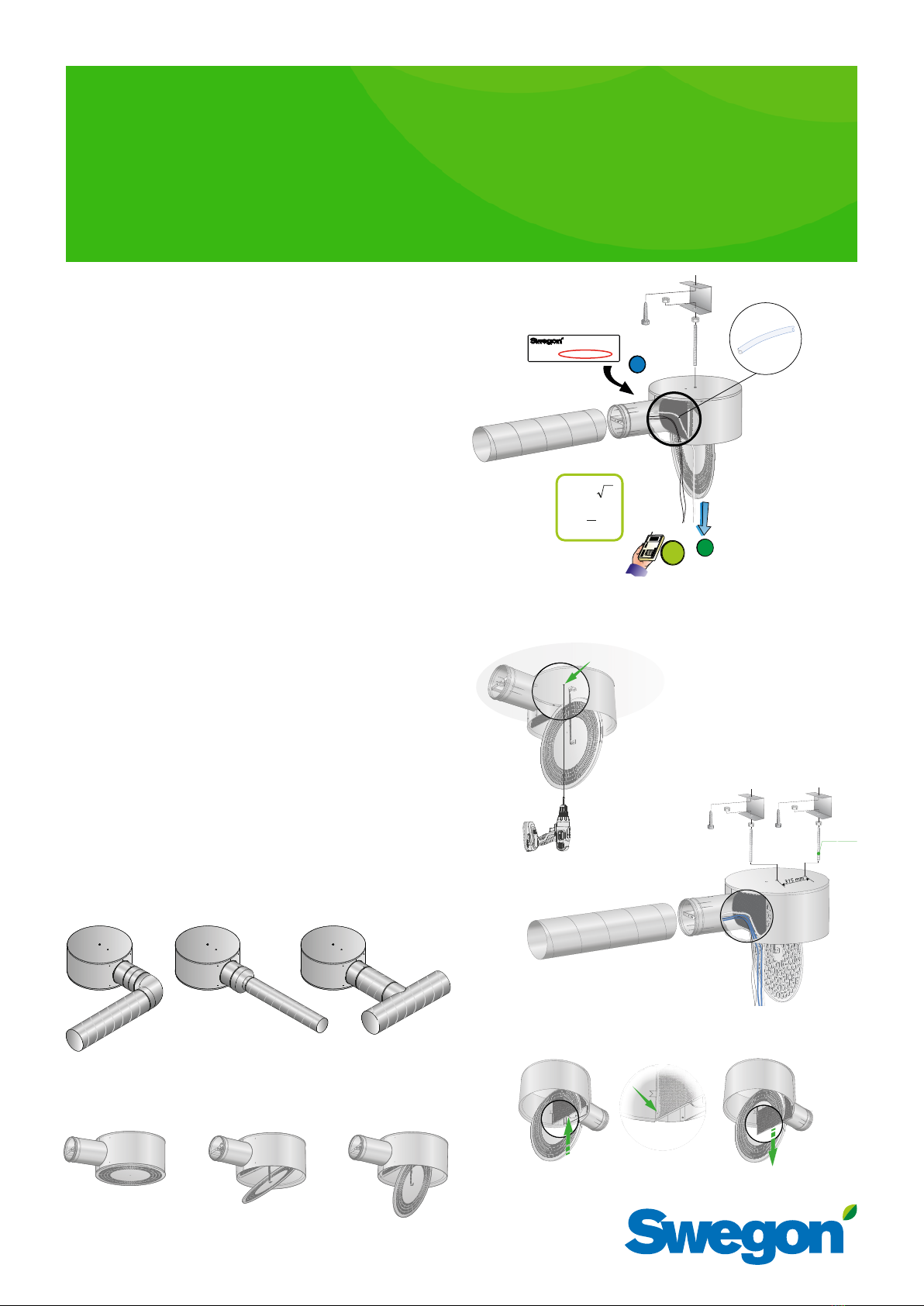

Figure 3. Installation. Commissioning. Maintenance.
q = measured flow l/s
p = current pressure reading (Pa)
k = commissioning factor
k-factor
Figure 2. Spring-loaded front.
Figure 5. Dismantling the distribution plate.
Figure 4a. Alternative installation.
0xD / ±5% 0xD / ±5% 2xD / ±10%
Figure 1. Length of straight section of duct
Figure 4b. Extra M8 pop nut, size 315 and 400.
Applies only for
size 315 & 400.
EXP Free a
Installation – Commissioning – Maintenance 20180905

Figure 6. EXP Free.
K-factor (COP)
EXP F extract air
Size EXP F extract air Colour of the tube
100 5.3 Transparent
125 8.2 Transparent
160 14 Transparent
200 21.9 Transparent
250 33.7 Transparent
315 53 Transparent
400 73.3 Transparent
Number of measuring tubes: 1
NOTE! The blue tubes can be used if the product is converted
for supply air with the distributor being replaced with discs
for COLIBRI Fa and EAGLE Ff.
Dimensions and weight
Size A B C D E Weight,
kg
100 304 192 118 99 96 3.0
125 380 217 210 124 108 4.0
160 456 252 220 159 126 5.5
200 568 288 230 199 144 8.0
250 568 338 275 249 169 9.0
315 700 388 330 314 194 13.0
400 700 488 350 399 244 16.0
EXP Free
2
Swegon reserves the right to alter specications. 20181005
